NXR-700/ NXR-800 © B62-XXXX-00 (E) 09 08 07 06 05 04 03 02 01 00 VHF DIGITAL BASE-REPEATER/ UHF DIGITAL BASE-REPEATER INSTRUCTION MANUAL BASE-RELAIS NUMÉRIQUE VHF/ BASE-RELAIS NUMÉRIQUE UHF MODE D'EMPLOI BASE-REPETIDOR DIGITAL VHF / BASE-REPETIDOR DIGITAL UHF MANUAL DE INSTRUCCTIONES BASE-RIPETITORE DIGITALE VHF/ BASE-RIPETITORE DIGITALE UHF MANUALE DI ISUTRUZIONI VHF DIGITAL BASE-REPEATER/ UHF DIGITAL BASE-REPEATER BEDIENUNGSANLEITUNG VHF DIGITALE BASIS REPEATER/ UHF DIGITALE BASIS REPEATER GEBRUIKSAANWIJZING  UNPACKING AND CHECKING EQUIPMENT Note: The following unpacking information is for use by your Kenwood dealer, an authorized Kenwood service center, or the factory. Carefully unpack the repeater. We recommend that you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, file a claim with the carrier immediately. ItemPart NumberQuantity Front glassB10-2781-XX1 Dressed screwN08-0563-XX1 BracketJ29-0725-XX2 Flat head machine screwN32-4008-XX4 Handle and screw setK01-0421-XX1 DC cordE30-3344-XX1 Lead wire with connector (15 pin)E37-1381-XX1 Fuse (15 A)F05-1537-XX1 Instruction ManualB62-XXXX-XX1 INSTALLATION To install the handles onto the front panel of the repeater, align the handles with the holes on the front panel, then secure the handles using the supplied screws. Please consult your dealer for installing the repeater and antenna. MICROPHONE Connect an optional KMC-30, KMC-35, or KMC-9C Kenwood microphone to the MICROPHONE jack on the front panel. OCXO UNIT (KXK-3):Option The OCXO unit (KXK-3) is an Oven Controlled Crystal Oscillator (OCXO) unit. NOTICES TO THE USER ◆ Government law prohibits the operation of unlicensed radio transmitters within the territories under government control. ◆ Illegal operation is punishable by fine and/or imprisonment. ◆ Refer service to qualified technicians only. ◆ This repeater is intended for use as a fixed base station with the antenna located outdoors on the rooftop or on an antenna tower. (except U.S.A. and Canada) ◆ This repeater is designed for a 13.2 V DC power source! Never use a 24 V DC or higher source to power the repeater. ◆ Use only the supplied DC cord. ◆ Do not remove the ferrite core attached to the DC cord. Doing so may cause interference with radio communications. The AMBE+2 voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos. #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. THANK YOU! We are grateful you purchased this Kenwood repeater. We believe this easy-to-program repeater will be highly effective in your communications system, and will keep personnel operating at peak efficiency. Kenwood incorporates the latest in advanced technology into all of our products. As a result, we feel strongly that you will be pleased with the quality and features of this product. PRECAUTIONS • Do not expose the unit to rain or moisture; to prevent fire or electric shock. • Do not open the unit under any circumstances; to avoid risk of electric shock. • Do not expose the unit to long periods of direct sunlight, nor place it close to heating appliances. • Do not place the unit in excessively dusty and/or humid areas, nor on unstable surfaces. • If you detect an abnormal odor or smoke coming from the unit , disconnect the power from the unit immediately. Contact your Kenwood service center or dealer. NXR-700 / NXR-800 INSTRUCTION MANUAL VHF DIGITAL BASE-REPEATER / UHF DIGITAL BASE-REPEATER  REPEATER OPERATION Note: Please consult your dealer for programming the repeater. Due to the frequency stability on the 6.25 kHz bandwidth channel, when operating the repeater using an optional OCXO unit, allow the unit to warm up for 24 hours after turning the power on. After turning on the power, wait for approximately 10 seconds for the VCXO or 5 minutes for the OCXO (when mounting) to warm up. During this time, the CH/STATUS Display will blink. The keys will function when they are pressed. When power is applied to the unit, the POWER indicator lights green. Turn the VOLUME control clockwise until a click sounds, to unmute the audio. Rotate to adjust the audio. Turn the VOLUME control counterclockwise fully to mute the audio. The BUSY indicator lights green while receiving a signal and the TX indicator lights red while transmitting. ■ Rear Panel q RX IN jack Connect an RX antenna or a duplexer to this BNC receptacle. w TEST/SPKR jack Test input/output jack. Connect an external speaker to this jack. e CONTROL I/O jack Connect a repeater controller or a remote panel to this DB-25 interface. r SYNC 1 / 2 jack Connect to another repeater to use synchronous frame signaling for digital trunking. t LAN jack Connect to Ethernet. CONTROLS AND FUNCTIONS ■ Front Panel q wrt yu io e q w r ty u e MICROPHONE VOLUME COM OFF/ POWERCTRLOCXOBUSYTX 12 MON TAKE OVER RPT DISABLE ABC 345678 STATUS TEST/SPKR RXTX CONTROL I/O SYNC 12 LANREF OUTREF IN FUSE 15 DC 13.2V FUSE 15A y REF OUT jack Connect to another repeater within the site to supply a reference signal. u REF IN jack Connect from another repeater within the site to receive a reference signal. i FUSE Insert 15 A blade fuse into this fuse holder. o DC 13.2V jack Connect a 13.2 V DC power supply to this jack. ⑩ TX OUT jack Connect a TX antenna or a duplexer to this BNC receptacle. i o ⑩ TRANSCEIVER OPERATION ■ Receive Adjust the volume to your desired level. You may ne…

Text truncated - open the document above for the full version.

MANDATORY SAFETY INSTRUCTIONS TO INSTALLERS AND USERS • Use only manufacturer or dealer supplied antennas. • Antenna Minimum Safe Distance: 180 cm (6 feet). • Antenna Gain: 0 dBd referenced to a dipole. The Federal Communications Commission has adopted a safety standard for human exposure to RF (Radio Frequency) energy which is below the OSHA (Occupational Safety and Health Act) limits. • Antenna Mounting: The antenna supplied by the manufacturer or radio dealer must not be mounted at a location such that during radio transmission, any person or persons can come closer than the above indicated minimum safe distance to the antenna, i.e. 180 cm (6 feet). • To comply with current FCC RF Exposure limits, the antenna must be installed at or exceeding the minimum safe distance shown above, and in accordance with the requirements of the antenna manufacturer or supplier. • Vehicle installation: The antenna can be mounted at the center of a vehicle metal roof or trunk lid, if the minimum safe distance is observed. • Base Station Installation: The antenna should be fixed-mounted on an outdoor permanent structure. RF Exposure compliance must be addressed at the time of installation. Antenna substitution: Do not substitute any antenna for the one supplied or recommended by the manufacturer or radio dealer. You may be exposing person or persons to excess radio frequency radiation. You may contact your radio dealer or the manufacturer for further instructions. Maintain a separation distance from the antenna to person(s) of at least 180 cm (6 feet) . You, as the qualified end-user of this radio device must control the exposure conditions of bystanders to ensure the minimum separation distance (above) is maintained between the antenna and nearby persons for satisfying RF Exposure compliance. The operation of this transmitter must satisfy the requirements of Occupational/Controlled Exposure Environment, for work-related use, transmit only when person(s) are at least the minimum distance from the properly installed, externally mounted antenna. Transmit only when people outside the vehicle are at least the recommended minimum lateral distance away from the antenna/vehicle. B59-2667-00

May 20th, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize Intertek Japan K.K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Tamaki Shimamura Communications Equipment Division Kenwood Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

May 20th 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: NXR-800-E3, FCC ID: K44371412. To whom it may concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that could never get into the possession of our competition. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Equipment Division Kenwood Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

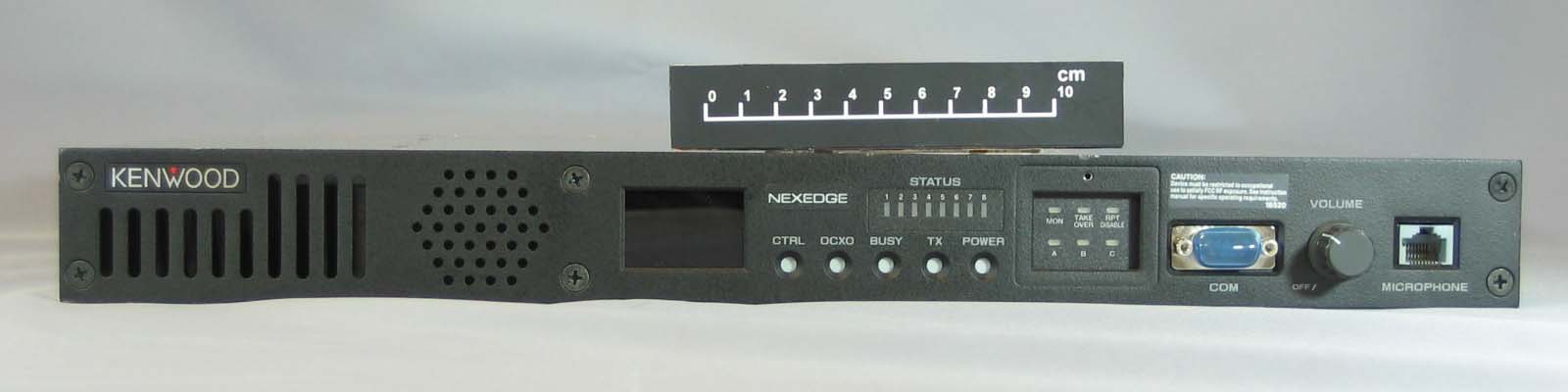

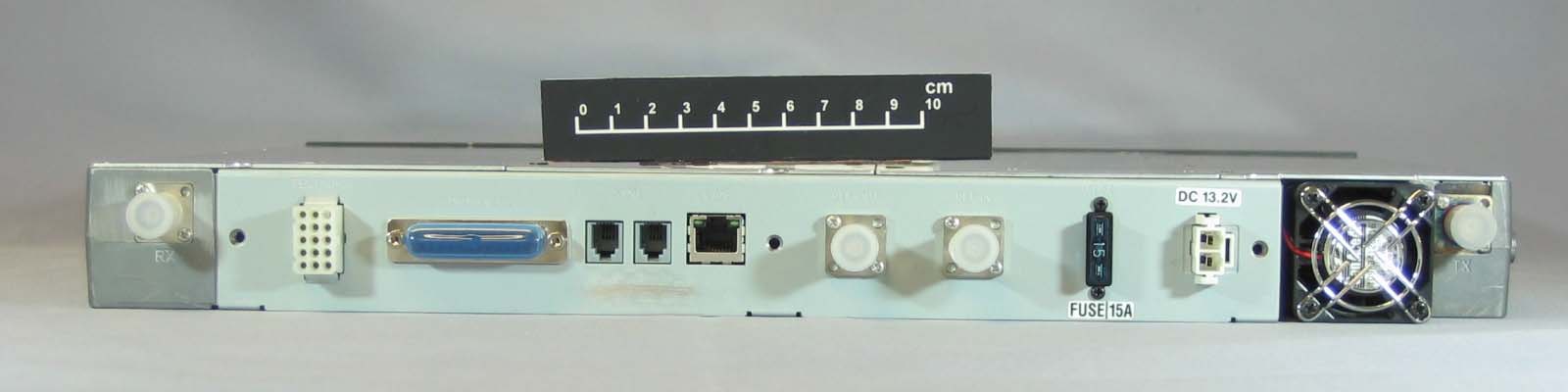

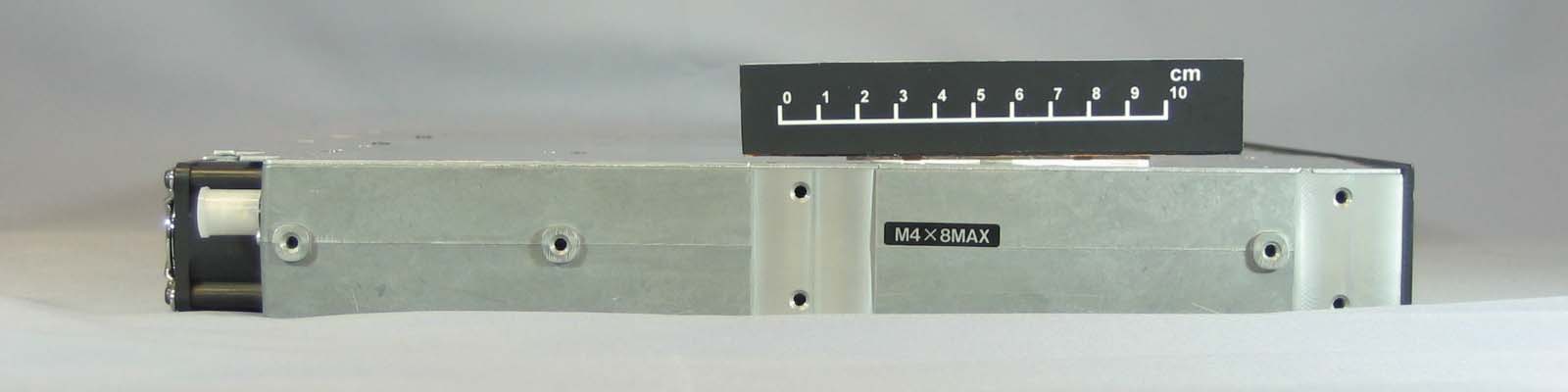

NXR-800-E3 FCC ID: K44371412 IC: 282F-371412 Front View Rear View NXR-800-E3 FCC ID: K44371412 IC: 282F-371412 Top View Bottom View NXR-800-E3 FCC ID: K44371412 IC: 282F-371412 Right View Left View

NXR-800-E3 FCC ID: K44371412 IC: 282F-371412

NXR-800-E3 FCC ID: K44371412 IC: 282F-371412 NXR-800-E3 FCC ID: K44371412 IC: 282F-371412 NXR-800-E3 FCC ID: K44371412 IC: 282F-371412 Control1 Component Side View Control1 Foil Side View NXR-800-E3 FCC ID: K44371412 IC: 282F-371412 Control2 Component Side View Control2 Foil Side View NXR-800-E3 FCC ID: K44371412 IC: 282F-371412 RX Component Side View RX Foil Side View NXR-800-E3 FCC ID: K44371412 IC: 282F-371412 TX Component Side View TX Foil Side View NXR-800-E3 FCC ID: K44371412 IC: 282F-371412 Final Component Side View Final Foil Side View NXR-800-E3 FCC ID: K44371412 IC: 282F-371412 KXK-3 OCXO UNIT Component Side View NXR-800-E3 FCC ID: K44371412 IC: 282F-371412 KXK-3 OCXO UNIT Foil Side View

Maximum Permissible Exposure (MPE) Evaluation Applicant: Kenwood Corporation Equipmen t: UHF DIGITAL BASE-REPEATER Model No.: NXR-800-E3 FCC ID: K44371412 IC CN and UP N: 282F-371412 MPE Calculations According to the OET Bulletin 65 (Edition 97-01) Where: S=Power density (in appropriate units, e.g. mW/cm 2 ) P=Power input to antenna (in appropriate units, e.g., mW) G=Power gain of the antenna in the direction of interest relative to an isotropic radiator R=Distance to the center of radiation of the antenna (appropriate units, e.g., cm) Tx Frequency= 406.1 to 430 (MHz): FCC/IC Maximum peak power =(dBm)(=25W) Antenna gain=(dBi) S=(mW/cm 2 ) P=(mW) (=Maximum peak power x 120% x Dutycycle 100%) G=(numeric) R=(cm) P = Value calculated according to CFR Part 90.205(s) Calculated minimum separation distance from antenna :120.28 (cm) 1.64 120.28 43.98 2.15 0.27 30000.00 S PG R π4 = 2 4R PG S π =

Report No :JT11050003 FCC ID : K44371412 IC CN :282F-371412 TRUE FALSE 3 REGULATION :FCC Part 2, 90 RSS-119 Issue 11 Kenwood CorporationIntertek Japan K. K. Kashima Laboratory 1-16-2, Hakusan, Midori-ku, Yokohama-shi3-2, Sunayama, Kamisu-shi, Ibaraki-ken Kanagawa, 226-8525 Japan314-0255 Japan Tel.: +81 45 939 6254 Fax.: +81 45 939 7097Tel.: +81 479 40 1097 Intertek Japan K. K. Tochigi Laboratory 870 Nakaawano, Kanuma-shi, Tochigi-ken 322-0306 Japan Tel.: +81 289 86 7121 Equipment typeUHF DIGITAL BASE-REPEATER TrademarkKENWOOD Model(s)NXR-800-E3 Serial No. FCC ID K44371412 IC CN and UPN 282F-371412 Test ResultComplied Report NumberJT11050003 Report issue date Approved byTested by Kazuo GokitaAtsuyuki Morishima [Site Manager] Koichi Wagatsuma This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Applicant TEST REPORT Testing Laboratory June 08, 2011 B0500064 Intertek Japan K.K.Page 1 of 54Version 0.1 Report No :JT11050003 FCC ID : K44371412 IC CN :282F-371412 In Accordance with FCC Rules and Regulations, Volume II, Part 2 and 90 Sub-part 2.1033 (c)(1) Applicant and Manufacture Information APPLICANT Company:Kenwood Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan Contact Person:Tamaki Shimamura Manager, Communications Equipment Division MANUFACTURER Company:Kenwood Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan (c)(2) FCC ID FCC ID:K44371412 Model number:NXR-800-E3 Serial number:B0500064 (c)(3) Instruction Manual(S) Instruction manual(s):Please refer to attached Exhibits F (c)(4) Type of Emission Emission Designation:16K0F3E(Wide)* /11K0F3E(Narrow) *16K0F3E is IC only. 8K30F1E(Narrow) / 8K30F1D(Narrow) / 8K30F7W(Narrow) 4K00F1E(Very Narrow) / 4K00F1D(Very Narrow) / 4K00F7W(Very Narrow) 4K00F2D(Very Narrow) (c)(5) Frequency range Frequency Range:406.1 to 430 MHz( FCC / RSS ) (c)(6) Power Rating Output Power:5 to 25 W Type:Continuously Variable (c)(7) Maximum Power Rating Output Power:25 W (c)(8): Voltages & currents in all elements in final RF stage, including final transistor or solid-state device Collector Current, A:9.0 amps(Maximum) Collector Voltage, Vdc :13.2 Vdc Supply Voltage, Vdc:13.2 Vdc Other Information Number of Channel:30 channels Maximum Deviation:5 kHz / 2.5kHz *5kHz is IC only Frequency Stability:1.0 ppm, 0.5ppm with KXK-3 OCXO UNIT Antenna Impedance:50 Ω Norminal Note Intertek Japan K.K.Page 2 of 54Version 0.1 Report No :JT11050003 FCC ID : K44371412 IC CN :282F-371412 TABLE OF CONTENTS Page SECTION 1. GENERAL INFORMATION4 SECTION 2. SUMMARY OF TEST RESULT5 SECTION 3. TEST AND MEASUREMENT DATA6 SECTION 4. INFORMATION ABOUT EUT AND SUPPORT EQUIPMENT(S)7 SECTION 5. SUPPORT EQUIPMENT8 SECTION 6. USED CABLE(S)9 SECTION 7. TEST CONFIGURATION10 SECTION 8. OPERATING CONDITION11 SECTION 9. MEASUREMENT UNCERTAINTY12 SECTION 10. TEST DATA 10.1Carrier Output Power (Conducted)13 10.2Unwanted Emissions (Transmitter Conducted)15 10.3Field Strength of Spurious Radiation18 10.4Emission Masks (Occupied Bandwidth)22 10.5Transient Frequency Behavior30 10.6Audio Frequency Response / Audio Low Pass Filter (Voice Input)37 10.7Modulation Limiting40 10.8Frequency Stability (Temperature Variation)44 10.9Frequency Stability (Voltage Variation)48 10.10Receiver Spurious Emissions(Radiated)50 10.11Necessary Bandwidth and Emission Bandwidth54 APPENDIXPHOTOGRAPHS Intertek Japan K.K.Page 3 of 54Version 0.1 Report No :JT11050003 FCC ID : K44371412 IC CN :282F-371412 SECTION 1. GENERAL INFORMATION TEST PERFORMED LocationKashima No.1 Test Site, Tochigi No.2 Test Site EUT Received Date of Testto Standard AppliedFCC Part 2, 90 RSS-119 Issue 11 Measurement MethodANSI/TIA-603-D-2010 / RSS-119 Issue 11(2011), RSS-Gen Issue 3(2010) Deviation from Standard(s)Not applicable QUALIFICATIONS OF TESTING LABORATORY(Kashima Lab.) ACCREDITATIONSCOPELAB. CODERemarks NVLAPEMC Testing100290-0USA VLACEMC TestingVLAC-008-1JAPAN BSMIEMC TestingSL2-IN-E-6008TAIWAN Vietnam MICEMC Testing62/QD-QLCLVIETNAM FILING VCCIEMC TestingJAPAN FCCEMC TestingDesignation Number:JP0008USA ICEMC TestingIC-2042K-1, IC-2042K-3CANADA CB-SchemeEMC TestingTL222IECEE SAUDI ARABIAEMC TestingN/A QUALIFICATIONS OF TESTING LABORATORY(Tochigi Lab.) ACCREDITATIONSCOPELAB. CODERemarks VLACEMC TestingVLAC-008-5JAPAN BSMIEMC TestingSL2-IN-E-6017, SL2-A-E-6017TAIWAN FILING VCCIEMC TestingJAPAN FCCEMC TestingDesignation Number:JP0011USA ICEMC TestingIC-2042P-1, IC-2042P-2CANADA SAUDI ARABIAEMC TestingN/A ABBREVIATIONS EUTDoC AMNISN LISNQ-P AMPAVG ATTPEK ANTCal BBAN/A DIPLCD AEAssociated Equipment4LEVEL FSK 4LEVEL Frequency Shift Key GMSKCW ID FMC4FM PTTPush to TalkAFC R-257, C-260, C-284, T-1736, T-1737, G-124 R-258, C-261, C-285, T-1738, T-1739 R-259, C-262, T-1740, G-125 Gaussian Maximum Shift Key Frequency ModulationConstant envelope 4 Level FM Continuously Repeating bit stream Automatic frequency control Dipole AntennaLiquid-Crystal Display May 10, 2011 May 11, 2011May 27, 2011 Line Impedance Stabilization Network Equipment Under Test Artificial Mains Network Declaration of Conformity Impedance Stabilization Network Quasi-peak Amplifier Attenua…
