K4437303110

JVC KENWOOD Corporation

VHF FM Transceiver

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: May 27, 2004
Application Purpose: Original Equipment
Date of Application: May 27, 2004
Equipment Note: VHF FM Transceiver
Frequency Range: 136.00000000 - 174.00000000
Company: JVC KENWOOD Corporation
Country: Japan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

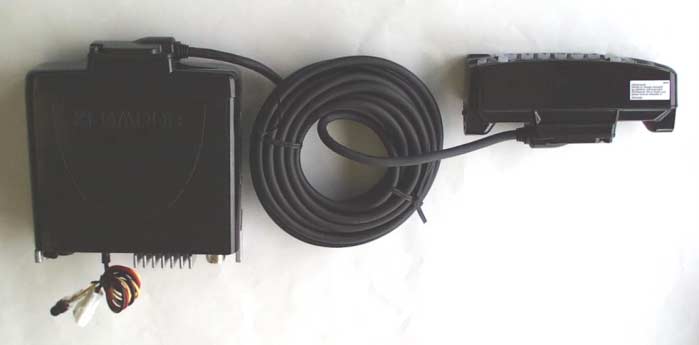

External Photos

ID Label/Location Info

Internal Photos

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
12	22,74,90.21	136 MHz - 174 MHz	5 W	7K20F1D	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is measured at the antenna terminals. Occupational/Controlled MPE evaluation covers fixed-mounted and mobile operation up to 50 W EIRP for use with a 2.1 dBi antenna and a duty factor not exceeding 50%. The antenna must be installed to provide a separation distance of at least 120 cm from all persons during use with a duty factor not exceeding 50%. All qualified end-users of this device must receive training to have the knowledge to control their exposure conditions and/or duration to comply with Occupational/Controlled exposure limit and also have control of the exposure conditions of bystanders for complying with General Population/Uncontrolled exposure limit. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements and users must be provided with the training information. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Installers and end-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
