K4437313120UHF FM Transceiver

KENWOOD CORPORATION TK-8180-K2 FCC ID:K4437313120 IC:282F-37313120 INSTRUCTION MANUAL THANK YOU! We are grateful you chose KENWOOD for your land mobile radio applications. We believe this easy-to-use transceiver will provide dependable communications to keep personnel operating at peak efficiency. KENWOOD transceivers incorporate the latest in advanced technology. As a result, we feel strongly that you will be pleased with the quality and features of this product. MODELS COVERED BY THIS MANUAL The models listed below are covered by this •TK- 7180 : VHF FM Transceiver •TK- 8180 : UHF FM Transceiver NOTICES TO THE USER WARNING: ♦ GOVERNMENT LAW PROHIBITS THE OPERATION OF UNLICENSED RADIO TRANSMITTERS WITHIN THE TERRITORIES UNDER GOVERNMENT CONTROL. ♦ ILLEGAL OPERATION IS PUNISHABLE BY FINE AND /OR INPRISONMENT. ♦ REFER SERVICE TO QUALIFIED TECHNICIANS ONLY. SAFETY: It is important that the operator is aware of, and understands, hazards common to the operation of any transceiver. WARNING: ♦ EXPLOSI♦VE ATMOSPHERES (GASES, DUST, FUMES, etc.) Turn off your transceiver while taking on fuel, or while parked in gasoline service stations. Do not carry spare fuel containers in the trunk of your vehicle if your transceiver is mounted in the trunk area. ♦ INJURY FROM RADIO FREQUENCY TRANSMISSIONS Do not operate your transceiver when somebody is either touching the antenna or standing within two to three feet of it, to avoid the possibility of radio frequency burns or related physical injury. ♦ DYNAMITE BLASTING CAPS Operating the transceiver within 500 feet (150m) of dynamite blasting caps may cause them to explode. Turn OFF your transceiver when in an area where blasting is in progress, or where “TURN OFF TWO-WAY RADIO” sighs have been posted. If you are transporting blasting caps in your vehicle, make sure they are carried in a closed metal box with a padded interior. Do not transmit while the caps are being placed into or removed from the container. PRECAUTIONS Please observe the following precautions to prevent fire, personal injury, and transceiver damage. • Do not attempt to configure the transceiver while driving , it is too dangerous. • Do not modify the transceiver for any reason. • Do not expose the transceiver to long periods of direct sunlight, nor place it near heating appliances. • Do not place the transceiver in excessively dusty, humid , or wet areas, nor on unstable surfaces. • If an abnormal odor or smoke is detected coming from the transceiver, turn OFF the power immediately. Contact your KENWOOD dealer. FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. KENWOOD CORPORATION TK-8180-K2 FCC ID:K4437313120 IC:282F-37313120 INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer for technical assistance. UNPACKING AND CHECKING EQUIPMENT Note: The following unpacking instructions are for use by your KENWOOD dealer, an authorized KENWOOD service facility, or the factory. Carefully unpack the transceiver. We recommend that you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, file a claim with the carrier immediately. ♦ Supplied Accessories Quantity Item Part Number K Instruction Manual B62-××××-×× 1 DC power cable E30-××××-×× 1 Fuse F15-××××-×× 1 Mounting bracket J29-××××-×× 1 Screw Set N99-××××-×× 1 PREPARATION WARNING Various electronic equipment in your vehicle may malfunction if they are not properly protected from the radio frecuency energy which is present while transmitting. Electronic fuel injection,anti-skid braking,and cruise control systems are typical examples of equipment that may malfunction. If your vehicle contains such equipment, consult the dealer for the make of vehicle and enlist his/her aid in determining if they will perform while transmitting. Note: The following preparation instructions are for use by your KENWOOD dealer,an authorized KENWOOD service facility, or the factory. KENWOOD CORPORATION TK-8180-K2 FCC ID:K4437313120 IC:282F-37313120 TOOLS REQUIRED Note: Before installing the transceiver, always check how far the mounting screws will extend below the mounting Surface. When drilling mounting holes, be careful not to damage vehicle wiring or parts. The following tools are required for installing the transceiver: • 6mm(1/4 inch) or larger electriic drill • 4.2mm(5/32 inch) drill bit for the self-tapping screws • Circle cutters POWER CABLE CONNECTION CAUTION The transceiver operates in 12V negative ground systems only! Check the battery polarity and voltage of the vehicle Before installing the transceiver. 1 Check for an existing hole, conveniently located in the firewall, wher…

Text truncated - open the document above for the full version.

May 20th, 2004 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Akzo Nobel K.K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Tamaki Shimamura Communication Equipment Division Kenwood Corporation

Aug. 20th, 2004 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: TK-8180-K2, FCC ID: K4437313120. To Whom It May Concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that could never get into the possession of our competition. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communication Equipment Division Kenwood Corporation

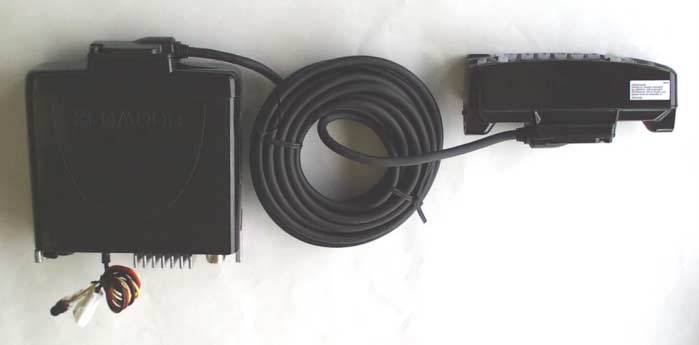

TK-8180-K2 FCC ID:K4437313120 IC:282F-37313120 Front View Rear View TK-8180-K2 FCC ID:K4437313120 IC:282F-37313120 Top View Bottom View TK-8180-K2 FCC ID:K4437313120 IC:282F-37313120 Right View Left View TK-8180-K2 FCC ID:K4437313120 IC:282F-37313120 Front View (with KRK-10) Rear View (with KRK-10) TK-8180-K2 FCC ID:K4437313120 IC:282F-37313120 Top View (with KRK-10) TK-8180-K2 FCC ID:K4437313120 IC:282F-37313120 Bottom View (with KRK-10) TK-8180-K2 FCC ID:K4437313120 IC:282F-37313120 Right View (with KRK-10) Left View (with KRK-10)

TK-8180-K2 FCC ID:K4437313120 IC:282F-37313120

TK-8180-K2 FCC ID:K4437313120 IC:282F-37313120 TXRX Component Side View TXRX Foil Side View TK-8180-K2 FCC ID:K4437313120 IC:282F-37313120 Display Component Side View Display Foil Side View

Maximum Permissible Exposure (MPE) Evaluation Applicant:Kenwood Corporation Equipmen t:UHF FM Tranceiver Model No.:TK-8180-K2 FCC ID:K4437313120 IC:282F-37313120 MPE Calculations According to the OET Bulletin 65 (Edition 97-01) Where: S=Power density (in appropriate units, e.g. mW/cm 2 ) P=Power input to antenna (in appropriate units, e.g., mW) G=Power gain of the antenna in the direction of interest relative to an isotropic radiator R=Distance to the center of radiation of the antenna (appropriate units, e.g., cm) Tx Frequency=400 to 470 (MHz) Maximum peak power =44.77 (dBm)(=30W) Antenna gain=2.15 (dBi) S=0.27 (mW/cm 2 )(=f / 1500 : f = frequency in MHz) P=18000.00 (mW)(=Maximum peak power x 120% x Dutycycle 50%) G=1.64 (numeric) R=93.87 (cm) P = Value calculated according to CFR Part 90.205(q) Calculated minimum separation distance from antenna :93.87 (cm) S PG R π4 = 2 4R PG S π =

TRUE TRUE 4 Regulation : FCC Part 2, 22, 74, 90, 90.210 RSS-119 Issue 6(2000) Testing Laboratory Kenwood CorporationAkzo Nobel K. K.Kashima No.1 , No.10 site 1-16-2, Hakusan, Midori-ku, Yokohama-shiFCC Registration Number : 90433 Kanagawa, 226-8525 JapanIC File Number : IC-2065-1 Tel.: +81 45 939 6254 Fax.: +81 45 939 70931, Oaza Sunayama, Hasaki-machi, Kashima-gun Ibaraki-ken, 314-0255 Japan Tel.: +81 479 40 1097 Fax.: +81 479 46 1788 e-mail: [email protected] URL: www.akzoemc.co.jp Equipment typeUHF FM TRANSCEIVER TrademarkKENWOOD Model(s)TK-8180-K2 Serial No.1 FCC ID K4437313120 IC CN and UPN 282F-37313120 Measurement MethodANSI/TIA/EIA-603 / RSS-119 No deviation Test ResultComplied Report NumberANKK-104209 Report issue date Approved byTested by Takeshi Yamanaka / [Site Manager]Naoki Ikeda This equipment has been shown to be capable of compliance with the applicable standard(s) as indicated in the test report. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Akzo Nobel K. K. The results and statements contained in this report pertain only to the equipment evaluated. Applicant CERTIFICATE OF COMPLIANCE August 23, 2004 Deviation from Standard(s) Page 1 of 32 Report No : ANKK-104209FCC ID : K4437313120 / IC : 282F-37313120 TABLE OF CONTENTS Page SECTION 1.GENERAL INFORMATION3 SECTION 2.TEST AND MEASUREMENT DATA4 SECTION 3.MEASUREMENT RESULT5 SECTION 4.TEST DATA 4.1Carrier Output Power (Conducted)6 4.2Unwanted Emissions (Transmitter Conducted)7 4.3Field Strength of Spurious Radiation9 4.4Emission Masks (Occupied Bandwidth)11 4.5Transient Frequency Behavior16 4.6Audio Frequency Response / Audio Low Pass Filter (Voice Input)19 4.7Modulation Limiting21 4.8Frequency Stability (Temperature Variation)24 4.9Frequency Stability (Voltage Variation)26 4.10Receiver Spurious Emissions27 4.11Necessary Bandwidth and Emission Bandwidth30 SECTION 5.VALIDITY OF TEST REPORT32 SECTION 6. DESCRIPTION OF TEST SITE32 APPENDIXPHOTOGRAPHS ©Akzo Nobel K. K. EMC Div.Page 2 of 32Version 6.1 Report No : ANKK-104209FCC ID : K4437313120 / IC : 282F-37313120 SECTION 1. GENERAL INFORMATION APPLICANT INFORMATION Company:Kenwood Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan Attenuation:Tamaki Shimamura Manager, Communications Equipment Division Telephone number :+81 45 939 6254 Fax number:+81 45 939 7093 DESCRIPTION OF TEST ITEM Kind of EUT:Mobile Device Condition of EUT:Pre Production Type:Mobile Trademark:KENWOOD Model number:TK-8180-K2 Serial number:1 Emission Designation:16K0F3E(Wide) / 11K0F3E(Narrow) 20K0F7D(Wide) / 11K2F7D(Narrow) 14K4F1D(Wide) / 7K20F1D(Narrow) Frequency Range:400 to 470 MHz Output Power:1 to 30 W Number of Channel:512 Channel Spacing:25 kHz (Wide) / 12.5 kHz (Narrow) Antenna Impedance:50 Ω Norminal TEST PERFORMED EUT Received: Test started: Test completed Temperature:20.0 to 24.0 degrees C Humidity:36 to 62 % Atmospheric:101.1 to 102.4 kPa Voltage:DC 13.6 V Frequency:None TEST TRACABILITY Tracability to national standards of test result is achieved by means of calibration tractability to national or international standards. ABBREVIATIONS August 19, 2004 Cal Exp. = Calibration Expire August 06, 2004 August 05, 2004 EUT = Equipment Under Test D.R.G. Antenna = Double Rigid Guide Antenna ©Akzo Nobel K. K. EMC Div.Page 3 of 32Version 6.1 Report No : ANKK-104209FCC ID : K4437313120 / IC : 282F-37313120 SECTION 2. TEST AND MEASUREMENT DATA All test and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J and Industry Canada as the following individual parts: Domestic Public Fixed radio Services Non Cellular Public Mobile Services Subpart H - Cellular Radiotelephone Service Alternative technologies and auxiliary service International Fixed Public Radiocommunication service Personal Communications Services Subpart H - Low Power Auxiliary Stations Stations in the Maritime Services Subpart E - general Technical Standards Subpart F - Equipment Authorization for Compulsory Ships Subpart K - Private Coast Stations and Marine Utility Stations Subpart V - Emergency Position Indicating Radiobeacons (EPIRB'S) Subpart W - Global Maritime Distress and Safety System (GMDSS) Subpart X - Voluntary Radio Installations Aviation Services Private Land Mobile radio Services Private Operational - Fixed Microwave Service Subpart A - General Mobile radio Service Subpart C - Radio Control (R/C) radio Service Subpart D - Citizens Band (CB) Radio Service Subpart E -Family radio Service Subpart F -Interactive Video and Data Service (IVDS) Amateur Radio Service Fixed Microwave Service N.A. N.A. N.A. N.A. N.A. N.A. N.A. N.A. N.A. N.A. N.A. YES N.A. N.A. N.A. N.A. Tested N.A. YES N.A. Subpart S - Compulsory radiotelephone Installations for Small Passenger Boats Subpart T - Radiotelephone Installation Required for Vessels on the Great Lakes Subpart U - Radiotelephone Installations Required by the Bridge-to- Bridge Act YES N.A. N.A. N.A. N.A. N.A. N.A. Part 95 Part 95 Part 97 Part 101 Part 94 Part 95 Part 95 Part 95 Part 80 Part 80 Part 87 Part 90 Part 80 Part 80 Part 80 N.A. N.A. IC RULETEST ITEMTested RSS-119 Land Mobile and Fixed Radio Transmitters and ReceiversYES Part 80 Part 80 Part 23 Part 24 Part 74 Part 80 FCC RULETEST ITEM Part 80 Part 80 Part 21 Part 22 Part 22 Part 22 Part 22 ©Akzo Nobel K. K. EMC Div.Page 4 of 32Version 6.1 Report No : ANKK-104209FCC ID : K4437313120 / IC : 282F-37313120 SECTION 3. MEASUREMENT RESULT IC RULETEST ITEMRESULTS 6.2Carrier Output Power (Conducted)PASS 6.3Unwanted Emissions (Transmitter Conducted)PASS 6.3Field Strengt…

Text truncated - open the document above for the full version.

MANDATORY SAFETY INSTRUCTIONS TO INSTALLERS AND USERS • Use only manufacturer or dealer supplied antenna. • Antenna Minimum Safe Distance: 120 cm (4 feet), 50% duty Cycle. • Antenna Gain: 0 dBd referenced to a dipole. The Federal Communications Commission has adopted a safety standard for human exposure to RF (Radio Frequency) energy which is below the OSHA (Occupational Safety and Health Act) limits. • Antenna Mounting: The antenna supplied by the manufacturer or radio dealer must not be mounted at a location such that during radio transmission, any person or persons can come closer than the above indicated minimum safe distance to the antenna, i.e. 120 cm (4 feet) , 50% duty Cycle. • To comply with current FCC RF Exposure limits, the antenna must be installed at or exceeding the minimum safe distance shown above, and in accordance with the requirements of the antenna manufacturer or supplier. • Vehicle installation: The antenna can be mounted at the center of a vehicle metal roof or trunk lid, if the minimum safe distance is observed. • Base Station Installation: The antenna should be fixed-mounted on an outdoor permanent structure. RF Exposure compliance must be addressed at the time of installation. Antenna substitution: Do not substitute any antenna for the one supplied or recommended by the manufacturer or radio dealer. You may be exposing person or persons to excess radio frequency radiation. You may contact your radio dealer or the manufacturer for further instructions. Maintain a separation distance from the antenna to person(s) of at least 120 cm (4 feet) , 50% duty Cycle. “This transmitter is authorized to operate with a maximum duty factor of 50%, in typical push-to-talk mode, for satisfying FCC RF exposure compliance requirements.” You, as the qualified end-user of this radio device must control the exposure conditions of bystanders to ensure the minimum separation distance (above) is maintained between the antenna and nearby persons for satisfying RF Exposure compliance. The operation of this transmitter must satisfy the requirements of Occupational/Controlled Exposure Environment, for work-related use, transmit only when person(s) are at least the minimum distance from the properly installed, externally mounted antenna. Transmit only when people outside the vehicle are at least the recommended minimum lateral distance away from the antenna/vehicle

APPENDIX Report No : ANKK-104209FCC ID : K4437313120 / IC : 282F-37313120 PHOTOGRAPHS OF MEASUREMENT SET-UP Carrier Output Power (Conducted) Accordance with TIA-603-B 2.2.1.2 / RSS-119 Section 6.2 Unwanted Emission (Conducted Spurious) , Emission Masks Accordance with TIA-603-B 2.2.11.2 , 2.2.13.2 / RSS-119 Section 6.3 , 6.4 ©Akzo Nobel K. K. EMC Div.Page 2 of 7Version 6.1 Report No : ANKK-104209FCC ID : K4437313120 / IC : 282F-37313120 Modulation Limiting Accordance with TIA-603-B 2.2.3.2 / RSS-119 Section 6.6 Transient Frequency Behavior Accordance with TIA-603-B 2.2.19.3 / RSS-119 Section 6.5 ©Akzo Nobel K. K. EMC Div.Page 3 of 7Version 6.1 Report No : ANKK-104209FCC ID : K4437313120 / IC : 282F-37313120 Audio Frequency Response Test setup in accordance with TIA-603-B 2.2.6.2.2 / RSS-119 Section 6.6 Frequency Stability (Voltage Variation) Accordance with TIA-603-B 2.2.2.2 / RSS-119 Section 7 ©Akzo Nobel K. K. EMC Div.Page 4 of 7Version 6.1 Report No : ANKK-104209FCC ID : K4437313120 / IC : 282F-37313120 Frequency Stability (Temperature Variation) Accordance with TIA-603-B 2.3.2.2 / RSS-119 Section 7 Frequency Stability (Temperature Variation) : Inside view Accordance with TIA-603-B 2.3.2.2 / RSS-119 Section 7 ©Akzo Nobel K. K. EMC Div.Page 5 of 7Version 6.1 Report No : ANKK-104209FCC ID : K4437313120 / IC : 282F-37313120 Field Strength of Spurious Radiation : Front view Accordance with TIA-603-B 2.2.12.2 / RSS-119 Section 6.3 Field Strength of Spurious Radiation : Rear view Accordance with TIA-603-B 2.2.12.2 / RSS-119 Section 6.3 ©Akzo Nobel K. K. EMC Div.Page 6 of 7Version 6.1 Report No : ANKK-104209FCC ID : K4437313120 / IC : 282F-37313120 Receiver Spurious Emissions : Front view Accordance with ANSI C63.4 - 2001 / RSS-119 Section 8 Receiver Spurious Emissions : Rear view Accordance with ANSI C63.4 - 2001 / RSS-119 Section 8 ©Akzo Nobel K. K. EMC Div.Page 7 of 7Version 6.1
