INSTRUCTION MANUAL 144/440 MHz FM DUAL BANDER TM-V71A 144/430 MHz FM DUAL BANDER TM-V71A/ TM-V71E © B62-1926-00 (K, E, M4) 09 08 07 06 05 04 03 02 01 00 Information on Disposal of Old Electrical and Electronic Equipment (applicable for EU countries that have adopted separate waste collection systems) Products with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment should be recycled at a facility capable of handling these items and their waste byproducts. Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment. Thank You We are grateful you decided to purchase this Kenwood FM transceiver. Kenwood always provides Amateur Radio products which surprise and excite serious hobbyists. This transceiver is no exception. Kenwood believes that this product will satisfy your requirements for both voice and data communications. FeaTures This transceiver has the following main features: • Enhanced Programmable Memory (PM) channels store virtually entire current operating environments for your quick recall. • Contains a total of 1000 Memory channels to program frequencies and other various data. Allows each Memory channel to be named using up to 8 alphanumeric characters. • Continuous Tone Coded Squelch System (CTCSS) or Digital Code Squelch (DCS) rejects unwanted calls from other stations. WriTing ConvenTions FolloWed in This Manual The writing conventions described below have been followed to simplify instructions and avoid unnecessary repetition. InstructionAction Press [KEY].Momentarily press KEY. Press [KEY] (1s).Press and hold KEY for 1 second or longer. Press [KEY1], [KEY2]. Press KEY1 momentarily, release KEY1, then press KEY2. Press [F], [KEY]. Press the F key to enter Function mode, then press KEY to access its secondary function. Press [KEY] + Power ON. With the transceiver power OFF, press and hold KEY while turning the transceiver power ON.  Notices to the User One or more of the followng statements may be applcable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the nstructon manual. The user could lose the authorty to operate ths equpment f an unauthorzed change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection aganst harmful nterference n a resdental nstallaton. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the nterference by one or more of the followng measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer for techncal assstance. WHEN CONDENSATION OCCURS INSIDE THE TRANSCEIVER Condensation may occur inside the transceiver in such a case where the room is warmed using a heater on cold days or where the transceiver is quickly moved from a cold room to a warm room. When condensation occurs, the microcomputer and/or the transmit/receive circuits may become unstable, resulting in transceiver malfunction. If this happens, turn OFF the transceiver and just wait for a while. When the condensation droplets disappear, the transceiver will function normally. u EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.) Turn OFF your transceiver while taking on fuel or while parked in gasoline service stations. Do not carry spare fuel containers in the trunk of your vehicle if your transceiver is mounted in the trunk area. u INJURY FROM RADIO FREQUENCY TRANSMISSIONS Do not operate your transceiver when somebody is either standing near to or touching the antenna, to avoid the possibility of radio frequency burns or related physical injury. u DYNAMITE BLASTING CAPS Operating the transceiver within 150 m (500 feet) of dynamite blasting caps may cause them to explode. Turn OFF your transceiver when in an area where blasting is in progress, or where “TURN OFF TWO-WAY RADIO” signs have been posted. If you are transporting blasting caps in your vehicle, make sure they are carried in a closed metal box with a padded interior. Do not transmit while the caps are being placed into or removed from the container.  PrecaUtioNs Observe the following precautions to prevent fire, personal injury, and transceiver damage. • When operating mobile, do not attempt to configure the transceiver while driving; it is too dangerous. • Do not transmit with high output power for extended periods. The transceiver may overheat. • Do not disassemble or modify the transceiver for any reason, unless instructed by this manual or by Kenwood documentaton. • Do not expose the transceiver to long periods of direct sunlight, nor place it near heating applances. • Do not place the transceiver in excessively dusty, humid, or wet areas, nor on unstable surfaces. • If an abnormal odor or smoke is detected coming from the transceiver, switch the transceiver power off immediately, and contact a Kenwood service station or your dealer. • Use of the transceiver while you are driving may be against traffic laws. Please chec…

Text truncated - open the document above for the full version.

49 CONTINUOUS TONE CODED SQUELCH SYSTEM (CTCSS) You may sometimes want to hear calls only from specific persons. The Continuous Tone Coded Squelch System (CTCSS) allows you to ignore (not hear) unwanted calls from other persons who are using the same frequency. To do so, select the same CTCSS tone as selected by the other persons in your group. A CTCSS tone is subaudible and is selectable from among 42 standard tone frequencies. Note: CTCSS does not cause your conversation to be private. It only relieves you from listening to unwanted conversations. USING CTCSS 1 Select your desired band. 2 Press [TONE] 2 times to activate the CTCSS function. • The icon appears on the display when the CTCSS function is ON. • Each press of [TONE] changes the selection as follows: Tone (T) –> CTCSS (CT) –> DCS (DCS) –> Off (no display). 3 Press [F], [TONE]. • The current CTCSS frequency appears on the display and blinks. 4 Rotate the Tuning control to select your desired CTCSS frequency. • Refer to the table below for the available frequencies. • To exit the CTCSS frequency selection, press [F] (ESC). 5 Press any key other than the Tuning control and [F] (ESC) to complete the setting. 6 When you are called: The transceiver squelch opens only when the selected CTCSS tone is received. When you make a call: Press and hold [PTT], then speak into the microphone. • To cancel CTCSS, press [TONE] until CT no longer appears on the display. 50 You can also select a CTCSS frequency by using the microphone: 1 Select your desired band. 2 Press [TONE] 2 times to activate the CTCSS function. • The icon appears on the display when the CTCSS function is ON. • Each press of [TONE] changes the selection as follows: Tone (T) –> CTCSS (CT) –> DCS (DCS) –> Off (no display). 3 Press [F], [TONE]. • The current CTCSS frequency appears on the display and blinks. 4 Press the key programmed as [ENTER]. 5 Enter a frequency reference number (01 ~ 42) using the microphone keypad. • Refer to the table below for frequencies and their reference numbers. 6 Press [ENTER] again to complete the setting. No. Frequency (Hz) No. Frequency (Hz) No. Frequency (Hz) No. Frequency (Hz) 0167.012 97.423141.334206.5 0269.313100.024146.235210.7 0371.914103.525151.436218.1 0474.415107.226156.737225.7 0577.016110.927162.238229.1 0679.717114.828167.939233.6 0782.518118.829173.840241.8 0885.419123.030179.941250.3 0988.520127.331186.242254.1 1091.521131.832192.8 1194.822136.533203.5 51 CTCSS FREQUENCY ID This function scans through all CTCSS frequencies to identify the incoming CTCSS frequency on a received signal. You may find this useful when you cannot recall the CTCSS frequency that the other persons in your group are using. 1 Press [TONE] 2 times to activate the CTCSS function. • The icon appears on the display when the CTCSS function is ON. • Each press of [TONE] changes the selection as follows: Tone (T) –> CTCSS (CT) –> DCS (DCS) –> Off (no display). 2 Press [F], [TONE] (1s). • The icon blinks and “SCAN” appears on the display. • Scan starts when a signal is received. • To reverse the scan direction, turn the Tuning control clockwise (upward scan) or counterclockwise (downward scan). You can also press microphone [UP]/ [DWN]. • To quit the scan, press [F] (ESC). • When a CTCSS frequency is identified, the identified frequency appears on the display and blinks. 3 Press the Tuning control to program the identified frequency in place of the currently set CTCSS frequency. • The CTCSS function will remain ON. To cancel CTCSS, press [TONE] until CT no longer appears on the display. • Press [F] (ESC) if you do not want to program the identified frequency. • Rotate the Tuning control while an identified frequency is blinking, to resume scanning. 52 DIGITAL CODED SQUELCH (DCS) Digital Code Squelch (DCS) is another application which allows you to ignore (not hear) unwanted calls. It functions the same way as CTCSS. The only differences are the encode/ decode method and the number of selectable codes. For DCS, you can select from 104 different codes. USING DCS 1 Select your desired band. 2 Press [TONE] 3 times to activate the DCS function. • The icon appears on the display when the DCS function is ON. • Each press of [TONE] changes the selection as follows: Tone (T) –> CTCSS (CT) –> DCS (DCS) –> Off (no display). 3 Press [F], [TONE]. • The current DCS code appears on the display and blinks. 4 Rotate the Tuning control to select your desired DCS code. • Refer to the table below for the available codes. • To exit the DCS code selection, press [F] (ESC). 5 Press any key other than the Tuning control and [F] (ESC) to complete the setting. 6 When you are called: The transceiver squelch opens only when the selected DCS code is received. When you make a call: Press and hold [PTT], then speak into the microphone. • To cancel DCS, press [TONE] until DCS no longer appears on the display. 53 You can also select a DCS code by using the microphone: 1 Select your desired band. 2 Press [TONE] 3 times to activate the DCS function. • The icon appears on the display when the DCS function is ON. • Each press of [TONE] changes the selection as follows: Tone (T) –> CTCSS (CT) –> DCS (DCS) –> Off (no display). 3 Press [F], [TONE]. • The current DCS code appears on the display and blinks. 4 Press the key programmed as [ENTER]. 5 Enter your desired DCS code using the microphone keypad. • Refer to the table below for DCS codes. 6 Press [ENTER] again to complete the setting. DCS Code 023025026031032036043047 051053054065071072073074 114115116122125131132134 143145152155156162165172 174205212223225226243244 245246251252255261263265 266271274306311315325331 332343346351356364365371 411412413423431432445446 452454455462624465466503 506516523565532546565606 612624627631632654662664 703712723731732734743754 54 DCS CODE ID This function scans through all DCS codes to identify the incoming DCS code on a received signal. You may find it useful when you cannot recall the DCS code that the other pe…

Text truncated - open the document above for the full version.

Feb. 20th, 2007 Letter of Attestation Model: TM-V71A and TM-D710A Scanning receiver (FCC ID: K44397700) This letter attests to the fact that Kenwood scanner receiver models TM-V71A / TM-D710A meets the requirements of the FCC Rules, 15.121(a). Compliance is achieved through the following method(s): (1). The Microprocessor employed has internal flash memory, however the programming information cannot be read out from the Microprocessor, therefore it has same means of protection as a masked Microprocessor . (2). The Microprocessor is not to accept programming, selection, scanning or direct entry of Cellular band frequencies. (3). Filtering precludes reception of mixer images or harmonics of Cellular band frequencies. (4). Subminiature SMD assembly and inaccessible multiplayer PCB construction all but precludes attempts at circuit hardware modifications. ___________________________________ Tamaki Shimamura Communication Equipment Division Kenwood Corporation

Feb. 20th, 2007 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: TM-V71A and TM-D710A FCC ID: K44397700. To Whom It May Concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams and Circuit Description required to be submitted with this application be withheld from public review. The documents are company proprietary information that could never get into the possession of our competition. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Equipment Division Kenwood Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

ETL SEMKO Japan K.K. West 203, Kanagawa Science Park 3-2-1 Sakado, Takatsu-ku Kawasaki213-0012 Japan March 6, 2007 MET Laboratories, Inc. 914 West Patapsco Ave Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This authorization expires one year from the current date. Sincerely, Izumi Mitsui GMAP ETL SEMKO Japan K. K.

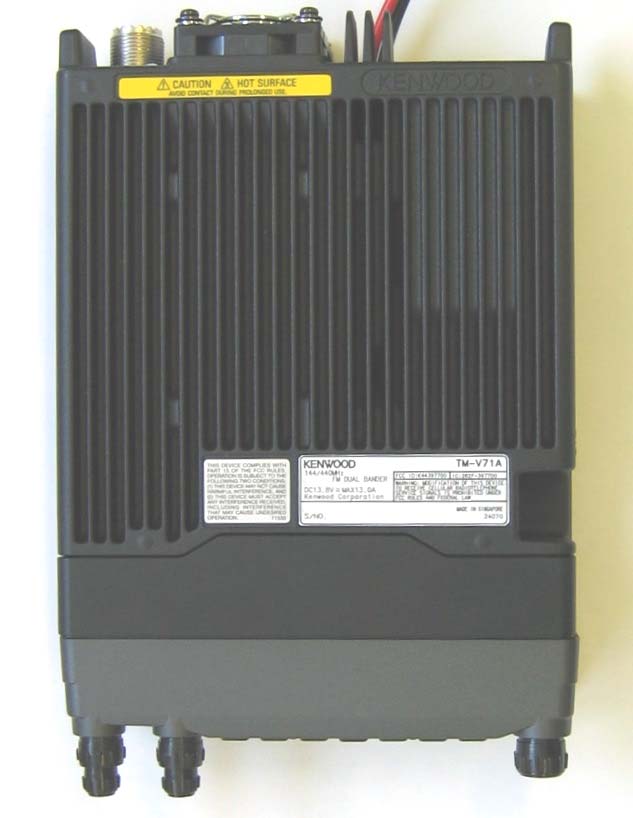

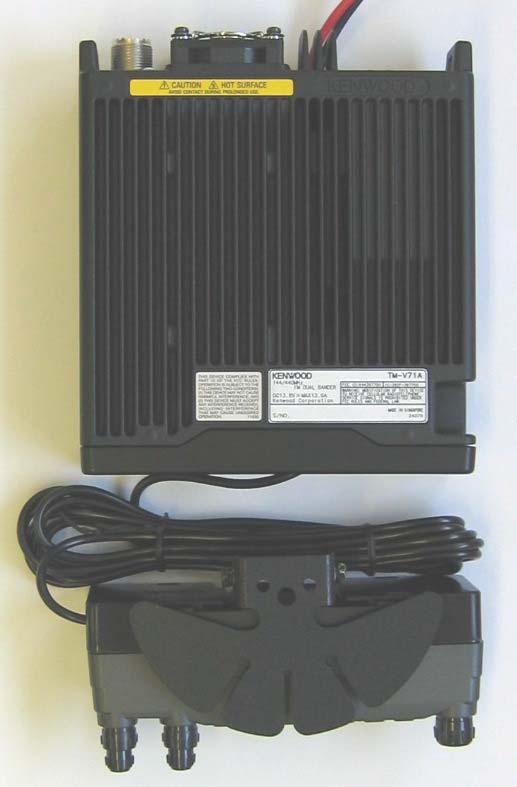

TM-D710A FCC ID:K44397700 / IC:282F-397700 Front View Rear View TM-D710A FCC ID:K44397700 / IC:282F-397700 Top View Bottom View TM-D710A FCC ID:K44397700 / IC:282F-397700 Right View Left View TM-V71A FCC ID:K44397700 / IC:282F-397700 Front View Rear View TM-V71A FCC ID:K44397700 / IC:282F-397700 Top View Bottom View TM-V71A FCC ID:K44397700 / IC:282F-397700 Right View Left View TM-V71A FCC ID:K44397700 / IC:282F-397700 Front View (with DFK-3D) Rear View (with DFK-3D) TM-V71A FCC ID:K44397700 / IC:282F-397700 Top View (with DFK-3D) Bottom View (with DFK-3D) TM-V71A FCC ID:K44397700 / IC:282F-397700 Right View (with DFK-3D) Left View (with DFK-3D)

TM-V71A, TM-D710A FCC ID:K44397700 / IC:282F-397700 TM-D710A TM-V71A, TM-D710A FCC ID:K44397700 / IC:282F-397700 TM-V71A TM-V71A (with DFK-3D)

Report No. ESJ–107031 FCC ID : K44397700 / IC : 282F-397700 © ETL SEMKO Japan K.K. Page 1 of 63 Version 0.1 TEST REPORT Regulation : FCC Part15B – Scanning Receiver Industry Canada RSS-135 : FCC Part15B Class B CANADA ICES-003 Class B Applicant Testing Laboratory Kenwood Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa 226-8525 Japan Tel : +81 45 939 6254 Fax : +81 45 939 7093 ETL SEMKO Japan K.K. Kashima Site 3-2 Sunayama, Kamisu, Ibaraki 314-0255 Japan Tel.: +81 479 40 1097 Fax.: +81 479 46 1788 URL: http://www.japan.intertek-etlsemko.com Equipment Type 144/440MHz FM DUAL BANDER Category Scanning Receiver & Peripherals Trademark KENWOOD Model (s) TM-D710A, TM-V71A Serial No. None FCC ID K44397700 IC 282F-397700 Test Result Complied Report Number ESJ-107031 Report Issue Date March 2, 2007 This equipment has been shown to be capable of compliance with the applicable standard(s) as indicated in the test report. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of ETL SEMKO Japan K.K. The results and statements contained in this report pertain only to the equipment evaluated. Approved by Tested by Kazuo Gokita [ Assistant Manager ] Kazuo Masuda Report No. ESJ–107031 FCC ID : K44397700 / IC : 282F-397700 © ETL SEMKO Japan K.K. Page 2 of 63 Version 0.1 TABLE OF CONTENTS Page SECTION 1. GENERAL INFORMATION ........................................................................................................... 3 SECTION 2. SUMMARY OF TEST RESULTS ...................................................................................................4 SECTION 3. INFORMATION ABOUT EUT ....................................................................................................... 5 SECTION 4. SUPPORT EQUIPMENT(S) ............................................................................................................ 7 SECTION 5. USED CABLE (S)............................................................................................................................ 8 SECTION 6. CONSTRUCTION OF EQUIPMENT ............................................................................................. 9 SECTION 7. OPERATING CONDITION........................................................................................................... 13 SECTION 8. TEST PROCEDURE(S) ................................................................................................................. 15 SECTION 9. EVALUATION OF TEST RESULTS............................................................................................. 20 SECTION 10. LIST OF MEASURING INSTRUMENTS .................................................................................... 61 SECTION 11. MEASUREMENT UNCERTAINTY ............................................................................................. 62 SECTION 12. DESCRIPTION OF TEST LABORATORY .................................................................................. 63 Report No. ESJ–107031 FCC ID : K44397700 / IC : 282F-397700 © ETL SEMKO Japan K.K. Page 3 of 63 Version 0.1 SECTION 1. GENERAL INFORMATION TEST PERFORMED Location Kashima No.1 Test Site (FCC Reg. : 934283) (IC File No. : IC 2065-1 ) EUT Received February 08, 2007 Te s t St a r t e d February 09, 2007 Te s t C o m p l e t e d February 23, 2007 Standard Applied FCC Part15B – Scanning Receiver Industry Canada RSS-135 FCC Part15B Class B - Peripherals and Canada ICES-003 Class B Test Setup ANSI C63.4-2003 Deviation from Standard (s) No deviation TEST TRACEABILITY Traceability to national standards of test result is achieved by means of calibration traceability to national or international standards. LIMITATIONS ON RESULTS The test result of this report is effective for equipment under test itself and under the test configuration described on the report. This test report does not assure that whether the test result taken in other testing laboratory is compatible or reproducible to the test result on this report or not. ABBREVIATIONS AE = Associated Equipment DIP = Dipole Antenna AMN = Artificial Mains Network DoC = Device for Declaration of Conformity AMP = Amplifier, ATT = Attenuato r EUT = Equipment Under Test ANT = Antenna, BBA = Broadband Antenna ISN = Impedance Stabilization Network AVG = Average LISN = Line Impedance Stabilization Network Cal = Calibration PK = Peak CDN = Coupling Decoupling Network Q-P = Quasi-peak LCD = Liquid-Crystal Display RX = Receive SPKR = Speaker Report No. ESJ–107031 FCC ID : K44397700 / IC : 282F-397700 © ETL SEMKO Japan K.K. Page 4 of 63 Version 0.1 SECTION 2. SUMMARY OF TEST RESULTS This test report clearly shows that the EUT is in compliance with the FCC Part15B (- Scanner Receivers with Industry Canada RSS-135) and FCC Part15B Class B (- Peripheral with Canada ICES-003 Class B) specification. The minimum margins to the limits are as follows: Conducted Voltages on Mains Port RX mode 24.6 dB at 0.4856 MHz 118MHz(A)/800MHz(B) Radiated Electric Field RX mode 12.0 dB at 404.32 MHz 524MHz(A)/1300MHz(B) Conducted Power on Antenna Port VFO Scan mode (B Band) 16.3 dB at 219.95 MHz 38dB Rejection Test (15.121(b)) No frequency of response was detected. - Passed - Note : See Section 9 for details. Report No. ESJ–107031 FCC ID : K44397700 / IC : 282F-397700 © ETL SEMKO Japan K.K. Page 5 of 63 Version 0.1 SECTION 3. INFORMATION ABOUT EUT The equipment under test (EUT) consisted of the following equipment. 3.1 List of System Configuration Symbol Item Model No. Serial No.ManufacturerNotes FCC ID A1 Main Unit (FM Dual Bander) TM-D710A (TM-V71A) None KENWOOD EUT K44397700 A2 Operation Panel TM-D710A (RC-D710) None …

Text truncated - open the document above for the full version.

Report No. ESJ–107031 FCC ID : K44397700 / IC : 282F-397700 © ETL SEMKO Japan K.K. Page 1 of 4 Version 0.1 Annex A Photographs Report No. ESJ–107031 FCC ID : K44397700 / IC : 282F-397700 © ETL SEMKO Japan K.K. Page 2 of 4 Version 0.1 PHOTOGRAPHS OF MAXIMUM EMISSION SET-UP 1 Conducted Voltages on Mains Port Note : Maintaining 10cm spacing between all the equipment cabinets. Report No. ESJ–107031 FCC ID : K44397700 / IC : 282F-397700 © ETL SEMKO Japan K.K. Page 3 of 4 Version 0.1 2 Radiated Electric Field Note : Maintaining 10cm spacing between all the equipment cabinets. Report No. ESJ–107031 FCC ID : K44397700 / IC : 282F-397700 © ETL SEMKO Japan K.K. Page 4 of 4 Version 0.1 3 Conducted Power on Antenna Port 4 38dB Rejection
