K4439923220UHF P25 Transceiver

INSTRUCTION MANUAL MID POWER VHF P25 TRANSCEIVER TK-5710 MID POWER UHF P25 TRANSCEIVER TK-5810 HIGH POWER VHF P25 TRANSCEIVER TK-5710H HIGH POWER UHF P25 TRANSCEIVER TK-5810H © B62-1816-30 (K) 09 08 07 06 05 04 03 02 i THANK YOU We are grateful you have chosen KENWOOD for your personal mobile applications. We believe this easy-to-use transceiver will provide dependable FRPPXQLFDWLRQVWRNHHSSHUVRQQHORSHUDWLQJDWSHDNHIÀFLHQF\ KENWOOD transceivers incorporate the latest in advanced technology. As a result, we feel strongly that you will be pleased with the quality and features of this product. MODELS COVERED BY THIS MANUAL The models listed below are covered by this manual: •TK-5710:Mid Power VHF P25 Transceiver •TK-5810:Mid Power UHF P25 Transceiver •TK-5710H:High Power VHF P25 Transceiver •TK-5810H:High Power UHF P25 Transceiver NOTICES TO THEUSER XGovernment law prohibits the operation of unlicensed transmitters within the territories under government control. X ,OOHJDORSHUDWLRQLVSXQLVKDEOHE\ÀQHDQGRULPSULVRQPHQW X 5HIHUVHUYLFHWRTXDOLÀHGWHFKQLFLDQVRQO\ SAFETY: It is important that the operator is aware of, and understands, hazards common to the operation of any transceiver. XEXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.) Turn OFF your transceiver while taking on fuel or while parked in gasoline service stations. Do not carry spare fuel containers in the trunk of your vehicle if your transceiver is mounted in the trunk area. XINJURY FROM RADIO FREQUENCY TRANSMISSIONS Do not operate your transceiver when somebody is either standing near to or touching the antenna, to avoid the possibility of radio frequency burns or related physical injury. XDYNAMITE BLASTING CAPS Operating the transceiver within 500 feet (150 m) of dynamite blasting caps may cause them to explode. Turn OFF your transceiver when in an area where blasting is in progress, or where “TURN OFF TWO-WAY RADIO” signs have been posted. If you are transporting blasting caps in your vehicle, make sure they are carried in a closed metal box with a padded interior. Do not transmit while the caps are being placed into or removed from the container. This device made under license under one or more of the following US Patents: 4,590,473; 4,636,791; 4,716,407; 4,972,460; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 5,502,767. The IMBE™ voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. ii One or more of the following statements may be applicable: FCC WARNING 7KLVHTXLSPHQWJHQHUDWHVRUXVHVUDGLRIUHTXHQF\HQHUJ\&KDQJHVRUPRGLÀFDWLRQVWRWKLV HTXLSPHQWPD\FDXVHKDUPIXOLQWHUIHUHQFHXQOHVVWKHPRGLÀFDWLRQVDUHH[SUHVVO\DSSURYHGLQWKH instruction manual. The user could lose the authority to operate this equipment if an unauthorized FKDQJHRUPRGLÀFDWLRQLVPDGH INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer for technical assistance. PRECAUTIONS 2EVHUYHWKHIROORZLQJSUHFDXWLRQVWRSUHYHQWÀUHSHUVRQDOLQMXU\DQGWUDQVFHLYHU damage. ‡ 'RQRWDWWHPSWWRFRQÀJXUHWKHWUDQVFHLYHUZKLOHGULYLQJLWLVWRRGDQJHURXV • Do not disassemble or modify the transceiver for any reason. • Do not expose the transceiver to long periods of direct sunlight, nor place it near heating appliances. • If an abnormal odor or smoke is detected coming from the transceiver, switch the transceiver power off immediately, and contact your KENWOOD dealer. ‡ 8VHRIWKHWUDQVFHLYHUZKLOH\RXDUHGULYLQJPD\EHDJDLQVWWUDIÀFODZV3OHDVHFKHFN and observe the vehicle regulations in your area. ‡ 'RQRWXVHRSWLRQVQRWVSHFLÀHGE\KENWOOD. XThe transceiver operates in12 V negative ground systems only! Check the battery polarity and voltage of the vehicle before installing the transceiver. XUse only a KENWOODoptional DC power cable. X 'RQRWFXWDQGRUUHPRYHWKHIXVHKROGHURQWKH'&SRZHUFDEOH For passenger safety, install the transceiver securely using an optional mounting bracket and screw set so the transceiver will not break loose in the event of a collision. iii CONTENTS UNPACKING AND CHECKING EQUIPMENT ....................................1 S UPPLIEDACCESSORIES.......................................................................1 PREPARATION ...................................................................................2 T OOLS REQUIRED................................................................................2 P OWER CABLE CONNECTION.................................................................2 I NSTALLING THETRANSCEIVER.........................................................…

Text truncated - open the document above for the full version.

Mar. 23rd, 2007 MET Laboratories 914 West Patapsco Ave. Baltimore MD 21230 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize ETL SEMKO JAPAN K.K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Tamaki Shimamura Communication Equipment Division Kenwood Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

Mar. 23rd, 2007 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: TK-5810H-K2, FCC ID: K4439923220 To Whom It May Concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that could never get into the possession of our competition. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communication Equipment Division Kenwood Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

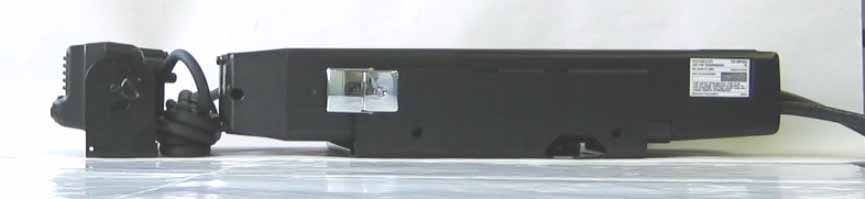

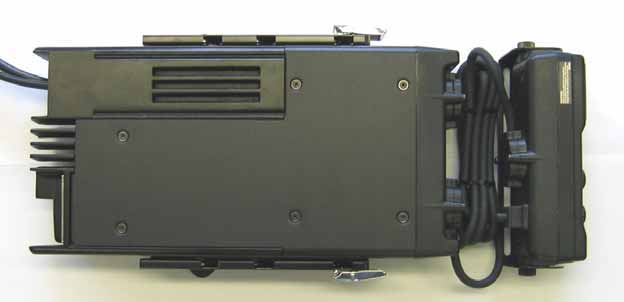

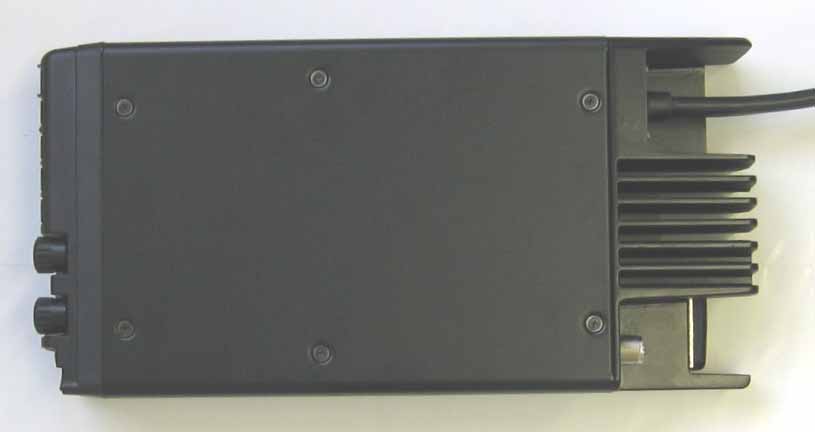

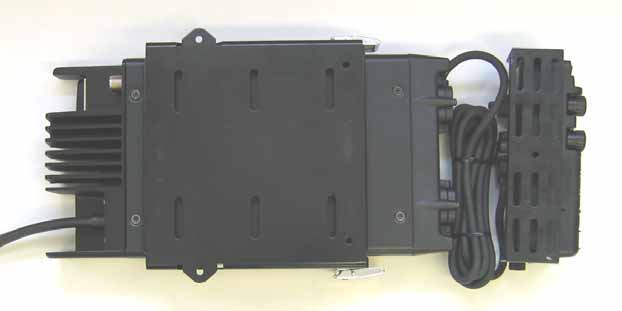

TK-5810H-K2 FCC ID:K4439923220 Front View (with KCH-14) Rear View (with KCH-14) TK-5810H-K2 FCC ID:K4439923220 Top View (with KCH-14) Bottom View (with KCH-14) TK-5810H-K2 FCC ID:K4439923220 Right View (with KCH-14) Left View (with KCH-14) TK-5810H-K2 FCC ID:K4439923220 Front View (with KCH-15) Rear View (with KCH-15) TK-5810H-K2 FCC ID:K4439923220 Top View (with KCH-15) Bottom View (with KCH-15) TK-5810H-K2 FCC ID:K4439923220 Right View (with KCH-15) Left View (with KCH-15) TK-5810H-K2 FCC ID:K4439923220 Front View (with KCH-14 and KRK-5) Rear View (with KCH-14 and KRK-5) TK-5810H-K2 FCC ID:K4439923220 Top View (with KCH-14 and KRK-5) Bottom View (with KCH-14 and KRK-5) TK-5810H-K2 FCC ID:K4439923220 Right View (with KCH-14 and KRK-5) Left View (with KCH-14 and KRK-5) TK-5810H-K2 FCC ID:K4439923220 Front View (with KCH-15 and KRK-5) Rear View (with KCH-15 and KRK-5) TK-5810H-K2 FCC ID:K4439923220 Top View (with KCH-15 and KRK-5) Bottom View (with KCH-15 and KRK-5) TK-5810H-K2 FCC ID:K4439923220 Right View (with KCH-15 and KRK-5) Left View (with KCH-15 and KRK-5)

TK-5810H-K2 FCC ID:K4439923220 TK-5810H-K2 FCC ID:K4439923220

TK-5810H-K2 FCC ID:K4439923220 Final Component Side View Final Foil Side View TK-5810H-K2 FCC ID:K4439923220 TXRX Component Side View TXRX Foil Side View TK-5810H-K2 FCC ID:K4439923220 Control Component Side View Control Foil Side View TK-5810H-K2 FCC ID:K4439923220 Display Component Side View Display Foil Side View TK-5810H-K2 FCC ID:K4439923220 Display Component Side View Display Foil Side View

Maximum Permissible Exposure (MPE) Evaluation Applicant:Kenwood Corporation Equipmen t:UHF P25 TRANSCEIVER Model No.:TK-5810H-K2 FCCID:K4439923220 MPE Calculations According to the OET Bulletin 65 (Edition 97-01) Where: S=Power density (in appropriate units, e.g. mW/cm 2 ) P=Power input to antenna (in appropriate units, e.g., mW) G=Power gain of the antenna in the direction of interest relative to an isotropic radiator R=Distance to the center of radiation of the antenna (appropriate units, e.g., cm) Tx Frequency= 406.1 to 470 (MHz) Maximum peak power =(dBm)(=100W) Antenna gain=(dBi) S=(mW/cm 2 ) P=(mW) (=Maximum peak power x 120% x Dutycycle 50%) G=(numeric) R=(cm) P = Value calculated according to CFR Part 90.205(r) Calculated minimum separation distance from antenna :170.10 (cm) 1.64 170.10 50.00 2.15 0.27 60000.00 S PG R π4 = 2 4R PG S π =

MANDATORY SAFETY INSTRUCTIONS TO INSTALLERS AND USERS • Use only manufacturer or dealer supplied antennas. • Antenna Minimum Safe Distance: 180 cm (6 feet), 50% duty Cycle. • Antenna Gain: 0dBd referenced to a dipole. The Federal Communications Commission has adopted a safety standard for human exposure to RF (Radio Frequency) energy which is below the OSHA (Occupational Safety and Health Act) limits. • Antenna Mounting: The antenna supplied by the manufacturer or radio dealer must not be mounted at a location such that during radio transmission, any person or persons can come closer than the above indicated minimum safe distance to the antenna, i.e. 180 cm (6 feet) , 50% duty Cycle. • To comply with current FCC RF Exposure limits, the antenna must be installed at or exceeding the minimum safe distance shown above, and in accordance with the requirements of the antenna manufacturer or supplier. • Vehicle installation: The antenna can be mounted at the center of a vehicle metal roof or trunk lid, if the minimum safe distance is observed. • Base Station Installation: The antenna should be fixed-mounted on an outdoor permanent structure. RF Exposure compliance must be addressed at the time of installation. Antenna substitution: Do not substitute any antenna for the one supplied or recommended by the manufacturer or radio dealer. You may be exposing person or persons to excess radio frequency radiation. You may contact your radio dealer or the manufacturer for further instructions. Maintain a separation distance from the antenna to person(s) of at least 180 cm (6 feet), 50% duty Cycle. “This transmitter is authorized to operate with a maximum duty factor of 50%, in typical push-to-talk mode, for satisfying FCC RF exposure compliance requirements.” You, as the qualified end-user of this radio device must control the exposure conditions of bystanders to ensure the minimum separation distance (above) is maintained between the antenna and nearby persons for satisfying RF Exposure compliance. The operation of this transmitter must satisfy the requirements of Occupational/Controlled Exposure Environment, for work-related use, transmit only when person(s) are at least the minimum distance from the properly installed, externally mounted antenna. Transmit only when people outside the vehicle are at least the recommended minimum lateral distance away from the antenna/vehicle. B59-2403-00

Report No : ESJ-107061 FCC ID :K4439923220 FALSE TRUE 4 REGULATION :FCC Part 2, 22, 74, 90, 90.210 Kenwood CorporationETL SEMKO Japan K. K. Kashima No.1 Test site 1-16-2, Hakusan, Midori-ku, Yokohama-shiFCC File Number : 100290-0 Kanagawa, 226-8525 Japan3-2, Sunayama, Kamisu-shi, Ibaraki-ken Tel.: +81 45 939 6254 Fax.: +81 45 939 7093314-0255 Japan Tel.: +81 479 40 1097 Fax.: +81 479 46 1788 URL: www.japan.intertek-etlsemko.com Equipment typeUHF P25 TRANSCEIVER TrademarkKENWOOD Model(s)TK-5810H-K2 Serial No. FCC ID K4439923220 Measurement MethodANSI/TIA-603-C-2004 No deviation Test ResultComplied Report NumberESJ-107061 Report issue date Approved byTested by Kazuo GokitaNaoki Ikeda [Assistant Manager] This equipment has been shown to be capable of compliance with the applicable standard(s) as indicated in the test report. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of ETL SEMKO Japan K. K. The results and statements contained in this report pertain only to the equipment evaluated. Applicant TEST REPORT Testing Laboratory Deviation from standard(s) April 25, 2007 None ETL SEMKO Japan K.K.Page 1 of 44Version 0.1 Report No : ESJ-107061 FCC ID :K4439923220 TABLE OF CONTENTS Page SECTION 1.GENERAL INFORMATION3 SECTION 2.TEST AND MEASUREMENT DATA5 SECTION 3.INFORMATION ABOUT EUT6 SECTION 4.MEASUREMENT RESULT8 SECTION 5.TEST DATA 5.1Carrier Output Power (Conducted)9 5.2Unwanted Emissions (Transmitter Conducted)11 5.3Field Strength of Spurious Radiation14 5.4Emission Masks (Occupied Bandwidth)18 5.5Transient Frequency Behavior26 5.6Audio Frequency Response / Audio Low Pass Filter (Voice Input)30 5.7Modulation Limiting33 5.8Frequency Stability (Temperature Variation)37 5.9Frequency Stability (Voltage Variation)40 5.10Necessary Bandwidth and Emission Bandwidth42 SECTION 6.VALIDITY OF TEST REPORT44 SECTION 7. DESCRIPTION OF TEST SITE44 APPENDIXPHOTOGRAPHS ETL SEMKO Japan K.K.Page 2 of 44Version 0.1 Report No : ESJ-107061 FCC ID :K4439923220 SECTION 1. GENERAL INFORMATION Description of Test Item Kind of EUT:UHF P25 TRANSCEIVER Condition of EUT:Prototype Type:Mobile type Trademark:KENWOOD Test Performed EUT Received: Test started: Test completed: Temperature:20 to 28 degree C Humidity:45 to 66 % Atmospheric:100.8 to 102.8 kPa Voltage:DC 13.4 V Current:28A Maximum Frequency:None Test Tracability Abbreviations April 18, 2007 Cal Exp. = Calibration Expire ACC = External accessory connector Tracability to national standards of test result is achieved by means of calibration tractability to national or international standards. EUT = Equipment Under Test D.R.G. Antenna = Double Rigid Guide Antenna March 16, 2007 March 09, 2007 ETL SEMKO Japan K.K.Page 3 of 44Version 0.1 Report No : ESJ-107061 FCC ID :K4439923220 In Accordance with FCC Rules and Regulations, Volume II, Part 2 and 90 Sub-part 2.1033 (c)(1) Applicant and Manufacture Information APPLICANT Company:Kenwood Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-shi Kanagawa, 226-8525 Japan Contact Person:Tamaki Shimamura Manager, Communications Equipment Division MANUFACTURER Company:Kenwood Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan (c)(2) FCC ID FCC ID:K4439923220 Model number:TK-5810H-K2 Serial number:None (c)(3) Instruction Manual(S) Instruction manual(s):Please refer to attached Exhibits F (c)(4) Type of Emission Emission Designation:16K0F3E(Wide) / 11K0F3E(Narrow) 20K0F7D(Wide) / 11K2F7D(Narrow) 14K4F1D(Wide) / 7K20F1D(Narrow) 8K10F1E(Narrow) / 8K10F1D(Narrow) (c)(5) Frequency range Frequency Range:406.1 to 470 MHz (c)(6) Power Rating Output Power:50 to 100W Type:Continuously Variable (c)(7) Maximum Power Rating Output Power:100 W Other Information Number of Channel:512 Channel Spacing:25 kHz / 12.5 kHz Maximum Deviation:5 kHz / 2.5 kHz Frequency Stability:2.0 ppm (Specification) Antenna Impedance:50 Ω Norminal Note ETL SEMKO Japan K.K.Page 4 of 44Version 0.1 Report No : ESJ-107061 FCC ID :K4439923220 SECTION 2. TEST AND MEASUREMENT DATA All test and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J and Industry Canada as the following individual parts: Test Item Domestic Public Fixed radio Services Non Cellular Public Mobile Services Subpart H - Cellular Radiotelephone Service Alternative technologies and auxiliary service International Fixed Public Radiocommunication service Personal Communications Services Subpart H - Low Power Auxiliary Stations Stations in the Maritime Services Subpart E - general Technical Standards Subpart F - Equipment Authorization for Compulsory Ships Subpart K - Private Coast Stations and Marine Utility Stations Subpart V - Emergency Position Indicating Radiobeacons (EPIRB'S) Subpart W - Global Maritime Distress and Safety System (GMDSS) Subpart X - Voluntary Radio Installations Aviation Services Private Land Mobile radio Services Private Operational - Fixed Microwave Service Subpart A - General Mobile radio Service Subpart C - Radio Control (R/C) radio Service Subpart D - Citizens Band (CB) Radio Service Subpart E -Family radio Service Subpart F -Interactive Video and Data Service (IVDS) Amateur Radio Service Fixed Microwave Service Test Item RSS-GenGeneral Requirements and Information for the Certification of Radiocommunication Equipment N.A. FCC Rule Part 80 Part 80 Part 21 Part 22 Part 22 Part 22 Part 22 Part 80 Part 80 Part 23 Part 24 Part 74 Part 80 IC RuleTested RSS-119Land Mobile and Fixed Radio Transmitters and ReceiversN.A. Part 80 Part 80 Part 80 N.A. N.A. Part 80 Part 80 Part 87 Part 90 Part 94 Part 95 Part 95 Par…

Text truncated - open the document above for the full version.

Report No : ESJ-107061A FCC ID :K4439923220 FALSE TRUE 4 REGULATION :FCC Part 2, 22, 74, 90, 90.210 Kenwood CorporationETL SEMKO Japan K. K. Kashima No.1 Test site 1-16-2, Hakusan, Midori-ku, Yokohama-shiFCC File Number : 934283 Kanagawa, 226-8525 Japan3-2, Sunayama, Kamisu-shi, Ibaraki-ken Tel.: +81 45 939 6254 Fax.: +81 45 939 7093314-0255 Japan Tel.: +81 479 40 1097 Fax.: +81 479 46 1788 URL: www.japan.intertek-etlsemko.com Equipment typeUHF P25 TRANSCEIVER TrademarkKENWOOD Model(s)TK-5810H-K2 Serial No. FCC ID K4439923220 Measurement MethodANSI/TIA-603-C-2004 No deviation Test ResultComplied Report NumberESJ-107061A Report issue date Approved byTested by Kazuo GokitaNaoki Ikeda [Assistant Manager] This equipment has been shown to be capable of compliance with the applicable standard(s) as indicated in the test report. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of ETL SEMKO Japan K. K. The results and statements contained in this report pertain only to the equipment evaluated. Applicant TEST REPORT Testing Laboratory Deviation from standard(s) May 09, 2007 None ETL SEMKO Japan K.K.Page 1 of 44Version 0.1 Report No : ESJ-107061A FCC ID :K4439923220 TABLE OF CONTENTS Page SECTION 1.GENERAL INFORMATION3 SECTION 2.TEST AND MEASUREMENT DATA5 SECTION 3.INFORMATION ABOUT EUT6 SECTION 4.MEASUREMENT RESULT8 SECTION 5.TEST DATA 5.1Carrier Output Power (Conducted)9 5.2Unwanted Emissions (Transmitter Conducted)11 5.3Field Strength of Spurious Radiation14 5.4Emission Masks (Occupied Bandwidth)18 5.5Transient Frequency Behavior26 5.6Audio Frequency Response / Audio Low Pass Filter (Voice Input)30 5.7Modulation Limiting33 5.8Frequency Stability (Temperature Variation)37 5.9Frequency Stability (Voltage Variation)40 5.10Necessary Bandwidth and Emission Bandwidth42 SECTION 6.VALIDITY OF TEST REPORT44 SECTION 7. DESCRIPTION OF TEST SITE44 APPENDIXPHOTOGRAPHS ETL SEMKO Japan K.K.Page 2 of 44Version 0.1 Report No : ESJ-107061A FCC ID :K4439923220 SECTION 1. GENERAL INFORMATION Description of Test Item Kind of EUT:UHF P25 TRANSCEIVER Condition of EUT:Prototype Type:Mobile type Trademark:KENWOOD Test Performed EUT Received: Test started: Test completed: Temperature:20 to 28 degree C Humidity:45 to 66 % Atmospheric:100.8 to 102.8 kPa Voltage:DC 13.4 V Current:28A Maximum Frequency:None Test Tracability Abbreviations April 18, 2007 Cal Exp. = Calibration Expire ACC = External accessory connector Tracability to national standards of test result is achieved by means of calibration tractability to national or international standards. EUT = Equipment Under Test D.R.G. Antenna = Double Rigid Guide Antenna March 16, 2007 March 09, 2007 ETL SEMKO Japan K.K.Page 3 of 44Version 0.1 Report No : ESJ-107061A FCC ID :K4439923220 In Accordance with FCC Rules and Regulations, Volume II, Part 2 and 90 Sub-part 2.1033 (c)(1) Applicant and Manufacture Information APPLICANT Company:Kenwood Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-shi Kanagawa, 226-8525 Japan Contact Person:Tamaki Shimamura Manager, Communications Equipment Division MANUFACTURER Company:Kenwood Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan (c)(2) FCC ID FCC ID:K4439923220 Model number:TK-5810H-K2 Serial number:None (c)(3) Instruction Manual(S) Instruction manual(s):Please refer to attached Exhibits F (c)(4) Type of Emission Emission Designation:16K0F3E(Wide) / 11K0F3E(Narrow) 20K0F7D(Wide) / 11K2F7D(Narrow) 14K4F1D(Wide) / 7K20F1D(Narrow) 8K10F1E(Narrow) / 8K10F1D(Narrow) (c)(5) Frequency range Frequency Range:406.1 to 470 MHz (c)(6) Power Rating Output Power:50 to 100W Type:Continuously Variable (c)(7) Maximum Power Rating Output Power:100 W Other Information Number of Channel:512 Channel Spacing:25 kHz / 12.5 kHz Maximum Deviation:5 kHz / 2.5 kHz Frequency Stability:2.0 ppm (Specification) Antenna Impedance:50 Ω Norminal Note ETL SEMKO Japan K.K.Page 4 of 44Version 0.1 Report No : ESJ-107061A FCC ID :K4439923220 SECTION 2. TEST AND MEASUREMENT DATA All test and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J and Industry Canada as the following individual parts: Test Item Domestic Public Fixed radio Services Non Cellular Public Mobile Services Subpart H - Cellular Radiotelephone Service Alternative technologies and auxiliary service International Fixed Public Radiocommunication service Personal Communications Services Subpart H - Low Power Auxiliary Stations Stations in the Maritime Services Subpart E - general Technical Standards Subpart F - Equipment Authorization for Compulsory Ships Subpart K - Private Coast Stations and Marine Utility Stations Subpart V - Emergency Position Indicating Radiobeacons (EPIRB'S) Subpart W - Global Maritime Distress and Safety System (GMDSS) Subpart X - Voluntary Radio Installations Aviation Services Private Land Mobile radio Services Private Operational - Fixed Microwave Service Subpart A - General Mobile radio Service Subpart C - Radio Control (R/C) radio Service Subpart D - Citizens Band (CB) Radio Service Subpart E -Family radio Service Subpart F -Interactive Video and Data Service (IVDS) Amateur Radio Service Fixed Microwave Service Test Item RSS-GenGeneral Requirements and Information for the Certification of Radiocommunication Equipment N.A. FCC Rule Part 80 Part 80 Part 21 Part 22 Part 22 Part 22 Part 22 Part 80 Part 80 Part 23 Part 24 Part 74 Part 80 IC RuleTested RSS-119Land Mobile and Fixed Radio Transmitters and ReceiversN.A. Part 80 Part 80 Part 80 N.A. N.A. Part 80 Part 80 Part 87 Part 90 Part 94 Part 95 Part 95 P…

Text truncated - open the document above for the full version.

Report No : ESJ-107061 FCC ID :K4439923220 APPENDIX ETL SEMKO Japan K.K.Page 1 of 6Version 0.1 Report No : ESJ-107061 FCC ID :K4439923220 PHOTOGRAPHS OF MEASUREMENT SET-UP 5.1 Carrier Output Power (Conducted) Accordance with TIA-603-C 2.2.1.2 5.2 Unwanted Emission (Conducted Spurious) Accordance with TIA-603-C 2.2.13.2 ETL SEMKO Japan K.K.Page 2 of 6Version 0.1 Report No : ESJ-107061 FCC ID :K4439923220 5.3 Field Stren gth of Spurious Radiation : Front view Accordance with TIA-603-C 2.2.12.2 5.3 Field Stren gth of Spurious Radiation : Rear view ETL SEMKO Japan K.K.Page 3 of 6Version 0.1 Report No : ESJ-107061 FCC ID :K4439923220 5.4 Emission Masks Accordance with TIA-603-C 2.2.11.2 5.5 Transient Fre quency Behavior Accordance with TIA-603-C 2.2.19.3 ETL SEMKO Japan K.K.Page 4 of 6Version 0.1 Report No : ESJ-107061 FCC ID :K4439923220 5.6 Audio Fre quency Response Accordance with TIA-603-C 2.2.6.2.2, 3.2.6.2 5.7 Modulation Limitin g Accordance with TIA-603-C 2.2.3.2 ETL SEMKO Japan K.K.Page 5 of 6Version 0.1 Report No : ESJ-107061 FCC ID :K4439923220 5.8 , 5.9 Frequency Stability : Outer view Accordance with TIA-603-C 2.3.2.2 5.8 , 5.9 Frequency Stability : Inner view ETL SEMKO Japan K.K.Page 6 of 6Version 0.1
