© B5A-0180-00 (K, E) INSTRUCTION MANUAL HF/50MHz TRANSCEIVER TS-590SG COPYRIGHTS FOR THIS MANUAL JVC KENWOOD Corporation shall own all copyrights and other intellectual properties for the product and the software and for all manuals and documents attached to the product and the software. A user is required to obtain approval from JVC KENWOOD corporation, in writing, prior to redistributing this document on a personal web page or via packet communication. A user is prohibited from assigning, renting, leasing or reselling the document. JVC KENWOOD Corporation does not warrant that quality and functions described in this manual comply with each user's purpose of use and, unless specifically described in this manual, JVC KENWOOD Corporation shall be free from any responsibility for any defects and indemnities for any damages or losses. INDEMNITY s JVC KENWOOD Corporation takes all appropriate measures to ensure all descriptions in this manual are accurate; however, this manual may still contain typographical errors (“typos”) and expressions that are misleading. JVC KENWOOD Corporation is entirely free from any responsibilities arising from any losses or damages caused by such typos or expressions. sJVC KENWOOD Corporation has the right to change or improve the product specifications, etc., described in this manual without prior notice. JVC KENWOOD Corporation is entirely free from any responsibilities for any losses or damages caused by such changes and improvements. sJVC KENWOOD Corporation is entirely free from any responsibilities for any failures, damages or losses arising from, or in connection with, use of the transceiver with or connected to any external equipment. Failures, damages or losses shall include the failures, damages or losses that may occur at the PC connected to the transceiver or in storage devices having memory area such as a USB flash drive. JVC KENWOOD Corporation is entirely free from any responsibilities for any secondary failures, damages or losses, including but not limited to the loss or damage of data or data files stored in these memories. sJVC KENWOOD Corporation does not warrant that the quality and functions described in this manual comply with your purpose of use and, unless specifically described in this manual, JVC KENWOOD Corporation shall be free from any responsibilities for any defects and indemnities for any damages or losses. Selection and installation of any external equipment shall be done at your own risk. You are fully responsible for the use and effects of external equipment. sJ VC KENWOOD Corporation shall be free from any responsibilities for any incidental losses or damages, such as missing communications or call opportunities caused by a failure or performance error of the transceiver. i THANK YOU Thank you for choosing this KENWOOD TS-590S transceiver. It has been developed by a team of engineers determined to continue the tradition of excellence and innovation in KENWOOD transceivers. This transceiver features a Digital Signal Processing (DSP) unit to process IF and AF signals. By taking maximum advantage of DSP technology, the TS-590S transceiver gives you enhanced interference reduction capabilities and improves the quality of audio. You will notice the differences when you fight QRM and QRN. As you learn how to use this transceiver, you will also find that KENWOOD is pursuing “user friendliness”. For example, each time you change the Menu No. in Menu mode, you will see scrolling messages on the display, telling you what you are selecting. Though user friendly, this transceiver is technically sophisticated and some features may be new to you. Consider this manual to be a personal tutorial from the designers. Allow the manual to guide you through the learning process now, then act as a reference in the coming years. FEATURES s !LLMODEOPERATIONFROM(&TO-(ZAMATEUR radio band s (ZK(ZROOlNGlLTER s 3UPERIOR#.RESPONSEBYTHE$$3LARGELY decreases the noise of the undesired signal. s )&$30THROUGHTHEADOPTIONOF BITmOATINGPOINT DSP s $IGITAL.OISE"LANKER s 0#INTERFACEVIAA5NIVERSAL3ERIAL"USPORT (B-type) s $RIVEOUTPUTAND28ONLYANTENNACONNECTOR s $IRECTBANDKEYS s "UILT IN!NTENNA4UNERFORTHE(&-(ZBAND s 7OUTPUTPOWERFOR33" #7 &3+ &- AND 7OUTPUTPOWERFOR!- NOTICE TO THE USER One or more of the following statements may be applicable for this equipment. FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to OPERATETHISEQUIPMENTIFANUNAUTHORIZEDCHANGEORMODIlCATION is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the LIMITSFORA#LASS"DIGITALDEVICE PURSUANTTO0ARTOFTHE FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio COMMUNICATIONS(OWEVER THEREISNOGUARANTEETHATTHE interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: s 2EORIENTORRELOCATETHERECEIVINGANTENNA s )NCREASETHESEPARATIONBETWEENTHEEQUIPMENTAND receiver. s #ONNECTTHEEQUIPMENTTOANOUTLETONACIRCUITDIFFERENTFROM that to which the receiver is connected. s #ONSULTTHEDEALERFORTECHNICALASSISTANCE This device complies with Industry Canada licenseexempt RSS standard(s). Operation is …

Text truncated - open the document above for the full version.

Aug. 25th, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize any individual within Intertek Japan K.K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Tamaki Shimamura Communications Equipment Division 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

Aug. 25th 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: TS-590SG, FCC ID: K44407110. To whom it may concern: This letter serves as an official request for permanent confidentiality. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description and Internal Photos required to be submitted with this application be withheld from public review. This device is certified pursuant to two different Part 15 rules sections, Part 15 Class B Computing Device Peripheral and Scanning Receiver. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Equipment Division 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

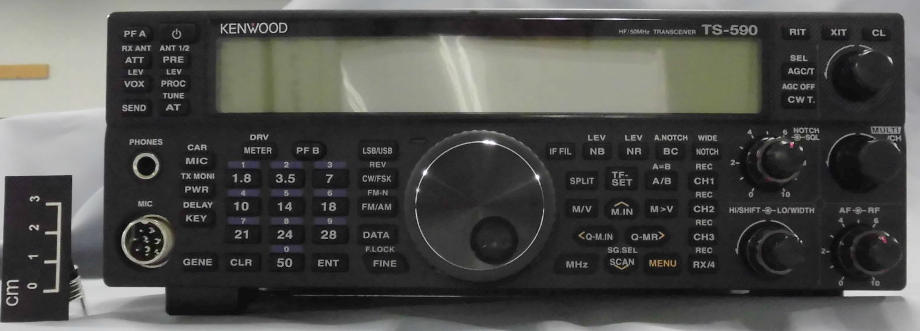

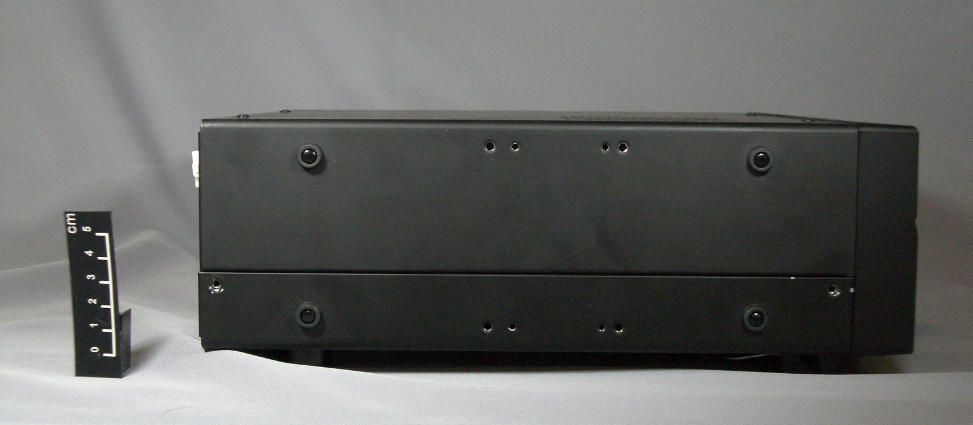

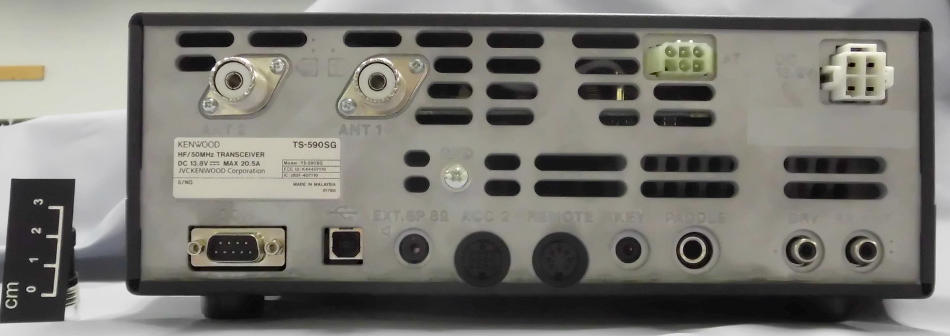

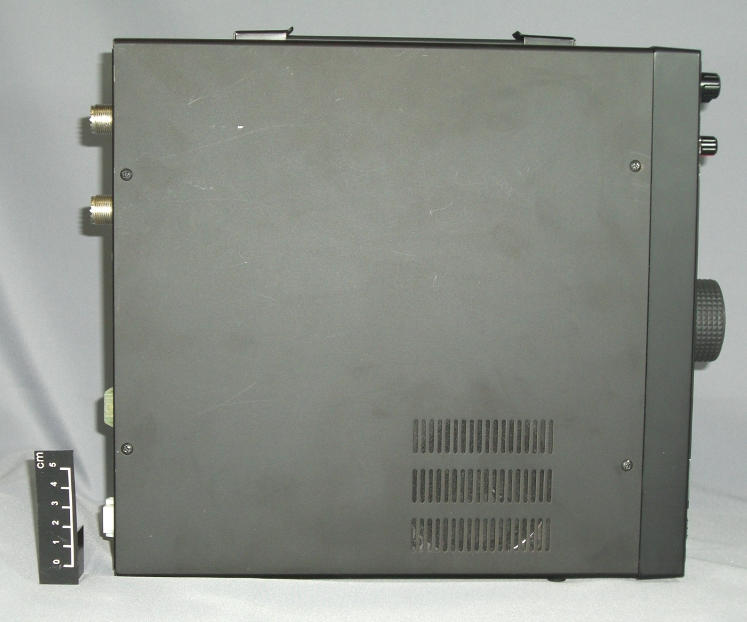

TS-590SG FCC ID: K44407110 IC: 282F-407110 Front View Rear View TS-590SG FCC ID: K44407110 IC: 282F-407110 Top View Bottom View TS-590SG FCC ID: K44407110 IC: 282F-407110 Right View Left View

TS-590SG FCC ID: K44407110 IC: 282F-407110

© Intertek Japan K.K. Page 1 of 59 FJP-EM023 / Effective Date: 17 Oct 2013 TEST REPORT FCC Part15B Class B -Scanning Receiver- STANDARD : Industry Canada RSS-215 Issue 2 Applicant Testing Laboratory JVC KENWOOD Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan Tel. +81 45 939 6254 Intertek Japan K.K. Kashima Laboratory (Anechoic chamber) 298-6 Sada, Kashima, Ibaraki 314-0027 Japan Tel. +81 299 82 8464 (Open area test site) 3-2 Sunayama, Kamisu, Ibaraki 314-0255 Japan Tel. +81 479 40 1097 URL: http://www.japan.intertek-etlsemko.com Equipment Type HF/50MHz ALL MODE TRANSCEIVER Trademark KENWOOD Model(s) TS-590SG Serial No. 0001 Equipment Authorization Certification (FCC ID : K44407110) (IC ID : 282F-407110) Test Result Complied Report Number 14070023JKA-001 Original Issue Date August 27, 2014 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Approved by Tested by Kazuo Gokita [ Manager ] Koichi Wagatsuma [ Engineer ] Responsible Party of Test Item (Product) Responsible Party : Add. : Te l . : Fax. : Contact Person : Report No.: 14070023JKA-001 Original: August 27, 2014 FCC ID: K44407110 , IC ID : 282F-407110 © Intertek Japan K.K. Page 2 of 59 FJP-EM023 / Effective Date: 17 Oct 2013 TABLE OF CONTENTS Page SECTION 1. GENERAL INFORMATION .................................................................................................. 3 SECTION 2. SUMMARY OF TEST RESULTS ......................................................................................... 4 SECTION 3. EQUIPMENT UNDER TEST ................................................................................................ 5 SECTION 4. SUPPORT EQUIPMENT...................................................................................................... 6 SECTION 5. USED CABLE(S).................................................................................................................. 7 SECTION 6. TEST CONFIGURATION ..................................................................................................... 8 SECTION 7. OPERATING CONDITION ..................................................................................................11 SECTION 8. UNCERTAINTY .................................................................................................................. 12 SECTION 9. EVALUATION OF TEST RESULTS ................................................................................... 13 SECTION 10. LIST OF MEASURING INSTRUMENTS.......................................................................... 53 ANNEX ..........................................................................................................................55 APPENDIX PHOTOGRAPHS OF MAXIMUM EMISSION SET-UP Report No.: 14070023JKA-001 Original: August 27, 2014 FCC ID: K44407110 , IC ID : 282F-407110 © Intertek Japan K.K. Page 3 of 59 FJP-EM023 / Effective Date: 17 Oct 2013 SECTION 1. GENERAL INFORMATION Test Performed EUT Received July 12, 2014 Date of Test From July 14, 2014 to July 31, 2014 Standard Applied FCC Part15B -Scanning Receiver- Industry Canada RSS-215 Issue 2 Test methods ANSI C63.4-2003 / RSS-GEN Issue 3-2010 Deviation from Standard(s) None As for the ICES-003 “Digital Apparatus”, the EUT has been measured. Refer to report No.14070023JKA-003. As for the FCC Part15B Class B “Peripherals”, the EUT has been measured. Refer to report No.14070023JKA-002. Qualifications of Testing Laboratory Accreditation Scope Lab. Code Remarks VLAC EMC Testing VLAC-008-1 JAPAN BSMI EMC Testing SL2-IN-E-6008 TAIWAN Filing VCCI EMC Testing A-0126 JAPAN FCC EMC Testing Designation Number : JP0008 USA IC EMC Testing 2042K-3, 2042Q-12 CANADA CB-Scheme EMC Testing TL222 IECEE SAUDI ARABIA EMC Testing N/A Abbreviations EUT Equipment Under Test DoC Declaration of Conformity AMN Artificial Mains Network ISN Impedance Stabilization Network LISN Line Impedance Stabilization Network Q-P Quasi-peak AMP Amplifier AVG Average ATT Attenuator PK Peak ANT Antenna Cal Calibration BBA Broadband Antenna N/A Not applicable or Not available DIP Dipole Antenna LCD Liquid-Crystal Display AE Associated Equipment HDMI High-Definition Multimedia Interface Report No.: 14070023JKA-001 Original: August 27, 2014 FCC ID: K44407110 , IC ID : 282F-407110 © Intertek Japan K.K. Page 4 of 59 FJP-EM023 / Effective Date: 17 Oct 2013 SECTION 2. SUMMARY OF TEST RESULTS See Section9 for the detailed result. Emission Tests Standard Applied FCC Part15B Class B -Scanning Receiver- Industry Canada RSS-215 Issue 2 Test Item Minimum margin Remarks Conducted disturbance at mains terminals 4.4 dB (0.2036 MHz) [Q-P] RX mode(0.03MHz : ANT 1) Radiated disturbance 0.7 dB (393.60 MHz) RX mode(VFO SCAN : ANT 1) Conducted power on antenna port 12.1 dB (80.5885 MHz) RX mode(VFO SCAN : ANT RX) Test Item Results Remarks 38dB Rejection test (15.121(b)) Pass See Note Note : No frequency of response was detected. Report No.: 14070023JKA-001 Original: August 27, 2014 FCC ID: K44407110 , IC ID : 282F-407110 © Intertek Japan K.K. Page 5 of 59 FJP-EM023 / Effective Date: 17 Oct 2013 SECTION 3. EQUIPMENT UNDER TEST The equipment un…

Text truncated - open the document above for the full version.

Report No.: 14070023JKA-001 Original: August 27, 2014 FCC ID: K44407110 , IC ID : 282F-407110 © Intertek Japan K.K. Page 1 of 5 FJP-EM023 / Effective Date: 17 Oct 2013 APPENDIX Photographs Report No.: 14070023JKA-001 Original: August 27, 2014 FCC ID: K44407110 , IC ID : 282F-407110 © Intertek Japan K.K. Page 2 of 5 FJP-EM023 / Effective Date: 17 Oct 2013 PHOTOGRAPHS OF MAXIMUM EMISSION SET-UP 1. Conducted disturbance at mains terminals Note : Maintaining 10cm spacing between all the equipment cabinets. EUT Report No.: 14070023JKA-001 Original: August 27, 2014 FCC ID: K44407110 , IC ID : 282F-407110 © Intertek Japan K.K. Page 3 of 5 FJP-EM023 / Effective Date: 17 Oct 2013 2. Radiated disturbance Note : Maintaining 10cm spacing between all the equipment cabinets. Report No.: 14070023JKA-001 Original: August 27, 2014 FCC ID: K44407110 , IC ID : 282F-407110 © Intertek Japan K.K. Page 4 of 5 FJP-EM023 / Effective Date: 17 Oct 2013 3. Conducted power on antenna port Note : Maintaining 10cm spacing between all the equipment cabinets. Report No.: 14070023JKA-001 Original: August 27, 2014 FCC ID: K44407110 , IC ID : 282F-407110 © Intertek Japan K.K. Page 5 of 5 FJP-EM023 / Effective Date: 17 Oct 2013 4. 38dB Rejection test Note : Maintaining 10cm spacing between all the equipment cabinets.
