K44415501UHF FM Mobile Transceiver

VHF FM TRANSCEIVER/ UHF FM TRANSCEIVER TK-7360/ TK-8360 TK-7360H/ TK-8360H TK-7360HV/ TK-8360HU INSTRUCTION MANUAL ENGLISH Firmware Copyrights The title to and ownership of copyrights for firmware embedded in Kenwood product memories are reserved for Kenwood Corporation. Terminal Descriptions ACC (D-SUB 15 Pin Connector) No.NameI/ODescription6SHFLÀFDWLRQ 1SBODC Power Output13.6 V ±15% 2IGNIIgintion Signal Input Power On: Over 8 V Power Off: Under 6 V 3PAOLoudspeaker Outputї 4DOOAudio Output500 mV p-p 5DIIAudio InputNї 6FNC1I/OProgrammableHigh Impedance 7FNC2I/OProgrammableHigh Impedance 8FNC3I/OProgrammableHigh Impedance 9FNC4I/OProgrammableHigh Impedance 10FNC5I/OProgrammableHigh Impedance 11FNC6I/OProgrammableHigh Impedance 125CODC Power Output5 V, Max 100 mA 13HR1OHorn Alert Signal OutputMax 3 A 14HR2OHorn Alert Signal OutputMax 3 A 15GND—GroundGround 6SHDNHU-DFN PP3KRQH-DFN :ї No.NameI/ODescription6SHFLÀFDWLRQ 1SPOOExternal Speaker Outputї 3GND—GroundGround DC Input Connector No.NameI/ODescription6SHFLÀFDWLRQ RedBIDC Power Input13.6 V ±15% BlackGNDIGroundGround Microphone Jack No.NameI/ODescription6SHFLÀFDWLRQ 1MBLOBacklight of Microphone— 2SBODC Power Output13.6 V ±15% 3GND—GroundGround 4PTTI/OPTT/ PC Serial Data from RadioHigh Impedance 5ME—Mic GroundGround 6MICIMic Signal Inputї 7HOOKIHook/ PC Serial Data to RadioHigh Impedance 8DMI/OMic Data DetectionHigh Impedance Antenna Terminal їLPSHGDQFH i One or more of the following statements may be applicable: FCC WARNING 7KLVHTXLSPHQWJHQHUDWHVRUXVHVUDGLRIUHTXHQF\HQHUJ\&KDQJHVRUPRGLÀFDWLRQVWRWKLV HTXLSPHQWPD\FDXVHKDUPIXOLQWHUIHUHQFHXQOHVVWKHPRGLÀFDWLRQVDUHH[SUHVVO\DSSURYHGLQWKH instruction manual. The user could lose the authority to operate this equipment if an unauthorized FKDQJHRUPRGLÀFDWLRQLVPDGH INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC 7KLVHTXLSPHQWKDVEHHQWHVWHGDQGIRXQGWRFRPSO\ZLWKWKHOLPLWVIRUD&ODVV%GLJLWDOGHYLFH SXUVXDQWWR3DUWRIWKH)&&5XOHV7KHVHOLPLWVDUHGHVLJQHGWRSURYLGHUHDVRQDEOHSURWHFWLRQ against harmful interference in a residential installation. 7KLVHTXLSPHQWJHQHUDWHVXVHVDQGFDQJHQHUDWHUDGLRIUHTXHQF\HQHUJ\DQGLIQRWLQVWDOOHGDQG XVHGLQDFFRUGDQFHZLWKWKHLQVWUXFWLRQVPD\FDXVHKDUPIXOLQWHUIHUHQFHWRUDGLRFRPPXQLFDWLRQV +RZHYHUWKHUHLVQRJXDUDQWHHWKDWWKHLQWHUIHUHQFHZLOOQRWRFFXULQDSDUWLFXODULQVWDOODWLRQ,IWKLV HTXLSPHQWGRHVFDXVHKDUPIXOLQWHUIHUHQFHWRUDGLRRUWHOHYLVLRQUHFHSWLRQZKLFKFDQEHGHWHUPLQHG E\WXUQLQJWKHHTXLSPHQWRIIDQGRQWKHXVHULVHQFRXUDJHGWRWU\WRFRUUHFWWKHLQWHUIHUHQFHE\RQH or more of the following measures: ‡ 5HRULHQWRUUHORFDWHWKHUHFHLYLQJDQWHQQD ‡ ,QFUHDVHWKHVHSDUDWLRQEHWZHHQWKHHTXLSPHQWDQGUHFHLYHU ‡ &RQQHFWWKHHTXLSPHQWWRDQRXWOHWRQDFLUFXLWGLIIHUHQWIURPWKDWWRZKLFKWKHUHFHLYHULV connected. •Consult the dealer for technical assistance. THANK YOU :HDUHJUDWHIXO\RXKDYHFKRVHQKenwood for your personal mobile applications. 7KLVLQVWUXFWLRQPDQXDOFRYHUVRQO\WKHEDVLFRSHUDWLRQVRI\RXUPRELOHUDGLR$VN\RXUGHDOHUIRU LQIRUPDWLRQRQDQ\FXVWRPL]HGIHDWXUHVWKH\PD\KDYHDGGHGWR\RXUUDGLR NOTICES TO THEUSER X *RYHUQPHQWODZSURKLELWVWKHRSHUDWLRQRIXQOLFHQVHGWUDQVPLWWHUVZLWKLQWKHWHUULWRULHVXQGHU JRYHUQPHQWFRQWURO X ,OOHJDORSHUDWLRQLVSXQLVKDEOHE\ÀQHDQGRULPSULVRQPHQW X 5HIHUVHUYLFHWRTXDOLÀHGWHFKQLFLDQVRQO\ SAFETY:,WLVLPSRUWDQWWKDWWKHRSHUDWRULVDZDUHRIDQGXQGHUVWDQGVKD]DUGV FRPPRQWRWKHRSHUDWLRQRIDQ\WUDQVFHLYHU XEXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.)  7XUQ2))\RXUWUDQVFHLYHUZKLOHWDNLQJRQIXHORUZKLOHSDUNHGLQJDVROLQHVHUYLFHVWDWLRQV'R QRWFDUU\VSDUHIXHOFRQWDLQHUVLQWKHWUXQNRI\RXUYHKLFOHLI\RXUWUDQVFHLYHULVPRXQWHGLQWKH WUXQNDUHD XINJURY FROM RADIO FREQUENCY TRANSMISSIONS  'RQRWRSHUDWH\RXUWUDQVFHLYHUZKHQVRPHERG\LVHLWKHUVWDQGLQJQHDUWRRUWRXFKLQJWKH DQWHQQDWRDYRLGWKHSRVVLELOLW\RIUDGLRIUHTXHQF\EXUQVRUUHODWHGSK\VLFDOLQMXU\ XDYNAMITE BLASTING CAPS  2SHUDWLQJWKHWUDQVFHLYHUZLWKLQIHHW P RIG\QDPLWHEODVWLQJFDSVPD\FDXVHWKHP WRH[SORGH7XUQ2))\RXUWUDQVFHLYHUZKHQLQDQDUHDZKHUHEODVWLQJLVLQSURJUHVVRUZKHUH ́78512))7:2:$<5$',2μVLJQVKDYHEHHQSRVWHG,I\RXDUHWUDQVSRUWLQJEODVWLQJFDSV LQ\RXUYHKLFOHPDNHVXUHWKH\DUHFDUULHGLQDFORVHGPHWDOER[ZLWKDSDGGHGLQWHULRU'RQRW WUDQVPLWZKLOHWKHFDSVDUHEHLQJSODFHGLQWRRUUHPRYHGIURPWKHFRQWDLQHU ii CONTENTS *(77,1*67$57('................................................................................................1 *(77,1*$&48$,17('.........................................................................................3 352*5$00$%/()81&7,216.............................................................................5 %$6,&23(5$7,216...............................................................................................5 6&$1........................................................................................................................7 '70)&$//6...........................................................................................................8 6,*1$/,1*............................................................................................................ )OHHW6\QF$/3+$180(5,&:$<3$*,1*)81&7,21................................... 11 $'9$1&('23(5$7,216....................................................................................13 %$&.*5281'23(5$7,216..............................................................................16 9*6237,21$/92,&(*8,'( 6725$*(81,7..........................................17 PRECAUTIONS 2EVHUYHWKHIROORZLQJSUHFDXWLRQVWRSUHYHQWÀUHSHUVRQDOLQMXU\DQGWUDQVFHLYHU damage. ‡ 'RQRWDWWHPSWWRFRQÀJXUHWKHWUDQVFHLYHUZKLOHGULYLQJLWLVWRRGDQJHURXV ‡ 'RQRWGLVDVVHPEOHRUPRGLI\WKHWUDQVFHLYHUIRUD…

Text truncated - open the document above for the full version.

MANDATORY SAFETY INSTRUCTIONS TO INSTALLERS AND USERS • Use only manufacturer or dealer supplied antenna. • Antenna Minimum Safe Distance: 120 cm (4 feet), 50% duty Cycle. • Antenna Gain: 0 dBd referenced to a dipole. The Federal Communications Commission has adopted a safety standard for human exposure to RF (Radio Frequency) energy which is below the OSHA (Occupational Safety and Health Act) limits. • Antenna Mounting: The antenna supplied by the manufacturer or radio dealer must not be mounted at a location such that during radio transmission, any person or persons can come closer than the above indicated minimum safe distance to the antenna, i.e. 120 cm (4 feet) , 50% duty Cycle. • To comply with current FCC RF Exposure limits, the antenna must be installed at or exceeding the minimum safe distance shown above, and in accordance with the requirements of the antenna manufacturer or supplier. • Vehicle installation: The antenna can be mounted at the center of a vehicle metal roof or trunk lid, if the minimum safe distance is observed. • Base Station Installation: The antenna should be fixed-mounted on an outdoor permanent structure. RF Exposure compliance must be addressed at the time of installation. Antenna substitution: Do not substitute any antenna for the one supplied or recommended by the manufacturer or radio dealer. You may be exposing person or persons to excess radio frequency radiation. You may contact your radio dealer or the manufacturer for further instructions. Maintain a separation distance from the antenna to person(s) of at least 120 cm (4 feet) , 50% duty Cycle. “This transmitter is authorized to operate with a maximum duty factor of 50%, in typical push-to-talk mode, for satisfying FCC RF exposure compliance requirements.” You, as the qualified end-user of this radio device must control the exposure conditions of bystanders to ensure the minimum separation distance (above) is maintained between the antenna and nearby persons for satisfying RF Exposure compliance. The operation of this transmitter must satisfy the requirements of Occupational/Controlled Exposure Environment, for work-related use, transmit only when person(s) are at least the minimum distance from the properly installed, externally mounted antenna. Transmit only when people outside the vehicle are at least the recommended minimum lateral distance away from the antenna/vehicle

Sep. 15th, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer Subject: Justify Extended Frequency Range for MODEL: TK-8360-M2, FCC ID: K44415501. To Whom It May Concern: This letter serves justification for extended frequencies This device has design capability to operate in the frequency band 406.1 to 470 MHz and complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transit frequencies using the normally accessible external controls. Please note that Licensed End Users do not have access to any external controls that will allow them to program the equipment. Equipment programming is the responsibility of Kenwood approved Service Agents. In addition to Parts 22/74/90 usage, this device is utilized in systems such as Federal and Public Safety agencies, e.g. police, fire, and emergency medical, etc. as indicated in the following table: Freq. Range (MHz) Part 90 Part 22 Part 74 Federal Customers 406.100 - 450.000 x 450.000 - 454.000 x x 454.000 - 455.000 x 455.000 - 456.000 x 456.000 - 460.000 x x 460.000 - 462.5375 x 462.5375-462.7375 x 462.7375-467.5375 x 467.5375-467.7375 x 467.7375-470.000 x Table 1 – Frequency Range and Rule Parts - (47 CFR Part 2.106) It is understood that a grant note code may be added to the grant which indicates this required operation. In addition, we acknowledge that it is a violation of FCC rules if the device operates on unauthorized frequencies. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Equipment Division Kenwood Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

May 20th, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize Intertek Japan K.K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Tamaki Shimamura Communications Equipment Division Kenwood Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

Sep. 15th 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: TK-8360-M2, FCC ID: K44415501 To whom it may concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that could never get into the possession of our competition. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Equipment Division Kenwood Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

From: Sae Hagino Intertek Sent: Wednesday, November 10, 2010 2:45 AM To: PCTEST TCB/CB Subject: RE: Questions Regarding FCC ID: K44415501 Dear Mr. Czumak, P lease see the comments in blue texts below: 1. Pursuant to the FCC’s Extended Frequencies policy, KDB 634817 (please see attached), please add th e following alternative attestation statement to the current attestation letter justifying the extended frequency range, after the sentence, “It is understood that a grant note code may be added to the grant which indicates this required operation.”: In addition, we acknowledge that it is a violation of FCC rules if the device operates on unauthorized f requencies. After adding this statement, please resubmit the letter. => Please find the attached revised justify letter. 2. Pursuant to Section 90.203(j)(3), please submit an statement attesting that the equipment meets a spectrum efficiency standard of one voice channel per 12.5 kHz of channel bandwidth. => The test report on page 6 attests that the product complies with Section 90.203(j)(3). The product passed the requirements for 11K0F3E. 3. FYI: because the EUT’s minimum separation distance required for RF exposure MPE compliance was calculated based upon the Uncontrolled/General Population limits, it is not required that the EUT only be used in Controlled/Occupational environments. As a result, the label bearing the following statement may be removed from the EUT. => Kenwood noted your comment. If it's up to Kenwood whether to remove a caution label or not, they would like to keep the current one. Best regards, Sae Hagino Global Market Access Program Intertek Commercial & Electrical From: PCTEST TCB/CB Sent: Wednesday, November 10, 2010 8:07 AM To: Sae Hagino Intertek Subject: Questions Regarding FCC ID: K44415501 To: Ms. Sae Hagino/ Intertek Japan K.K. F rom: Mr. Gregory Czumak / PCTEST TCB R E: FCC ID: K44415501 Applicant: Kenwood Corporation Correspondence Reference Number: K44Y101305 C onfirmation Number: Y1011011305 Date of Original Email: November 9, 2010 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. Pursuant to the FCC’s Extended Frequencies policy, KDB 634817 (please see a ttached), please add the following alternative attestation statement to the current attestation letter justifying the extended frequency range, after the sentence, “It is understood that a grant note code may be added to the grant which indicates this required operation.”: In addition, we acknowledge that it is a violation of FCC rules if the device operates on unauthorized frequencies. After adding this statement, please resubmit the lett er. 2. Pursuant to Section 90.203(j)(3), please submit an statement attesting that the e quipment meets a spectrum efficiency standard of one voice channel per 12.5 kHz of channel bandwidth. 3. FYI: because the EUT’s minimum separation distance required for RF exposure M PE compliance was calculated based upon the Uncontrolled/General Population limits, it is not required that the EUT only be used in Controlled/Occupational environments. As a result, the label bearing the following statement may be removed from the EUT. The item indicated above must be submitted before pro cessing can continue on the above referenced application. Sincerely, Gregory Czumak Se nior Certification Engineer Quality Manager CONFIDENTIALITY NOTICE This email may contain confidential or privileged information, if you are not the intended recipient, or the person responsible for delivering the message to the intended recipient then please notify us by return email immediately. Should you have received this email in error then you should not copy this for any purpose nor disclose its contents to any other person. http://www.intertek.com PCTEST TCB/CB Tel. 1.410.290.6652 Fax. 1.410.290.6654 [email protected] www.pctesttcb.com
Please consider the environment before printing this e-mail. This communication and its attachments contain information from PCTEST TCB/CB and are intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you.

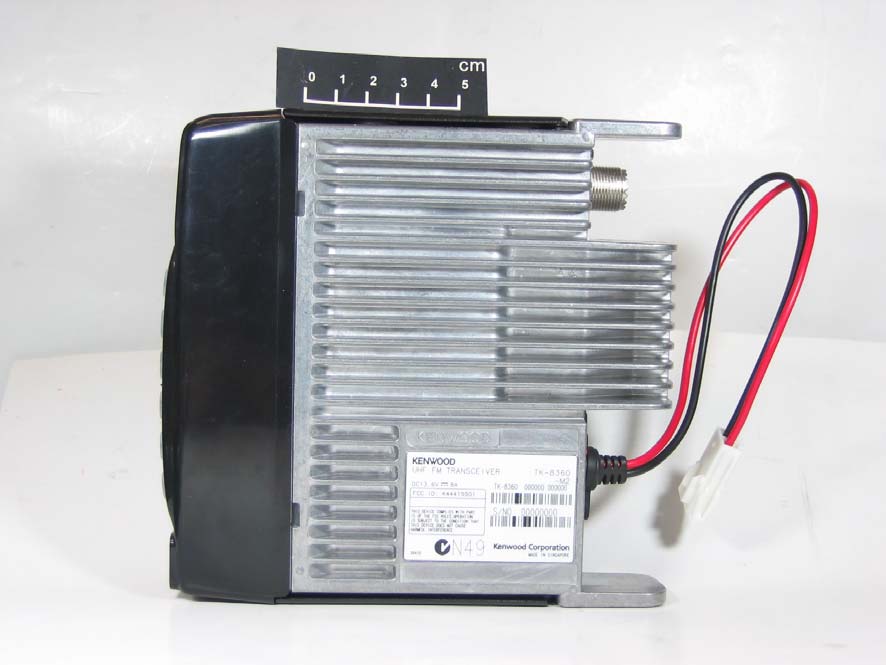

TK-8360-M2 FCC ID: K44415501 Front View Rear View TK-8360-M2 FCC ID: K44415501 Right View Left View TK-8360-M2 FCC ID: K44415501 Top View Bottom View TK-8360-M2 FCC ID: K44415501

TK-8360-M2 FCC ID: K44415501 TK-8360-M2 FCC ID: K44415501 TK-8360-M2 FCC ID: K44415501

Maximum Permissible Exposure (MPE) Evaluation Applicant: Kenwood Corporation Equipmen t: UHF FM TRANSCEIVER Model No.: TK-8360-M2 FCC ID: K44415501 MPE Calculations According to the OET Bulletin 65 (Edition 97-01) Where: S=Power density (in appropriate units, e.g. mW/cm 2 ) P=Power input to antenna (in appropriate units, e.g., mW) G=Power gain of the antenna in the direction of interest relative to an isotropic radiator R=Distance to the center of radiation of the antenna (appropriate units, e.g., cm) Tx Frequency= 406.1 to 470 (MHz): FCC Maximum peak power =(dBm)(=25W) Antenna gain=(dBi) S=(mW/cm 2 ) P=(mW) (=Maximum peak power x 120% x Dutycycle 50%) G=(numeric) R=(cm) P = Value calculated according to CFR Part 90.205(s) Calculated minimum separation distance from antenna :85.05 (cm) 1.64 85.05 43.98 2.15 0.27 15000.00 S PG R π4 = 2 4R PG S π =

Report No :JM10090013 FCC ID : K44415501 TRUE FALSE 3 REGULATION :FCC Part 2, 22, 74, 90, 90.210 Kenwood CorporationIntertek Japan K. K. Kashima Laboratory 1-16-2, Hakusan, Midori-ku, Yokohama-shi3-2, Sunayama, Kamisu-shi, Ibaraki-ken Kanagawa, 226-8525 Japan314-0255 Japan Tel.: +81 45 939 6254 Fax.: +81 45 939 7097Tel.: +81 479 40 1097 Intertek Japan K. K. Tochigi Laboratory 870 Nakaawano, Kanuma-shi, Tochigi-ken 322-0306 Japan Tel.: +81 289 86 7121 Intertek Japan K. K. Matsuda Laboratory 1283 Yadoriki, Matsuda-machi, Ashigarakami-gun, Kanagawa-ken, 258-0001 Tel.: +81 465 89 2316 URL: http://www.japan.intertek-etlsemko.com Equipment typeUHF FM TRANSCEIVER TrademarkKENWOOD Model(s)TK-8360-M2 Serial No. FCC ID K44415501 Test ResultComplied Report NumberJM10090013 Report issue date Approved byTested by Kazuo GokitaHideaki Kosemura [Site Manager] This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Applicant TEST REPORT Testing Laboratory November 01, 2010 None Intertek Japan K.K.Page 1 of 43Version 0.1 Report No :JM10090013 FCC ID : K44415501 In Accordance with FCC Rules and Regulations, Volume II, Part 2 and 90 Sub-part 2.1033 (c)(1) Applicant and Manufacture Information APPLICANT Company:Kenwood Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan Contact Person:Tamaki Shimamura Manager, Communications Equipment Division MANUFACTURER Company:Kenwood Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan (c)(2) FCC ID FCC ID:K44415501 Model number:TK-8360-M2 Serial number:None (c)(3) Instruction Manual(S) Instruction manual(s):Please refer to attached Exhibits F (c)(4) Type of Emission Emission Designation:16K0F3E(Wide) /11K0F3E(Narrow) (c)(5) Frequency range Frequency Range:406.1 to 470 MHz (c)(6) Power Rating Output Power:5 to 25 W Type:Continuously Variable (c)(7) Maximum Power Rating Output Power:25 W (c)(8): Voltages & currents in all elements in final RF stage, including final transistor or solid-state device Collector Current, A:8.0 amps(Maximum) Collector Voltage, Vdc :13.6 vdc Supply Voltage, Vdc:13.6 vdc Other Information Number of Channel:128 channels, 128 zone Maximum Deviation:5 kHz / 2.5kHz Frequency Stability:2.5 ppm Antenna Impedance:50 Ω Norminal Note Intertek Japan K.K.Page 2 of 43Version 0.1 Report No :JM10090013 FCC ID : K44415501 TABLE OF CONTENTS Page SECTION 1. GENERAL INFORMATION4 SECTION 2. SUMMARY OF TEST RESULT6 SECTION 3. TEST AND MEASUREMENT DATA7 SECTION 4. INFORMATION ABOUT EUT AND SUPPORT EQUIPMENT(S)8 SECTION 5. SUPPORT EQUIPMENT9 SECTION 6. USED CABLE(S)10 SECTION 7. TEST CONFIGURATION11 SECTION 8. OPERATING CONDITION12 SECTION 9. MEASUREMENT UNCERTAINTY13 SECTION 10. TEST DATA 10.1Carrier Output Power (Conducted)14 10.2Unwanted Emissions (Transmitter Conducted)16 10.3Field Strength of Spurious Radiation19 10.4Emission Masks (Occupied Bandwidth)23 10.5Transient Frequency Behavior27 10.6Audio Frequency Response / Audio Low Pass Filter (Voice Input)31 10.7Modulation Limiting34 10.8Frequency Stability (Temperature Variation)38 10.9Frequency Stability (Voltage Variation)41 10.10Necessary Bandwidth and Emission Bandwidth43 APPENDIXPHOTOGRAPHS Intertek Japan K.K.Page 3 of 43Version 0.1 Report No :JM10090013 FCC ID : K44415501 SECTION 1. GENERAL INFORMATION TEST PERFORMED LocationKashima No.1 Test Site, Tochigi No.3 Test Site and Matsuda No.2 Test Site EUT Received Date of Testto Standard AppliedFCC Part 2, 22, 74, 90, 90.210 Measurement MethodANSI/TIA-603-C-2004 Deviation from Standard(s)Not applicable QUALIFICATIONS OF TESTING LABORATORY(Kashima Lab.) ACCREDITATIONSCOPELAB. CODERemarks NVLAPEMC Testing100290-0USA VLACEMC TestingVLAC-008-1JAPAN BSMIEMC TestingSL2-IN-E-6008TAIWAN Vietnam MICEMC Testing62/QD-QLCLVIETNAM FILING VCCIEMC TestingJAPAN FCCEMC TestingDesignation Number:JP0008USA ICEMC TestingIC-2042K-1, IC-2042K-3CANADA CB-SchemeEMC TestingTL222IECEE SAUDI ARABIAEMC TestingN/A QUALIFICATIONS OF TESTING LABORATORY(Tochigi Lab.) ACCREDITATIONSCOPELAB. CODERemarks VLACEMC TestingVLAC-008-5JAPAN BSMIEMC TestingSL2-IN-E-6017, SL2-A-E-6017TAIWAN FILING VCCIEMC TestingJAPAN FCCEMC TestingDesignation Number:JP0011USA ICEMC TestingIC-2042P-1, IC-2042P-2CANADA SAUDI ARABIAEMC TestingN/A QUALIFICATIONS OF TESTING LABORATORY(Matsuda Lab.) ACCREDITATIONSCOPELAB. CODERemarks VLACEMC TestingVLAC-008-3JAPAN BSMIEMC TestingSL2-IN-E-6009TAIWAN FILING VCCIEMC TestingJAPAN FCCEMC TestingDesignation Number:JP0009USA CB-SchemeEMC TestingTL223IECEE SAUDI ARABIAEMC TestingN/A R-274, C-280, C-281, T-1718, T-1719, G-120 R-272, C-276, C-277, T-1720, T-1721 R-576, C-590, T-1722, G-121 R-788, C-278, C-279, T-1716, T-1717, G-119 August 31, 2010 September 08, 2010October 28, 2010 R-257, C-260, C-284, T-1736, T-1737, G-124 R-258, C-261, C-285, T-1738, T-1739 R-259, C-262, T-1740, G-125 R-255, C-290, C-258, T-1728 R-256, C-291, C-259, T-1729,G-122 R-252, C-287, C-255, T-1723 R-253, C-288, C-256, T-1724 R-254, C-289, C-257, T-1725 Intertek Japan K.K.Page 4 of 43Version 0.1 Report No :JM10090013 FCC ID : K44415501 ABBREVIATIONS EUTDoC AMNISN LISNQ-P AMPAVG ATTPK ANTCal BBAN/A DIPLCD…

Text truncated - open the document above for the full version.

Report No :JM10090013 FCC ID : K44415501 APPENDIX Intertek Japan K.K.Page 1 of 6Version 0.1 Report No :JM10090013 FCC ID : K44415501 PHOTOGRAPHS OF MEASUREMENT SET-UP 10.1 Carrier Output Power (Conducted) 10.2 Unwanted Emission (Conducted Spurious) Intertek Japan K.K.Page 2 of 6Version 0.1 Report No :JM10090013 FCC ID : K44415501 10.3 Field Stren gth of Spurious Radiation : Front view 10.3 Field Stren gth of Spurious Radiation : Rear view Intertek Japan K.K.Page 3 of 6Version 0.1 Report No :JM10090013 FCC ID : K44415501 10.4 Emission Masks 10.5 Transient Fre quency Behavior <FM Modulation Case> Intertek Japan K.K.Page 4 of 6Version 0.1 Report No :JM10090013 FCC ID : K44415501 10.6 Audio Fre quency Response 10.7 Modulation Limitin g Intertek Japan K.K.Page 5 of 6Version 0.1 Report No :JM10090013 FCC ID : K44415501 10.8 , 10.9 Frequency Stability : Outer view 10.8 , 10.9 Frequency Stability : Inner view Intertek Japan K.K.Page 6 of 6Version 0.1
