K44422400UHF DIGITAL BASE-REPEATER

NXR-710/ NXR-810 INSTRUCTION MANUAL © B62-2199-00 (K) 09 08 07 06 05 04 03 02 01 00 MANUAL DE INSTRUCCTIONES MODE D'EMPLOI BASE-REPETIDOR DIGITAL VHF / BASE-REPETIDOR DIGITAL UHF VHF DIGITAL BASE-REPEATER/ UHF DIGITAL BASE-REPEATER BASE-RELAIS NUMÉRIQUE VHF/BASE-RELAIS NUMÉRIQUE UHF  ◆ This repeater is intended for use as a fixed base station with the antenna located outdoors on the rooftop or on an antenna tower. ◆ This repeater is designed for a 13.6 V DC power source! Never use a 24 V DC or higher source to power the repeater. ◆ Use only the supplied DC cord. ◆ Do not remove the ferrite core attached to the DC cord. Doing so may cause interference with radio communications. UNPACKING AND CHECKING EQUIPMENT Note: The following unpacking information is for use by your Kenwood dealer, an authorized Kenwood service center, or the factory. Carefully unpack the repeater. We recommend that you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, file a claim with the carrier immediately. ItemPart NumberQuantity Hardware fixtureJ21-8559-XX1 Front glassB10-2635-XX1 Name platesB11-1259-XX1 CushionG13-1801-XX4 CushionG13-1802-XX4 FootJ02-0475-XX2 FootJ02-0492-XX2 GrommetJ59-0302-XX2 HandleK01-0418-XX1 ScrewsN30-4006-XX2 ScrewsN35-3006-XX5 DC cordE30-3427-XX1 Lead wire with connector (15 pin) E31-3228-XX1 FuseF05-1537-XX1 Instruction ManualB62-2199-XX1 INSTALLATION To install the handles onto the front panel of the repeater, align the handles with the holes on the front panel, then secure the handles using the supplied screws. Please consult your dealer for installing the repeater and antenna. MICROPHONE Connect an optional KMC-30, KMC-35, KMC-27A, KMC-27B, or KMC-9C Kenwood microphone to the MIC jack on the front panel. ◆ Government law prohibits the operation of unlicensed radio transmitters within the territories under government control. ◆ Illegal operation is punishable by fine and/or imprisonment. ◆ Refer service to qualified technicians only. FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer for technical assistance. THANK YOU! We are grateful you purchased this Kenwood repeater. We believe this easy-to-program repeater will be highly effective in your communications system, and will keep personnel operating at peak efficiency. PRECAUTIONS • Do not expose the unit to rain or moisture; to prevent fire or electric shock. • Do not open the unit under any circumstances; to avoid risk of electric shock. • Do not expose the unit to long periods of direct sunlight, nor place it close to heating appliances. • Do not place the unit in excessively dusty and/or humid areas, nor on unstable surfaces. • If you detect an abnormal odor or smoke coming from the unit, disconnect the power from the unit immediately. Contact your Kenwood service center or dealer. NOTICES TO THE USER NXR-710 / NXR-810 INSTRUCTION MANUAL VHF DIGITAL BASE-REPEATER / UHF DIGITAL BASE-REPEATER The AMBE+2 TM voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos. #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. Firmware Copyrights The title to and ownership of copyrights for firmware embedded in Kenwood product memories are reserved for Kenwood Corporation.  REPEATER OPERATION Note: Please consult your dealer for programming the repeater. When power is applied to the unit, the POWER indicator lights: ・ Green when using the main DC jack. Rotate the VOLUME control to adjust the audio. The BUSY indicator lights green while receiving a signal and the TX indicator lights red while transmitting. ■ Rear Panel q TX OUT jack Connect a TX antenna or a duplexer to this receptacle. w CONTROL I/O jack Connect a repeater controller or a remote panel to this DB-25 interface. e REF IN jack Connect to a 10 MHz external oscillator. r RX IN jack Connect an RX antenna or a duplexer to this BNC receptacle. CONTROLS AND FUNCTIONS ■ Front Panel q w r y u i o e t FUSE Insert 15 A blade fuse into this fuse holder. y DC 13.6V jack Connect a 13.6 V DC power supply …

Text truncated - open the document above for the full version.

May 14th, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer Subject: Justify Extended Frequency Range for MODEL: NXR-810-K, FCC ID: K44422400. To Whom It May Concern: This letter serves justification for extended frequencies This device has design capability to operate in the frequency band 450 to 512 MHz and complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Please note that Licensed End Users do not have access to any external controls that will allow them to program the equipment. Equipment programming is the responsibility of Kenwood approved Service Agents. In addition to Parts 90 usage, this device is utilized in systems such as Federal and Public Safety agencies, e.g. police, fire, and emergency medical, etc. as indicated in the following table: Freq. Range (MHz) Part 90 Federal Customers 450.0000-454.0000 x 454.0000-456.0000 x 456.0000-462.5375 x 462.5375-462.7375 x 462.7375-467.5375 x 467.5375-467.7375 x 467.7375-512.0000 x Table 1 – Frequency Range and Rule Parts - (47 CFR Part 2.106) It is understood that a grant note code may be added to the grant which indicates this required operation. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Equipment Division Kenwood Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

May 14th 2010 MET Laboratories 914 West Patapsco Ave. Baltimore MD 21230 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: NXR-810-K, FCC ID: K44422400 To whom it may concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that could never get into the possession of our competition. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Equipment Division Kenwood Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

Aug. 17th, 2009 MET Laboratories 914 West Patapsco Ave. Baltimore MD 21230 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize Sae Hagino of Intertek Japan K.K. to act on our behalf in all matters relating to this application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Tamaki Shimamura Communications Equipment Division Kenwood Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

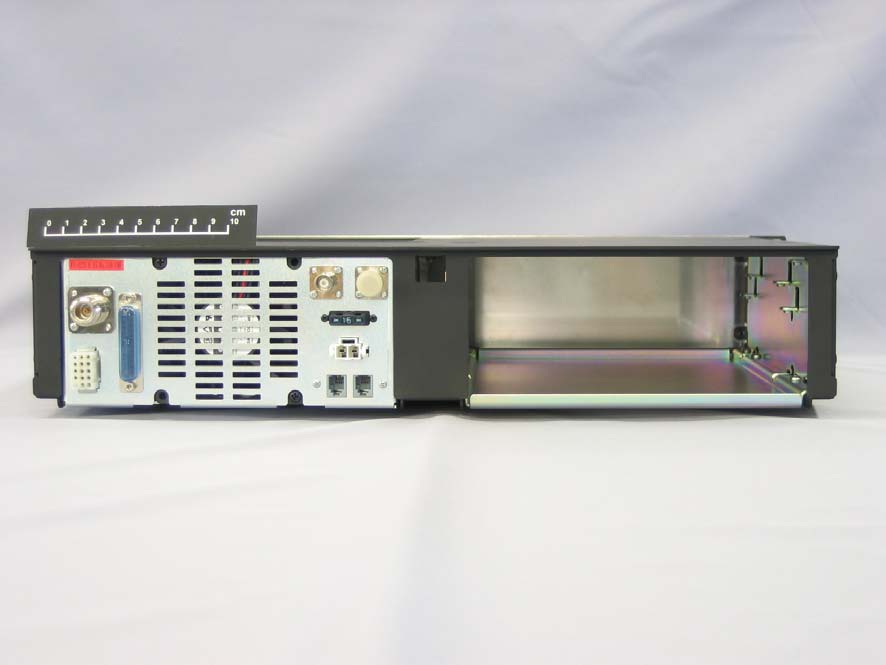

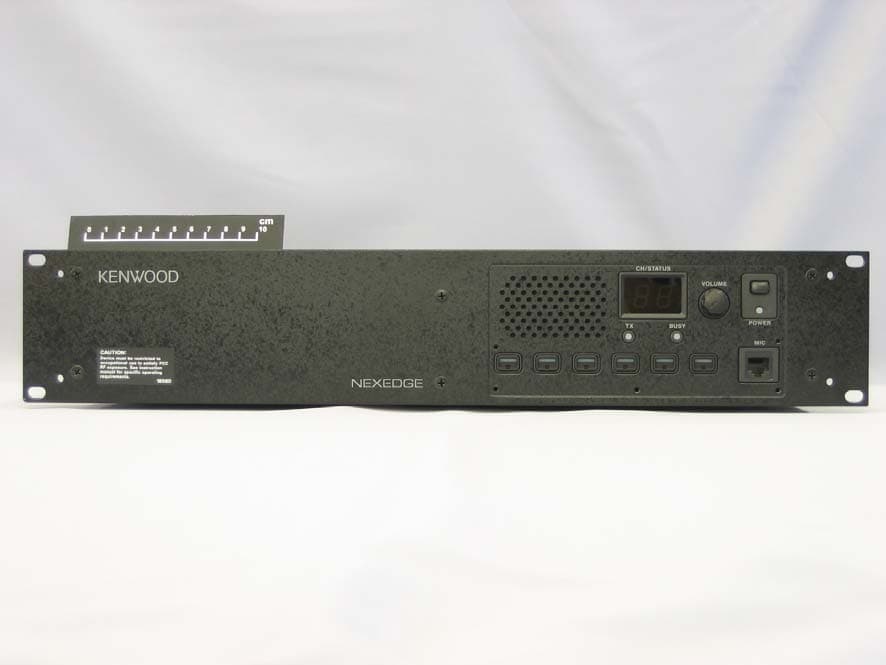

NXR-810-K FCC ID: K44422400 Front View Rear View NXR-810-K FCC ID: K44422400 Top View Bottom View NXR-810-K FCC ID: K44422400 Right View Left View

NXR-810-K FCC ID: K44422400

NXR-810-K FCC ID: K44422400 Display Unit Display Component Side View NXR-810-K FCC ID: K44422400 Display Foil Side View Display B Component Side View Display B Foil Side View NXR-810-K FCC ID: K44422400 Control Unit Control Component Side View NXR-810-K FCC ID: K44422400 Control Foil Side View NXR-810-K FCC ID: K44422400 Final Unit / RF Unit Final Component Side View NXR-810-K FCC ID: K44422400 Final Foil Side View RF Component Side View NXR-810-K FCC ID: K44422400 RF Foil Side View RX PLL VCO Component Side View RX PLL VCO Foil Side View TX PLL VCO Component Side View TX PLL VCO Foil Side View NXR-810-K FCC ID: K44422400 Final A/B Unit Final A Component Side View Final A Foil Side View Final B Component Side View Final B Foil Side View

Maximum Permissible Exposure (MPE) Evaluation Applicant: Kenwood Corporation Equipmen t: UHF DIGITAL BASE-REPEATER Model No.: NXR-810-K FCC ID: K44422400 MPE Calculations According to the OET Bulletin 65 (Edition 97-01) Where: S=Power density (in appropriate units, e.g. mW/cm 2 ) P=Power input to antenna (in appropriate units, e.g., mW) G=Power gain of the antenna in the direction of interest relative to an isotropic radiator R=Distance to the center of radiation of the antenna (appropriate units, e.g., cm) Tx Frequency= 450 to 512 (MHz): FCC Maximum peak power =(dBm)(=40W) Antenna gain=(dBi) S=(mW/cm 2 ) P=(mW) (=Maximum peak power x 120% x Dutycycle 50%) G=(numeric) R=(cm) P = Value calculated according to CFR Part 90.205(s) Calculated minimum separation distance from antenna :102.20 (cm) 1.64 102.20 46.02 2.15 0.30 24000.00 S PG R π4 = 2 4R PG S π =

MANDATORY SAFETY INSTRUCTIONS TO INSTALLERS AND USERS • Use only manufacturer or dealer supplied antenna. • Antenna Minimum Safe Distance: 120 cm (4 feet), 50% duty Cycle. • Antenna Gain: 0 dBd referenced to a dipole. The Federal Communications Commission has adopted a safety standard for human exposure to RF (Radio Frequency) energy which is below the OSHA (Occupational Safety and Health Act) limits. • Antenna Mounting: The antenna supplied by the manufacturer or radio dealer must not be mounted at a location such that during radio transmission, any person or persons can come closer than the above indicated minimum safe distance to the antenna, i.e. 120 cm (4 feet) , 50% duty Cycle. • To comply with current FCC RF Exposure limits, the antenna must be installed at or exceeding the minimum safe distance shown above, and in accordance with the requirements of the antenna manufacturer or supplier. • Vehicle installation: The antenna can be mounted at the center of a vehicle metal roof or trunk lid, if the minimum safe distance is observed. • Base Station Installation: The antenna should be fixed-mounted on an outdoor permanent structure. RF Exposure compliance must be addressed at the time of installation. Antenna substitution: Do not substitute any antenna for the one supplied or recommended by the manufacturer or radio dealer. You may be exposing person or persons to excess radio frequency radiation. You may contact your radio dealer or the manufacturer for further instructions. Maintain a separation distance from the antenna to person(s) of at least 120 cm (4 feet) , 50% duty Cycle. You, as the qualified end-user of this radio device must control the exposure conditions of bystanders to ensure the minimum separation distance (above) is maintained between the antenna and nearby persons for satisfying RF Exposure compliance. The operation of this transmitter must satisfy the requirements of Occupational/Controlled Exposure Environment, for work-related use, transmit only when person(s) are at least the minimum distance from the properly installed, externally mounted antenna. Transmit only when people outside the vehicle are at least the recommended minimum lateral distance away from the antenna/vehicle

Report No :JT10040003 FCC ID : K44422400 TRUE FALSE 3 REGULATION :FCC Part 2, 90, 90.210 Kenwood CorporationIntertek Japan K. K. Kashima Laboratory 1-16-2, Hakusan, Midori-ku, Yokohama-shi3-2, Sunayama, Kamisu-shi, Ibaraki-ken Kanagawa, 226-8525 Japan314-0255 Japan Tel.: +81 45 939 6254 Fax.: +81 45 939 7097Tel.: +81 479 40 1097 Fax.: +81 479 46 1788 Intertek Japan K. K. Tochigi Laboratory 870 Nakaawano, Kanuma-shi, Tochigi-ken 322-0306 Japan Tel.: +81 289 86 7121 Fax.: +81 289 86 7126 URL: http://www.japan.intertek-etlsemko.com Equipment typeUHF DIGITAL BASE-REPEATER TrademarkKENWOOD Model(s)NXR-810-K Serial No. FCC ID K44422400 Test ResultComplied Report NumberJT10040003 Report issue date Approved byTested by Kazuo GokitaAtsuyuki Morishima [Manager] This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Applicant TEST REPORT Testing Laboratory May 25, 2010 None Intertek Japan K.K.Page 1 of 48Version 0.1 Report No :JT10040003 FCC ID : K44422400 In Accordance with FCC Rules and Regulations, Volume II, Part 2 and 90 Sub-part 2.1033 (c)(1) Applicant and Manufacture Information APPLICANT Company:Kenwood Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan Contact Person:Tamaki Shimamura Manager, Communications Equipment Division MANUFACTURER Company:Kenwood Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan (c)(2) FCC ID FCC ID:K44422400 Model number:NXR-810-K Serial number:None (c)(3) Instruction Manual(S) Instruction manual(s):Please refer to attached Exhibits F (c)(4) Type of Emission Emission Designation :16K0F3E(Wide) /11K0F3E(Narrow) 8K30F1E(Narrow) / 8K30F1D(Narrow) / 8K30F7W(Narrow) 4K00F1E(Very Narrow) / 4K00F1D(Very Narrow) / 4K00F7W(Very Narrow) 4K00F2D(Very Narrow) (c)(5) Frequency range Frequency Range:450 MHz to 512 MHz (c)(6) Power Rating Output Power:5 to 40 W Type:Continuously Variable (c)(7) Maximum Power Rating Output Power:40 W (c)(8): Voltages & currents in all elements in final RF stage, including final transistor or solid-state device Collector Current:13.0 A(Maximum) Collector Voltage:DC 13.6 V Supply Voltage:DC 13.6 V Other Information Number of Channel:30 Maximum Deviation:5 kHz / 2.5kHz Frequency Stability:0.5 ppm Antenna Impedance:50 Ω Norminal Note Intertek Japan K.K.Page 2 of 48Version 0.1 Report No :JT10040003 FCC ID : K44422400 TABLE OF CONTENTS Page SECTION 1. GENERAL INFORMATION4 SECTION 2. SUMMARY OF TEST RESULT5 SECTION 3. TEST AND MEASUREMENT DATA6 SECTION 4. INFORMATION ABOUT EUT AND SUPPORT EQUIPMENT(S)7 SECTION 5. SUPPORT EQUIPMENT8 SECTION 6. USED CABLE(S)9 SECTION 7. TEST CONFIGURATION10 SECTION 8. OPERATING CONDITION11 SECTION 9. MEASUREMENT UNCERTAINTY12 SECTION 10. TEST DATA 10.1Carrier Output Power (Conducted)13 10.2Unwanted Emissions (Transmitter Conducted)15 10.3Field Strength of Spurious Radiation18 10.4Emission Masks (Occupied Bandwidth)22 10.5Transient Frequency Behavior29 10.6Audio Frequency Response / Audio Low Pass Filter (Voice Input)36 10.7Modulation Limiting39 10.8Frequency Stability (Temperature Variation)43 10.9Frequency Stability (Voltage Variation)46 10.10Necessary Bandwidth and Emission Bandwidth48 APPENDIXPHOTOGRAPHS Intertek Japan K.K.Page 3 of 48Version 0.1 Report No :JT10040003 FCC ID : K44422400 SECTION 1. GENERAL INFORMATION TEST PERFOMED LocationTochigi No2 Test Site and Kashima No.1 Test Site EUT Received Date of Testto Standard AppliedFCC Part 2, 90, 90.210 Measurement MethodANSI/TIA-603-C-2004 Deviation from Standard(s)Not applicable QUALIFICATIONS OF TESTING LABORATORY(Kashima Lab.) ACCREDITATIONSCOPELAB. CODERemarks NVLAPEMC Testing100290-0USA VLACEMC TestingVLAC-008-1JAPAN BSMIEMC TestingSL2-IN-E-6008TAIWAN Vietnam MICEMC Testing62-QD-QLCLVietnam FILING VCCIEMC TestingJAPAN FCCEMC TestingDesignation Number:JP0008USA ICEMC TestingIC-2042K-1, IC-2042K-3CANADA CB-SchemeEMC TestingTL222IECEE SAUDI ARABIAEMC TestingN/A QUALIFICATIONS OF TESTING LABORATORY(Tochigi Lab.) ACCREDITATIONSCOPELAB. CODERemarks VLACEMC TestingVLAC-008-5JAPAN BSMIEMC TestingSL-2-IN-E-6017, SL-2-AI-E-6017TAIWAN FILING VCCIEMC TestingJAPAN FCCEMC TestingDesignation Number:JP0011USA ICEMC TestingIC-2042P-1, IC-2042P-2CANADA SAUDI ARABIAEMC TestingN/A ABBREVIATIONS EUTDoC AMNISN LISNQ-P AMPAVG ATTPK ANTCal BBAN/A DIPLCD AEAssociated Equipment4LEVEL FSK 4LEVEL Frequency Shift Key GMSKCW ID FMC4FM PTTPush to TalkAFC R-257, C-260, C-284, T-1763, T-1737,G-124 R-258, C-261, C-285, T-1738, T-1739 R-259, C-262, T-1740,G-125 Gaussian Maximum Shift Key Frequency ModulationConstant envelope 4 Level FM Continuously Repeating bit stream Automatic frequency control Dipole AntennaLiquid-Crystal Display April 20, 2010 April 26, 2010May 20, 2010 Line Impedance Stabilization Network Equipment Under Test Artificial Mains Network Declaration of Conformity Impedance Stabilization Network Quasi-peak Amplifier Attenuator Antenna Broadband Antenna Average Peak Calibration Not applicable or Not available R-274, C-280, C-281, T-1718, T-1719,G-120 R-272, C-276, C-277, T-1720, T-1721 R-576, C-590, T-1722, G-121 R-788, C-278, C-279, T-1716, T-1717,G-119 Intertek Japan K.K.…
