NX-720 Series NX-820 Series VHF DIGITAL TRANSCEIVER UHF DIGITAL TRANSCEIVER INSTRUCTION MANUAL ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE VHF ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE UHF MODE D’EMPLOI TRANSCEPTOR DIGITAL VHF TRANSCEPTOR DIGITAL UHF MANUAL DE INSTRUCCIONES © B62-2421-00 (K) 09 08 07 06 05 04 03 02 01 00 VHF DIGITAL TRANSCEIVER UHF DIGITAL TRANSCEIVER NX-700 Series NX-800 Series INSTRUCTION MANUAL ENGLISH Terminal Descriptions ACC (D-SUB 15 Pin Connector) Pin No.NameI/ODescriptionSpecification 1SBODC Power (Switched B) Output13.6 V ±15% Max. 2 A 2IGNIIgintion Signal Input Min. Input: 10.8 V Max. Input: 16.0 V 3SP2OLoudspeaker Output4 Ω 4DETOORX Detected Audio Output280 mV p-p (typ.) 5DATAIITX Data Input100 kΩ 6FNC1/ TXDI/OProgrammable/ PC Serial Data from RadioHigh Impedance 7FNC1/ RXDI/OProgrammable/ PC Serial Data to RadioHigh Impedance 8FNC3I/OProgrammableHigh Impedance 9FNC4I/OProgrammableHigh Impedance 10FNC5I/OProgrammableHigh Impedance 11FNC6I/OProgrammableHigh Impedance 1250MCODC Power Output5 V, Max 100 mA 13HR1OHorn Alert Signal OutputMax 3 A 14HR2OHorn Alert Signal OutputMax 3 A 15GND—GroundGround Speaker Jack (3.5 mm Phone Jack) 4 W/ 4 Ω Pin No.NameI/ODescriptionSpecification 1SPOOExternal Speaker Output4 Ω 3GND—GroundGround DC Input Connector Pin No.NameI/ODescriptionSpecification RedBIDC Power Input13.6 V ±15% BlackGNDIGroundGround Microphone Jack Pin No.NameI/ODescriptionSpecification 1BLCOBacklight ControlHigh Impedance 2SBODC Power (Switched B) Output13.6 V ±15% 3GND—GroundGround 4PTT/ TXD I/OPTT/ PC Serial Data from RadioHigh Impedance 5ME—Mic GroundGround 6MICIMic Signal Input600 Ω 7HOOK/ RXD IHook/ PC Serial Data to RadioHigh Impedance 8DMI/OMic Data DetectionHigh Impedance Antenna Terminal 50 Ω impedance GPS Terminal <GPS model olny> 50 Ω impedance i One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer for technical assistance. THANK YOU We are grateful you have chosen KENWOOD for your personal mobile applications. This instruction manual covers only the basic operations of your mobile radio. Ask your dealer for information on any customized features they may have added to your radio. NOTICES TO THE USER ◆ Government law prohibits the operation of unlicensed transmitters within the territories under government control. ◆ Illegal operation is punishable by fine and/or imprisonment. ◆ Refer service to qualified technicians only. SAFETY: It is important that the operator is aware of, and understands, hazards common to the operation of any transceiver. ◆ EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.) Turn OFF your transceiver while taking on fuel or while parked in gasoline service stations. Do not carry spare fuel containers in the trunk of your vehicle if your transceiver is mounted in the trunk area. ◆ INJURY FROM RADIO FREQUENCY TRANSMISSIONS Do not operate your transceiver when somebody is either standing near to or touching the antenna, to avoid the possibility of radio frequency burns or related physical injury. ◆ DYNAMITE BLASTING CAPS Operating the transceiver within 500 feet (150 m) of dynamite blasting caps may cause them to explode. Turn OFF your transceiver when in an area where blasting is in progress, or where “TURN OFF TWO-WAY RADIO” signs have been posted. If you are transporting blasting caps in your vehicle, make sure they are carried in a closed metal box with a padded interior. Do not transmit while the caps are being placed into or removed from the container. ii CONTENTS GETTING STARTED ...................................................................................... 1 GETTING ACQUAINTED ............................................................................... 3 PROGRAMMABLE FUNCTIONS ................................................................... 5 BASIC OPERATIONS .................................................................................... 6 SCAN.............................................................................................................. 8 FleetSync: ALPHANUMERIC 2-WAY PAGING FUNCTION ........................ 10 TRUNKING CALLS (ANALOG) .................................................................... 12 ADVANCED OPERATIONS ......................................................................... 13 BACKGROUND OPERATIONS ................................................................... 17 PRECAUTIONS Observe the following precautions to prevent fire, personal injury, and transceiver damage. • Do not attempt to configure the transceiver while driving; it is too dangerous. • Do not disassemble or modify the transceiver fo…

Text truncated - open the document above for the full version.

Oct. 3rd, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize Intertek Japan K.K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Tamaki Shimamura Communications Equipment Division 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

July 2nd 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: NX-820H-K, NX-820HG-K FCC ID: K44431200. To whom it may concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that could never get into the possession of our competition. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Equipment Division 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

July 2nd, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer Subject: Justify Extended Frequency Range for MODEL: NX-820H-K, NX-820HG-K, FCC ID: K44431200. To Whom It May Concern: This letter serves justification for extended frequencies This device has design capability to operate in the frequency band 450 to 512 MHz and complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Please note that Licensed End Users do not have access to any external controls that will allow them to program the equipment. Equipment programming is the responsibility of Kenwood approved Service Agents. In addition to Parts 90 usage, this device is utilized in systems such as Federal and Public Safety agencies, e.g. police, fire, and emergency medical, etc. as indicated in the following table: Freq. Range (MHz) Part 90 Federal Customers 450.0000-454.0000 x 454.0000-456.0000 x 456.0000-462.5375 x 462.5375-462.7375 x 462.7375-467.5375 x 467.5375-467.7375 x 467.7375-512.0000 x T able 1 – Frequency Range and Rule Parts - (47 CFR Part 2.106) It is understood that a grant note code may be added to the grant which indicates this required operation. In addition, we acknowledge that it is a violation of FCC rules if the device operates on unauthorized frequencies. Please cont act me if you require any additional information. Sincerely, Tamaki Shimamura Communications Equipment Division JVC KENWOOD Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

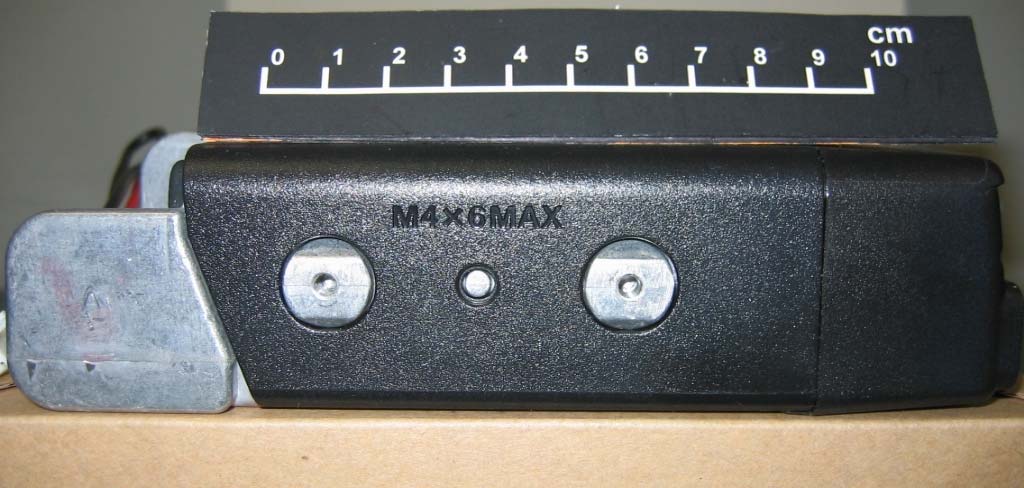

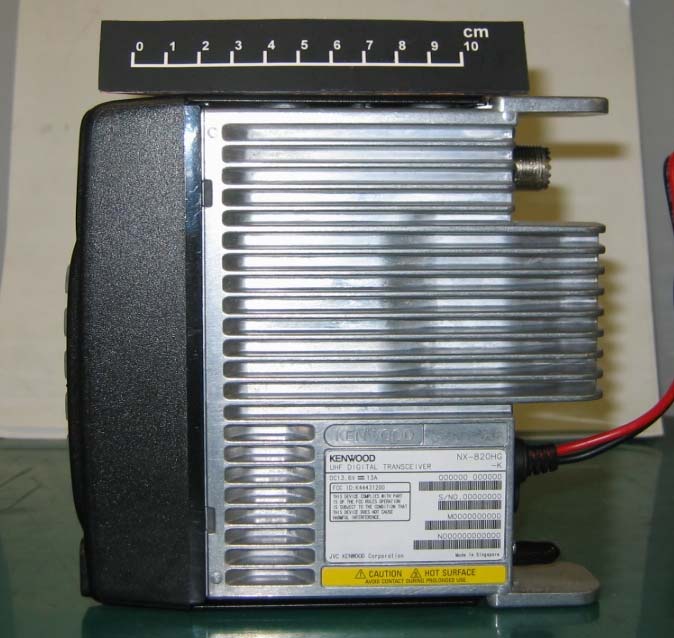

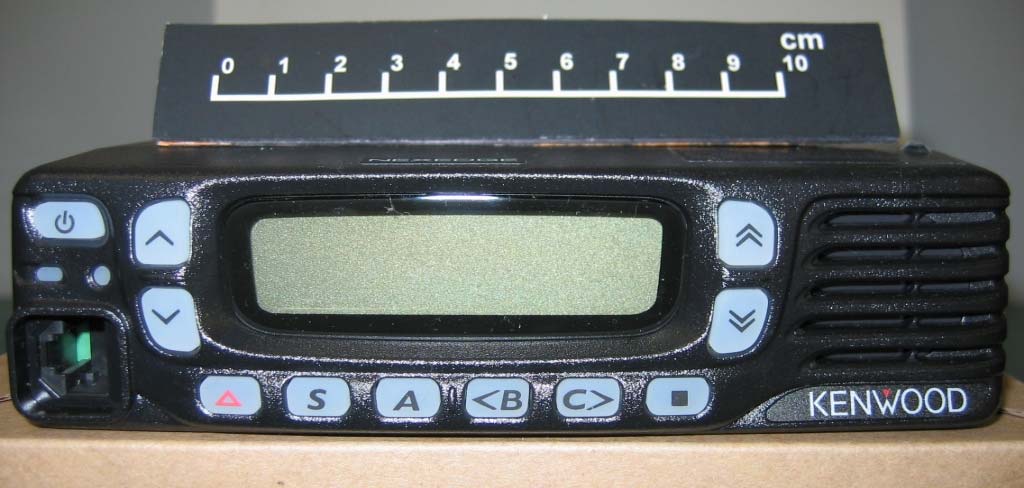

NX-820H-K, NX-820HG-K FCC ID: K44431200 Front V iew Rear V iew NX-820H-K, NX-820HG-K FCC ID: K44431200 Right V iew Lef t View NX-820H-K, NX-820HG-K FCC ID: K44431200 Top View Bottom V iew (TK-820H-K) NX-820H-K, NX-820HG-K FCC ID: K44431200 Bottom V iew (TK-820HG-K)
