K44431201

JVC KENWOOD Corporation

UHF Digital Transceiver

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Sep 10, 2012
Application Purpose: Original Equipment
Date of Application: Sep 10, 2012
Equipment Note: UHF Digital Transceiver
Frequency Range: 406.10000000 - 421.00000000
Company: JVC KENWOOD Corporation
Country: Japan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

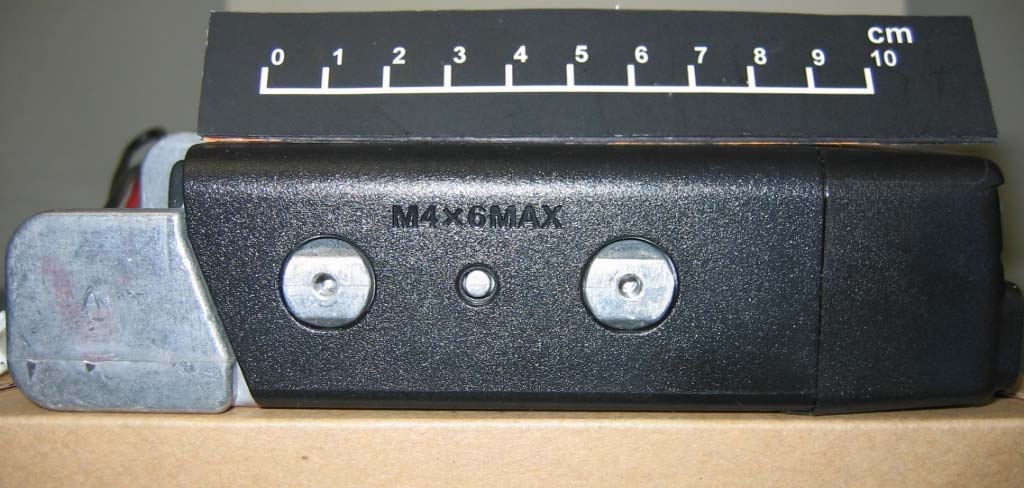

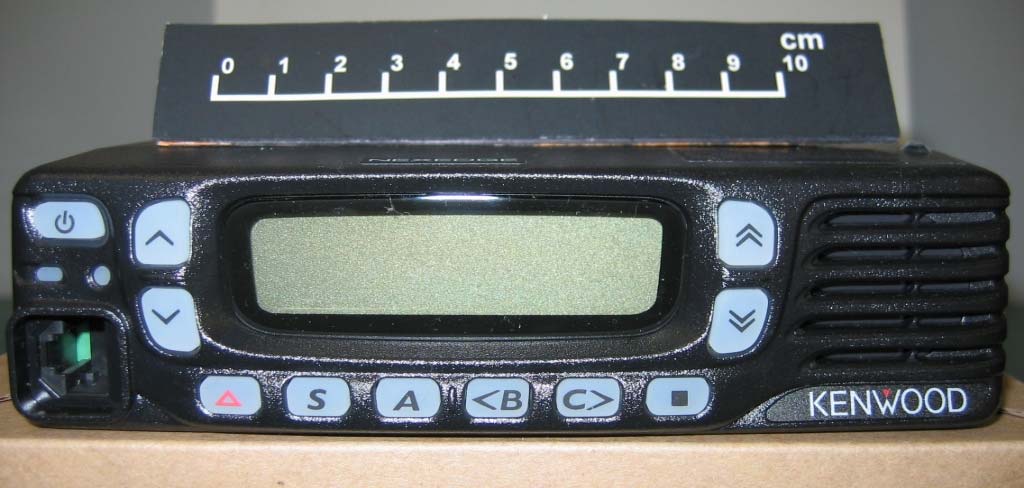

External Photos

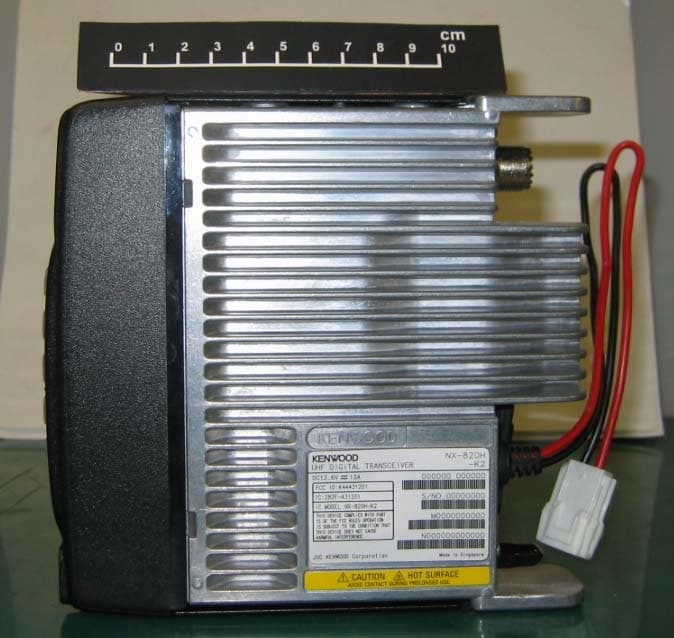

ID Label/Location Info

Internal Photos

Operational Description

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
9	9	406.1 MHz - 421 MHz	45 W	16K0F3E	1 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is conducted at the antenna connector. This device must transmit with a source-based time-averaging duty factor not exceeding 50%. The antenna used for this transmitter must be installed to provide a minimum of 40cm separation to persons and must not transmit simultaneously with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. All qualified end-users of this device must receive training to have the knowledge to control their exposure conditions and/or duration to comply with Occupational/Controlled exposure limit and also have control of the exposure conditions of bystanders for complying with General Population/Uncontrolled exposure limit. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. The antenna used for this transmitter must not be greater than 0dBd. This devices complies with the narrowbanding requirements of Section 90.203(j)(4).
