Oct. 22nd, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer Subject: Justify Extended Frequency Range for MODEL: NX-5200-K2/-K3/-F2/F3, FCC ID: K44431400. To Whom It May Concern: This letter serves justification for extended frequencies This device has design capability to operate in the frequency band 150 to 174 MHz and complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Please note that Licensed End Users do not have access to any external controls that will allow them to program the equipment. Equipment programming is the responsibility of JVC KENWOOD approved Service Agents. In addition to Parts 90 usage, this device is utilized in systems such as Federal and Public Safety agencies, e.g. police, fire, and emergency medical, etc. as indicated in the following table: Table 1 – Frequency Range and Rule Parts - (47 CFR Part 2.106) It is understood that a grant note code may be added to the grant which indicates this required operation. In addition, we acknowledge that it is a violation of FCC rules if the device operates on unauthorized frequencies. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Equipment Division JVC KENWOOD Corporation Freq. Range (MHz) Part 90 Federal Customers 150.0000-150.8000 x 150.8000-156.2475 x 156.2475-157.0375 x 157.0375-161.5750 x 161.5750-161.7750 x 161.7750-173.4000 x 173.4000-174.0000 x 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

Oct. 22nd, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize any individual within HCT Co,.Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Tamaki Shimamura Communications Equipment Division 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

Oct. 22nd 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: NX-5200-K2/-K3/-F2/-K3,. FCC ID: K44431400. To whom it may concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that could never get into the possession of our competition. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Equipment Division 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

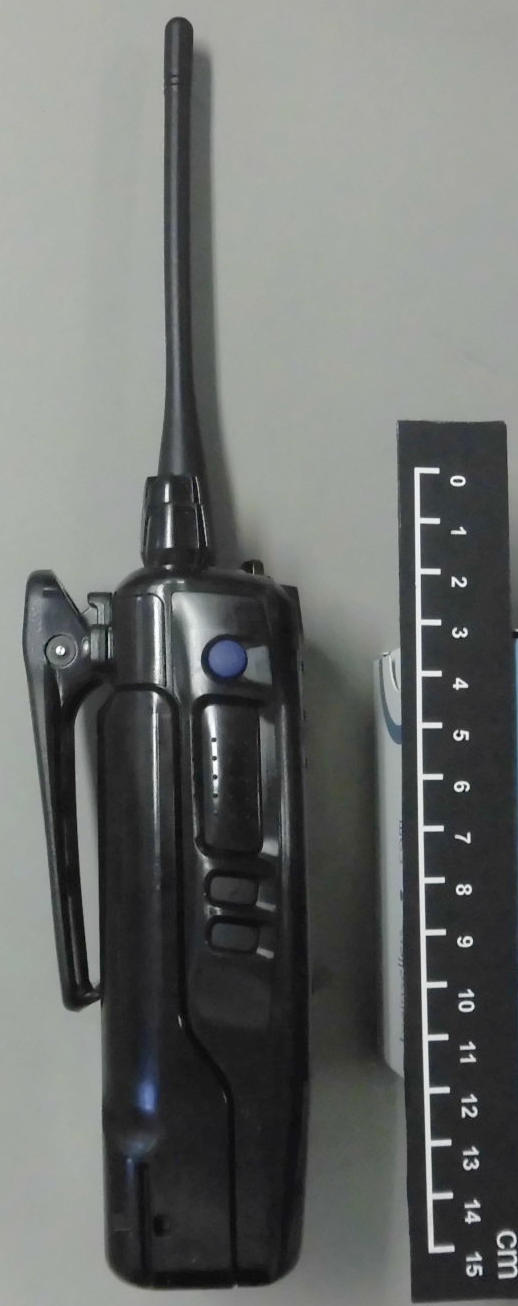

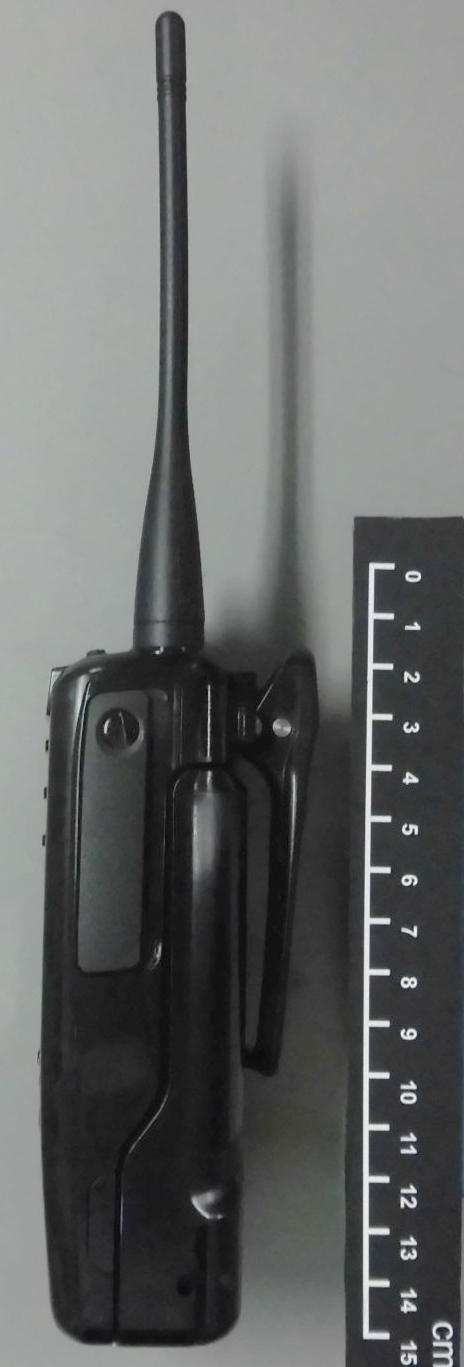

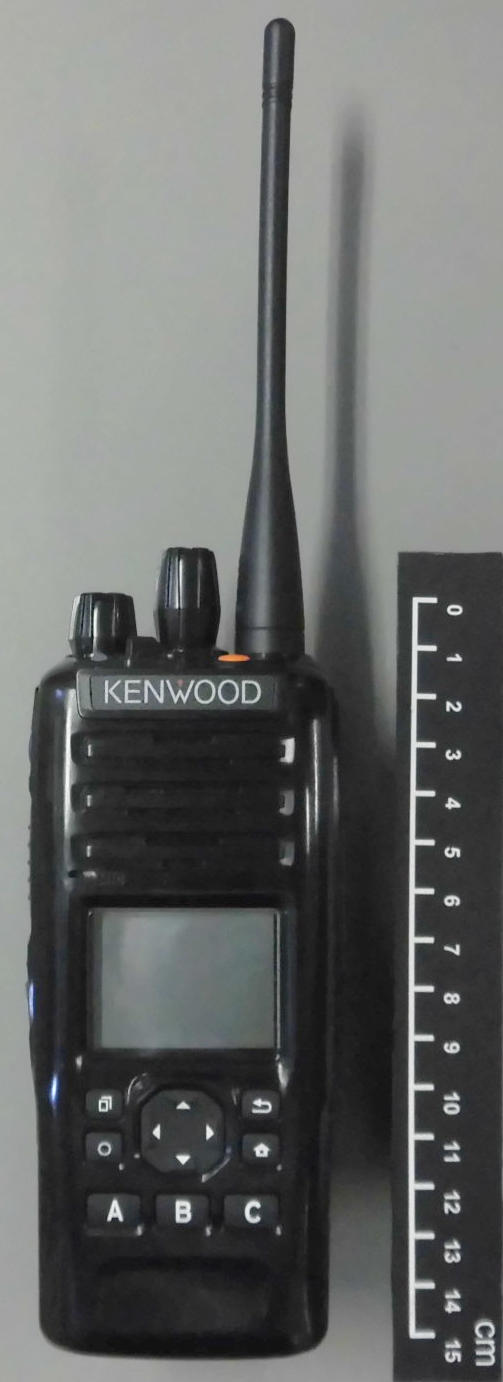

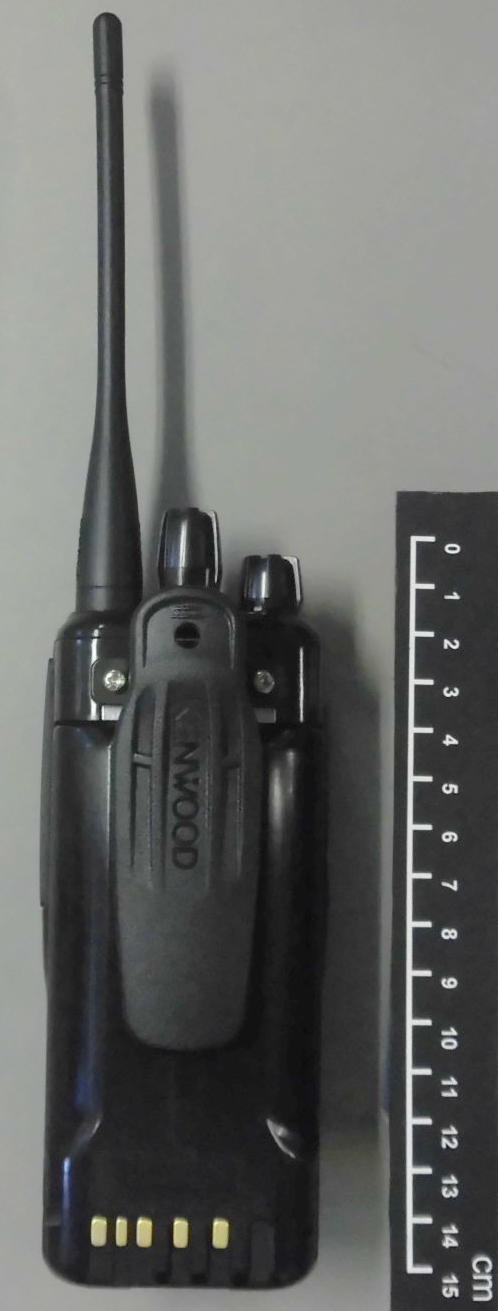

NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 Front View (NX-5200-K2/-F2) Front View (NX-5200-K3/-F3) NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 Left View (NX-5200-K2/-K3/-F2/-F3) Right View (NX-5200-K2/-K3/-F2/-F3) NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 Rear View (NX-5200-K2/-K3/-F2/-F3) NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 Top View (NX-5200-K2/-K3/-F2/-F3) Bottom View (NX-5200-K2/-K3/-F2/-F3)

NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400

NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 NX-5200-K2, F2 Display Unit NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 NX-5200-K3, F3 Display Unit NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 NX-5200-K2, F2 Front Key NX-5200-K2, F2 Front Key NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 NX-5200-K3, F3 Front Key NX-5200-K3, F3 Front Key NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 NX-5200-K2, K3, F2, F3 Display Unit NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 NX-5200-K2, K3, F2, F3 Side Key NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 NX-5200-K2, K3, F2, F3 Side Key NX-5200-K2, K3, F2, F3 Side Key NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 NX-5200-K2, K3, F2, F3 MAIN UNIT NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 NX-5200-K2, K3, F2, F3 MAIN UNIT NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 NX-5200-K2, K3, F2, F3 MAIN UNIT NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 NX-5200-K2, K3, F2, F3 MAIN UNIT NX-5200-K2/K3/F2/F3 FCC ID: K44431400 NX-5200-K2/K3 IC: 282F-431400 NX-5200-K2, K3, F2, F3 MAIN UNIT

FCC ID: K44431400 IssueDate: Nov. 04, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 2 of 78 HCT-A-1410-F003-1 TEL: +82 31 645 6300 FAX: +82 31 645 6401 Version Rev. DATE DESCRIPTION HCT-A-1410-F003 Oct. 31, 2014 First Approval Report HCT-A-1410-F003-1 Nov. 04, 2014 Sec. 4 was revised. FCC ID: K44431400 IssueDate: Nov. 04, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 3 of 78 HCT-A-1410-F003-1 TEL: +82 31 645 6300 FAX: +82 31 645 6401 Table of Contents 1. INTRODUCTION .......................................................................................................................................... 2. TEST METHODOLOGY ............................................................................................................................... 3. DESCRIPTION OF DEVICE ......................................................................................................................... 4.Manufacturer’s Accessory List .................................................................................................................. 5. DESCRIPTION OF TEST EQUIPMENT .................................................................................................. 6. SAR MEASUREMENT PROCEDURE ..................................................................................................... 7. DESCRIPTION OF TEST POSITION ....................................................................................................... 8. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. 9. SAR SYSTEM VALIDATION .................................................................................................................... 10. SYSTEM VERIFICATION ....................................................................................................................... 11. RF CONDUCTED POWER MEASUREMENT ....................................................................................... 12. SAR TEST DATA SUMMARY ................................................................................................................ 13. SAR Summation Scenario ................................................................................................................... 14. CONCLUSION ........................................................................................................................................ 15.REFERENCES ........................................................................................................................................ Attachment 1.– SAR Test Plots ................................................................................................................. Attachment 2. Verification Plots ............................................................................................................. Attachment 3. – Probe Calibration Data ................................................................................................... Attachment 4. – Dipole Calibration Data .................................................................................................. FCC ID: K44431400 IssueDate: Nov. 04, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 4 of 78 HCT-A-1410-F003-1 TEL: +82 31 645 6300 FAX: +82 31 645 6401 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published bythe American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSIC95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 1992 by the Institute of Electrical and Electronics Engineers, Inc., Ne York, New York 10017. The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radio frequency Electromagnetic Fields,” NCRP Report No. 86 NCRP, 1986, Bethesda, MD 20814.SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. SAR Definition Specific Absorption Rate (SAR) is defined as the time derivativeof the incremental electromagnetic energy (dW)absorbed by (dissipated in) an incremental mass (dm) contained in a volume element (dV) of a given density (r ). It is also defined as the rate of RF energy absorption per unit mass at a point in an absorbing body. Figure 1. SAR Mathematical Equation SAR is expressed in units of Watts per Kilogram (W/kg) ࡱ࣌ ൌࡾ࡭ࡿ ૛ / ࣋ Where: ߪ= conductivity of the tissue-simulant material (S/m) ߩ = mass density of the tissue-simulant material (kg/) ܧ= Total RMS electric field strength (V/m) NOTE: The primary factors that control rate of energy absorption were found to be the wavelength of the incident field in relations to the dimensions and geometry of the irradiated organism, the orientation of the organism in relation to the polarity of field vectors, the presence of reflecting surfaces, and whether conductive contact is made by the organism with a ground plane. ൌ ࡾ࡭ࡿ ࢊ ࢚ ࢊ ൬ ࢁࢊ ࢓ࢊ ൰ ൌ ࢊ ࢚ࢊ ൬ ࢁࢊ ࢜ࢊ࣋ ൰ FCC ID: K44431400 IssueDate: Nov. 04, 20…

Text truncated - open the document above for the full version.

Report No.: HCT-R-1410-F017 Model: NX-5200-K2 Page 2 of 338 F-01P-02-014 (Rev.00) FCC ID: K44431400/ IC: 282F-431400 HCT Co.,LTD. Version TEST REPORT NO. DATE DESCRIPTION HCT-R-1410-F017 October 30, 2014 - First Approval Report Report No.: HCT-R-1410-F017 Model: NX-5200-K2 Page 3 of 338 F-01P-02-014 (Rev.00) FCC ID: K44431400/ IC: 282F-431400 HCT Co.,LTD. Table of Contents 1. GENERAL INFORMATION ........................................................................................................................... 4 2. EUT DESCRIPTION ...................................................................................................................................... 5 3. TEST METHODOLOGY ................................................................................................................................ 6 3.1 EUT CONFIGURATION ....................................................................................................................... 6 3.2 EUT EXERCISE ................................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES ....................................................................................................... 6 3.4 DESCRIPTION OF TEST MODES ...................................................................................................... 6 3.5 Type of Emission ................................................................................................................................ 7 4. INSTRUMENT CALIBRATION...................................................................................................................... 7 5. FACILITIES AND ACCREDITATIONS .......................................................................................................... 7 5.1 FACILITIES .......................................................................................................................................... 7 5.2 EQUIPMENT ........................................................................................................................................ 7 6. SUMMARY TEST OF RESULTS .................................................................................................................. 8 7. TEST RESULT .............................................................................................................................................. 9 7.1 Carrier Output Power ......................................................................................................................... 9 7.2 Carrier Frequency Stability ............................................................................................................. 12 7.3 Occupied Bandwidth ........................................................................................................................ 23 7.4 Modulation Limiting ......................................................................................................................... 66 7.5 Audio Frequency Response / Audio Low Pass Filter Response ................................................. 85 7.6 Emission Mask................................................................................................................................ 105 7.7 Transient Frequency Behavior ...................................................................................................... 144 7.8 Unwanted Emissions : Conducted Spurious Emission ............................................................. 218 7.9 Unwanted Emissions : Radiated Spurious Emission ................................................................. 305 7.10 Unwanted Emissions : Receiver Radiated Spurious Emission ............................................... 336 7.11 Necessary Bandwidth Calculations ........................................................................................... 337 8. LIST OF TEST EQUIPMENT .................................................................................................................... 338 Report No.: HCT-R-1410-F017 Model: NX-5200-K2 Page 4 of 338 F-01P-02-014 (Rev.00) FCC ID: K44431400/ IC: 282F-431400 HCT Co.,LTD. 1. GENERAL INFORMATION Applicant: JVC KENWOOD Corporation Address: 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan FCC ID: K44431400 IC: 282F-431400 EUT Type: VHF P25 TRANSCEIVER with Bluetooth FCC Model name(s): NX-5200-K2, NX-5200-K3, NX-5200-F2, NX-5200-F3 IC Model name(s): NX-5200-K2, NX-5200-K3 Date(s) of Tests: October 06, 2014 ~ October 17, 2014 Place of Tests: HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea (IC Recognition No. : 5944A-3) Report No.: HCT-R-1410-F017 Model: NX-5200-K2 Page 5 of 338 F-01P-02-014 (Rev.00) FCC ID: K44431400/ IC: 282F-431400 HCT Co.,LTD. 2. EUT DESCRIPTION EUT Type VHF P25 TRANSCEIVER with Bluetooth FCC Model Name NX-5200-K2, NX-5200-K3, NX-5200-F2, NX-5200-F3 IC Model Name NX-5200-K2, NX-5200-K3 Power Supply DC 7.5 V Output Power 6 W (Power output continuously variable to 1 W) Battery type Li-ion Battery (KNB-L1, KNB-L2, KNB-L3) Antenna type KRA-26(M) VHF Herilal Antenna (146-162MHz) KRA-26(M2) VHF Herilal Antenna (162-174 MHz) KRA-26(M3) VHF Herilal Antenna (136-150 MHz) KRA-22(M) VHF low-profile helical antenna (146-162MHz) KRA-22(M2) VHF low-profile helical antenna (162-174 MHz) KRA-22(M3) VHF low-profile helical antenna (136-150 MHz) KRA-41(M) VHF stubby antenna (146-162MHz) KRA-41(M2) VHF stubby antenna (162-174 MHz) KRA-41(M3) VHF stubby antenna (136-150 MHz) KRA-25 High gain VHF helically loaded whip antenna (148-162 MHz) KRA-28 Broad-band VHF helically loaded whip antenna (140-170 MHz) Channel Bandwidth FCC : 12.5 kHz / 6.25 kHz IC : 25 kHz/ 12.5 kHz / 6.25 kHz ( 25 kHz is IC only ) Operating Temperature -30 ~ +60 Frequency Range FCC : 150 MHz - 174 MHz IC : 138 MHz – 144 MHz and 148 MHz – 174 MHz Test Frequency 138.05 MHz ( IC ) 143.95 MHz ( IC ) 148.05 MHz…

Text truncated - open the document above for the full version.

Report No.: HCT-R-1410-F017 Model: NX-5200-K2 Page 85 of 338 F-01P-02-014 (Rev.00) FCC ID: K44431400/ IC: 282F-431400 HCT Co.,LTD. 7.5 Audio Frequency Response / Audio Low Pass Filter Response Definition The audio frequency response is the degree of closeness to which the frequency deviation of the transmitter follows a prescribed characteristic. TEST CONFIGURATION TEST PROCEDURE According to 2.2.6 in TIA-603-D Standard. a) Connect the equipment as illustrated. b) Set the test receiver to measure peak positive deviation. Set the audio bandwidth for ≤ 50 Hz to ≥ 15,000 Hz. Turn the de-emphasis function off. c) Set the DMM to measure rms voltage. d) Adjust the transmitter per the manufacturer’s procedure for full rated system deviation. e) Apply a 1000 Hz tone and adjust the audio frequency generator to produce 20% of the rated system deviation. f) Set the test receiver to measure rms deviation and record the deviation reading. g) Record the DMM reading as V REF. h) Set the audio frequency generator to the desired test frequency between 300 Hz and 3000 Hz. i) Vary the audio frequency generator output level until the deviation reading that was recorded in step f) is obtained. j) Record the DMM reading as V FREQ. k) Calculate the audio frequency response at the present frequency as: audio frequency response = 20 * log 10 (V FREQ /V REF ) l) Repeat steps h) through k) for all the desired test frequencies. Report No.: HCT-R-1410-F017 Model: NX-5200-K2 Page 86 of 338 F-01P-02-014 (Rev.00) FCC ID: K44431400/ IC: 282F-431400 HCT Co.,LTD. Note Audio Filter of the above result is substituted with the same structure as Audio Frequency Response. On the transmission condition below 3kHz, Transceiver shows pre-emphasis condition of transmission function. On the transmission condition above 3kHz, Transceiver shows Audio Low Pass Filter. Report No.: HCT-R-1410-F017 Model: NX-5200-K2 Page 87 of 338 F-01P-02-014 (Rev.00) FCC ID: K44431400/ IC: 282F-431400 HCT Co.,LTD. TEST RESULTS 11K0F3E For FCC Frequency (Hz) Attenuation Rel. to 1kHz (dB) Upper limit (dB) Lower limit (dB) 100 -35.60 -18.93 -42.86 125 -35.44 -17.00 -39.00 300 -12.07 -9.42 -23.84 500 -6.10 -5.00 -9.00 750 -2.46 -1.49 -5.49 1000 -0.02 1.00 -3.00 1250 1.98 2.93 -1.07 1500 3.64 4.51 0.51 2000 6.35 7.00 3.00 2500 8.48 8.93 4.93 3000 8.55 10.51 4.93 4000 -27.93 - - 5000 -27.81 - - 6000 -27.93 - - 7000 -27.81 - - 8000 -27.81 - - 9000 -27.87 - - 10000 -27.81 - - 20000 -27.68 - - 30000 -27.81 - - 40000 -27.74 - - 50000 -27.87 - - 11K0F3E_150.05 MHz_HIGH POWER Report No.: HCT-R-1410-F017 Model: NX-5200-K2 Page 88 of 338 F-01P-02-014 (Rev.00) FCC ID: K44431400/ IC: 282F-431400 HCT Co.,LTD. Frequency (Hz) Attenuation Rel. to 1kHz (dB) Upper limit (dB) Lower limit (dB) 100 -34.29 -18.93 -42.86 125 -34.29 -17.00 -39.00 300 -11.96 -9.42 -23.84 500 -6.08 -5.00 -9.00 750 -2.47 -1.49 -5.49 1000 0.00 1.00 -3.00 1250 2.01 2.93 -1.07 1500 3.69 4.51 0.51 2000 6.42 7.00 3.00 2500 8.53 8.93 4.93 3000 8.60 10.51 4.93 4000 -22.76 - - 5000 -22.76 - - 6000 -22.94 - - 7000 -22.79 - - 8000 -22.83 - - 9000 -22.79 - - 10000 -22.76 - - 20000 -22.79 - - 30000 -22.83 - - 40000 -22.79 - - 50000 -22.86 - - 11K0F3E_162.05 MHz_HIGH POWER Report No.: HCT-R-1410-F017 Model: NX-5200-K2 Page 89 of 338 F-01P-02-014 (Rev.00) FCC ID: K44431400/ IC: 282F-431400 HCT Co.,LTD. Frequency (Hz) Attenuation Rel. to 1kHz (dB) Upper limit (dB) Lower limit (dB) 100 -34.07 -18.93 -42.86 125 -34.20 -17.00 -39.00 300 -11.89 -9.42 -23.84 500 -6.12 -5.00 -9.00 750 -2.47 -1.49 -5.49 1000 0.00 1.00 -3.00 1250 2.03 2.93 -1.07 1500 3.70 4.51 0.51 2000 6.43 7.00 3.00 2500 8.56 8.93 4.93 3000 8.62 10.51 4.93 4000 -23.20 - - 5000 -23.12 - - 6000 -23.12 - - 7000 -23.09 - - 8000 -23.16 - - 9000 -23.16 - - 10000 -23.16 - - 20000 -23.12 - - 30000 -23.31 - - 40000 -23.12 - - 50000 -23.09 - - 11K0F3E_173.95 MHz_HIGH POWER Report No.: HCT-R-1410-F017 Model: NX-5200-K2 Page 90 of 338 F-01P-02-014 (Rev.00) FCC ID: K44431400/ IC: 282F-431400 HCT Co.,LTD. Frequency (Hz) Attenuation Rel. to 1kHz (dB) Upper limit (dB) Lower limit (dB) 100 -35.29 -18.93 -42.86 125 -35.14 -17.00 -39.00 300 -12.09 -9.42 -23.84 500 -6.06 -5.00 -9.00 750 -2.46 -1.49 -5.49 1000 0.00 1.00 -3.00 1250 2.00 2.93 -1.07 1500 3.67 4.51 0.51 2000 6.38 7.00 3.00 2500 8.50 8.93 4.93 3000 8.56 10.51 4.93 4000 -27.66 - - 5000 -27.59 - - 6000 -27.79 - - 7000 -27.72 - - 8000 -27.79 - - 9000 -27.66 - - 10000 -27.72 - - 20000 -27.79 - - 30000 -27.72 - - 40000 -27.79 - - 50000 -27.79 - - 11K0F3E_150.05 MHz_LOW POWER Report No.: HCT-R-1410-F017 Model: NX-5200-K2 Page 91 of 338 F-01P-02-014 (Rev.00) FCC ID: K44431400/ IC: 282F-431400 HCT Co.,LTD. Frequency (Hz) Attenuation Rel. to 1kHz (dB) Upper limit (dB) Lower limit (dB) 100 -34.20 -18.93 -42.86 125 -34.07 -17.00 -39.00 300 -12.02 -9.42 -23.84 500 -6.08 -5.00 -9.00 750 -2.47 -1.49 -5.49 1000 0.00 1.00 -3.00 1250 2.00 2.93 -1.07 1500 3.67 4.51 0.51 2000 6.38 7.00 3.00 2500 8.50 8.93 4.93 3000 8.58 10.51 4.93 4000 -22.85 - - 5000 -22.78 - - 6000 -22.89 - - 7000 -22.89 - - 8000 -22.78 - - 9000 -22.78 - - 10000 -22.85 - - 20000 -22.71 - - 30000 -22.78 - - 40000 -22.71 - - 50000 -22.78 - - 11K0F3E_162.05 MHz_LOW POWER Report No.: HCT-R-1410-F017 Model: NX-5200-K2 Page 92 of 338 F-01P-02-014 (Rev.00) FCC ID: K44431400/ IC: 282F-431400 HCT Co.,LTD. Frequency (Hz) Attenuation Rel. to 1kHz (dB) Upper limit (dB) Lower limit (dB) 100 -33.94 -18.93 -42.86 125 -33.43 -17.00 -39.00 300 -11.99 -9.42 -23.84 500 -6.12 -5.00 -9.00 750 -2.48 -1.49 -5.49 1000 0.03 1.00 -3.00 1250 2.05 2.93 -1.07 1500 3.71 4.51 0.51 2000 6.44 7.00 3.00 2500 8.56 8.93 4.93 3000 8.62 10.51 4.93 4000 -22.97 - - 5000 -22.90 - - 6000 -22.90 - - 7000 -23.05 - - 8000 -22.97 - - 9000 -22.97 - - 10000 -23.01 - - 20000 -22.97 - - 30000 -22.94 - - 40000 -22.90 - - 50000 -22.97 - - 11K0F3E_173.95 MHz_LOW POWER Report No.: HCT-R-1410-F017 Model: NX-5200-K2 Page 93 of 338 F-01P-02-014 (Rev.00) FCC ID: K44431400/ IC: 282F-431400 HCT Co.,LTD. TEST RESULTS 16K0…

Text truncated - open the document above for the full version.

Report No.: HCT-R-1410-F017 Model: NX-5200-K2 Page 218 of 338 F-01P-02-014 (Rev.00) FCC ID: K44431400/ IC: 282F-431400 HCT Co.,LTD. 7.8 Unwanted Emissions : Conducted Spurious Emission Definition Conducted spurious emissions are emissions at the antenna terminals on a frequency or frequencies that are outside a band sufficient to ensure transmission of information of required quality for the class of communication desired. TEST CONFIGURATION TEST PROCEDURE According to 2.2.13 in TIA-603-D Standard. e) Connect the equipment as illustrated, with the notch filter by-passed. f) Set the center frequency of the spectrum analyzer to the assigned transmitter frequency,…
