K44452600

JVC KENWOOD Corporation

VHF Digital Transceiver

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Jan 28, 2014
Application Purpose: Original Equipment
Date of Application: Jan 28, 2014
Equipment Note: VHF Digital Transceiver
Frequency Range: 150.00000000 - 174.00000000
Company: JVC KENWOOD Corporation
Country: Japan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

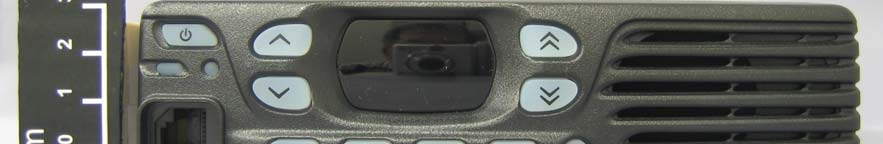

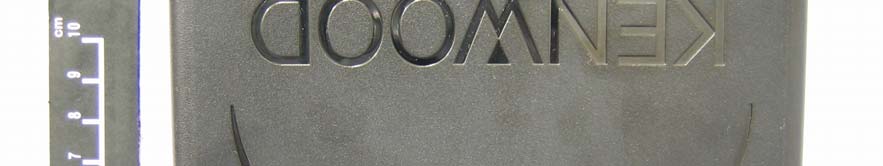

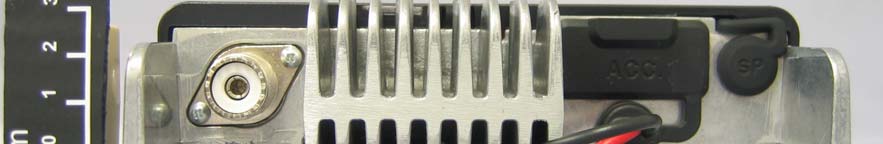

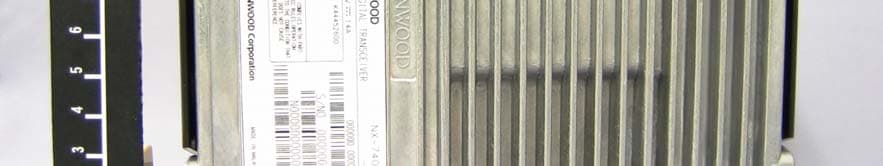

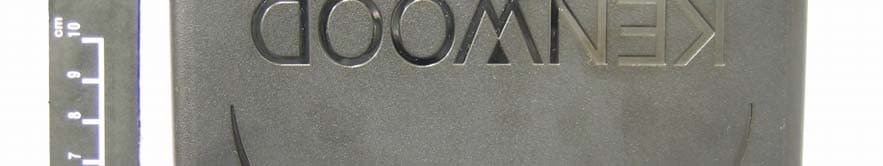

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
5	90.203(j)(5)	150 MHz - 174 MHz	50 W	4K00F2D	2 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is conducted at the antenna connector. This device must transmit with a source-based time-averaging duty factor not exceeding 50%. This device must be restricted to work related operations in an Occupational/Controlled RF exposure Environment. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 40cm from all persons. The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. The antenna used for this transmitter must not be greater than 0 dBd.
