K44452701UHF Digital Transceiver

VHF DIGITAL TRANSCEIVER NX-740H NX-740HV UHF DIGITAL TRANSCEIVER NX-840H NX-840HU INSTRUCTION MANUAL © B5A-0031-10 (K) i One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifi cations to this equipment may cause harmful interference unless the modifi cations are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modifi cation is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ¥ Reorient or relocate the receiving antenna. ¥ Increase the separation between the equipment and receiver. ¥ Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ¥ Consult the dealer for technical assistance. THANK YOU We are grateful you have chosen KENWOOD for your personal mobile applications. This instruction manual covers only the basic operations of your mobile radio. Ask your dealer for information on any customized features they may have added to your radio. NOTICES TO THE USER ◆ Government law prohibits the operation of unlicensed transmitters within the territories under government control. ◆ Illegal operation is punishable by fi ne and/or imprisonment. ◆ Refer service to qualifi ed technicians only. SAFETY: It is important that the operator is aware of, and understands, hazards common to the operation of any transceiver. ◆ EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.) Turn OFF your transceiver while taking on fuel or while parked in gasoline service stations. Do not carry spare fuel containers in the trunk of your vehicle if your transceiver is mounted in the trunk area. ◆ INJURY FROM RADIO FREQUENCY TRANSMISSIONS Do not operate your transceiver when somebody is either standing near to or touching the antenna, to avoid the possibility of radio frequency burns or related physical injury. ◆ DYNAMITE BLASTING CAPS Operating the transceiver within 500 feet (150 m) of dynamite blasting caps may cause them to explode. Turn OFF your transceiver when in an area where blasting is in progress, or where ÒTURN OFF TWO-WAY RADIOÓ signs have been posted. If you are transporting blasting caps in your vehicle, make sure they are carried in a closed metal box with a padded interior. Do not transmit while the caps are being placed into or removed from the container. ii CONTENTS GETTING STARTED .................................................................................................1 GETTING ACQUAINTED ..........................................................................................3 PROGRAMMABLE FUNCTIONS .............................................................................6 BASIC OPERATIONS ...............................................................................................6 NXDN ........................................................................................................................8 SCAN ........................................................................................................................8 DTMF CALLS ...........................................................................................................9 SIGNALING ............................................................................................................10 FleetSync: ALPHANUMERIC 2-WAY PAGING FUNCTION ....................................11 ADVANCED OPERATIONS ....................................................................................12 BACKGROUND OPERATIONS ..............................................................................14 PRECAUTIONS Observe the following precautions to prevent fi re, personal injury, and transceiver damage. ¥ Do not attempt to confi gure the transceiver while driving; it is too dangerous. ¥ Do not disassemble or modify the transceiver for any reason. ¥ Do not expose the transceiver to long periods of direct sunlight, nor place it near heating appliances. ¥ If an abnormal odor or smoke is detected coming from the transceiver, switch the transceiver power off immediately, and contact your KENWOOD dealer. ¥ Use of the transceiver while you are driving may be against traffi c laws. Please check and observe the vehicle regulations in your area. ¥ Do not use options not specifi ed by KENWOOD. ◆ The transceiver operates in 12 V negative ground systems only! Check the battery polarity and voltage of the vehicle before installing the transceiver. ◆ Use only the supplied DC power cable or a KENWOOD optional DC power cable. ◆ Do not cut and/or remove the fuse holder on the DC power cable. For passenger safety, install the transceiver securely using the supplied mounting bracket and screw set so the transceiver will not break loose in the event of a collision. 1 GETTING STARTED Note: The following instructions are for use by your KENWOOD dealer, an authorized KENWOOD service facility, or the factory. SUPPLIED ACCESSORIES Carefully unpack the transceiver. We recommend that you identify the items listed below before discarding the packing material. If any items are missing or have been damaged during shipment, fi le a claim with the car…

Text truncated - open the document above for the full version.

MANDATORY SAFETY INSTRUCTIONS TO INSTALLERS AND USERS • Use only manufacturer or dealer supplied antennas. • Antenna Minimum Safe Distance: 40 cm (16 inches), 50% duty Cycle. • Antenna Gain: 0 dBd referenced to a dipole. The Federal Communications Commission has adopted a safety standard for human exposure to RF (Radio Frequency) energy which is below the OSHA (Occupational Safety and Health Act) limits. • Antenna Mounting: The antenna supplied by the manufacturer or radio dealer must not be mounted at a location such that during radio transmission, any person or persons can come closer than the above indicated minimum safe distance to the antenna, i.e. 40 cm (16 inches) , 50% duty Cycle. • To comply with current FCC RF Exposure limits, the antenna must be installed at or exceeding the minimum safe distance shown above, and in accordance with the requirements of the antenna manufacturer or supplier. • Vehicle installation: The antenna can be mounted at the center of a vehicle metal roof or trunk lid, if the minimum safe distance is observed. • Base Station Installation: The antenna should be fixed-mounted on an outdoor permanent structure. RF Exposure compliance must be addressed at the time of installation. Antenna substitution: Do not substitute any antenna for the one supplied or recommended by the manufacturer or radio dealer. You may be exposing person or persons to excess radio frequency radiation. You may contact your radio dealer or the manufacturer for further instructions. Maintain a separation distance from the antenna to person(s) of at least 40 cm (16 inches), 50% duty Cycle. “This transmitter is authorized to operate with a maximum duty factor of 50%, in typical push-to-talk mode, for satisfying FCC RF exposure compliance requirements.” You, as the qualified end-user of this radio device must control the exposure conditions of bystanders to ensure the minimum separation distance (above) is maintained between the antenna and nearby persons for satisfying RF Exposure compliance. The operation of this transmitter must satisfy the requirements of Occupational/Controlled Exposure Environment, for work-related use, transmit only when person(s) are at least the minimum distance from the properly installed, externally mounted antenna. Transmit only when people outside the vehicle are at least the recommended minimum lateral distance away from the antenna/vehicle. B59-2723-00

Aug. 9th, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize any individual within Intertek Japan K.K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Tamaki Shimamura Communications Equipment Division 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

May. 9th 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: NX-840H-K2, NX-840-M2. FCC ID: K44452701. To whom it may concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that could never get into the possession of our competition. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Equipment Division 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

May. 9th, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer Subject: Justify Extended Frequency Range for MODEL: NX-840H-K2, NX-840-M2. FCC ID: K44452701. To Whom It May Concern: This letter serves justification for extended frequencies This device has design capability to operate in the frequency band 406.1 to 470 MHz and complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Please note that Licensed End Users do not have access to any external controls that will allow them to program the equipment. Equipment programming is the responsibility of JVC KENWOOD approved Service Agents. In addition to Parts 90 usage, this device is utilized in systems such as Federal and Public Safety agencies, e.g. police, fire, and emergency medical, etc. as indicated in the following table: Table 1 – Frequency Range and Rule Parts - (47 CFR Part 2.106) It is understood that a grant note code may be added to the grant which indicates this required operation. In addition, we acknowledge that it is a violation of FCC rules if the device operates on unauthorized frequencies. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Equipment Division JVC KENWOOD Corporation Freq. Range (MHz) Part 90 Federal Customers 406.1000-454.0000 x 454.0000-456.0000 X 456.0000-462.5375 x 462.5375-462.7375 X 462.7375-467.5375 x 467.5375-467.7375 X 467.7375-470.0000 x 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

Page 1 of 1 FCC ID: K44452701 IC ID: CT Project: P1450018 From: Shawn McMillen Date: 5/30/14 1. FYI: May want to consider providing a test setup photos for the MPE measurements in future filings. JVC Kenwood - Thank you for advice. We will submit setup photos in the next filing. 2. There may be a typo on you’re measurement setting for emissions < 1GHz. The RBW should be 100kHz not 10kHz. This appears throughout the EMC report. JVC Kenwood – Typo has been corrected, please refer to the Rev 2 Test report exhibit. 3. A measurement or a calculation of the occupied bandwidths should be provided JVC Kenwood - Please refer to the page 44 of the test report. Response by: JVC Kenwood Submitted by: Compliance Testing LLC Date: 6/2/14

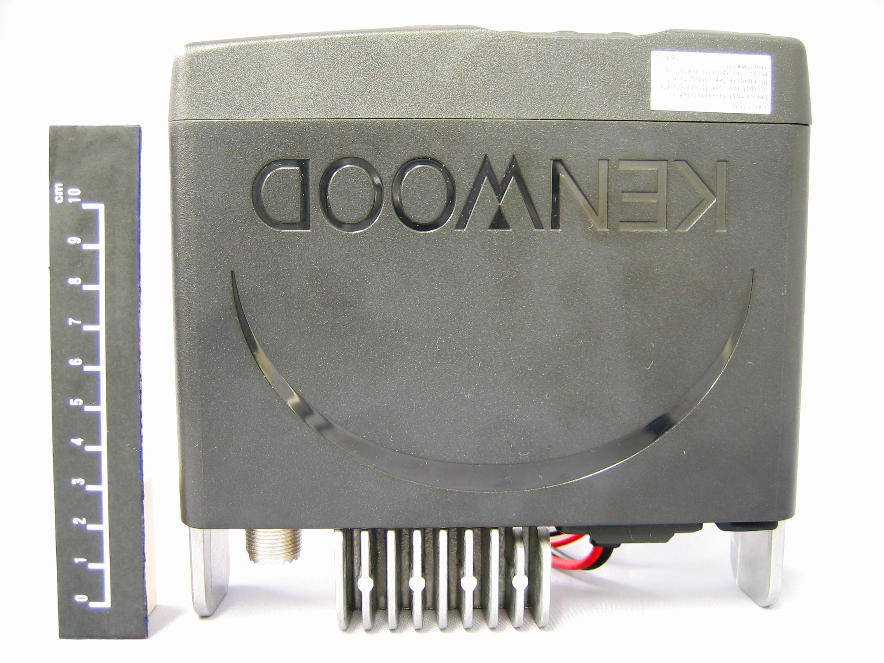

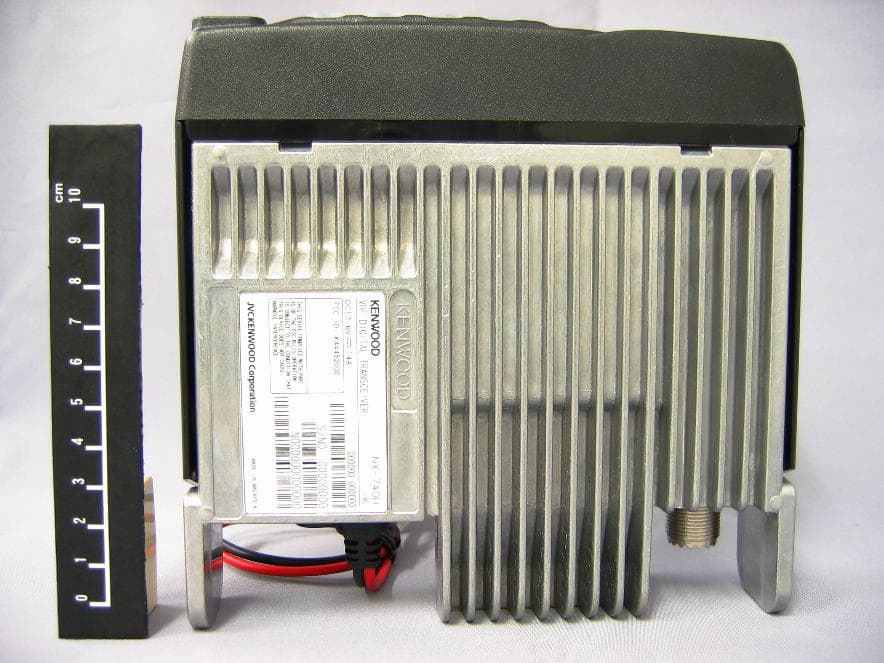

NX-840H-K2, NX-840-M2 FCC ID: K44452701 Front View Rear View NX-840H-K2, NX-840-M2 FCC ID: K44452701 Right View Left View NX-840H-K2, NX-840-M2 FCC ID: K44452701 Top View Bottom View

NX-840H-K2, NX-840-M2 FCC ID: K44452701 NX-840H-K2, NX-840-M2 FCC ID: K44452701

NX-840H-K2, NX-840-M2 FCC ID: K44452701 NX-840H-K2, NX-840-M2 FCC ID: K44452701 NX-840H-K2, NX-840-M2 FCC ID: K44452701

Report No :14040209JKA-001 FCC ID :K44452701 TRUE FALSE 3 REGULATION :FCC Part 1.1310 JVC KENWOOD CorporationIntertek Japan K. K. Kashima Laboratory 1-16-2, Hakusan, Midori-ku, Yokohama-shiURL: http://www.japan.intertek-etlsemko.com Kanagawa, 226-8525 Japan3-2 Sunayama, Kamisu, Ibaraki Tel.: +81 45 939 6254314-0255 Japan Fax.: +81 45 939 6261Tel. +81 479 40 1097 Equipment typeUHF DIGTAL TRANSCEIVER TrademarkKENWOOD Model(s)NX-840H-K2 , NX-840-M2 Serial No. FCC ID K44452701 Test ResultComplied Report Number14040209JKA-001 Report issue date Approved byTested by Hideaki KosemuraKoichi Wagatsuma [Assistant Manager][Engneer] This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Applicant TEST REPORT Testing Laboratory May 27, 2014 1 Intertek Japan K.K.Page 1 of 5FJP-TE038 / Effective date: 21 Apr 2014 Report No :14040209JKA-001 FCC ID :K44452701 TABLE OF CONTENTS Page SECTION 1. INFORMATION3 SECTION 2. TEST DATA4 SECTION 3. LIST OF MEASURING INSTRUMENTS6 Intertek Japan K.K.Page 2 of 5FJP-TE038 / Effective date: 21 Apr 2014 Report No :14040209JKA-001 FCC ID :K44452701 SECTION 1. INFORMATION APPLICANT CompanyJVC KENWOOD Corporation Address1-16-2, Hakusan, Midori-ku, Yokohama-shi Kanagawa, 226-8525 Japan Contact PersonTamaki Shimamura Manager, Communications Equipment Division MANUFACTURER CompanyJVC KENWOOD Corporation Address1-16-2, Hakusan, Midori-ku, Yokohama-shi Kanagawa, 226-8525 Japan EQUIPMENT UNDER TEST Model No.NX-840H-K2 , NX-840-M2 Serial No.1 Frequency range406.1 to 470 MHz Maximum Power Rating45W Duty cycle50% Collector Current, A15.0amps (Maximum) Collector Voltage, Vdc13.6Vdc Supply Voltage, Vdc13.6Vdc DATE OF TEST AND TEST ENGINEER Revision Summary Revised DateSectionDescription of Changes Date of IssueMay 19, 2014 Test EngineerKoichi Wagatsuma Test LocationKashima Immunity Test Room Intertek Japan K.K.Page 3 of 5FJP-TE038 / Effective date: 21 Apr 2014 Report No :14040209JKA-001 FCC ID :K44452701 SECTION 2. TEST DATA The EUT was placed inside an semi anechoic chamber at height of 0.8 m to simulate being mounted on a vehicle. The isotropic probe was placed a distance of 0.4 m from the EUT and power density was measured at 0.2 m increments from 0.2 m to 2.0 m with the peak value from each location being recorded in th e corresponding data tables. The general population limit was applied to all measurements. The EUT is a PTT radio for mobile application with a peak power of 45 W. By allowing for an operational 50 % factor the power was reduced to 22.5 W for testing purposes yet transmitted continuously during the test. A 0 dBd antenna was utilized for testing. Measurement Resul t 2.00.0250.31Pass 1.80.0500.31Pass 1.60.1080.31Pass 1.40.1460.31Pass 1.20.1040.31Pass 1.00.1070.31Pass 0.80.1180.31Pass 0.60.0320.31Pass 0.40.0150.31Pass 0.20.0190.31Pass (m) (mW/cm 2 )(mW/cm 2 ) 469.95 MHz Probe HeightPeak Power DensityLimitResult 2.00.0270.29Pass 1.80.0670.29Pass 1.60.1410.29Pass 1.40.1810.29Pass 1.20.1760.29Pass 1.00.2250.29Pass 0.80.1630.29Pass 0.60.0450.29Pass 0.40.0370.29Pass 0.20.0180.29Pass (m) (mW/cm 2 )(mW/cm 2 ) 406.15 MHz 438.05 MHz Probe HeightPeak Power DensityLimitResult 0.1060.27Pass 0.0510.27Pass Pass 0.2160.27Pass Pass 0.2250.27Pass Pass 0.1890.27Pass Pass 0.0550.27Pass 1.8 2.0 0.0030.27 0.0410.27 0.2540.27 0.2250.27 1.0 1.2 1.4 1.6 0.2 0.4 0.6 0.8 (mW/cm 2 ) LimitResultProbe Height (m) Peak Power Density (mW/cm 2 ) Intertek Japan K.K.Page 4 of 5FJP-TE038 / Effective date: 21 Apr 2014 Report No :14040209JKA-001 FCC ID :K44452701 SECTION 3. LIST OF MEASURING INSTRUMENTS 2014/4/22015/4/30 Digital Multi Meter 8846A Fleid Probe HI 600500130667ETS Lindgren 9642018FLUKE Cal DateCal Due Date N/AN/A 2013/5/312014/5/31 Power SupplyGZV400090290931Daiichi denpa kogyo InstrumentModel No.Serial No.Manufacturer Intertek Japan K.K.Page 5 of 5FJP-TE038 / Effective date: 21 Apr 2014

Report No :14040209JKA-002 FCC ID :K44452701 TRUE FALSE 3 REGULATION :FCC Part 2, 90 JVC KENWOOD CorporationIntertek Japan K. K. Kashima Laboratory 1-16-2, Hakusan, Midori-ku, Yokohama-shi3-2, Sunayama, Kamisu-shi, Ibaraki-ken Kanagawa, 226-8525 Japan314-0255 Japan Tel.: +81 45 939 6254Tel.: +81 479 40 1097 Fax.: +81 45 939 6261 Intertek Japan K. K. Matsuda Laboratory 1283 Yadoriki, Matsuda-machi, Ashigarakami-gun, Kanagawa-ken, 258-0001 Japan Tel.: +81 465 89 2316 Equipment typeUHF DIGITAL TRANSCEIVER TrademarkKENWOOD Model(s)NX-840H-K2, NX-840-M2 Serial No. FCC ID K44452701 Test ResultComplied Report Number14040209JKA-002 Original Issue Date Revised Issue Date Approved byTested by Hideaki KosemuraKoichi Wagatsuma [Assistant Manager][Engneer] This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Applicant TEST REPORT Testing Laboratory June 02, 2014 1 May 27, 2014 Intertek Japan K.K.Page 1 of 44 FJP-TE031 Ver.1.0 Effective Date:January 4, 2011 Report No :14040209JKA-002 FCC ID :K44452701 In Accordance with FCC Rules and Regulations, Volume II, Part 2 and 90 Sub-part 2.1033 (c)(1) Applicant and Manufacture Information APPLICANT Company:JVC KENWOOD Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-shi Kanagawa, 226-8525 Japan Contact Person:Tamaki Shimamura Manager, Communications Equipment Division MANUFACTURER Company:JVC KENWOOD Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-shi Kanagawa, 226-8525 Japan (c)(2) FCC ID FCC ID:K44452701 Model number:NX-840H-K2, NX-840-M2 Serial number:1 (c)(3) Instruction Manual(S) Instruction manual(s) :Please refer to attached Exhibits F (c)(4) Type of Emission Emission Designation :11K0F3E(Narrow) 4K00F1E(Very Narrow) / 4K00F1D(Very Narrow) / 4K00F7W(Very Narrow) 4K00F2D(Very Narrow) (c)(5) Frequency range Frequency Range:406.1 to 470 MHz (c)(6) Power Rating Output Power:5 to 45 W Type:Continuously Variable (c)(7) Maximum Power Rating Output Power:45W Collector Current, A:15.0 A Maximum Collector Voltage, Vdc :13.6 Vdc Supply Voltage, Vdc:13.6 Vdc Other Information Number of Channel:32 channels / 2 zone Maximum Deviation:± 2.5 kHz (11K0F3E) Frequency Stability:1.0 ppm : Antenna Impedance:50 Ω Norminal Note including final transistor or solid-state device (c)(8): Voltages & currents in all elements in final RF stage, Intertek Japan K.K.Page 2 of 44 FJP-TE031 Ver.1.0 Effective Date:January 4, 2011 Report No :14040209JKA-002 FCC ID :K44452701 TABLE OF CONTENTS Page SECTION 1. GENERAL INFORMATION4 SECTION 2. SUMMARY OF TEST RESULT5 SECTION 3. TEST AND MEASUREMENT DATA6 SECTION 4. INFORMATION ABOUT EUT AND SUPPORT EQUIPMENT(S)7 SECTION 5. SUPPORT EQUIPMENT8 SECTION 6. USED CABLE(S)9 SECTION 7. TEST CONFIGURATION10 SECTION 8. OPERATING CONDITION11 SECTION 9. MEASUREMENT UNCERTAINTY12 SECTION 10. TEST DATA 10.1Carrier Output Power (Conducted)13 10.2Unwanted Emissions (Transmitter Conducted)15 10.3Field Strength of Spurious Radiation18 10.4Emission Masks (Occupied Bandwidth)22 10.5Transient Frequency Behavior28 10.6Audio Frequency Response / Audio Low Pass Filter (Voice Input)33 10.7Modulation Limiting36 10.8Frequency Stability (Temperature Variation)39 10.9Frequency Stability (Voltage Variation)42 10.10Necessary Bandwidth and Emission Bandwidth44 APPENDIXPHOTOGRAPHS Intertek Japan K.K.Page 3 of 44 FJP-TE031 Ver.1.0 Effective Date:January 4, 2011 Report No :14040209JKA-002 FCC ID :K44452701 SECTION 1. GENERAL INFORMATION TEST PERFORMED LocationKashima No.1 Test Site and Matsuda No.3 Test Site EUT Received Date of Testto Standard AppliedFCC Part 2, 90 Measurement Method Deviation from Standard(s)Not applicable QUALIFICATIONS OF TESTING LABORATORY(Kashima Lab.) ACCREDITATIONSCOPELAB. CODERemarks NVLAPEMC Testing100290-0USA VLACEMC TestingVLAC-008-1JAPAN BSMIEMC TestingSL2-IN-E-6008TAIWAN FILING VCCIEMC TestingA-0126JAPAN FCCEMC TestingDesignation Number:JP0008 ICEMC TestingIC-2042K-3, IC-2042Q-12CANADA CB-SchemeEMC TestingTL222IECEE SAUDI ARABIAEMC TestingN/A QUALIFICATIONS OF TESTING LABORATORY(Matsuda Lab.) ACCREDITATIONSCOPELAB. CODERemarks VLACEMC TestingVLAC-008-3JAPAN BSMIEMC TestingSL2-IN-E-6009TAIWAN FILING VCCIEMC Testing A-0127 JAPAN FCCEMC TestingDesignation Number:JP0009USA ICEMC TestingCANADA CB-SchemeEMC TestingTL223IECEE SAUDI ARABIAEMC TestingN/A ABBREVIATIONS EUTDoC AMNISN LISNQ-P AMPAVG ATTPK ANTCal BBAN/A DIPLCD AEAssociated Equipment4LEVEL FSK 4LEVEL Frequency Shift Key GMSKCW ID FMC4FM PTTPush to TalkAFC Revision Summary 10.2 3 a)The RBW has been changed from 10 kHz to 100 KHz. 10.3 3 a)The RBW has been changed from 10 kHz to 100 KHz. Impedance Stabilization Network IC-2042S-1, IC-2042S-2, IC-2042S-3, IC-2042S-4 Declaration of Conformity ANSI/TIA-603-D-2010 Attenuator AntennaCalibration Peak May 08, 2014May 22, 2014 Not applicable or Not availableBroadband Antenna May 07, 2014 Average Line Impedance Stabilization Network Equipment Under Test Artificial Mains Network Quasi-peak Amplifier Automatic frequency control Dipole AntennaLiquid-Crystal Display Gaussian Maximum Shift Key Frequency ModulationConstant envelope 4 Level FM Continuously Repeating bit stream Description of Changes Jun 0…
