K44474601UHF Digital Base-Repeater

JVC KENWOOD Corporation
UHF Digital Base-Repeater - FCC ID K44474601 - JVC KENWOOD Corporation
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Oct 07, 2015
Application Purpose
Original Equipment
Date of Application
Oct 06, 2015
Equipment Note
UHF Digital Base-Repeater
Frequency Range
406.10000000 - 470.00000000
Company
JVC KENWOOD Corporation
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗
↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

B5A-0713-00 (K,K3,K5) NXR-5700 VHF DIGITAL BASE-REPEATER/ UHF DIGITAL BASE-REPEATERINSTRUCTION MANUALBASE-RELAIS NUMÉRIQUE VHF/ BASE-RELAIS NUMÉRIQUE UHFMODE D’EMPLOIBASE-REPETIDOR DIGITAL VHF/ BASE-REPETIDOR DIGITAL UHFMANUAL DE INSTRUCCIONES NXR-5800 1 ◆ This repeater is intended for use as a fi xed base station with the antenna located outdoors on the rooftop or on an antenna tower. ◆ This repeater is designed for a 13.6 V DC power source! Never use a 24 V DC or higher source to power the repeater. ◆ Use only the supplied DC cord. ◆ Do not remove the ferrite core attached to the DC cord. Doing so may cause interference with radio communications. UNPACKING AND CHECKING EQUIPMENT Note: The following unpacking information is for use by your KENWOOD dealer, an authorized KENWOOD service center, or the factory. Carefully unpack the repeater. We recommend that you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, fi le a claim with the carrier immediately. Item Part Number Quantity Front glass B10-2781-XX 1 Dressed screw N08-0563-XX 1 Bracket J29-0725-XX 2 Flat head machine screw N32-4008-XX 4 Handle K01-0421-XX 1 DC cord E30-3427-XX 1 Lead wire with connector (15 pin) E31-3228-XX 1 Fuse (15 A) F52-0042-XX 1 SYNC Cable E30-7701-XX 1 Instruction Manual B5A-0713-XX 1 INSTALLATIONTo install the handles onto the front panel of the repeater, align the handles with the holes on the front panel, then secure the handles using the supplied screws.Please consult your dealer for installing the repeater and antenna.MICROPHONEConnect an optional KMC-30, KMC-35, KMC-9C, or KMC-53 KENWOOD microphone to the MICROPHONE jack on the front panel.OCXO UNIT (KXK-3):OptionThe OCXO unit (KXK-3) is an Oven Controlled Crystal Oscillator (OCXO) unit. NOTICES TO THE USER ◆ Government law prohibits the operation of unlicensed radio transmitters within the territories under government control. ◆ Illegal operation is punishable by fi ne and/or imprisonment. ◆ Refer service to qualifi ed technicians only. One or more of the following statements may be applicable: FCC WARNINGThis equipment generates or uses radio frequency energy. Changes or modifi cations to this equipment may cause harmful interference unless the modifi cations are expressly approved by the party responsible/JVC KENWOOD. The user could lose the authority to operate this equipment if an unauthorized change or modifi cation is made.INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCCThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer for technical assistance. THANK YOU!We are grateful you purchased this KENWOOD repeater. We believe this easy-to-program repeater will be highly effective in your communications system, and will keep personnel operating at peak effi ciency.KENWOOD incorporates the latest in advanced technology into all of our products. As a result, we feel strongly that you will be pleased with the quality and features of this product. PRECAUTIONS• Do not expose the unit to rain or moisture; to prevent fi re or electric shock. • Do not open the unit under any circumstances; to avoid risk of electric shock. • Do not expose the unit to long periods of direct sunlight, nor place it close to heating appliances. • Do not place the unit in excessively dusty and/or humid areas, nor on unstable surfaces. • Do not put the plastic bag used for packing of this equipment on the place which reaches a small child's hand. It will become a cause of suffocation if it wears fl atly. • Always switch the transceiver power off before installing optional accessories. • If you detect an abnormal odor or smoke coming from the unit, disconnect the power from the unit immediately. Contact your KENWOOD service center or dealer. NXR-5700 / NXR-5800 INSTRUCTION MANUAL VHF DIGITAL BASE-REPEATER / UHF DIGITAL BASE-REPEATER Firmware CopyrightsThe title to and ownership of copyrights for fi rmware embedded in KENWOOD product memories are reserved for JVC KENWOOD Corporation. The AMBE+2 TM voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos. #6,199,037, #6,912,495, #8,200,497, #7,970,606, and #8,359,197. ◆ Do not install the repeater in explosive atmospheres (infl ammable gas, dust particles, metallic powders, grain powders, etc.). 2 REPEATER OPERATION Note: Please consult your dealer for programming the repeater. Due to the frequency stability on the 6.25 kHz bandwidth channel, when operating the repeater using an optional OCXO unit, allow the unit to warm up after…

Text truncated - open the document above for the full version.

Attestation Statements

Sep. 10th, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize any individual within Intertek Japan K.K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Tamaki Shimamura Communications Systems Business Unit 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

Cover Letter(s)

Sep. 10th 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL:NXR-5800-K3, FCC ID: K44474601. To whom it may concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that could never get into the possession of our competition. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Systems Business Unit 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

Cover Letter(s)

Sep. 10th, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer Subject: Justify Extended Frequency Range for MODEL: NXR-5800-K3, FCC ID: K44474601. To Whom It May Concern: This letter serves justification for extended frequencies This device has design capability to operate in the frequency band 406.1 to 470 MHz and complies with 47 CFR Part 90.203(e), in that the end user cannot directly program the transmit frequencies. Equipment programming is the responsibility of KENWOOD approved Service Agents. In addition to Parts 90 usage, this device is utilized in systems such as Federal and Public Safety agencies, e.g. police, fire, and emergency medical, etc. as indicated in the following table: Table 1 – Frequency Range and Rule Parts - (47 CFR Part 2.106) It is understood that a grant note code may be added to the grant which indicates this required operation. In addition, we acknowledge that it is a violation of FCC rules if the device operates on unauthorized frequencies. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Systems Business Unit JVC KENWOOD Corporation Freq. Range (MHz) Part 90 Federal Customers 406.1000-454.0000 x 454.0000-456.0000 X 456.0000-462.5375 x 462.5375-462.7375 X 462.7375-467.5375 x 467.5375-467.7375 X 467.7375-470.0000 x 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

External Photos

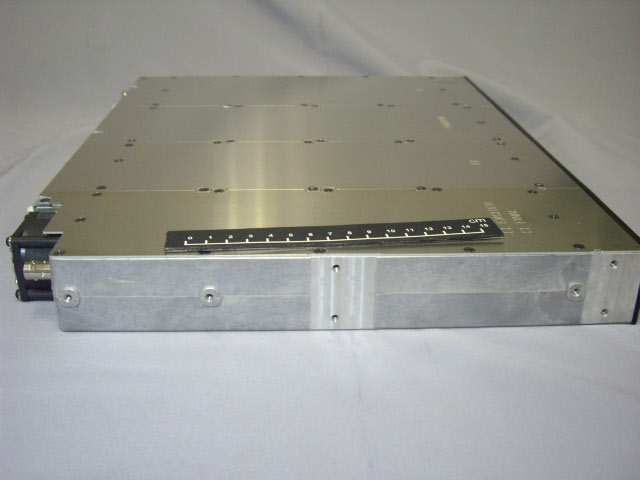

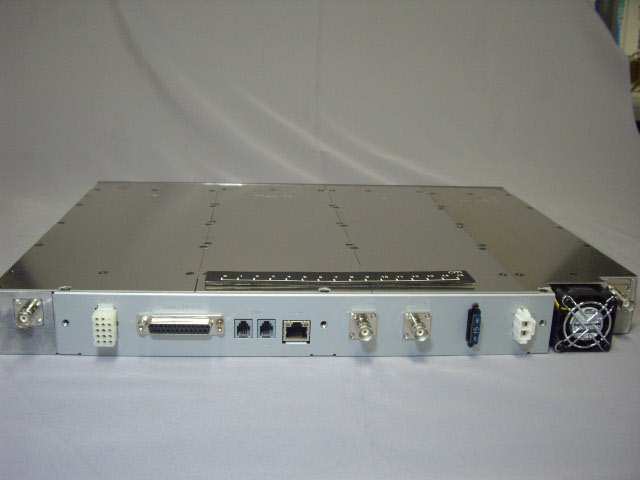

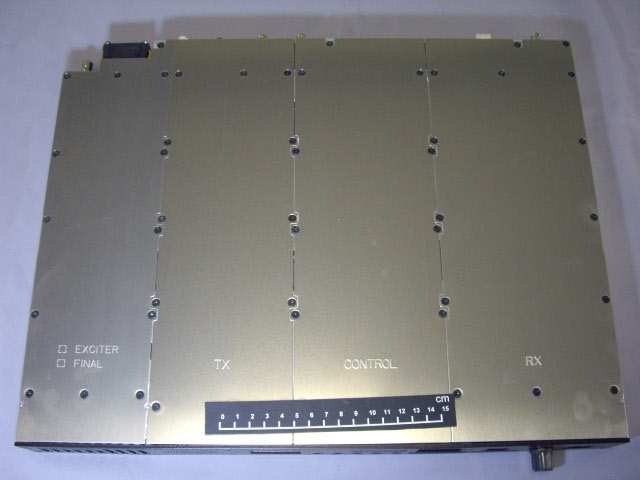

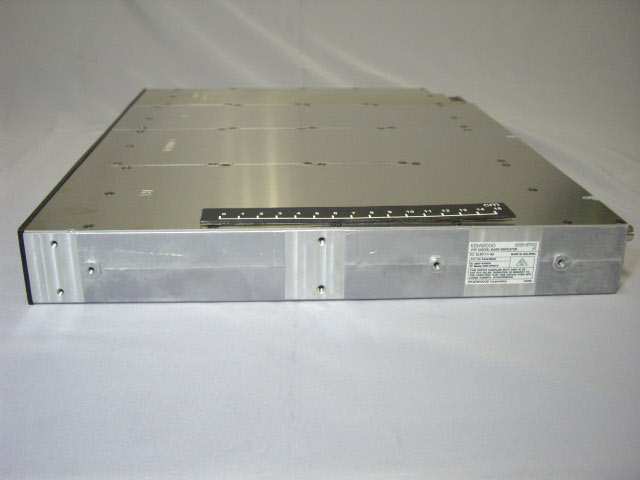

NXR-5800-K3 FCC ID: K44474601 IC: 282F-474601 Front View Rear View NXR-5800-K3 FCC ID: K44474601 IC: 282F-474601 Top View Bottom View NXR-5800-K3 FCC ID: K44474601 IC: 282F-474601 Right View Left View

ID Label/Location Info

SCALE(1:1) SCALE(2:1) 40 25 F 3 4321 A B C D E F 12 E D C B A QTYNo.PART NUMBERPART NAME / NOTEMATERIALFINISH GROUP No. MODEL APPROVEDMATERIALPART NAMESCALE AL EVAPORATION PLATE LINTEC FNS MATT S100 PA-T1 11BL t0.1 MODEL NAME PLATE : CHECKED FINISHDRAWING NUMBERREL. mm SEAL PRINTING TOKA INK UV161 BLACK S STRONG TACKIFIER 00 DESIGNED SHEET No. 1/1 DATE20 - -JIS Z8310 DRWN.DATE2015-08-27 SYMBOLREVISION No.ISSUEDDATE X SCALE(2:1) SCALE(1:1) 35 10 F 3 4321 A B C D E F 12 E D C B A QTYNo.PART NUMBERPART NAME / NOTEMATERIALFINISH GROUP No. MODEL APPROVEDMATERIALPART NAMESCALE AL EVAPORATION PLATE t0.1 LINTEC FNS MATT S100 PAT1 CAUTION LABEL : CHECKED FINISHDRAWING NUMBERREL. mm SEAL PRINTING(TOKA UV161 Black S) LAMINATE(LINTEC PP MATT25N NPL) 00 DESIGNED SHEET No. 1/1 DATE20 - -JIS Z8310 DRWN.DATE2014-08-04 SYMBOLREVISION No.ISSUEDDATE X NXR-5800-K3 FCC ID: K44474601 IC: 282F-474601 Name Plate Caution Label

Internal Photos

NXR-5800-K3 FCC ID: K44474601 / IC: 282F-474601 Upper Side View with OCXO Unit Upper Side View NXR-5800-K3 FCC ID: K44474601 / IC: 282F-474601 Front Side View Control Upper Side View NXR-5800-K3 FCC ID: K44474601 / IC: 282F-474601 Control Bottom Side View RX Upper Side View without Shield NXR-5800-K3 FCC ID: K44474601 / IC: 282F-474601 RX Upper Side View with Shield RX Bottom Side View without Shield NXR-5800-K3 FCC ID: K44474601 / IC: 282F-474601 RX Bottom Side View with Shield TX1 Upper Side View with Shield NXR-5800-K3 FCC ID: K44474601 / IC: 282F-474601 TX1 Upper Side View without Shield TX1 Bottom Side View NXR-5800-K3 FCC ID: K44474601 / IC: 282F-474601 Final 1 Upper Side View Final 1 Bottom Side View NXR-5800-K3 FCC ID: K44474601 / IC: 282F-474601 Final 1-5 Upper Side View Final 1-5 Bottom Side View NXR-5800-K3 FCC ID: K44474601 / IC: 282F-474601 KXK-3 OCXO UNIT Upper Side View KXK-3 OCXO UNIT Bottom Side View

RF Exposure Info

Maximum Permissible Exposure (MPE) Evaluation Applicant: JVC KENWOOD Corporation Equipment: UHF DIGITAL BASE-REPEATE R Model No.: NXR-5800-K3 FCC ID: K44474601 MPE Calculations Part 1.1310 Where: S=Power density (in appropriate units, e.g. mW/cm 2 ) P=Power input to antenna (in appropriate units, e.g., mW) G=Power gain of the antenna in the direction of interest relative to an isotropic radiator R=Distance to the center of radiation of the antenna (appropriate units, e.g., cm) Tx Frequency=406 to 470(MHz) Maximum peak power=(dBm)(=25W) Antenna gain=(dBi) S=(mW/cm 2 ) P=(mW) (=Maximum peak power x 120% x Dutycycle100% G=(numeric) R=(cm) Calculated minimum separation distance from antenna :120.28 (cm) 43.98 2.15 120.28 0.27 30000.00 1.64 S PG R 4  2 4R PG S  

RF Exposure Info

New References to be KDB and CFR 47 1.1310 and RSS102 S= P= power input to the antenna G= power gain of the antenna in the direction of 1 interest relative to an isotropic radiator R= distance to the center of radiation of the antenna Choose Occupational/Controlled General Population/Uncontrolled Tx Frequency: 407.00 (MHz) Maximum Peak Power at Antenna Input Terminal: 44.771 (dBm) Antenna gain : 2.15 (dBi) 13.567W/m^2 S=1.3567 (mW/cm^2)S= 71.517 V/m of limit for S P=30000.0000 (mW)P= G=1.6406 (numeric)G= R =53.7303(cm)R = S (mw/cm^2) at specific distance in cm Enter distance desired in cm 192.026V/M (Efield/m) 9.78094061920 OET Bulletin 65, Edition 97-01 (old unused ref) Prediction of MPE Limit Equation from page 18 power density in W/m^2 2 4R PG S   4 R PG S  

Test Report

Report No :15060189JKA-001 FCC ID:K44474601 IC CN UPN :282F-474601 TRUE FALSE 3 REGULATION :FCC Part 2, 90 RSS-119 Issue 12 JVC KENWOOD CorporationIntertek Japan K.K. Kashima Laboratory URL: http://www.japan.intertek-etlsemko.com 1-16-2, Hakusan, Midori-ku, Yokohama-shi(Anechoic chamber) Kanagawa, 226-8525 Japan 298-6 Sada, Kashima, Ibaraki Tel.: +81 45 939 6254 314-0027 Japan Fax.: +81 45 939 6261 Tel. +81 299 82 8464 (Open area test site) 3-2 Sunayama, Kamisu, Ibaraki 314-0255 Japan Tel. +81 479 40 1097 Intertek Japan K. K. Nagano Laboratory 3226 Yokokawa, Tatsuno-machi, Kamiina-gun, Nagano 399-0511 Japan Tel.: +81 266 47 5311 Equipment typeUHF DIGITAL BASE-REPEATER TrademarkKENWOOD FCC Model(s)NXR-5800-K3 IC Model(s)NXR-5800-K3 Serial No. FCC ID K44474601 IC CN and UPN 282F-474601 Test ResultComplied Report Number15060189JKA-001 Original Issue Date Approved byTested by Hideaki KosemuraKoichi Wagatsuma [Technical Dept. Manager][Engineer] Naohei Murakami [Engineer] This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Applicant TEST REPORT Testing Laboratory No.3 September 28, 2015 Intertek Japan K.K.Page 1 of 70 FJP-TE031 Ver.1.0 Effective Date:January 4, 2011 Report No :15060189JKA-001 FCC ID:K44474601 IC CN UPN :282F-474601 In Accordance with FCC Rules and Regulations, Volume II, Part 2 and 90 Sub-part 2.1033 Applicant and Manufacture Information APPLICANT Company:JVC KENWOOD Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-sh i Kanagawa, 226-8525 Japan Contact Person:Tamaki Shimamura Manager, Communications Systems Business Operation MANUFACTURER Company:JVC KENWOOD Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-sh i Kanagawa, 226-8525 Japan (c)(2) FCC ID FCC ID:K44474601 Model number:NXR-5800-K3 Serial number:No.3 Instruction Manual (S) Instruction manual(s):Please refer to attached Exhibits F Type of Emission Emission Designation :16K0F3E(Wide) 16K0F3E is IC Only 11K0F3E(Narrow) 8K30F1E(Narrow) / 8K30F1D(Narrow) / 8K30F7W(Narrow) 4K00F1E(Very Narrow) / 4K00F1D(Very Narrow) / 4K00F7W(Very Narrow) 4K00F2D(Very Narrow) Frequency range Frequency Range:FCC: 406.1 to 470 MHz IC: 406.1 to 430 MHz and 450 to 470 MHz Power Rating Output Power:0.5 to 25 W Type:Continuously Variable Maximum Power Rating Output Power:25W Collector Current, A:9.0 A Maximum Collector Voltage, Vdc :13.6 Vdc Supply Voltage, Vdc:13.6 Vdc Other Information Number of Channel:30 channels Maximum Deviation:± 5 kHz (16K0F3E), ± 2.5 kHz (11K0F3E) Frequency Stability:0.5 ppm :0.1 ppm with OCXO unit Antenna Impedance:50 Ω Norminal Note including final transistor or solid-state device Voltages & currents in all elements in final RF stage, Intertek Japan K.K.Page 2 of 70 FJP-TE031 Ver.1.0 Effective Date:January 4, 2011 Report No :15060189JKA-001 FCC ID:K44474601 IC CN UPN :282F-474601 TABLE OF CONTENTS Page SECTION 1. GENERAL INFORMATION4 SECTION 2. SUMMARY OF TEST RESULT5 SECTION 3. TEST AND MEASUREMENT DATA6 SECTION 4. INFORMATION ABOUT EUT AND SUPPORT EQUIPMENT(S)7 SECTION 5. SUPPORT EQUIPMENT8 SECTION 6. USED CABLE(S)9 SECTION 7. TEST CONFIGURATION10 SECTION 8. OPERATING CONDITION11 SECTION 9. MEASUREMENT UNCERTAINTY12 SECTION 10. TEST DATA 10.1 Carrier Output Power (Conducted)13 10.2 Unwanted Emissions (Transmitter Conducted)16 10.3 Field Strength of Spurious Radiation19 10.4 Emission Masks (Occupied Bandwidth)25 10.5 Transient Frequency Behavior38 10.6 Audio Frequency Response / Audio Low Pass Filter (Voice Input)46 10.7 Modulation Limiting50 10.8 Frequency Stability (Temperature Variation)55 10.9 Frequency Stability (Voltage Variation)59 10.10 Receiver Spurious Emissions(Radiated)61 10.11 Necessary Bandwidth and Emission Bandwidth65 10.1299% Occupied Bandwidth66 APPENDIXPHOTOGRAPHS Intertek Japan K.K.Page 3 of 70 FJP-TE031 Ver.1.0 Effective Date:January 4, 2011 Report No :15060189JKA-001 FCC ID:K44474601 IC CN UPN :282F-474601 SECTION 1. GENERAL INFORMATION TEST PERFORMED LocationKashima No.1 Test Site, No.12 Test Site and Nagano No.2 Test Site EUT Received Date of Testto Standard AppliedFCC Part 2, 90 RSS-119 Issue 12 Measurement Method Deviation from Standard(s)Not applicable QUALIFICATIONS OF TESTING LABORATORY(Kashima Lab.) ACCREDITATIONSCOPELAB. CODERemarks VLACEMC TestingVLAC-008-1JAPAN BSMIEMC TestingSL2-IN-E-6008TAIWAN FILING VCCIEMC TestingA-0126JAPAN FCCEMC TestingJP0008USA ICEMC TestingIC-2042K-3, IC-2042Q-12CANADA CB-SchemeEMC TestingTL222IECEE QUALIFICATIONS OF TESTING LABORATORY(Nagano Lab.) ACCREDITATIONSCOPELAB. CODERemarks VLACEMC TestingVLAC-008-4JAPAN BSMIEMC TestingSL2-IN-E-6007TAIWAN FILING VCCIEMC TestingJAPAN FCCEMC TestingJP0010USA ICEMC TestingIC-2042O-1CANADA ABBREVIATIONS EUTDoC AMNISN LISNQ-P AMPAVG ATTPK ANTCal BBAN/A DIPLCD AEAssociated Equipment4LEVEL FSK 4LEVEL Frequency Shift Key GMSKCW ID FMC4FM PTTPush to TalkAFC Revision Summary Constant envelope 4 Level FM Description of ChangesRevised DateSection Automatic frequency control Dipole AntennaLiquid-Crystal Display Gaussian Maximum Shift Key Frequency Modulation August 21, 2015 Average Line Impedance Stabilization Network Equipment Under Test Artificial Mains Network Quasi-peak …

Text truncated - open the document above for the full version.

Test Setup Photos

Report No :15060189JKA-001 FCC ID:K44474601 IC CN UPN :282F-474601 APPENDIX Intertek Japan K.K.Page 1 of 8 FJP-TE031 Ver.1.0 Effective Date:January 4, 2011 Report No :15060189JKA-001 FCC ID:K44474601 IC CN UPN :282F-474601 PHOTOGRAPHS OF MEASUREMENT SET-UP 10.1 Carrier Output Power (Conducted) 10.2 Unwanted Emission (Conducted Spurious) Intertek Japan K.K.Page 2 of 8 FJP-TE031 Ver.1.0 Effective Date:January 4, 2011 Report No :15060189JKA-001 FCC ID:K44474601 IC CN UPN :282F-474601 10.3 Field Stren gth of Spurious Radiation : Front view 10.3 Field Strength of Spurious Radiation : Rear view Intertek Japan K.K.Page 3 of 8 FJP-TE031 Ver.1.0 Effective Date:January 4, 2011 Report No :15060189JKA-001 FCC ID:K44474601 IC CN UPN :282F-474601 10.4 Emission Mask s 10.5 Transient Frequency Behavior Intertek Japan K.K.Page 4 of 8 FJP-TE031 Ver.1.0 Effective Date:January 4, 2011 Report No :15060189JKA-001 FCC ID:K44474601 IC CN UPN :282F-474601 10.6 Audio Fre quency Response 10.7 Modulation Limiting Intertek Japan K.K.Page 5 of 8 FJP-TE031 Ver.1.0 Effective Date:January 4, 2011 Report No :15060189JKA-001 FCC ID:K44474601 IC CN UPN :282F-474601 10.8, 10.9 Fre quency Stability : Outer view 10.8, 10.9 Frequency Stability : Inner view Intertek Japan K.K.Page 6 of 8 FJP-TE031 Ver.1.0 Effective Date:January 4, 2011 Report No :15060189JKA-001 FCC ID:K44474601 IC CN UPN :282F-474601 10.10 Receiver S purious Emission (Radiated) : Front view 10.10 Receiver Spurious Emission (Radiated) : Rear view Intertek Japan K.K.Page 7 of 8 FJP-TE031 Ver.1.0 Effective Date:January 4, 2011 Report No :15060189JKA-001 FCC ID:K44474601 IC CN UPN :282F-474601 10.12 99% Occu pied Bandwidth Intertek Japan K.K.Page 8 of 8 FJP-TE031 Ver.1.0 Effective Date:January 4, 2011

Contact Information

Applicant

Kazuyoshi Akaike(Manager)
[email protected]045-939-6254Fax: 045-939-6261

Technical Contact

PCTEST Engineering Laboratory, Inc.Randy Ortanez
[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

Intertek Japan K.K.(Kashima Laboratory)Junichi Okada
[email protected]81-299-82-8464Fax: 81-299-82-8466

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
89406.1 MHz - 470 MHz25 W8K30F7W0.5 ppm
Confidentiality
Long Term
Grant Notes
Power output listed is at the antenna connector. In order to comply with RF exposure requirements, the antenna(s) used for this transmitter shall not exceed 2.15 dBi in gain, and shall be installed to provide at least 120 cm away from people for General Population/Uncontrolled exposure environment or at least 54 cm away from people for Occupational/ Controlled RF exposure environment. Users and installers must be provided with antenna installation instructions and transmitter operating conditions to satisfy RF exposure requirements in the applicable RF exposure compliance standards.
