B5A-0922-00 (K) USER GUIDE GUIDE DE L'UTILISATEUR GUÍA DEL USUARIO TK-D740H TK-D740HV TK-D840H TK-D840HU USER GUIDE VHF DIGITAL TRANSCEIVER TK-D740H TK-D740HV UHF DIGITAL TRANSCEIVER TK-D840H TK-D840HU This User Guide covers only the basic operations of your radio. Ask your dealer for information on any customized features they may have added to your radio. For using details instruction manual (User Manual), refer to the following URL. http://manual2.jvckenwood.com/en_contents/search/ 2 THANK YOU We are grateful you have chosen KENWOOD for your Digital Transceiver applications. CONTENTS NOTICES TO THE USER ..........................................................................3 PRECAUTIONS ....................................................................................4 TERMINAL DESCRIPTIONS .....................................................................5 UNPACKING AND CHECKING EQUIPMENT ....................................................6 SUPPLIED ACCESSORIES ........................................................................................... 6 PREPARATION ....................................................................................7 ORIENTATION .....................................................................................9 FRONT/ REAR PANEL .................................................................................................. 9 DISPLAY .................................................................................................................... 10 BASIC OPERATION ............................................................................. 11 SWITCHING POWER ON/ OFF ................................................................................... 11 ADJUSTING THE VOLUME ........................................................................................ 11 SELECTING A ZONE AND CHANNEL ......................................................................... 11 TRANSMITTING ........................................................................................................ 11 RECEIVING ................................................................................................................ 11 3 NOTICES TO THE USER • Government law prohibits the operation of unlicensed radio transmitters within the territories under government control. • Illegal operation is punishable by fi ne and/or imprisonment. • Refer service to qualifi ed technicians only. Safety: It is important that the operator is aware of, and understands, hazards common to the operation of any transceiver. • EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.) Turn OFF your transceiver while taking on fuel or while parked in gasoline service stations. Do not carry spare fuel containers in the trunk of your vehicle if your transceiver is mounted in the trunk area. • INJURY FROM RADIO FREQUENCY TRANSMISSIONS Do not operate your transceiver when somebody is either standing near to or touching the antenna, to avoid the possibility of radio frequency burns or related physical injury. • DYNAMITE BLASTING CAPS Operating the transceiver within 500 feet (150 m) of dynamite blasting caps may cause them to explode. Turn OFF your transceiver when in an area where blasting is in progress, or where “TURN OFF TWO-WAY RADIO” signs have been posted. If you are transporting blasting caps in your vehicle, make sure they are carried in a closed metal box with a padded interior. Do not transmit while the caps are being placed into or removed from the container. One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved by the party responsible/ JVC KENWOOD. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer for technical assistance. 4 The AMBE+2 TM voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos. #6,199,037, #6,912,495, #8,200,497, #7,970,606, and #8,359,197 Firmware Copyrights The title to and ownership of copyrights for firmware embedded in KENWOOD product memories are reserved for JVC KENWOOD Corporation. PRECAUTIONS Observe the following precautions to prevent fi re, personal injury, and transceiver damage. • Do not attempt to confi gure the transceiver while driving; it is too dangerous. • Do not disassemble or m…

Text truncated - open the document above for the full version.

Sep. 30th 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: LETTER OF ATTESTATION FOR MODEL: TK-D840-M2, TK-D840H-K2, TK-D840HU-K2, FCC ID: K44475700. To whom it may concern: The time division multiple access (TDMA) mode of operation provides two voice paths in a 12.5 kHz channel bandwidth, thus meeting the one voice path per 6.25 kHz of spectrum requirement. This radio also provides a data rate of 9600 bps in a 12.5 kHz channel, thus meeting the minimum data rate of 4800 bps in a 6.25 kHz channel. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Systems Business Operation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

Aug. 31th, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer Subject: Justify Extended Frequency Range for MODEL: TK-D840H-K2, TK-D840-M2, TK-D840HU-K2 FCC ID: K44475700. To Whom It May Concern: This letter serves justification for extended frequencies This device has design capability to operate in the frequency band 406.1 to 470 MHz and complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Please note that Licensed End Users do not have access to any external controls that will allow them to program the equipment. Equipment programming is the responsibility of JVC KENWOOD approved Service Agents. In addition to Parts 90 usage, this device is utilized in systems such as Federal and Public Safety agencies, e.g. police, fire, and emergency medical, etc. as indicated in the following table: Table 1 – Frequency Range and Rule Parts - (47 CFR Part 2.106) It is understood that a grant note code may be added to the grant which indicates this required operation. In addition, we acknowledge that it is a violation of FCC rules if the device operates on unauthorized frequencies. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Equipment Division JVC KENWOOD Corporation Freq. Range (MHz) Part 90 Federal Customers 406.1000-454.0000 x 454.0000-456.0000 X 456.0000-462.5375 x 462.5375-462.7375 X 462.7375-467.5375 x 467.5375-467.7375 X 467.7375-470.0000 x 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

Aug. 28th 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: TK-D840-M2, TK-D840H-K2, TK-D840HU-K2, FCC ID: K44475700. To whom it may concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that could never get into the possession of our competition. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Systems Business Operation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

Aug. 28th, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize any individual within Intertek Japan K.K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Tamaki Shimamura Communications Systems Business Operation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

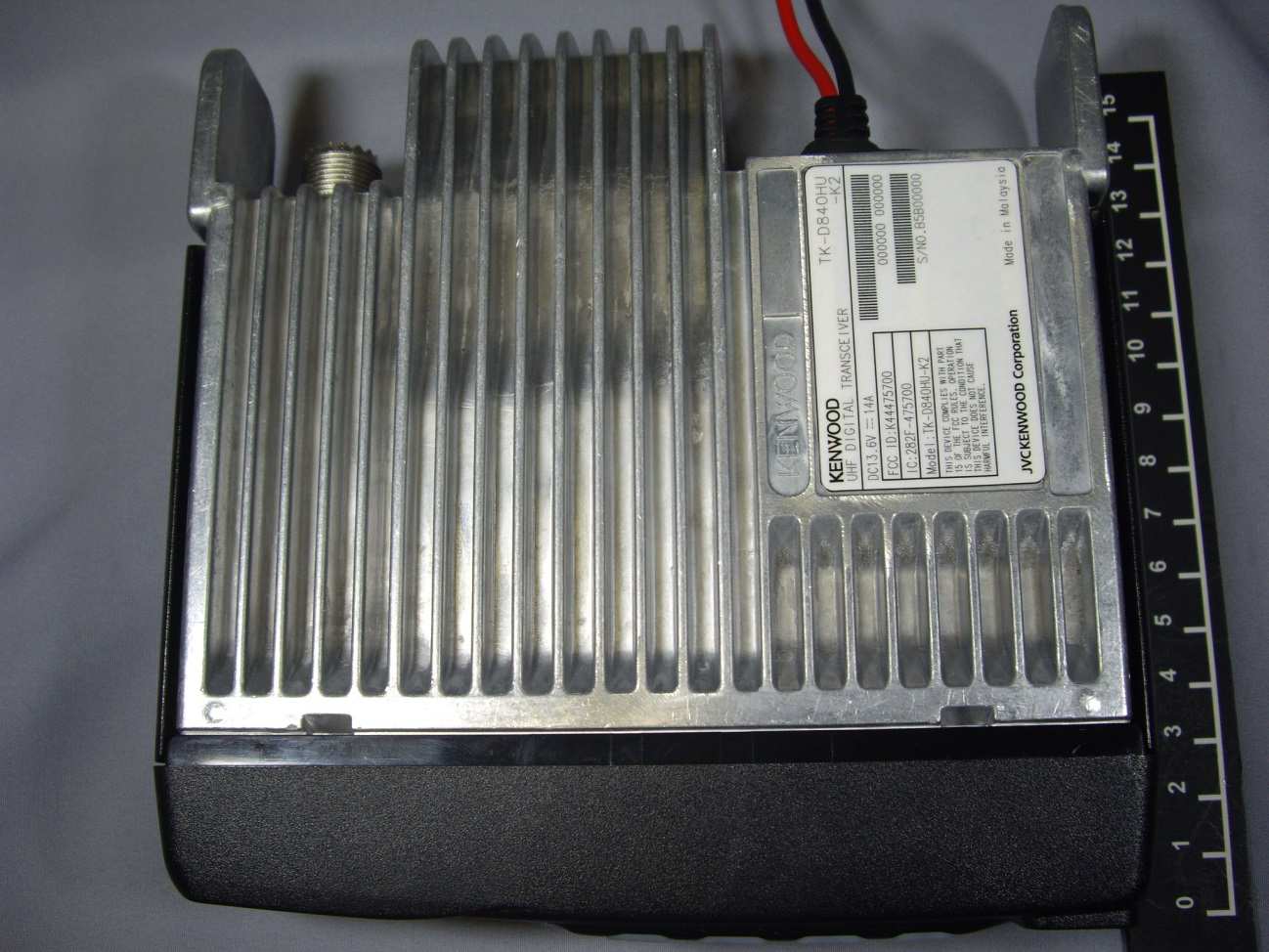

TK-D840H-K2, TK-D840HU-K2, TK-D840-M2/ FCC ID: K44475700 TK-D840H-K2/ IC: 282F-475700 Front View Rear View TK-D840H-K2, TK-D840HU-K2, TK-D840-M2/ FCC ID: K44475700 TK-D840H-K2/ IC: 282F-475700 Right View Left View TK-D840H-K2, TK-D840HU-K2, TK-D840-M2/ FCC ID: K44475700 TK-D840H-K2/ IC: 282F-475700 Top View Bottom View
