K44475900Network Box

B5A‑0555‑00 (M) NETWORK BOX INSTRUCTION MANUAL MODULE RÉSEAU MODE D’EMPLOI UNIDAD DE RED MANUAL DE INSTRUCCIONES INTERFACCIA IP NETWORK MANUALE DI ISTRUzIONI NETzWERK INTERFACE BEDIENUNgSANLEITUNg NETWERK EENHEID gEBRUIKSAANWIjzINg NETWORK BOX KULLANIM KILAVUzU KTI-5 FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved by the party responsible/jVC KENWOOD. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. One or more of the following statements may be applicable: Authorized Representative in Europe: Amsterdamseweg 37, 1422 AC Uithoorn, The Netherlands Manufacturer: 1‑16‑2 Hakusan, Midori‑ku, Yokohama‑shi, Kanagawa, 226‑8525 Japan 1 Thank you We are grateful you chosen kEnWooD network box. Warning • Do not install the unit in explosive atmospheres (inflammable gas, dust particles, metallic powders, grain powders, etc.). PrECauTionS • This unit operates in 13.6 V negative ground systems only!. Check voltage of DC power supply before installing the unit. • Do not expose the unit to rain or moisture; to prevent fire or electric shock. • Do not open the unit under any circumstances; to avoid risk of electric shock. • Do not expose the unit to long periods of direct sunlight, nor place it close to heating appliances. • Do not place the unit in excessively dusty and/or humid areas, nor on unstable surfaces. • If you detect an abnormal odor or smoke coming from the unit, disconnect the power from the unit immediately. Contact your KENWOOD service center or dealer. information on Disposal of old Electrical and Electronic Equipment (applicable for countries that have adopted separate waste collection systems) Products with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment should be recycled at a facility capable of handling these items and their waste byproducts. Contact your local authority for details in locating a recycle facility nearest to you. Pr oper r ecycling and w aste disposal will help conser ve r esources whilst pr eventing detrimental e ffects on our health and the en vironment. 2 unPaCking anD ChECking EQuiPMEnT note: The following unpacking information is for use by your kEnWooD dealer, an authorized kEnW oo D service center, or the factory. Carefully unpack the unit. We recommend that you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, file a claim with the carrier immediately. itemPart numberQuantity N SYNC CableE30-7717-XX1 CushionG1D-0077-XX2 CushionG13-2339-XX4 Instruction ManualB5A-0555-XX1 inSTallaTion & ConnECTion note: Please consult your dealer for installing the KTI-5 and repeater. KTI-5 NXR-710/810 To External DC Power supply N SYNC IP NETWORK ROUTER HUB Supplied N SYNC Cable (Length: 1 m) Can be used with either connector 3 Attach the KTI-5 to the repeater Accessory Cabinet using the supplied cushion. 1. Attach 4 cushions on the 4 base corners of the KTI-5, and place it into the Accessory Cabinet. 2. Attach the cushion to the base of the KTI-5, and attach it to the A ccessory Cabinet. oriEnTaTion rear Panel ① DC Power supply connector cable (length: 2 m) Connect to an external DC power supply. ② n S yn C jack Connect to Repeater. ③ lan jack Connect to Ethernet. Use a shielded, Category 5e or higher standar d LAN cable shorter than 3 meters. ④ micr o uSB connector This connector is currently not used. ⑤ C onTrol i/o connector This connector is currently not used. Indicators (LAN) Indicator Cushion Cushion Cushion 4 indicators indicatorColorMeaning STATUS GreenLights while the power is ON. Green/ Red/ Yellow/ Blue/ Purple Indicates status condition. LAN : Right (100Mbps) GreenLights when in 100Base-TX mode. LAN : Left (Link) Green Lights when link effective. Blinks when carrier sense operation. © 2015 JVC KENWOOD Corporation

Feb. 16th, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize any individual within Intertek Japan K.K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Tamaki Shimamura Communications Equipment Division 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

Feb. 16th 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: KTI-5-M, FCC ID: K44475900 To whom it may concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, and Active Devices required to be submitted with this application be withheld from public review. The documents are company proprietary information that could never get into the possession of our competition. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Equipment Division 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan

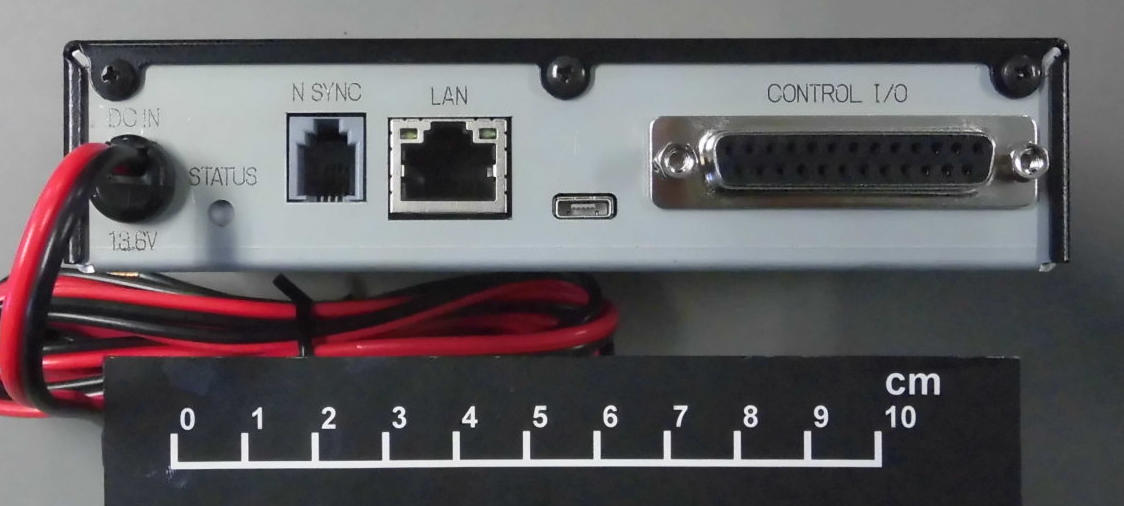

KTI-5-M FCC ID: K44475900 Front view Top view KTI-5-M FCC ID: K44475900 Rear view Bottom view KTI-5-M FCC ID: K44475900 Right view Left view

KTI-5-M FCC ID: K44475900 Bottom view

KTI-5-M FCC ID: K44475900 KTI-5-M FCC ID: K44475900

© Intertek Japan K.K. Page 1 of 28 FJP-EM023 / Effective Date: 17 Oct 2013 TEST REPORT STANDARD : FCC Part15B Class B Applicant Testing Laboratory JVC KENWOOD Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan Tel. +81 45 939 6254 Intertek Japan K.K. Kashima Laboratory URL: http://www.japan.intertek-etlsemko.com (Anechoic chamber) 298-6 Sada, Kashima, Ibaraki 314-0027 Japan Tel. +81 299 82 8464 (Open area test site) 3-2 Sunayama, Kamisu, Ibaraki 314-0255 Japan Tel. +81 479 40 1097 Equipment Type NETWORK BOX Trademark KENWOOD Model(s) KTI-5-M Serial No. A-2 FCC ID K44475900 Equipment Authorization Certification Test Result Complied Report Number 15010386JKA-001 Original Issue Date February 25, 2015 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Approved by Tested by Takashi Yamanaka [ Manager ] Koichi Wagatsuma [ Engineer ] Responsible Party of Test Item (Product) : Responsible Party : Add. : Te l . : Fax. : Contact Person : VLAC-008-1 Report No.: 15010386JKA-001 Original: February 25, 2015 FCC ID: K44475900 © Intertek Japan K.K. Page 2 of 28 FJP-EM023 / Effective Date: 17 Oct 2013 TABLE OF CONTENTS Page SECTION 1. GENERAL INFORMATION ................................................................................................... 3 SECTION 2. SUMMARY OF TEST RESULTS .......................................................................................... 4 SECTION 3. EQUIPMENT UNDER TEST ................................................................................................. 5 SECTION 4. SUPPORT EQUIPMENT ...................................................................................................... 6 SECTION 5. USED CABLE(S) ................................................................................................................... 7 SECTION 6. TEST CONFIGURATION ...................................................................................................... 8 SECTION 7. OPERATING CONDITION .................................................................................................. 10 SECTION 8. UNCERTAINTY ................................................................................................................... 11 SECTION 9. EVALUATION OF TEST RESULTS .................................................................................... 12 SECTION 10. LIST OF MEASURING INSTRUMENTS ........................................................................... 20 ANNEX ..................................................................................................................................................21 APPENDIX PHOTOGRAPHS OF SET-UP ...................................................................................................... 24 Report No.: 15010386JKA-001 Original: February 25, 2015 FCC ID: K44475900 © Intertek Japan K.K. Page 3 of 28 FJP-EM023 / Effective Date: 17 Oct 2013 SECTION 1. GENERAL INFORMATION Test Performed EUT Received February 5, 2015 Date of Test From February 9, 2015 to February 11, 2015 Standard Applied FCC Part15B Class B Test methods ANSI C63.4-2003 Deviation from Standard(s) None Qualifications of Testing Laboratory Accreditation Scope Lab. Code Remarks VLAC EMC Testing VLAC-008-1 JAPAN BSMI EMC Testing SL2-IN-E-6008 TAIWAN Filing VCCI EMC Testing A-0126 JAPAN FCC EMC Testing JP0008 USA IC EMC Testing 2042K-3, 2042Q-12 CANADA CB-Scheme EMC Testing TL222 IECEE SAUDI ARABIA EMC Testing N/A Abbreviations EUT Equipment Under Test DoC Declaration of Conformity AMN Artificial Mains Network ISN Impedance Stabilization Network LISN Line Impedance Stabilization Network Q-P Quasi-peak AMP Amplifier AVG Average ATT Attenuator PK Peak ANT Antenna Cal Calibration BBA Broadband Antenna N/A Not applicable or Not available DIP Dipole Antenna LCD Liquid-Crystal Display AE Associated Equipment HDMI High-Definition Multimedia Interface Report No.: 15010386JKA-001 Original: February 25, 2015 FCC ID: K44475900 © Intertek Japan K.K. Page 4 of 28 FJP-EM023 / Effective Date: 17 Oct 2013 SECTION 2. SUMMARY OF TEST RESULTS See Section9 for the detailed result. Emission Tests Standard Applied FCC Part15B Class B Test Item Minimum margin Remarks Conducted disturbance at mains terminals 12.5 dB (14.2746 MHz) [AVG] PC Communication mode Standard Applied FCC Part15B Class B Test Item Minimum margin Remarks Radiated disturbance 2.4 dB (98.47 MHz) USB Host mode Report No.: 15010386JKA-001 Original: February 25, 2015 FCC ID: K44475900 © Intertek Japan K.K. Page 5 of 28 FJP-EM023 / Effective Date: 17 Oct 2013 SECTION 3. EQUIPMENT UNDER TEST The equipment under test (EUT) consisted of the following apparatus. 3.1 System Configuration Symbol Item Model No. Serial No. Manufacturer A NETWORK BOX KTI-5-M A-2 JVC KENWOOD Corporation Rated Power : : DC 13.6V (10.8-15.6V) Supplied Power : : DC13.6 V Condition of Equipment Prototype Type Tabletop Dimensions (W x H x D) 105 x 32 x 139 mm Suppression Devices No Modifications by the laboratory were made to the device 3.3 Highest Frequency Generated / Used Operating Frequency Operating mode Remarks 1000 MHz PC Communication mode …

Text truncated - open the document above for the full version.

Report No.: 15010386JKA-001 Original: February 25, 2015 FCC ID: K44475900 © Intertek Japan K.K. Page 24 of 28 FJP-EM023 / Effective Date: 17 Oct 2013 APPENDIX PHOTOGRAPHS OF SET-UP Report No.: 15010386JKA-001 Original: February 25, 2015 FCC ID: K44475900 © Intertek Japan K.K. Page 25 of 28 FJP-EM023 / Effective Date: 17 Oct 2013 1 Conducted disturbance at mains terminals PC Communication mode Note : Maintaining 10cm spacing between all the equipment cabinets. EUT Report No.: 15010386JKA-001 Original: February 25, 2015 FCC ID: K44475900 © Intertek Japan K.K. Page 26 of 28 FJP-EM023 / Effective Date: 17 Oct 2013 2 Conducted disturbance at mains terminals USB Host mode Note : Maintaining 10cm spacing between all the equipment cabinets. Report No.: 15010386JKA-001 Original: February 25, 2015 FCC ID: K44475900 © Intertek Japan K.K. Page 27 of 28 FJP-EM023 / Effective Date: 17 Oct 2013 3 Radiated disturbance PC Communication mode Note : Maintaining 10cm spacing between all the equipment cabinets. Report No.: 15010386JKA-001 Original: February 25, 2015 FCC ID: K44475900 © Intertek Japan K.K. Page 28 of 28 FJP-EM023 / Effective Date: 17 Oct 2013 4 Radiated disturbance PC Communication mode Note : Maintaining 10cm spacing between all the equipment cabinets.
