K5MLS-105BMCBluetooth Speaker

藍牙喇叭 / Bluetooth Speaker LS-105BMC 使用說明書 / Manual 繁體中文 English 產品介紹 Product Introduction 感謝您選擇了LS-105BMC 藍牙喇叭。LS-105BMC 藍牙喇叭可給您最佳的音質，帶給 您全新聽的享受，麥克風的功能更強化語音系統帶給生活的便利性。 Thank you for choosing the RockFire LS-105BMC Bluetooth speaker. RockFire LS-105BMC provides you the best quality of sound to fulfill your hearing desire. The additional microphone enhancement brings your conveniency to maxium. 產品規格 Specification ★藍牙版本：Bluetooth V3.0+EDR A2DP ★Bluetooth Version：Bluetooth V3.0+EDR A2DP ★傳輸距離：class II, 10 meters ★Transmission Distance：class II, 10 meters ★單体尺寸： 1.5 inch Coaxial Speaker ★Driver size： 1.5 inch Coaxial Speaker ★頻率範圍：15-15,000 Hz ★Frequency Range：15-15,000 Hz ★輸出功率： 3W(RMS) ★Output power： 3W(RMS) ★電池容量：3.7V 450mAh , Li-polymer ★Battery capacity：3.7V 450mAh , Li-polymer ★充電方式：Mini USB x1.5V ★Charging mode：Mini USB x1,5V ★連續撥放時間：5 hours ★Continuous playing time：5 hours ★音源輸入：3.5 x1 ★Audio In：3.5 x1 包裝內容 Package Content ★藍牙喇叭x1★ LS-105BMC Bluetooth speaker x1 ★USB充電線x1 ★USB cable x1 ★3.5mm音源傳輸線x1 ★3.5mm line-in cable ★操作說明書x1 ★User Manual x1 產品特色 Features ★NFC無線技術，無需透過配對即可連接。 ★NFC wireless support, connection without pairing ★符合Bluetooth V3.0+EDR A2DP ★Bluetooth V3.0+EDR A2DP ★無線體驗音響級音效，高品質的音效魅力，不失真。 ★Experience the high quality of audio performance without any distortion ★內建麥克風，實現您在免持通話的便利性，支援Skype電腦藍芽連接通話。 ★Support Microphone line-in for convience, support Bluetooth over Skype call. ★3W(RMS)輸出功率，體驗喇叭震撼的最佳選擇。 ★3W(RMS) output, shocking performance ★支援增強型音訊分配設定(A2DP)、免持聽筒設定(HFP)、耳機設定(HSP)。 ★Support Advanced Audio Distribution Profile (A2DP), handsfree profile(HFP), headset ★十公尺遠距連接，讓您更操控更靈活。(視實際範圍內的障礙物等因素而有所差 ★10 meter transmission distance (may vary depending on environment) ★可直接在按鍵上選曲,接聽電話,及轉換電話,調整音量大小。 ★Button control for selection, answering/transferring call, and adjusting volume ★續航力高，滿電可連續使用5~8hrs(視音量以及音訊內容而定)。 ★Continuous playing time from 5~8 hours (may vary depending on volume) 功能 Function ★Mini USB埠：充電 ★Mini USB port：charging ★撥動式電源開關：開機 / 關機 ★Toggle power switch: Power on / off ★Line In埠：有線連接音訊裝備 ★Line-in port: wire connection ★藍牙指示燈：顯示藍牙連線狀態 ★Bluetooth indicator: Displays the connection status ★電源指示燈：顯示電源狀態 ★Power buttons: Display current power status ★NFC：無線配對區域 ★NFC: wireless pairing ★內建麥克風★Built-in microphone ★3個按鍵操作 ★3 physical functional buttons 使用方法 Steps 對LS-105BMC進行充電 Charging LS-105BMC 取出配件中的USB線，將Mini USB端接上LS-105BMC，另一端USB可接上電腦或電源適 配器，以5V/0.5A對LS-105BMC進行充電，充電時電源指示燈會亮起紅燈，待滿電後 電源指示燈轉為綠燈，拔除USB線後，電源指示燈熄滅。 Take out the USB cable, connect the Mini USB end with LS-105BMC , while the other end with your PC or power adapter. When the LED indicator turns red the device begins to charge automatically. Unplug the cable when the LED turns green, thus finished 使用藍牙與LS-105BMC配對傳輸音訊 Bluetooth audio transmission using LS-105BMC 將LS-105BMC的撥動式開關鍵調至ON，此時電源指示燈亮起綠燈，藍色藍牙指示燈閃 爍，取出欲配對的藍牙裝置，將藍牙功能打開，搜尋BT SPEAKER裝置，搜尋到按下 配對，配對完成後的藍牙指示燈為藍色常亮，此時可使用藍牙裝置內的音訊資料撥 Switch the toggle to ON,the green lights up while the Bluetooth indicators begin flashing. Turn on the bluetooth on your desired device and search for BT-SPEAKER to pair up. When pairing is successful you can playback audio files within the bluetooth 使用NFC與LS-105BMC配對傳輸音訊 Using NFC pairing with LS-105BMC 將LS-105BMC的撥動式開關鍵調至ON，此時電源指示燈亮起綠燈，藍色藍牙指示燈閃 爍，取出欲配對的藍牙裝置，將NFC功能打開，把手機NFC感應位置靠近LS-105BMC的 NFC感應位置，有效距離為2至3公分，感應完成後藍牙裝置與LS-105BMC的藍牙連線 即完成，配對完成後的藍牙指示燈為藍色常亮，此時可使用藍牙裝置內的音訊資料 撥放。 Switch the toggle to ON,the green lights up while the Bluetooth indicators begin flashing. Turn on the NFC sensor on your desired device and put it against LS-105BMC, pairing will be done automatically as the bluetooth indicators become solid blue. You can playback audio files with the bluetooth device. 使用LINE IN與LS-105BMC傳輸音訊 Using LINE-IN with LS-105BMC 將LS-105BMC的撥動式開關鍵調至ON，此時電源指示燈亮起綠燈，藍色藍牙指示燈閃 爍，取出配件中的3.5音源傳輸線，將一端接上LS-105BMC，另一端接上欲連接的音 源裝置，藍牙指示燈將轉為紅色指示燈，切換至LINE IN模式，此時可使用音源裝置 內的音訊資料撥放。 Switch the toggle to ON, the green lights up while the Bluetooth indicators begin flashing. Take out the 3.5 line-in cable from the accessory, connect one end with LS- 105BMC and another with your desired device, the bluetooth indicator will turn OFF automatically and mode changes to Line-in. You can playback audio files within the bluetooth device. 使用LS-105BMC的語音功能 LS-105BMC voice capabilities 當手機透過藍牙方式連上LS-105BMC，來電時LS-105BMC會從音樂轉到來電鈴聲，此 時按下LS-105BMC的撥放鍵，可透過內置麥克風及揚聲器進行語音功能。 When connected to the phone via Bluetooth, LS-105BMC will switch from playing music to ringtones when incoming call is detected. Press the PLAY button to use the built-in microphone for answering. 操作方式Operation Mode 按下"撥放鍵"，可執行輸出裝置的撥放、暫停及接聽功能；短按"+鍵"，可執行上一 曲功能;短按"-鍵"，可執行下一曲功能；長按"+鍵"，可執行聲音增大功能；長按"- 鍵"，可執行聲音減小功能。 When the PLAY button is pressed, the system output either playback or pause; holding the "+ key" will increase the sound wile holding the "-" key will reduce sound. ; press the "+ key" to perform the next function; and press the "- key" to perform the previous song function; 提示 ★MIC免提通話功能，在有電話打進來的同時，音響會自動接聽電話，如果在撥放音 樂時，則會使播放器處於暫停狀態，此時可以按下"撥放鍵"以進行免提通話功能。 ★MIC speaker phone function, when a call comes in but the speaker is in usage, the audio will automatically answer the call, making the music player in a suspended state, you can press the PLAY button for speakerphone functionality. The LS-105BMC will go into sleep mode if no pairing is done within five minute after turn ON, please reboot if pairing is needed after. ★當LS-105BMC開啟後，藍牙如5分鐘內未進行配對，LS-105BMC將進入休眠，此 時如要再重新配對，需重新開機即可。 產品安全訊息 MODEL：LS-105BMC 本產品及其包裝與相關手冊上印載之品牌名稱、註冊商標及圖案等，其所有權皆屬 各商標之所有者。 MODEL：LS-105BMC The product, its packaging, and related manuals printed on brand names are all registered trademarks and designs. All ownership belongs to the property of their respective trademark owners. For updates or service, please link to the official website of the Company. Website： http://www.rockfire.com.tw E-mail：[email protected] FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi…

Text truncated - open the document above for the full version.

Charm Winner Co Ltd 18F- 1 No.75, Sec.1, Hsin Tai Wu Rd., Hsi Chin Dist.,New Taipei City,Taiwan FCC Confidentiality Request Number: CF303 Version: V01 Date: 2013-12-01 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Charm Winner Co Ltd Addresss 18F-3 No.75, Sec.1, Hsin Tai Wu Rd., Hsi Chin Dist.,New Taipei City,Taiwan City Taipei Country Taiwan request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: K5M LS-105BMC of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Operational Description Block Diagrams Schematics Diagrams Part list Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Taipei Taiwan .2013.12.01 Bill Tu Engineer

Charm Winner Co Ltd 18F-1 No.7 5, Sec.1, Hsin Tai Wu Rd., Hsi Chin Dist.,New Taipei City,Taiwan FCC Authorization Letter Number: CF304 Version: V01 Date: 2013-12-01 We, (the approval holder) Company name Charm Winner Co Ltd Address 18F-3 No.75, Sec.1, Hsin Tai Wu Rd., Hsi Chin Dist.,New Taipei City,Taiwan City Taipei Country Taiwan declare that the following representative (agent): Name (person) Ruby Zhang Function Supervisor Company name Compliance Certification Services (Shenzhen) Inc. Addresss No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Bluetooth Speaker Type or Model(s) LS-105BMC Tradename or Brand(s) RockFire We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Taipei Taiwan .2013.12.01 Bill Tu Engineer

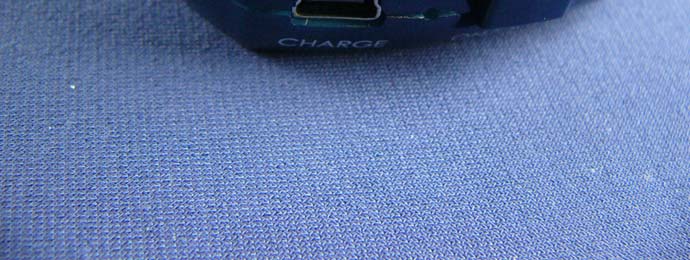

Report No.: C131119Z01-RP1 Page 1/4 External Photos of EUT Report No.: C131119Z01-RP1 Page 2/4 Report No.: C131119Z01-RP1 Page 3/4 Report No.: C131119Z01-RP1 Page 4/4

Label and Location label diameter: 29mm

Report No.: C131119Z01-RP1 Page 1/3 Internal Photos of EUT Report No.: C131119Z01-RP1 Page 2/3 Report No.: C131119Z01-RP1 Page 3/3

Report No.: C131119Z01-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. FCC ID: K5MLS-105BMC Page 1 / 59 FCC 47 CFR PART 15 SUBPART C TEST REPORT For bluetooth speaker Model: LS-105BMC Brand: RockFire Test Report Number: C131119Z01-RP1 Prepared for PADIX CO., LTD. No. 53, Jhongjheng Rd., Sijhih Dist., New Taipei City 22166, Taiwan (R.O.C.) Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: December 2, 2013 Report No.: C131119Z01-RP1 FCC ID: K5MLS-105BMC Page 2 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C131119Z01-RP1 Initial Issue ALL Nancy Fu Report No.: C131119Z01-RP1 FCC ID: K5MLS-105BMC Page 3 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .....................................................................................4 2. EUT DESCRIPTION..........................................................................................................5 3. TEST METHODOLOGY....................................................................................................6 3.1 DESCRIPTION OF TEST MODES ................................................................................6 4. FACILITIES AND ACCREDITATIONS .............................................................................7 4.1 FACILITIES....................................................................................................................7 4.2 ACCREDITATIONS .......................................................................................................7 4.3 MEASUREMENT UNCERTAINTY ................................................................................7 5. SETUP OF EQUIPMENT UNDER TEST ..........................................................................8 5.1 SETUP CONFIGURATION OF EUT .............................................................................8 5.2 SUPPORT EQUIPMENT .............................................................................................8 6. FCC PART 15.247 REQUIREMENTS ..............................................................................9 6.1 20dB BANDWIDTH........................................................................................................9 6.2 PEAK POWER.............................................................................................................13 6.3 PEAK POWER SPECTRAL DENSITY ........................................................................15 6.4 BAND EDGES MEASUREMENT ................................................................................16 6.5 FREQUENCY SEPARATION ......................................................................................26 6.6 NUMBER OF HOPPING FREQUENCY ......................................................................29 6.7 TIME OF OCCUPANCY (DWELL TIME) .....................................................................32 6.8 SPURIOUS EMISSIONS .............................................................................................39 6.9 POWERLINE CONDUCTED EMISSIONS ..................................................................58 Report No.: C131119Z01-RP1 FCC ID: K5MLS-105BMC Page 4 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product bluetooth speaker Model LS-105BMC Brand RockFire Tested November 19~29, 2013 Applicant PADIX CO., LTD. No. 53, Jhongjheng Rd., Sijhih Dist., New Taipei City 22166, Taiwan (R.O.C.) Manufacturer Zhongshan Charm Winner Electronics LTD SanZhou Industrial Area, Yagan Village, Sanxiang Town, Zhongshan City, Guangdong, China. APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C131119Z01-RP1 FCC ID: K5MLS-105BMC Page 5 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product bluetooth speaker Model Number LS-105BMC Brand RockFire Model Discrepancy N/A Identify Number C131119Z01-RP1 Power Supply DC 3.7V Supplied by the battery or DC 5V Supplied by the notebook Received Date November 19, 2013 Frequency Range 2402 ~ 2480 MHz Transmit Power GFSK : -2.45dBm 8DPSK : -4.11dBm Modulation Technique FHSS (GFSK for 1Mbps, π/4-DQPSK for 2Mbps, 8DPSK for 3Mbps) Number of Channels 79 Channels Antenna Specification PCB antenna with 0dBi gain(Max) Temperature Range 0°C ~ +55°C Note: This submit…

Text truncated - open the document above for the full version.

Report No.: C131119Z01-RP1 FCC ID : K5MLS-105BMC Page 1 / 2 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST Report No.: C131119Z01-RP1 FCC ID : K5MLS-105BMC Page 2 / 2 CONDUCTED EMISSION TEST
