K5MRF-520GU27FRF GamePad

Gamepad Cyber Yoyager RF-520U Thank you for choosing the USB Cyber Voyager (RF-520U). It is an advanced game control system designed with full ergonomics and equipped with well-positioned buttons to ensure your game play comfort. Moreover it is built with 27 or 433 MHz RF (Radio Frequency) module for the wireless control. This user's guide provides you the necessary information for easy installation and basic operation to this powerful gamepad. To make it fully fits your personal game preference, please refer to the manual and get more information to configure this one. - Introduction - F ederal Communication Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio / TV technician for help. CAUTION : Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. - Pac ka ge Contents 1) Rockfire USB Cyber Voyager Transmitter x 1 * 2) Rockfire USB Cyber Voyager Receiver (USB interface) x 1 * 3) User's Guide x 1 * - System Requirement 1) IBM PC 586/PentiumII compatibles or higher 2) Available USB port or extension USB hub 3) Microsoft Windows 98/ME/2000 recommended - Hardwar e Over view Please take a moment to consult the diagram below to familiarize with the function of each button on your Cyber Voyager (RF-520u). 1) RF receiver with LED indicator* 2) D-pad and LED (indicator for transmitter)* 3) Quick-response Action Triggers * 4) Functioning Buttons * 5) Channel Selector * (not available for 433MHz) - Installation A. Hardware Installation 1) Plug-in your Cyber Voyager (RF-520U) receiver USB connector to either one USB Port or USB Hub of your computer and make sure it is firmly connected. * 2) After the Cyber Voyager is connected, the monitor will shows "Find a new hardware" and the standard USB driver located for you to finish the easy installation and play games immediately. Now you may start to calibrate this gamepad, then customize your gamepad through the game controller to access directly into the game software for play. Note for 27MHz user: In playing duo, find the channel selector located at the back of the devices. Make sure that one player (receiver and gamepad) is set at Channel A, while the other player is set at Channel B. Cyber Voyager (RF-520u)

EXTERNAL PHOTOGRAPHS OF EUT: Front View of TX Back View of TX Bottom View of TX

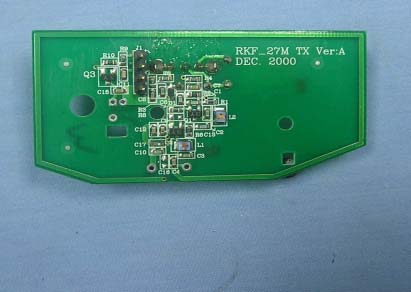

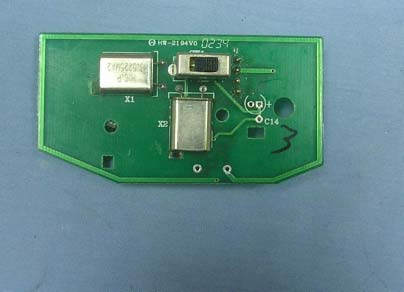

INTERNAL PHOTOGRAPHS OF EUT: Internal of TX– Open Internal of TX– 1 Internal of TX– 2 Internal of TX– 3 Internal of TX– 4

Operational Description The RFGamePad/RFJoystick transmitter is a low powered, hand held unit for remote control and sending instruction to the computer . See the function descriptions in attached. Both transmitters are powered by two 1.5 Volt batteries. It’s designed to operate on a single fixed frequency at 27 MHz. See the attached block diagram and schematic. When button on RFGamePad/RFJoystick pressed, the micro-controller in RFGamePad/RFJoystick will produce the digital control signals and will modulate the carrier signal. The carrier signal is generated by the crystal oscillator / frequency circuit comprised of a 27.045/27.145 MHz FSK .The frequency depend on the select channel switch to changed. The modulated output of the RF amplifier stage is coupled to the strip antenna on PCB . The transmitter is manually operated by the buttons( handgrip , POV ) pushed and automatically deactivate instant after the button being released. This feature is incorporated by the RFGamePad and RFJoystick internally. All tuning and verification are performed by the manufacture and there are no adjustments can be made by the user . No external ground is required or used with transmitters.

COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. REPORT NO: SZE0403010 FCC ID: K5MRF-520GU27F DATE: 03/29/2004 Page 1 of 28 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF GAMEPAD MODEL No.: RF-520GU,RF-520U BRAND NAME: ROCKFIRE FCC ID: K5MRF-520GU27F REPORT NO: SZE0403010 ISSUE DATE: MARCH 29, 2004 Prepared for CHARM WINNER CO., LTD. 18F-3,NO.75,SEC.1,HSIN TAI WU RD.,HSI-CHIH, TAIPEI,TAIWAN, R.O.C. Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO. 6, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. REPORT NO: SZE0403010 FCC ID: K5MRF-520GU27F DATE: 03/29/2004 Page 2 Rev. 00 VERIFICATION OF COMPLIANCE Applicant: CHARM WINNER CO., LTD. 18F-3,NO.75,SEC.1,HSIN TAI WU RD.,HSI-CHIH, TAIPEI,TAIWAN,R.O.C. Product Description: GamePad Brand Name: Rockfire Model Number: RF-520GU,RF-520U Serial Number: 10400019 File Number: SZE0403010 Date of Test: January 06,2004 ~ March 29, 2004 *NOTE: The model numbers (list on above) are different just for marketing only. We hereby certify that: The above equipment was tested by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2001) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.227. The test results of this report relate only to the tested sample identified in this report. Approved By Reviewed By David Sun / Q.A. Manager Allen Hsu / Section Manager COMPLIANCE CERTIFICATION COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. SERVICES (SHENZHEN) INC. COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. REPORT NO: SZE0403010 FCC ID: K5MRF-520GU27F DATE: 03/29/2004 Page 3 Rev. 00 Table of Contents 1. GENERAL INFORMATION ............................................................................................... 4 1.1 P RODUCT D ESCRIPTION ........................................................................................................................ 4 1.2 RELATED SUBMITTAL(S) / GRANT (S)................................................................................................... 4 1.3 T EST M ETHODOLOGY ............................................................................................................................ 4 1.4 T EST F ACILITY ...................................................................................................................................... 4 2. SYSTEM TEST CONFIGURATION .................................................................................. 5 2.1 EUT C ONFIGURATION ........................................................................................................................... 5 2.2 EUT E XERCISE ...................................................................................................................................... 5 2.3 T EST P ROCEDURE .................................................................................................................................. 5 2.4 L IMITATION ........................................................................................................................................... 5 2.5 C ONFIGURATION OF T ESTED S YSTEM ................................................................................................... 7 3. SUMMARY OF TEST RESULTS ....................................................................................... 9 4. DESCRIPTION OF TEST MODES .................................................................................... 9 5. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT)........ 10 5.1 M EASUREMENT P ROCEDURE : ............................................................................................................. 10 5.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 10 5.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 10 5.4 M EASUREMENT R ESULT : .................................................................................................................... 10 5.5 C ONDUCTED M EASUREMENT P HOTOS :............................................................................................... 10 6. RADIATED EMISSION TEST .......................................................................................... 11 6.1 MEASUREMENT PROCEDURE............................................................................................................... 11 6.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 12 6.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 13 6.4 FIELD STRENGTH CALCULATION........................................................................................................ 13 6.5 M EASUREMENT R ESULT ...................................................................................................................... 14 6.6 M EASUREMENT R ESULT ...................................................................................................................... 15 6.7 M EASUREMENT RESULT ...........................................................................................156 6.8 M EASUREMENT R ESULT ..........................................................................................157 7. OCCUPIED BANDWIDTH............................................................................…

Text truncated - open the document above for the full version.

PHOTOGRAPHS OF SET UP:
