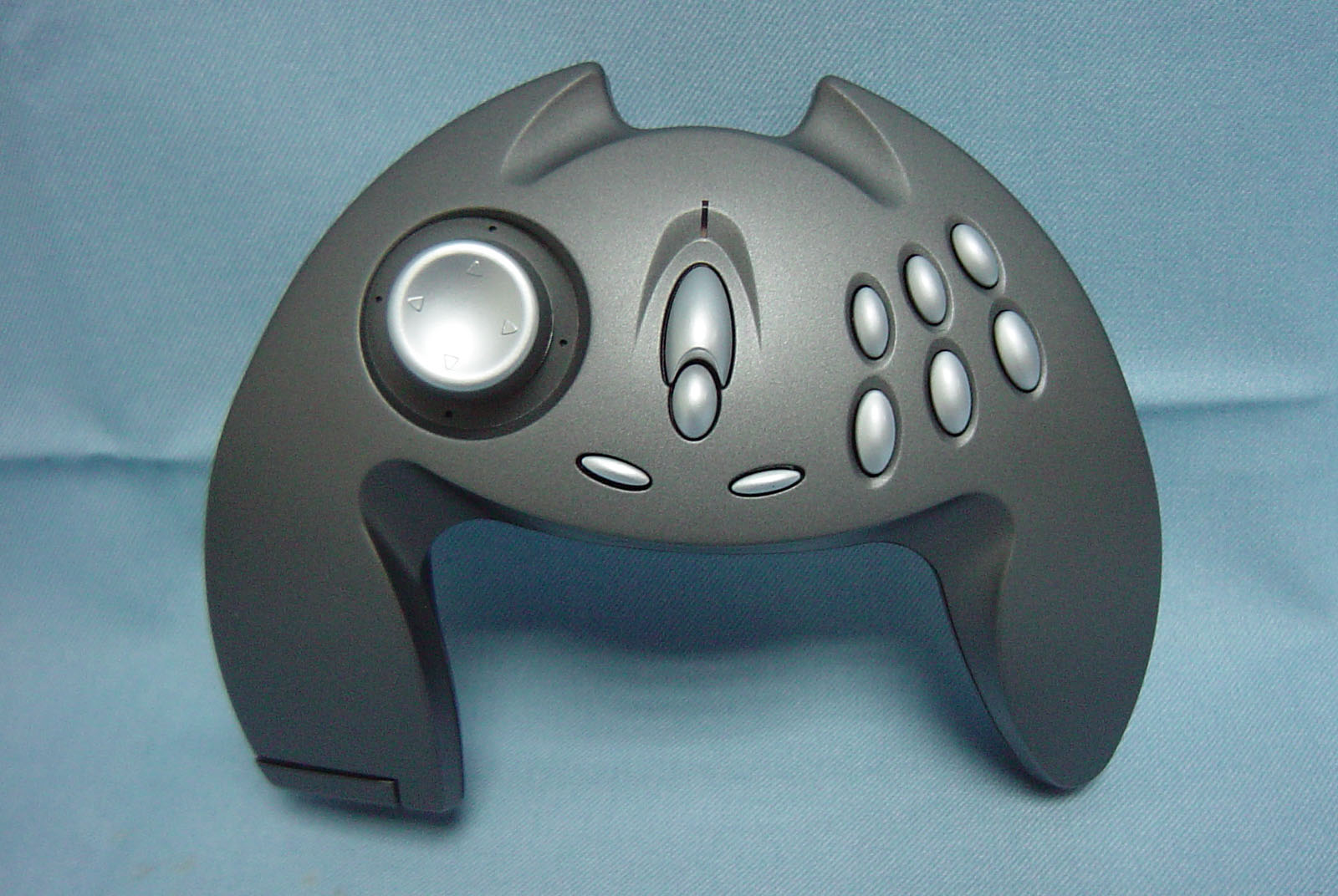

C&C Laboratory Co. Ltd. REPORT NO: 020051-RF-ID FCC ID: K5MRF-520U27M DATE: 09/12/2002 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020051-RF-ID FCC ID: K5MRF-520U27M DATE: 09/12/2002 Front View of EUT Back View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Padix Company Ltd. FCC ID: K5MRF-520U27M FCC ID: K5MRF-520U27M This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

C&C Laboratory Co. Ltd. REPORT NO: 020051-RF-ID FCC ID: K5MRF-520U27M DATE: 09/12/2002 APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020051-RF-ID FCC ID: QOORF-520U27M DATE: 09/12/2002 Internal of EUT – Open Internal of EUT – 1 C&C Laboratory Co. Ltd. REPORT NO: 020051-RF-ID FCC ID: QOORF-520U27M DATE: 09/12/2002 Internal of EUT – 2 Internal of EUT – 3

Operational Description The RFGamePad/RFJoystick transmitter is a low powered, hand held unit for remote control and sending instruction to the computer . See the function descriptions in attached. Both transmitters are powered by two 1.5 Volt batteries. It’s designed to operate on a single fixed frequency at 27 MHz. See the attached block diagram and schematic. When button on RFGamePad/RFJoystick pressed, the micro-controller in RFGamePad/RFJoystick will produce the digital control signals and will modulate the carrier signal. The carrier signal is generated by the crystal oscillator / frequency circuit comprised of a 27.045/27.145 MHz FSK .The frequency depend on the select channel switch to changed. The modulated output of the RF amplifier stage is coupled to the strip antenna on PCB . The transmitter is manually operated by the buttons( handgrip , POV ) pushed and automatically deactivate instant after the button being released. This feature is incorporated by the RFGamePad and RFJoystick internally. All tuning and verification are performed by the manufacture and there are no adjustments can be made by the user . No external ground is required or used with transmitters.

C&C Laboratory Co. Ltd. REPORT NO: 020051-RF-ID FCC ID: K5MRF-520U27M DATE: 09/12/2002 Page 1 of 22 Rev. 01 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Wireless Gamepad MODEL No.: RF-520u BRAND NAME: Rockfire FCC ID: K5MRF-520U27M REPORT NO: 020051-RF-ID ISSUE DATE: September 12, 2002 Prepared for Charm Winner Co., Ltd. 18F-3, No. 75, SEC. 1, HSIN TAI WU RD., HSI-CHIH, TAIPEI, TAIWAN, R.O.C. Prepared by C&C LABORATORY, CO., LTD. #B1, 1 st Fl., Universal Center, No. 183, Sec. 1, Tatung Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. TEL: (02)8642-2071~3 FAX: (02)8642-2256 C&C Laboratory Co. Ltd. REPORT NO: 020051-RF-ID FCC ID: K5MRF-520U27M DATE: 09/ 12/2002 Page 2 Rev. 01 Table of Contents 1. GENERAL INFORMATION ............................................................................................... 4 1.1 P RODUCT D ESCRIPTION ........................................................................................................................ 4 1.2 R ELATED S UBMITTAL ( S ) / G RANT ( S )................................................................................................... 4 1.3 TEST METHODOLOGY............................................................................................................................ 4 1.4 T EST F ACILITY ...................................................................................................................................... 4 1.5 S PECIAL A CCESSORIES .......................................................................................................................... 5 1.6 EQUIPMENT MODIFICATIONS................................................................................................................ 5 2. SYSTEM TEST CONFIGURATION .................................................................................. 6 2.1 EUT C ONFIGURATION ........................................................................................................................... 6 2.2 EUT E XERCISE ...................................................................................................................................... 6 2.3 TEST PROCEDURE.................................................................................................................................. 6 2.4 L IMITATION ........................................................................................................................................... 7 2.5 C ONFIGURATION OF T ESTED S YSTEM ................................................................................................... 8 3. SUMMARY OF TEST RESULTS ..................................................................................... 10 4. DESCRIPTION OF TEST MODES .................................................................................. 10 5. CONDUCTED EMISSIONS TEST ................................................................................... 11 5.1 M EASUREMENT P ROCEDURE : ............................................................................................................. 11 5.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 11 5.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 11 5.4 M EASUREMENT R ESULT : .................................................................................................................... 11 5.5 C ONDUCTED M EASUREMENT P HOTOS :............................................................................................... 11 6. RADIATED EMISSION TEST .......................................................................................... 12 6.1 M EASUREMENT P ROCEDURE ............................................................................................................... 12 6.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 13 6.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 14 6.4 F IELD S TRENGTH C ALCULATION ........................................................................................................ 14 6.5 M EASUREMENT R ESULT ..................................................................................................................... 15 C&C Laboratory Co. Ltd. REPORT NO: 020051-RF-ID FCC ID: K5MRF-520U27M DATE: 09/12/2002 Page 3 Rev. 01 7. OCCUPIED BANDWIDTH................................................................................................ 21 7.1 MEASUREMENT PROCEDURE............................................................................................................... 21 7.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 21 7.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 21 7.4 M EASUREMENT R ESULTS : R EFER TO ATTACHED DATA CHART . ...................................................... 21 C&C Laboratory Co. Ltd. REPORT NO: 020051-RF-ID FCC ID: K5MRF-520U27M DATE: 09/12/2002 Page 4 Rev. 01 1. GENERAL INFORMATION 1.1 Product Description Padix Company Co., Ltd. Model: RF-520u (referred to as the EUT in this report) The EUT is an short range, lower power, wireless Gamepad designed as an " Input Device. It is designed by way of utilizing the FSK modulation achieves the system operating. A major technical descriptions of EUT is described as following: A). Operation Frequency: 27.045, 27.145 MHz, two channel by selected. B). Modulation : Frequency Shifting Key (FSK) Modulation C). Antenna Designation: Non-User Replaceable (Fixed) D). Power Supply: 3 Vdc by AAA *2 battery. (F) Operation Methodology: The CPU(HT48R12-F) encoder g…

Text truncated - open the document above for the full version.

C&C Laboratory Co. Ltd. REPORT NO: 020051-RF-ID FCC ID: QOORF-520U27M DATE: 09/12/2002 APPENDIX 1 PHOTOGRAPHS OF SET UP C&C Laboratory Co. Ltd. REPORT NO: 020051-RF-ID FCC ID: K5MRF-520U27M DATE: 09/12/2002 Radiated Emission Setup Photos
