K660H464X10Bluetooth Adapter Unit

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Part 15.21: Changes or modifications to this device not expressly approved by Vertex Standard could void the user’s authorization to operate this device. CAUTION: This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter. End users cannot modify this transmitter device. Any unau- thorized modification could void the user’s authority to operate this device. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. This device complies with RSS 210 of industry Canada “IC”. “Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.” L’ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. “The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; con- sult Safety Code 6, obtainable from Health Canada’s website www.hc-sc.ca/rpb” Labeling: When the module is installed into the system, the following information shall be placed on the outside of final host system. Contains FCC ID: K660H464X10 IC : 511B-0H464X10 Bluetooth ® Adapter Unit “BU-2” The “BU-2” is a Bluetooth ® Adapter Unit for Vertex Standard Transceivers*. When the Bluetooth ® headset “BH-1/A”, “BH-2/A” is used with the “BU-2” Adapter, you can enjoy com- fortable hands free operation. *: Please refer to the Vertex Standard catalog for the correct “BU-2” Adapter for the radio you are using. This Bluetooth ® radio module has to be installed and used in accordance with the technical descrip- tion/installation instructions provided by the manufacture. This Bluetooth ® radio module is intended to be placed on the market in all States, where the Bluetooth ® technology and the used frequency band is released. For detail information concerning type approval of this module (e.g. where this module is already pre-approved) please contact the manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufac- turer could void the user’s authority to operate this equipment. EAH46U500

Declaration of Authorization We Name: Vertex Standard Co., Ltd. Address: 4-8-8 Nakameguro Meguro-Ku City: Tokyo 153-8644 Country: Japan Declare that: Name: RF Technologies Ltd. Address: 472, Nippa-cho, Kohoku-ku, City: Yokohama, 223-0057 Country: Japan is authorized to apply for Certification of the following product(s): Product description: Bluetooth Adapter Unit Type designation: BU-2 Trademark: Vertex Standard on our behalf. Date: May 18, 2011 City: Tokyo, Japan Name: Shigemitu Takahashi Signature: .

Vertex Standard Co., Ltd. 4-8-8 Nakameguro Meguro-Ku Tokyo, 153-8644 Japan To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: K660H464X10 Dear FCC TCB, Pursuant to 47 CFR Section 0.459(a) & (b), Vertex Standard Co., Ltd. hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: (K660H464X10) Block Diagrams Operational Description Schematic Diagrams Parts List Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Vertex Standard Co., Ltd. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. <Date> May 18, 2011 <City> Tokyo Shigemitu Takahashi <Name and signature of applicant>

Date: May 18, 2011 Modular Approval Request Letter Vertex Standard Co., Ltd FCC ID: K660H464X10 Model No: BU-2 Dear Sir/Madame: We would like to declare that our transmitter module comply with modular approval requirement in accordance with FCC 15.212 as below; No. Requirement Description of compliance manners 1 The module has its own RF shielding. The device is equipped with metal shielding to cover RF section. Refer to external photos. 2 All modulation and data input(s) are buffered. The device has buffered data inputs. It is indicated parts number “U7” on the circuit diagrams. 3 The module has its own power supply regulation and local reference oscillator. The device has internal 4.0V power regulator. Refer to block diagram. 4 The module complies with the antenna requirements of section 15.203 and 15.204(c). The device is equipped with chip antenna. Any connector is not used. Refer to external photos. 5 The module must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. The device was tested outside of PC for full modular approval. Refer to test setup photos. 6 The module must be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The proposed FCC ID label format is to be placed on the module. If FCC ID label is not visible when module is install into the system, “Contains FCC ID: K660H464X10” shall be placed on the outside of final product. 7 The module is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. The detail instructions for maintaining compliance are given in the users’ manual. 8 The module must comply with any applicable RF exposure requirements. The device complies with the RF exposure compliance requirement. Refer to the test report. THIS PRODUCT SHOULD NOT BE USED AS A FINAL PRODUCT. Sincerely Yours, Shigemitu Takahashi Chief Test Engineer Engineering Division Telephone Number: +81-3-5725-6111 Fax Number: +81-3-5725-6225 E-mail: [email protected]

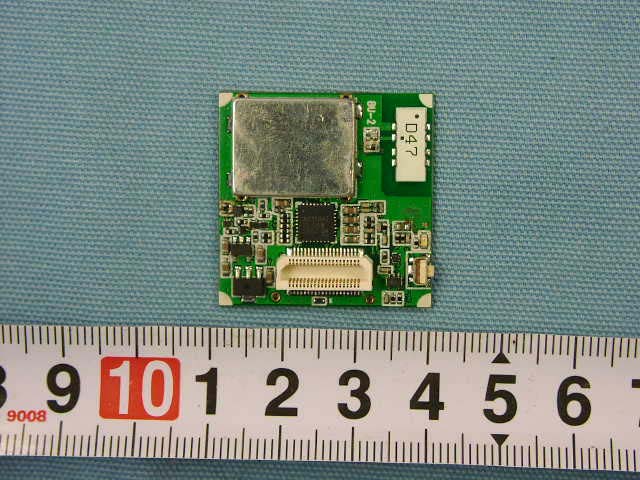

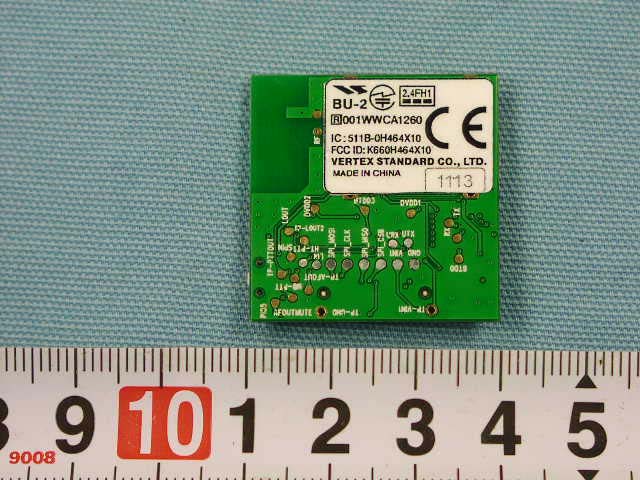

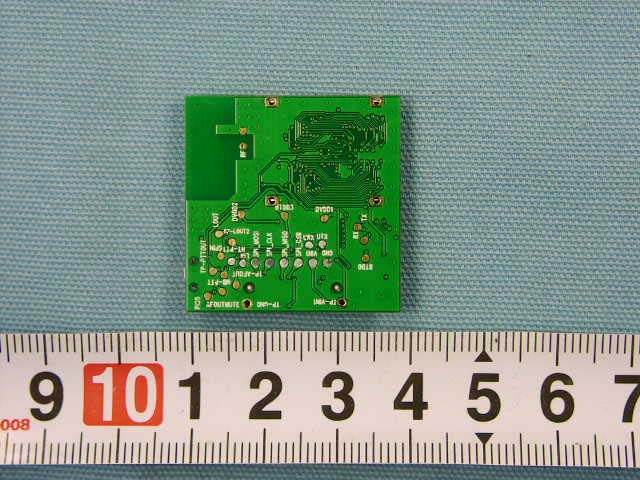

FCC ID: K660H464X10 IC: 511B-0H464X10 Vertex Standard Co., Ltd. 1 BU-2 View of Side-A BU-2 View of Side-A without Shield Cover FCC ID: K660H464X10 IC: 511B-0H464X10 Vertex Standard Co., Ltd. 2 BU-2 View of Side-B BU-2 View of Label

BU-2BU-2 LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. Label drawing Label location CONTAINS Label drawing

FCC ID: K660H464X10 IC: 511B-0H464X10 Vertex Standard Co., Ltd. 1 BU-2 View of Side-A BU-2 View of Side-A without Shield Cover FCC ID: K660H464X10 IC: 511B-0H464X10 Vertex Standard Co., Ltd. 2 BU-2 View of Side-B BU-2 View of Label

Issue Date: 3 June, 2011 Report No.: RY1106Z03R1 Model: BU-2 RF Technologies Ltd. Page 1 of 37 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT TEST REPORT For Bluetooth Adapter Unit In conformity with FCC CFR 47 Part15 / RSS-210, RSS-Gen Model: BU-2 FCC ID/ IC Certification No.: K660H464X10 / 511B- 0H464X10 Test Item: Bluetooth Adapter Unit Report No: RY1106Z03R1 Issue Date: 3 June 2011 This report shall not be reproduced, except in full, without the written permission of RF Technologies Ltd. The test results relate only to the item(s) tested. RF Technologies Ltd. is managed to ISO17025 and has the necessary knowledge and test facilities for testing according to the referenced standards. Prepared for Vertex Standard Co., Ltd. 4-8-8, Nakameguro Meguro-ku, Tokyo 153-8644 Japan Prepared by RF Technologies Ltd. 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645 FAX: +81+(0)45- 534-0646 Issue Date: 3 June, 2011 Report No.: RY1106Z03R1 Model: BU-2 RF Technologies Ltd. Page 2 of 37 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT Table of contents 1 General information ...................................................................................................................... 3 1.1 Product description ................................................................................................................................................ 3 1.2 Test(s) performed/ Summary of test result ............................................................................................................ 3 1.3 Test facility ............................................................................................................................................................ 4 1.4 Measurement uncertainty ....................................................................................................................................... 4 1.5 Summary of test results .......................................................................................................................................... 5 1.5.1 Table of test summary .................................................................................................................................... 5 1.6 Setup of equipment under test (EUT) .................................................................................................................... 5 1.6.1 Test configuration of EUT ............................................................................................................................. 5 1.6.2 Operating condition: ...................................................................................................................................... 6 1.6.3 Setup diagram of tested system:..................................................................................................................... 6 1.7 Equipment modifications ....................................................................................................................................... 6 1.8 Deviation from the standard .................................................................................................................................. 6 2 Test procedure and test data ........................................................................................................ 7 2.1 Occupied Bandwidth (20 dB / 99%) ...................................................................................................................... 7 2.2 Hopping Carrier Frequency Separation ................................................................................................................. 9 2.3 Number of Hopping Channel ............................................................................................................................... 11 2.4 Average Time of Occupancy ............................................................................................................................... 12 2.5 Peak Output Power .............................................................................................................................................. 14 2.6 Conducted Spurious Emissions (Antenna Port) ................................................................................................... 15 2.7 Transmitter Radiated spurious emissions ............................................................................................................ 18 2.7.1 Below 30 MHz ............................................................................................................................................. 20 2.7.2 Between 30 – 1000 MHz ............................................................................................................................. 21 2.7.3 Above 1000 MHz ......................................................................................................................................... 23 2.8 Transmitter AC power line conducted emissions ................................................................................................ 25 2.9 Receiver Radiated spurious emissions ................................................................................................................. 28 2.9.1 Between 30 – 1000 MHz ............................................................................................................................. 28 2.9.2 Above 1000 MHz ......................................................................................................................................... 30 2.10 Receiver AC power line conducted emissions ..................................................................................................... 31 3 Test setup photographs ............................................................................…

Text truncated - open the document above for the full version.

Issue Date: 3 June, 2011 Report No.: RY1106Z03R1 Model: BU-2 RF Technologies Ltd. Page 34 of 37 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT 3 Test setup photographs 3.1 Definition of the EUT axis The following configuration is defined as X-Axis The following configuration is defined as Y-Axis Issue Date: 3 June, 2011 Report No.: RY1106Z03R1 Model: BU-2 RF Technologies Ltd. Page 35 of 37 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT The following configuration is defined as Z-Axis 3.2 AC power line conducted emissions Issue Date: 3 June, 2011 Report No.: RY1106Z03R1 Model: BU-2 RF Technologies Ltd. Page 36 of 37 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT 3.3 Radiated spurious emissions
