FCC ID: K6610334720 IC ID: 511B-10334720 Operating Manual 1/8 Vertex Standard Co., Ltd. VX-920/970 series Operating Manual SAFETY TRANING INFORMATION This Radio has been tested and complies with the Federal Communications Commission (FCC) RF exposure limits for Occupational Use/Controlled exposure environment. In addition, it complies with the following Standards and Guidelines: - FCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation. - FCC OET Bulletin 65 Edition 97-01 (1997) Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. - ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3kHz to 300 GHz. - ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields-RF and Microwave. WARNING: This radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as Occupational Use Only, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is not intended for use by the General Population in an uncontrolled environment. CAUTION: To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: - This radio is NOT approved for use by the general population in an uncontrolled environment. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control its RF exposure conditions. - When transmitting, hold the radio in a vertical position with its microphone 1 to 2 inches (2.5 to 5 cm) away from your mouth and keep the antenna at least 1 inch (2.5cm) away from your head and body. - The radio must be used with a maximum operating duty cycle not exceeding 50 %, in typical Push-to-Talk (PTT) configurations. DO NOT transmit for more than 50 % of total radio use time (50 % duty cycle). Transmitting more than 50 % of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the red LED on the top of the radio is illuminated. You can FCC ID: K6610334720 IC ID: 511B-10334720 Operating Manual 2/8 Vertex Standard Co., Ltd. cause the radio to transmit by pressing the PTT button. - DO NOT transmit when the radio is used in Body Worn configuration with the following accessory: belt-clip. It must be used ONLY for (1) there is a 4 cm distance from the body during transmitting, (2) monitoring purposes, using the speaker only and (3) for carrying purposes. - Always use VERTEX STANDARD authorized accessories. The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to assure that this radio operates with the FCC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, this radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. Do not operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, health care facilities, aircraft, and blasting sites. FCC ID: K6610334720 IC ID: 511B-10334720 Operating Manual 3/8 Vertex Standard Co., Ltd. 1,Controls & Connectors LED Indicator Glows Green: Scan active Blinks Green: Busy Channel (or SQL off) Glows Red: Transmit Blinks Red: Battery Voltage is low Antenna Jack PTT (Push to Talk) Switch Monitor Button Lamp Button CH (Channel) Selector VOL/PWR Knob LCD (without VX-921/971 version) SEL1 KEY (TOP) SEL2 KEY (LEFT SIDE) Toggle SW MIC/SP Jack (External MIC/SP) Speaker Main Microphone Sub Microphone (Noise Canceling Microphone) Battery Pack Latch 16-Button DTMF Keypad (VX-929/979 version only) 4-Button DTMF Keypad (VX-924/974 version only) FCC ID: K6610334720 IC ID: 511B-10334720 Operating Manual 4/8 Vertex Standard Co., Ltd. 2,Before You Begin Battery Pack Installation and Removal ˆ To install the battery, hold the transceiver with your left hand, so your palm is over the speaker and your thumb is on the top of the belt clip. Insert the battery pack into the battery compartment on the back of the radio while tilting the Belt Clip outward, then close the Battery Pack Latch until it locks in place with a “Click.” ˆ To remove the battery, turn the radio off and remove any protective cases. Open the Battery Pack latch on the bottom of the radio, then slide the battery downward and out from the radio while unfolding the Belt Clip. Caution!: Do not attempt to open any of the rechargeable Li-ion packs, as they could explode if accidentally short-circuited. Low Battery Indication ˆ As the battery discharges during use, the voltage gradually becomes lower. When the battery voltage reaches 6.0 volts, substitute a freshly charged battery and recharge the depleted pack. The TX/BUSY indicator on the top of the radio will blink red when the battery voltage is low. ˆ Avoid recharging Li-ion batteries often with little use between charges, as this can degrade the charge capacity. We recommend that you carry an extra, fully charged pack with you so the operational battery may be used until depletion (this “deep cycling” technique promotes better long-term battery capacity). FCC ID: K6610334720 IC ID: 511B-10334720 Operating Manual 5/8 Vertex Standard Co., Ltd. 3,Operation Preliminary Steps ˆ Install a charged battery pack onto the transceiver, as described previously. ˆ Screw the supplied antenna onto the Antenna jack. Never attempt to operate this transceiver without an antenna connected. ˆ If you have a Speaker/Microphone, we recommend that it not be connected until you are familiar with the basic operation of the VX-920/970. Operation Quick Start ˆ T…

Text truncated - open the document above for the full version.

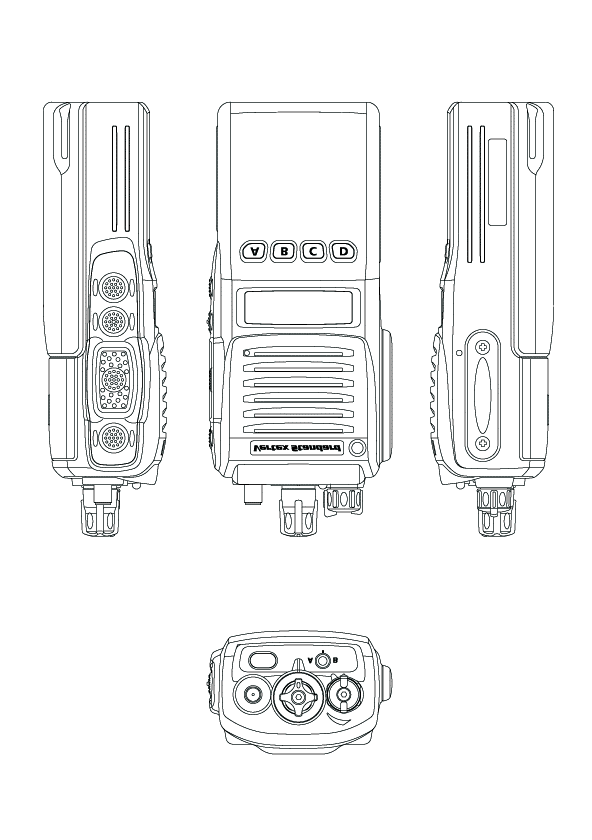

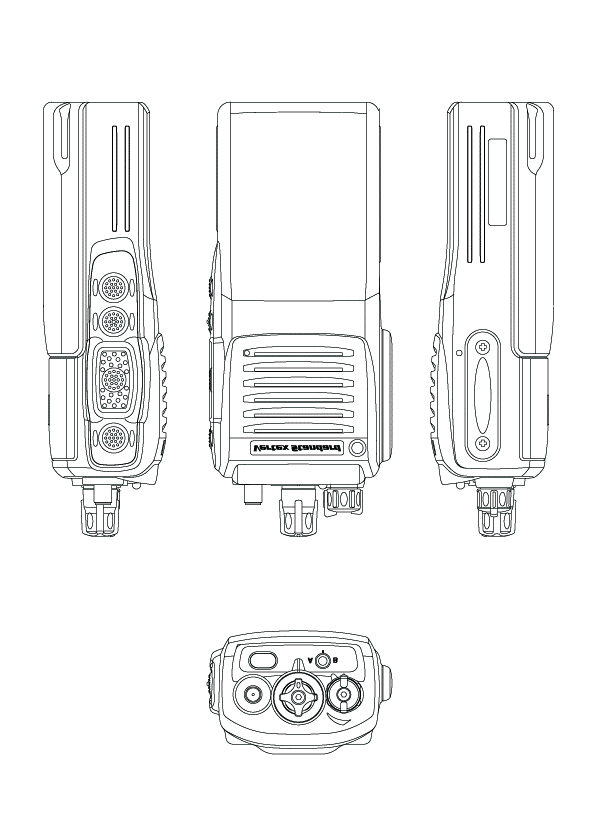

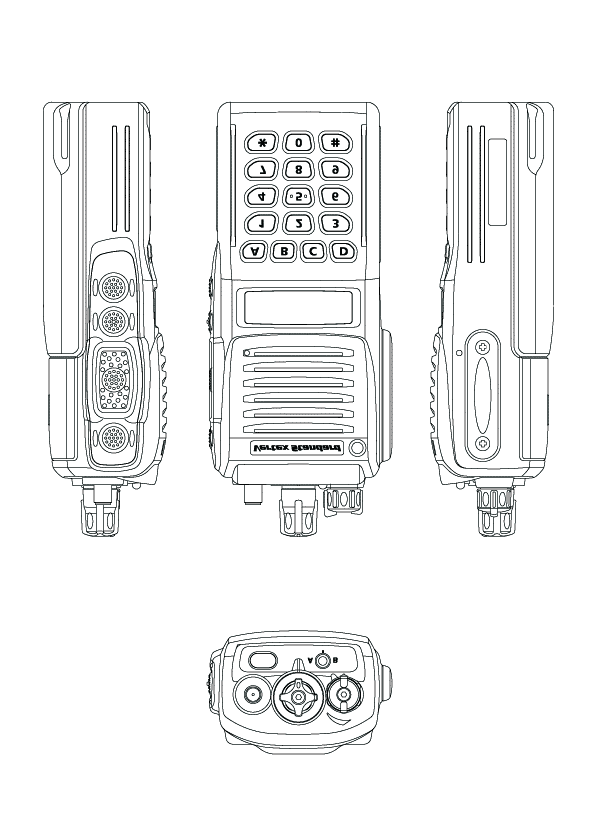

FCC ID: K6610334720 IC ID: 511B-10334720 Vertex Standard Co., Ltd. Exterior view (VX-929/VX-979) FCC ID: K6610334720 IC ID: 511B-10334720 Vertex Standard Co., Ltd. Exterior view (VX-924/VX-974) FCC ID: K6610334720 IC ID: 511B-10334720 Vertex Standard Co., Ltd. Exterior view (VX-921/VX-971)

VX-920/970 series (UHF)VX-920/970series(UHF) LABEL DRAWINGLABELDRAWING Vertex Standard Co., Ltd.VertexStandardCo.,Ltd. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location VX-921-G7-5 FCC ID: K6610334720 IC: 511B-10334720 4909959000000 ! ! Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner's manual for specific operating requirement CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. VERTEX STANDARD CO., LTD. MADE IN JAPAN SER NO. 00000000 VX-924-G7-5 FCC ID: K6610334720 IC: 511B-10334720 4909959000000 VERTEX STANDARD CO., LTD. MADE IN JAPAN SER NO. 00000000 VX-929-G7-5 FCC ID: K6610334720 IC: 511B-10334720 4909959000000 VERTEX STANDARD CO., LTD. MADE IN JAPAN SER NO. 00000000 VX-971-G7-5 FCC ID: K6610334720 IC: 511B-10334720 4909959000000 VERTEX STANDARD CO., LTD. MADE IN JAPAN SER NO. 00000000 VX-974-G7-5 FCC ID: K6610334720 IC: 511B-10334720 4909959000000 VERTEX STANDARD CO., LTD. MADE IN JAPAN SER NO. 00000000 VX-979-G7-5 FCC ID: K6610334720 IC: 511B-10334720 4909959000000 VERTEX STANDARD CO., LTD. MADE IN JAPAN SER NO. 00000000

FCC ID: K6610334720 IC ID: 511B-10334720 Vertex Standard Co., Ltd. Side-A of MAIN-UNIT Side-B of MAIN-UNIT with shield cases FCC ID: K6610334720 IC ID: 511B-10334720 Vertex Standard Co., Ltd. Side-B of MAIN-UNIT without shield cases Side-A of DISPLAY-UNIT with LCD (VX-924/929/VX-974/979) FCC ID: K6610334720 IC ID: 511B-10334720 Vertex Standard Co., Ltd. Side-A of DISPLAY-UNIT without LCD (VX-924/929/VX-974/979) Side-B of DISPLAY-UNIT (VX-924/929/VX-974/979) FCC ID: K6610334720 IC ID: 511B-10334720 Vertex Standard Co., Ltd. Front of LCD (for VX-924/929/VX-974/979) Back of LCD (for VX-924/929/VX-929/979) FCC ID: K6610334720 IC ID: 511B-10334720 Vertex Standard Co., Ltd. Inside of chassis Side-A of SRX-4 (Option) FCC ID: K6610334720 IC ID: 511B-10334720 Vertex Standard Co., Ltd. Side-B of SRX-4 (Option)

FCC ID: K6610334720 IC ID: 511B-10334720 Circuit Description 1/3 Vertex Standard Co., Ltd. VX-920/970 (UHF) series Circuit Description 1. Circuit Configuration by Frequency The receiver is a double-conversion superheterodyne with a first intermediate frequency (IF) of 50.85MHz and a second IF of 450kHz. Incoming signal from the antenna is mixed with the local signal from the VCO/PLL to produce the first IF of 50.85MHz. This is then mixed with the 50.4MHz second local oscillator output to produce the 450kHz second IF. This is detected to give the demodulated signal. The transmit signal frequency is generated by the PLL VCO, and modulated by the signal from the microphone. It is then amplified and sent to the antenna. 2. Receiver System 2-1. Front-end RF amplifier Incoming RF signal from the antenna is delivered to the RF Unit and passes through Low- pass filer, antenna switching diode, high pass filter and removed undesired frequencies by varactor diode (tuned band-pass filer). The passed signal is amplified in Q1022 and moreover cuts an image frequency with the tuned band pass filter and comes into the 1st mixer. 2-2. First Mixer The 1st mixer consists of the Q1034, T1001, T1002 and T1003. Buffered output from the VCO is amplified by Q1033 to provide a pure first local signal between 399.15 and 461.15MHz for injection to the first mixer. The IF signal then passes through monolithic crystal filters XF1001 (±5.5 kHz BW) to strip away all but the desired signal. 2-3. IF Amplifier The first IF signal is amplified by Q1058. The amplified first IF signal is applied to FM IF subsystem IC Q1067 which contains the second mixer, second local oscillator, limiter amplifier, noise amplifier, and S-meter amplifier. The signal from reference oscillator X1003 becomes 3 times of frequencies in Q1067, it is mixed with the IF signal and becomes 450KHz. The second IF then passes through the ceramic filter CF1001 (wide channels), CF1002 (narrow channels) to strip away unwanted mixer products, and is applied to the limiter amplifier in Q1067, which removes amplitude variations in the 450kHz IF, before detection of the speech by the ceramic discriminator CD1001. 2-4. Audio amplifier Detected signal from Q1067 is inputted to Q1032 and is output through the band path filter inside Q1032. In the case an optional unit is installed, the Q1078 is made OFF and the AF signal from Q1032 goes the optional unit. In the case an optional unit is not installed, Q1078 is made ON and the signal goes through Q1078. The signal then goes through de-emphasis part and expander Q1023. When the function of expander is off, the signal will be bypassed by Q1016. The output signal of expander (or a signal from de-emphasis) goes through AF mute switch Q1078 and amplified by Q1077. The signal goes to Q1030, when the audio equalizer is off. In the case the audio equalizer is on, the signal from Q1077 goes to the buffer amplifier Q1077 for audio equalizer Q1083, Q1025 and Q1029. And then the signal goes to Q1030. The output from Q1030 is amplified with AF power amplifier Q1015 after passing AF volume Q1020. The output of Q1015 drives a speaker (it chooses the external SP or internal SP in external terminal, SELECT) 2-5. Squelch Circuit There are 13 levels of squelch setting from 0 to 12. The level 0 means open the squelch. The level 1 means the threshold setting level and level 11 means tight squelch. From 2 to 10 is established in the middle of threshold and tight. The bigger figure is nearer the tight setting. The level 12 becomes setting of carrier squelch. FCC ID: K6610334720 IC ID: 511B-10334720 Circuit Description 2/3 Vertex Standard Co., Ltd. 2-5-1. Noise Squelch Noise squelch circuit is composed of the band path filter of Q1067, noise amplifier Q1071, and noise detector D1047, D1048. When a carrier isn't received, the noise ingredient which goes out of the demodulator Q1067 is amplified in Q1071 through the band path filter Q1067, is detected to DC voltage with D1047, D1048 and is inputted to 16pin (the A/D port) of the Q1069 (CPU). When a carrier is received, the DC voltage becomes low because the noise is compressed. When the detected voltage to CPU is high, the CPU stops AF output with Q1078 "OFF" by making the 59pin (CPU) "L" level. When the detection voltage is low, the CPU makes Q1078 ON with making 59pin "H" and the AF signal is output. 2-5-2. Carrier Squelch The CPU (15pin: A/D port) detect RSSI voltage output from Q1067 12 pin, and controls AF output. The RSSI output voltage changes according to the signal strength of carrier. The stronger signal makes the RSSI voltage to be higher voltage. The process of the AF signal control is same as Noise Squelch The shipping data is adjusted 3dB higher than squelch tight sensitivity. 3. Transmitter System 3-1. Mic Amplifier The AF signal from internal microphone J1001 4pin or external microphone J1001 19pin is amplified with microphone amplifier Q1076, after microphone selection switch Q1001, and passes microphone gain volume Q1020. The AF signal which was controlled in the correct gain passes compressor Q1023. When not using a compressor, with the control from the CPU, it passes in the compressor circuit inside of Q1023 and it is output and it passes a pre-emphasis circuit. Q1078 becomes OFF when an option unit is attached and the AF signal from Q1023 goes via the option unit. When an option unit isn't attached, Q1078 becomes ON, the signal passes Q1078 and is input to the pre-emphasis amplifier Q1032. The signal passed limiter and splatter filter of Q1032 is adjusted by maximum deviation adjustment volume Q1020. The adjusted low frequency signal ingredient is amplified by Q1075, added modulation terminal of TCXO (X1003), the FM modulation is made by reference oscillator. The high frequency signal ingredient is amplified Q1075, and adjusted the level by volume Q1020 to make frequency balance between low frequency. After that, it is made FM modulation to transmit carrier by the modul…

Text truncated - open the document above for the full version.

Page 1/3 FCC ID: K6610334720 IC ID: 511B-10334720 VX-920/VX-970 (UHF) seriesComponent Application Address Device name DescriptionApplication [MAIN-UNIT] D 1001 DiodePTZ TE25 15AProtect D 1002 Diode1SS400Reverse Protection D 1003 Diode1SS400Reverse Protection D 1004 Diode1SS400Reverse Protection D 1005 Diode1SS400Reverse Protection D 1006 DiodeDA221Surge Protector D 1007 DiodeDA221Surge Protector D 1008 DiodeDA221Surge Protector D 1009 DiodeDA221Surge Protector D 1010 DiodeDA221Surge Protector D 1011 DiodeHVU131ANT SW D 1012 DiodeHVU131ANT SW D 1013 DiodeDA221Surge Protector D 1014 Diode1SV331BPF Tune D 1015 Diode1SV331BPF Tune D 1016 Diode1SS400Protect D 1017 Diode1SS400Limiter D 1018 Diode1SV331BPF Tune D 1019 Diode1SV331BPF Tune D 1020 DiodeDAN222TX/RX SW D 1021 Diode1SS400Ripple Filter D 1022 DiodeDA221Noise Filter D 1023 DiodeDA221Limiter D 1024 DiodeDAN222MAIN/SUB SW D 1025 Diode1SS400Protect D 1026 Not use D 1027 DiodeHVC383BModulator D 1028 DiodeKL-157T01Tri-color LED D 1029 Diode1SS400Ripple Filter D 1030 DiodeHVC383BRX VCO D 1031 DiodeHVC383BRX VCO D 1032 DiodeHVC383BRX VCO D 1033 DiodeHVC383BTX VCO D 1034 DiodeHVC383BTX VCO D 1035 DiodeHVC383BRX VCO D 1036 DiodeHVC383BTX VCO D 1037 DiodeHVC383BTX VCO D 1038 Diode1SS400Reverse Protect D 1039 DiodeDA221Limiter D 1040 DiodeDA221Limiter D 1041 Zener Diode HZU5ALLProtect D 1042 Diode1SS400Power Down D 1043 DiodeDAN222MAIN/SUB SW D 1044 DiodeDAN222W/N SW D 1045 Diode1SS400Protect D 1046 DiodeDAN222W/N SW D 1047 DiodeDA221Limiter D 1048 DiodeDA221Limiter Q 1001 ICCD4053BPWRMulti Processor Q 1002 Transistor XP1501TX 5V Regulator Q 1003 Transistor CPH6102TX 5V Regulator Q 1004 Transistor DTC144EETRX SW Q 1005 ICTAR5S505V Regulator Q 1006 Transistor UMD5N TRRX 5V SW Q 1007 Transistor CPH6102AF AMP SW Q 1008 ICTDA2822D013TRAF AMP Q 1009 Transistor DTC114TETX/RX SW Q 1010 FET2SK3476Final AMP Q 1011 Transistor UMD12NAF AMP SW Q 1012 Transistor 2SA1774Current Limiter Q 1013 Transistor DTC114TEAF AMP SW Q 1014 Transistor UMD12NAF AMP SW Vertex Standard Co., Ltd. Page 2/3 FCC ID: K6610334720 IC ID: 511B-10334720 VX-920/VX-970 (UHF) seriesComponent Application Address Device name DescriptionApplication Q 1015 ICTDA2822D013TRAF AMP Q 1016 ICCD4053BPWRMulti Processor Q 1017 Transistor DTC144EEProtect Q 1018 Transistor DTC144EEAF AMP SW Q 1019 Transistor DTC114TETX/RX SW Q 1020 ICM62364FP 600DD/A Converter Q 1021 Transistor 2SK3475TX Drive AMP Q 1022 Transistor HSG2001VFRF AMP Q 1023 ICLA8630M-BCompander Q 1024 Transistor DTC144EEPO OFF Q 1025 ICCD4052BPWGain control Q 1026 Transistor UN911FAF SAVE SW Q 1027 Transistor 2SC3357-T2TX Pre-Drive AMP Q 1028 ICBD6111FV-E2-5V Regulator Q 1029 ICCD4052BPWGain control Q 1030 ICCD4053BPWRMulti Processor Q 1031 ICNJM2130FVCV Control Q 1032 ICAK2345AF Base-Band Q 1033 Transistor 2SC5226-4Buffer AMP Q 1034 ICSPM5001RX 1st Mixer Q 1035 Transistor DTC144EEP_SAVE SW Q 1036 Transistor 2SA1774Ripple Filter Q 1037 Transistor DTC144EE MUTE SW Q 1038 Transistor DTA144EERX VCO SW Q 1039 Transistor DTC114TECLOCK SHIFT Q 1040 Transistor DTC114TEP_SAVE SW Q 1041 ICLC73881M-TLMDTMF Receiver Q 1042 Transistor 2SC5226-4Buffer AMP Q 1043 Transistor DTC144EE TLMAIN/SUB SW Q 1044 Transistor DTC144EE TLRX VCO SW Q 1045 Transistor UN911FP_SAVE SW Q 1046 Transistor DTC114TE TLLED SW Q 1047 FET2SK508 K52RX VCO Q 1048 Transistor DTC114TE TLTX VCO SW Q 1049 Transistor DTC144EE TLP_SAVE SW Q 1050 Transistor DTC114TE TLLED SW Q 1051 Transistor 2SC5226-4Buffer AMP Q 1052 Transistor 2SC4227TX VCO Q 1053 Transistor DTC114TE LED SW Q 1054 Transistor DTC114TE LED SW Q 1055 Transistor 2SD17675V Regulator Q 1056 Transistor 2SC4617Ripple Filter Q 1057 Transistor DTC114TELED SW Q 1058 Transistor 2SC5226-4IF AMP Q 1059 Transistor DTC114TELED SW Q 1060 Transistor UMD5NIF_SAVE SW Q 1061 ICS-80835CNMC-B8URESET Q 1062 ICTAR5S35U3.5V Regulator Q 1063 ICTAR5S35U3.5V Regulator Q 1064 Transistor DTC114TECLOCK SHIFT Q 1065 ICBR93L66RFVM-WTREEPROM Q 1066 Transistor 2SC4617 RReset Cntrol Q 1067 ICTA31136FNIF Subsystem Q 1068 IC2SK880GRVCV Detect Q 1069 ICLC87F5BP6AMicroprocessor Q 1070 ICSA7025DKPLL Subsystem Q 1071 Transistor 2SC4617 RNoise AMP Q 1072 ICLM2902PWRCurrent Detect/Power Control/RX Tune Q 1073 ICLM2902PWRDCS DEC/Buff AMP Q 1074 ICLM2902PWRCTCSS DEC/De-EMP Q 1075 ICLM2902PWRBias/Mod/Freq adj Q 1076 ICLM2904PWRMIC AMP Q 1077 ICLM2902PWRAF Control/ATT Vertex Standard Co., Ltd. Page 3/3 FCC ID: K6610334720 IC ID: 511B-10334720 VX-920/VX-970 (UHF) seriesComponent Application Address Device name DescriptionApplication Q 1078 ICCD4066BPWRAF SW Q 1079 Transistor DTC144EEW/N SW Q 1080 ICLM2904PWRTONE DEC Q 1081 Transistor DTC144EEW/N SW Q 1082 ICLM2902PWRLPF Q 1083 ICLM2902PWRAF Control [DISPLAY-UNIT] D 2001 DiodeFA1101FBacklight for LCD D 2002 DiodeFA1101FBacklight for LCD D 2003 DiodeTLOU1020Backlight for KEY D 2004 DiodeTLOU1020Backlight for KEY D 2005 DiodeTLOU1020Backlight for KEY D 2006 DiodeTLOU1020Backlight for KEY D 2007 DiodeTLOU1020Backlight for KEY D 2008 DiodeTLOU1020Backlight for KEY D 2009 Diode1SS400Reverse Protection D 2010 Diode1SS400Reverse Protection D 2011 Diode1SS400Reverse Protection D 2012 Diode1SS400Reverse Protection Q 2001 Transistor DTC114TE TLLED SW Q 2002 Transistor DTC114TE TLLED SW Q 2003 ICTAR5S50U5V Regulator Q 2004 Transistor XP1501LCD Voltage Conrol Q 2005 Transistor 2SA1602ALCD Voltage Conrol Q 2006 ICNJU6624AFG1-03LCD Driver Q 2003 ICTAR5S50URegulator for LED Q 2004 Transistor XP1501Regulator for LED Q 2005 Transistor 2SA1602ARegulator for LED Q 2006 ICNJU6624AFG1LCD Driver Vertex Standard Co., Ltd.

© 2004 Celltech Labs Inc. 1 of 20 Test Report S/N: 121004K66-T603-S90U Test Date(s): December 13-14, 2004 Test Type: FCC/IC SAR Evaluation Performed By: Spencer Watson Compliance Technologist Celltech Labs Inc. Reviewed By: Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the Occupational / Controlled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan FCC IDENTIFER: K6610334720 IC IDENTIFIER: 511B-10334720 Model(s): VX-921-G7-5, VX-924-G7-5, VX-929-G7-5, VX-971-G7-5, VX-974-G7-5, VX-979-G7-5 Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Classification: Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Description: Portable FM UHF PTT Radio Transceiver Modulation Type: FM (UHF) Tx Frequency Range: 450 - 512 MHz Max. RF Output Power Measured: 37.02 dBm Conducted (450 MHz) 37.09 dBm Conducted (480 MHz) 36.72 dBm Conducted (512 MHz) Antenna Type(s) Tested: Whip - 450-481 MHz (ATU-6D) Whip - 512 MHz (ATU-6F) Battery Type(s) Tested: Li-ion 7.4 V 1150 mAh (P/N: FNB-V86LI) Li-ion 7.4 V 2000 mAh (P/N: FNB-V87LI) Body-Worn Accessories Tested: Speaker-Microphone (P/N: MH-65A7A) Plastic Belt-Clip with Metal Spring (P/N: CLIP-920) Max. SAR Levels Evaluated: Face-held: 1.96 W/kg (50% Duty Cycle) Body-worn: 4.89 W/kg (50% Duty Cycle) © 2004 Celltech Labs Inc. 2 of 20 Test Report S/N: 121004K66-T603-S90U Test Date(s): December 13-14, 2004 Test Type: FCC/IC SAR Evaluation TABLE OF CONTENTS 1.0INTRODUCTION.....................................................................3 2.0DESCRIPTION OF DUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM................................................ 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 6 7.0SYSTEM PERFORMANCE CHECK............................................. 7 8.0SIMULATED EQUIVALENT TISSUES......................................... 8 9.0SAR SAFETY LIMITS............................................................... 8 10.0ROBOT SYSTEM SPECIFICATIONS........................................... 9 11.0PROBE SPECIFICATION.......................................................... 10 12.0PLANAR PHANTOM................................................................ 10 13.0VALIDATION PHANTOM........................................................... 10 14.0DEVICE HOLDER.................................................................... 10 15.0TEST EQUIPMENT LIST........................................................... 11 16.0MEASUREMENT UNCERTAINTIES............................................ 12-13 17.0REFERENCES........................................................................14 APPENDIX A - SAR MEASUREMENT DATA............................................... 15 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA............................ 16 APPENDIX C - SYSTEM VALIDATION PROCEDURES................................. 17 APPENDIX D - PROBE CALIBRATION...................................................... 18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................... 19 APPENDIX F - SAR TEST SETUP & DUT PHOTOGRAPHS.......................... 20 Applicant: Vertex Standard Co., Ltd. FCC ID: K6610334720IC ID: 511B-10334720450 - 512 MHz Model(s): VX-921-G7-5, VX-924-G7-5, VX-929-G7-5, VX-971-G7-5, VX-974-G7-5, VX-979-G7-5 Portable FM UHF PTT Radio Transceiver 2004 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 3 of 20 Test Report S/N: 121004K66-T603-S90U Test Date(s): December 13-14, 2004 Test Type: FCC/IC SAR Evaluation This measurement report demonstrates compliance of the Vertex Standard Co., Ltd. Model(s): VX-921-G7-5, VX-924-G7- 5, VX-929-G7-5, VX-971-G7-5, VX-974-G7-5, VX-979-G7-5 Portable FM UHF PTT Radio Transceiver FCC ID: K6610334720 with the SAR (Specific Absorption Rate) RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]), and Health Canada’s Safety Code 6 (see reference [2]) for the Occupational / Controlled Exposure environment. The measurement procedures described in FCC OET Bulletin 65, Supplement C (Edition 01-01) (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the…

Text truncated - open the document above for the full version.

Page 1 of 48 REPORT ON Radio testing of the VERTEX STANDARD VX-929-G7-5 In accordance with ANSI/TIA/EIA-603, RSS-119 November 2004Report number TA000181 Vertex Standard Co., Ltd. GENERAL INFORMATION TRANSMITTERS Switchable x Variable N/A RＥＣＥＩＶERS This report was prepared by Vertex Standard Co., Ltd. 7.4[V] Collector Current:1.3[A] MANUFACTURER:Vertex Standard Co., Ltd. IC ID:511B-10334720 NUMBER OF CHANNELS: FCC ID: TRADE NAME: VHF FM Transceiver 4M000006 TYPE OF EMISSION: FREQUENCY RANGE: RSS-119 VOLTAGE RQUIREMENTS: SERIAL NUMBER: SPECIFICATION ARE REFERENCED POWER OUTPUT RATING: 450 1 512to to5 [MHz] [W] 16K0F3E , 11K0F3E [MHz] [W] [Ω] [Ω] 50[Ω] [MHz] [kHz] -50.85 -450 1st 2nd [W]AUDIO OUTPUT POWER: OUTPUT IMPEDANCE (SP):[Ω]16 0.5 Report number TA000181 Page 2 of 48 EUT DESCRIPTION: 7.4[V] VX-929-G7-5 K6610334720 VERTEX STANDARD MODEL NAME: INPUT IMPEDANCE (MIC): MAXIMUM POWER RATING: INPUT IMPEDANCE (RF): INTERMEDIATE FREQUENCIES: FREQUENCY RANGE: OUTPUT IMPEDANCE (RF): Collector Voltage: Date 24 / November /2004 Test performed by M.Kurihara 512to450 50 600 300 DC ANSI/TIA/EIA-603 Vertex Standard Co., Ltd. Report number TA000181Page 3 of 48 VX-929-G7-5 Channel Settings HighLow 1450.0MHz Wid450.000450.00025k5W 24810MHz Wid481.000481.00025k5W 3512.0MHz Wid512.000512.00025k5W 4450.0MHz Nar450.000450.00012.5k5W 5481.0MHz Nar481.000481.00012.5k5W 6512.0MHz Nar512.000512.00012.5k5W 7450.0MHz W-L 450.000450.00025k1W 8481.0MHz W-L 481.000481.00025k1W 9520.0MHz W-L 512.000512.00025k1W 10450.0MHz N-L450.000450.00012.5k1W 11481.0MHz N-L481.000481.00012.5k1W 12512.0MHz N-L512.000512.00012.5k1W 13Sub 134.0MHz450.000134.00025k1W 14Sub 154.0MHz481.000154.00025k1W 15Sub 174.1MHz512.000174.00025k1W 16 17 18 19 20 Power Transmit Frequency [MHz] CH No. Receive Frequency [MHz] CH SpacingShown on LCD Vertex Standard Co., Ltd. NAME OF TEST:R.F. Power Output (Conducted) SPECIFICATION: 47 CFR 2.1046 (a) GUIDE: ANSI/TIA/EIA-603, Paragraph 2.2.1 TEST EQUIPMENT: As per attached page The EUT was connected to a resistive coaxial attenuator of normal load impedance, and the modulated output powerwas measured by means of an R.F. power meter. Measurement accuracy is ± 4% NAME OF TEST:R.F. Power Output (Radiated) High Power Report number TA000181 Page 4 of 48 MEASUREMENT PROCEDURE 5.200 4.7800.980 0.910 1.110481.000 512.000 2 3 FREQUENCY 450.0000 1. 2. MEASUREMENT RESULTS 450.000 CHANNEL R.F. POWER, WATTS NOMINAL, MHz 14.800 HIGHLOW TUNED, MHzdBm LEVEL, 37.6 37.1 512.000035.3 481.0000 Vertex Standard Co., Ltd. (2)(3)(4) Serial NumberDescription (5) Report number TA000181 Page 5 of 48 TRANSMITTER POWER CONDUCTED MEASUREMENTS TEST 1: R.F. POWER OUTPUT TEST 2: FREQUENCY STABILITY Power Supply Instruments Test Sample (1) (5) FREQUENCY COUNTER Agilent 8901B FREQUENCY MODE*** *** *** *** Agilent 8901B POWER MODE*** WEINSCHELL 49-10-43 (2) RF COUPLERADVANTEST TR4153 (3) POWER SENSORAgilent 8482B (1) COAXUAL ATTENUATOR (4) POWER METER Vertex Standard Co., Ltd. NAME OF TEST:Unwanted Emissions (Conducted) SPECIFICATION: 47 CFR 2.1051 GUIDE: ANSI/TIA/EIA-603, Paragraph 2.2.13 TEST EQUIPMENT: As per attached page The emissions were measured for the worst case as follows: (a): within a band of frequencies defined by the carrier frequency plus and minus one channel. (b): from the lowest frequency generated in the EUT and to at least the 10th harmonic of the carrier frequency, or 40GHz, whichever is lower. The magnitude of spurious emissions that are attenuated more than 20dB below the permissible value need not be specified. MEASUREMENT RESULTS: FREQUENCY OF CARRIER, MHz=,, SPECTRUM SEARCHED, GHz=0 to 10 x Fc MAXIMUM RESPONSE, Hz= ALL OTHER EMISSIONS=>= 20dB BELOW LIMIT MEASUREMENT PROCEDURE 3. 1. 2. 450481512 Report number TA000181 Page 6 of 48 2700 Vertex Standard Co., Ltd. (2) COAXUAL ATTENUATORAgilent 8498A*** (3) SPECTRUM ANALYZERADVANTEST TR4173*** (1) *** (3) Serial Number (2) COAXUAL ATTENUATORWEINSCHELL 49-10-43 TEST 2: OUT-OF-BAND SPURIOUS TRANSMITTER SPURIOUS EMISSION TEST 1: OCCUPIED BANDWIDTH (IN-BAND SPURIOUS) Report number TA000181 Page 7 of 48 Tes…
