K6610344140LAND MOBILE TRANSCEIVER

VX-5500 OPERATING MANUAL POWER VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. International Division 8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Congratulations! You now have at your fingertips a valuable communications tool - a two-way radio! Rugged, reliable and easy to use, your radio will keep you in constant touch with your colleagues for years to come, with negligible maintenance down time. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your radio. After reading it, keep the manual handy for quick reference, in case questions arise later on. We’re glad you joined the team. Call on us any time, because our business is communications. Let us help you get your message across. NOTICE There are no user-serviceable points inside this transceiver. All service jobs must be referred to your Authorized Service Center or Network Administrator. Safety / Warning Information WARNING - DO NOT operate the VX-5500U radio when someone (bystanders) outside the vehicle is within following range. Safety Training information: Antennas used for this transmitter must not exceed an antenna gain of 0 dBd. The radio must be used in vehicle-mount configurations with a maximum operating duty factor not exceeding 50%, in typical Push-to-Talk configurations. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control the exposure conditions of its passengers and bystanders by maintaining the minimum separation distance of following range. Failure to observe these restrictions will result in exceeding the FCC RF exposure limits. Antenna Installation: For rear deck trunk installation, the antenna must be located at least the following range away from rear seat passengers and bystanders in order to comply with the FCC RF exposure requirements. For roof top installation, the antenna must be placed in the center of the roof. Radiated frequency and Distance VX-5500U (A) 2.69 Feet (0.819 m) Page 1 VX-5500 Operating Manual VX-5500 Operating Manual The VX-5500 Series are full-featured FM transceivers designed for flexible mobile and base station business communications in the VHF (50/10 Watts: programmable) Land Mobile Bands. Each model is designed for reliable business communications in a wide variety of applications, with a wide range of operating capability provided by its leading- edge design. The 250-channels memories can each be programmed with a 8-character channel name. Important channel frequency data is stored in EEPROM and flash memory on the CPU, and is easily programmable by dealers using a personal computer and the VERTEX STAN- DARD CT-71 Programming Cable and CE49 Software. The pages which follow will detail the many advanced features provided on the VX-5500 transceiver. After reading this manual, you may wish to consult with your Network Ad- ministrator regarding precise details of the configuration of this equipment for use in your application. POWER Page 2 VX-5500 Operating Manual CONTROLS & CONNECTORS Front Panel ¿ POWER Botton Press the button to turn the transceiver ON and OFF. ¡ TX Indicator This lamp glows red when the radio is transmitting. ¬ BUSY Indicator This lamp glows green when the channel is busy. √ Liquid Crystal Display The display include an 8-character alpha-numeric section showing channel and group names, status and identity information, and error messages. Additional indicators on the display show priority channel assignments and scan include / exclude selection. POWER ÉÇÑÖ á àâä Ü Å 8 Character Alpha-numeric Display Channel Group Number This channel on “INTERCOM” ListThis channel on “SELECTABLE TONE” List This channel on “SCAN” List Receiver Monitor This channel on “PUBLIC ADDRESS” or “SPEAKER” List This channel on “HORN ALERT” List This channel on “OPTION” List This channel on “AUX A/B/C” List Page 3 VX-5500 Operating Manual ƒ p/q Button Pressing these buttons changes the current group (and displayed group number or name). Holding this button for more than 1/2 second causes the function to repeat. ≈ SQC Indicator This lamp glows orange when incorrect position at the setting of CE49. ∆ Programmable Function Button (PF button) This button can be set up for special applications, such as high/low power selection, monitor, dimmer, talk-around, and call alert function, as determined by your network requirements and programmed by your VERTEX STANDARD dealer. « VOLUME Knob This knob sets the volume of the receiver. » EMERGENCY Microphone The emergency microphone is located behind this small slit. When the emergency feature is activated, this Microphone is enabled. ... CHANNEL Selector Knob This knob select the operating channel. Programmable Function Button (PF button) This button can be set up for special applications, such as high/low power selection, monitor, dimmer, talk-around, and call alert function, as determined by your network requirements and programmed by your VERTEX STANDARD dealer. Side Panel Microphone Jack (It is on both sides.) Connect the microphone plug to this jack. CONTROLS & CONNECTORS Microphone Jack Page 4 VX-5500 Operating Manual ÉÇÅ Ñ REAR (Heatsink) ¿ Antenna Socket The 50-ohm coaxial feedline to the antenna must be connected here, using a type-M (PL-259) plug. ¡ External Speaker Jack An external loudspeaker may be connected to this 2-contact, 3.5-mm mini-phone jack. Caution: Do not connect this line to ground, and be certain that the speaker has adequate capability to handle the audio output from the VX-5500…

Text truncated - open the document above for the full version.

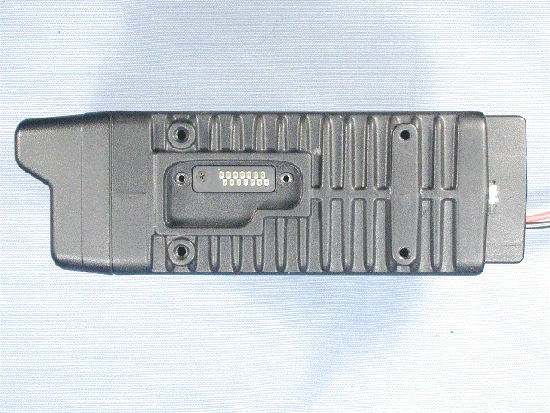

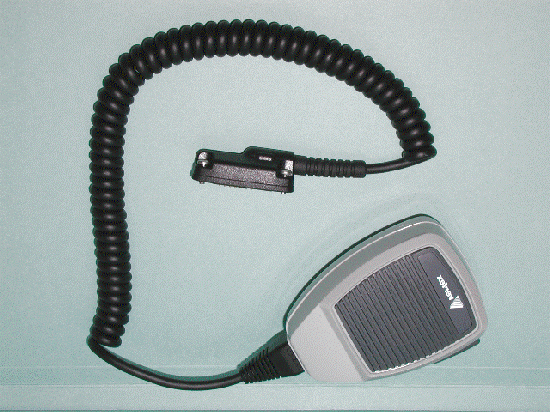

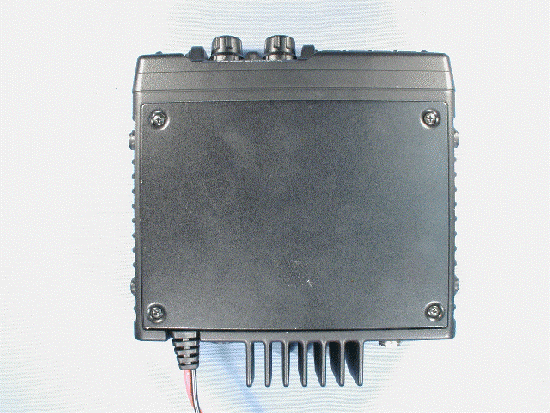

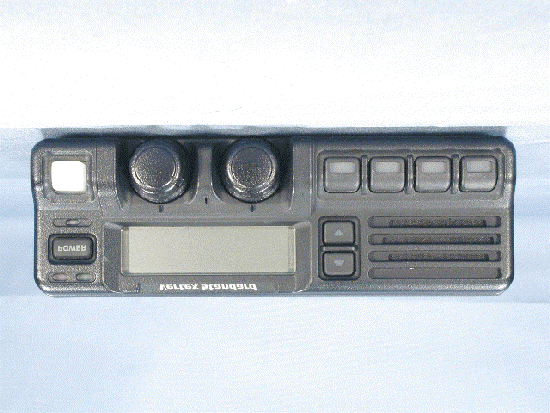

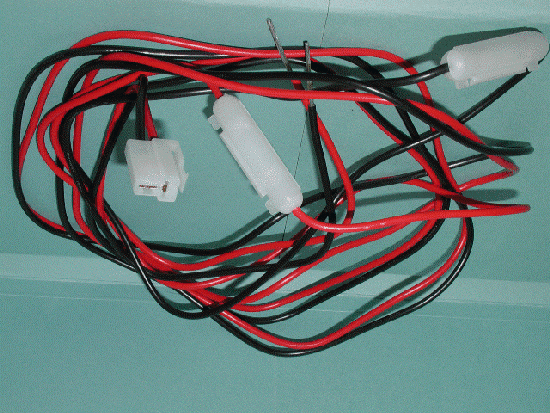

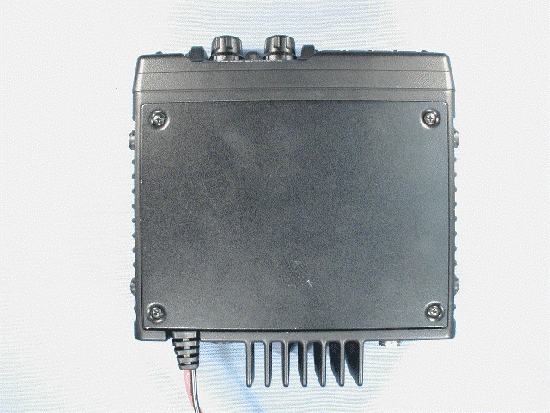

FCC ID: K6610344140 IC ID: 511B-10344140 Vertex Standard Co., Ltd. Front view Rear view FCC ID: K6610344140 IC ID: 511B-10344140 Vertex Standard Co., Ltd. Left view Right view FCC ID: K6610344140 IC ID: 511B-10344140 Vertex Standard Co., Ltd. Top view Bottom view FCC ID: K6610344140 IC ID: 511B-10344140 Vertex Standard Co., Ltd. Microphone DC Power Cable

VX-5500UVX-5500U LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. ID / Part 15.19 and CAUTION drawings VX-5500U FCC ID: K6610344140 ID drawing Part 15.19 and CAUTION drawings Label location ! ! Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner's manual for specific operating requirement CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. IC: 511B-10344140

FCC ID: K6610344140 IC ID: 511B-10344140 Vertex Standard Co., Ltd. Inside of EUT Side-A of MAIN-UNIT with shield cases FCC ID: K6610344140 IC ID: 511B-10344140 Vertex Standard Co., Ltd. Side-A of MAIN-UNIT without shield cases Side-B of MAIN-UNIT FCC ID: K6610344140 IC ID: 511B-10344140 Vertex Standard Co., Ltd. Side-A of DISPLAY-UNIT with LCD Side-A of DISPLAY-UNIT without LCD FCC ID: K6610344140 IC ID: 511B-10344140 Vertex Standard Co., Ltd. Side-B of DISPLAY-UNIT Front of LCD FCC ID: K6610344140 IC ID: 511B-10344140 Vertex Standard Co., Ltd. Back of LCD Side-A of KEY-UNIT FCC ID: K6610344140 IC ID: 511B-10344140 Vertex Standard Co., Ltd. Side-B of KEY-UNIT Side-A of VR-UNIT FCC ID: K6610344140 IC ID: 511B-10344140 Vertex Standard Co., Ltd. Side-B of VR-UNIT Side-A of MIC-CONN-UNIT FCC ID: K6610344140 IC ID: 511B-10344140 Vertex Standard Co., Ltd. Side-B of MIC-CONN-UNIT Inside of front panel FCC ID: K6610344140 IC ID: 511B-10344140 Vertex Standard Co., Ltd. Inside of chassis Inside of microphone

FCC ID: K6610344140 IC ID: 511B-10344140 Circuit Description 1/3 Vertex Standard Co., Ltd. VX-5500U Circuit Description Reception and transmission are switched by “ RX ” and ” TX ” lines from the microprocessor unit (MPU). The receiver uses double-conversion super-heterodyne circuitry, with a 43.95MHz 1st IF and 450 kHz 2nd IF. The 1st LO, produced by a PLL synthesizer, yields the 43.95MHz 1st IF. The 2nd LO uses a 43.5 MHz (43.95 MHz-450 kHz) signal generated by a crystal oscillator. The 2nd mixer and other circuits use a custom IC to convert and amplify the 2nd IF, and detect FM to obtain demodulated signals. During transmit, the PLL synthesizer oscillates at the desired frequency directly, for amplification to obtain RF power output. During transmit, voice modulation and CTCSS (or DCS) modulation are applied to this synthesizer. Transceiver functions, such as Tx/Rx control, PLL synthesizer settings, and channel programming, are controlled using the MPU. Receiver Incoming RF signals from the antenna connector are delivered to the MAIN Unit, and pass through a low-pass filter (LPF) antenna switching network consisting of coils L1002, L1004, L1006, L1008 and L1001, capacitors C1017, C1022, C1028, C1039, C1046 and C1001, and antenna switching diodes D1047 and D1049 for delivery to the receiver front end. Signals within the frequency range of the transceiver are then passed through a varactor-tuned band-pass filter consisting of L1007, L1010 before RF amplification by Q1018. The amplified RF is then band-pass filtered again by varactor-tuned resonators L1023, L1027 and buffer amplifier by Q1030 to ensure pure in-band input to 1st mixer Q1188. Buffered output from the VCO Unit is amplified by Q1032 and low-pass filtered by L1036 / L1040 and C1210 / C1216 / C1227, to provide a pure 1st local signal between 406.05 and 446.05 MHz to the 1st mixer. The 43.95MHz 1st mixer product then passes through dual monolithic crystal filters XF1001 and XF1002 (12 kHz BW)/ XF1003 and XF1004 (7kHz BW) and is amplified by Q1041 and delivered to the input of the FM IF subsystem IC Q1034. This IC contains the 2nd mixer, 2nd local oscillator, limiter amplifier, FM detector, noise amplifier, and squelch gates. The 2nd LO in the IF-IC is produced from crystal OSC X1001 (14.500MHz), and the 1st IF is converted to 450kHz by the 2nd mixer and stripped of unwanted components by ceramic filter CF1001 or CF1002. After passing through a limiter amplifier, the signal is demodulated by the FM detector. Demodulated receive audio from the IF-IC is amplified by Q2019. After volume adjustment by the AF power amplifier Q2018, the audio signal is passed to the optional headphone jack or 4 Ω loudspeaker. FCC ID: K6610344140 IC ID: 511B-10344140 Circuit Description 2/3 Vertex Standard Co., Ltd. PLL synthesizer The 1st LO maintains stability from the PLL synthesizer by using a 14.500 MHz reference signal from crystal OSC X1001. PLL synthesizer IC Q1033 consists of a prescaler, reference counter, swallow counter, programmable counter, a serial data input port to set these counters based on the external data, a phase comparator, and charge pump. The PLL-IC divides the 14.500 MHz reference signal by 725 using the reference counter (20.0 kHz comparison frequency). The phase detector comparison frequency to be eight times the channel spacing (2.5kHz). The VCO output is divided by the prescaler, swallow counter and programmable counter. These two signals are compared by the phase comparator and input to the charge pump. A voltage proportional to their phase difference is delivered to the low-pass filter circuit, then fed back to the VCO as a voltage with phase error, controlling and stabilizing the oscillating frequency. This synthesizer also operates as a modulator during transmit. The RX-VCO is comprised two oscillator. The one is comprised of Q1019 and D1010, D1011, D1016, D1018 and oscillates between 406.05MHz and 426.05MHz. The another is comprised of Q1001 and D1006, D1008, D1012, D1013 and oscillated between 426.05MHz and 446.05MHz. The each VCO is programmed according to receiving frequency. And the TX-VCO is comprised of Q1020 and D1014, D1015, D1020 and oscillates between 450.000MHz and 490.000MHz according to the programmed transmit frequency. The VCO output passes through buffer amplifier Q1026, and a portion is fed to the buffer amplifier Q1029 of the PLL IC, and at the same time amplified by Q1032 to obtain stable output. The VCO DC supply is regulated by Q1006. Synthesizer output is fed to the 1st mixer by diode switch D1025 during receive, and to drive amplifier Q1031 / Q1025 for transmit. Transmitter Voice audio from the microphone is delivered via the MIC (Jack) Unit to the MAIN Unit, after passing through amplifier Q3039/Q2041, pre-emphasis, limiter (IDC instantaneous deviation control), and LPF Q2001, is adjusted for optimum deviation level and delivered to the next stage. Voice input from the microphone and CTCSS are FM-modulated to the VCO of the synthesizer, while DCS audio is modulated by the reference frequency oscillator of the synthesizer. Synthesizer output, after passing through diode switch D1025, is amplified by driver Q1031 / Q1025 and power module Q1017 to obtain full RF output. The RF energy then passes through antenna switch D1047 and a low-pass filter circuit and finally to the antenna connector. RF output power from the final amplifier is sampled by CM coupler and is rectified by D1037, D1038. The resulting DC is fed through Automatic Power Controller Q1007 to transmitter RF amplifier and thus the power output. Generation of spurious products by the transmitter is minimized by the fundamental carrier frequency being equal to the final transmitting frequency, modulated directly in the transmit VCO. Additional harmonic suppression is provided by a low-pass filter consisting of L1002 L1004, L1006 and C1017, C1022, C1028 and C1039, resulting in more than 60 dB of harmonic suppression prior to delivery to …

Text truncated - open the document above for the full version.

1/3 FCC ID: K6610344140 IC ID: 511B-10344140 Component Application AddressDevice nameDescriptionApplication [MAIN-UNIT] Q 1003TransistorIMH6ATx Switch Q 1004ICMM1216ENRE9V Regulator Q 1005Transistor2SB1201S-TL9V Regulator Q 1006Transistor2SC4154EVCO Regulator Q 1007ICNJM2902VBPF Tune Buff/APC COMP Q 1010TransistorRT1N241MWide/Narrow Switch Q 1011Transistor2SB1132Tx 9V Switch Q 1012Transistor2SB1132Rx 9V Switch Q 1014TransistorIMH6ATx/Rx Switch Q 1015TransistorRT1N241MMOD Mute Switch Q 1017ICRA45H4452MRF PWR-MODULE Q 1018Transistor2SC3357-T2 RFRF Amplifier Q 1019Transistor2SK508-K52 Rx Voltage Control Oscillator Q 1020Transistor2SC4226-R24 Tx Voltage Control Oscillator Q 1025Transistor2SC3357-RF Tx Driver Amp Q 1026Transistor2SC5107-OVCO Buff Amp Q 1027TransistorRT1N241MVCO Tx/Rx Switch Q 1028TransistorIMH6AVCO Tx/Rx Switch Q 1029Transistor2SC5107-OBuff Amp Q 1030Transistor2SC3357-T2 RFIF Amp Q 1031Transistor2SC3356-T2B R24Tx Driver Amp Q 1032Transistor2SC5107-OBuff Amp Q 1033ICSA7025DKPLL IC Q 1034ICTA31136FN2nd IF IC Q 1035Transistor2SC4154EReference Oscillator Buff Amp Q 1038ICNJM78L05UAPLL 5V Regulator Q 1041Transistor2SC4215YIF AMP Q 1042TransistorRT1N241MWide/Narrow Switch Q 1044TransistorRT1N241MWide/Narrow Switch Q 1045TransistorIMH6AWide/Narrow Switch Q 1046ICRN5RL30A-TRReference Oscillator 3V Regulator Q 1188Transistor2SK520-T2B K41MIX Q 1189Transistor2SK520-T2B K41MIX Q 1190Transistor2SK520-T2B K41MIX Q 1191Transistor2SK520-T2B K41MIX Q 1192Transistor2SC3357-T2 RFLocal Buff Amp Q 1193Transistor2SC4154Reference Oscillator Buff Amp Q 1194TransistorRT1N241MWide/Narrow Switch Q 2001ICNJM2902VEmphasis/IDC/LPF/MIX Q 2002TransistorIMD3Analog Switch Q 2003ICNJM2902VRSSI/SQL/LPF Q 2004ICTC4W53FUAnalog Switch Q 2005TransistorRT1N241MAnalog Switch Q 2006TransistorIMX1Analog Switch Q 2007ICBU4066BFAnalog Switch Q 2008TransistorRT1N241MMIC Mute Switch Q 2009TransistorRT1N241MAnalog Switch Q 2010TransistorRT1N241MAnalog Switch Q 2011TransistorIMH6AAnalog Switch Q 2013TransistorIMZ1Analog Switch Q 2014TransistorRT1N241MAF Mute Switch Q 2015TransistorRT1N241MAnalog Switch Q 2016TransistorDTC323TKAF Mute Switch Q 2017ICMX165CDWCTCSS Encoder/Decoder Q 2018ICTDA7240AVAF Power Amp Q 2019ICCXA1846NAF Volume Q 2020TransistorIMD3Analog Switch Q 2021TransistorDTB123EKAnalog Switch Q 2022TransistorDTB123EKAnalog Switch Q 2023TransistorDTC323TKAF Mute Switch Q 2024Transistor2SC4154Clock Freq. Shift switch Q 2025ICMB90F583BCPU Q 2026ICBU4053BCFAnalog Switch Q 2027Transistor2SJ327DC Switch Q 2028ICNJM78L05UA5V Regulator Q 2029Transistor2SA1602AReset Switch Q 2030TransistorRT1N241MReset Switch VX-5500U Vertex Standard Co., Ltd. 2/3 FCC ID: K6610344140 IC ID: 511B-10344140 Component Application AddressDevice nameDescriptionApplication VX-5500U Q 2031ICLA8630MCompadr IC Q 2032TransistorRT1N241MAnalog Switch Q 2033TransistorRT1N241MAnalog Switch Q 2035TransistorRN5VL35AAReset IC Q 2036ICHN58X2432TIProgrammable Data Store Q 2037TransistorRT1N241MAnalog Switch Q 2038ICTC4S66FAnalog Switch Q 2039TransistorRT1N241MAnalog Switch Q 2040ICNJM2902VDCS Decoder Q 2041ICNJM2902VEmphasis /AF Amp Q 2042ICNJM2902VAF HPF/AF Amp Q 2045ICTC4S66FAnalog Switch D 1001DiodeRLS135 Protection D 1003DiodeP6KA18Reverse Voltage Protecion D 1004Diode1SS400Reverse Current Protecion D 1005Diode1SS400Discharge D 1007Varactor DiodeHVU350 BPF Tune D 1009Varactor DiodeHVU350 BPF Tune D 1011Varactor Diode1SV282 RX VCO D 1014Varactor Diode1SV284 TX VCO D 1015Varactor Diode1SV284 TX VCO D 1018Varactor Diode1SV282 RX VCO D 1020Varactor Diode1SV284TX VCO D 1023Varactor DiodeHVU350 BPF Tune D 1024Varactor DiodeHVU350 BPF Tune D 1025Diode1SS321Tx/Rx RF Switch D 1027DiodeUDZS5.6B5V Supply D 1028DiodeHSC2772nd IF Filter Switch D 1029DiodeHSC2772nd IF Filter Switch D 1031DiodeHSC2771st IF Filter Switch D 1034DiodeHSC2771st IF Filter Switch D 1036Varactor DiodeDSA3A1Reverse Voltage Protecion D 1037DiodeHSM88AS RF Pow Detector D 1038DiodeHSM88AS RF Pow Detector D 1039DiodeHSC2771st IF Filter Switch D 1040DiodeHSC2771st IF Filter Switch D 1041Diode1SS400Tx Driver Bias D 1043DiodeHSC2772nd IF Filter Switch D 1044DiodeHSC2772nd IF Filter Switch D 1047DiodeUM9957F RF Switch D 1048DiodeUM9957F RF Switch D 1049DiodeUM9957F RF Switch D 2001DiodeMC2846External PTT D 2002Diode1SS400Reverse Current Protecion D 2003Diode1SS400Reverse Current Protecion D 2004Diode1SS400Reverse Current Protecion D 2005Diode1SS400Reverse Current Protecion D 2006DiodeMC2850NSQ Detector D 2007DiodeMC2850NSQ Detector D 2008DiodeMC2850DCS Detector D 2009Diode1SS400Detector D 2010Diode1SS400Protection D 2011DiodeMC2846Reverse Current Protecion D 2012DiodeMC2850limitter D 2013DiodeMC2850Detector D 2014Diode1SS400Switch [DISPLAY-UNIT] Q 3001ICLC75823WLCD Driver Q 3003TransistorDTC323TK Mic Mute Q 3004TransistorIMZ1 Line Buff Q 3005TransistorRT1N241MDATA Line Mute Q 3006Not Used Q 3007Not Used Q 3008TransistorDTC323TK Mic Mute Q 3009TransistorDTC323TK Mic Mute Q 3010TransistorIMX1Line Buff Q 3011TransistorIMZ1 Buff Q 3012ICS-93C46AMFNProgrammable Data Store Vertex Standard Co., Ltd. 3/3 FCC ID: K6610344140 IC ID: 511B-10344140 Component Application AddressDevice nameDescriptionApplication VX-5500U Q 3013TransistorIMD3Buff Q 3014ICHD64F3642AHMicroprocessor Q 3015TransistorIMH6ASwitich for flash mode Q 3016ICRN5VL35AA Microprocessor Reset Q 3017Transistor2SA1602APower Down Detect Q 3019Transistor2SC4154Clock Freq. Shift switch Q 3020TransistorRT1N241MAF MUTE Q 3021ICNJM78L05UA5V Regulator Q 3022TransistorRT1N241MSwitich for flash mode Q 3025TransistorRT1N241MVolume Control ON/OFF Q 3026TransistorRT1N241MPower Switch Control Q 3027TransistorRT1N241MPower Down Detect Q 3028Transistor2SB1132Power Switch Q 3029Transistor2SB1132LED Switch Q 3030TransistorUMW1NBrightness Control Q 3031Transistor2SB1132Power Switch Q 3033TransistorIMH6APower Switch Control Q 3038TransistorIMX1AGC AMP Q 3039ICNJM2902VMIC AMP Q 3040TransistorIMZ1 BUFF Q 3043ICTC4S66FAnalog Switch Q 3044Not Used D 3005Diode1SS226AGC rec…

Text truncated - open the document above for the full version.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: VERTEX STANDARD CO., LTD. FCC ID: Test Report Product Name: LAND MOBILE RADIO FCC ID: K6610344140 Applicant: VERTEX STANDARD CO., LTD. 4-8-8 NAKAMEGURO, MEGURO-KU TOKYO, JAPAN 153-8644 Date Receipt: AUGUST 5, 2004 Date Tested: AUGUST 17, 2004 K6610344140 REPORT #: V\VERTEX USA_\1249AUT4\1249AUT4TestReport.doc COVER PAGE TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: VERTEX STANDARD CO., LTD. FCC ID: APPLICANT: VERTEX STANDARD CO., LTD. FCC ID: K6610344140 TABLE OF CONTENTS LIST TEST REPORT: PAGE 1...........GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2...........TECHNICAL DESCRIPTION CONTINUED RF POWER OUTPUT PAGE 3...........MODULATION CHARACTERISTICS AUDIO FREQUENCY RESPONSE PAGE 4...........MODULATION LIMITING PLOT PAGE 5...........AUDIO LOW PASS FILTER PAGE 6...........OCCUPIED BANDWIDTH PAGE 7-8.........OCCUPIED BANDWIDTH PLOT PAGE 9...........SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 10..........METHOD OF MEASURING SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 11-13.......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 14..........METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 15..........FREQUENCY STABILITY PAGE 16-17.......TRANSIENT FREQUENCY STABILITY PAGE 18-21.......TRANSIENT FREQUENCY RESPONSE PLOTS PAGE 22-25.......EQUIPMENT LIST EXHIBITS CONTAINING: ATTESTATION LETTER CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATIC PARTS LIST USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS TUNING PROCEDURE OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH K6610344140 REPORT #: V\VERTEX USA_\1249AUT4\1249AUT4TestReport.doc TABLE OF CONTENTS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: VERTEX STANDARD CO., LTD. FCC ID: GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033(c)(1)(2) VERTEX STANDARD CO., LTD. will manufacture the FCCID: K6610344140 VHF TRANSCEIVER in quantity, for use under FCC RULES PART 90. VERTEX STANDARD CO., LTD. 4-8-8 NAKAMEGURO, MEGURO-KU TOKYO, JAPAN 153-8644 2.1033(c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included in the exhibits. 2.1033(c) (4) Type of Emission: 11K0F3E 90.209 Bn = 2M + 2DK M = 3000 D = 2400 Bn = 2(3000)+ 2(2400) = 10.8k 90.217 (b) Authorized Bandwidth 12.5 kHz 2.1033(c) (4) Type of Emission: 16K0F3E 90.209 Bn = 2M + 2DK M = 3000 D = 4900 Bn = 2(3000)+ 2(4900) = 15.8k 90.217 (b) Authorized Bandwidth 25 kHz 2.1033(c)(5) Frequency Range: 400 – 430 MHz 90.209 2.1033(c)(6)(7) Power Output shall not exceed 59 Watts into a 50 ohm 90.205 resistive load. There are no user power controls. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: POWER INPUT: FINAL AMPLIFIER ONLY HIGH: (13.8V)(9.14A) = 126.132 Watts LOW: (13.8V)(4.33A) = 59.754 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included in the exhibits. K6610344140 REPORT #: V\VERTEX USA_\1249AUT4\1249AUT4TestReport.doc Page 1 of 25 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: VERTEX STANDARD CO., LTD. FCC ID: 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram and block diagram are included in the exhibits. (11) Function of each electron tube or semiconductor device or other active circuit device are in the exhibits. (12) Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description in the instruction manual. 2.1033(c)(13) A photograph or drawing of the equipment identification label is shown in the exhibits. 2.1033(c)(14) Photographs of the equipment of sufficient clarity to reveal equipment construction and layout and label location are shown in the exhibits. 2.1033(c)(15) For equipment employing digital modulation, a detail description of the modulation technique. This UUT uses FSK to modulate the transmitter. 2.1033(c)(16) The data required for 2.1046 through 2.1057 is submitted below. 2.1046(a) RF POWER OUTPUT RF power is measured by connecting a 50-ohm, resistive wattmeter to the RF output connector. With a nominal battery voltage of 13.8 VDC, and the transmitter properly adjusted the RF output measures: OUTPUT POWER: HIGH – 45 Watts LOW - 10 Watts K6610344140 REPORT #: V\VERTEX USA_\1249AUT4\1249AUT4TestReport.doc Page 2 of 25 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: VERTEX STANDARD CO., LTD. FCC ID: 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in accordance with TIA/EIA Specification 603. The audio frequency response curve is shown below. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. Audio Frequency Response -4 +6 -2 +0 +2 +4 d B 100 4k 200 300 400 500 700 1k 2k 3k Hz K6610344140 REPORT #: V\VERTEX USA_\1249AUT4\1249AUT4TestReport.doc Page 3 of 25 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: VERTEX STANDARD CO., LTD. FCC ID: 2.1047(b) Audio input versus modulation The audio input level needed for a particular percentage of modulation was measured in accordance with TIA/EIA Specification 603. The audio input curves versus modulation are shown below. Curves are provided for audio input frequencies of 300, 1000, and 2500 Hz. Modulation Limiting Plots: 2.5 KHz (Green), 1.0 KHz (Blue), and 300 Hz (Yellow) 2.4 k H z -40 +5-35 …

Text truncated - open the document above for the full version.
