K6610443240VHF REPEATER

VXR-9000 FM REPEATER OPERATING MANUAL VXR-9000 OPERATING MANUAL VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong RACK MOUNT REPEATER VXR-9000 FM REPEATER OPERATING MANUAL The VXR-9000 is commercial-grade 50-watt FM repeater designed to provide reliable two-way full-duplex commu- nications over a wide range of environmental conditions. Designed to mount in a standard 19-inch rack, the VXR-9000 is crafted using the latest computer-aided design and manufacturing processes, to ensure a high level of reliability to users. Important channel frequency data is stored in EEPROM, and is easily programmable by a Servicing Technician or Dealer using an IBM compatible personal com- puter and the VPL-1 Programming Cable and CE60 Software. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your VXR-9000. After reading it, keep this manual handy for quick reference, in case questions arise later on. Important Note: Internal service work, programming, and accessory installations should only be performed by your authorized Vertex Standard Dealer. Dangerous conditions and/or possibly illegal operation may result from im- proper setup, programming, or internal modifications. SAFETY/WARNING INFORMATION The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 100cm from all persons during normal operation and must not exceed an antenna gain of 0 dBd. This device must be restricted to work related operations in an Occupational/Con- trolled RF exposure Environment, not exceeding a maximum transmitting duty factor of 50%. The antenna(s) used with this device must satisfy the antenna co-location requirements of 47 C.F.R. 1.1307(b)(3). NOTICE! rDo not modify this repeater for any reason. Refer service of this repeater to qualified technicians only. rShould an obviously abnormal condition be observed, such as overheating, a burning smell, etc., turn the main power switch off, and disconnect the AC plug from the AC mains supply or wall outlet immedi- ately. rDo not place any combustible material near the repeater. rDo not spray any liquid over the repeater. rEnsure that the power and antenna connections are securely made, using cables with excess capacity for the power being utilized. INTRODUCTION VXR-9000 FM REPEATER OPERATING MANUAL FRONT PANEL CONTROLS & CONNECTORS Å POWER ( O/I ) Switch This is the main power switch for the repeater. Ç Power Indicator ( MAIN ) This LED glows green when the main power source is used. É Power Indicator ( BACKUP ) This LED glows red when the backup power source is used. Ñ MIC Jack Connect the microphone plug to this jack. This jack is also used for writing and reading channel fre- quency or other configurations via the COM Port of the PC on which the clone editor (CE60) is running. Ö Programmable Function ( PF ) Key Six pushbuttons on the front panel are program- mable function (PF) keys, each with an orange in- dicator inside. Each key can be programmed with two functions, one for a “long” press and one for a “momentary” press. The PF key functions may be customized, via programming by your VERTEX STANDARD dealer, to meet your communications network requirements. Note that some functions may require the purchase of optional internal ac- cessories. The possible PF key features and func- tions are explained on the pages to follow. Ü VOL Knob This control knob adjusts the output level of the front speaker and external speaker jack on the back panel. á TX Indicator This LED glows red when the repeater is transmit- ting. à Numeric Display This display consists of two 7-segment LEDs, indi- cating the channel number during normal opera- tion. If an abnormal condition arises, an error code will be displayed: DISPLAYDESCRIPTION 01 - 32Channel Number PCClone Active ULPLL Unlock HIHigh temperature in PA Unit SCScan Active LCFront Panel Keys are Locked E1PTT key is Disabled E2Cooling Fan is Disabled E5Low Voltage in Backup Battery E7PA Unit Abnormality E3, E4, E6, E9Contact your Dealer â BUSY Indicator This LED glows green when the receiving channel is busy. ä Speaker The internal speaker is located here. Ç Å É ÑÜÖ á àâ ä VXR-9000 FM REPEATER OPERATING MANUAL PROGRAMMABLE FUNCTION ( PF ) KEY DETAILS CH DOWN Press (or Press and hold in for one second) the PF key assigned to “CH Down” to step to the next-lower oper- ating channel. CH UP Press (or Press and hold in for one second) the PF key assigned to “CH Up” to step to the next-higher operat- ing channel. COMPANDER Press (or Press and hold in for one second) the PF key assigned to “Compander” to turn the Compander cir- cuit “On” or “Off” (toggle). This function is only acti- vated on the “Narrow Channel Spread” of the “Base Transceiver” mode. The Compander IC contains two variable gain circuits configured for compressing and expanding the dynamic range of the repeater’s transmitted and received audio signal. When you enable this function, the signal-to- noise ratio can be improved by reducing the transmit- ted audio dynamic range. CTCSS/DCS ENC Press (or Press and hold in for one second) the PF key assigned to “CTCSS/DCS Enc” to turn the CTCSS/DCS Encoder “On” or “Off” (toggle). CTCSS/DCS DEC Press (or Press and hold in for one second) the PF key assigned to “CTCSS/DCS Dec” to turn the CTCSS/DCS Decoder “On” or “Off” (toggle). CW ID Press (or Press and hold in for one second) the PF key assigned to “CW ID” to turn the CW Identifier feature “On” or “Off” (toggle). When the CW ID feature is set to “On,” your…

Text truncated - open the document above for the full version.

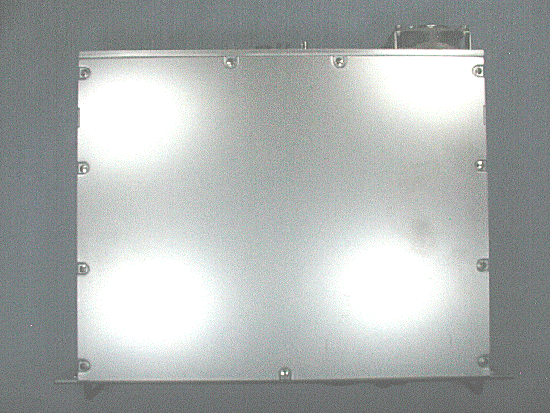

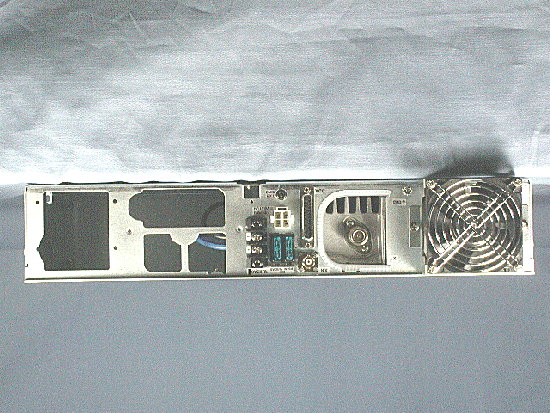

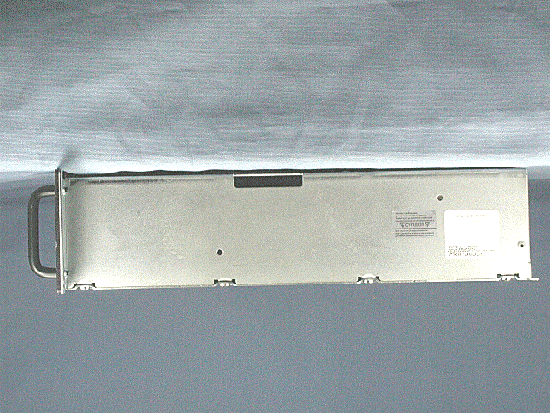

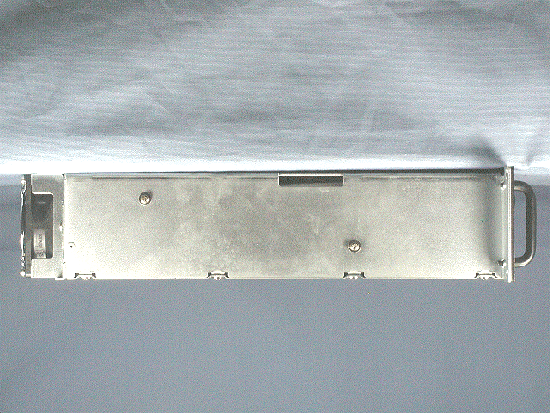

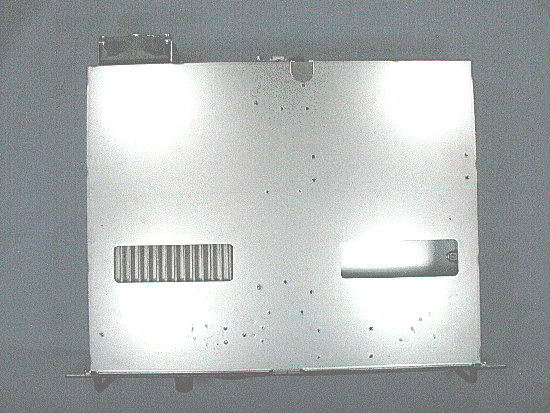

FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Front view Rear view FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Left view Right view FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Top view Bottom view FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Microphone DC Power Cable

VXR-9000VVXR-9000V LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. (1:1) (1:2) ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location VXR-9000V VERTEX STANDARD CO., LTD. MADE IN JAPAN CANADA: 511B-10443240 FCC ID: K6610443240 4909959000000 SER NO. 00000000 VXR-9000V VERTEX STANDARD CO., LTD. MADE IN JAPAN CANADA: 511B-10443240 FCC ID: K6610443240 4909959000000 SER NO. 00000000 ! ! Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner's manual for specific operating requirement CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. ! ! Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner's manual for specific operating requirement CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Inside of EUT Inside of EUT FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Inside of sub-chassis with shield cover Inside of sub-chassis without shield cover FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Side-A of MAIN-UNIT with shield cases Side-A of MAIN-UNIT without shield cases FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Side-B of MAIN-UNIT Side-A of PA-UNIT FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Side-B of PA-UNIT Inside of sub-panel with PWB (1) FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Inside of sub-panel with PWB (2) Inside of sub-panel FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Side-A of CNTL-UNIT Side-B of CNTL-UNIT

FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Side-A of PANEL-UNIT Side-B of PANEL-UNIT FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Side-A of REG-UNIT Side-B of REG-UNIT FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Inside of sub chassis with plate Inside of sub chassis FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Bottom of sub chassis Inside of inner-cover (1) FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Inside of inner-cover (2) Upper side of Plate FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Bottom side of Plate Inside of Chassis FCC ID: K6610443240 IC ID: 511B-10443240 Vertex Standard Co., Ltd. Inside of microphone

FCC ID: K6610443240 IC ID: 511B-10443240 Circuit Description 1/5 Vertex Standard Co., Ltd. VXR-9000V Circuit Description Receive Signal Path Incoming RF from the RX antenna jack is delivered to the MAIN Unit and passes through the protection diode D1001 and D1002 and a varactor-tuned band pass filter consisting of coils L1044 and L1048, capacitors C1400, C1402, C1403, C1407, C1408, C1409 and C1410, and varactor diodes D1033 and D1034. Signals are then applied to the RF amplifier, Q1063. The amplified RF signal is applied through a varactor-tuned band pass filter consisting of coils L1050 and L1051, capacitors C1427, C1429, C1430, C1431, C1433, C1434, C1435 and C1436, and varactor diode D1035 and D1036 to the 1 st mixer Q1018 along with the first local signal from the PLL circuit. The first local signal is generated between 221.35 and 247.35 MHz by the RX VCO, which consists of FET Q1048 and varactor diodes D1018, D1019, D1020 and D1021 according to the programmed receiving frequency; the local signal then passes through buffer amplifier Q1059 and first local amplifier Q1019 to the first mixer Q1018. The 73.35 MHz first IF signal is applied to monolithic crystal filters XF1001/XF1002 (Wide) or XF1501/XF1502 (Narrow) which strip away unwanted mixer products, and the IF signal is applied to the first IF amplifiers Q1022 (Wide) / Q1502 (Narrow). The amplified first IF signal is then delivered to the FM IF subsystem IC Q1028, which contains the second mixer, second local oscillator, limiter amplifier, noise amplifier, and FM detector. A 2nd local oscillator signal, generated by the 72.895 MHz crystal X1002, produces the 455 kHz second IF signal when mixed with the first IF signal within Q1028. The second IF signal passes through ceramic filter CF1001 or CF1002 which strips away all but the desired signal, and then passes through the limiter amplifier within Q1028 to ceramic discriminator CD1001, which removes any amplitude variations in the 455 kHz IF signal before detection of speech. The detected audio passes through the low pass filter, consisting of R1199 and C1244, which rejects the 455 kHz IF component. The audio signal from the MAIN Unit is delivered to the CNTL Unit and passes through the audio amplifier Q1020 to the active high pass filter section of Q3020, which rejects the sub-audible frequency component. The filtered audio signal is delivered to electronic volume Q1056, which adjusts the audio sensitivity to compensate for audio level variations, then passes through audio amplifier Q1020, audio switch Q1040, attenuator consisting of R1233, and limiter amplifier Q1050, to the electronic volume control Q1056, where the maximum deviation is set. The audio signal subsequently passes through the 3-section active low pass filter consisting of Q1017-1/-2/-3 and audio amplifier Q1001 to providing the repeater transmit audio. A portion of the audio signal from the active high pass filter section of Q3020 is de- emphasized by R3095 and C3080, providing a flat audio response. The filtered audio then passes through the active band pass filter Q3021 and audio mute gate Q3015 to audio power amplifier Q1057, providing up to 2 Watts of audio power to the 8 Ω loudspeaker. Sub-Audible Signaling (DECODER) A portion of the audio signal from the audio amplifier Q1020 passes through the 3-section active low pass filter Q1025 and the low pass filtering section of Q3020 to separate the CTCSS tones from the received audio signal. The CTCSS tones are sent to the CTCSS decoder section of Q3020. When a CTCSS tone is received, the CTCSS information is delivered to pin 77 of Main CPU Q3014 from pin 4 and 8 of Q3020 which compares the CTCSS tone with the programmed tone. Another portion of the audio signal amplified by Q1020 passes through the 3-section active low pass filter Q3044 to separate the DCS codes from the received audio signal. The low pass filtered signal passes through the phase detector Q3044 to pin 39 of Main CPU Q3014. When a DCS code is received, the Main CPU Q3014 compares the DCS code with FCC ID: K6610443240 IC ID: 511B-10443240 Circuit Description 2/5 Vertex Standard Co., Ltd. the programmed code. If the received CTCSS tone or DCS code matches the programmed tone or code, pin 4 of the Main CPU Q3014 goes low, turning off the squelch switch Q3015 and passing the received audio signal to the audio power amplifier Q1057. Squelch Control The squelch circuit consists of noise amplifier Q1033 and noise detector D1015 on the MAIN Unit, and control circuitry within Main CPU Q3014 on the CNTL Unit. When no carrier is received, noise at the output of the audio detector stage of Q1028 is amplified by Q1033, and then rectified by D1015 to provide a DC control voltage for the squelch switch. The resulting DC voltage is delivered to pin 23 of J1005. The DC voltage from the MAIN Unit is delivered to the A-D analog input port (pin 51) of the Main CPU Q3014 on the CNTL Unit, which compares the squelch threshold level to that which is memorized in EEPROM Q3006 or set by the front panel SQL control. RX PLL and VCO Circuits The receiver’s PLL circuitry consists of PLL subsystem IC Q1052 on the MAIN Unit, which contains a reference oscillator/divider, serial-to-parallel data latch, programmable divider, phase comparator and a swallow counter. Stability is obtained by a regulated 5 V DC supply via Q1062 and temperature compensated 14.4 MHz crystal oscillator X1003. The RX VCO made up two VCO circuit, one is Low-Band RX VCO, consisting of FET Q1048 and varactor diodes D1018, D1019, D1020 and D1021, and another one is High- Band RX VCO, consisting of FET Q1049 and varactor diodes D1027, D1028, D1029 and D1030, oscillates between 221.35 MHz and 247.35 MHz according to the programmed receiving frequency. The RX VCO output passes through buffer amplifier Q1059 and first local amplifier Q1019 to the first mixer Q1018, as described previously. A portion of the RX VCO output is applied to the prescaler/swallow counter s…

Text truncated - open the document above for the full version.

1/5 FCC ID: K6610443240 IC ID: 511B-10443240 Com ponent Applications Address Device nameDescriptionApplication [MAIN-UNIT] D 1001Diode1SS302 Protector D 1002DiodeRN739F Protector D 1003Not Used D 1004Not Used D 1005Not Used D 1006Zener DiodeHZU5ALL Voltage Regulator D 1007Not Used D 1008DiodeHVU306A5 TX VCO D 1009DiodeHVU306A5 TX VCO D 1010Diode1SV214 TX VCO D 1011Zener DiodeHZM5.6NB2 Protector D 1012DiodeMA142WK Switch D 1013DiodeMA142WK Switch D 1014DiodeMA143 Noise Detect D 1015DiodeMA143 Noise Detect D 1016DiodeRN739F RF Switch D 1017DiodeRN739F RF Switch D 1018Diode1SV229 RX VCO D 1019Diode1SV229 RX VCO D 1020Diode1SV229 RX VCO D 1021Diode1SV229 RX VCO D 1022Zener DiodeHZU5ALL Voltage Regulator D 1023DiodeMA143 Temperature Compensation D 1024DiodeMA143 Temperature Compensation D 1025DiodeMA143 Temperature Compensation D 1026DiodeMA143 Temperature Compensation D 1027Diode1SV229 RX VCO D 1028Diode1SV229 RX VCO D 1029Diode1SV229 RX VCO D 1030Diode1SV229 RX VCO D 1031Not Used D 1032Not Used D 1033DiodeHVU306A5 BPF Tuning D 1034DiodeHVU306A5 BPF Tuning D 1035DiodeHVU306A5 BPF Tuning D 1036DiodeHVU306A5 BPF Tuning D 1501Diode1SS321 Switch D 1502Diode1SS321 Switch Q 1001 ICNJM2902V AF Amplifier Q 1002Transistor2SD1664Q DC Switch Q 1003 ICTA75S01F Comparator Q 1004 ICNJM2904V AF Amplifier Q 1005 ICTAR5S30 3 V Regulator Q 1006 ICM51132FP Voltage Controlled Amplifier Q 1007Transistor2SC4116GR RF Buffer Amplifier Q 1008 ICMB15A02PFV1 TX PLL Subsystem Q 1009Not Used Q 1010 ICNJM2904V AF Amplifier Q 1011Transistor2SC4116GR RF Buffer Amplifier Q 1012Transistor2SA1586Y Switch Q 1013TransistorUN5215 Switch Q 1014Transistor2SA1162GR Charge Pump for TX PLL Q 1015Transistor2SC2712GR Charge Pump for TX PLL Q 1016Transistor2SC4116GR Ripple Filter Q 1017 ICNJM2902V AF Amplifier/AF Mixer Q 1018 ICSPM5001 RX 1st Mixer Q 1019Transistor2SC3357 RF Amplifier Q 1020 ICNJM2904V AF Amplifier Q 1021Transistor2SC5107 TX VCO Q 1022Transistor2SC5226 IF Amplifier Q 1023Transistor2SC2812NL6 Voltage Regulator Q 1024TransistorXN1213 Switch Q 1025 ICNJM2902V AF Amplifier/AF Mixer Q 1026Transistor2SC5226 RF Amplifier VXR-9000V Vertex Standard Co., Ltd. 2/5 FCC ID: K6610443240 IC ID: 511B-10443240 Com ponent Applications Address Device nameDescriptionApplication VXR-9000V Q 1027Transistor2SC4116GR Ripple Filter Q 1028 ICTA31136FN IF Subsystem Q 1029Transistor2SB1122S Switch Q 1030Transistor2SC3357 RF Amplifier Q 1031TransistorXN1213 Switch Q 1032TransistorUN5213 Switch Q 1033Transistor2SC4116GR Noise Amplifier Q 1034Transistor2SA1179M6 Switch Q 1035TransistorXN1213 Switch Q 1036TransistorXN1213 Switch Q 1037TransistorDTA144EE Switch Q 1038 Not Used Q 1039TransistorXN1213 Switch Q 1040 ICBU4066BCFV Analog Switch Q 1041Transistor2SA1162GR Charge Pump for RX PLL Q 1042Transistor2SC2712GR Charge Pump for RX PLL Q 1043TransistorDTC144EK Switch Q 1044TransistorFMG2 Switch Q 1045Transistor2SC4116GR RF Amplifier Q 1046Transistor2SC4116GR Ripple Filter Q 1047TransistorUN5215 Switch Q 1048FET2SK520 RX VCO Q 1049TransistorRT1N241M Switch Q 1050 ICNJM2904V AF Amplifier Q 1051Transistor2SA1586Y Switch Q 1052 ICMB15A02PFV1 RX PLL Subsystem Q 1053FET2SK520 RX VCO Q 1054TransistorRT1N241M Switch Q 1055 ICM62364FP D/A Converter Q 1056 ICM51132FP Voltage Controlled Amplifier Q 1057 ICTDA2003 AF Power Amplifier Q 1058Transistor2SC4116GR RF Amplifier Q 1059Transistor2SC5226 RF Amplifier Q 1060TransistorDTC144EE Switch Q 1061Transistor2SC4116GR Ripple Filter Q 1062 ICL78M05T 5V Regulator Q 1063Transistor2SC3356 RX RF Amplifier Q 1064 ICTA75S01F BPF Tune Q 1501TransistorXN1213 Switch Q 1502Transistor2SC5226 IF Amplifier Q 1503TransistorXN1213 Switch Q 1504Transistor2SC4116GR Switch [CNTL-UNIT] D 3001DiodeMC2850 Static Electricity Protection D 3002DiodeBAS316 Surge Protection D 3003DiodeMC2850 Static Electricity Protection D 3004DiodeMC2850 Static Electricity Protection D 3005DiodeMC2850 Static Electricity Protection D 3006DiodeMC2850 Static Electricity Protection D 3007DiodeMC2850 Static Electricity Protection D 3008DiodeMC2850 Static Electricity Protection D 3009DiodeMC2850 Static Electricity Protection D 3010DiodeMC2850 Static Electricity Protection D 3011DiodeD1F20-4063 Prevention of currect backflow D 3012DiodeBAS316 Surge Protection D 3013Not Used D 3014DiodeMC2850 Hysteresis Comparator D 3015DiodeMC2850 Surge Protection D 3016Not Used D 3017Not Used D 3018DiodeMC2850 Static Electricity Protection D 3019DiodeMC2850 Static Electricity Protection D 3020DiodeMC2848 Prevention of currect backflow D 3021Zener Diode02CZ3.6Z Voltage Regulator D 3022DiodeDA204K Static Electricity Protection Vertex Standard Co., Ltd. 3/5 FCC ID: K6610443240 IC ID: 511B-10443240 Com ponent Applications Address Device nameDescriptionApplication VXR-9000V D 3023DiodeMC2848 Prevention of currect backflow D 3024Not Used D 3025Not Used D 3026DiodeD1F20-4063 Prevention of currect backflow D 3027DiodeBAS316 Surge Protection D 3028DiodeBAS316 Surge Protection D 3029DiodeMC2848 Switch Q 3001 ICNJM2902V AF Amplifier Q 3002 ICTA75S01F Voltage Buffer Q 3003 ICTC4W53FU Analog Switch Q 3004Transistor2SB1201S DC Switch Q 3005 FET2SK3065 DC Switch Q 3006 ICBR24L32F-WE2 EEPROM Q 3007 ICAN8005M 5 V Regulator Q 3008 Not Used Q 3009 FET2SK3065 DC Switch Q 3010TransistorFMG2 DC Switch Q 3011TransistorFMG2 DC Switch Q 3012 ICBD4845FVE Voltage Comparator Q 3013 Not Used Q 3014 ICHD64F2238BFA13 Main Microprocessor Q 3015TransistorDTC323TK Switch Q 3016 ICTA75S01F AF Amplifier Q 3017Transistor2SC4116GR Clock Shift Q 3018Transistor2SC4116GR Clock Shift Q 3019 ICTA75S01F AF Amplifier Q 3020 ICFX805LG CTCSS Decorder Q 3021 ICNJM2902V AF Amplifier Q 3022Transistor2SA1586Y Switch Q 3023 ICTA75S01F AF Amplifier Q 3024TransistorFMG2 Switch Q 3025Transistor2SC4116GR AF Amplifier Q 3026TransistorDTA144EE Switch Q 3027 Not Used Q 3028TransistorDTC144EE Switch Q 3029TransistorDTC144EE Switch Q 3030Not Used Q 3031Not Used Q 3032 ICBU4066BCFV Analog Switch Q 3033 ICBU4066BCFV Analog Switch Q 3034 ICLA863…

Text truncated - open the document above for the full version.

Introduction The VXR-9000 has been aligned at the factory for the spec- ified performance across the entire frequency range spec- ified. Realignment should therefore not be necessary ex- cept in the event of a component failure. All component replacement and service should be performed only by an authorized Vertex Standard representative, or the warran- ty policy may be voided. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts are replaced, realignment may be required. If a sudden problem occurs during normal op- eration, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by au- thorized Vertex Standard service technicians who are ex- perienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized Vertex Standard service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Vertex Standard must reserve the right to change circuits and alignment procedures in the interest of improved performance, with- out notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and the need for realign- ment determined to be absolutely necessary. The follow- ing test equipment (and thorough familiarity with its cor- rect use) is necessary for complete realignment. Correc- tion of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and fol- low all of the steps in a section in the order presented. Required Test Equipment
RF Signal Generator with calibrated output level at 1 GHz
AF Signal Generator
Frequency Counter: ±0.2 ppm accuracy at 1 GHz
In-line Wattmeter with 5% accuracy at 1 GHz
50-ohm, 50-W RF Dummy Load
Regulated DC Power Supply (standard 13.6V DC, 15A)
AC Voltmeter
DC Voltmeter
UHF Sampling Coupler
Microsoft® Windows® 98 or later operating system
Vertex Standard VPL-1 Connection Cable and CE60 Alignment program Alignment Preparation & Precautions A 50-ohm RF Dummy load and in-line wattmeter must be connected to the main antenna jack in all procedures that call for transmission, except where specified otherwise. Correct alignment is not possible with an antenna. After completing one step, read the following step to de- termine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, if connected) before proceeding. Correct alignment requires that the ambient temperature be the same as that of the transceiver and test equipment, and that this temperature be held constant between 20 °C and 30 °C (68 °F ~ 86 °F). When the transceiver is brought into the shop from hot or cold air, it should be allowed time to come to room temperature before alignment. Whenever possible, alignments should be made with os- cillator shields and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning. Note: Signal levels in dB referred to in this procedure are based on 0 dBμ EMF = 1.0 μV. Test Setup Setup the test equipment as shown below, apply 13.6V DC power to the VXR-9000. The VXR-9000 must be programmed for use in the intend- ed system before alignment is attempted. The RF param- eters are loaded from the file during the alignment pro- cess. In order to facilitate alignment over the complete switch- ing range of the equipment it is recommended that the channel data in the transceiver is preset as the chart be- low. The Alignment Tool Outline Installation the tool Install the CE60 (Clone Editor) to your PC. The re-alignment for VXR-9000 may use the "Align- ment" menu of CE60. Basic sequence The data displayed in screen of this tool is temporary data, and there is fear that the consistence of the displayed data and the data in the transceiver is failure when you do not keep the sequence which is specified below. 1. Enter the alignment mode 2. Data upload 3. Align data 4. Data download When finish the alignment one parameter, the tool ask you "Update this data?" If you select "Yes," the temporary data is updated. If you select "Yes," the tool downloaded data to the transceiver. Menu of the Tool ( BASIC ALIGNMENT ) In the Basic Alignment mode, the aligned data written in the radio will be able to re-align its alignment data. In this mode, there are many items to align with three point (low edge, center and high edge) except "VCO," "RX Tune" and "Mod Balance." The value of each parameter can be changed to desired position by "
" / "  " arrow key for up/down, direct number input and drag the mouse. To enter the Basic Alignment Mode, select "Basic Align- ment" in the main menu "Radio." It will start to "Upload" the written personalized data from the radio and to "Download" alignment data to the radio. Then pressing the button "OK" will start the Basic Alignment Mode. Note; when all items are aligned, it is strongly rec…

Text truncated - open the document above for the full version.

FCC ID: K6610443240 Transmitter Certification of FCC ID: K6610443240 Model: VXR-9000V to Federal Communications Commission Rule Part(s) 2, 22, 74, 90, 90.210, Confidentiality Date of report: January 28, 2004 On the Behalf of the Applicant: Vertex Standard Co., Ltd. At the Request of: P.O. UPS 01/08/04 Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 Attention of: Mikio Maruya, Executive Vice President (800) 255-9237; FAX: (800) 477-9237 (714) 827-7600; FAX: -8100 [email protected] Supervised by: Morton Flom, P. Eng. MFA p0410002, d0410043 FCC ID: K6610443240 List of Exhibits (FCC Certification (Transmitters) - Revised 9/28/98) Applicant: Vertex Standard Co., Ltd. FCC ID: K6610443240 By Applicant: 1. Letter of Authorization x 2. Identification Drawings, 2.1033(c)(11) x Label x Location of Label x Compliance Statement x Location of Compliance Statement 3. Photographs, 2.1033(c)(12) x 4. Documentation: 2.1033(c) (3) User Manual x (9) Tune Up Info x (10) Schematic Diagram x (10) Circuit Description x Block Diagram x Active Devices x 5. Part 90.203(e) & (g) Attestation x 6. Request for Confidentiality x 7. MPE Report x By M.F.A. Inc.: A. Testimonial & Statement of Certification MFA p0410002, d0410043 FCC ID: K6610443240 The Applicant has been cautioned as to the following: 15.21 Information to the User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. MFA p0410002, d0410043 FCC ID: K6610443240 Table of Contents Rule Desc…
