VXR-9000 FM REPEATER OPERATING MANUAL VXR-9000-H OPERATING MANUAL VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong RACK MOUNT REPEATER VXR-9000 FM REPEATER OPERATING MANUAL VXR-9000 FM REPEATER OPERATING MANUAL The VXR-9000 is commercial-grade 50-watt FM repeater designed to provide reliable two-way full-duplex commu- nications over a wide range of environmental conditions. Designed to mount in a standard 19-inch rack, the VXR-9000 is crafted using the latest computer-aided design and manufacturing processes, to ensure a high level of reliability to users. Important channel frequency data is stored in EEPROM, and is easily programmable by a Servicing Technician or Dealer using an IBM compatible personal com- puter and the VPL-1 Programming Cable and CE60 Software. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your VXR-9000. After reading it, keep this manual handy for quick reference, in case questions arise later on. Important Note: Internal service work, programming, and accessory installations should only be performed by your authorized Vertex Standard Dealer. Dangerous conditions and/or possibly illegal operation may result from im- proper setup, programming, or internal modifications. SAFETY/WARNING INFORMATION The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 74cm from all persons during normal operation and must not exceed an antenna gain of 0 dBd. This device must be restricted to work related operations in an Occupational/Con- trolled RF exposure Environment, not exceeding a maximum transmitting duty factor of 50%. The antenna(s) used with this device must satisfy the antenna co-location requirements of 47 C.F.R. 1.1307(b)(3). NOTICE!
Do not modify this repeater for any reason. Refer service of this repeater to qualified technicians only.
When the repeater become abnormal, such as the overheating, smoke smell of burning, etc., turn the main power switch off and disconnect the Main Power Source connector from the rear of the VXR-9000 imme- diately. Also disconnect any backup power source you may have connected to the rear of the VXR-9000.
Do not place any combustible material near the repeater.
Do not spray any liquid over the repeater.
Ensure that the power and antenna connections are securely made, using cables with excess capacity for the power being utilized. INTRODUCTION 1 VXR-9000 FM REPEATER OPERATING MANUAL FRONT PANEL CONTROLS & CONNECTORS
POWER ( O/I ) Switch This is the main power switch for the repeater.  Power Indicator ( MAIN ) This LED glows green when the main power source is used.  Power Indicator ( BACKUP ) This LED glows red when the backup power source is used.  MIC Jack Connect the microphone plug to this jack. This jack is also used for writing and reading channel fre- quency or other configurations via the COM Port of the PC on which the clone editor (CE60) is running.  Programmable Function ( PF ) Key Six pushbuttons on the front panel are program- mable function (PF) keys, each with an orange in- dicator inside. Each key can be programmed with two functions, one for a “long” press and one for a “momentary” press. The PF key functions may be customized, via programming by your VERTEX STANDARD dealer, to meet your communications network requirements. Note that some functions may require the purchase of optional internal ac- cessories. The possible PF key features and func- tions are explained on the pages to follow.  VOL Knob This control knob adjusts the output level of the front speaker and external speaker jack on the back panel.  TX Indicator This LED glows red when the repeater is transmit- ting.  Numeric Display This display consists of two 7-segment LEDs, indi- cating the channel number during normal opera- tion. If an abnormal condition arises, an error code will be displayed: 2 DISPLAYDESCRIPTION 01 - 32Channel Number PCClone Active ULPLL Unlock HIHigh temperature in PA Unit SCScan Active LCFront Panel Keys are Locked E1PTT key is Disabled E2Cooling Fan is Disabled E5Low Voltage in Backup Battery E7PA Unit Abnormality E3, E4, E6, E9Contact your Dealer BUSY Indicator This LED glows green when the receiving channel is busy. Speaker The internal speaker is located here. VXR-9000 FM REPEATER OPERATING MANUAL PROGRAMMABLE FUNCTION ( PF ) KEY DETAILS CH DOWN Press (or Press and hold in for one second) the PF key assigned to “CH Down” to step to the next-lower oper- ating channel. CH UP Press (or Press and hold in for one second) the PF key assigned to “CH Up” to step to the next-higher operat- ing channel. COMPANDER Press (or Press and hold in for one second) the PF key assigned to “Compander” to turn the Compander cir- cuit “On” or “Off” (toggle). This function is only acti- vated on the “Narrow Channel Spread” of the “Base Transceiver” mode. The Compander IC contains two variable gain circuits configured for compressing and expanding the dynamic range of the repeater’s transmitted and received audio signal. When you enable this function, the signal-to- noise ratio can be improved by reducing the transmit- ted audio dynamic range. CTCSS/DCS ENC Press (or Press and hold in for one second) the PF key assigned to “CTCSS/DCS Enc” to turn the CTCSS/DCS Encoder “On” or “Off” (toggle). CTCSS/DCS DEC Press (or Press and hold in for one second) the PF key assigned to “CTCSS/DCS Dec” to turn the CTCSS/DCS Decoder “On” or “Off” (toggle). CW ID Press (or Press and hold in for one second) the PF key assi…

Text truncated - open the document above for the full version.

May 16th, 2005 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: VXR-9000V-H (FCC ID: K6610443250) Gentlemen: The equipment meets the requirements of the FCC Rules, Part 90.203(e) and (g), as applicable. Programming of this product’s transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personal. The operator cannot be program transmit frequencies using the equipment’s external operation controls. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

Akzo Nobel K. K. EMC Division Bancho Kaikan 12-1, Gobancho, Chiyoda-ku Tokyo 102-0076 Japan Tel.+81 3 5210 5411 Fax.+81 3 5216 2860 June 17, 2005 Federal Communications Commission Office of Engineering and Technology 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This authorization expires one year from the current date. Sincerely, Junichi Okada Group Leader Tokyo Office EMC Division Akzo Nobel K. K.

June 6, 2005 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Akzo Nobel K. K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

INSTRUCTIONS TCB SERVICE AGREEMENT For additional information on the TCB Program, contact MET Laboratories, Inc. at (410) 354-3300 or visit us at http://www.metlabs.com Enclosed is a copy of the MET TCB Service Agreement. Please complete the information on the Applicant and Manufacturer before making two copies of the agreement. The original and both copies of the agreement should be signed by your company and the product's manufacturer (if more than one manufacturer, additional agreements can be sent) before returning the executed original and copies of the agreement to MET. At the completion of the evaluation process for the product, fully executed copies of the agreement will be returned to your company and the manufacturer. The agreement allows MET access to the manufacturing facility during normal working hours to conduct any inspections that might be necessary to allow continued certification of the product. The agreement also indicates your intent to provide to MET Laboratories any product that might be required for reevaluation for continued surveillance. Additionally, the agreement specifies the conditions on how the product is to be identified as certified. This agreement in no way absolves the applicant or the manufacturer of any requirement or regulation of the Federal Communications Commission (FCC). 2MET Laboratories, Inc. Service Agreement MET TCB SERVICE AGREEMENT THIS AGREEMENT is made at Baltimore, Maryland this day of , 20 , by and between MET LABORATORIES, INC. (hereinafter referred to as MET) and the following: Applicant : VERTEX STANDARD CO.,LTD. Address : 4-8-8 Nameguro, Meguro-ku, Tokyo, 153-8644, JAPAN (Hereinafter referred to as the "Applicant") Manufacturer : (required for Part 68 only) Address : (Hereinafter referred to as the "Manufacturer") Only the product(s) designed and engineered by the Applicant and manufactured by the Manufacturer at the Manufacturer's facility at the above address, which have been certified by MET are covered by this service Agreement. NOW, THEREFORE, in consideration of the premises set forth in this agreement, the above mentioned parties agree that; Upon successful evaluation, MET will issue the Applicant a Grant of Equipment Authorization Certificate, granting the Applicant permission to market the certified product(s). At a minimum the product's identification plate or label will include the FCC ID Number or the Registration/Certification Number as well as any other information as might be required by statute. The FCC requires that MET perform random post-certification surveillance. Surveillance for continued certification compliance can be accomplished by the Applicant providing production models of the product to MET at MET’s request or to other locations as approved by MET for the purpose of compliance testing. The Manufacturer agrees to allow free and unrestricted access to the Manufacturer's facility upon reasonable notice during normal working hours for the purpose of permitting supervision. The Applicant or Manufacturer agrees to provide and deliver to MET or locations approved by MET models of the certified product at MET’s request. All costs associated with testing of the device will be borne by the Applicant or the Manufacturer and paid within 30 days of notice. If required the Applicant agrees to provide to MET for MET review certain identified technical documents or quality documents that provide for a review of product update and compliance. Acceptable Markings are found in 47 CFR 2.925, 2.926, 15.19, and part 68.300. Only products visually bearing the appropriate FCC identification label and identified as to model and type will be acknowledged as being an authorized product. The Applicant is responsible for applying the label to the product in accordance with current FCC requirements. An Applicant is required to submit to MET a sample of the label or plate showing the FCC ID Number or the Registration/Certification Number for approval prior to applying to the product. The Applicant is required to submit to MET a label location drawing or photograph showing the location of the mark on the product. Any reference to MET certification shall not be permitted on any non-eligible product(s), packaging, or literature. If the Applicant or the Manufacturer applies the FCC identification label to unauthorized products, then the Applicant and the Manufacturer shall save, indemnify, and hold harmless MET LABORATORIES, INC. from any and all claims which may arise out of said unauthorized action. 3MET Laboratories, Inc. TCB Service Agreement The label and/or references to MET are permitted on promotional, advertising, and packaging of Certified Product(s) provided that misrepresentation of results of the marking process and/or this agreement do not occur. Final judgment in the suitability of use of the label or the MET Laboratories name is reserved by MET. The Applicant shall maintain or require the manufacturer to maintain a record of all complaints made known to them relating to the product's compliance with the requirements of the relevant standard and agrees to make these records available to MET upon reasonable request. The applicant agrees to take appropriate action, or have the manufacturer take appropriate action with respect of such complaints and/or any deficiencies found in products or services that affect compliance with the requirements for certification. Compliance with all requirements and stipulations of the Certification Program and this agreement between MET and the Applicant is required for program compliance. Non-compliance with all or part of this agreement may result in termination of the agreement and the notification to the FCC to withdraw certification of the product. The Applicant assumes responsibility for complying with the requirements of the product's certification and this agreement regarding the application of the FCC identification label. The applicant understands that any violation of the requireme…

Text truncated - open the document above for the full version.

May 16th, 2005 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P. O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: VXR-9000V-H (FCC ID: K6610443250) Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requires confidential treatment of some of the information accompanying this Application, as listed below: ・ Block Diagram ・ Schematics These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for this Application. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

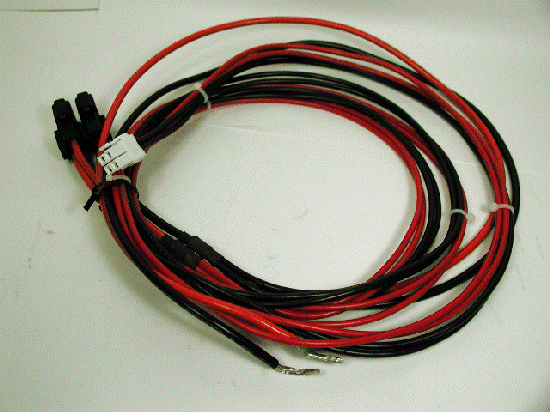

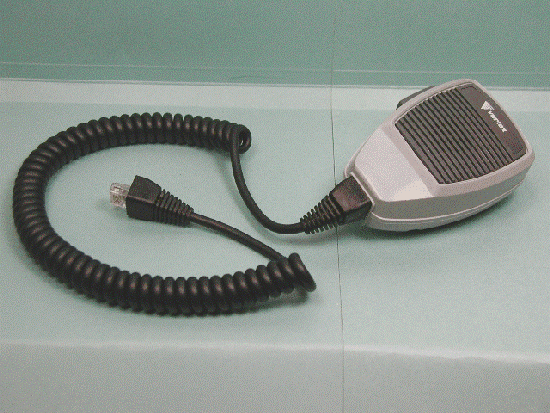

FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Front view Rear view FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Left view Right view FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Top view Bottom view FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Microphone DC Power Cable FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Microphone

VXR-9000V-HVXR-9000V-H LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location VXR-9000V -H VERTEX STANDARD CO., LTD. MADE IN JAPAN IC: 511B-10443250 FCC ID: K6610443250 4909959000000 SER NO. 00000000 ! ! Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner's manual for specific operating requirement CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Inside of EUT with inner covers Inside of EUT FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Side-A of MAIN-UNIT with shield cases Side-A of MAIN-UNIT without shield cases FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Side-B of MAIN-UNIT Side-A of 100W-PA-UNIT FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Side-B of 100W-PA-UNIT Inside of sub-panel with PWB (1) FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Inside of sub-panel with PWB (2) Inside of sub-panel FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Side-A of CNTL-UNIT Side-B of CNTL-UNIT FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Side-A of PANEL-UNIT Side-B of PANEL-UNIT FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Side-A of REG-UNIT Side-B of REG-UNIT FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Side-A of RELAY-UNIT Side-B of RELAY-UNIT FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Side-A of optional FIF-9 Side-B of optional FIF-9 FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Inside of Chassis Inside of microphone FCC ID: K6610443250 IC ID: 511B-10443250 Vertex Standard Co., Ltd. Inside of Microphone

Maximum Permissible Exposure (MPE) Evaluation Applicant:VERTEX STANDARD CO., LTD. Equipmen t:Rack Mount Repeater Model No.:VXR-9000V- H FCC ID:K6610443250 IC:511B-10443250 MPE Calculations According to the OET Bulletin 65 (Edition 97-01) Where: S=Power density (in appropriate units, e.g. mW/cm 2 ) P=Power input to antenna (in appropriate units, e.g., mW) G=Power gain of the antenna in the direction of interest relative to an isotropic radiator R=Distance to the center of radiation of the antenna (appropriate units, e.g., cm) Tx Frequency=148 to 174 (MHz) Maximum peak power =(dBm)(=100W) Antenna gain=(dBi) S=(mW/cm 2 ) P=(mW) (=Maximum peak power x 120% x Dutycycle 50%) G=(numeric) R=(cm) P = Value calculated according to CFR Part 90.205(q) Calculated minimum separation distance from antenna :197.90 (cm) 1.64 197.90 50.00 2.15 0.20 60000.00 S PG R π4 = 2 4R PG S π =

VXR-9000 FM REPEATER OPERATING MANUAL The VXR-9000 is commercial-grade 50-watt FM repeater designed to provide reliable two-way full-duplex commu- nications over a wide range of environmental conditions. Designed to mount in a standard 19-inch rack, the VXR-9000 is crafted using the latest computer-aided design and manufacturing processes, to ensure a high level of reliability to users. Important channel frequency data is stored in EEPROM, and is easily programmable by a Servicing Technician or Dealer using an IBM compatible personal com- puter and the VPL-1 Programming Cable and CE60 Software. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your VXR-9000. After reading it, keep this manual handy for quick reference, in case questions arise later on. Important Note: Internal service work, programming, and accessory installations should only be performed by your authorized Vertex Standard Dealer. Dangerous conditions and/or possibly illegal operation may result from im- proper setup, programming, or internal modifications. SAFETY/WARNING INFORMATION The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 74cm from all persons during normal operation and must not exceed an antenna gain of 0 dBd. This device must be restricted to work related operations in an Occupational/Con- trolled RF exposure Environment, not exceeding a maximum transmitting duty factor of 50%. The antenna(s) used with this device must satisfy the antenna co-location requirements of 47 C.F.R. 1.1307(b)(3). NOTICE!
Do not modify this repeater for any reason. Refer service of this repeater to qualified technicians only.
When the repeater become abnormal, such as the overheating, smoke smell of burning, etc., turn the main power switch off and disconnect the Main Power Source connector from the rear of the VXR-9000 imme- diately. Also disconnect any backup power source you may have connected to the rear of the VXR-9000.
Do not place any combustible material near the repeater.
Do not spray any liquid over the repeater.
Ensure that the power and antenna connections are securely made, using cables with excess capacity for the power being utilized. INTRODUCTION 1

FCC ID: K6610443250 IC ID: 511B-10443250 Circuit Description 1/3 Vertex Standard Co., Ltd. VXR-9000V-H Circuit Description Receive Signal Path Incoming RF from the RX antenna jack is delivered to the MAIN Unit and passes through the protection diode D1001 and D1002 and a varactor-tuned band pass filter consisting of coils L1044 and L1048, capacitors C1400, C1402, C1403, C1407, C1408, C1409 and C1410, and varactor diodes D1033 and D1034. Signals are then applied to the RF amplifier, Q1063. The amplified RF signal is applied through a varactor-tuned band pass filter consisting of coils L1050 and L1051, capacitors C1427, C1429, C1430, C1431, C1433, C1434, C1435 and C1436, and varactor diode D1035 and D1036 to the 1 st mixer Q1018 along with the first local signal from the PLL circuit. The first local signal is generated between 221.35 and 234.3475 MHz by the RX VCO, which consists of FET Q1048 and varactor diodes D1018, D1019, D1020 and D1021 according to the programmed receiving frequency; the local signal then passes through buffer amplifier Q1059 and first local amplifier Q1019 to the first mixer Q1018. The first local signal is generated between 234.35 and 247.35 MHz by the RX VCO, which consists of FET Q1053 and varactor diodes D1027, D1028, D1029 and D1030 according to the programmed receiving frequency; the local signal then passes through buffer amplifier Q1059 and first local amplifier Q1019 to the first mixer Q1018. The 73.35 MHz first IF signal is applied to monolithic crystal filters XF1001/XF1002 (Wide) or XF1501/XF1502 (Narrow) which strip away unwanted mixer products, and the IF signal is applied to the first IF amplifiers Q1022 (Wide) / Q1502 (Narrow). The amplified first IF signal is then delivered to the FM IF subsystem IC Q1028, which contains the second mixer, second local oscillator, limiter amplifier, noise amplifier, and FM detector. A 2nd local oscillator signal, generated by the 72.895 MHz crystal X1002, produces the 455 kHz second IF signal when mixed with the first IF signal within Q1028. The second IF signal passes through ceramic filter CF1001 or CF1002 which strips away all but the desired signal, and then passes through the limiter amplifier within Q1028 to ceramic discriminator CD1001, which removes any amplitude variations in the 455 kHz IF signal before detection of speech. The detected audio passes through the low pass filter, consisting of R1199 and C1244, which rejects the 455 kHz IF component. The audio signal from the MAIN Unit is delivered to the CNTL Unit and passes through the audio amplifier Q1020 to the active high pass filter section of Q3020, which rejects the sub-audible frequency component. The filtered audio signal is delivered to electronic volume Q1056, which adjusts the audio sensitivity to compensate for audio level variations, then passes through audio amplifier Q1020, audio switch Q1040, attenuator consisting of R1233, and limiter amplifier Q1050, to the electronic volume control Q1056, where the maximum deviation is set. The audio signal subsequently passes through the 3-section active low pass filter consisting of Q1017-1/-2/-3 and audio amplifier Q1001 to providing the repeater transmit audio. A portion of the audio signal from the active high pass filter section of Q3020 is de-emphasized by R3095 and C3080, providing a flat audio response. The filtered audio then passes through the active band pass filter Q3021 and audio mute gate Q3015 to audio power amplifier Q1057, providing up to 2 Watts of audio power to the 8 Ω loudspeaker. Sub-Audible Signaling (DECODER) A portion of the audio signal from the audio amplifier Q1020 passes through the 3-section active low pass filter Q1025 and the low pass filtering section of Q3020 to separate the CTCSS tones from the received audio signal. The CTCSS tones are sent to the CTCSS decoder section of Q3020. When a CTCSS tone is received, the CTCSS information is delivered to pin 77 of Main CPU Q3014 from pin 4 and 8 of Q3020 which compares the FCC ID: K6610443250 IC ID: 511B-10443250 Circuit Description 2/3 Vertex Standard Co., Ltd. CTCSS tone with the programmed tone. Another portion of the audio signal amplified by Q1020 passes through the 3-section active low pass filter Q3044 to separate the DCS codes from the received audio signal. The low pass filtered signal passes through the phase detector Q3044 to pin 39 of Main CPU Q3014. When a DCS code is received, the Main CPU Q3014 compares the DCS code with the programmed code. If the received CTCSS tone or DCS code matches the programmed tone or code, pin 4 of the Main CPU Q3014 goes low, turning off the squelch switch Q3015 and passing the received audio signal to the audio power amplifier Q1057. Squelch Control The squelch circuit consists of noise amplifier Q1033 and noise detector D1015 on the MAIN Unit, and control circuitry within Main CPU Q3014 on the CNTL Unit. When no carrier is received, noise at the output of the audio detector stage of Q1028 is amplified by Q1033, and then rectified by D1015 to provide a DC control voltage for the squelch switch. The resulting DC voltage is delivered to pin 23 of J1005. The DC voltage from the MAIN Unit is delivered to the A-D analog input port (pin 51) of the Main CPU Q3014 on the CNTL Unit, which compares the squelch threshold level to that which is memorized in EEPROM Q3006 or set by the front panel SQL control. RX PLL and VCO Circuits The receiver’s PLL circuitry consists of PLL subsystem IC Q1052 on the MAIN Unit, which contains a reference oscillator/divider, serial-to-parallel data latch, programmable divider, phase comparator and a swallow counter. Stability is obtained by a regulated 5 V DC supply via Q1062 and temperature compensated 14.4 MHz crystal oscillator X1003. The RX VCO made up two VCO circuit, one is Low-Band RX VCO, consisting of FET Q1048 and varactor diodes D1018, D1019, D1020 and D1021, and another one is High-Band RX VCO, consisting of FET Q1053 and varactor diodes D1027, D1028…

Text truncated - open the document above for the full version.

FCC ID: K6610443250 IC IF: 511B-10443250 Alignment 1/4 Vertex Standard Co., Ltd. VXR-9000V-H Alignment Introduction The VXR-9000-H has been aligned at the factory for the specified performance across the entire frequency range specified. Realignment should therefore not be necessary except in the event of a component failure. All component replacement and service should be performed only by an authorized Vertex Standard representative, or the warranty policy may be voided. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts are replaced, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by authorized Vertex Standard service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized Vertex Standard service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Vertex Standard must reserve the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and the need for realignment determined to be absolutely necessary. The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. FCC ID: K6610443250 IC IF: 511B-10443250 Alignment 2/4 Vertex Standard Co., Ltd. Required Test Equipment € RF Signal Generator with calibrated output level at 1 GHz € AF Signal Generator € Frequency Counter: ±0.2 ppm accuracy at 1 GHz € In-line Wattmeter with 5% accuracy at 1 GHz € 50-ohm, 150-W RF Dummy Load € Regulated DC Power Supply (standard 13.6V DC, 30A) € AC Voltmeter € DC Voltmeter € VHF Sampling Coupler € Microsoft® Window® 98 or later operating system € Vertex Standard VPL-1 Connection Cable and CE60 Alig…

Text truncated - open the document above for the full version.
