VXR-9000 FM REPEATER OPERATING MANUAL VXR-9000-H OPERATING MANUAL VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong RACK MOUNT REPEATER VXR-9000 FM REPEATER OPERATING MANUAL VXR-9000 FM REPEATER OPERATING MANUAL The VXR-9000 is commercial-grade 50-watt FM repeater designed to provide reliable two-way full-duplex commu- nications over a wide range of environmental conditions. Designed to mount in a standard 19-inch rack, the VXR-9000 is crafted using the latest computer-aided design and manufacturing processes, to ensure a high level of reliability to users. Important channel frequency data is stored in EEPROM, and is easily programmable by a Servicing Technician or Dealer using an IBM compatible personal com- puter and the VPL-1 Programming Cable and CE60 Software. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your VXR-9000. After reading it, keep this manual handy for quick reference, in case questions arise later on. Important Note: Internal service work, programming, and accessory installations should only be performed by your authorized Vertex Standard Dealer. Dangerous conditions and/or possibly illegal operation may result from im- proper setup, programming, or internal modifications. SAFETY/WARNING INFORMATION The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 74cm from all persons during normal operation and must not exceed an antenna gain of 0 dBd. This device must be restricted to work related operations in an Occupational/Con- trolled RF exposure Environment, not exceeding a maximum transmitting duty factor of 50%. The antenna(s) used with this device must satisfy the antenna co-location requirements of 47 C.F.R. 1.1307(b)(3). NOTICE!
Do not modify this repeater for any reason. Refer service of this repeater to qualified technicians only.
When the repeater become abnormal, such as the overheating, smoke smell of burning, etc., turn the main power switch off and disconnect the Main Power Source connector from the rear of the VXR-9000 imme- diately. Also disconnect any backup power source you may have connected to the rear of the VXR-9000.
Do not place any combustible material near the repeater.
Do not spray any liquid over the repeater.
Ensure that the power and antenna connections are securely made, using cables with excess capacity for the power being utilized. INTRODUCTION 1 VXR-9000 FM REPEATER OPERATING MANUAL FRONT PANEL CONTROLS & CONNECTORS
POWER ( O/I ) Switch This is the main power switch for the repeater.  Power Indicator ( MAIN ) This LED glows green when the main power source is used.  Power Indicator ( BACKUP ) This LED glows red when the backup power source is used.  MIC Jack Connect the microphone plug to this jack. This jack is also used for writing and reading channel fre- quency or other configurations via the COM Port of the PC on which the clone editor (CE60) is running.  Programmable Function ( PF ) Key Six pushbuttons on the front panel are program- mable function (PF) keys, each with an orange in- dicator inside. Each key can be programmed with two functions, one for a “long” press and one for a “momentary” press. The PF key functions may be customized, via programming by your VERTEX STANDARD dealer, to meet your communications network requirements. Note that some functions may require the purchase of optional internal ac- cessories. The possible PF key features and func- tions are explained on the pages to follow.  VOL Knob This control knob adjusts the output level of the front speaker and external speaker jack on the back panel.  TX Indicator This LED glows red when the repeater is transmit- ting.  Numeric Display This display consists of two 7-segment LEDs, indi- cating the channel number during normal opera- tion. If an abnormal condition arises, an error code will be displayed: 2 DISPLAYDESCRIPTION 01 - 32Channel Number PCClone Active ULPLL Unlock HIHigh temperature in PA Unit SCScan Active LCFront Panel Keys are Locked E1PTT key is Disabled E2Cooling Fan is Disabled E5Low Voltage in Backup Battery E7PA Unit Abnormality E3, E4, E6, E9Contact your Dealer BUSY Indicator This LED glows green when the receiving channel is busy. Speaker The internal speaker is located here. VXR-9000 FM REPEATER OPERATING MANUAL PROGRAMMABLE FUNCTION ( PF ) KEY DETAILS CH DOWN Press (or Press and hold in for one second) the PF key assigned to “CH Down” to step to the next-lower oper- ating channel. CH UP Press (or Press and hold in for one second) the PF key assigned to “CH Up” to step to the next-higher operat- ing channel. COMPANDER Press (or Press and hold in for one second) the PF key assigned to “Compander” to turn the Compander cir- cuit “On” or “Off” (toggle). This function is only acti- vated on the “Narrow Channel Spread” of the “Base Transceiver” mode. The Compander IC contains two variable gain circuits configured for compressing and expanding the dynamic range of the repeater’s transmitted and received audio signal. When you enable this function, the signal-to- noise ratio can be improved by reducing the transmit- ted audio dynamic range. CTCSS/DCS ENC Press (or Press and hold in for one second) the PF key assigned to “CTCSS/DCS Enc” to turn the CTCSS/DCS Encoder “On” or “Off” (toggle). CTCSS/DCS DEC Press (or Press and hold in for one second) the PF key assigned to “CTCSS/DCS Dec” to turn the CTCSS/DCS Decoder “On” or “Off” (toggle). CW ID Press (or Press and hold in for one second) the PF key assi…

Text truncated - open the document above for the full version.

May 25th, 2005 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: VXR-9000U-H (FCC ID: K6610444450) Gentlemen: The equipment meets the requirements of the FCC Rules, Part 90.203(e) and (g), as applicable. Programming of this product’s transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personal. The operator cannot be program transmit frequencies using the equipment’s external operation controls. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

June 6, 2005 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Akzo Nobel K. K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

Akzo Nobel K. K. EMC Division Bancho Kaikan 12-1, Gobancho, Chiyoda-ku Tokyo 102-0076 Japan Tel.+81 3 5210 5411 Fax.+81 3 5216 2860 June 24, 2005 Federal Communications Commission Office of Engineering and Technology 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This authorization expires one year from the current date. Sincerely, Junichi Okada Group Leader Tokyo Office EMC Division Akzo Nobel K. K.

May 25th, 2005 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P. O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: VXR-9000U-H (FCC ID: K6610444450) Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requires confidential treatment of some of the information accompanying this Application, as listed below: ・ Block Diagram ・ Schematics These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for this Application. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

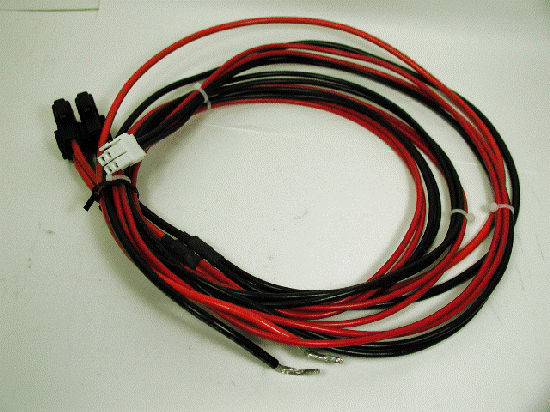

FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Front view Rear view FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Left view Right view FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Top view Bottom view FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Microphone DC Power Cable FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Microphone

VXR-9000U-HVXR-9000U-H LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location VXR-9000U -H VERTEX STANDARD CO., LTD. MADE IN JAPAN IC: 511B-10444450 FCC ID: K6610444450 4909959000000 SER NO. 00000000 ! ! Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner's manual for specific operating requirement CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Inside of EUT with inner covers Inside of EUT FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Side-A of MAIN-UNIT with shield cases Side-A of MAIN-UNIT without shield cases FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Side-B of MAIN-UNIT Side-A of 100W-PA-UNIT FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Side-B of 100W-PA-UNIT Inside of sub-panel with PWB (1) FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Inside of sub-panel with PWB (2) Inside of sub-panel FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Side-A of CNTL-UNIT Side-B of CNTL-UNIT FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Side-A of PANEL-UNIT Side-B of PANEL-UNIT FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Side-A of REG-UNIT Side-B of REG-UNIT FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Side-A of RELAY-UNIT Side-B of RELAY-UNIT FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Side-A of optional FIF-9 Side-B of optional FIF-9 FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Inside of Chassis Inside of microphone FCC ID: K6610444450 IC ID: 511B-10444450 Vertex Standard Co., Ltd. Inside of Microphone

FCC ID: K6610444450 IC ID: 511B-10444450 Circuit Description 1/3 Vertex Standard Co., Ltd. VXR-9000U-H Circuit Description Receive Signal Path Incoming RF from the RX antenna jack is delivered to the MAIN Unit and passes through the protection diode D1001 and D1002 and a varactor-tuned band pass filter consisting of coils L1003 and L1004, capacitors C1012, C1014, C1015, C1017, C1018, C1021, C1032, C1040, C1044, and C1045, and varactor diodes D1003 and D1004. Signals are then applied to the RF amplifier, Q1009. The amplified RF signal is applied through a varactor-tuned band pass filter consisting of coils L1010 and L1011, capacitors C1067, C1071, C1074, C1075, C1079, C1082, C1086, C1092, C1094 and C1097, and varactor diode D1005 and D1007 to the 1 st mixer Q1018 along with the first local signal from the PLL circuit. The first local signal is generated between 376.65 and 396.6475 MHz by the RX VCO, which consists of FET Q1048 and varactor diodes D1018 and D1019 according to the programmed receiving frequency; the local signal then passes through buffer amplifier Q1059 and first local amplifier Q1019 to the first mixer Q1018. The first local signal is generated between 396.65 and 416.65 MHz by the RX VCO, which consists of FET Q1049 and varactor diodes D1020 and D1021 according to the programmed receiving frequency; the local signal then passes through buffer amplifier Q1059 and first local amplifier Q1019 to the first mixer Q1018. The 73.35 MHz first IF signal is applied to monolithic crystal filters XF1001/XF1002 (Wide) or XF1501/XF1502 (Narrow) which strip away unwanted mixer products, and the IF signal is applied to the first IF amplifiers Q1022 (Wide) / Q1502 (Narrow). The amplified first IF signal is then delivered to the FM IF subsystem IC Q1028, which contains the second mixer, second local oscillator, limiter amplifier, noise amplifier, and FM detector. A 2nd local oscillator signal, generated by the 72.895 MHz crystal X1002, produces the 455 kHz second IF signal when mixed with the first IF signal within Q1028. The second IF signal passes through ceramic filter CF1001 or CF1002 which strips away all but the desired signal, and then passes through the limiter amplifier within Q1028 to ceramic discriminator CD1001, which removes any amplitude variations in the 455 kHz IF signal before detection of speech. The detected audio passes through the low pass filter, consisting of R1199 and C1244, which rejects the 455 kHz IF component. The audio signal from the MAIN Unit is delivered to the CNTL Unit and passes through the audio amplifier Q1020 to the active high pass filter section of Q3020, which rejects the sub-audible frequency component. The filtered audio signal is delivered to electronic volume Q1056, which adjusts the audio sensitivity to compensate for audio level variations, then passes through audio amplifier Q1020, audio switch Q1040, attenuator consisting of R1233, and limiter amplifier Q1050, to the electronic volume control Q1056, where the maximum deviation is set. The audio signal subsequently passes through the 3-section active low pass filter consisting of Q1017-1/-2/-3 and audio amplifier Q1001 to providing the repeater transmit audio. A portion of the audio signal from the active high pass filter section of Q3020 is de-emphasized by R3095 and C3080, providing a flat audio response. The filtered audio then passes through the active band pass filter Q3021 and audio mute gate Q3015 to audio power amplifier Q1057, providing up to 2 Watts of audio power to the 8 Ω loudspeaker. Sub-Audible Signaling (DECODER) A portion of the audio signal from the audio amplifier Q1020 passes through the 3-section active low pass filter Q1025 and the low pass filtering section of Q3020 to separate the CTCSS tones from the received audio signal. The CTCSS tones are sent to the CTCSS decoder section of Q3020. When a CTCSS tone is received, the CTCSS information is delivered to pin 77 of Main CPU Q3014 from pin 4 and 8 of Q3020 which compares the FCC ID: K6610444450 IC ID: 511B-10444450 Circuit Description 2/3 Vertex Standard Co., Ltd. CTCSS tone with the programmed tone. Another portion of the audio signal amplified by Q1020 passes through the 3-section active low pass filter Q3044 to separate the DCS codes from the received audio signal. The low pass filtered signal passes through the phase detector Q3044 to pin 39 of Main CPU Q3014. When a DCS code is received, the Main CPU Q3014 compares the DCS code with the programmed code. If the received CTCSS tone or DCS code matches the programmed tone or code, pin 4 of the Main CPU Q3014 goes low, turning off the squelch switch Q3015 and passing the received audio signal to the audio power amplifier Q1057. Squelch Control The squelch circuit consists of noise amplifier Q1033 and noise detector D1015 on the MAIN Unit, and control circuitry within Main CPU Q3014 on the CNTL Unit. When no carrier is received, noise at the output of the audio detector stage of Q1028 is amplified by Q1033, and then rectified by D1015 to provide a DC control voltage for the squelch switch. The resulting DC voltage is delivered to pin 23 of J1005. The DC voltage from the MAIN Unit is delivered to the A-D analog input port (pin 51) of the Main CPU Q3014 on the CNTL Unit, which compares the squelch threshold level to that which is memorized in EEPROM Q3006 or set by the front panel SQL control. RX PLL and VCO Circuits The receiver’s PLL circuitry consists of PLL subsystem IC Q1052 on the MAIN Unit, which contains a reference oscillator/divider, serial-to-parallel data latch, programmable divider, phase comparator and a swallow counter. Stability is obtained by a regulated 5 V DC supply via Q1062 and temperature compensated 14.4 MHz crystal oscillator X1003. The RX VCO made up two VCO circuit, one is Low-Band RX VCO, consisting of FET Q1048 and varactor diodes D1018 and D1019, and another one is High-Band RX VCO, consisting of FET Q1049 and varactor diodes D1020 and D1021, o…

Text truncated - open the document above for the full version.

Maximum Permissible Exposure (MPE) Evaluation Applicant:VERTEX STANDARD CO., LTD. Equipmen t:Rack Mount Repeater Model No.:VXR-9000U- H FCC ID:K6610444450 IC:511B-10444450 MPE Calculations According to the OET Bulletin 65 (Edition 97-01) Where: S=Power density (in appropriate units, e.g. mW/cm 2 ) P=Power input to antenna (in appropriate units, e.g., mW) G=Power gain of the antenna in the direction of interest relative to an isotropic radiator R=Distance to the center of radiation of the antenna (appropriate units, e.g., cm) Tx Frequency=450 to 490 (MHz) Maximum peak power =(dBm)(=100W) Antenna gain=(dBi) S=(mW/cm 2 ) P=(mW) (=Maximum peak power x 120% x Dutycycle 50%) G=(numeric) R=(cm) P = Value calculated according to CFR Part 90.205(q) Calculated minimum separation distance from antenna :161.59 (cm) 1.64 161.59 50.00 2.15 0.30 60000.00 S PG R π4 = 2 4R PG S π =

VXR-9000 FM REPEATER OPERATING MANUAL The VXR-9000 is commercial-grade 50-watt FM repeater designed to provide reliable two-way full-duplex commu- nications over a wide range of environmental conditions. Designed to mount in a standard 19-inch rack, the VXR-9000 is crafted using the latest computer-aided design and manufacturing processes, to ensure a high level of reliability to users. Important channel frequency data is stored in EEPROM, and is easily programmable by a Servicing Technician or Dealer using an IBM compatible personal com- puter and the VPL-1 Programming Cable and CE60 Software. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your VXR-9000. After reading it, keep this manual handy for quick reference, in case questions arise later on. Important Note: Internal service work, programming, and accessory installations should only be performed by your authorized Vertex Standard Dealer. Dangerous conditions and/or possibly illegal operation may result from im- proper setup, programming, or internal modifications. SAFETY/WARNING INFORMATION The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 74cm from all persons during normal operation and must not exceed an antenna gain of 0 dBd. This device must be restricted to work related operations in an Occupational/Con- trolled RF exposure Environment, not exceeding a maximum transmitting duty factor of 50%. The antenna(s) used with this device must satisfy the antenna co-location requirements of 47 C.F.R. 1.1307(b)(3). NOTICE!
Do not modify this repeater for any reason. Refer service of this repeater to qualified technicians only.
When the repeater become abnormal, such as the overheating, smoke smell of burning, etc., turn the main power switch off and disconnect the Main Power Source connector from the rear of the VXR-9000 imme- diately. Also disconnect any backup power source you may have connected to the rear of the VXR-9000.
Do not place any combustible material near the repeater.
Do not spray any liquid over the repeater.
Ensure that the power and antenna connections are securely made, using cables with excess capacity for the power being utilized. INTRODUCTION 1

1/4 FCC ID: K6610444450 IC ID: 511B-10444450 Component Applications AddressDevice nameDescriptionApplication [MAIN-UNIT] D 1001Diode1SS302 Protector D 1002DiodeRN739F Protector D 1003DiodeHVU350 BPF Tunin g D 1004DiodeHVU350 BPF Tunin g D 1005DiodeHVU350 BPF Tunin g D 1006Zener DiodeHZU5ALL Volta ge Shift D 1007DiodeHVU350 BPF Tunin g D 1008Diode1SV282 TX VCO D 1009Diode1SV282 TX VCO D 1010DiodeHVU350 Modulation D 1011Zener DiodeHZM5.6NB2 Volta ge Regulator D 1012DiodeMA142WK Switch D 1013DiodeMA142WK Switch D 1014DiodeMA143 Noise Detect D 1015DiodeMA143 Noise Detect D 1016DiodeRN739F RF Switch D 1017DiodeRN739F RF Switch D 1018Diode1SV229 RX VCO D 1019Diode1SV229 RX VCO D 1020Diode1SV229 RX VCO D 1021Diode1SV229 RX VCO D 1022Zener DiodeHZU5ALL Volta ge Shift D 1023DiodeMA143 Tem perature Compensation D 1024DiodeMA143 Tem perature Compensation D 1025DiodeMA143 Tem perature Compensation D 1026DiodeMA143 Tem perature Compensation D 1501Diode1SS321 Switch D 1502Diode1SS321 Switch Q 1001ICNJM2902V AF Am plifier Q 1002Transistor2SD1664Q DC Switch Q 1003ICTA75S01F Com parator Q 1004ICNJM2904V AF Am plifier Q 1005ICTAR5S30 3 V Re gulator Q 1006ICM51132FP Volta ge Controlled Amplifier Q 1007Transistor2SC4116GR RF Buffer Am plifier Q 1008ICMB15A02PFV1 TX PLL Subs ystem Q 1009Transistor2SC3357 RF Am plifier Q 1010ICNJM2904V AF Am plifier Q 1011Not used Q 1012Transistor2SA1586Y Switch Q 1013TransistorUN5215 Switch Q 1014Transistor2SA1162GR Char ge Pump for TX PLL Q 1015Transistor2SC2712GR Char ge Pump for TX PLL Q 1016Transistor2SC4116GR Ri pple Filter Q 1017ICNJM2902V AF Am plifier/AF Mixer Q 1018ICSPM5001 RX 1st Mixe r Q 1019Transistor2SC3357 RF Am plifier Q 1020ICNJM2904V AF Am plifier Q 1021FET2SK508 TX VCO Q 1022Transistor2SC5226 IF Am plifier Q 1023Transistor2SC2812NL6 Volta ge Regulator Q 1024TransistorXN1213 Switch Q 1025ICNJM2902V AF Filter Q 1026Transistor2SC5226 RF Am plifier Q 1027Transistor2SC4116GR Ri pple Filter Q 1028ICTA31136FN IF Subs ystem Q 1029Transistor2SB1122S Switch Q 1030Transistor2SC3357 RF Am plifier Q 1031TransistorXN1213 Switch Q 1032TransistorUN5213 Switch Q 1033Transistor2SC4116GR Noise Am plifier Q 1034Transistor2SA1179M6 Switch Q 1035TransistorXN1213 Switch Q 1036TransistorXN1213 Switch Q 1037TransistorDTA144EE Switch Q 1038Not Used Q 1039TransistorXN1213 Switch Q 1040ICBU4066BCFV Analo g Switch Q 1041Transistor2SA1162GR Char ge Pump for RX PLL Q 1042Transistor2SC2712GR Char ge Pump for RX PLL Q 1043TransistorDTC144EK Switch Q 1044TransistorFMG2 Switch Q 1045Transistor2SC4116GR RF Am plifier Q 1046Transistor2SC4116GR Ri pple Filter Q 1047TransistorUN5215 Switch Q 1048FET2SK508 RX VCO Q 1049FET2SK508 RX VCO VXR-9000U-H Vertex Standard Co., Ltd. 2/4 FCC ID: K6610444450 IC ID: 511B-10444450 Component Applications AddressDevice nameDescriptionApplication VXR-9000U-H Q 1050ICNJM2904V AF Am plifier Q 1051Transistor2SA1586Y Switch Q 1052ICMB15A02PFV1RX PLL Subs ystem Q 1053TransistorRT1N241MSwitch Q 1054TransistorRT1N241MSwitch Q 1055ICM62364FPD/A Converter Q 1056ICM51132FPVolta ge Controlled Amplifier Q 1057ICTDA2003AF Power Am plifier Q 1058Transistor2SC4116GRRF Am plifier Q 1059Transistor2SC5226RF Am plifier Q 1060TransistorDTC144EESwitch Q 1061Transistor2SC4116GRRi pple Filter Q 1062ICL78M05T5V Re gulator Q 1501TransistorXN1213Switch Q 1502Transistor2SC5226IF Am plifier Q 1503TransistorXN1213Switch Q 1504Transistor2SC4116GRSwitch [CNTL-UNIT] D 3001DiodeMC2850 Static Electricit y Protection D 3002DiodeBAS316 Sur ge Protection D 3003DiodeMC2850 Static Electricit y Protection D 3004DiodeMC2850 Static Electricit y Protection D 3005DiodeMC2850 Static Electricit y Protection D 3006DiodeMC2850 Static Electricit y Protection D 3007DiodeMC2850 Static Electricit y Protection D 3008DiodeMC2850 Static Electricit y Protection D 3009DiodeMC2850 Static Electricit y Protection D 3010DiodeMC2850 Static Electricit y Protection D 3011DiodeD1F20-4063 Prevention of currect backflow D 3012DiodeBAS316 Sur ge Protection D 3013Not Used D 3014DiodeMC2850 H ysteresis Comparator D 3015DiodeMC2850 Sur ge Protection D 3016Not Used D 3017Not Used D 3018DiodeMC2850 Static Electricit y Protection D 3019DiodeMC2850 Static Electricit y Protection D 3020DiodeMC2848 Prevention of currect backflow D 3021Zener Diode02CZ3.6Z Volta ge Regulator D 3022DiodeDA204K Static Electricit y Protection D 3023DiodeMC2848 Prevention of currect backflow D 3024Not Used D 3025Not Used D 3026DiodeD1F20-4063 Prevention of currect backflow D 3027DiodeBAS316 Sur ge Protection D 3028DiodeBAS316 Sur ge Protection D 3029DiodeMC2848 Switch Q 3001ICNJM2902V AF Am plifier Q 3002ICTA75S01F Volta ge Buffer Q 3003ICTC4W53FU Analo g Switch Q 3004Transistor2SB1201S DC Switch Q 3005FET2SK3065 DC Switch Q 3006ICBR24L32F-WE2 EEPROM Q 3007ICAN8005M 5 V Re gulator Q 3008Not Used Q 3009FET2SK3065 DC Switch Q 3010TransistorFMG2 DC Switch Q 3011TransistorFMG2 DC Switch Q 3012ICBD4845FVE Volta ge Comparator Q 3013Not Used Q 3014ICHD64F2238BFA13 Main Micro processor Q 3015TransistorDTC323TK Switch Q 3016ICTA75S01FAF Am plifier Q 3017Transistor2SC4116GRClock Shift Q 3018Transistor2SC4116GRClock Shift Q 3019ICTA75S01FAF Am plifier Q 3020ICFX805LGCTCSS Decorder Q 3021ICNJM2902VAF Am plifier Q 3022Transistor2SA1586YSwitch Q 3023ICTA75S01FAF Am plifier Q 3024TransistorFMG2Switch Q 3025Transistor2SC4116GRAF Am plifier Q 3026TransistorDTA144EESwitch Q 3027Not Used Q 3028TransistorDTC144EESwitch Q 3029TransistorDTC144EESwitch Q 3030Not Used Q 3031Not Used Vertex Standard Co., Ltd. 3/4 FCC ID: K6610444450 IC ID: 511B-10444450 Component Applications AddressDevice nameDescriptionApplication VXR-9000U-H Q 3032ICBU4066BCFV Analo g Switch Q 3033ICBU4066BCFV Analo g Switch Q 3034ICLA8630M-BAF Com pressor/Expander Q 3035ICNJM2904VAF Am plifier Q 3036ICTA75S01F AF Am plifier Q 3037TransistorDTC144EE Switch Q 3038TransistorDTC323TK Switch Q 3039TransistorFMG2 Switch Q 3040TransistorDTC144EE Switch Q 3041ICNJM2904VAF Am plifier Q 3042Transistor2SC4154EAF Am plifier Q…

Text truncated - open the document above for the full version.

FCC ID: K6610444450 IC IF: 511B-10444450 Alignment 1/4 Vertex Standard Co., Ltd. VXR-9000U-H Alignment Introduction The VXR-9000U-H has been aligned at the factory for the specified performance across the entire frequency range specified. Realignment should therefore not be necessary except in the event of a component failure. All component replacement and service should be performed only by an authorized Vertex Standard representative, or the warranty policy may be voided. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts are replaced, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by authorized Vertex Standard service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized Vertex Standard service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Vertex Standard must reserve the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and the need for realignment determined to be absolutely necessary. The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. FCC ID: K6610444450 IC IF: 511B-10444450 Alignment 2/4 Vertex Standard Co., Ltd. Required Test Equipment € RF Signal Generator with calibrated output level at 1 GHz € AF Signal Generator € Frequency Counter: ±0.2 ppm accuracy at 1 GHz € In-line Wattmeter with 5% accuracy at 1 GHz € 50-ohm, 150-W RF Dummy Load € Regulated DC Power Supply (standard 13.6V DC, 30A) € AC Voltmeter € DC Voltmeter € VHF Sampling Coupler € Microsoft® Window® 98 or later operating system € Vertex Standard VPL-1 Connection Cable and CE60 Ali…
