K6610511070Integrated HF Communications Transceiver

VX-1700 Operating Manual VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Tabel of Contents General ......................................................................... 1 Front Panel Control & Switches ................................ 2 Rear Panel Connections .............................................. 4 Installation.................................................................... 5 Safety Precautions ................................................... 5 Power Connections .................................................. 5 Grounding for Electrical Safety............................... 5 Electrical Shock Prevention .................................... 5 Antenna Precautions................................................ 5 Heat and Ventilation ................................................ 5 Electromagnetic Compatibility and RF Exposure ... 6 Preliminary Inspection............................................. 6 Power Requirements and Basic Installation ............ 7 DC Power Connections ...................................... 7 Mobile Mounting ..................................................... 8 Mobile Antenna Considerations ......................... 8 Mobile Station Grounding .................................. 9 Base Station Installation ........................................ 10 DC Power Connections .................................... 10 Base Station Antenna Considerations ............... 11 Base Station Grounding.................................... 12 Operation.................................................................... 14 Startup Procedures ................................................. 14 Reception ............................................................... 14 Frequency and Channel Selection ......................... 15 VFO Mode........................................................ 15 Memory Channel Mode.................................... 16 ITU Marine Channel ........................................ 16 2.182 MHz Emergency Channel Mode ............ 16 Front Panel Locking ................................... 16 Transmission.......................................................... 17 Antenna Tuning Procedures ............................. 17 Dual Watch ............................................................ 18 Encrypted Transmission/Reception ....................... 19 Selcall/Telcall Operation ........................................... 20 SelCall ................................................................... 20 Message Call ......................................................... 21 Position Request Call ............................................ 22 Position Send Call ................................................. 22 Beacon Request Call ............................................. 23 Telcall.................................................................... 23 ALE Operation .......................................................... 24 Sending an ALE Call ............................................. 24 Sending an ALE Call with an Imbedded Message ... 24 Memory Channel Storage ......................................... 25 Programmable Function (PF) Keys ......................... 26 SUPPLIED ACCESSORIES

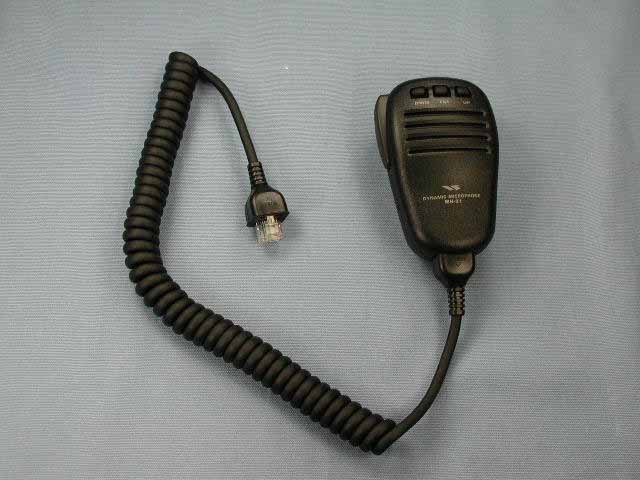

MH-31A8J Hand Microphone

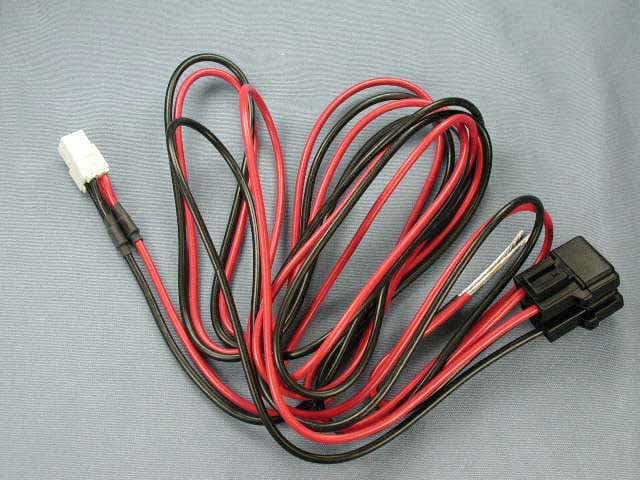

DC Power CordT9023725
Spare Fuse (25 A Blade Type) Q0000074
Switch Label SheetRA0696400
Operation Manual
Warranty Card AVAILABLE OPTION
VL-1000/VP-1000Linear Amplifier/AC Power Supply
FP-1030AAC Power Supply
MD-200A8XDesktop Microphone
FC-30Antenna Tuner (Coaxial Lines)
FC-40Antenna Tuner (Wire/Whip Antennas)
ALE-1Automatic Link Establishment Unit
MLS-100External Speaker
YA-30Broadband HF Antenna
YA-007FGHF Multi-Band Mobile Antenna
MMB-89One-Touch Mobile Bracket
MHG-1Carrying Handle
CT-118Control Cable (for the VL-1000 Linear Amplifier)
CE77WinPC Programming Software
CT-62PC Programming Cable Page 1VX-1700 OPERATING MANUAL GENERAL The Vertex Standard VX-1700 is a low-cost, integrated HF communications transceiver designed for the worldwide Marine, Land Mobile, and Government markets. The Vertex Standard VX-1700 provides continuous receiver coverage from 30 kHz to 29.99999 MHz, and transmitter coverage as appropriate for the user’s application. Operat- ing modes provided include J2B (USB or LSB), J3E (USB or LSB), A1A, A3E, and H3E (only on 2182 kHz in the Marine version), making the VX-1700 ideal for a wide variety of voice, telegraphy, and many data communica- tion applications. Advanced features of the Vertex Standard VX-1700 include 200 memory channels (arranged in five banks), keyboard frequency entry with frequency resolution to 10 Hz (100 Hz in Memory mode), and Alpha-Numeric labeling of Memory channels. Ease in programming fleet systems is provided. And the Selcall feature allows paging of a single transceiver or groups of transceivers by a dispatch center. Available options include the VL-1000/VP-1000 1 kW Linear Amplifier/Power Supply, FP-1030A AC Power Supply, FC-30 Automatic External Antenna Tuner (for 50 Ohm unbalanced antenna feedlines), FC-40 Automatic External Antenna Tuner (for an end-fed random-length wire or long whip antenna), YA-30 Broadband Dipole Antenna, YA-007FG Mobile Antenna, MD-200 A8X Desk Microphone, MLS-100 External Speaker, and the ALE- 1 Automatic Link Establishment Unit which automatically selects the channel with the best LQA (Link Quality Analy- sis) score from the programmed channels. This manual includes installation, configuration, interfac- ing, and operating instructions for the Vertex Standard VX-1700. We encourage you to read this manual thor- oughly before installing or o…

Text truncated - open the document above for the full version.

August 22, 2005 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P. O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: FCC ID: K6610511070 (VX-1700-A0-125) Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requires confidential treatment of some of the information accompanying this Application, as listed below: ・ Block Diagram ・ Schematics These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for this Application. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

August 22, 2005 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FCC ID: K6610511070 (VX-1700-A0-125) Gentlemen: Part 15.19 Compliance Statement is placed on the bottom of case. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

August 22, 2005 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FCC ID: K6610511070 (VX-1700-A0-125) Gentlemen: A. Part 15.21 Compliance Statement Drawing: B. Part 15.21 Compliance Statement Drawing Location: IN OPERATION MANUAL (location on inside back cover) Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division Part 15.21: Changes or modifications to this device not expressly approved by Vertex Standard could void the user’s authorization to operate this device. 20mm 97mm

August 22, 2005 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FCC ID: K6610511070 (VX-1700-A0-125) Gentlemen: The equipment meets the requirements of the FCC Rules, Part 90.203(e) and (g), as applicable. Programming of this product’s transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personal. The operator cannot be program transmit frequencies using the equipment’s external operation controls. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

FCC ID: K6610511070 IC ID: 511B-10511070 Vertex Standard Co., Ltd. Front view Rear view FCC ID: K6610511070 IC ID: 511B-10511070 Vertex Standard Co., Ltd. Left side Right side FCC ID: K6610511070 IC ID: 511B-10511070 Vertex Standard Co., Ltd. Top Bottom FCC ID: K6610511070 IC ID: 511B-10511070 Vertex Standard Co., Ltd. Microphone DC Power cord

VX-1700-A0-125VX-1700-A0-125 LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location ! ! Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner's manual for specific operating requirement CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. VX-1700-A0-125 FCC ID: K6610511070 IC: 511B-10511070

FCC ID: K6610511070 IC ID: 511B-10511070 Vertex Standard Co., Ltd. Top case opened Bottom case opened FCC ID: K6610511070 IC ID: 511B-10511070 Vertex Standard Co., Ltd. Side-A of MAIN-UNIT with shield cases Side-A of MAIN-UNIT without shield cases FCC ID: K6610511070 IC ID: 511B-10511070 Vertex Standard Co., Ltd. Side-B of MAIN-UNIT Side-A of PA-UNIT FCC ID: K6610511070 IC ID: 511B-10511070 Vertex Standard Co., Ltd. Side-B of PA-UNIT Side-A of PANEL-UNIT with LCD FCC ID: K6610511070 IC ID: 511B-10511070 Vertex Standard Co., Ltd. Side-A of PANEL-UNIT without LCD Side-B of PANEL-UNIT FCC ID: K6610511070 IC ID: 511B-10511070 Vertex Standard Co., Ltd. Side-A of ENC-UNIT Side-B of ENC-UNIT FCC ID: K6610511070 IC ID: 511B-10511070 Vertex Standard Co., Ltd. Side-A of MIC-UNIT Side-B of MIC-UNIT FCC ID: K6610511070 IC ID: 511B-10511070 Vertex Standard Co., Ltd. Side-A of GPS-INTERFACE-UNIT Side-B of GPS-INTERFACE-UNIT FCC ID: K6610511070 IC ID: 511B-10511070 Vertex Standard Co., Ltd. LCD LCD FCC ID: K6610511070 IC ID: 511B-10511070 Vertex Standard Co., Ltd. Inside of microphone

FCC ID: K6610511070 IC ID: 511B-10511070 Circuit Description 1/3 Vertex Standard Co., Ltd. VX-1700 Circuit Description Receive Signal Path Incoming RF signal from the ANT jack is delivered to the PA Unit, and passes through the TX/RX relay RL2009 to J2006. The RF signal is then applied to J1001 on the MAIN Unit, and passed through the limiter circuit consisting of D1006, D1007, D1008, and D1009 to prevent distortion from high RF signal input, and is fed to one of eight band-pass filters which strip away unwanted signals prior to delivery of the incoming signal to the RF amplifiers, Q1022 and Q1024. The amplified RF signal passes through a low-pass filter to the doubly-balanced mixer D1032, where the RF signal is mixed with the 1st local signal delivered from buffer amplifier Q1029, resulting in a 45.274 MHz 1st IF signal. The 45.274 MHz 1st IF signal is fed through monolithic crystal filter XF1001, which strips away unwanted mixer products, and is amplified by 1st IF amplifier Q1050; the 1st IF signal is then applied to the 2nd mixer Q1052, where it is mixed with the 45.25 MHz 2nd local signal delivered from buffer amplifier Q1075, resulting in a 24 kHz 2nd IF signal. The 24 kHz 2nd IF signal is fed through buffer amplifiers Q1031 and Q1041 to the A/D converter Q1071, then delivered to the DSP IC Q1035, where the 24 kHz 2nd IF signal is demodulated in accordance with the mode selection data from the main CPU Q1018. The demodulated signal is delivered to the D/A converter Q1081 which converts the demodulated signal to audio. The audio signal from the D/A converter Q1081 is fed through a low-pass filter at Q1036, which eliminates high-pitched noise on the audio signal, and is fed to the AF mute gate Q1092, then applied to the audio amplifier Q1055. The amplified audio signal is delivered to J3001 on the PANEL Unit, then passes through the speaker switch RL3001/Q3006 to the internal or external speaker. The DSP IC Q1035 outputs AGC data which is proportionate to the received signal strength to the main CPU Q1018. The main CPU Q1018, in turn, outputs a DC voltage in accordance with the received signal strength. This DC voltage is fed through buffer amplifier Q1039 to RF amplifiers Q1022 & Q1024 and gate 2 of IF amplifier Q1050, to reduce their gains when strong signals are present in the receiver passband. Transmit Signal Path The speech audio from the microphone is delivered to J8001 on the MIC Unit, then applied to J1005 on the MAIN Unit. The speech audio is amplified by Q1032-1, then passed though the clipper, D1044, and further amplified by Q1032-2. The amplified speech audio is fed through the A/D converter Q1081, then delivered to the DSP IC Q1035, where the speech audio is modulated in the 24 kHz TX 1st IF signal in accordance with the mode selection data from the main CPU, Q1018. The modulated signal is fed through the D/A converter Q1071 and buffer amplifier Q1034 to the singly-balanced mixer Q1054 where the 24 kHz TX 1st IF signal is mixed with 1st local signal delivered from buffer amplifier Q1075, resulting in a 45.25 MHz IF signal. The resulting 45.25 MHz IF signal is buffered by Q1049, then delivered to the monolithic crystal filter XF1001, which strips away unwanted mixer products, and then is amplified by Q1043. The amplified IF signal is delivered to doubly-balanced mixer D1032, where it is mixed with the PLL local signal from the buffer amplifier, Q1029. The resulting the RF signal at the transmit frequency is fed through a low-pass filter circuit, and then is amplified by Q1026 and buffer amplifier Q1025, and then filtered by one of eight band-pass filters to suppress out-of-band responses. The RF signal is then amplified by Q1001 and delivered to the PA Unit. On the PA Unit, the low-level RF signal from the MAIN Unit is amplified by pre-driver Q2001, push-pull driver Q2008/Q2009, and push-pull final amplifier Q2012/Q2013, which provides up to 125 watts (below 4MHz) or 100 watts (above 4 MHz) of RF output power. The RF output from the final amplifier is fed through the one of seven low-pass filters, FCC ID: K6610511070 IC ID: 511B-10511070 Circuit Description 2/3 Vertex Standard Co., Ltd. sampling directional coupler T2005, and TX/RX relay RL2009 before delivery to the antenna jack. The sampling directional coupler senses forward and reverse power output, which is rectified by D2017 and D2018, respectively, and the DC voltage is then amplified by Q2015 on the PA Unit. The DC voltages derived from forward and reverse power are applied to J1003 on the MAIN Unit, and then amplified by Q1040 and Q1044. The amplified DC voltage is fed back to the 2nd gate of the 45.275 MHz IF amplifier Q1043, so that the transmitter’s IF gain can be regulated by this sensing of the power output, preventing overdrive or damage caused by transmission into an excessive impedance mismatch at the antenna. PLL Circuit The PLL local signal for the receiver 1st local and the transmitter final local is generated by one of two VCOs: Q1072 or Q1073 in conjunction with varactor diodes D1047, D1048, D1049, D1050, D1051, D1052, D1053, and D1054 on the MAIN Unit. The oscillating frequency is determined primarily by the level of DC voltage applied to the varactor diodes. The VCO output is buffered by Q1066, amplified by Q1074, and band-pass filtered by capacitors C1389, C1391, C1397, C1400, C1409, and C1420 and coils L1070, L1071, L1074, and L1076. The filtered PLL local signal is fed through buffer amplifiers Q1027, Q1028, and Q1029 to the TX final mixer or RX 1st mixer D1032. A portion of the output of buffer amplifier Q1066 is further amplified by Q1064, then delivered to the PLL subsystem IC Q1056, which contains a reference divider, serial-to-parallel data latch, programmable divider, phase comparator and a swallow counter. The sample VCO signal is divided by the programmable divider section of the Q1056. Meanwhile, the output from the 22.625 MHz TCXO reference oscillator, X1003, is amplified by Q1062 and…

Text truncated - open the document above for the full version.

FCC ID: K6610511070 IC ID: 511B-10511070 Alignment 1/7 Vertex Standard Co., Ltd. VX-1700 Alignment The VX-1700 is carefully aligned at the factory for the specified performance across the entire operating frequency range. Realignment should therefore not be necessary except in the event of a component failure. All component replacement and service should be performed only by an authorized Vertex Standard representative, or the warranty policy may be void. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the product has left the factory. However, if damage occurs and some parts subsequently are replaced, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by authorized Vertex Standard service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the product was purchased for instructions regarding repair. Authorized Vertex Standard service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Vertex Standard reserves the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the product are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and realignment determined to be absolutely necessary. The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. FCC ID: K6610511070 IC ID: 511B-10511070 Alignment 2/7 Vertex Standard Co., Ltd. Required Test Equipment ˆ RF Signal Generator with calibrated output level at 30 MHz ˆ In-line Wattmeter with 5% accuracy at 30 MHz ˆ 50 Ohm RF Dummy Load with power rating of 200 W at 30 MHz ˆ 16 Ohm RF Dummy Load with power rating of 200 W at 30 MHz ˆ Frequency Counter with 0.02 ppm accuracy at 40 MHz ˆ AF Signal Generator ˆ AC Voltmeter ˆ DC Voltmeter: High input impedance ˆ DC Ammeter ˆ HF Sampling Coupler ˆ IBM PC / compatible Computer with MS-DOS or later operating system ˆ Vertex Standard CT-62 Programming Cable & CE77 Programming/Alignment Software Alignment Preparation & Precautions A 50-Ohm RF Dummy Load and in-line wattmeter must be connected to the ANT jack in all procedures that call for transmission, except where specified otherwise. Correct alignment is not possible with an antenna. After completing one step, read the following step to determine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, if connected) before proceeding. Correct alignment requires that the ambient temperature be the same as that of the radio and test equipment, and that this temperature be held constant between 20º and 30 °C (68º ~ 86 °F). When the radio is brought into the shop from hot or cold air, it should be allowed time to come to room temperature before alignment. Whenever possible, alignments should be made with oscillator shields and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning. Note: Signal levels in dB referred to in the alignment procedure are based on 0dBμ = 0.5μV. Set up the test equipment as shown below, and apply 13.8V DC power to the transceiver. The VX-1700 must be programmed for use in the intended system before alignment is attempted. The frequency and other parameters are loaded from the file during the alignment process. In order to facilitate alignment over the complete operating range of the equipment, it is recommended that the channel data first be uploaded and then stored to disk. Alignment Channel data should then be downloaded. The original data can be replaced at the end of the alignment process. FCC ID: K6610511070 IC ID: 511B-10511070 Alignment 3/7 Vertex Standard Co., Ltd. Reference & Local Alignment PLL Reference Frequency Alignment ˆ Connect the Frequency Counter to pin 4 of Q1062 on the MAIN Unit. ˆ Adjust X1003 on the MAIN Unit for 22.625 MHz ±10 Hz on the frequency Counter. 2nd Local Output Level ˆ Connect the RF millivoltmeter to TP1043 on the MAIN Unit. ˆ Adjust T1013 on the MAIN Unit for 160 mVrms (±50 mVrms) on the RF millivoltmeter. ˆ Confirm that the output level is 0 dBm (±2 dB) on the RF millivoltmeter. PLL Alignment VCO VCV Alignment Connect the DC voltmeter to TP1048 on the MAIN Unit, and referring to the Table below, switch the transceiver to each channel listed. Then adjust the listed component for the required voltage or confirm that the correct voltage is present. Tune to Adjust or Confirm For 13.499 MHz Adjust T1066 5.2 V ± 0.1 V 0.100 MHz Confirm More than 0.6 V 29.999 MHz Adjust T1067 5.3 V ± 0.1 V 13.5000 MHz Confirm More than 0.5 V PLL Output Level ˆ Connect the RF millivoltmeter to TP1039 on the MAIN Unit, then tune the radio to 7.500 M…

Text truncated - open the document above for the full version.

Page 1/4 VX-1700-A0-125 Address Device name DescriptionTYP VALUE [MAIN-UNIT] D 1001 DiodeIMN10 D 1002 DiodeRB521S-30 D 1003 DiodeMC2848 D 1004 DiodeRB060L-40 D 1005 DiodeRB521S-30 D 1006 DiodeRLS245 D 1007 DiodeRLS245 D 1008 DiodeRLS245 D 1009 DiodeRLS245 D 1010 Diode1SS356 D 1011 Diode1SV271 D 1012 Diode1SV271 D 1013 Diode1SV271 D 1014 Diode1SV271 D 1015 Diode1SV271 D 1016 Diode1SV271 D 1017 Diode1SV271 D 1018 Diode1SV271 D 1019 Diode1SV271 D 1020 Diode1SS356 D 1021 Diode1SS356 D 1022 Diode1SS356 D 1023 Diode1SS356 D 1024 Diode1SS356 D 1025 Diode1SS356 D 1026 Diode1SS356 D 1027 Diode1SS356 D 1028 Diode1SS356 D 1029 Diode1SS356 D 1030 Diode1SV271 D 1031 DiodeDAN235U D 1032 DiodeHSB88WS D 1033 DiodeDAN235U D 1034 DiodeDAN235U D 1035 DiodeMC2848 D 1036 DiodeHZM7.5NB3-E D 1037 LEDSML-210MT D 1038 LEDSML-210MT D 1039 DiodeUDZS 5.6B D 1040 DiodeRB521S-30 D 1041 Diode1SS356 D 1042 Diode1SS356 D 1043 LEDSML-210MT D 1044 DiodeMC2850 D 1045 DiodeMC2850 D 1046 DiodeDAP236U D 1047 DiodeHVU359 D 1048 DiodeHVU359 D 1049 DiodeHVU359 D 1050 DiodeHVU359 D 1051 DiodeHVU359 D 1052 DiodeHVU359 D 1053 DiodeHVU359 D 1054 DiodeHVU359 D 1055 DiodeD1F20-4063 D 1056 DiodeHZM27WA D 1057 Not used D 1059 LEDSML-210MT D 1060 LEDSML-210MT D 1061 LEDSML-210MT D 1062 DiodeRB521S-30 D 1063 DiodeRB521S-30 FCC ID: K6610511070 IC ID: 511B-10511070 Semi-Conductor Parts List Vertex Standard Co., Ltd. Page 2/4 VX-1700-A0-125 Address Device name DescriptionTYP VALUE FCC ID: K6610511070 IC ID: 511B-10511070 Semi-Conductor Parts List D 1064 DiodeHZM7.5NB3-E D 1065 DiodeUDZS 6.8B Q 1001 Transistor 2SC2954 Q 1002 Transistor 2SC2812NL6 Q 1003 ICTD62783AFN Q 1004 ICM51945BFP-600C Q 1005 Transistor PDTC144EE Q 1006 ICUPC2926T Q 1007 ICKIA7808API Q 1008 ICL78M05T Q 1009 Transistor PDTC144EE Q 1010 Transistor 2SA1602AF Q 1011 ICTC4028BF Q 1012 ICBA05FP-E2 Q 1013 Transistor 2SC4047 Q 1014 ICCD4094BPWR Q 1015 ICBR24L64F-WE2 Q 1016 Transistor 2SC2714Y Q 1017 ICCD4094BPWR Q 1018 ICHD64F2134A Q 1019 Transistor DTC114EUA Q 1020 ICM62354FP-75NC Q 1021 Transistor 2SC2714Y Q 1022 FET2SK520 K41 Q 1023 Transistor 2SC2714Y Q 1024 FET2SK520 K41 Q 1025 Transistor 2SC3357 RF Q 1026 Transistor 2SC2714Y Q 1027 Transistor 2SC2714Y Q 1028 Transistor 2SC3356 R25 Q 1029 Transistor 2SC2954 Q 1030 ICUPC4572G2 Q 1032 ICUPC4572G2 Q 1033 ICUPC4572G2 Q 1034 ICUPC4572G2 Q 1035 ICUPD77115GK Q 1036 ICUPC4572G2 Q 1037 Transistor PDTC144EE Q 1038 Transistor PDTC144EE Q 1039 ICLM2904PWR Q 1040 ICLM2904PWR Q 1041 ICUPC4572G2 Q 1043 FET3SK151GR Q 1044 Transistor 2SC2812NL6 Q 1045 Transistor PDTC144EE Q 1046 Transistor 2SA1602AF Q 1047 Transistor PDTC144EE Q 1048 Transistor 2SA1365-2G Q 1049 FET3SK151GR Q 1050 FET3SK151GR Q 1052 ICRF2713 Q 1053 Transistor PDTC144EE Q 1054 ICRF2713 Q 1055 ICTDA2003H Q 1056 ICADF4001BRU Q 1059 ICTC7S04FU Q 1060 ICAD9833BRM Q 1062 ICTC7S04FU Q 1063 Transistor 2SC2714Y Q 1064 Transistor 2SC2714Y Q 1065 Transistor PDTC144EE Q 1066 FET2SK302Y Q 1068 Transistor PDTC144EE Vertex Standard Co., Ltd. Page 3/4 VX-1700-A0-125 Address Device name DescriptionTYP VALUE FCC ID: K6610511070 IC ID: 511B-10511070 Semi-Conductor Parts List Q 1069 Transistor PDTC144EE Q 1070 Transistor 2SC2714Y Q 1071 ICAK4528VF Q 1072 FET2SK210GR Q 1073 FET2SK210GR Q 1074 Transistor 2SC2714Y Q 1075 Transistor 2SC2714Y Q 1076 Transistor 2SD2211 QR Q 1078 ICLM2904PWR Q 1079 ICBU4052BCF Q 1080 ICTC7ST08FU Q 1081 ICAK4550VT Q 1082 Transistor PDTC144EE Q 1083 Transistor PDTC144EE Q 1084 Transistor PDTC144EE Q 1088 ICTC74HC4040AF Q 1089 ICTC7W04FU Q 1090 Poly Switch RUE250 Q 1091 FET2SJ125D-1D Q 1092 FET2SJ125D-1D PA-UNIT D 2001 DiodeBAS316 D 2002 DiodeUDZS 16B D 2003 Diode10EDB10 D 2004 DiodeDAN202K D 2005 Diode10EDB10 D 2006 DiodeBAS316 D 2007 DiodeBAS316 D 2008 Not used D 2009 Not used D 2010 Not used D 2011 Not used D 2012 Not used D 2013 Not used D 2014 Not used D 2015 Surge Absober RHCA-301Q43U D 2016 DiodeBAS316 D 2017 DiodeMA729 D 2018 DiodeMA729 D 2019 Not used D 2020 Not used D 2021 Not used D 2022 Not used D 2023 Not used D 2024 Not used D 2025 Not used D 2026 DiodeRB060L-40 D 2027 DiodeUDZS 6.8B Q 2001 FETRD06HHF1-01 Q 2002 Transistor 2SB1143S Q 2003 ICKIA7808API Q 2004 Transistor DTC124GUA Q 2005 ICTA75S01F Q 2006 Transistor DTC114TK Q 2007 Transistor 2SC3420GR Q 2008 FETRD16HHF1 Q 2009 FETRD16HHF1 Q 2010 Transistor DTC124GUA Q 2011 Transistor DTC323TK Q 2012 Transistor SD1487 Q 2013 Transistor SD1487 Q 2014 Not used Vertex Standard Co., Ltd. Page 4/4 VX-1700-A0-125 Address Device name DescriptionTYP VALUE FCC ID: K6610511070 IC ID: 511B-10511070 Semi-Conductor Parts List Q 2015 ICLM2904PWR PANEL-UNIT D 3013 LEDSPMA10-1104Q7NC D 3014 LEDSPMA10-1104Q7NC D 3016 LEDSPMA10-1104Q7NC D 3017 LEDSPMA10-1104Q7NC Q 3001 ICLC75884W Q 3004 Transistor CPH6102 Q 3005 Transistor 2SC4154E Q 3006 Transisto rDTC143ZE GPS-INTERFACE-UNIT D 4009 LEDSML-310FTT86KL D 4011 Diode1SS355 Q 4010 Transistor 2SC4154E Q 4012 Transistor 2SC4154E Q 4013 Photo Coupler TLP281 Q 4019 ICTC7W14FU Vertex Standard Co., Ltd.

Page 1 of 20 REPORT ON Radio testing of the VERTEX STANDARD VX-1700-A0-125 In accordance with ANSI/TIA/EIA-603, RSS-119 September 2005Report number TA000215 Vertex Standard Co., Ltd. GENERAL INFORMATION TRANSMITTERS Switchable Variable xN/A RＥＣＥＩＶERS This re port was prepared by Vertex Standard Co., Ltd. 13.8[V] Collector Current: 18 [A] MANUFACTURER:Vertex Standard Co., Ltd. IC ID:511B-10511070 NUMBER OF CHANNELS: FCC ID: TRADE NAME: HF Transceiver 5J002201 TYPE OF EMISSION: FREQUENCY RANGE: RSS-119 VOLTAGE RQUIREMENTS: SERIAL NUMBER: SPECIFICATION ARE REFERENC E POWER OUTPUT RATING: 1.630to [MHz] [W] [Ω] [Ω] 50 [Ω] [MHz] [kHz] 45.274 24 1st 2nd [W] AUDIO OUTPUT POWER: OUTPUT IMPEDANCE (SP): [Ω] 16 0.5 Report number TA000215 Page 2 of EUT DESCRIPTION: 13.8[V] VX-1700-A0-125 K6610511070 VERTEX STANDARD MODEL NAME: INPUT IMPEDANCE (MIC): MAXIMUM POWER RATING: INPUT IMPEDANCE (RF): INTERMEDIATE FREQUENCIES: FREQUENCY RANGE: OUTPUT IMPEDANCE (RF): Collector Voltage: Date 07 / September /2005 Test performed by M.Kurihara 30to0.03 50 600 300 DC 200 ANSI/TIA/EIA-603 3K00J3E [MHz] [W]125/100 Vertex Standard Co., Ltd. Report number TA000215Page 3 of 20 VX-1700-A0-125 Channel Settin gs [W] 12.00002.0002.000125 24.00004.0004.000125 36.00006.0006.000100 48.00008.0008.000100 510.000010.00010.000100 612.000012.00012.000100 714.000014.00014.000100 816.000016.00016.000100 918.000018.00018.000100 1020.000020.00020.000100 1122.000022.00022.000100 1224.000024.00024.000100 1326.000026.00026.000100 1428.000028.00028.000100 1530.000030.00030.000100 16 Power Transmit Frequency [MHz] CH No. Receive Frequency [MHz] Shown on LCD Vertex Standard Co., Ltd. NAME OF TEST:R.F. Power Output (Conducted) SPECIFICATION:47 CFR 2.1046 (a) GUIDE:ANSI/TIA/EIA-603, Paragraph 2.2.1 TEST EQUIPMENT: As per attached page The EUT was connected to a resistive coaxial attenuator of normal load impedance, and the modulated output powerwas measured by means of an R.F. power meter. Measurement accuracy is ± 4% 1399.606 30.000 28.000 24.000 11 26.000 1. 2. MEASUREMENT RESULTS 2.000 CHANNEL R.F. POWER, WATTS NOMINAL, MHz 1 6.000 2 3 22.000 MEASUREMENT PROCEDURE 101.047 126.565 100.8414.000 Report number TA000215 Page 4 o f 8.000499.812 10.0005101.252 12.0006101.252 14.000799.606 16.000899.812 18.0009102.899 20.00010103.928 12101.870 102.693 14103.928 1598.371 Vertex Standard Co., Ltd. NAME OF TEST:Unwanted Emissions (Conducted) LIMIT'S), dBc:-(43+10xLOG(P)=(Watts) Report number TA000215 Page 5 of TUNED, MHz 2.0000 -64## # FR…

Text truncated - open the document above for the full version.
