K6610573X20Portable Airband Transceiver

FCC ID: K6610573X20 IC ID: 511B-10573X20 Operating Manual 1/21 Vertex Standard Co., Ltd. VXA-300 Operating Manual Introduction The Vertex Standard VXA-300 is a compact, stylish, solid hand-held transceiver providing communication (transmit and receive) capability on the International Aircraft Communication Band (“COM” band: 118 ~ 136.975 MHz), and it additionally provides VOR and CDI navigation features on the “NAV” band (108 ~ 117.975 MHz). What’s more, it also is receiving on the Amateur Radio 144 MHz band. The VXA-300 provides a 36-mm diameter Loudspeaker which outputs the 0.8 Watts audio power from the internal speaker, and it also provides an 8.33 kHz synthesize step for the newly narrow band channel plan. The VXA-300 includes Temperature and Supply Voltage display with our exclusive Omni- Glow TM display back-light for minimal degradation of your night vision, NOAA weather band monitoring, 8-character Alpha/Numeric Display, 150 Memory Channels, and 100 “Book Memory” Channels. We recommend that you read this manual in its entirety, so as to understand the many features of the VXA-300 completely. Keep this manual handy, so you may use it for reference. NOTE: The VXA-300’s VOR and CDI Navigation features are supplemental aids to navigation only, and are not intended to be a substitute for accurate (primary) VOR/CDI or landing service equipment. Congratulations! You now have at your fingertips a valuable communications tool-a Vertex Standard two-way radio! Rugged, reliable and easy to use, your Vertex Standard radio will keep you in constant touch with your colleagues for years to come, with negligible maintenance down- time. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your radio, in case questions arise later on. We’re glad you joined the Vertex Standard team. Call on us anytime, because communications is our business. Let us help you get your message across. FCC ID: K6610573X20 IC ID: 511B-10573X20 Operating Manual 2/21 Vertex Standard Co., Ltd. Important Notice! FCC RF Exposure Compliance Requirements for Occupational Use Only: This Radio has been tested and complies with the Federal Communications Commission (FCC) RF exposure limits for Occupational Use/Controlled exposure environment. In addition, it complies with the following Standards and Guidelines:  FCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation.  FCC OET Bulletin 65 Edition 97-01 (1997) Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields.  ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3kHz to 300 GHz.  ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields-RF and Microwave.  This radio is NOT approved for use by the general population in an uncontrolled environment. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control its RF exposure conditions.  When transmitting, hold the radio in a vertical position with its microphone 1 to 2 inches (2.5 to 5 cm) away from your mouth and keep the antenna at least 1 inch (2.5cm) away from your head and body.  The radio must be used with a maximum operating duty cycle not exceeding 50 %, in typical Push-to-Talk (PTT) configurations. DO NOT transmit for more than 50 % of total radio use time (50 % duty cycle). Transmitting more than 50 % of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the red LED on the top of the radio is illuminated. You can cause the radio to transmit by pressing the PTT button.  Always use Vertex Standard authorized accessories. Controls & Connectors (Top Panel) Antenna Jack This SMA jack accepts the supplied flexible antenna, or another antenna designed to provide 50 Ω impedance on the Aircraft Communication Band. MIC/EAR Jack You may connect the supplied CT-60 Headset Cable or the (optional) MH-44A4B Speaker/Microphone to this jack. Never connect any Speaker/Microphone that is not recommended by the manufacturer. Because these jack connections are unique, using a Speaker/Microphone that is not specified by Vertex Standard may damage the VXA-300. POWER/VOLUME (Inner) Knob Turn this (inner) control clockwise to turn the radio on and to increase the volume. Counterclockwise rotation into the click-stop will turn the radio off. Pressing this knob downward momentarily selects the tuning methods among the VFO (Variable Frequency Oscillator), MR (Memory Recall), BOOK (Pre-Programmed Memories), and WX (Weather Channel Memories) mode. Note: The WX mode is available in the USA version only. DIAL Selector (Outer) Knob This (outer) 20-position detended rotary switch tunes the operating frequency or selects the memory channels. FCC ID: K6610573X20 IC ID: 511B-10573X20 Operating Manual 3/21 Vertex Standard Co., Ltd. Controls & Connectors (Front Panel) BUSY/TX Indicator Lamp This lamp glows green when a signal is being received and red when transmitting. Loudspeaker The internal speaker is located in this position. Microphone Speak across this opening in a normal voice level while pressing the PTT switch, to transmit. LCD (Liquid Crystal Display) The display shows the selected operating conditions as indicated on the next page. Keypad Several keys have triple functions. The primary functions are labeled on the key top (activated by simply pressing the key momentarily). The secondary functions are labeled in yellow above the top edge of the key (activated by pressing the [F] key first, then the indicated key). The third functions are labeled in black above the top edge of the key (activated by press and holding the indicated key for 2 second). These functions are described in detail on page ??. …

Text truncated - open the document above for the full version.

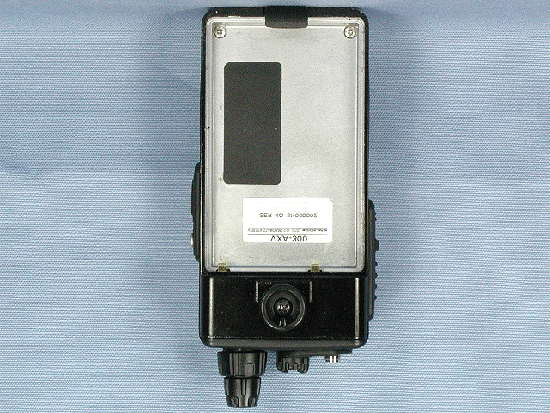

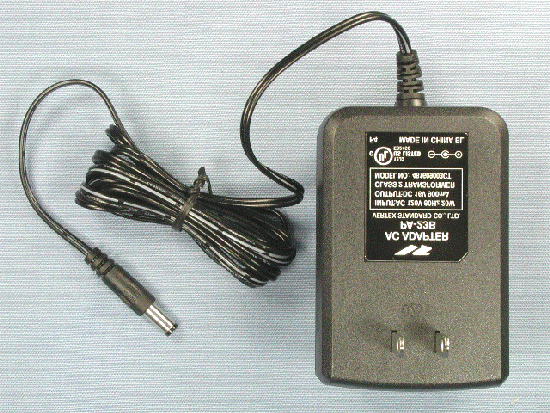

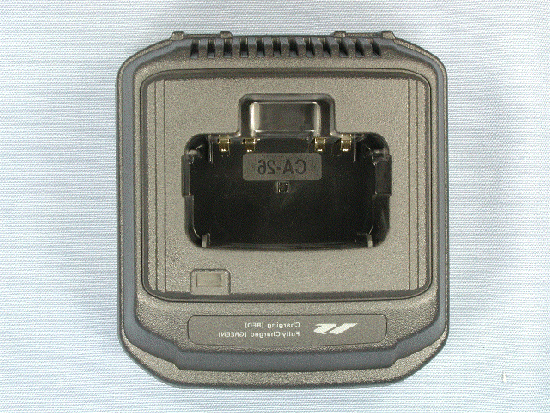

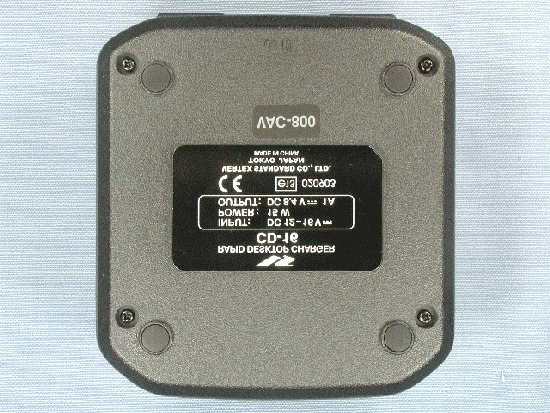

FCC ID: K6610573X20 IC ID: 511B-10573X20 Vertex Standard Co., Ltd. Front view with Antenna Front view without Antenna FCC ID: K6610573X20 IC ID: 511B-10573X20 Vertex Standard Co., Ltd. Rear view with Battery Pack Rear view without Battery Pack FCC ID: K6610573X20 IC ID: 511B-10573X20 Vertex Standard Co., Ltd. Left view Right view FCC ID: K6610573X20 IC ID: 511B-10573X20 Vertex Standard Co., Ltd. Top view Bottom view FCC ID: K6610573X20 IC ID: 511B-10573X20 Vertex Standard Co., Ltd. Top of Battery Charger Bottom of Battery Charger FCC ID: K6610573X20 IC ID: 511B-10573X20 Vertex Standard Co., Ltd. Top of AC Adapter Bottom of AC Adapter FCC ID: K6610573X20 IC ID: 511B-10573X20 Vertex Standard Co., Ltd. Front of Microphone Back of Microphone FCC ID: K6610573X20 IC ID: 511B-10573X20 Vertex Standard Co., Ltd. Antenna

VXA-300VXA-300 LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location VXA-300 K6610573X20 511B-10573X20 4909959000000 ! ! Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner's manual for specific operating requirement CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

FCC ID: K6610573X20 IC ID: 511B-10573X20 Vertex Standard Co., Ltd. Removed Front Panel Side-A of MAIN-UNIT with LCD FCC ID: K6610573X20 IC ID: 511B-10573X20 Vertex Standard Co., Ltd. Side-A of MAIN-UNIT without LCD Side-B of MAIN-UNIT FCC ID: K6610573X20 IC ID: 511B-10573X20 Vertex Standard Co., Ltd. Front of LCD Back of LCD FCC ID: K6610573X20 IC ID: 511B-10573X20 Vertex Standard Co., Ltd. Inside of front panel Inside of chassis FCC ID: K6610573X20 IC ID: 511B-10573X20 Vertex Standard Co., Ltd. Inside top of Battery Charger Inside Bottom of Battery Charger with PWB FCC ID: K6610573X20 IC ID: 511B-10573X20 Vertex Standard Co., Ltd. Inside Bottom of Battery Charger without PWB Component Side of Charger PWB FCC ID: K6610573X20 IC ID: 511B-10573X20 Vertex Standard Co., Ltd. Solder Side of Charger PWB Inside of microphone (1) FCC ID: K6610573X20 IC ID: 511B-10573X20 Vertex Standard Co., Ltd. Inside of microphone (2)

FCC ID: K6610573X20 IC ID: 511B-10573X20 Circuit Description 1/3 Vertex Standard Co., Ltd. VXA-300 Circuit Description Receive Signal Path Incoming RF from the antenna jack is passed through a low-pass filter and high-pass filter consisting of coils L1022, L1025, L1026, L1027, L1028 & L1029, capacitors C1271,C1276,C1277,C1278,C1280,C1281,C1282,C1283,C1285,C1286,C1289,C1290,C1 293,C1294 & C1295 and antenna switching diodes D1039 and D1042 to the receiver front end section. Signals within the frequency range of the transceiver is applied to the receiver front end which contains RF amplifier Q1076 and varactor-tuned band-pass filter consisting of coils L1014, L1017, L1018, L1019, L1024, L1025 & L1031, capacitors C1241, C1243, C1245, C1246, C1248, C1250, C1255, C1256, C1259, C1266, C1272 & C1273, and diodes D1034, D1035, D1038 & D1041, then applied to the 1st mixer Q1068. Buffered output from the VCO is amplified by Q1049 to provide a pure 1st local signal between 143.4 and 172.4 MHz for injection to the 1st mixer. The 35.4 MHz 1st mixer product then passes through monolithic crystal filter XF1001 (7.5 kHz BW) which strips away all but the desired signal, which is then amplified by mixer post-amp Q1061. The amplified 1st IF signal is applied to the AM/FM IF subsystem IC Q1058, which contains the 2nd mixer, 2nd local oscillator, limiter amplifier, noise amplifier and AM/FM detector. A 2nd local signal is generated by PLL IC Q1041 from the 17.475 MHz crystal X1002 .The17.475MHz signal is doubled by Q1054 to produce the 450 kHz 2nd IF when mixed with the 1st IF signal within Q1058. The 2nd IF then passes through the ceramic filter CF1001 to strip away unwanted mixer products. In the FM mode, a 2nd IF signal from the ceramic filter CF1001 applied to the limiter amplifier section of Q1058, which removes amplitude variations in the 450 kHz IF before detection of the speech by the ceramic discriminator CD1001. Detected audio from Q1058 is passed through the de-emphasis, consisting of the resistors R1144, R1152, R1155 & R1199, capacitors C1118, C1119, C1124, C1149 & C1151, and Q1037-2. In the AM mode, detected audio from Q1058 is passed through the audio amplifier Q1037- 1 and ANL circuit, then applied to the AF amplifier Q1037-2. When impulse noise received, a portion of the AM detector output signal from the AM/FM IF subsystem Q1058, including pulse noise is rectified by D1019. The resulting DC is applied to the ANL MUTE gate Q1039, thus reducing the pulse noises. The processed audio signal from Q1037-1 is passed through the AF mute and amplifier Q1037-2 to the audio tone equalizer Q1021, Q1018, Q1023, Q1026 and Q1020. The equalized audio signal is passed through the volume control to the audio power amplifier Q1001, providing up to 0.8 Watts to 16 Ω loudspeaker or audio power amplifier Q1005, providing up to 0.4 Watts to 8 Ω the headphone jack. A portion of the AF signal from the AM/FM IF subsystem Q1058 converted into DC voltage within the IC, and then passes through the AGC amplifier Q1063 and Q1066 to the inversion amplifiers Q1075 and Q1062. These amplifier reduce the amplifier gain of the IF amplifier Q1061 and the RF amplifier Q1076 while receiving a strong signal. Squelch Control When signal is received, appear the DC squelch control voltage at pin 15 of AM/FM IF subsystem Q1058 according to the receiving signal strength. This DC is applied to pin 16 of microprocessor Q1024. The DC squelch control voltage is compared with the SQL threshold level by the microprocessor Q1024. If the DC squelch control voltage is lower, pin 7 of Q1024 goes high. This signal activates the AF MUTE gate Q1037-2, thus disabling the AF audio. Also, the microprocessor stops scanning, if active, and allows audio to pass through the AF MUTE gate Q1037-2. FCC ID: K6610573X20 IC ID: 511B-10573X20 Circuit Description 2/3 Vertex Standard Co., Ltd. Transmit Signal Path Speech input from the microphone is passed through the microphone amplifier Q1011-1, then applied to the ALC amplifier Q1017. The amplified speech signal is passed through the high-pass filter Q1011-3 and low-pass filter Q1011-4, which adjust the modulation level, then fed to the AM modulator Q1069. When using the optional headset, the SIDETONE signal from J1002 becomes “HIGH”, turning Pin10 of Q1024 on; pin 91 of Q1024 therefore a portion of the speech signal applied to the AF power amplifier Q1001 as a monitor signal. The carrier signal from the VCO Q1046 passes through the buffer amplifier Q1049 and TX/RX switch D1026. The signal from D1026 is amplified by Q1060 and Q1064, and ultimately applied to the final amplifier Q1069 which increases the signal level up to 5 watts output power. The transmit signal then passes through the antenna switch D1039, and is low-pass filtered to suppress away harmonic spurious radiation before delivery to the antenna. Automatic Transmit Power Control RF power output from the final amplifier is sampled by C1275/C1279 and is rectified by D1043. The resulting DC is fed through the Automatic Power Controller Q1074, thus allowing control of the power output. Transmit Inhibit When the transmit PLL is unlocked, pin 7 of PLL chip Q1041 goes to a logic low. The resulting DC “unlock” control voltage is switches off TX inhibit switches Q1053, and Q1055 to disable the supply voltage to transmitter RF amplifiers Q1048 and Q1049, disabling the transmitter. Spurious Suppression Generation of spurious products by the transmitter is minimized by the fundamental carrier frequency being equal to the final transmitting frequency. Additional harmonic suppression is provided by a low-pass filter consisting of L1025, L1028 & L1029 and C1271, C1280, C1282, C1285, C1289 & C1293, resulting in more than 60 dB of harmonic suppression prior to delivery of the RF signal to the antenna. PLL Frequency Synthesizer PLL circuitry consists of VCO Q1046, VCO buffer Q1049 & Q1051, and PLL subsystem IC Q1041, which contains a reference divider, serial-to-paralle…

Text truncated - open the document above for the full version.

FCC ID: K6610573X20 IC ID: 511B-1053X20 Alignment 1/4 Vertex Standard Co., Ltd. VXA-300 Alignment Introduction The VXA-300 is carefully aligned at the factory for the specified performance across the Aircraft and Weather bands. Realignment should therefore not be necessary except in the event of a component failure. The following procedures cover the adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts subsequently are replaced, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by authorized Vertex Standard service technicians who are experienced with the circuitry and fully equipped for repair and alignment. If a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and realignment determined to be absolutely necessary. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy Vertex Standard reserves the right to change circuits and alignment procedures, in the interest of improved performance, without notifying owners. The following test equipment (and familiarity with its use) is necessary for complete realignment. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a signal step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. Required Test Equipment ο Radio Tester with calibrated output level at 200 MHz ο In-line Wattmeter with 5 % accuracy at 200 MHz ο 50 Ω, 10 W RF Dummy Load ο Regulated DC Power Supply adjustable from 3 to 15 VDC, 2 A ο Frequency Counter: ±0.2 ppm accuracy at 200 MHz ο AF Signal Generator ο AC Voltmeter ο DC Voltmeter: high impedance ο VHF Sampling Coupler Alignment Preparation & Precautions A 50 Ω RF load and in-line wattmeter must be connected to the main antenna jack in all procedures that call for transmission, except where specified otherwise. Correct alignment is not possible with an antenna. After completing one step, read the next step to see if the same test equipment is required. If not, remove the test equipment (except dummy load and wattmeter, if connected) before proceeding. Correct alignment requires that the ambient temperature be the same as that of the transceiver and test equipment, and that this temperature be held constant between 20 - 30 °C (68 - 86 °F). When the transceiver is brought into the shop from hot or cold air, it should be allowed some time to come to room temperature before alignment. Whenever possible, alignments should be made with oscillator shields and circuit boards firmly affixed FCC ID: K6610573X20 IC ID: 511B-1053X20 Alignment 2/4 Vertex Standard Co., Ltd. in place. Also, the test equipment must be thoroughly warmed up before beginning. Set up the test equipment as shown below for transceiver alignment, apply 7.2 VDC power to the transceiver. Notes: signal levels in dB referred to in alignment are based on 0 dBμ = 0.5 μV (closed circuit). PLL Section PLL Reference Frequency ˆ Connect the wattmeter, dummy load and frequency counter connected to the antenna jack, then set the transceiver to 128.000 MHz and turn the transceiver off. ˆ Press and hold in the PTT switch, Monitor switch, and VOLUME knob while turn the transceiver on to enter the alignment mode. ˆ Rotate the DIAL selector knob to select the “REF xxx.” ˆ Press the PTT switch, confirm the counter reading is 128.000 MHz. ˆ If not, 1. press the VOLUME knob momentarily, 2. rotate the DIAL selector knob clockwise (frequency up) or counter-clockwise (frequency down), 3. press the VOLUME knob again, 4. confirm the counter reading. ˆ Repeat above steps 1 - 4, so that the counter reading is 128.000 MHz (±100 Hz). ˆ Turn the transceiver off. Transmitter Section AM TX Power Adjustment ˆ Connect the wattmeter and dummy load to the antenna jack, then set the transceiver to 128.000 MHz and turn the transceiver off. ˆ Press and hold in the PTT switch, Monitor switch, and VOLUME knob while turn the transceiver on to enter the alignment mode. ˆ Rotate the DIAL selector knob to select the “TX PO xxx.” ˆ Press the PTT switch with no microphone input, confirm the RF output power is 1.5 Watts. ˆ If not, 1. press the VOLUME knob momentarily, 2. rotate the DIAL selector knob clockwise (increase the power) or counter-clockwise (decrease the power), 3. press the VOLUME knob again, 4. confirm the RF output power. ˆ Repeat above steps 1 - 4, so that the RF output power is 1.5 Watts. ˆ Turn the transceiver off. Tx AM Modulation Adjustment ˆ Connect the Radio Tester to the antenna jack, then adjust the AF generator output level for injection of 200 mV rms @ 1 kHz to the MIC jack. ˆ Set the transceiver to 127.500 MHz and turn the transceiver off. ˆ Press and hold in the PTT switch, Monitor switch, and VOLUME knob while turn the transceiver on to enter the alignment mode. ˆ Rotate the DIAL selector knob to select the “ MDLV xxx.” ˆ Press the PTT switch, confirm the modulation level is 85 % modulation (±5 %). ˆ If not, 1. press the VOLUME knob momentarily, 2. rotate the DIAL selector knob clockwise (increase the MIC gain) or counter- clockwise (decrease the MIC gain), 3. press the VOLUME knob again, FCC…

Text truncated - open the document above for the full version.

1/2 FCC ID: K6610573X20 IC ID: 511B-10573X20 Component Applications Address Device nameDescriptionApplication [MAIN-UNIT] Q 1001 ICTDA2822DAF Power amplifier Q 1002 TransistorDTC144EE MIC SW Q 1003 TransistorCPH6102AF AMP.control switch Q 1004 TransistorUMG2N AF AMP.control switch Q 1005 ICTDA7233DAF Power amplifier Q 1006 TransistorDTC144EE AF AMP.control switch Q 1007 Transistor2SA1774AF AMP.control switch Q 1008 TransistorCPH6102Mic amp. REG Q 1009 Transistor2SC46177V regulator Q 1010 ICAK93C95AFEEPROM Q 1011 ICNJM12902VMic amplifier Q 1012 TransistorDTC124TEMic amp. gain SW Q 1013 Transistor2SC4617 AF AMP.control switch Q 1014 Transistor2SB1201S7V regulator Q 1015 TransistorDTC144EEMic amp. REG SW Q 1016 TransistorCPH6102AF AMP.control switch Q 1017 ICAN6123MSALC amp. Q 1018 TransistorHN1J02FUEQ. SW Q 1019 TransistorUMG2NLED driver Q 1020 ICNJM12902VEqualizer amp. Q 1021 ICNJM12904REqualizer amp. Q 1022 Transistor2SC4617Clock shift switch Q 1023 TransistorHN1J02FUEQ. SW Q 1024 ICLC87F74C8A-TQFPMicroprocessor Q 1025 ICBU4094BCFVShift register Q 1026 TransistorHN1J02FUEQ. SW Q 1027 ICBU4094BCFVShift register Q 1028 TransistorDTA143EE RX SAVE switch Q 1029 TransistorUMG2NRX SAVE switch Q 1030 TransistorDTC144EERX SAVE switch Q 1031 Transistor2SC4617Ripple filter Q 1032 TransistorDTA143EE RX SAVE switch Q 1033 TransistorDTC124TEReset control Q 1034 TransistorDTA143EE RX switch Q 1035 TransistorDTC144EE AM switch Q 1036 TransistorDTA143EEAM switch Q 1037 ICNJM12904RAF amplifier Q 1038 TransistorDTC144EEVCO Shift switch Q 1039 TransistorUMG2N ANL SW Q 1040 ICS-80835CNMC-B8UVoltage detect Q 1041 ICMB15A01PFV1-G-BNDPLL subsystem Q 1042 TransistorUMW1N5V regulator Q 1043 TransistorCPH61025V regulator Q 1044 TransistorDTC144EEPLL SAVE switch Q 1045 ICM62364FPD/A Converter Q 1046 Transistor2SC5555ZDVCO Q 1047 TransistorDTA143EEPLL SAVE switch Q 1048 ICS-812C35AUA-C2P3.5V regulator Q 1049 Transistor2SC5555ZDVCV Buffer Q 1050 TransistorUMA5N5V SW Q 1051 Transistor2SC5555ZDVCV Buffer Q 1052 Transistor2SK2170LED driver Q 1053 TransistorDTC144EETx switch Q 1054 Transistor2SC4617doubler Q 1055 TransistorDTA143EETx switch Q 1056 TransistorCPH6202LED driver Q 1057 TransistorUMG2NAGC Control Q 1058 ICTK10931VIF subsystem Q 1059 TransistorCPH6202LED driver Q 1060 Transistor2SC5555ZDDriver amplifier Q 1061 Transistor2SC4915YIF amplifier Q 1062 Transistor2SC5555ZDAGC Control Q 1063 Transistor2SA1774AGC amplifier Q 1064 TransistorRD01MUS1Exciter amplifier Q 1065 ICNJM2901VVOR Q 1066 TransistorUMW1N AGC amplifier Q 1067 Transistor2SA1774AGC amplifier Q 1068 Transistor2SC5555ZD1st mixer VXA-300 Vertex Standard Co., Ltd. 2/2 FCC ID: K6610573X20 IC ID: 511B-10573X20 Component Applications Address Device nameDescriptionApplication VXA-300 Q 1069 TransistorRD07MVSPower amplifier Q 1070 TransistorDTC144EETx switch Q 1071 ICNJM12902VVOR Q 1072 ICNJM12904RWX Arert Filter Q 1073 TransistorDTA143EETx switch Q 1074 ICNJM2125FAPC amp. Q 1075 Transistor2SC5555ZDAGC Control Q 1076 Transistor2SC5555ZDRF amplifier Q 1077 Transistor2SA1774BPF Tune Amp. Q 1078 TransistorUMW1BPF Tune Amp. D 1001 Diode M1FM3Reverse protector D 1002 Diode1SS400Reverse protector D 1003 Zener DiodeRD5.1UMB2Voltage limitter D 1004 DiodeDAN222Reverse voltage protector D 1005 Zener DiodeRD6.8UMB2Voltage limitter D 1006 DiodeDA221Current limitter D 1007 DiodeRB751S-40Reverse current protector D 1008 DiodeDA221Reverse current protector D 1009 DiodeHSU277Detect D 1010 LEDCL-165HR/YGTX/BUSY Lamp D 1011 DiodeUMP11N Selector D 1012 DiodeUMP11N Selector D 1013 Diode1SS400Ripple filter D 1014 DiodeHVC350BVCO D 1015 DiodeDA221 Reverse voltage protector D 1016 DiodeDA221 Detect D 1017 DiodeHSU277VCO Shift switch D 1018 DiodeHVC350BReference Oscillator tune D 1019 Diode1SS400ANL D 1020 Diode1SS400Reverse protector D 1021 Diode1SS400 Reverse voltage protector D 1022 Zener DiodeHZU4ALLVoltage protector D 1023 LED19-215UYOC/S530A2/Illumination D 1024 DiodeDAN222 Selector D 1025 LED19-215UYOC/S530A2/Illumination D 1026 DiodeDAN222Selector D 1027 LED19-215UYOC/S530A2/Illumination D 1028 LED19-215UYOC/S530A2/Illumination D 1029 LED19-215UYOC/S530A2/Illumination D 1030 DiodeDA221Fast Switch D 1031 DiodeDA221 Fast Switch D 1032 LED19-215UYOC/S530A2/Illumination D 1033 Diode1SS400 Level shift D 1034 Varactor DiodeHVC350BBPF Tune D 1035 Varactor DiodeHVC350BBPF Tune D 1036 Diode1SS400 Level shift D 1037 Diode1SS400 Detect D 1038 Varactor DiodeHVC350BBPF Tune D 1039 DiodeRLS135TX/RX switch D 1040 DiodeDA221Fast Switch D 1041 Varactor DiodeHVC350BBPF Tune D 1042 DiodeRLS135TX/RX switch D 1043 DiodeHSM88WADetect D 1044 DiodeRN739F RF level limitter D 1045 VaristorTVSF0805Surge absorber D 1046 LED19-215UYOC/S530A2/Illumination Vertex Standard Co., Ltd.

Date: March 26, 2004 Applicant: Vertex Standard Co. Ltd. Equipment: FCC ID: K6610573X20 Reference: Job #356UC4 The unit is a portable radio operating of the transmitter band of 118MHz to 137MHz with an output power of 1.5W, operated less than 2.5cm from the body. The usage of the device qualifies it as Occupational for SAR calculations. The low threshold is Mid band frequency = 127MHz = 0.127GHz = 375 / 0.127 mW = 2,953 mW = 2.953 W As the device is below the low threshold for routine SAR evaluation, no report or data is required. Regards, David E. Lee, Lab Manager

FCC ID: K6610573X20 MFA p0410003, d0420016 Transmitter Certification of FCC ID: K6610573X20 Model: VXA-300 to Federal Communications Commission Rule Part(s) 87 Date of report: February 12, 2004 On the Behalf of the Applicant: Vertex Standard Co., Ltd. At the Request of: P.O. 01/08/04 Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 Attention of: Mikio Maruya, Executive Vice President (800) 255-9237; FAX: (800) 477-9237 (714) 827-7600; FAX: -8100 [email protected] Supervised by: Morton Flom, P. Eng. FCC ID: K6610573X20 MFA p0410003, d0420016 List of Exhibits (FCC Certification (Transmitters) - Revised 9/28/98) Applicant: Vertex Standard Co., Ltd. FCC ID: K6610573X20 By Applicant: 1. Letter of Authorization x 2. Confidentiality Request: 0.457 And 0.459 x 3. Identification Drawings, 2.1033(c)(11) x Label x Location of Label x Compliance Statement x Location of Compliance Statement 4. Photographs, 2.1033(c)(12) x 5. Documentation: 2.1033(c) (3) User Manual x (9) Tune Up Info x (10) Schematic Diagram x (10) Circuit Description x Block Diagram x Parts List x Active Devices x 6. MPE/SAR Report x By M.F.A. Inc.: A. Testimonial & Statement of Certification FCC ID: K6610573X20 MFA p0410003, d0420016 The Applicant has been cautioned as to the following: 15.21 Information to the User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC ID: K6610573X20 MFA p0410003, d0420016 Table of Contents Rule Description Page . Test Report 1 2.1033(c) General Information Required 2 2.1033(c)(14) Rule Summary 7 . Standard Test Conditions and Engineering Practices 8 2.1046(a) Carrier Output Power (Conducted) 9 2.1046(a) ERP Carrier Power (Radiated) 11 2.1051 Unwanted Emissions (Transmitter Conducted) 12 2.1053(a) Field Strength of Spurious Radiation 16 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 20 2.1047(a) Audio Low Pass Filter (Voice Input) 23 2.1047(a) Audio Frequency Response 26 2.1055(b)(1) Frequency Stability (Voltage Variation) 31 2.202(g) Necessary Bandwidth and Emission Bandwidth 32 FCC ID: K6610573X20 MFA p0410003, d0420016 Page Number 1 of 32. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0420016 d) Client: Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 e) Identification: VXA-300 FCC ID: K6610573X20 EUT Description: Portable Airband Transceiver f) EUT Condition: Not required unless specified in individual tests. g) Report Date: February 12, 2004 EUT Received: January 8, 2004 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The resu…

Text truncated - open the document above for the full version.
