K6610583020VHF FM HANDHELD TRANSCEIVER

FCC ID: K6610583020 IC ID: 511B-10583020 Operating Manual 1/7 Vertex Standard Co., Ltd. VX-820/870 series Operating Manual SAFETY TRANING INFORMATION This Radio has been tested and complies with the Federal Communications Commission (FCC) RF exposure limits for Occupational Use/Controlled exposure environment. In addition, it complies with the following Standards and Guidelines: - FCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation. - FCC OET Bulletin 65 Edition 97-01 (1997) Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. - ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3kHz to 300 GHz. - ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields-RF and Microwave. WARNING: This radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as Occupational Use Only, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is not intended for use by the General Population in an uncontrolled environment. CAUTION: To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: - This radio is NOT approved for use by the general population in an uncontrolled environment. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control its RF exposure conditions. - When transmitting, hold the radio in a vertical position with its microphone 1 to 2 inches (2.5 to 5 cm) away from your mouth and keep the antenna at least 1 inch (2.5cm) away from your head and body. - The radio must be used with a maximum operating duty cycle not exceeding 50 %, in typical Push-to-Talk (PTT) configurations. DO NOT transmit for more than 50 % of total radio use time (50 % duty cycle). Transmitting more than 50 % of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the red LED on the top of the radio is illuminated. You can FCC ID: K6610583020 IC ID: 511B-10583020 Operating Manual 2/7 Vertex Standard Co., Ltd. cause the radio to transmit by pressing the PTT button. - DO NOT transmit when the radio is used in Body Worn configuration with the following accessory: belt-clip. It must be used ONLY for (1) there is a 4 cm distance from the body during transmitting, (2) monitoring purposes, using the speaker only and (3) for carrying purposes. - Always use VERTEX STANDARD authorized accessories. The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to assure that this radio operates with the FCC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, this radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. Do not operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, health care facilities, aircraft, and blasting sites. FCC ID: K6610583020 IC ID: 511B-10583020 Operating Manual 3/7 Vertex Standard Co., Ltd. 1,Controls & Connectors LED Indicator Glows Green: Scan active Blinks Green: Busy Channel (or SQL off) Glows Red: Transmit Blinks Red: Battery Voltage is low Antenna Jack PTT (Push to Talk) Switch Monitor Button Lamp Button CH (Channel) Selector VOL/PWR Knob LCD (without VX-821/871 version) SEL KEY (TOP) MIC/SP Jack (External MIC/SP) Speaker Main Microphone Battery Pack Latch 16-Button DTMF Keypad (VX-829/879 version only) 4-Button DTMF Keypad (VX-824/874 version only) FCC ID: K6610583020 IC ID: 511B-10583020 Operating Manual 4/7 Vertex Standard Co., Ltd. 2,Before You Begin Battery Pack Installation and Removal ˆ To install the battery, hold the transceiver with your left hand, so your palm is over the speaker and your thumb is on the top of the belt clip. Insert the battery pack into the battery compartment on the back of the radio while tilting the Belt Clip outward, then close the Battery Pack Latch until it locks in place with a “Click.” ˆ To remove the battery, turn the radio off and remove any protective cases. Open the Battery Pack latch on the bottom of the radio, then slide the battery downward and out from the radio while unfolding the Belt Clip. Caution!: Do not attempt to open any of the rechargeable Li-ion packs, as they could explode if accidentally short-circuited. Low Battery Indication ˆ As the battery discharges during use, the voltage gradually becomes lower. When the battery voltage reaches 6.0 volts, substitute a freshly charged battery and recharge the depleted pack. The TX/BUSY indicator on the top of the radio will blink red when the battery voltage is low. ˆ Avoid recharging Li-ion batteries often with little use between charges, as this can degrade the charge capacity. We recommend that you carry an extra, fully charged pack with you so the operational battery may be used until depletion (this “deep cycling” technique promotes better long-term battery capacity). FCC ID: K6610583020 IC ID: 511B-10583020 Operating Manual 5/7 Vertex Standard Co., Ltd. 3,Operation Preliminary Steps ˆ Install a charged battery pack onto the transceiver, as described previously. ˆ Screw the supplied antenna onto the Antenna jack. Never attempt to operate this transceiver without an antenna connected. ˆ If you have a Speaker/Microphone, we recommend that it not be connected until you are familiar with the basic operation of the VX-820/870. Operation Quick Start ˆ To turn the top panel’s VOL/PWR knob clockwise to turn on the radio on. ˆ Pul…

Text truncated - open the document above for the full version.

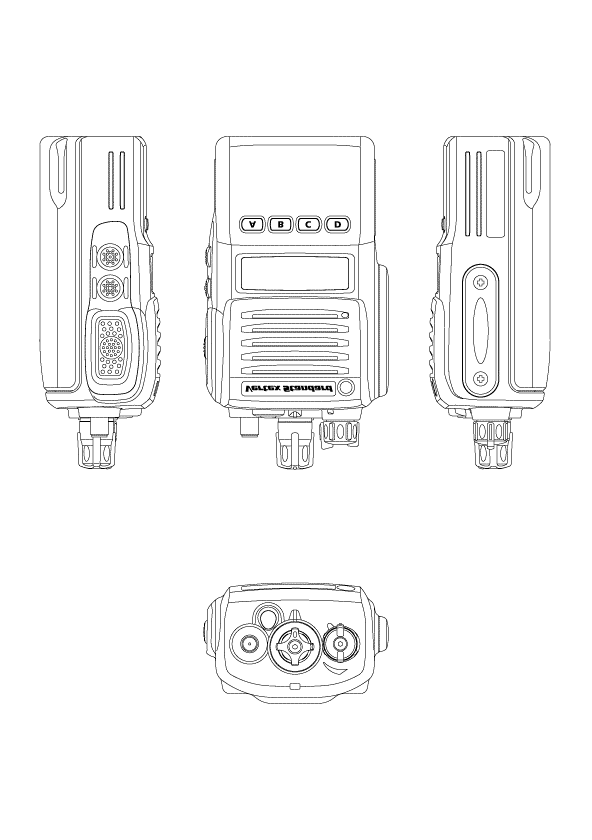

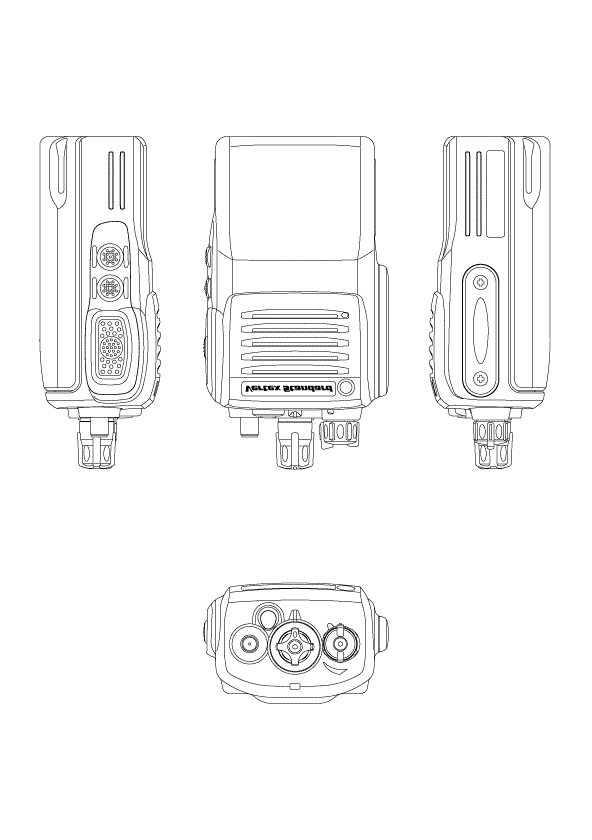

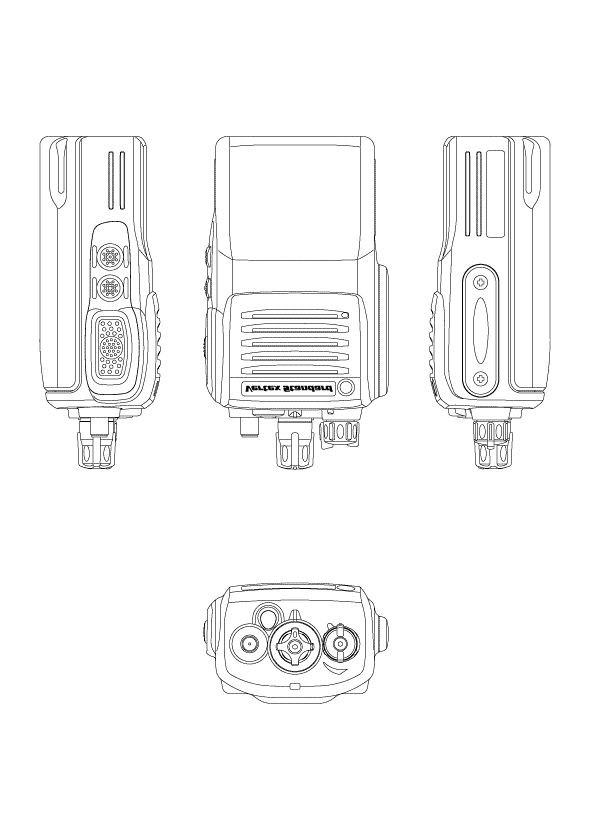

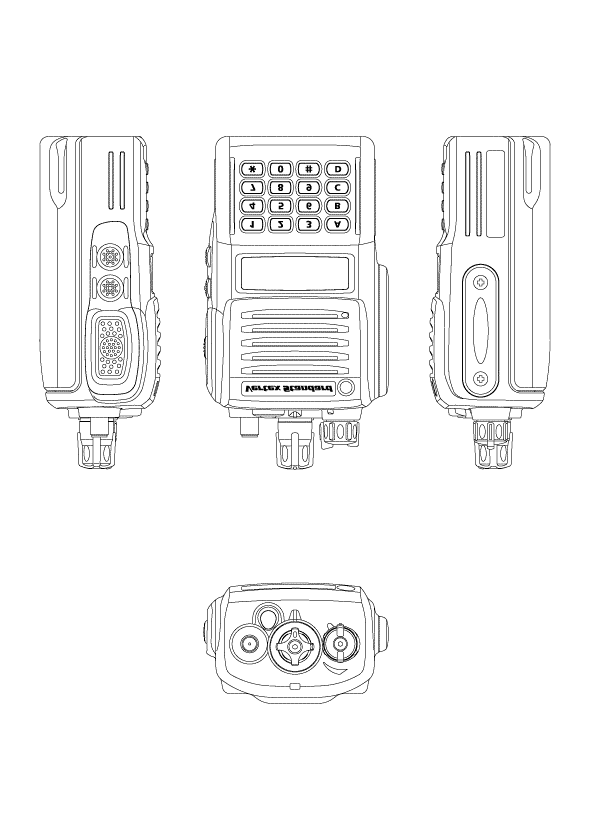

FCC ID: K6610583020 IC ID: 511B-10583020 Vertex Standard Co., Ltd. Exterior view (VX-829/VX-879) FCC ID: K6610583020 IC ID: 511B-10583020 Vertex Standard Co., Ltd. Exterior view (VX-824/VX-874) FCC ID: K6610583020 IC ID: 511B-10583020 Vertex Standard Co., Ltd. Exterior view (VX-821/VX-871)

VX-820/870 seriesVX-820/870 series LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location VX-821-D0-5 FCC ID: K6610583020 IC: 511B-10583020 4909959000000 ! ! Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner's manual for specific operating requirement CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. VERTEX STANDARD CO., LTD. MADE IN JAPAN SER NO. 00000000 VX-824-D0-5 FCC ID: K6610583020 IC: 511B-10583020 4909959000000 VERTEX STANDARD CO., LTD. MADE IN JAPAN SER NO. 00000000 VX-829-D0-5 FCC ID: K6610583020 IC: 511B-10583020 4909959000000 VERTEX STANDARD CO., LTD. MADE IN JAPAN SER NO. 00000000 VX-871-D0-5 FCC ID: K6610583020 IC: 511B-10583020 4909959000000 VERTEX STANDARD CO., LTD. MADE IN JAPAN SER NO. 00000000 VX-874-D0-5 FCC ID: K6610583020 IC: 511B-10583020 4909959000000 VERTEX STANDARD CO., LTD. MADE IN JAPAN SER NO. 00000000 VX-879-D0-5 FCC ID: K6610583020 IC: 511B-10583020 4909959000000 VERTEX STANDARD CO., LTD. MADE IN JAPAN SER NO. 00000000

FCC ID: K6610583020 IC ID: 511B-10583020 Vertex Standard Co., Ltd. Side-A of MAIN-UNIT Side-B of MAIN-UNIT with shield case FCC ID: K6610583020 IC ID: 511B-10583020 Vertex Standard Co., Ltd. Side-B of MAIN-UNIT without shield case Side-A of DISPLAY-UNIT with LCD (VX-824/829/VX-874/879) FCC ID: K6610583020 IC ID: 511B-10583020 Vertex Standard Co., Ltd. Side-A of DISPLAY-UNIT without LCD (VX-824/829/VX-874/879) Side-B of DISPLAY-UNIT (VX-824/829/VX-874/879) FCC ID: K6610583020 IC ID: 511B-10583020 Vertex Standard Co., Ltd. Front of LCD (for VX-824/829/VX-874/879) Back of LCD (for VX-824/829/VX-829/879) FCC ID: K6610583020 IC ID: 511B-10583020 Vertex Standard Co., Ltd. Inside of chassis

FCC ID: K6610583020 IC ID: 511B-10583020 Circuit Description 1/3 Vertex Standard Co., Ltd. VX-820/870 series Circuit Description 1. Circuit Configuration by Frequency The receiver is a double-conversion superheterodyne with a first intermediate frequency (IF) of 50.85 MHz and a second IF of 450 kHz. Incoming signal from the antenna is mixed with the local signal from the VCO/PLL to produce the first IF of 50.85 MHz. This is then mixed with the 50.4 MHz second local oscillator output to produce the 450 kHz second IF. This is detected to give the demodulated signal. The transmit signal frequency is generated by the PLL VCO, and modulated by the signal from the microphone. It is then amplified and sent to the antenna. 2. Receiver System 2-1. Front-end RF amplifier Incoming RF signal from the antenna is delivered to the RF Unit and passes through Low- pass filer, antenna switching diode, high pass filter and removed undesired frequencies by varactor diode (tuned band-pass filer). The passed signal is amplified in Q1021 and moreover cuts an image frequency with the tuned band pass filter and comes into the 1st mixer. 2-2. First Mixer The 1st mixer consists of the Q1034, T1001, T1002, and T1003. Buffered output from the VCO is amplified by Q1032 to provide a pure first local signal between 184.85 and 224.85 MHz for injection to the first mixer. The IF signal then passes through monolithic crystal filters XF1001 (±5.5 kHz BW) to strip away all but the desired signal. 2-3. IF Amplifier The first IF signal is amplified by Q1056. The amplified first IF signal is applied to FM IF subsystem IC Q1065 which contains the second mixer, second local oscillator, limiter amplifier, noise amplifier, and S-meter amplifier. The signal from reference oscillator X1003 becomes 3 times of frequencies in Q1065, it is mixed with the IF signal and becomes 450 kHz. The second IF then passes through the ceramic filter CF1001 (wide channels), CF1002 (narrow channels) to strip away unwanted mixer products, and is applied to the limiter amplifier in Q1065, which removes amplitude variations in the 450 kHz IF, before detection of the speech by the ceramic discriminator CD1001. 2-4. Audio amplifier Detected signal from Q1065 is inputted to Q1031 and is output through the band path filter inside Q1031. In the case an optional unit is installed, the Q1078 is made OFF and the AF signal from Q1031 goes the optional unit. In the case an optional unit is not installed, Q1078 is made ON and the signal goes through Q1078. The signal then goes through de-emphasis part and expander Q1022. When the function of expander is off, the signal will be bypassed by Q1014. The output signal of expander (or a signal from de-emphasis) goes through AF mute switch Q1078 and amplified by Q1084. The signal goes to Q1029, 2-5. Squelch Circuit There are 13 levels of squelch setting from 0 to 12. The level 0 means open the squelch. The level 1 means the threshold setting level and level 11 means tight squelch. From 2 to 10 is established in the middle of threshold and tight. The bigger figure is nearer the tight setting. The level 12 becomes setting of carrier squelch. 2-5-1. Noise Squelch Noise squelch circuit is composed of the band path filter of Q1065, noise amplifier Q1069, and noise detector D1049, D1050. When a carrier isn't received, the noise ingredient which goes out of the demodulator Q1065 is amplified in Q1069 through the band path filter Q1065, is detected to DC FCC ID: K6610583020 IC ID: 511B-10583020 Circuit Description 2/3 Vertex Standard Co., Ltd. voltage with D1049, D1050 and is inputted to 16pin (the A/D port) of the Q1067 (CPU). When a carrier is received, the DC voltage becomes low because the noise is compressed. When the detected voltage to CPU is high, the CPU stops AF output with Q1078 "OFF" by making the 59pin (CPU) "L" level. When the detection voltage is low, the CPU makes Q1078 ON with making 59pin "H" and the AF signal is output. 2-5-2. Carrier Squelch The CPU (15pin: A/D port) detect RSSI voltage output from Q1065 12 pin, and controls AF output. The RSSI output voltage changes according to the signal strength of carrier. The stronger signal makes the RSSI voltage to be higher voltage. The process of the AF signal control is same as Noise Squelch The shipping data is adjusted 3dB higher than squelch tight sensitivity. 3. Transmitter System 3-1. MIC Amplifier The AF signal from internal microphone J2002 21pin or external microphone J2002 6pin is amplified with microphone amplifier Q2014, after microphone selection switch Q2015, and passes microphone gain volume Q1020. The AF signal which was controlled in the correct gain passes compandor Q1022. When not using a compandor, with the control from the CPU, it passes in the compandor circuit inside of Q1022 and it is output and it passes a pre-emphasis circuit. Q1078 becomes OFF when an option unit is attached and the AF signal from Q1022 goes via the option unit. When an option unit isn't attached, Q1078 becomes ON, the signal passes Q1078 and is input to the pre-emphasis amplifier Q1031. The signal passed limiter and splatter filter of Q1031 is adjusted by maximum deviation adjustment volume Q1020. The adjusted low frequency signal ingredient is amplified by Q1075, added modulation terminal of TCXO (X1003), the FM modulation is made by reference oscillator. The high frequency signal ingredient is amplified Q1075, and adjusted the level by volume Q1020 to make frequency balance between low frequency. After that, it is made FM modulation to transmit carrier by the modulator D1030 of VCO. 3-2. Drive and Final amplifier The modulated signal from the VCO Q1052 is buffered by Q1040 and amplified by Q1032. Then the signal is buffered by Q1027 for the final amplifier driver Q1024. The low-level transmit signal is then applied to Q1019 for final amplification up to 5 watts output power. The transmit signal then passes through the antenna switch D1012 and is low-pass filtered to supp…

Text truncated - open the document above for the full version.

Page 1/3 FCC ID: K6610583020 IC ID: 511B-10583020 VX-820/VX-870 seriesComponent Application Address Device name DescriptionApplication [MAIN-UNIT] D 1001 DiodePTZ TE25 15AProtect D 1005 Diode1SS400GSW D 1006 Diode1SS400GSW D 1011 DiodeHVU131ANT SW D 1012 DiodeHVU131ANT SW D 1013 Diode1SV323BPF Tune D 1014 Diode1SV323BPF Tune D 1015 Diode1SV323BPF Tune D 1016 Diode1SV323BPF Tune D 1017 Diode1SS400GProtect D 1018 Diode1SS400GRX RF AMP D 1019 Diode1SV323BPF Tune D 1020 Diode1SV323BPF Tune D 1021 Diode1SV323BPF Tune D 1022 Diode1SV323BPF Tune D 1023 DiodeDAN222SW D 1024 Diode1SS400GRipple Filter D 1025 DiodeDA221Limiter D 1026 DiodeDA221Limiter D 1029 Not use D 1030 Diode1SV286TX VCO D 1032 Diode1SS400Ripple Filter D 1033 Diode1SV286TX VCO D 1034 Diode1SV286TX VCO D 1035 Diode1SV286TX VCO D 1036 Diode1SV282TX VCO D 1037 Diode1SV282TX VCO D 1038 Diode1SV282TX VCO D 1039 Diode1SV286TX VCO D 1040 Diode1SV282TX VCO D 1041 Diode1SS400GReverse Protect D 1042 DiodeDA221Limiter D 1043 DiodeDA221Limiter D 1044 Zener Diode HZU5ALLProtect D 1046 DiodeDAN222SW D 1047 Diode1SS400GLimiter D 1048 DiodeDAN222SW D 1049 DiodeDA221Limiter D 1050 DiodeDA221Limiter D 1051 Diode1SS400GProtect Q 1002 Transistor XP1501TX 5V Regulator Q 1003 Transistor CPH6102TX 5V Regulator Q 1004 Transistor DTC144EESW Q 1005 ICTAR5S505V Regulator Q 1006 Transistor UMD5N TRSW Q 1010 Transistor DTC114TESW Q 1014 ICCD4053BPWRSelector Q 1017 Transistor DTC144EESW Q 1018 Transistor DTC144EESW Q 1019 FET2SK3476TX PA Q 1020 ICM62364FP 600DLevel Control Q 1021 Transistor 2SC5226-4/5RX RF AMP Q 1022 ICLA8630M-B-TE-RDe-emphasis / Expander Q 1024 FET2SK3475TX Pre-Drive AMP Q 1025 Transistor DTC144EESW Q 1027 Transistor 2SC3356 R25Buffer AMP Q 1028 ICBD6111FV-E2VCV/TUNE Control Q 1029 ICTC4W53FUSelector Q 1030 ICNJM2130FVCV Control Q 1031 ICAK2345AF Base-Band Q 1032 Transistor 2SC5226-4Buffer AMP Q 1033 Transistor DTC144EESW Vertex Standard Co., Ltd. Page 2/3 FCC ID: K6610583020 IC ID: 511B-10583020 VX-820/VX-870 seriesComponent Application Address Device name DescriptionApplication Q 1034 ICSPM5001RX 1st Mixer Q 1035 Transistor 2SA1774 RRipple Filter Q 1036 Transistor DTA144EESW Q 1037 ICTC7W74FUAF Control Q 1038 Transistor DTC114TESW Q 1040 Transistor 2SC5226-4Buffer AMP Q 1041 Transistor UN911FSW Q 1043 Transistor DTC144EESW Q 1046 FET2SK508 K52RX VCO Q 1047 Transistor DTC114TESW Q 1048 Transistor DTC144EESW Q 1049 Transistor 2SC5226-4Buffer AMP Q 1051 Transistor 2SC4227 R32TX VCO Q 1053 Transistor 2SC4617 RRipple Filter Q 1056 Transistor 2SC4215YIF AMP Q 1058 Transistor UMD5NSW Q 1059 ICS-80835CNMC-B8UPower Down Q 1060 ICTAR5S353.5V Regulator Q 1061 ICTAR5S35Reset Cntrol Q 1062 Transistor DTC114TESW Q 1063 ICBR93L66RFVMEEPROM Q 1064 Transistor 2SC4617 RReset Cntrol Q 1065 ICTA31136FNIF Subsystem Q 1066 FET2SK880GRVCV Detect Q 1067 ICLC87F72C8A-F5N19Microprocessor Q 1068 ICSA7025DKPLL Subsystem Q 1069 Transistor 2SC4617 RNoise AMP Q 1070 Transistor DTC144EESW Q 1071 Transistor DTC144EESW Q 1072 ICLM2902PWRCurrent Detect/Power Control Q 1073 ICLM2902PWRAF Control Q 1074 ICLM2902PWRAF Control Q 1075 ICLM2902PWRAF Control Q 1078 ICCD4066BPWRAF SW Q 1080 ICLM2904PWRAF Control Q 1082 ICLM2902PWRAF Control Q 1083 Transistor DTC114TESW Q 1084 ICNJM2130FAF Control Q 1085 Transistor UN911FSW Q 1086 Transistor DTC144EESW [DISPLAY-UNIT] D 2001 LEDFA1101FBacklight for LCD D 2002 LEDFA1101FBacklight for LCD D 2003 LEDTLOU1020Backlight for LCD D 2004 LEDTLOU1020Backlight for LCD D 2005 LEDTLOU1020Backlight for KEY D 2006 LEDTLOU1020Backlight for KEY D 2009 Diode1SS400SW D 2010 Diode1SS400SW D 2011 Diode1SS400SW D 2012 Diode1SS400SW D 2013 LEDSDDF01000A1TX/BUSY Indicator D 2014 DiodeDA221Limiter D 2015 DiodeDA221Limiter D 2016 DiodeDA221Limiter D 2017 DiodeDA221Limiter D 2018 DiodeDA221Limiter D 2019 Diode1SS400GSW D 2020 DiodeDA221Limiter Q 2001 Transistor DTC114TESW Q 2002 Transistor DTC114TESW Q 2003 ICTAR5S50URegulator for LED Vertex Standard Co., Ltd. Page 3/3 FCC ID: K6610583020 IC ID: 511B-10583020 VX-820/VX-870 seriesComponent Application Address Device name DescriptionApplication Q 2004 Transistor XP1501Regulator for LED Q 2005 Transistor 2SA1602A-1FRegulator for LED Q 2006 ICNJU6624AFG1-03LCD Driver Q 2007 Transistor 2SD1767 QLED Driver Q 2008 Transistor DTC114TESW Q 2009 Transistor DTC114TESW Q 2010 Transistor DTC114TESW Q 2011 Transistor DTC114TESW Q 2012 Transistor DTC114TESW Q 2013 Transistor DTC114TESW Q 2014 ICLM2904PWRAF Control Q 2015 ICCD4053BPWRSelector Q 2016 ICTDA2822D013TRAF PA Q 2017 ICTDA2822D013TRAF PA Q 2018 Transistor CPH6102SW Q 2019 Transistor 2SA1774 RCurrent Limiter Q 2020 Transistor UMD12NSW Q 2021 Transistor UMD12NSW Q 2022 Transistor DTC144EESW Q 2023 Transistor DTC114TESW Vertex Standard Co., Ltd.

Page 1 of 48 REPORT ON Radio testing of the VERTEX STANDARD VX-829-D0-5 In accordance with ANSI/TIA/EIA-603, RSS-119 November 2004Report number TA000177 Vertex Standard Co., Ltd. GENERAL INFORMATION TRANSMITTERS Switchable x Variable N/A RＥＣＥＩＶERS This report was prepared by Vertex Standard Co., Ltd. 50 2000 300 DC 16 ANSI/TIA/EIA-603 174to134 Date 17 / November /2004 Test performed by M.Kurihara INPUT IMPEDANCE (MIC): MAXIMUM POWER RATING: INPUT IMPEDANCE (RF): INTERMEDIATE FREQUENCIES: FREQUENCY RANGE: OUTPUT IMPEDANCE (RF): Collector Voltage: Report number TA000177 Page 2 of 48 EUT DESCRIPTION: 7.4[V] VX-829-D0-5 K6610583020 VERTEX STANDARD MODEL NAME: [W]AUDIO OUTPUT POWER: OUTPUT IMPEDANCE (SP):[Ω]4 0.5 50[Ω] [MHz] [kHz] 50.85 -450 1st 2nd [MHz] [W] [Ω] [Ω] [MHz] [W] 16K0F3E , 11K0F3E POWER OUTPUT RATING: 134 1 174to to5 TYPE OF EMISSION: FREQUENCY RANGE: RSS-119 VOLTAGE RQUIREMENTS: SERIAL NUMBER: SPECIFICATION ARE REFERENCED NUMBER OF CHANNELS: FCC ID: TRADE NAME: VHF FM Transceiver 4M000023 IC ID:511B-10583020 MANUFACTURER:Vertex Standard Co., Ltd. 7.4[V] Collector Current:1.3[A] Vertex Standard Co., Ltd. Report number TA000177Page 3 of 48 VX-829-D0-5 Channel Settings HighLow 1134.0MHz Wid134.000134.00025k5W 2154.0MHz Wid154.000154.00025k5W 3174.0MHz Wid174.000174.00025k5W 4134.0MHz Nar134.000134.00012.5k5W 5154.0MHz Nar154.000154.00012.5k5W 6174.0MHz Nar174.000174.00012.5k5W 7134.0MHz W-L 134.000134.00025k1W 8154.0MHz W-L 154.000154.00025k1W 9174.0MHz W-L 174.000174.00025k1W 10134.0MHz N-L134.000134.00012.5k1W 11154.0MHz N-L154.000154.00012.5k1W 12174.0MHz N-L174.000174.00012.5k1W 13 14 15 16 17 18 19 20 Power Transmit Frequency [MHz] CH No. Receive Frequency [MHz] CH SpacingShown on LCD Vertex Standard Co., Ltd. NAME OF TEST:R.F. Power Output (Conducted) SPECIFICATION: 47 CFR 2.1046 (a) GUIDE: ANSI/TIA/EIA-603, Paragraph 2.2.1 TEST EQUIPMENT: As per attached page The EUT was connected to a resistive coaxial attenuator of normal load impedance, and the modulated output powerwas measured by means of an R.F. power meter. Measurement accuracy is ± 4% NAME OF TEST:R.F. Power Output (Radiated) High Power Report number TA000177 Page 4 of 4 8 MEASUREMENT PROCEDURE 4.710 4.6401.052 1.215 1.176154.000 174.000 2 3 FREQUENCY 134.0000 1. 2. MEASUREMENT RESULTS 134.000 CHANNEL R.F. POWER, WATTS NOMINAL, MHz 14.540 HIGHLOW LEVEL, TUNED, MHzdBm 27.0 174.000027.9 154.000028.2 Vertex Standard Co., Ltd. (2)(3)(4) Serial NumberDescription (5) Report number TA000177 Page 5 of 4 8 TRANSMITTER POWER CONDUCTED MEASUREMENTS TEST 1: R.F. POWER OUTPUT TEST 2: FREQUENCY STABILITY Power Supply Instruments Test Sample (1) (5) FREQUENCY COUNTER Agilent 8901B FREQUENCY MODE*** *** *** *** Agilent 8901B POWER MODE*** WEINSCHELL 49-10-43 (2) RF COUPLERADVANTEST TR4153 (3) POWER SENSORAgilent 8482B (1) COAXUAL ATTENUATOR (4) POWER METER Vertex Standard Co., Ltd. NAME OF TEST:Unwanted Emissions (Conducted) SPECIFICATION: 47 CFR 2.1051 GUIDE: ANSI/TIA/EIA-603, Paragraph 2.2.13 TEST EQUIPMENT: As per attached page The emissions were measured for the worst case as follows: (a): within a band of frequencies defined by the carrier frequency plus and minus one channel. (b): from the lowest frequency generated in the EUT and to at least the 10th harmonic of the carrier frequency, or 40GHz, whichever is lower. The magnitude of spurious emissions that are attenuated more than 20dB below the permissible value need not be specified. MEASUREMENT RESULTS: FREQUENCY OF CARRIER, MHz=,, SPECTRUM SEARCHED, GHz=0 to 10 x Fc MAXIMUM RESPONSE, Hz= ALL OTHER EMISSIONS=>= 20dB BELOW LIMIT MEASUREMENT PROCEDURE 3. 1. 2. 134154174 Report number TA000177 Page 6 of 4 8 2700 Vertex Standard Co., Ltd. (2) COAXUAL ATTENUATORAgilent 8498A*** (3) SPECTRUM ANALYZERADVANTEST TR4173*** (1) *** (3) Serial Number (2) COAXUAL ATTENUATORWEINSCHELL 49-10-43 TEST 2: OUT-OF-BAND SPURIOUS TRANSMITTER SPURIOUS EMISSION TEST 1: OCCUPIED BANDWIDTH (IN-BAND SPURIOUS) Test Sample (2) InstrumentsDescription Power Supply Report number TA000177 Page 7 of 4 8 (1) AUDIO GENERATORAgilent 8903B*** Vertex Standard Co., Ltd. NAME OF TEST:Unwanted Emissions (Conducted) LIMIT'S), dBc:-(50+10xLOG(P)) =(Watts ) -(50+10xLOG(P)) =(Watts ) High Power MARGIN, dBmdBcdB LEVEL,LEVEL, -501 FREQUENCY EMISSION, MHz -575 FREQUENCY TUNED, MHz Report number TA000177 Page 8 of 4 8 Vertex Standard Co., Ltd. NAME OF TEST:Unwanted Emissions (Conducted) LIMIT'S), dBc:-(50+10xLOG(P)) =(Watts ) -(50+10xLOG(P)) =(Watts ) Low Power dBdBc LEVEL,MARGIN, 1 5-57 -50 FREQUENCYLEVEL, EMISSION, MHzdBm FREQUENCY Report number TA000177 Page 9 of 4 8 TUNED, MHz Vertex Standard Co., Ltd. NAME OF TEST:Field Strength of Spurious Radiation SPECIFICATION: 47 CFR 2.1053 (a) GUIDE: ANSI/TIA/EIA-603, Paragraph 1.2.12 Definition: Radiated spurious emissions are emissions from the equipment when transmitting load on a frequency or frequencies which are outside an occupied band sufficient to ensure transmission of information of required quality for the class of communications desired. Method of measurement Connect the equipment as illustrated. Adjust the spectrum analyzer for the following settings: 1)Resolution Bandwidth <= 3kHz 2)Video Bandwidth >= 10kHz 3)Sweep Speed <= 2000Hz/second 4)Detector Mode = Positive Peak Place the transmitter to be tested on the turntable in the standard test site. The transmitter is transmitting into a non-radiating load which is placed on the turntable. The RF cable to this load should be of minimum length. STANDARD TEST SITE For each spurious measurment the test antenna should be adjusted to the correct length for the frequency involved. This length maybe determined from a calibration ruler supplied…
