K6610603040VHF MOBILE TRANSCEIVER

VX-7100 SERIES OPERATING MANUAL VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong P2P1 TX/BUSY A 12 3 4 Unsafe Radiation Distance Congratulations! You now have at your fingertips a valuable communications tool: a VERTEX STAN- DARD two-way radio! Rugged, reliable and easy to use, your VERTEX STANDARD radio will keep you in constant touch with your colleagues for years to come, with negligible maintenance downtime. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your radio, in case ques- tions arise later on. We’re glad you joined the VERTEX STANDARD team. Call on us anytime, because communications is our business. Let us help you get your message across. NOTICE ! There are no owner-serviceable parts inside the transceiver. All service jobs must be referred to an authorized VERTEX STANDARD Service Represen- tative. Consult your Authorized VERTEX STANDARD Dealer for installa- tion of optional accessories. SAFETY/WARNING INFORMATION WARNING - DO NOT operate the VX-7100 radio when any person(s) (by- standers) outside the vehicle are within the distances shown in the chart at the bottom of this section. Safety Training information: Antennas used for this transmitter must not exceed an antenna gain of 0 dBd. The radio must be used in vehicle-mount configurations with a maximum op- erating duty factor not exceeding 50%, in typical Push-to-Talk configurations. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control the exposure condi- tions of its passengers and bystanders by maintaining the minimum separa- tion distance shown below. Failure to observe these restrictions will result in exceeding the FCC RF ex- posure limits. Antenna Installation: For rear deck trunk installation, the antenna must be located at least the fol- lowing distance away from rear-seat passengers in order to comply with the FCC RF exposure requirements. For roof top installations, the antenna must be placed in the center of the roof. VX-7100 ( VHF ) VX-7100 ( UHF ) 1.97 Feet2.82 Feet ( 0.60 m )( 0.86 m ) VX-7100 SERIES OPERATING MANUAL INTRODUCTION The VX-7100 Series are full-featured FM transceiver designed for flexible mobile and base station business communications in the VHF or UHF Land Mobile bands. These transceiver are designed for reliable business communications in a wide vari- ety of applications with a wide range of operating capability provided by their lead- ing-edge design. Important channel frequency data is stored in EEPROM and flash memory on the CPU, and is easily programmable by dealers using a personal computer and the VERTEX STANDARD VPL-1 Programming Cable and CE59 Software. The pages which follow will detail the many advanced features provided on the VX-7100 Series transceiver. After reading this manual, you may wish to consult with your Network Administrator regarding precise details of the configuration of this equipment for use in your application P2P1 TX/BUSY A 12 3 4 1 VX-7100 SERIES OPERATING MANUAL P2P1 TX/BUSY A 12 3 4 CONTROLS & CONNECTORS Front Panel Important! - All buttons located on the Front Panel are Programmable Function (PF) Buttons, configured according to your network requirements and programmed by your VERTEX STANDARD dealer. The instructions below discribe a typically-con- figured radio.
VOL Knob Turn this control clockwise to increase the volume.  Microphone Jack Connect the microphone plug to this jack.  Emergency Microphone The emergency microphone is located behind this small slit. When the emer- gency feature is activated, this microphone is enabled.  [ MON ], [ A ], [
] Buttons (Programmable Function Buttons) These buttons can be set up for special applications, such as High/Low power selection, Monitor, Talk-Around, etc., as determined by your network require- ments and programmed by your VERTEX STANDARD dealer.  ( POWER ) Button Press and hold in this button for 2 seconds to toggle the transceiver’s power “on” and “off.”
 2 VX-7100 SERIES OPERATING MANUAL  TX/BUSY Indicator Indicates the transceiver’s Transmit/Receive Status. Steady Red: Transmitting in progress Steady Green: Signaling Off Blinking Green: Busy Channel/Squelch Off  Channel Number Indicator Indicates the operating channel.  Transceiver Status Indicator The “P1” and “P2” indicators show current transceiver status, which can be customized via programming by your VERTEX STANDARD dealer to meet your communications/network requirements. The possible “P1” and “P2” dis- plays are explained below. CONTROLS & CONNECTORS MONI SCAN Channel +4 CH LOW TA ( Talk Around ) Encryption Disable ( Requires optional Unit ) Emergency HOME Horn Alert Public Adress Key Lock EXT ACC REC/PLAY INDICATOR P1P2 This indicator blinks when CTCSS- or DCS- controlled squelch is disabled. The indicator is Illuminated constantly while the audio is pass- ing normally. Illuminates the indicator when the operating channel is selected on the SCAN channel. Illuminates the indicator when the radio recalls the alternate channel list. Illuminates the indicator when the radio’s trans- mitter is set to the “Low Power” mode. Illuminates the indicator when the “Talk Around” function is activated. Illuminates the indicator when the “Voice Scrambler” function is disabled temporarily. Illuminates the indicator when the “Emergency” feature is activated. Illuminates the indicator when you recall the Home group/channel. Illuminates the indicator when the “Horn Alert” feature is activated. Illuminate…

Text truncated - open the document above for the full version.

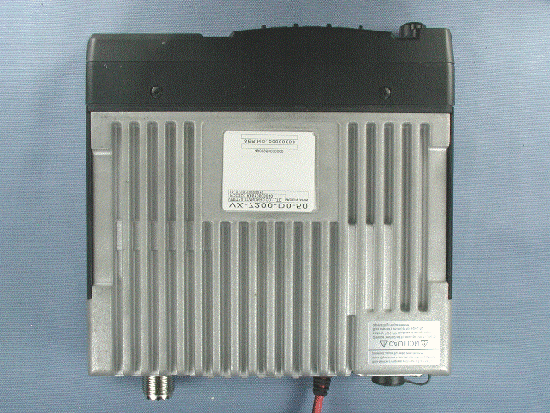

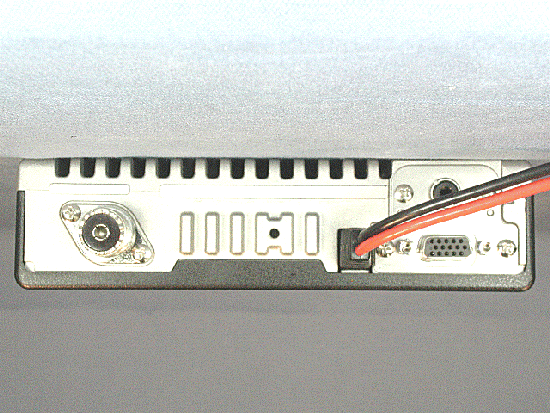

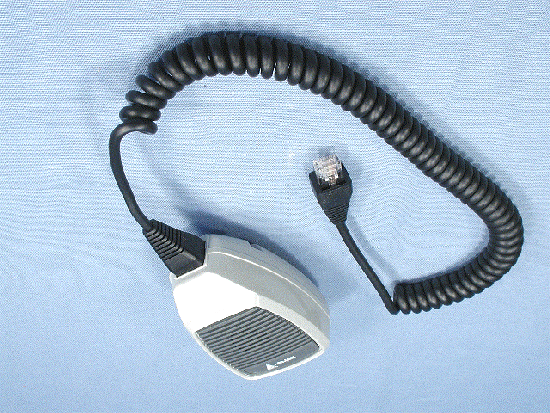

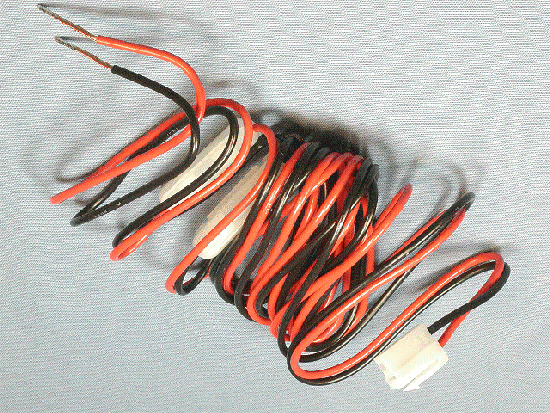

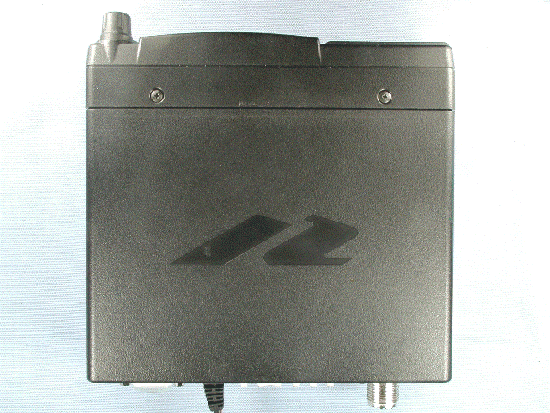

FCC ID: K6610603040 IC ID: 511B-10603040 Vertex Standard Co., Ltd. Front view (FRONT-C-UNIT (for VX-7100)) Front view (FRONT-D-UNIT (for VX-7200)) FCC ID: K6610603040 IC ID: 511B-10603040 Vertex Standard Co., Ltd. Rear view Left view FCC ID: K6610603040 IC ID: 511B-10603040 Vertex Standard Co., Ltd. Right view Top view FCC ID: K6610603040 IC ID: 511B-10603040 Vertex Standard Co., Ltd. Bottom view Microphone FCC ID: K6610603040 IC ID: 511B-10603040 Vertex Standard Co., Ltd. DC Power Cable

VX-7100-D0-50 / VX-7200-D0-50VX-7100-D0-50 / VX-7200-D0-50 LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location VX-7100-D0-50 VERTEX STANDARD CO., LTD. MADE IN JAPAN IC: 511B-10603040 FCC ID: K6610603040 4909959000000 SER NO. 00000000 ! ! Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner's manual for specific operating requirement CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. VX-7200-D0-50 VERTEX STANDARD CO., LTD. MADE IN JAPAN IC: 511B-10603040 FCC ID: K6610603040 4909959000000 SER NO. 00000000

FCC ID: K6610603040 IC ID: 511B-10603040 Vertex Standard Co., Ltd. Removed top cover Inside of EUT with shield case and MODEM-UNIT FCC ID: K6610603040 IC ID: 511B-10603040 Vertex Standard Co., Ltd. Inside of EUT without shield case and MODEM-UNIT Side-A of RF-UNIT FCC ID: K6610603040 IC ID: 511B-10603040 Vertex Standard Co., Ltd. Side-B of RF-UNIT Inside of front panel with PWB (FRONT-C-UNIT (for VX-7100)) FCC ID: K6610603040 IC ID: 511B-10603040 Vertex Standard Co., Ltd. Inside of front panel (for FRONT-C-UNIT (for VX-7100)) Side-A of FRONT-C-UNIT (for VX-7100) FCC ID: K6610603040 IC ID: 511B-10603040 Vertex Standard Co., Ltd. Side-B of FRONT-C-UNIT (for VX-7100) Inside of front panel with PWB (FRONT-D-UNIT (for VX-7200)) FCC ID: K6610603040 IC ID: 511B-10603040 Vertex Standard Co., Ltd. Inside of front panel (for FRONT-D-UNIT (for VX-7200)) Side-A of FRONT-D-UNIT (for VX-7200) with LCD FCC ID: K6610603040 IC ID: 511B-10603040 Vertex Standard Co., Ltd. Side-A of FRONT-D-UNIT (for VX-7200) without LCD Side-B of FRONT-D-UNIT (for VX-7200) FCC ID: K6610603040 IC ID: 511B-10603040 Vertex Standard Co., Ltd. Front of LCD (for VX-7200) Back of LCD (for VX-7200) FCC ID: K6610603040 IC ID: 511B-10603040 Vertex Standard Co., Ltd. Side-A of MODEM-UNIT Side-B of MODEM-UNIT FCC ID: K6610603040 IC ID: 511B-10603040 Vertex Standard Co., Ltd. Inside of chassis Inside of top case FCC ID: K6610603040 IC ID: 511B-10603040 Vertex Standard Co., Ltd. Inside of top cover Inside of microphone

FCC ID: K66-10603040 IC ID: 511B-10603040 Circuit Description 1/3 Vertex Standard Co., Ltd. VX-7100-D0-50 / VX-7200-D0-50 Circuit Description 1. Circuit Configuration by Frequency The receiver is a double-conversion superheterodyne with a first intermediate frequency (IF) of 50.85MHz and a second IF of 450kHz. Incoming signal from the antenna is mixed with the local signal from the VCO/PLL to produce the first IF of 50.85MHz. This is then mixed with the 50.4MHz second local oscillator output to produce the 450kHz second IF. This is detected to give the demodulated signal. The transmit signal frequency is generated by the PLL VCO, and modulated by the signal from the microphone. It is then amplified and sent to the antenna. 2. Receiver System 2-1. Front-end RF amplifier Incoming RF signal from the antenna is delivered to the Main Unit and passes through Low-pass filer, antenna switching diode, and removed undesired frequencies by varactor diode.The passed signal is amplified in Q1022 and moreover cuts an image frequency with the band path filter and comes into the 1st mixer. 2-2. First Mixer The 1st mixer consists of the Q1035, T1004, T1005 and T1006. Buffered output from the VCO is amplified by Q1038 to provide a pure first local signal between 184.85 and 224.85MHz for injection to the first mixer. The output IF signal from the mixer is amplified by Q1046 and enters the crystal filter. The IF signal passes through monolithic crystal filters XF1001 (for wide channels, ±5.5kHz BW), XF1002 (for narrow channels, ±4.2 kHz BW) to strip away all but the desired signal. 2-3. IF Amplifier The first IF signal is amplified by Q1059. The amplified first IF signal is applied to FM IF subsystem IC Q1079 which contains the second mixer, second local oscillator, limiter amplifier, noise amplifier, and S-meter amplifier. The signal from reference oscillator X1003 (16.8MHz) becomes 3 times of frequencies in Q1079, it is mixed with the IF signal and becomes 450KHz. The second IF then passes through the ceramic filter CF1001 (for wide channels), CF1002 (for narrow channels) to strip away unwanted mixer products, and is applied to the limiter amplifier in Q1079, which removes amplitude variations in the 450kHz IF, before detection of the speech by the ceramic discriminator CD1001. 2-4. Audio amplifier Detected signal from Q1079 is inputted to Q1037 and is output through the band path filter inside AK2345. In the case an optional unit is installed, the Q1063 is made OFF and the AF signal from Q1037 goes the optional unit. On the other hand, an optional unit is not installed, Q1063 is made ON and the signal passes through Q1063. The signal then goes through AF mute switch Q1068, de-emphasis part and expander Q1021. When the function of expander is off, the Q1021 will be bypassed. The output signal of expander (or a signal from de-emphasis) is amplified by Q1088 and it is amplified with AF power amplifier Q1039 after passing AF volume Q1029. The output of Q1039 drives a speaker (it chooses the external SP or internal SP in J6001) FCC ID: K66-10603040 IC ID: 511B-10603040 Circuit Description 2/3 Vertex Standard Co., Ltd. 2-5. Squelch Circuit There are 13 levels of squelch setting from 0 to 12. The level 0 means open the squelch. The level 1 means the threshold setting level and level 11 means tight squelch. From 2 to 10 is established in the middle of threshold and tight. The bigger figure is nearer the tight setting. The level 12 becomes setting of carrier squelch. 2-5-1. Noise Squelch Noise squelch circuit is composed of the band path filter of Q1079, noise amplifier Q1091, and noise detector D1059, D1061. When a carrier isn't received, the noise ingredient which goes out of the demodulator Q1079 is amplified in Q1091 through the band path filter Q1079, is detected to DC voltage with D1059, D1061 and is inputted to 16pin (the A/D port) of the Q1083. When a carrier is received, the DC voltage becomes low because the noise is compressed. When the detected voltage to CPU is high, the CPU stops AF output with Q1068 "OFF" by making the 69pin "L" level. When the detection voltage is low, the CPU makes Q1068 ON with making 69pin "H" and the AF signal is output. 2-5-2. Carrier Squelch The pin 15(A/D port) of Q1083 detect RSSI voltage output from pin 12 of Q1079, and controls AF output. The RSSI output voltage changes according to the signal strength of carrier. The stronger signal makes the RSSI voltage to be higher voltage. The process of the AF signal control is same as Noise Squelch. The shipping data is adjusted 3dB higher than squelch tight sensitivity. 3. Transmitter System 3-1. Mic Amplifier The AF signal from microphone jack J4001 (4ch) or J5001 (501ch) is amplified with microphone amplifier Q1066. This signal is amplified again with 2nd microphone amplifier Q1088 after microphone selectionswitch Q1016, and passes microphone gain volume Q1029. The AF signal, which was controlled in the correct gain, passes compandor Q1021. When not using a compandor, with the control from the CPU, it passes in the compandor circuit inside of Q1021 and it is output and it passes a pre-emphasis circuit inside of Q1037. Q1063 becomes OFF when an option unit is attached and the AF signal from Q1037 goes via the option unit. When an option unit isn't attached, Q1063 becomes ON, the signal passes Q1063 and is input to Q1037. The signal passed limiter and splatter filer of Q1037 is adjusted by maximum deviation adjustment volume Q1029. The adjusted low frequency signal ingredient is amplified by Q1088, added modulation terminal of TCXO (X1003), the FM modulation is made by reference oscillator. The high frequency signal ingredient is amplified Q1108, and adjusted the level by volume Q1029 to make frequency balance between low frequency. In the Supper Narrow Channel (6.25kHz channel spacing), the signal is filtered by Q1108. After that, it is made FM modulation to transmit carrier by the modulator D1030 of VCO. 3-2. Drive and Final am…

Text truncated - open the document above for the full version.

1/4 FCC ID: K6610603040/IC ID: 511B-10603040 VX-7100-D0-50/VX-7200-D0-50Component Applications Address Device nameDescriptionApplication [MAIN-UNIT] Q 1001 TransistorDTC114TE TLDTMF Decode INPUT SW Q 1002 TransistorDTC144EE TLTX VCO SW Q 1003 IC2SC3356-T2B R24TX Buff AMP Q 1004 ICNJM7808DL1A(TE1)8V Regulator Q 1005 TransistorDTC144EE TLXF SW Q 1006 FETRTQ030P02DC SW Q 1007 TransistorDTA144EE TLDC SW Q 1008 TransistorDTC144EE TLXF SW Q 1009 TransistorDTC144EE TLAF AMP MUTE SW Q 1010 FETRTQ030P02TX8V DC SW Q 1011 TransistorDTC114TE TLDC SW Q 1012 TransistorDTC144EE TLIGNITION SENSOR DC SW Q 1013 TransistorUMG2N TRTRX SW Q 1014 ICCD4053BPWRPre-Emphasis SW/EXT AF OUT Normal/Flat Select SW/PA SW Q 1015 FETRTQ030P02DC SW Q 1016 ICCD4053BPWRFRONT/EXT MIC SW/Normal/Flat SW/ADJ AF/DTMF SW Q 1017 TransistorUN911F-(TX)RX5V DC SW Q 1018 TransistorDTC144EE TLTX8V Protection Q 1019 TransistorDTC114TE TLRX5V Protection Q 1021 ICLA8630M-B-TE-RCompandor IC Q 1022 Transistor2SC3356-T2B R25RF AMP Q 1023 TransistorDTC144EE TLDC SW Q 1024 TransistorDTC144EE TLCompandor ON/OFF SW Q 1025 Transistor2SC4617 TL RHOOK/FLASH Write Select SW Q 1026 Transistor2SC4617 TL RCLONE_DATA/FLASH Write Select SW Q 1027 Transistor2SC4617 TL RPTT/FLASH Write Select SW Q 1028 Power ModuleRA45H4452M-01TX Power AMP Q 1029 ICM62364FP 600DD/A Q 1030 TransistorDTC144EE TLCLONE SW Q 1031 TransistorDTA124EE TLCLONE SW Q 1032 TransistorDTC144EE TLRX Emphasis SW Q 1033 TransistorDTC144EE TLPower OFF SW Q 1034 ICBD6111FV-E2-5V Regulator Q 1035 ICSPM5001Mixer IC Q 1036 ICNJM2125F-VCV Control Q 1037 ICAK2345Base Band IC Q 1038 Transistor2SC5226-4-TLVCO Buff AMP Q 1039 ICTDA1519CTHAF Power AMP Q 1040 TransistorDTA124EE TLAD SW Q 1041 Transistor2SC4617 TL RAMP Q 1042 TransistorNJM2904V-TE1DCS Filter Q 1044 Transistor2SA1774 TL RRipple Filter Q 1045 TransistorDTC114TE TL MAIN/SUB BAND SW Q 1046 Transistor2SC3356-T2B R24IF AMP Q 1047 TransistorDTC144EE TLTX VCO SW Q 1049 Transistor2SC5226-4-TLVCO Buff AMP Q 1051 TransistorDTC144EE TL Unlock Detector Q 1053 TransistorDTC144EE TLRX VCO SW Q 1054 Transistor2SK508-T2B K52RX VCO OSC Q 1055 TransistorDTC144EE TLBuff AMP SW Q 1057 Transistor2SC5226-4-TLBuff AMP Q 1058 Transistor2SC4226-T2B R24TX VCO OSC Q 1059 Transistor2SC5226-4-TLIF AMP Q 1060 ICTAR5S35(TE85L)3.5V Regulator Q 1061 TransistorXN1501-(TX)5V Regulator Q 1062 Transistor2SB1201S-TL5V Regulator Q 1063 ICCD4066BPWROPTION SW/DTMF Decode INPUT SW/De-emphasis SW Q 1064 ICLC73881M-TLMDTMF Decode IC Q 1065 ICS-80835CNMC-B8U-T2RESET IC Q 1066 Quadruple OP-AMPNJM12902V(TE1)EXT MIC AMP/EXT AF AMP/EXT RSSI AMP/FRONT MIC AMP Q 1067 Transistor2SC4617 TL RRipple Filter Q 1068 ICCD4066BPWR EXT MIC GAIN Select SW/Compandor SW/ AF MUTE/De-emphasis SW Q 1069 ICTAR5S50(TE85L)5V Regulator Q 1070 TransistorDTC144EE TLSUB BAND SW Q 1071 FET3LN01S-TLD-SUB Connector SW Q 1072 Transistor2SC4617 TL RRESET Q 1073 TransistorDTC144EE TLD-SUB Connector SW Q 1074 Quadruple OP-AMPNJM12902V(TE1)VCO MOD AMP/REF MOD AMP/RX TUNE DC AMP/BIAS Q 1075 TransistorDTC114TE TLClock Shift Q 1076 Quadruple OP-AMPNJM12902V(TE1)5TONE Decode/DCS Decode Q 1077 FET3LN01S-TLD-SUB Connector SW Q 1078 FET2SK880GR TE85RVCV Buff AMP Vertex Standard Co., Ltd. 2/4 FCC ID: K6610603040/IC ID: 511B-10603040 VX-7100-D0-50/VX-7200-D0-50Component Applications Address Device nameDescriptionApplication Q 1079 ICTA31136FN(EL)IF System IC Q 1080 ICBR93L66RFVM-WTREEPROM Q 1081 TransistorDTC144EE TLD-SUB Connector SW Q 1082 FET3LN01S-TLD-SUB Connector SW Q 1083 CPULC87F5BP6ACPU Q 1084 TransistorDTC144EE TLD-SUB Connector SW Q 1085 ICSA7025DKPLL IC Q 1086 FET3LN01S-TLD-SUB Connector SW Q 1087 TransistorDTC144EE TLD-SUB Connector SW Q 1088 Quadruple OP-AMPNJM12902V(TE1)MIC AMP/RX AF buff AMP/Frequency Control DC AMP Q 1089 Quadruple OP-AMP NJM12902V(TE1) ReverseTone/DCS/Reverse Tone Decode Q 1091 Transistor 2SC4617 TL RSQL Noise AMP Q 1092 Transistor DTC144EE TLWide/Narrow SW Q 1094 Transistor 2SC3357-T2 RFTX Buff AMP Q 1095 Quadruple OP-AMP NJM12902V(TE1)APC Q 1096 Transistor DTC144EE TL D-SUB Connector SW Q 1097 Transistor DTC144EE TLPower OFF SW Q 1101 ICTC4W66FU TE12L AD SW Q 1102 Transistor DTA144EE TLWide/Narrow SW Q 1103 Transistor 2SA1602A-T11-1FSuper Narrow SW Q 1104 Transistor 2SC4617 TL RSuper Narrow SW Q 1107 Transistor DTA124EE TL DC SW Q 1108 ICLM2902PWRAMP/Super Narrow Filter Q 1109 ICTC4W66FU TE12LSuper Narrow SW D 1001 DiodeXB15A709A0HRANT SW D 1002 DiodeP6KA18Surge Protection D 1003 Varactor DiodeHVC306B TRURX tune D 1004 Varactor DiodeHVC306B TRURX tune D 1005 DiodeXB15A709A0HRANT SW D 1006 DiodeXB15A709A0HRANT SW D 1007 Diode1SS400 TE61Surge Protection D 1008 Varactor DiodeHVC306B TRURX tune D 1009 Varactor DiodeHVC306B TRURX tune D 1010 DiodeBAS316Protection D 1011 Diode1SS400 TE61Surge Protection D 1012 DiodeBAS316Temperature Control D 1013 DiodeHSM88AS TRAPC Voltage Detect D 1014 DiodeHSM88AS TRAPC Voltage Detect D 1015 DiodeHVC383BTX VCO Frequency Control D 1016 Diode1SS400 TE61Reverse Protection D 1017 Diode1SS400 TE61Reverse Protection D 1018 DiodeHVC383BTX VCO Frequency Control D 1019 Zener DiodeUDZS TE-17 5.6BProtection D 1020 DiodeHSC277TRFWide/Narrow SW D 1021 DiodeRCCA-201Q43UASurge Protection D 1022 Dual DiodeDAN222 TLTX/RX SW D 1023 Diode1SS400 TE61Reverse Protection D 1024 Dual DiodeDA221 TLLimiter D 1025 Diode1SS400 TE61Reverse Protection D 1026 Dual DiodeDA221 TLProtection D 1027 DiodeBAS316Protection D 1029 Dual DiodeDA221 TLLimiter D 1030 DiodeHVC383BModulator D 1033 Diode1SS400 TE61Reverse Protection D 1035 Diode1SV282(TPH3)RX VCO Frequency Control D 1036 Diode1SV282(TPH3)RX VCO Frequency Control D 1037 Diode1SV282(TPH3)RX VCO Frequency Control D 1039 Diode1SV282(TPH3)RX VCO Frequency Control D 1043 DiodeHVC383BTX VCO Frequency Control D 1044 Dual DiodeDA221 TLRESET D 1045 Dual DiodeDAN222 TLMAIN/SUB BAND SW D 1046 DiodeHVC383BTX VCO Frequency Control D 1047 Zener DiodeUDZS TE-17 16BSurge Protection D 1048 Dual DiodeDAN222 TLMAIN/SUB BAND SW D 1049 Diode1SS400 TE61Revers…

Text truncated - open the document above for the full version.

Page 1 of 29 REPORT ON Radio testing of the VERTEX STANDARD VX-7100-D0-50/VX-7200-D0-50 In accordance with ANSI/TIA/EIA-603, RSS-119 November 2004Report number TA000176 Vertex Standard Co., Ltd. GENERAL INFORMATION TRANSMITTERS Switchable x Variable N/A RECEIVERS This report was prepared by Vertex Standard Co., Ltd. 50 600 300 DC 501 ANSI/TIA/EIA-603 to Date 19 / November /2004 Test performed by Moto Kurihara INPUT IMPEDANCE (MIC): MAXIMUM POWER RATING: INPUT IMPEDANCE (RF): INTERMEDIATE FREQUENCIES: FREQUENCY RANGE: OUTPUT IMPEDANCE (RF): Report number TA000176 Page 2 of EUT DESCRIPTION: 13.6[V] VX-7100-D0-50/VX-7200-D0-50 K6610603040 VERTEX STANDARD MODEL NAME: [W]AUDIO OUTPUT POWER: OUTPUT IMPEDANCE (SP):[Ω]4 4 50[Ω] [MHz] [kHz] 50.85 -450 1st 2nd [MHz] [W] [Ω] [Ω] [MHz] [W] 16K0F3E, 11K0F3E, 5K50F3E, 8 POWER OUTPUT RATING: 134 10 174to to50 TYPE OF EMISSION: FREQUENCY RANGE: RSS-119 VOLTAGE RQUIREMENTS: SERIAL NUMBER: SPECIFICATION ARE REFERENCE D NUMBER OF CHANNELS: FCC ID: TRADE NAME: VHF FM Transceiver 4L000008 MANUFACTURER:Vertex Standard Co., Ltd. Vertex Standard Co., Ltd. Report number TA000176Page 3 of 29 VX-7100-D0-50/VX-7200-D0-50 Channel Settings 1 134 0 Wide 134.000134.00025k50WF3E 2 154 1 Wide 154.100154.10025k50WF3E 3 174 0 Wide 174.000174.00025k50WF3E 4 134 0 Narrow 134.000134.00012.5k50WF3E 5 154 1 Narrow 154.100154.10012.5k50WF3E 6 174 0 Narrow 174.000174.00012.5k50WF3E 7 134 0 S Narr 134.000134.0006.25k50WF3E 8 154 1 S Narr 154.100154.1006.25k50WF3E 9 174 0 S Narr 174.000174.0006.25k50WF3E 10 134 0 Digit 134.000134.00012.5k50WF1E 11 154 1 Digit 154.100154.10012.5k50WF1E 12 174 0 Digit 174.000174.00012.5k50WF1E 13 14 15 16 17 18 19 20 *: Press [P4] key to set the low power (10W). Power * Emission Type Transmit Frequency [MHz] CH No. Receive Frequency [MHz] CH Spacing Shown on LCD Vertex Standard Co., Ltd. NAME OF TEST:R.F. Power Output (Conducted) SPECIFICATION: 47 CFR 2.1046 (a) GUIDE: ANSI/TIA/EIA-603, Paragraph 2.2.1 TEST EQUIPMENT: As per attached page The EUT was connected to a resistive coaxial attenuator of normal load impedance, and the modulated output powerwas measured by means of an R.F. power meter. Measurement accuracy is ± 4% Report number TA000176 Page 4 of 29 MEASUREMENT PROCEDURE 50.600 49.1009.540 9.580 10.4002 3 154.100 173.900 1. 2. MEASUREMENT RESULTS 134.100 CHANNEL R.F. POWER, WATTS NOMINAL, MHz 149.920 HIGHLOW Vertex Standard Co., Ltd. Power Supply (4) Serial NumberDescription (5) (1) COAXUAL ATTENUATORWEINSCHELL 49-10-43 Report number TA000176 Page 5 of 29 TRANSMITTER POWER CONDUCTED MEASUREMENTS TEST 1: R.F. POWER OUTPUT TEST 2: FREQUENCY STABILITY (2)(3) (3) POWER SENSORAgilent 8482B*** (2) RF COUPLER Instruments Test Sample (1) ADVANTEST TR4153 (5) FREQUENCY COUNTERAgilent 8901B FREQUENCY MODE*** *** *** (4) POWER METERAgilent 8901B POWER MODE*** Vertex Standard Co., Ltd. -3m- (1) ANTENNA InstrumentsSerial Number *** Schaffner-Chase CBL6143 (1) Description (2) *** Agilent 8561B Report number TA000176 Page 6 of 29 (2) SPECTRUM ANALYZER TRANSMITTER POWER CONDUCTED MEASUREMENTS TEST 1: R.F. POWER OUTPUT TEST 2: FREQUENCY STABILITY Test Sample Vertex Standard Co., Ltd. NAME OF TEST:Unwanted Emissions (Conducted) SPECIFICATION: 47 CFR 2.1051 GUIDE: ANSI/TIA/EIA-603, Paragraph 2.2.13 TEST EQUIPMENT: As per attached page The emissions were measured for the worst case as follows: (a): within a band of frequencies defined by the carrier frequency plus and minus one channel. (b): from the lowest frequency generated in the EUT and to at least the 10th harmonic of the carrier frequency, or 40GHz, whichever is lower. The magnitude of spurious emissions that are attenuated more than 20dB below the permissible value need not be specified. MEASUREMENT RESULTS: FREQUENCY OF CARRIER, MHz=,, SPECTRUM SEARCHED, GHz=0 to 10 x Fc MAXIMUM RESPONSE, Hz= ALL OTHER EMISSIONS=>= 20dB BELOW LIMIT MEASUREMENT PROCEDURE 3. 1. 2. 134.1154.1173.9 Report number TA000176 Page 7 of 2 9 2500 Vertex Standard Co., Ltd. (2) COAXUAL ATTENUATORWEINSCHELL 49-10-43 (2) COAXUAL ATTENUATORAgilent 8498A*** (3) SPECTRUM ANALYZERADVANTEST TR4173*** (1) *** *** Agilent 8903B InstrumentsDescription Power Supply (3) Serial Number (1) AUDIO GENERATOR Test Sample (2) TEST 2: OUT-OF-BAND SPURIOUS TRANSMITTER SPURIOUS EMISSION TEST 1: OCCUPIED BANDWIDTH (IN-BAND SPURIOUS) Report number TA000176 Page 8 of 2 9 Vertex Standard Co., Ltd. NAME OF TEST:Unwanted Emissions (Conducted) LIMIT'S), dBc:-(50+10xLOG(P)) =(Watts ) -(50+10xLOG(P)) =(Watts ) High Power 10.1-30.1-77.1 11.3 -34.1-81.114.1 -31.3-78.3 MARGIN, dBmdBcdB LEVEL,LEVEL, 154.1000 173.9000 -6010 FREQUENCY EMISSION, MHz 268.2000 308.2000 347.8000 -6750 FREQUENCY TUNED, MHz 134.1000 Report number TA000176 Page 9 of 2 9 Vertex Standard Co., Ltd. NAME OF TEST:Unwanted Emissions (Conducted) LIMIT'S), dBc:-(50+10xLOG(P)) =(Watts ) -(50+10xLOG(P)) =(Watts ) Low Power dB 268.2000-37.0-77.017.0 dBc LEVEL,MARGIN, 10 50 -80.020.0173.9000 -67 -40.0 -60 FREQUENCYLEVEL, EMISSION, MHzdBm 134.1000 FREQUENCY TUNED, MHz 347.8000 Report number TA000176 Page 10 of 2 Vertex Standard Co., Ltd. NAME OF TEST:Field Strength of Spurious Radiation SPECIFICATION: 47 CFR 2.1053 (a) GUIDE: ANSI/TIA/EIA-603, Paragraph 1.2.12 Definition: Radiated spurious emissions are emissions from the equipment when transmitting load on a frequency or frequencies which are outside an occupied band sufficient to ensure transmission of information of required quality for the class of communications desired. Method of measurement Connect the equipment as illustrated.…

Text truncated - open the document above for the full version.
