K6610613030MOBILE FM TRANSCEIVER

VX-2100 SERIES OPERATING MANUAL VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Unsafe Radiation Distance Congratulations! You now have at your fingertips a valuable communications tool: a VERTEX STAN- DARD two-way radio! Rugged, reliable and easy to use, your VERTEX STANDARD radio will keep you in constant touch with your colleagues for years to come, with negligible maintenance downtime. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your radio, in case ques- tions arise later on. We’re glad you joined the VERTEX STANDARD team. Call on us anytime, because communications is our business. Let us help you get your message across. NOTICE ! There are no owner-serviceable parts inside the transceiver. All service jobs must be referred to an authorized VERTEX STANDARD Service Represen- tative. Consult your Authorized VERTEX STANDARD Dealer for installa- tion of optional accessories. SAFETY/WARNING INFORMATION WARNING - DO NOT operate the VX-2100 radio when any person(s) (by- standers) outside the vehicle are within the distances shown in the chart at the bottom of this section. Safety Training information: Antennas used for this transmitter must not exceed an antenna gain of 0 dBd. The radio must be used in vehicle-mount configurations with a maximum op- erating duty factor not exceeding 50 %, in typical Push-to-Talk configurations. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control the exposure condi- tions of its passengers and bystanders by maintaining the minimum separa- tion distance shown below. Failure to observe these restrictions will result in exceeding the FCC RF ex- posure limits. Antenna Installation: For rear deck trunk installation, the antenna must be located at least the fol- lowing distance away from rear-seat passengers in order to comply with the FCC RF exposure requirements. For roof top installations, the antenna must be placed in the center of the roof. VHF Model 3.3 Feet ( 1 m ) 4.6 Feet ( 1.4 m ) UHF Model 2.6 Feet ( 0.8 m ) 3.9 Feet ( 1.2 m ) 25 W 45 W/50 W VX-2100 SERIES OPERATING MANUAL1 INTRODUCTION The VX-2100 Series are full-featured FM transceiver designed for flexible mobile and base station business communications in the VHF or UHF Land Mobile bands. These transceiver are designed for reliable business communications in a wide vari- ety of applications with a wide range of operating capability provided by their lead- ing-edge design. Important channel frequency data is stored in EEPROM and flash memory on the CPU, and is easily programmable by dealers using a personal computer and the VER- TEX STANDARD Programming Cable and CE82 Software. The pages which follow will detail the many advanced features provided on the VX- 2100 Series transceiver. After reading this manual, you may wish to consult with your Network Administrator regarding precise details of the configuration of this equipment for use in your application For North American Users Regarding 406 MHz Guard Band The U.S. Coast Guard and National Oceanographic and Atmospheric Admin- istration have requested the cooperation of the U.S. Federal Communications Commission in preserving the integrity of the protected frequency range 406.0 to 406.1 MHz, which is reserved for use by distress beacons. Do not attempt to program this apparatus, under any circumstances, for operation in the fre- quency range 406.0 - 406.1 MHz if the apparatus is to be used in or near North America. VX-2100 SERIES OPERATING MANUAL2 CONTROLS & CONNECTORS Front Panel Important! - All buttons located on the Front Panel are Programmable Function (PF) Buttons, configured according to your network requirements and programmed by your VERTEX STANDARD dealer. The instructions below discribe a typically-con- figured radio.
VOL/PWR Knob Turn this control clockwise to turn the radio on and to increase the volume. Turn it counterclockwise into the click-stop to turn the radio off.  Microphone Jack Connect the microphone plug to this jack.  [ P1 ] - [ P4 ] Buttons (Programmable Function Buttons) These buttons can be set up for special applications, such as High/Low power selection, Monitor, Talk-Around, etc., as determined by your network require- ments and programmed by your VERTEX STANDARD dealer.  [
] / [  ] Buttons (Programmable Function Buttons) In the factory default, pressing either button changes the current channel (and displayed channel number or name). Holding in either button for more than 1.5 second causes the radio to begin stepping (repeatedly) upward or downward through the channels.
 VX-2100 SERIES OPERATING MANUAL3
Channel Number Indicator Indicates the operating channel. Blinks the squelch setting level (0-9, A, b, and C) while adjusting the squelch threshold level. Appear the decimal point “.” when selecting the Scan enabel channel.  Transceiver Status Indicator The “A” and “B” indicators show current transceiver status, which can be cus- tomized via programming by your VERTEX STANDARD dealer to meet your communications/network requirements. The possible “A” and “B” displays are explained below.  TX/BUSY Indicator Indicates transceiver’s Transmit/Receive Status Steady Red: Transmitting in progress Steady Green: Signaling Off Blinking Green: Busy Channel/Squelch Off CONTROLS & CONNECTORS TRANSCEIVER STATUS INDICATOR MONI LOW TA ( Talk Around ) Encryption ( Requires optional Unit ) Emergency Horn Alert Public Adress Key Lock EXT ACC RFC INDICATOR AB This in…

Text truncated - open the document above for the full version.

VX-2200 SERIES OPERATING MANUAL VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Unsafe Radiation Distance Congratulations! You now have at your fingertips a valuable communications tool: a VERTEX STAN- DARD two-way radio! Rugged, reliable and easy to use, your VERTEX STANDARD radio will keep you in constant touch with your colleagues for years to come, with negligible maintenance downtime. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your radio, in case ques- tions arise later on. We’re glad you joined the VERTEX STANDARD team. Call on us anytime, because communications is our business. Let us help you get your message across. NOTICE ! There are no owner-serviceable parts inside the transceiver. All service jobs must be referred to an authorized VERTEX STANDARD Service Represen- tative. Consult your Authorized VERTEX STANDARD Dealer for installa- tion of optional accessories. SAFETY/WARNING INFORMATION WARNING - DO NOT operate the VX-2200 radio when any person(s) (by- standers) outside the vehicle are within the distances shown in the chart at the bottom of this section. Safety Training information: Antennas used for this transmitter must not exceed an antenna gain of 0 dBd. The radio must be used in vehicle-mount configurations with a maximum op- erating duty factor not exceeding 50 %, in typical Push-to-Talk configurations. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control the exposure condi- tions of its passengers and bystanders by maintaining the minimum separa- tion distance shown below. Failure to observe these restrictions will result in exceeding the FCC RF ex- posure limits. Antenna Installation: For rear deck trunk installation, the antenna must be located at least the fol- lowing distance away from rear-seat passengers in order to comply with the FCC RF exposure requirements. For roof top installations, the antenna must be placed in the center of the roof. VHF Model 3.3 Feet ( 1 m ) 4.6 Feet ( 1.4 m ) UHF Model 2.6 Feet ( 0.8 m ) 3.9 Feet ( 1.2 m ) 25 W 45 W/50 W VX-2200 SERIES OPERATING MANUAL1 INTRODUCTION The VX-2200 Series are full-featured FM transceivers designed for flexible mobile and base station business communications in the VHF or UHF Land Mobile bands. These transceiver are designed for reliable business communications in a wide vari- ety of applications with a wide range of operating capability provided by their lead- ing-edge design. The 128-channel memories can each be programmed with a 8-character channel name. Important channel frequency data is stored in EEPROM and flash memory on the CPU, and is easily programmable by dealers using a personal computer and the VER- TEX STANDARD Programming Cable and CE82 Software. The pages which follow will detail the many advanced features provided on the VX- 2200 Series transceiver. After reading this manual, you may wish to consult with your Network Administrator regarding precise details of the configuration of this equipment for use in your application. For North American Users Regarding 406 MHz Guard Band The U.S. Coast Guard and National Oceanographic and Atmospheric Admin- istration have requested the cooperation of the U.S. Federal Communications Commission in preserving the integrity of the protected frequency range 406.0 to 406.1 MHz, which is reserved for use by distress beacons. Do not attempt to program this apparatus, under any circumstances, for operation in the fre- quency range 406.0 - 406.1 MHz if the apparatus is to be used in or near North America. VX-2200 SERIES OPERATING MANUAL2 CONTROLS & CONNECTORS Front Panel Important! - All buttons located on the Front Panel are Programmable Function (PF) Buttons, configured according to your network requirements and programmed by your VERTEX STANDARD dealer. The instructions below describe a typically- configured radio.
VOL/PWR Knob Turn this control clockwise to turn the radio on and to increase the volume. Turn it counterclockwise into the click-stop to turn the radio off.  Microphone Jack Connect the microphone plug to this jack.  [ P1 ] - [ P4 ] Buttons (Programmable Function Buttons) These buttons can be set up for special applications, such as High/Low power selection, Monitor, Talk-Around, etc., as determined by your network require- ments and programmed by your VERTEX STANDARD dealer.  [
] / [  ] Buttons (Programmable Function Buttons) In the factory default, pressing either button changes the current channel (and displayed channel number or name). Holding in either button for more than 1.5 second causes the radio to begin stepping (repeatedly) upward or downward through the channels.
 VX-2200 SERIES OPERATING MANUAL3  LCD (Liquid Crystal Display) The display includes a 8-character alpha-numeric section showing Channel name tags/identity information and error messages, and an upper icon row displaying feature status (see below).  TX/BUSY Indicator Indicates transceiver’s Transmit/Receive Status Steady Red: Transmitting in progress Steady Green: Signaling Off Blinking Green: Busy Channel/Squelch Off CONTROLS & CONNECTORS “Call” indicator “Dual Watch” is activated Low Transmt Power Mode “ON” : “Scan” is activated : “Priority Scan” is activated “Talk-Around” is enabled Receiver Monitor “Group Scan” is enabled “AUX A” Port is activated 8 Character Alpha-numeric Display “Encryption” is enabledChannel Group Number Priority Channel RSSI Indicator (four steps) VX-2200 SERIES OPERATING MANUAL…

Text truncated - open the document above for the full version.

October 2, 2006 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: VX-2100-D0-25, VX-2200-D0-25 (FCC ID: K6610613030) Gentlemen: Part 15.19 Compliance Statement is placed on the bottom of case. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

October 2, 2006 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: VX-2100-D0-25, VX-2200-D0-25 (FCC ID: K6610613030) Gentlemen: A. Part 15.21 Compliance Statement Drawing: Part 15.21: Changes or modifications to this device not expressly approved by Vertex Standard could void the user’s authorization to operate this device. 20mm 97mm B. Part 15.21 Compliance Statement Drawing Location: IN OPERATION MANUAL (location on inside back cover) Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

October 2, 2006 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: VX-2100-D0-25, VX-2200-D0-25 (FCC ID: K6610613030) Gentlemen: The equipment meets the requirements of the FCC Rules, Part 90.203(e) and (g), as applicable. Programming of this product’s transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personal. The operator cannot be program transmit frequencies using the equipment’s external operation controls. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

December 20, 2006 Timco Engineering, Inc. 849 NW State Road 45 P.O. Box 370 Newberry, Florida 32669 Subject: K6610613030 justification letter for expanded frequency range 134-174 MHz Gentlemen; You have asked Vertex Standard for justification to have the 134-174 MHz freq range appear on he face of the FCC Grant of Certification for a Part 90 Certification. This frequency range is regarded as usual & customary by United States Federal Government and its various departments, user organizations and the military to appear on the face of the equipment Grant of Certification. (1) Vertex Standard’s Marketing Department plans to ensure that USA users, other than those specifically identified in this letter, cannot operate outside bands 134-150 MHz, as controlled by the users’ FCC station license. (2) This device will not be marketed to USA users, other than those identified in the letter, namely the US Government and its various departments & military, for operation in 134-150 MHz frequency range. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

October 2, 2006 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P. O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: VX-2100-D0-25, VX-2200-D0-25 (FCC ID: K6610613030) Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requires confidential treatment of some of the information accompanying this Application, as listed below: ・ Block Diagram ・ Schematics These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for this Application. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

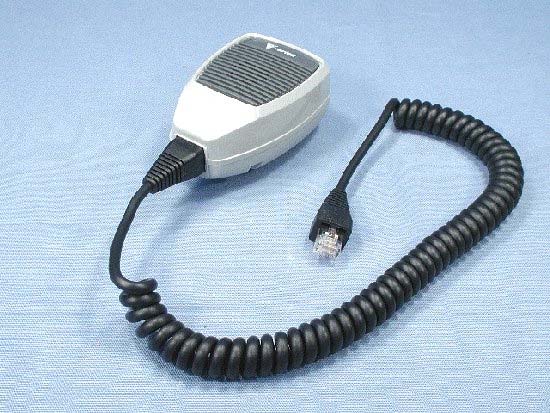

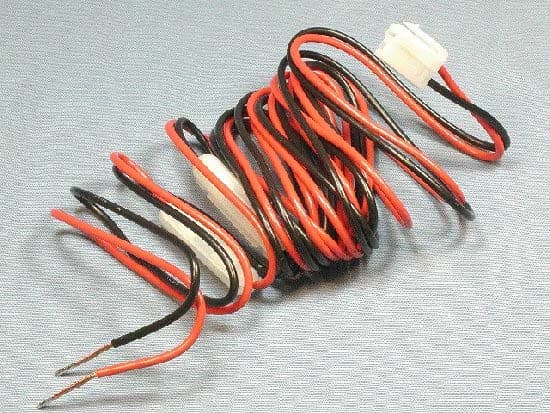

FCC ID: K6610613030 IC ID: 511B-10613030 Front view (FRONT-C-UNIT (for VX-2100)) Front view (FRONT-D-UNIT (for VX-2200)) Vertex Standard Co., Ltd. FCC ID: K6610613030 IC ID: 511B-10613030 Rear view Left view Vertex Standard Co., Ltd. FCC ID: K6610613030 IC ID: 511B-10613030 Right view Top view Vertex Standard Co., Ltd. FCC ID: K6610613030 IC ID: 511B-10613030 Bottom view Microphone Vertex Standard Co., Ltd. FCC ID: K6610613030 IC ID: 511B-10613030 DC Power Cable Vertex Standard Co., Ltd.

VX-2100/VX-2200 SeriesVX-2100/VX-2200 Series LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location ! ! Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner's manual for specific operating requirement CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. VX-2100-D0-25 VERTEX STANDARD CO., LTD. MADE IN JAPAN IC: 511B-10613030 FCC ID: K6610613030 4909959000000 SER NO. 00000000 VX-2200-D0-25 VERTEX STANDARD CO., LTD. MADE IN JAPAN IC: 511B-10613030 FCC ID: K6610613030 4909959000000 SER NO. 00000000

FCC ID: K6610613030 IC ID: 511B-10613030 Removed top cover Removed front panel Vertex Standard Co., Ltd. FCC ID: K6610613030 IC ID: 511B-10613030 Side-A of MAIN-UNIT Side-B of MAIN-UNIT with shield case Vertex Standard Co., Ltd. FCC ID: K6610613030 IC ID: 511B-10613030 Side-B of MAIN-UNIT without shield case Side-A of FRONT-A-UNIT (for VX-2100) Vertex Standard Co., Ltd. FCC ID: K6610613030 IC ID: 511B-10613030 Side-B of FRONT-A-UNIT (for VX-2100) Side-A of FRONT-B-UNIT (for VX-2200) with LCD Vertex Standard Co., Ltd. FCC ID: K6610613030 IC ID: 511B-10613030 Side-A of FRONT-B-UNIT (for VX-2200) without LCD Side-B of FRONT-B-UNIT (for VX-2200) Vertex Standard Co., Ltd. FCC ID: K6610613030 IC ID: 511B-10613030 Front of LCD (for VX-2200) Back of LCD (for VX-2200) Vertex Standard Co., Ltd. FCC ID: K6610613030 IC ID: 511B-10613030 Inside of front panel (VX-2100) Inside of front panel (VX-2200) Vertex Standard Co., Ltd. FCC ID: K6610613030 IC ID: 511B-10613030 Inside of chassis Inside of microphone Vertex Standard Co., Ltd.

FCC ID: K6610613030 IC ID: 511B-10613030 Alignment 1/7 Vertex Standard Co., Ltd. VX-2100/VX-2200 (VHF) Alignment Introduction The VX-2100/2200 is carefully aligned at the factory for the specified performance across the frequency range specified for each version. Realignment should therefore not be necessary except in the event of a component failure, or altering version type. All component replacement and service should be performed only by an authorized Vertex Standard representative, or the warranty policy may be void. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts subsequently are placed, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by authorized Vertex Standard service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized Vertex Standard service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Vertex Standard reserves the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and realignment determined to be absolutely necessary. The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. FCC ID: K6610613030 IC ID: 511B-10613030 Alignment 2/7 Vertex Standard Co., Ltd. Required Test Equipment ˆ RF Signal Generator with calibrated output level at 200 MHz ˆ Deviation Meter (linear detector) ˆ In-line Wattmeter with 5 % accuracy at 200 MHz ˆ 50Ω RF Dummy Load with power rating 100 W at 200 MHz ˆ 8 Ω/10 W AF Dummy Load ( Attention: Audio output is BTL output) ˆ Regulated DC Power Supply (standard 13.8 V DC, 15 A) ˆ Frequency Counter with 0.2 ppm accuracy at 200 MHz ˆ AC Voltmeter ˆ DC Voltmeter ˆ VHF Sampling Coupler ˆ IBM PC / compatible Computer with Microsoft DOS v3.0 or later operating system ˆ Vertex Standard VPL-1 Connection Cable & Alignment program Alignment Preparation & Precautions A 50-Ω RF Dummy Load and in-line wattmeter must be connected to the main antenna jack in all procedures that call for transmission, except where specified otherwise. Correct alignment is not possible with an antenna. After completing one step, read the following step to determine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, in connected) before proceeding. Correct alignment requires that the ambient temperature be the same as that of the transceiver and test equipment, and that this temperature be held constant between 20 and 30 °C (68 ∼ 86 °F). When the transceiver is brought into the shop from hot or cold air, it should be allowed time to come to room temperature before alignment. Whenever possible, alignments should be made with oscillator shields and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning. Note: Signal levels in dB referred to in the alignment procedure are based on 0 dBμ EMF = 1 μV. Setup the test equipment as shown for transceiver alignment; apply 13.8 V DC power to the transceiver. Refer to the drawings above for Alignment Points. FCC ID: K6610613030 IC ID: 511B-10613030 Alignment 3/7 Vertex Standard Co., Ltd. PC POWER SUPPLY 13.6V DC RF SIGNAL GENERATOR 50 Ω DUMMY LOAD IN-LINE WATTMETER DEVIATION METER FREQUENCY COUNTER RF SAMPLING COUPLER TRANSCEIVER ANT MIC/SP COM port VPL-1 connection cable The transceiver must be programmed for use in the intended system before alignment is attempted. The RF parameters are loaded from the file during the alignment process. In order to facilitate alignment over the complete switching range of the equipment it is recommended that the channel data in the transceiver is preset as the chart below. Channels Frequency BAND-LOW 134.000 MHz BAND-MID 154.000 MHz BAND-HIGH 174.000 MHz The alignment mode is accessed by “ Alignment mode” command from the computer whilst switching on. And the alignment tool operates it automatically. During the alignment mode, normal operation is suspended. Use the alignment tool program running on PC. The alignment tool outline Installation the tool This alignment tool consists, MS-DOS based, only one execute file " vx-2100adj.exe ". You make a directly as you think fit, and copy this file. That is all of the installation process. Boot the tool Change directly and input in command line, " vx-2100adj [enter] ", and boot the alignment tool. Enter to the alignment mode To enter the alignment mode, you have to po…

Text truncated - open the document above for the full version.

1 FCC ID: K6610613030/IC ID: 511B-10613030 VX-2100-D-25/VX-2200-D0-25Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL MAIN-UNIT D 1001 G2070128 DiodeRLS135 D 1002 Q9000854 Surge Absorber P6KE27-MT25 D 1003 G2071006 Diode1SV323 D 1004 G2071006 Diode1SV323 D 1005 G2071006 Diode1SV323 D 1006 G2071006 Diode1SV323 D 1007 G2070170 DiodeHSM88AS D 1008 G2070170 DiodeHSM88AS D 1009 G2070614 DiodeMA2S111 D 1011 G2070614 DiodeMA2S111 D 1012 G2070614 DiodeMA2S111 D 1013 G2071120 Zener DiodeMAZ816000L D 1014 G2070888 Zener DiodeUDZS 6.8B D 1015 G2071120 Zener DiodeMAZ816000L D 1016 G2070614 DiodeMA2S111 D 1017 G2070888 Zener DiodeUDZS 6.8B D 1018 G2070614 DiodeMA2S111 D 1019 G2070614 DiodeMA2S111 D 1020 G2070174 DiodeDAN222 D 1021 G2070704 DiodeMC2850-1 D 1022 G2070614 DiodeMA2S111 D 1023 G2070922 DiodeHVC383B E D 1024 G2070614 DiodeMA2S111 D 1025 G2070848 Diode1SV325 D 1026 G2071122 DiodeHVC376B E D 1027 G2070704 DiodeMC2850-1 D 1028 G2070848 Diode1SV325 D 1029 G2070848 Diode1SV325 D 1030 G2070848 Diode1SV325 D 1031 G2070848 Diode1SV325 D 1032 G2070848 Diode1SV325 D 1033 G2070584 DiodeHSC277-E D 1034 G2070584 DiodeHSC277-E D 1035 G2070174 DiodeDAN222 D 1036 G2070614 DiodeMA2S111 D 1037 G2070584 DiodeHSC277-E D 1038 G2070584 DiodeHSC277-E D 1039 G2070174 DiodeDAN222 D 1041 G2070704 DiodeMC2850-1 D 1042 G2070704 DiodeMC2850-1 D 1043 G2070614 DiodeMA2S111 D 1044 G2070614 DiodeMA2S111 D 1045 G2070614 DiodeMA2S111 D 1046 G2070704 DiodeMC2850-1 D 1047 G2070704 DiodeMC2850-1 D 1048 G2070704 DiodeMC2850-1 D 1049 G2071120 Zener DiodeMAZ816000L D 1050 G2071120 Zener DiodeMAZ816000L D 1051 G2071120 Zener DiodeMAZ816000L D 1052 G2071120 Zener DiodeMAZ816000L D 1053 G2070704 DiodeMC2850-1 D 1054 G2070704 DiodeMC2850-1 D 1055 G2071120 Zener DiodeMAZ816000L Vertex Standard Co.,Ltd. 2 FCC ID: K6610613030/IC ID: 511B-10613030 VX-2100-D-25/VX-2200-D0-25Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL D 1056 G2071120 Zener DiodeMAZ816000L D 1057 G2071120 Zener DiodeMAZ816000L D 1058 G2071120 Zener DiodeMAZ816000L D 1059 G2071120 Zener DiodeMAZ816000L D 1060 G2070704 DiodeMC2850-1 D 1061 G2070704 DiodeMC2850-1 D 1063 G2070888 Zener DiodeUDZS 6.8B D 1064 G2070888 Zener DiodeUDZS 6.8B Q 1001 G3070247 TransistorRT1N441U-1 Q 1002 G3070247 TransistorRT1N441U-1 Q 1003 G1093778 ICTDA1519CTH Q 1004 G1093870 ICSN74LV4053APWR Q 1005 G1093870 ICSN74LV4053APWR Q 1006 G1093802 ICNJM7808DL1A Q 1007 G3333567D Transistor2SC3356 R24 Q 1008 G3070357 FETMTM231230L Q 1009 G1094415 PWR-MODULE S-AV33A Q 1010 G3070359 TransistorRT1N140U Q 1011 G3070357 FETMTM231230L Q 1012 G3070357 FETMTM231230L Q 1013 G3070088 TransistorUMG2N Q 1014 G1093033 ICM62364FP 600D Q 1015 G3333577F Transistor2SC3357 RF Q 1016 G3070247 TransistorRT1N441U-1 Q 1017 G3070247 TransistorRT1N441U-1 Q 1018 G3346178R Transistor2SC4617 R Q 1019 G3346178R Transistor2SC4617 R Q 1020 G3346178R Transistor2SC4617 R Q 1021 G3070247 TransistorRT1N441U-1 Q 1022 G3070116 TransistorDTA124EE Q 1023 G3352268D Transistor2SC5226-4 Q 1024 G3352268D Transistor2SC5226-4 Q 1025 G4802938 FET3SK293 Q 1026 G3070247 TransistorRT1N441U-1 Q 1027 G3352268D Transistor2SC5226-4 Q 1028 G3070114 TransistorDTC143EE Q 1029 G3805087B FET2SK508 K52 Q 1030 G3070114 TransistorDTC143EE Q 1031 G3333567D Transistor2SC3356 R24 Q 1032 G3346178R Transistor2SC4617 R Q 1033 G3352268D Transistor2SC5226-4 Q 1034 G1094269 ICBH2220FVM Q 1035 G1093939 ICTAR5S35 Q 1036 G1094024 ICNJM2591V Q 1037 G3808807G FET2SK880GR Q 1038 G3070149 TransistorXN1501 Q 1039 G3070195 Transistor2SB1201S Q 1040 G1093592 ICNJM12902V Q 1041 G3070247 TransistorRT1N441U-1 Q 1042 G1093592 ICNJM12902V Q 1043 G1093592 ICNJM12902V Q 1044 G1093871 ICSN74LV4066APWR Q 1045 G1093592 ICNJM12902V Q 1046 G1093592 ICNJM12902V Vertex Standard Co.,Ltd. 3 FCC ID: K6610613030/IC ID: 511B-10613030 VX-2100-D-25/VX-2200-D0-25Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL Q 1047 G1093592 ICNJM12902V Q 1048 G1093592 ICNJM12902V Q 1049 G1093592 ICNJM12902V Q 1050 G3839738 FET2SK397300L Q 1051 G1093606 ICS-80835CNMC-B8U-G Q 1052 G1093914 ICTAR5S50 Q 1053 G3070247 TransistorRT1N441U-1 Q 1054 G1094342 ICADF4111BRUZ-RL7 Q 1055 G3839738 FET2SK397300L Q 1056 G3346178R Transistor2SC4617 R Q 1057 G3070247 TransistorRT1N441U-1 Q 1058 G3070359 TransistorRT1N140U Q 1059 G3070247 TransistorRT1N441U-1 Q 1060 G3839738 FET2SK397300L Q 1061 G1093874 ICBR93L66RFVM Q 1062 G3070247 TransistorRT1N441U-1 Q 1063 G3839738 FET2SK397300L Q 1064 G3070247 TransistorRT1N441U-1 Q 1065 G1094343 ICLC87F5CC8A-F57T0-E Q 1066 G3070247 TransistorRT1N441U-1 Q 1067 G3070247 TransistorRT1N441U-1 Q 1070 G3839738 FET2SK397300L Q 1072 G3070116 TransistorDTA124EE Q 1073 G3070247 TransistorRT1N441U-1 FRONT-A-UNITCH 8 D 2001 G2070654 LEDBRPG1211C D 2002 G2070956 LEDTLGU1008A D 2003 G2070956 LEDTLGU1008A DS2001 G2090796 LEDELS-512SURWA/S530-A3 Q 2001 G3070247 TransistorRT1N441U-1 Q 2002 G3070247 TransistorRT1N441U-1 Q 2003 G3070247 TransistorRT1N441U-1 Q 2004 G3070247 TransistorRT1N441U-1 Q 2005 G1093866 ICCD4094BPWR Q 2006 G3070247 TransistorRT1N441U-1 Q 2007 G1094156 ICUA78L05ACPK Q 2008 G3070247 TransistorRT1N441U-1 Q 2009 G3070247 TransistorRT1N441U-1 Q 2010 G3070247 TransistorRT1N441U-1 Q 2011 G3070247 TransistorRT1N441U-1 Q 2012 G1093866 ICCD4094BPWR Q 2013 G3070247 TransistorRT1N441U-1 Q 2014 G3070247 TransistorRT1N441U-1 Q 2015 G3070247 TransistorRT1N441U-1 FRONT-B-UNITCH 128 D 3001 G2070990 LEDTLOU1020 D 3002 G2070990 LEDTLOU1020 D 3003 G2070990 LEDTLOU1020 D 3004 G2070990 LEDTLOU1020 D 3005 G2070654 LEDBRPG1211C D 3006 G2070906 Zener DiodeUDZS 3.9B DS3001 G6090173 LCDTP5434 Q 3001 G3211327R Transistor2SB1132 R Q 3002 G3070143 TransistorXP1501 Vertex Standard Co.,Ltd. 4 FCC ID: K6610613030/IC ID: 511B-10613030 VX-2100-D-25/VX-2200-D0-25Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL Q 3003 G3070247 TransistorRT1N441U-1 Q 3004 G3070247 TransistorRT1N441U-1 Q 3005 G1093866 ICCD4094BPWR Q 3006 G1094156…

Text truncated - open the document above for the full version.

12/21/2006 Page 1 of 3 FCCID: FCC RF Exposure Requirements Gen…

Text truncated - open the document above for the full version.
