K6610653020VHF Transceiver

FCC ID: K6610653020 IC ID: 511B-10653020 Operating Manual VX-350 Series Operating Manual Controls & Connectors ・ LED Indicator Glows Green: Monitor on Blinking Green: Busy Channel (or SQL off) Glows Red: Transmitting Blinking Red: Battery Voltage is low Yellow: Receiving a Selective Call ・ Antenna Jack ・ P u s h To Ta l k ( P T T ) S w i t c h ・ Side1 Switch (Case side) ・ Side2 Switch (Case side) ・ CH (Channel) Selector ・ VOL/PWR knob ・ LCD (LCD version only) ・ A Key (LCD version only) ・ B Key (LCD version only) ・ C Key (LCD version only) ・ D Key (LCD version only) ・ MIC/SP Jack (External Mic/Earphone) ・ Speaker ・ Internal Microphone ・ Battery Pack Latch Before You Begin Battery Pack Installation and Removal ・ To install the battery, hold the transceiver with your left hand, so your palm is over the speaker and your thumb is on the top of the belt clip. Insert the battery pack into the battery compartment on the back of the radio while titling the Belt Clip outward. ・ To remove the battery, turn the radio off and remove protective cases. Slide the Battery Pack Latch on the bottom of the radio, and then slide the battery downward and out from the radio while unfolding the Belt Clip. Caution!: Do not attempt to open any of the rechargeable Li-Ion packs, as they could explode if accidentally short-circuited. Low Battery Indication ・ As the battery discharges during use, the voltage gradually becomes lower. When the battery voltage becomes to low, substitute a freshly charged battery and recharge the depleted pack. The TX/BUSY indicator on the top of the radio will blink red when the battery voltage is low. ・ Avoid recharging Li-Ion batteries often with little use between charges, as this can degrade the charge capacity. We recommend that you carry an extra, fully-charged pack with you so the operational battery may be used until depletion (this “deep cycling” technique promotes better long-term battery capacity) 1/7 Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Operating Manual SAFETY TRANING INFORMATION This Radio has been tested and complies with the Federal Communications Commission (FCC) RF exposure limits for Occupational Use/Controlled exposure environment. In addition, it complies with the following Standards and Guidelines: FCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation. FCC OET Bulletin 65 Edition 97-01 (1997) Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3kHz to 300 GHz. ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields-RF and Microwave. (!) WARNING: This radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as Occupational Use Only, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is not intended for use by the General Population in an uncontrolled environment. (!) CAUTION: To ensure that your exposure to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: * This radio is NOT approved for use by the general population in an uncontrolled environment. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control its RF exposure conditions. * When transmitting, hold the radio in a vertical position with its microphone 1 to 2 inches (2.5 to 5 cm) away from your mouth and keep the antenna at least 1 inch (2.5cm) away from your head and body. * The radio must be used with a maximum operating duty cycle not exceeding 50 %, in typical Push-to-Talk (PTT) configurations. DO NOT transmit for more than 50 % of total radio use time (50 % duty cycle). Transmitting more than 50 % of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the red LED on the top of the radio is illuminated. You can cause the radio to transmit by pressing the PTT button or by using the VOX headset, model VC-25. * DO NOT transmit when the radio is used in Body Worn configuration with the following accessory: belt-clip (CLIP-18). It must be used ONLY for (1) there is a 4 cm distance from the body during transmitting, (2) monitoring purposes, using the speaker only and (3) for carrying purposes. * Always use Vertex Standard authorized accessories. The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to assure that this radio operates with the FCC RF exposures limits of this radio. Electromagnetic Interference/Compatibility During transmissions, this radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. Do not operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, health care facilities, aircraft, and blasting sites. FCC LICENSE INFORMATION This radio operates on communications frequencies which are subject to FCC (Federal Communications Commission) RUles and Regulations. FCC Rules require that all operators using Private Land Mobile radio frequencies obtain a radio license before operating their equipment. 2/7 Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Operating Manual Operation Preliminary Steps ・ Install a charged battery pack onto the transceiver, as described previously. ・ Screw the supplied antenna onto the Antenna jack. Never attempt to operate this transceiver without an antenna connected. ・ If you have a Speaker/Microphone, we recommend that it not be connected until you…

Text truncated - open the document above for the full version.

January 15, 2007 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FCC ID: K6610653020 VX-351-AD0B-5, and VX-354-AD0B-5 Gentlemen: Part 15.19 Compliance Statement is placed on the rear of case. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

January 15, 2007 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FCC ID: K6610653020 VX-351-AD0B-5, and VX-354-AD0B-5 Gentlemen: A. Part 15.21 Compliance Statement Drawing: Part 15.21: Changes or modifications to this device not expressly approved by Vertex Standard could void the user’s authorization to operate this device. 20mm 97mm B. Part 15.21 Compliance Statement Drawing Location: IN OPERATION MANUAL (location on inside back cover) Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

January 15, 2007 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FCC ID: K6610653020 VX-351-AD0B-5, and VX-354-AD0B-5 Gentlemen: The equipment meets the requirements of the FCC Rules, Part 90.203(e) and (g), as applicable. Programming of this product’s transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personal. The operator cannot be program transmit frequencies using the equipment’s external operation controls. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

January 15, 2007 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P. O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: FCC ID: K6610653020 VX-351-AD0B-5, and VX-354-AD0B-5 Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requires confidential treatment of some of the information accompanying this Application, as listed below: ・ Block Diagram ・ Schematics These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for this Application. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

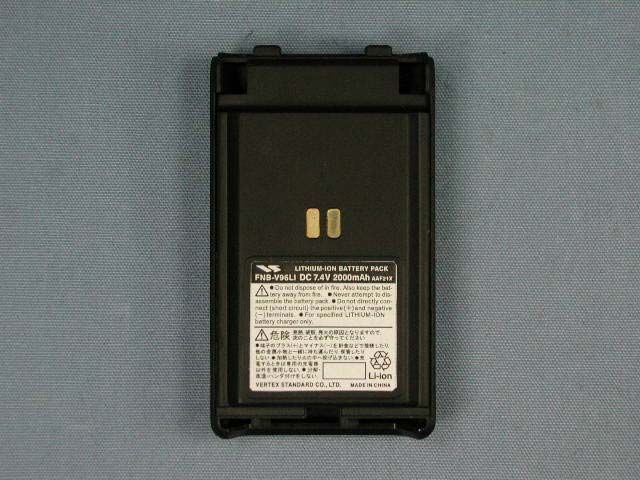

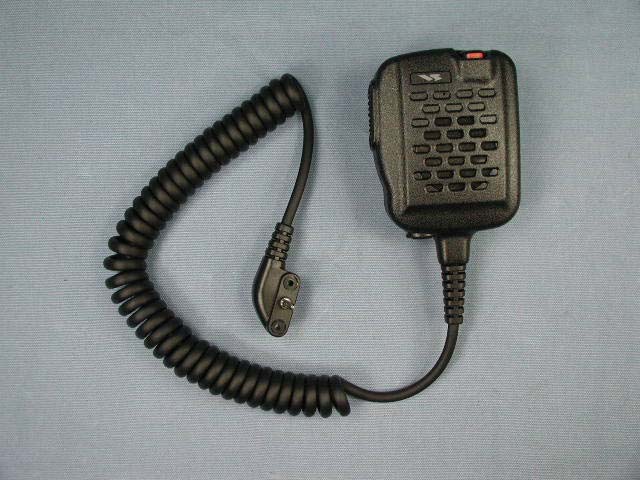

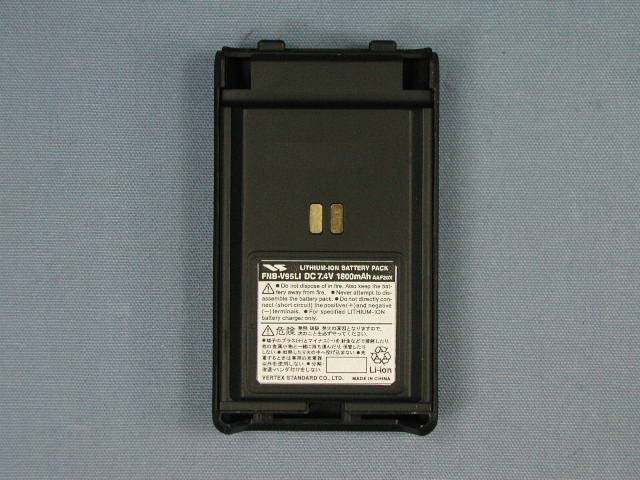

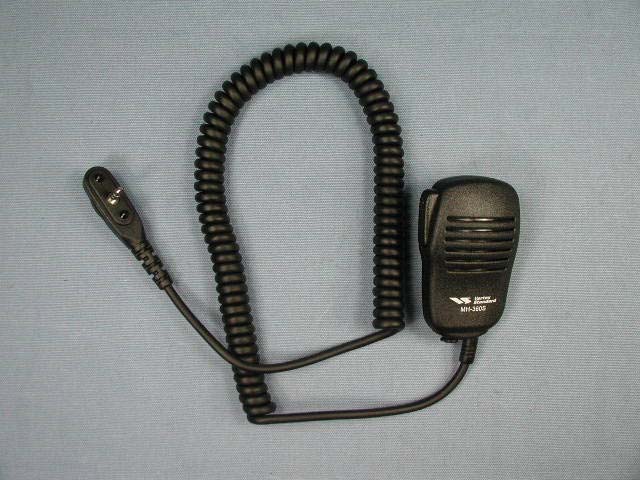

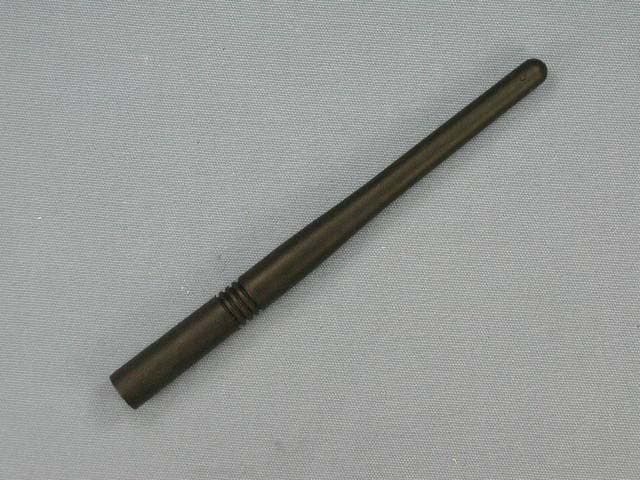

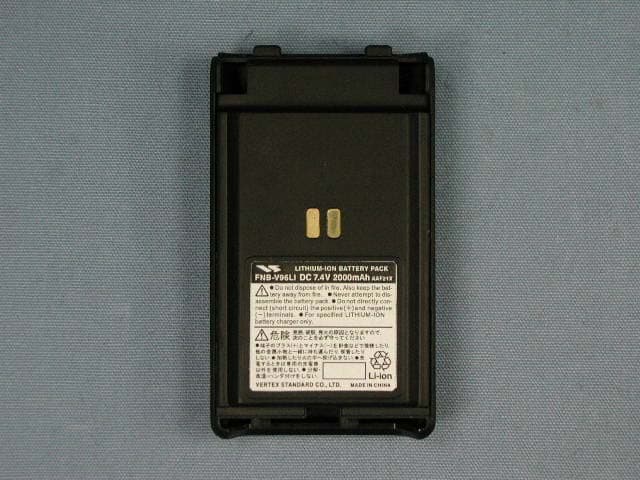

FCC ID: K6610653020 IC ID: 511B-10653020 Front view (VX-354) with antenna Front view (VX-351) with antenna Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Front view (VX-354) without antenna Front view (VX-351) without antenna Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Rear view with antenna Rear view without antenna Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Left side Right side Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Top Bottom Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Battery Pack FNB-V95LI Battery Pack FNB-V96LI Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Battery Charger AC Adapter Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Speaker/Microphone MH-45B4B Speaker/Microphone MH-360S Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Speaker/Microphone MH-450S VOX Headset VC-25 Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Antenna Vertex Standard Co., Ltd.

VX-350 Series (VHF)VX-350 Series (VHF) LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location ! ! Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner's manual for specific operating requirement CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. VX-351-AD0B-5 FCC ID: K6610653020 IC: 511B-10653020 VX-354-AD0B-5 FCC ID: K6610653020 IC: 511B-10653020

March 16, 2007 Federal Communications Commission Authorization and Evaluation Division 7345 Oakland Mills Road Columbia, MD 21046 Re: VX-351-AD0B-5, and VX-354-AD0B-5 (FCC ID: K6610653020) Gentlemen: Vertex Standard Co., Ltd. requests acceptance of the labeling location proposal described below for transceivers bearing FCC ID: K6610653020. The subject transceivers are compact, handheld models (as shown in the below photos) and there is no area to fit the label on the surface. Also, the surface area of the panel is of a rough texture and a label would not stay affixed. Because the majority of the transceiver housing is composed of display, speaker, operating controls and a removable battery pack, there is limited space available to attach the required label that contains the FCC ID. The battery pack is removable so putting the label on the back is not an option. For this reason, we propose placing the label, which contains the FCC identifier inside the battery compartment as shown below: Should you have any questions regarding this, please advise. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

March 16, 2007 Federal Communications Commission Authorization and Evaluation Division 7345 Oakland Mills Road Columbia, MD 21046 Re: VX-351-AD0B-5, and VX-354-AD0B-5 (FCC ID: K6610653020) Gentlemen: Vertex Standard Co., Ltd. requests acceptance of the labeling location proposal described below for transceivers bearing FCC ID: K6610653020. The subject transceivers are compact, handheld models (as shown in the below photos) and there is no area to fit the label on the surface. Also, the surface area of the panel is of a rough texture and a label would not stay affixed. Because the majority of the transceiver housing is composed of display, speaker, operating controls and a removable battery pack, there is limited space available to attach the required label that contains the FCC ID. The battery pack is removable so putting the label on the back is not an option. For this reason, we propose placing the label, which contains the FCC identifier inside the battery compartment as shown below: The label will be readily visible at the time of purchase because the device will be marketed without the battery installed. Should you have any questions regarding this, please advise. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

FCC ID: K6610653020 IC ID: 511B-10653020 Inside view Side-A of MAIN-UNIT with LCD Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Side-A of MAIN-UNIT without LCD Side-B of MAIN-UNIT with shield cases Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Side-B of MAIN-UNIT without shield cases Top of LCD Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Bottom of LCD Inside of front panel (for VX-354) Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Inside of front panel (for VX-351) Inside of chassis Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 PWB of Battery Charger PWB of Battery Charger Vertex Standard Co., Ltd.

FCC ID: K6601653020 IC ID: 511B-10653020 Circuit Description 1/3 VX-350 Serious Circuit Description 1. Circuit Configuration by Frequency The receiver is a Double-conversion Super-heterodyne with a first intermediate frequency (IF) of 50.85MHz and a second IF of 450kHz. Incoming signal from the antenna is mixed with the local signal from the VCO/PLL to produce the first IF of 50.85MHz. This is then mixed with the 50.4MHz second local oscillator output to produce the 450kHz second IF. This is detected to give the demodulated signal. The transmit signal frequency is generated by the PLL VCO, and modulated by the signal from the microphone. It is then amplified and sent to the antenna. 2. Receiver System 2-1. Front-end RF amplifier Incoming RF signal from the antenna is delivered to the RF Unit and passes through Low-pass filer, antenna switching diode, high pass filter and removed undesired frequencies by varactor diode (tuned band-pass filer). The passed signal is amplified in Q1021 and moreover cuts an image frequency with the tuned band pass filter and comes into the 1st mixer. 2-2. First Mixer The 1st mixer consists of the Q1036. Buffered output from the VCO is amplified by Q1031 to provide a pure first local signal between 184.85 and 224.85MHz for injection to the first mixer. The IF signal then passes through monolithic crystal filters XF1001(±5.5 kHz BW) to strip away all but the desired signal. 2-3. IF Amplifier The first IF signal is amplified by Q1048. The amplified first IF signal is applied to FM IF subsystem IC Q1053 which contains the second mixer, second local oscillator, limiter amplifier, noise amplifier, and S-meter amplifier. The signal from reference oscillator X1002 becomes 3 times of frequencies in Q1053, it is mixed with the IF signal and becomes 450KHz. The second IF then passes through the ceramic filter CF1001 (wide channels), CF1002 (narrow channels) to strip away unwanted mixer products, and is applied to the limiter amplifier in Q1053, which removes amplitude variations in the 450kHz IF, before detection of the speech by the ceramic discriminator CD1001. 2-4. Audio amplifier Detected signal from Q1053 is inputted to mute switch Q1001-3 and option switch Q1001-2. The signal which appeared from Q1001-2 is in band pass filter Q1066. In the case an optional unit is installed, the Q1001-2 is made OFF and the AF signal from Q1001-3 goes the optional unit. In the case an optional unit is not installed, Q1001-2 is made ON and the signal goes through Q1001-2. The signal which passed Q1066 goes to AF volume (VR1001). And then the signal goes to audio amplifier Q1007. The output signal from Q1007 is in audio speaker. 2-5. Squelch Circuit There are 16 levels of squelch setting from 0 to 15. The level 0 means open the squelch. The level 1 means the threshold setting level and level 14 means tight squelch. From 2 to 13 is established in the middle of threshold and tight. The bigger figure is nearer the tight setting. The level 15 becomes setting of carrier squelch. 2-5-1. Noise Squelch Noise squelch circuit is composed of the band path filter of Q1053, noise amplifier Vertex Standard Co., Ltd. FCC ID: K6601653020 IC ID: 511B-10653020 Circuit Description 2/3 Q1058, and noise detector D1042, D1043. When a carrier isn't received, the noise ingredient which goes out of the demodulator Q1053 is amplified in Q1058 through the band path filter Q1053, is detected to DC voltage with D1042, D1043 and is inputted to 48pin (the A/D port) of the Q1044 (CPU). When a carrier is received, the DC voltage becomes low because the noise is compressed. When the detected voltage to CPU is high, the CPU stops AF output with Q1001-1 "OFF" by making the 39pin (CPU) "L" level. When the detection voltage is low, the CPU makes Q1001-1 ON with making 39pin "H" and the AF signal is output. 2-5-2. Carrier Squelch The CPU (47pin: A/D port) detects RSSI voltage output from Q1053 12 pin, and controls AF output. The RSSI output voltage changes according to the signal strength of carrier. The stronger signal makes the RSSI voltage to be higher voltage. The process of the AF signal control is same as Noise Squelch The shipping data is adjusted 3dB higher than squelch tight sensitivity. 3. Transmitter System 3-1. Mic Amplifier The AF signal from internal microphone MC1001 or external microphone J1002 is amplified with microphone amplifier Q1069-2, after passes microphone gain volume Q1017. AF signal is passes a pre-emphasis circuit. Q1001-1 becomes OFF when an option unit is attached and the AF signal from Q1068 goes via the option unit. When an option unit isn't attached, Q1001-1 becomes ON, the signal passes Q1001-1 and is input to the limiter amplifier Q1068-2. The signal passed splatter filter of Q1068 and adder amplifier Q1065 is adjusted by maximum deviation adjustment volume Q1017. The AF signal ingredient is amplified Q1065. After that, it is made FM modulation to transmit carrier by the modulator D1023 of VCO. 3-2. Drive and Final amplifier The modulated signal from the VCO Q1049 is buffered by Q1042 and amplified by Q1031. Then the signal is buffered by Q1026 for the final amplifier driver Q1020. The low-level transmit signal is then applied to Q1013 for final amplification up to 5watts output power. The transmit signal then passes through the antenna switch D1002 and is low pass filtered to suppress away harmonic spurious radiation before delivery to the antenna. 3-4. Automatic Transmit Power Control The current detector Q1064-1 detects the current of Q1013 and Q1020, and converts the current difference to the voltage difference. The output from the current detector Q1064-1 is compared with the reference voltage and amplified by the power control amplifier Q1064-2. The output from Q1064-2 controls the gate bias of the final amplifiers Q1013 and the final amplifier driver Q1020. The reference voltage changes into four values (Transmit Power High and Low) controlled by Q1017. 3-5. PLL Frequency Synthesi…

Text truncated - open the document above for the full version.

FCC ID: K6610653020 IC ID: 511B-10653020 Alignment 1/4 VX-350 Series Alignment Introduction The VX-350 series are carefully aligned at the factory for the specified performance across the frequency range specified for each version. Realignment should therefore not be necessary except in the event of a component failure, or altering version type. All component replacement and service should be performed only by an authorized Vertex Standard representative, or the warranty policy may be void. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts subsequently are placed, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by authorized Vertex Standard service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized Vertex Standard service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Vertex Standard reserves the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and realignment determined to be absolutely necessary. The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Alignment 2/4 Required Test Equipment ˆ RF Signal Generator with calibrated output level at 200MHz (600MHz for UHF) ˆ Deviation Meter (linear detector) ˆ In-line Wattmeter with 5% accuracy at 200MHz (600MHz for UHF) ˆ 50-Ω RF Dummy Load with power rating 10W at 200MHz (600MHz for UHF) ˆ 4Ω/1W AF Dummy Load ˆ Regulated DC Power Supply (standard 7.5V DC, 3A) ˆ Frequency Counter with 0.2ppm accuracy at 200MHz (600MHz for UHF） ˆ Audio Signal Generator (available to output 30Hz to 5kHz) ˆ AC Voltmeter ˆ DC Voltmeter ˆ IBM PC / compatible Computer with Microsoft Windows98 or later operating system ˆ Vertex Standard VPL-1 Connection Cable & CE86 Programming software. Alignment Preparation & Precautions A 50-Ω RF Dummy Load and in-line wattmeter must be connected to the main antenna jack in all procedures that call for transmission, except where specified otherwise. Correct alignment is not possible with an antenna. After completing one step, read the following step to determine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, in connected) before proceeding. Correct alignment requires that the ambient temperature be the same as that of the transceiver and test equipment, and that this temperature be held constant between 20 and 30°C (68 ∼ 86 °F). When the transceiver is brought into the shop from hot or cold air, it should be allowed time to come to room temperature before alignment. Whenever possible, alignments should be made with oscillator shields and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning. Note: Signal levels in dB referred to in the alignment procedure are based on 0dB μ EMF = 1μV. Setup the test equipment as shown for transceiver alignment, apply 7.5V DC power to the transceiver. Refer to the drawings above for Alignment Points. Vertex Standard Co., Ltd. FCC ID: K6610653020 IC ID: 511B-10653020 Alignment 3/4 PC POWER SUPPLY 7.5V DC RF SIGNAL GENERATOR 50 Ω DUMMY LOAD IN-LINE WATTMETER DEVIATION METER FREQUENCY COUNTER RF SAMPLING COUPLER TRANSCEIVER ANT MIC/EAR COM port CT-71 connection cable The transceiver must be programmed for use in the intended system before alignment is attempted. The RF parameters are loaded from the file during the alignment process. In order to facilitate alignment over the complete switching range of the equipment it is recommended that the channel data in the transceiver is preset as the chart below. Channels Frequency (Simplex) VHF UHF-A UHF-D Band-LOW 134.100MHz 400.100MHz 450.100MHz Band-MID 154.100MHz 435.100MHz 480.100MHz Band-HIGH 173.900MHz 469.900MHz 511.900MHz The alignment mode is accessed by “Alignment mode” command from the computer whilst switching on. And the alignment tool operates it automatically. During the alignment mode, normal operation is suspended. Use the alignment tool program running on PC. The alignment tool outline Installation the tool Install the CE86 (Clone Editor) to your PC. The re-alignment for VX-350series may use the “Alignment” menu of CE86. Action of the switches When the transceiver is in alignment mode, the action of [PTT], [KEY] is ignored. All of the action is remote contr…

Text truncated - open the document above for the full version.

1 FCC ID: K6610653020/IC ID: 511B-10653020 VX-351-AD0B-5/VX-354-AD0B-5Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL MAIN-UNIT D 1001 G2070634 Diode1SS400 D 1002 G2070128 DiodeRLS135 D 1003 G2070128 DiodeRLS135 D 1005 G2070178 DiodeDA221 D 1006 G2070178 DiodeDA221 D 1007 G2071006 Diode1SV323 D 1008 G2070634 Diode1SS400 D 1009 G2071006 Diode1SV323 D 1010 G2070634 Diode1SS400 D 1012 G2070634 Diode1SS400 D 1014 G2070634 Diode1SS400 D 1015 G2070634 Diode1SS400 D 1016 G2071006 Diode1SV323 D 1017 G2070810 Diode1SV323 D 1018 G2071006 Diode1SV323 D 1019 G2070174 DiodeDAN222 D 1020 G2070634 Diode1SS400 D 1021 G2070178 DiodeDA221 D 1023 G2071162 DiodeHVC374B D 1025 G2070178 DiodeDA221 D 1028 G2070634 Diode1SS400 D 1029 G2070634 Diode1SS400 D 1030 G2070634 Diode1SS400 D 1031 G2070636 DiodeHVC362 D 1032 G2070634 Diode1SS400 D 1033 G2070636 DiodeHVC362 D 1034 G2070634 Diode1SS400 D 1035 G2070636 DiodeHVC362 D 1036 G2070636 DiodeHVC362 D 1037 G2070990 LEDTLOU1020VX-354 D 1038 G2070634 Diode1SS400VX-354 D 1039 G2070174 DiodeDAN222 D 1040 G2070174 DiodeDAN222 D 1041 G2070634 Diode1SS400 D 1042 G2070178 DiodeDA221 D 1043 G2070178 DiodeDA221 D 1044 G2070634 Diode1SS400 D 1046 G2071006 Diode1SV323 D 1047 G2071006 Diode1SV323 D 1048 G2071006 Diode1SV323 D 1049 G2071006 Diode1SV323 DS1001 G6090180 LCDAC065VX-354 Q 1001 G1093537 ICBU4066BCFV-E2 Q 1002 G3117748R Transistor2SA1774 R Q 1003 G3070075 TransistorDTC144EE Q 1004 G3070143 TransistorXP1501 Q 1005 G3211327R Transistor2SB1132 R Q 1006 G1094097 ICTAR5S50U Q 1007 G1092944 ICNJM2070M Q 1008 G3070075 TransistorDTC144EE Q 1009 G4070015 MOSFETRTQ030P02 Q 1010 G3070343 TransistorUMD5N Q 1011 G3346178R Transistor2SC4617 R Vertex Standard Co.,Ltd. 2 FCC ID: K6610653020/IC ID: 511B-10653020 VX-351-AD0B-5/VX-354-AD0B-5Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL Q 1012 G3070075 TransistorDTC144EE Q 1013 G3070368 MOSFETRD12MVP1 Q 1014 G3070225 TransistorDTC114TE Q 1015 G3070075 TransistorDTC144EE Q 1016 G3070075 TransistorDTC144EE Q 1017 G1093033 ICM62364FP 600D Q 1018 G3070075 TransistorDTC144EE Q 1019 G3070225 TransistorDTC114TE Q 1020 G3070321 MOSFETRD01MUS1 Q 1021 G3352268Z Transistor2SC5226-4 Q 1024 G3346178R Transistor2SC4617 R Q 1025 G3070225 TransistorDTC114TE Q 1026 G3333567E Transistor2SC3356 R25 Q 1027 G3070225 TransistorDTC114TE Q 1028 G3340818 Transistor2SC4081 Q 1029 G1093606 ICS-80835CNMC-B8U-G Q 1030 G1094096 ICTAR5S35U Q 1031 G3350058 Transistor2SC5005 Q 1032 G3211327R Transistor2SB1132 R Q 1033 G3070075 TransistorDTC144EE Q 1034 G3070143 TransistorXP1501 Q 1035 G3070225 TransistorDTC114TE Q 1036 G4802938 FET3SK293 Q 1037 G3346178R Transistor2SC4617 R Q 1038 G3070074 TransistorDTA144EE Q 1039 G3070225 TransistorDTC114TE Q 1040 G1093874 ICBR93L66RFVM Q 1041 G3070225 TransistorDTC114TE Q 1042 G3350058 Transistor2SC5005 Q 1043 G3070075 TransistorDTC144EE Q 1044 G1094436 ICLC87F5864C-F58F1-E Q 1045 G3070074 TransistorDTA144EE Q 1046 G3805087B FET2SK508 K52 A Q 1047 G3070225 TransistorDTC114TE Q 1048 G3352268Z Transistor2SC5226-4 Q 1049 G3342278B Transistor2SC4227 R32 Q 1050 G3346178R Transistor2SC4617 R Q 1051 G3070075 TransistorDTC144EE Q 1052 G3350058 Transistor2SC5005 Q 1053 G1094024 ICNJM2591V Q 1054 G3340818 Transistor2SC4081VX-354 Q 1055 G3070075 TransistorDTC144EEVX-354 Q 1056 G3808807G FET2SK880GR Q 1057 G1093288 ICLC75834WVX-354 Q 1058 G3346178R Transistor2SC4617 R Q 1059 G1093014 ICSA7025DK Q 1061 G3070075 TransistorDTC144EE Q 1062 G3070075 TransistorDTC144EE Q 1064 G1094421 ICBA2902FV Q 1065 G1094421 ICBA2902FV Q 1066 G1094421 ICBA2902FV Q 1067 G1094421 ICBA2902FV Q 1068 G1094421 ICBA2902FV Q 1069 G1093337 ICNJM12904R Vertex Standard Co.,Ltd. 3 FCC ID: K6610653020/IC ID: 511B-10653020 VX-351-AD0B-5/VX-354-AD0B-5Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL Q 1070 G3070074 TransistorDTA144EE Q 1071 G1093337 ICNJM12904R Vertex Standard Co.,Ltd.

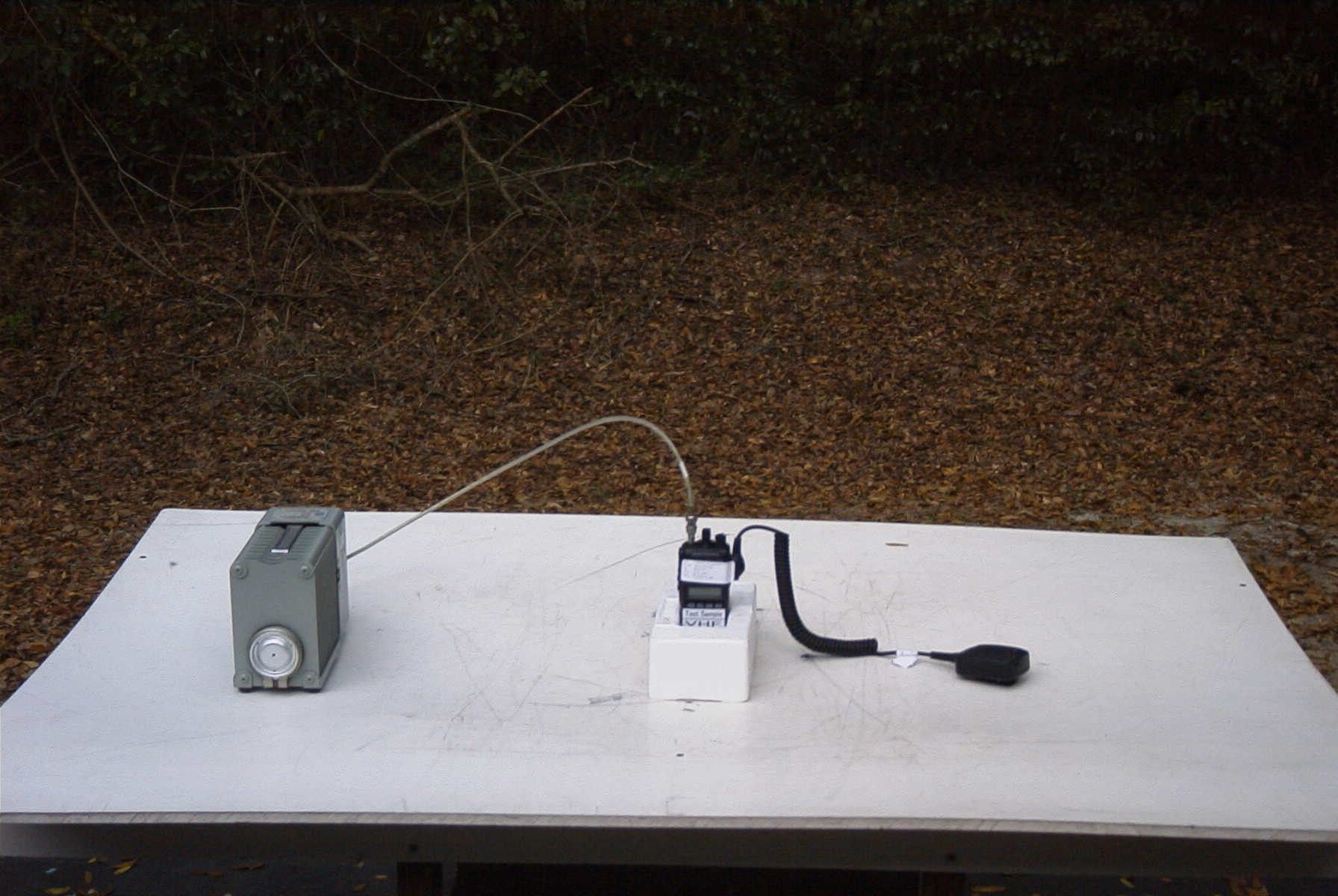

Page 1 of 48 REPORT ON Radio testing of the VERTEX STANDARD VX-354-AD0B-5 In accordance with ANSI/TIA/EIA-603, RSS-119 January 2007Report number TA000450 Vertex Standard Co., Ltd. GENERAL INFORMATION TRANSMITTERS Switchable xVariable N/A RＥＣＥＩＶERS This re port was prepared by Vertex Standard Co., Ltd. 7.4[V] Collector Current:1.4[A] MANUFACTURER:Vertex Standard Co., Ltd. NUMBER OF CHANNELS: FCC ID: TRADE NAME: VHF FM Transceiver 7C000001 IC ID:511B-10653020 TYPE OF EMISSION: FREQUENCY RANGE: RSS-119 VOLTAGE RQUIREMENTS: SERIAL NUMBER: SPECIFICATION ARE REFERENCED : POWER OUTPUT RATING: 134 1 174to to5 [MHz] [W] 16K0F3E , 11K0F3E [MHz] [W] [Ω] [Ω] 50 [Ω…
