K6610944620PORTABLE UHF TRANSCEIVER

16-Key Version 4-Key Version Non-LCD Version VX-450 S ERIES O PERATING M ANUAL VERTEX STANDARD CO., LTD.4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, JapanVERTEX STANDARDUS Headquarters10900 Walker Street, Cypress, CA 90630, U.S.A.YAESU UK LTD.Unit 12, Sun Valley Business Park, Winnall CloseWinchester, Hampshire, SO23 0LB, U.K.VERTEX STANDARD HK LTD.Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,Kwun Tong, Kowloon, Hong KongVERTEX STANDARD ( AUSTRALIA ) PTY., LTD. Normanby Business Park, Unit 14/45 Normanby RoadNotting Hill 3168, Victoria, Australia Warning! FCC RF Exposure Requir ements ............... 2 Controls & Connectors (16-Key Version) ................... 4 Controls & Connectors (4-Key Version) ..................... 5 Controls & Connectors (Non-LCD Version)............... 6LCD Icons & Indicators (16- & 4-Key Versions) ....... 7Before Y ou Begin ........................................................... 8 Battery Pack Insta llation and Removal ............................... 8 Low Battery Indication ....................................................... 8 Battery Charging ................................................................. 9 Operation ..................................................................... 10 P reliminary Steps ..................................................... 10 Operation Quick Start .............................................. 10 Advanced Operation ................................................... 14 Programmable Key Functions ...................................... 14 Descriptipon of Operating Functions ............................ 16 ARTS (Auto Range Tr anspond System ) ................... 24 DTMF Paging System ................................................. 25LOCK ............................................................................ 25 C ONTENTS VX-450 S ERIES O PERATING M ANUAL 1 I MPORTANT N OTICE FOR N ORTH A MERICAN U SERS R EGARDING 406 MH Z G UARD B AND The U.S. Coast Guard and National Oceanographic and Atmospheric Administration have requested thecooperation of the U.S. Federal Communications Commission in preserving the integrity of the protectedfrequency range 406.0 to 406.1 MHz, which is reserved for use by distress beacons. Do not attempt toprogram this apparatus, under any circumstances, for operation in the frequency range 406.0 - 406.1MHz if the apparatus is to be used in or near North America.Warning - Frequency band 406 - 406.1 MHz is reserved for use ONLY as a distress beacon by theUS Coast Guard and NOAA. Under no circumstance should this frequency band be part of thepreprogrammed operating frequencies of this radio. C ONGRATULATIONS ! You now have at your fingertips a valuable communications tool-a Vertex Standard two-way radio! Rug-ged, reliable and easy to use, your Vertex Standard radio will keep you in constant touch with yourcolleagues for years to come, with negligible maintenance down-time. Please take a few minutes to readthis manual carefully. The information presented here will allow you to derive maximum performancefrom your radio, in case questions arise later on.We’re glad you joined the Vertex Standard team. Call on us anytime, because communications is ourbusiness. Let us help you get your message across.Notice!: There are no owner-serviceable parts inside the radio. All service jobs must be referred to an authorized Vertex Standard Service Representative. Consult your Authorized Vertex Standard Dealer forinstallation of optional accessories. VX-450 S ERIES O PERATING M ANUAL 2 W ARNING ! FCC RF E XPOSURE R EQUIREMENTS This Radio has been tested and complies with the Federal Communications Commission (FCC) RF exposurelimits for Occupational Use/Controlled exposure environment. In addition, it complies with the following Stan-dards and Guidelines: FCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation.  FCC OET Bulletin 65 Edition 97-01 (2001) Supplement C, Evaluating Compliance with FCC Guidelines forHuman Exposure to Radio Frequency Electromagnetic Fields.  ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Fre-quency Electromagnetic Fields, 3 kHz to 300 GHz.  ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Elec-tromagnetic Fields - RF and Microwave. WARNING: This radio generates RF electromagnetic energy during transmit mode. This radio is designed for andclassified as Occupational Use Only , meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is not intended foruse by the General Population in an uncontrolled environment. CAUTION: To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupa-tional use, always adhere to the following guidelines:  This radio is NOT approved for use by the general population in an uncontrolled exposure environ-ment. This radio is restricted to occupational use, work related operations only where the radio opera-tor must have the knowledge to control his or her RF exposure conditions.  When transmitting, hold the radio in a vertical position with its microphone 2 inches (5 cm) away fromyour mouth and keep the antenna at least 2 inches (5 cm) away from your head and body. VX-450 S ERIES O PERATING M ANUAL 3  The radio must be used with a maximum operating duty cycle not exceeding 50%, in typical Push-to-Talk configurations.DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting morethan 50% of the time can cause FCC RF exposure compliance requirements to be exceeded.The radio is transmitting when the red LED on the top of the radio is illuminated. You can cause theradio to transmit by pressing the P-T-T button.  SAR compliance for body-worn use was only demonstrated for the specific belt-clip Part Number(CLIP-450). Other body-worn accessories or configurations ma…

Text truncated - open the document above for the full version.

November 3, 2010 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P. O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: FCC ID: K6610944620 VX-451-G6-5, VX-454-G6-5 and VX-459-G6-5 Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requires confidential treatment of some of the information accompanying this Application, as listed below: ・ Block Diagram ・ Schematics These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for this Application. Sincerely, Yukimasa Tomita Executive Managing Officer Engineering Division Vertex Standard Co., Ltd.

November 3, 2010 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FCC ID: K6610944620 VX-451-G6-5, VX-454-G6-5 and VX-459-G6-5 Gentlemen: Part 15.19 Compliance Statement is placed on the rear of case. Sincerely, Yukimasa Tomita Executive Managing Officer Engineering Division Vertex Standard Co., Ltd.

November 3, 2010 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FCC ID: K6610944620 VX-451-G6-5, VX-454-G6-5 and VX-459-G6-5 Gentlemen: A. Part 15.21 Compliance Statement Drawing: B. Part 15.21 Compliance Statement Drawing Location: In Operating Manual ( location on inside ) Sincerely, Yukimasa Tomita Executive Managing Officer Engineering Division Vertex Standard Co., Ltd. 20mm Part 15.21: Changes or modifications to this device not expressly approved by Vertex Standard could void the user’s authorization to operate this device. 95mm

November 3, 2010 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FCC ID: K6610944620 VX-451-G6-5, VX-454-G6-5 and VX-459-G6-5 Gentlemen: The equipment meets the requirements of the FCC Rules, Part 90.203(e) and (g), as applicable. Programming of this product’s transmit frequencies can be performed only by the manufacturer or by service or maintenance personal. The operator cannot be program transmit frequencies using the equipment’s external operation controls. Sincerely, Yukimasa Tomita Executive Managing Officer Engineering Division Vertex Standard Co., Ltd.

November 2, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification Gentlemen: The (K6610944620) was designed to operate in the frequency bands (406.1-470 MHz). To aid equipment authorization in other countries that accept the United States FCC Grant of Certification, this will service as a request that the FCC list the frequencies of (406.1-470 MHz) under the FCC Rules( Part 90)on the FCC Grant. For the FCC’s Rules Parts 90 applications, this radio is used in systems by Federal and Public Safety agencies including Police, Fire and Emergency Medical Services, etc. as indicated in the table below. Equipment programming is the responsibility of Authorized Service Personnel only. In addition, the radio complies with 47 CFR Part 90.203(e) in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. FREQUENCY RANGE (MHZ) RULE PART RULE PART (IF APPLICABLE) FEDERALEMISSION DESIGNATORS 401.00-406.00 X 406.1-454 90 11K0F3E 454-456* IC “ 456-470 90 “ 470-512 90 “ *These are Canada frequencies. Regards, Shigemitu Takahashi Engineering Division Vertex Standard Co., Ltd.

TCB FCC Approvals FCB Industry Canada Approval NB Notified Body for Europe 849 NW State Road 45 P. O. Box 370 Newberry, Florida 32669 USA Telephone (352) 472-5500 (888) 472-2424 FAX (352) 472-2030 email: [email protected] 2/2/2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Vertex Standard Co., Ltd.’s FC ID: K6610944620, Confirmation #: TC741041 To Whom It May Concern: We have uploaded an amended test report which was revised to remove all of the 25 kHz CH Spacing data. Therefore, this letter is a request to super cede the test report. Regards, Sharon Hoffman

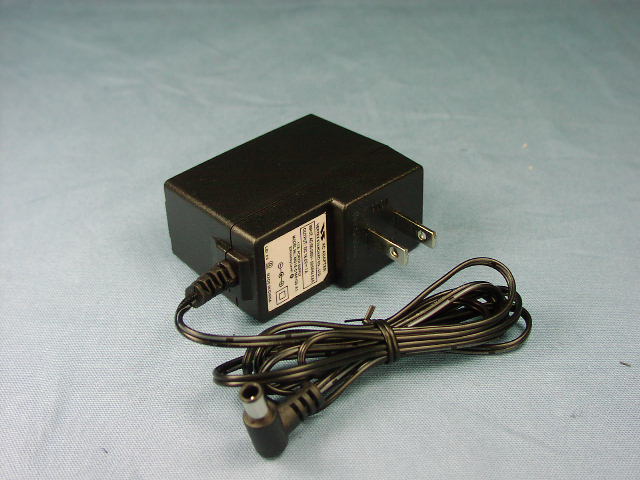

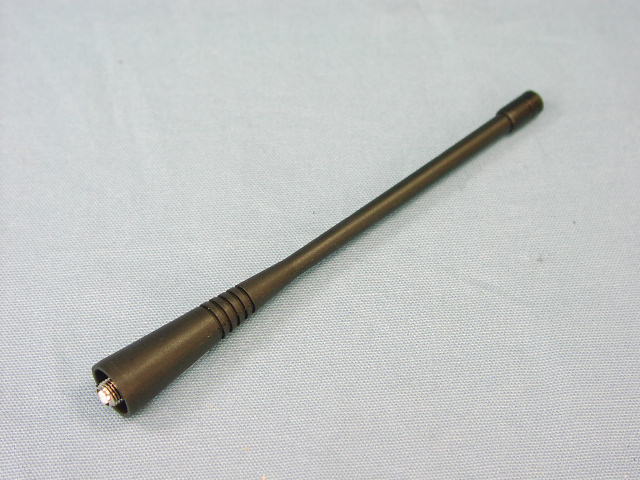

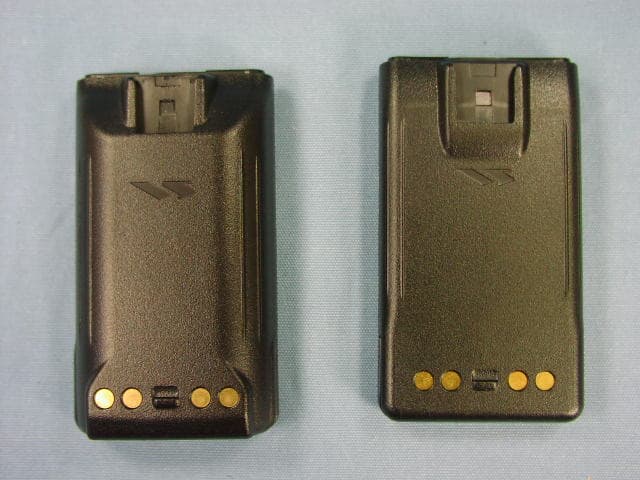

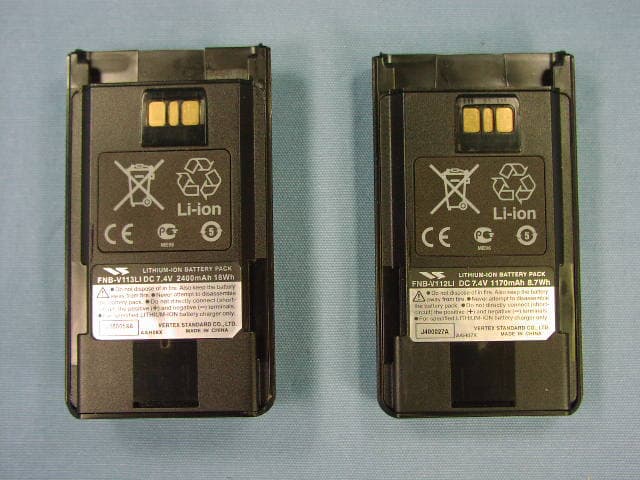

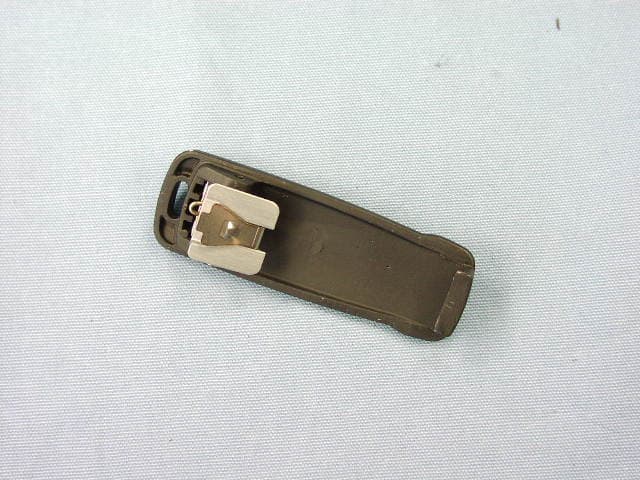

FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. VX-450 Series Type Variation VX-451-G6-5 VX-454-G6-5 VX-459-G6-5 Front view with antenna FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. Front view without antenna Rear view without antenna FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. Rear view without Battery Right side FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. Left side Top View FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. Bottom View Battery Pack FNB-V113LI (2400 mAh) and FNB-V112LI (1170 mAh) FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. Battery Pack FNB-V113LI (2400 mAh) and FNB-V112LI (1170 mAh) Battery Charger FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. AC Adapter Speaker/Microphone MH-45B4B FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. Speaker/Microphone MH-360S Speaker/Microphone MH-450S FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. VOX Headset VC-25 Antenna FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. Belt Clip Installation on Battery View of Belt Clip (Back)

VX-450 Series (UHF)VX-450 Series (UHF) LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location ! ! Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner's manual for specific operating requirement CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. VX-454-G6-5 FCC ID: K6610944620 IC: 511B-10944620 0000000000000000 VX-459-G6-5 FCC ID: K661094620 IC: 511B-10944620 00000000 VX-451- IC: 511B-10944620 00000000 VX-451-G6-5 FCC ID: K6610944620 00000000 VX-451-G6-5 VX-454-G6-5 VX-459-G6-5

FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. Side A of MAIN-UNIT With VCO Case (VX-451 / VX-454 / VX-459) Side A of MAIN-UNIT Without VCO Case (VX-451 / VX-454 / VX-459) FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. Side B of MAIN-UNIT (VX-454 / VX-459) Side B of MAIN-UNIT (VX-451) FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. Side A of DISPLAY-UNIT(VX-454 / VX-459) Side A of DISPLAY-UNIT Without LCD-UNIT (VX-454 / VX-459) FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. Side B of DISPLAY-UNIT (VX-454 / VX-459) Front of LCD-UNIT (VX-454 / VX-459) FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. Back of LCD-UNIT (VX-454 / VX-459) Inside of chassis FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. Outside of chassis Inside of front panel VX-451-G6-5 VX-454-G6-5 VX-459-G6-5 FCC ID:K6610944620 IC: 511B-10944620 Vertex Standard Co., Ltd. PWB of Battery Charger

FCC ID:K6610944620 IC: 511B-10944620 Circuit Description Vertex Standard Co., Ltd. VX-450 (UHF) Series Circuit Description 1. Circuit Configuration by Frequency The receiver is a Double-conversion Super-heterodyne with a first intermediate frequency (IF) of 67.65MHz and a second IF of 450kHz. Incoming signal from the antenna is mixed with the local signal from the VCO/PLL to produce the first IF of 67.65MHz. This is then mixed with the 67.2MHz second local oscillator output to produce the 450kHz second IF. This is detected to give the demodulated signal. The transmit signal frequency is generated by the PLL VCO, and modulated by the signal from the microphone. It is then amplified and sent to the antenna. 2. Receiver System 2-1. Front-end RF amplifier Incoming RF signal from the antenna is delivered to the RF Unit and passes through Low-pass filer, antenna switching diode, high pass filter and removed undesired frequencies by varactor diode D1006,D1007 and D109,D1010 (tuned band-pass filer). The passed signal is amplified in Q1007 (BF1212WR) and moreover cuts an image frequency with the tuned band pass filter and comes into the 1st mixer. 2-2. First Mixer The 1st mixer consists of the Q1015 (3SK293). Buffered output from the VCO is amplified by Q1014 (2SC5005) to provide a pure first local signal between 332.35 and 402.35 MHz for injection to the first mixer. The IF signal then passes through monolithic crystal filters XF1001 (±7.5 kHz BW) to strip away all but the desired signal. 2-3. IF Amplifier The first IF signal is amplified by Q1025 (2SC5526). The amplified first IF signal is applied to FM IF subsystem IC Q1033 (NJM2591V) which contains the second mixer, second local oscillator, limiter amplifier, noise amplifier, and RSSI amplifier. The signal from reference oscillator X1001 becomes 4 times of frequencies in Q1033, it is mixed with the IF signal and becomes 450 KHz. The second IF then passes through the ceramic filter CF1001 or CF1002 to strip away unwanted mixer products, and is applied to the limiter amplifier in Q1033, which removes amplitude variations in the 450kHz IF, before detection of the speech by the ceramic discriminator CD1001 (ECDA450C24). 2-4. Audio amplifier Detected signal from Q1033 (NJM2591V) is inputted to Audio Processor IC Q1013 . The signal which appeared from Q1001 is in high pass filter Q1041 (NJM12902V). The signal which passed Q1041 goes to AF volume (VR1001). And then the signal goes to audio amplifier Q1048 (TDA2822L-50B).The output signal from J1006 is in audio speaker. 2-5. Squelch Circuit There are 16 levels of squelch setting from 0 to 15. The level 0 means open the squelch. The level 1 means the threshold setting level and level 14 means tight squelch. From 2 to 13 is established in the middle of threshold and tight. The bigger figure is nearer the tight setting. The level 15 becomes setting of carrier squelch. FCC ID:K6610944620 IC: 511B-10944620 Circuit Description Vertex Standard Co., Ltd. 2-5-1. Noise Squelch Noise squelch circuit is composed of the band path filter and noise detector of Q1033. When a carrier isn't received, the noise ingredient which goes out of the demodulator Q1033 is amplified in Q1037 through the band path filter, is detected to DC voltage with D1031 and is inputted to 15 pin (the A/D port) of the Q1035 (CPU). When a carrier is received, the DC voltage becomes low because the noise is compressed. When the detected voltage to CPU is high, the CPU stops AF output with Q1049 "OFF" by making the 90 pin (CPU) "L" level. When the detection voltage is low, the CPU makes Q1049 ON with making 90 pin "H" and the AF signal is output. 2-5-2. Carrier Squelch The CPU (14pin: A/D port) detect RSSI voltage output from Q1033 12 pin, and controls AF output. The RSSI output voltage changes according to the signal strength of carrier. The stronger signal makes the RSSI voltage to be higher voltage. The process of the AF signal control is same as Noise Squelch The shipping data is adjusted -1dBu (EMF) higher than squelch tight sensitivity. 3. Transmitter System 3-1. Mic Amplifier The AF signal from internal microphone MC2001 or external microphone J1004 in to Audio processor IC Q1013. (selected 34pin or 35pin) Q1013 is which contains the microphone amplifier, compandor, Pre-emphasis, limiter and splatter filter, the processed signal to made FM modulation to transmit carrier by the modulator D1014 (HVC383B) of VCO. Q1013 is built-in DTMF Receiver, and Inversion Type Encryption. 3-2. Drive and Final amplifier The modulated signal from the VCO Q1023 (2SC4227) is buffered by Q1017 (2SC5005) . Then the signal is buffered by Q1010 (2SC3336) for the final amplifier driver Q1015 (RQA0004PXDQS). The low-level transmit signal is then applied to Q1006 (RQA0011DNS) for final amplification up to 5watts output power. The transmit signal then passes through the antenna switch D1005 (HVU131) and is low pass filtered to suppress away harmonic spurious radiation before delivery to the antenna. 3-4. Automatic Transmit Power Control The current detector Q1040-1(NJM12904V) detects the current of Q1006 and Q1008, and converts the current difference to the voltage difference. The output from the current detector Q1040-1 is compared with the reference voltage and amplified by the power control amplifier Q1040-2. The output from Q1040-2 controls the gate bias of the final amplifiers Q1006 and the final amplifier driver Q1008. The reference voltage changes into four values (Transmit Power High and Low) controlled by Q1040 (NJM12904V). FCC ID:K6610944620 IC: 511B-10944620 Circuit Description Vertex Standard Co., Ltd. 3-5. PLL Frequency Synthesizer The frequency synthesizer consists of PLL IC, Q1036 (AK1541), VCO, TCXO (X1001). The output frequency from TCXO is 16.8MHz and the tolerance is +/- 2.5 ppm (in the temperature range -30 to +60 degrees). 3-5-1. VCO While the radio is receiving, the RX oscillator Q1019 (2SK508) in VCO generates a programmed frequency between 3…

Text truncated - open the document above for the full version.

1 FCC ID: K6610944620/IC ID: 511B-10944620 VX-459-G6-5Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL MAIN-UNIT D 1001 G2070692 DiodePTZ TE25 15A D 1002 G2070934 Diode1SS400G T2R D 1003 G2070934 Diode1SS400G T2R D 1004 G2070584 DiodeHSC277TRF-E D 1005 G2070462 DiodeHVU131 TRF-E D 1006 G2070848 Diode1SV325(TPH3.F) D 1007 G2070848 Diode1SV325(TPH3.F) D 1008 G2070934 Diode1SS400G T2R D 1009 G2070848 Diode1SV325(TPH3.F) D 1010 G2070848 Diode1SV325(TPH3.F) D 1011 G2070174 DiodeDAN222 TL D 1012 G2070178 DiodeDA221 TL D 1013 G2071318 DiodeBAS70-04LT1G D 1014 G2070922 DiodeHVC383B TRF-E D 1015 G2070934 Diode1SS400G T2R D 1016 G2070636 DiodeHVC362TRF-E D 1017 G2070636 DiodeHVC362TRF-E D 1018 G2070636 DiodeHVC362TRF-E D 1019 G2070922 DiodeHVC383B TRF-E D 1020 G2070922 DiodeHVC383B TRF-E D 1021 G2070922 DiodeHVC383B TRF-E D 1022 G2070636 DiodeHVC362TRF-E D 1023 G2070922 DiodeHVC383B TRF-E D 1024 G2070934 Diode1SS400G T2R D 1025 G2070178 DiodeDA221 TL D 1026 G2070178 DiodeDA221 TL D 1027 G2070754 Zener DiodeHZU5ALL-TRF-E D 1028 G2070174 DiodeDAN222 TL D 1029 G2070934 Diode1SS400G T2R D 1030 G2070174 DiodeDAN222 TL D 1031 G2070178 DiodeDA221 TL D 1032 G2070178 DiodeDA221 TL D 1033 G2070934 Diode1SS400G T2R D 1034 G2070190 Zener DiodeRD2.0UM-T2 D 1035 G2070584 DiodeHSC277TRF-E D 1036 G2070998 Zener DiodeEDZ TE-61 5.1B D 1038 G2070934 Diode1SS400G T2R D 1039 G2070178 DiodeDA221 TL D 1040 G2071276 LEDFSL-1615055GR-ZC4 Q 1001 G3070347 MOSFETRTM002P02(TAPE) Q 1002 G3070075 TransistorDTC144EE TL Q 1003 G1094097 ICTAR5S50U(TE85L.F) Q 1004 G3070343 TransistorUMD5N TR Q 1005 G3070075 TransistorDTC144EE TL Q 1006 G3070392 MOSFETRQA0011DNS Q 1007 G3070435 MOSFETBF1212WR Q 1008 G3070391 MOSFETRQA0004PXDQS Q 1009 G3070225 TransistorDTC114TE TL Q 1010 G3333567D Transistor2SC3356-T2B R24 Q 1011 G1094783 ICTPS60403 Q 1012 G1093074 ICNJM2130F-TE1 Q 1013 G1094791 ICFQ0801 Q 1014 G3350058 Transistor2SC5005-T1 Vertex Standard Co.,Ltd. 2 FCC ID: K6610944620/IC ID: 511B-10944620 VX-459-G6-5Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL Q 1015 G4802938 FET3SK293(TE85L,F) Q 1016 G3070225 TransistorDTC114TE TL Q 1017 G3350058 Transistor2SC5005-T1 Q 1018 G3070074 TransistorDTA144EE TL Q 1019 G3805087B FET2SK508-T2B K52 A Q 1020 G3070225 TransistorDTC114TE TL Q 1021 G3070075 TransistorDTC144EE TL Q 1022 G3350058 Transistor2SC5005-T1 Q 1023 G3342278B Transistor2SC4227-T1 R32 Q 1024 G3346178R Transistor2SC4617 TL R Q 1025 G3352268Z Transistor2SC5226-4/5-TL Q 1026 G3070343 TransistorUMD5N TR Q 1027 G1093606 ICS-80835CNMC-B8U-T2-G Q 1028 G1094096 ICTAR5S35U(TE85L.F) Q 1029 G1094096 ICTAR5S35U(TE85L.F) Q 1031 G1094789 ICLE25CA322TT-TLM-H Q 1032 G3346178R Transistor2SC4617 TL R Q 1033 G1094024 ICNJM2591V-TE1 Q 1034 G3808807G FET2SK880GR(TE85R.F) Q 1035 G1094801 ICLC88F52H0A-F2303-H Q 1036 G1094713 ICAK1541 Q 1037 G3346178R Transistor2SC4617 TL R Q 1038 G3070075 TransistorDTC144EE TL Q 1039 G3070075 TransistorDTC144EE TL Q 1040 G1093337 ICNJM12904R-TE1 Q 1041 G1093592 ICNJM12902V-TE1 Q 1042 G1093337 ICNJM12904R-TE1 Q 1043 G3070074 TransistorDTA144EE TL Q 1044 G3070075 TransistorDTC144EE TL Q 1045 G3070347 MOSFETRTM002P02(TAPE) Q 1046 G3070075 TransistorDTC144EE TL Q 1048 G1094497 ICTDA2822L-S08-R Q 1049 G4070015 MOSFETRTQ030P02 Q 1050 G3346178R Transistor2SC4617 TL R Q 1052 G1091675 ICTC4W53FU(TE12L_F) Q 1053 G3070074 TransistorDTA144EE TL Q 1054 G3340818 Transistor2SC4081 T106 Q 1055 G3070225 TransistorDTC114TE TL Q 1056 G3070225 TransistorDTC114TE TL Q 1057 G3117748R Transistor2SA1774 TL R Q 1059 G3070225 TransistorDTC114TE TL Q 1061 G3070225 TransistorDTC114TE TL Q 1062 G1094641 ICTC7S66FU(TE85L.F) DISPLAY-UNIT D 2001 G2070842 LEDFA1101F-TR D 2002 G2070842 LEDFA1101F-TR D 2003 G2070790 LEDLNJ808K8SRA D 2004 G2070790 LEDLNJ808K8SRA D 2005 G2070790 LEDLNJ808K8SRA D 2006 G2070790 LEDLNJ808K8SRA D 2007 G2070634 Diode1SS400 TE61 D 2008 G2070634 Diode1SS400 TE61 D 2009 G2070634 Diode1SS400 TE61 D 2010 G2070634 Diode1SS400 TE61 Vertex Standard Co.,Ltd. 3 FCC ID: K6610944620/IC ID: 511B-10944620 VX-459-G6-5Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL D 2011 G2070634 Diode1SS400 TE61 Q 2001 G3070225 TransistorDTC114TE TL Q 2002 G3070225 TransistorDTC114TE TL Q 2003 G1094097 ICTAR5S50U(TE85L.F) Q 2004 G3070078 TransistorUMW1N TR Q 2005 G3115768R Transistor2SA1576A T106 R Q 2006 G1094805 ICLC709701F-F5BC2-H Q 2007 G3346178R Transistor2SC4617 TL R Vertex Standard Co.,Ltd.

FCC ID:K6610944620 IC:511B-10944620 Alignment Vertex Standard Co., Ltd. 1 VX-450 (UHF) Series Alignment Introduction The VX-450 series are carefully aligned at the factory for the specified performance across the frequency range specified for each version. Realignment should therefore not be necessary except in the event of a component failure, or altering version type. All component replacement and service should be performed only by an authorized Vertex Standard representative, or the warranty policy may be void. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts subsequently are placed, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by authorized Vertex Standard service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized Vertex Standard service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Vertex Standard reserves the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and realignment determined to be absolutely necessary. The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. FCC ID:K6610944620 IC:511B-10944620 Alignment Vertex Standard Co., Ltd. 2 Required Test Equipment ˆ RF Signal Generator with calibrated output level at 600MHz. ˆ Deviation Meter (linear detector) ˆ In-line Wattmeter with 5% accuracy at 600MHz. ˆ 50-Ω RF Dummy Load with power rating 10W at 600MHz. ˆ 4Ω/1W AF Dummy Load ˆ Regulated DC Power Supply (standard 7.5V DC, 3A) ˆ Frequency Counter with 0.2ppm accuracy at 600MHz. ˆ Audio Signal Generator (available to output 30Hz to 5kHz) ˆ AC Voltmeter ˆ DC Voltmeter ˆ IBM PC/compatible Computer with Microsoft Windows XP or later operating system ˆ Vertex Standard FIF-10A Connection Cable & CE115 Programming software. Alignment Preparation & Precautions A 50-Ω RF Dummy Load and in-line wattmeter must be connected to the main antenna jack in all procedures that call for transmission, except where specified otherwise. Correct alignment is not possible with an antenna. After completing one step, read the following step to determine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, in connected) before proceeding. Correct alignment requires that the ambient temperature be the same as that of the transceiver and test equipment, and that this temperature be held constant between 20 and 30°C (68 ∼ 86 °F). When the transceiver is brought into the shop from hot or cold air, it should be allowed time to come to room temperature before alignment. Whenever possible, alignments should be made with oscillator shields and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning. Note: Signal levels in dB referred to in the alignment procedure are based on 0dB μ EMF = 1μV. Setup the test equipment as shown for transceiver alignment, apply 7.5V DC power to the transceiver. Refer to the drawings above for Alignment Points. The transceiver must be programmed for use in the intended system before alignment is attempted. The RF parameters are loaded from the file during the alignment process. In order to facilitate alignment over the complete switching range of the equipment it is recommended that the channel data in the transceiver is preset as the chart below. Channels Frequency (Simplex) UHF LOW (F1) 400.100MHz MID (F2) 435.100MHz HIGH (F3) 469.900MHz FCC ID:K6610944620 IC:511B-10944620 Alignment Vertex Standard Co., Ltd. 3 The alignment mode is accessed by “Alignment mode” command from the computer whilst switching on. And the alignment tool operates it automatically. During the alignment mode, normal operation is suspended. Use the alignment tool program running on PC. Before beginning alignment, connect the transceiver and PC using the FIF-10A Connection Cable, and run the CE115 Channel Programming Diskette, then download the data from the transceiver to the computer. Then store this data in a disk file so that it can be uploaded when alignment is finished. You should find the corresponding data file on the computer disk for the transceiver version you are aligning, containing channel settings for the high edge, middle and low edge of the transceiver’s frequency range in channels 1,2 and 3, respectively. Up-load this file to the tra…
