K6620101X70HF Transceiver with Scanning Receiver

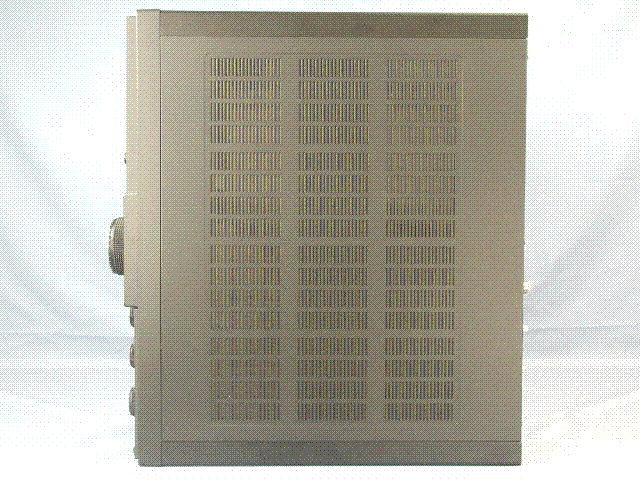

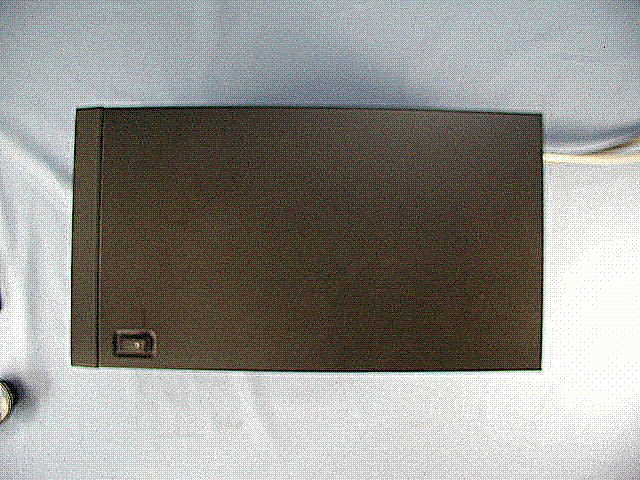

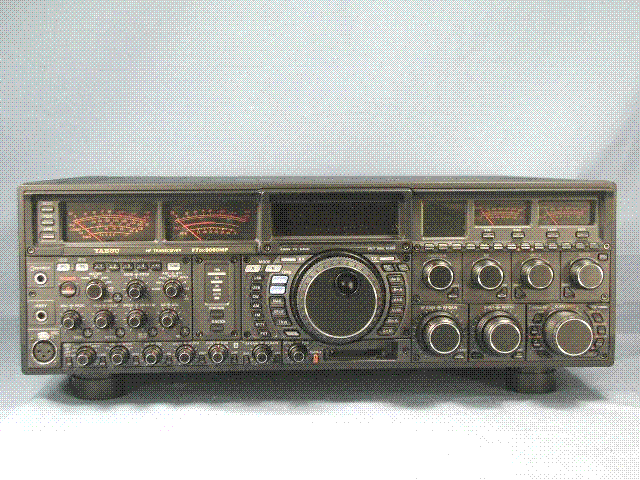

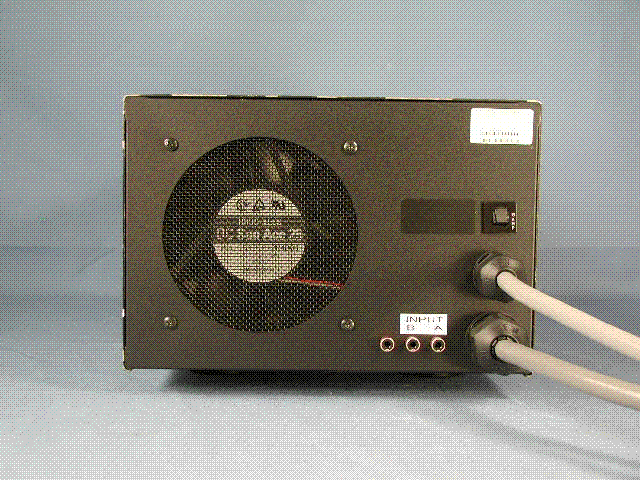

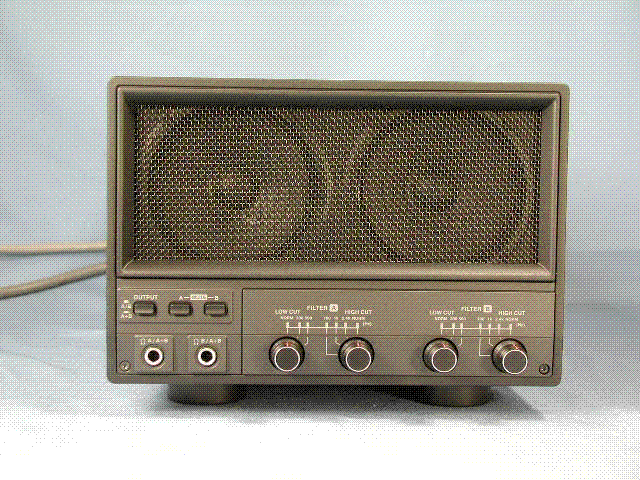

FCC ID: K6620101X70 IC ID: 511B-20101X70 Front view Rear view Vertex Standard Co., Ltd. FCC ID: K6620101X70 IC ID: 511B-20101X70 Left view Right view Vertex Standard Co., Ltd. FCC ID: K6620101X70 IC ID: 511B-20101X70 Top view Bottom view Vertex Standard Co., Ltd. FCC ID: K6620101X70 IC ID: 511B-20101X70 Vertex Standard Co., Ltd. Front view (Default structure) Front view (Customized structure) FCC ID: K6620101X70 IC ID: 511B-20101X70 Vertex Standard Co., Ltd. Rear view Left view FCC ID: K6620101X70 IC ID: 511B-20101X70 Vertex Standard Co., Ltd. Right view Top view FCC ID: K6620101X70 IC ID: 511B-20101X70 Vertex Standard Co., Ltd. Bottom view

FT DX 9000MPFT DX 9000MP LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location FT DX 9000MP FCC ID: K6620101X70 IC: 511B-20101X70

T E S T R E P O R T REPORT NUMBER : ANKK−105174 APPLICANT : Vertex Standard Co., Ltd. MODEL NUMBER : FT DX 9000MP FCC ID : K6620101X70 IC : 511B-20101X70 REGULATION : FCC Part15B – Scanning Receiver : Industry Canada RSS-215 Issue 1 : FCC Part15B Class B : Canada ICES-003 Class B Conducted Emission Test Radiated Emission Test Antenna Power Coducted Test 38dB Rection Test 1, Sunayama, Kamisu−shi, Ibaraki−ken, 314−0255 Japan Tel.: +81 479 40 1097 Fax.: +81 479 46 1788 Akzo Nobel K. K. EMC Division Kashima Site Report No. ANKK−105174 FCC ID : K6620101X70 / IC : 511B-20101X70 Page 2 of 55 (Version 5.2) TABLE OF CONTENTS Page ABBREVIATIONS ......................................................................................................................................3 SECTION 1. TEST CERTIFICATION ...............................................................................................4 SECTION 2. CONCLUSION ...............................................................................................................5 SECTION 3. EQUIPMENT UNDER TEST .......................................................................................6 SECTION 4. SUPPORT EQUIPMENT USED ..................................................................................8 SECTION 5. CABLE (S) USED ..........................................................................................................9 SECTION 6. CONSTRUCTION OF EQUIPMENT .........................................................................10 SECTION 7. OPERATING CONDITIONS ......................................................................................13 SECTION 8. TEST PROCEDURE(S) ...............................................................................................14 SECTION 9. EVALUATION OF TEST RESULTS..........................................................................21 SECTION 10. INSTRUMENTS USED FOR FINAL TEST ..............................................................52 SECTION 11. MEASUREMENT UNCERTAINTY ...........................................................................54 SECTION 12. DESCRIPTION OF TEST LABORATORY ................................................................55 Report No. ANKK−105174 FCC ID : K6620101X70 / IC : 511B-20101X70 Page 3 of 55 (Version 5.2) ABBREVIATIONS LISN = Line Impedance Stabilization Network AMN = Artificial Mains Network ISN = Impedance Stabilization Network CDN = Coupling Decoupling Network ANT = Antenna BBA = Broadband Antenna DIP = Dipole Antenna AMP = Amplifier ATT = Attenuator EUT = Equipment Under Test AE = Associated Equipment Q−P = Quasi−peak AVG = Average RX = Receive SPKR = Speaker Report No. ANKK−105174 FCC ID : K6620101X70 / IC : 511B-20101X70 Page 4 of 55 (Version 5.2) SECTION 1. TEST CERTIFICATION APPLICANT INFORMATION Company : Vertex Standard Co., Ltd. Address : 4-8-8, Nakameguro, Meguro-ku, Tokyo, 153-8644, Japan Telephone number : +81 3 5725 6111 Fax number : +81 3 5725 6225 DESCRIPTION OF TEST ITEM Kind of equipment : HF Transceiver Condition of equipment : Prototype Category : Scanning Receiver & Peripherals Trademark : YAESU FCC ID K6620101X70 IC 511B-20101X70 Model number : FT DX 9000MP Serial number : 5I000001 TEST PERFORMED Location : Kashima No. 1 Test Site (FCC Reg. :934283) : (IC File No. : IC 2065-1) EUT received : August 2, 2005 Test started : August 2, 2005 Test completed : August 5, 2005 Purpose of test : FCC Docket 87−389 and Canadian Interference−Causing Equipment Regulations Regulation : FCC Part15B − Scanning Receiver Industry Canada RSS-215 Issue 1 FCC Part15B Class B − Peripherals and Canada ICES−003 Class B Test setup : ANSI C63.4−2003 Report issue date : August 9, 2005 Test engineer : Kazuo Masuda Report approved by : Kazuo Gokita [Assistant Site Manager] Note a. The test result of this report is effective for equipment under test itself and under the test configuration described on the report. b. This test report does not assure that whether the test result taken in other testing laboratory is compatible or reproducible to the test result on this report or not. c. This test report shall not be reproduced except in full, without issuer’s permission. Report No. ANKK−105174 FCC ID : K6620101X70 / IC : 511B-20101X70 Page 5 of 55 (Version 5.2) SECTION 2. CONCLUSION This test report clearly shows that the EUT is in compliance with the FCC Part15B (− Scanning Receiver with Industry Canada RSS-215) and FCC Part15B Class B (− Peripheral with Canada ICES−003 Class B) specification. Traceability to national standards of test result is achieved by means of calibration traceability to national standards. The minimum margins to the limits are as follows: Conducted Voltages on Mains Port RX 30MHz 19.0 dB at 0.1500 MHz Radiated Electric Field RX 30MHz 5.8 dB at 55.85 MHz Conducted Power on Antenna Port RX 30MHz (ANT_RX) 23.4 dB at 1032.12 MHz 38dB Rejection Test (15.121(b)) VFO Scan No frequency of response was detected. − Passed − Note : See Section 9 for details. Report No. ANKK−105174 FCC ID : K6620101X70 / IC : 511B-20101X70 Page 6 of 55 (Version 5.2) SECTION 3. EQUIPMENT UNDER TEST The equipment under test (EUT) consisted of the following equipment. Indication in the following left side column corresponds to Section 6. Symbol Item Model No. Serial No. FCC ID / DoC Manufacturer Remarks A) HF Transceiver FT DX9000MP 5I000001 K6620101X70 Vertex Standard EUT B) Power Supply Unit FPS-9000H None N.A. Vertex Standard EUT C) Microphone MH-31B8 None N.A. Vertex Standard Option D) Headphone YH-77STA None N.A. Vertex Standard Option Power ratings of EUT : AC 100 - 120V , 50 – 60Hz, 1000W 3.1 Overview of EUT : Frequency Ranges : 0.030 – 60.000 MHz Receiver Type : Triple Conversion Super-heterodyne Mode of Operation : A1A, A3E, F3E, J1D, J2D, J3E 3.2 Port(s)/Connector(s) : Port name Connector type Connector pin Remarks MIC NC3FBV2 3 pin Front PHONES 6φ Stereo 1pin KEY 6φ Stereo 1pin MIC FM214-8SMPT-NI 8pin Rear ANT1, 2, 3, 4, RX MR-…

Text truncated - open the document above for the full version.

Annex A Photographs Report No. ANKK−105174 FCC ID : K6620101X70 / IC : 551B-20101X70 Page 2 of 4 PHOTOGRAPHS OF MAXIMUM DISTURBANCE SET−UP 1. Conducted Voltages on Mains Port Test setup in accordance with ANSI C63.4−2003 Front view Side view Note : Maintaining 10cm spacing between all the equipment cabinets. Report No. ANKK−105174 FCC ID : K6620101X70 / IC : 551B-20101X70 Page 3 of 4 2. Radiated Electric Field Test setup in accordance with ANSI C63.4−2003 Front view Rear view Note : Maintaining 10cm spacing between all the equipment cabinets. Report No. ANKK−105174 FCC ID : K6620101X70 / IC : 551B-20101X70 Page 4 of 4 3. Conducted Power on Antenna Port Front view 4. 38dB Rejection Front view
