K6620224X20AMATEUR RADIO-SCANNNING RECEIVER

UHF FM TRANSCEIVER VX-127 OPERATING MANUAL VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Contents Scanning.......................................................... 36 VFO Scanning .............................................. 37 Manual VFO Scan ................................... 37 Programmed VFO Scan ........................... 37 Memory Scanning ........................................ 38 How to Skip (Omit) a Channel during Memory Scan Operation .............. 38 Preferential Memory Scan ....................... 39 Memory Bank Scan................................. 40 Programmable (Band Limit) Memory Scan (PMS) ........................................................... 41 “Priority Channel” Scanning (Dual Watch) ................................................ 42 Automatic Lamp Illumination on Scan Stop ................................................ 44 Band Edge Beeper........................................ 44 Emergency Feature........................................ 46 Emergency Channel Operation .................... 46 Emergency Automatic ID (EAI) Feature ..... 47 Smart Search Operation ................................ 49 Internet Connection Feature ......................... 50 ARTS (Automatic Range Transponder System)....... 52 DTMF Operation........................................... 55 DTMF Pager Operation ................................ 57 Miscellaneous Settings................................... 60 Password...................................................... 60 Changing the Channel Steps ........................ 61 Receive Battery Saver Setup ........................ 62 TX Battery Saver.......................................... 62 Disabling the TX/BUSY Indicator .............. 63 Automatic Power-Off (APO) Feature .......... 63 Transmitter Time-Out Timer (TOT) ............ 64 Busy Channel Lock-Out (BCLO) ................ 64 DCS Code Inversion .................................... 65 Changing the TX Deviation Level ............... 66 Reset Procedures............................................ 67 Cloning............................................................ 68 Set Mode .......................................................... 70 Specifications .................................................. 83 Installation of the FTD-7 DTMF Pager Unit...... 84 General Description......................................... 1 Accessories & Options ..................................... 2 Controls & Connections .................................. 3 Top & Front Panel.......................................... 3 LCD ................................................................ 4 Side Panel ....................................................... 5 Keypad Functions .......................................... 6 Installation of Accessories ............................... 8 Antenna Installation ....................................... 8 Installation of FNB-83 Battery Pack ............. 8 Battery Charging ............................................ 9 Low Battery Indication .................................. 9 Belt Clip Installation .................................... 10 Installation of FBA-25A Battery Case ......... 10 Interface of Packet TNCs .............................. 11 Operation........................................................ 12 Switching Power On and Off ....................... 12 Adjusting the Audio Volume Level ............. 12 Squelch Adjustment..................................... 13 Frequency Navigation .................................. 13 Transmission ................................................ 15 Advanced Operation ...................................... 16 Keyboard Locking........................................ 16 Keypad/LCD Illumination ........................... 17 Disabling the Keypad Beeper ...................... 17 RF Squelch ................................................... 18 Checking the Battery Voltage ...................... 18 Repeater Operation........................................ 19 Repeater Shifts ............................................. 19 Automatic Repeater Shift (ARS) ................. 19 Manual Repeater Shift Activation ............... 20 VFO Split Mode ........................................... 21 CTCSS/DCS/EPCS Operation ...................... 23 CTCSS Operation ........................................ 23 DCS Operation ............................................. 24 Tone Search Scanning ................................. 25 EPCS (Enhanced Paging & Code Squelch)....... 26 CTCSS/DCS/EPCS Bell Operation ............. 27 Split Tone Operation .................................... 28 Tone Calling (1750 Hz) ............................... 28 Memory Mode ................................................ 29 Memory Storage ........................................... 29 Storing Independent Transmit Frequencies (“Odd Split”) ........ 29 Memory Recall ............................................. 30 HOME Channel Memory ............................. 30 Labeling Memories ...................................... 31 Memory Offset Tuning ................................ 32 Deleting Memories ....................................... 32 Memory Bank Operation ............................. 33 Moving Memory Data to the VFO............... 34 Memory Only Mode ..................................... 34 VX-127 OPERATING MANUAL1 GENERAL DESCRIPTION The VX-127 is a compact, high-performance subnersible
FM hand-held providing up to five watts of RF power and wealth of convenient features for the 2-meter amateur band. New and exciting features of the VX-127 are are the Emergency Automatic I…

Text truncated - open the document above for the full version.

UHF FM TRANSCEIVER VX-177 OPERATING MANUAL VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Contents Scanning.......................................................... 36 VFO Scanning .............................................. 37 Manual VFO Scan ................................... 37 Programmed VFO Scan ........................... 37 Memory Scanning ........................................ 38 How to Skip (Omit) a Channel during Memory Scan Operation .............. 38 Preferential Memory Scan ....................... 39 Memory Bank Scan................................. 40 Programmable (Band Limit) Memory Scan (PMS) ........................................................... 41 “Priority Channel” Scanning (Dual Watch) ................................................ 42 Automatic Lamp Illumination on Scan Stop ................................................ 44 Band Edge Beeper........................................ 44 Emergency Feature........................................ 46 Emergency Channel Operation .................... 46 Emergency Automatic ID (EAI) Feature ..... 47 Smart Search Operation ................................ 49 Internet Connection Feature ......................... 50 ARTS (Automatic Range Transponder System)....... 52 DTMF Operation........................................... 55 DTMF Pager Operation ................................ 57 Miscellaneous Settings................................... 60 Password...................................................... 60 Programming the Key Assignment .............. 61 Changing the Channel Steps ........................ 61 Receive Battery Saver Setup ........................ 62 TX Battery Saver.......................................... 61 Disabling the TX/BUSY Indicator .............. 63 Automatic Power-Off (APO) Feature .......... 63 Transmitter Time-Out Timer (TOT) ............ 64 Busy Channel Lock-Out (BCLO) ................ 64 DCS Code Inversion .................................... 65 Changing the TX Deviation Level ............... 66 Reset Procedures............................................ 67 Cloning............................................................ 68 Set Mode .......................................................... 70 Specifications .................................................. 83 Installation of the FTD-7 DTMF Pager Unit...... 84 General Description......................................... 1 Accessories & Options ..................................... 2 Controls & Connections .................................. 3 Top & Front Panel.......................................... 3 LCD ................................................................ 4 Side Panel ....................................................... 5 Keypad Functions .......................................... 6 Installation of Accessories ............................... 8 Antenna Installation ....................................... 8 Installation of FNB-83 Battery Pack ............. 8 Battery Charging ............................................ 9 Low Battery Indication .................................. 9 Belt Clip Installation .................................... 10 Installation of FBA-25A Battery Case ......... 10 Interface of Packet TNCs .............................. 11 Operation........................................................ 12 Switching Power On and Off ....................... 12 Adjusting the Audio Volume Level ............. 12 Squelch Adjustment..................................... 13 Frequency Navigation .................................. 13 Transmission ................................................ 15 Advanced Operation ...................................... 16 Keyboard Locking........................................ 16 Keypad/LCD Illumination ........................... 17 Disabling the Keypad Beeper ...................... 17 RF Squelch ................................................... 18 Checking the Battery Voltage ...................... 18 Repeater Operation........................................ 19 Repeater Shifts ............................................. 19 Automatic Repeater Shift (ARS) ................. 19 Manual Repeater Shift Activation ............... 20 VFO Split Mode ........................................... 21 CTCSS/DCS/EPCS Operation ...................... 23 CTCSS Operation ........................................ 23 DCS Operation ............................................. 24 Tone Search Scanning ................................. 25 EPCS (Enhanced Paging & Code Squelch)....... 26 CTCSS/DCS/EPCS Bell Operation ............. 27 Split Tone Operation .................................... 28 Tone Calling (1750 Hz) ............................... 28 Memory Mode ................................................ 29 Memory Storage ........................................... 29 Storing Independent Transmit Frequencies (“Odd Split”) ........ 29 Memory Recall ............................................. 30 HOME Channel Memory ............................. 30 Labeling Memories ...................................... 31 Memory Offset Tuning ................................ 32 Deleting Memories ....................................... 32 Memory Bank Operation ............................. 33 Moving Memory Data to the VFO............... 34 Memory Only Mode ..................................... 34 VX-177 OPERATING MANUAL1 GENERAL DESCRIPTION The VX-177 is a compact, high-performance submersible
FM hand-held providing up to five watts of RF power and wealth of convenient features for the 430 MHz amateur band. New and exciting feature…

Text truncated - open the document above for the full version.

November 9, 2005 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: VX-127/VX-177 (FCC ID: K6620224X20) Gentlemen: The scanner receiver equipment meets the requirements of the FCC Rules, 15.121(a). Compliance is achieved through the following methods: The scanner receiver in this equipment is incapable of tuning, or readily being altered, by the User to operate within the frequency bands allocated to theDomestic Public Cellular Telecommunications Service in Part 22. Blocking of the cellular frequencies is implemented in the firmware of the unit’s main control central processing unit (CPU). Coverage of 824 – 849 MHz and 869 – 894 MHz is completely blocked, since it is done in the microprocessor, and cannot be re-enabledby any user-accessible procedure, including diode, resistor, or jumper changes, nor byconnection of any external device such as a personal computer, nor by installation of any “special” enabling semiconductor device. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

November 9, 2005 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: VX-127/VX-177 (FCC ID: K6620224X20) Gentlemen: Part 15.19 Compliance Statement is placed on the rear of case. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

November 9, 2005 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: VX-127/VX-177 (FCC ID: K6620224X20) Gentlemen: A. Part 15.21 Compliance Statement Drawing: B. Part 15.21 Compliance Statement Drawing Location: IN OPERATION MANUAL (location on inside back cover) Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division Part 15.21: Changes or modifications to this device not expressly approved by Vertex Standard could void the user’s authorization to operate this device. 20mm 97mm

November 10, 2005 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P. O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: VX-127/VX-177 (FCC ID: K6620224X20) Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requires confidential treatment of some of the information accompanying this Application, as listed below: ・ Block Diagram ・ Schematics These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for this Application. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

FCC ID: K6620224X20 IC ID： 511B-20224X20 Vertex Standard Co., Ltd. Front view with antenna VX-127 VX-177 Rear view with antenna FCC ID: K6620224X20 IC ID： 511B-20224X20 Vertex Standard Co., Ltd. Front view without antenna VX-127 VX-177 Rear view without antenna FCC ID: K6620224X20 IC ID： 511B-20224X20 Vertex Standard Co., Ltd. Top view Bottom view FCC ID: K6620224X20 IC ID： 511B-20224X20 Vertex Standard Co., Ltd. Left side view (VX-127) Left side view (VX-177) FCC ID: K6620224X20 IC ID： 511B-20224X20 Vertex Standard Co., Ltd. Right side view (VX-127) Right side view (VX-177) FCC ID: K6620224X20 IC ID： 511B-20224X20 Vertex Standard Co., Ltd. Battery pack Battery pack FCC ID: K6620224X20 IC ID： 511B-20224X20 Vertex Standard Co., Ltd. Microphone Microphone FCC ID: K6620224X20 IC ID： 511B-20224X20 Vertex Standard Co., Ltd. Battery charger Battery charger FCC ID: K6620224X20 IC ID： 511B-20224X20 Vertex Standard Co., Ltd. Antenna

VX-127 / VX-177VX-127/VX-177 LABEL DRAWINGLABELDRAWING Vertex Standard Co., Ltd.VertexStandardCo.,Ltd. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location This device complies with part 15 of the FCC Rules. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, Including interference that may cause undesired operation. VX-127 K6620224X20 511B-20224X20 4909959000000 VX-177 K6620224X20 511B-20224X20 4909959000000

1 FCC ID: K6620224X20/IC ID: 511B-20224X20 VX-127/VX-177Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL MAIN-UNIT D 1002 G2070850 DiodeRB751S-40TE61 D 1003 G2070128 DiodeRLS135 TE-11 D 1004 G2070128 DiodeRLS135 TE-11 D 1007 G2070634 Diode1SS400 TE61 D 1008 G2070634 Diode1SS400 TE61 D 1009 G2070596 DiodeHVC350B-TRF D 1010 G2070856 DiodeHVC375B-TRF D 1011 G2070584 DiodeHSC277TRF D 1012 G2070178 DiodeDA221 TL D 1013 G2070634 Diode1SS400 TE61 D 1014 G2070596 DiodeHVC350B-TRF D 1015 G2070902 DiodeHVC365 TRF D 1017 G2070596 DiodeHVC350B-TRF D 1018 G2070596 DiodeHVC350B-TRF D 1019 G2070596 DiodeHVC350B-TRF D 1020 G2070634 Diode1SS400 TE61 D 1023 G2070634 Diode1SS400 TE61 D 1024 G2070174 DiodeDAN222 TL D 1025 G2070178 DiodeDA221 TL D 1026 G2070634 Diode1SS400 TE61 D 1027 G2070868 Zener DiodeUDZS TE-17 9.1B D 1028 G2070634 Diode1SS400 TE61 D 1029 G2070174 DiodeDAN222 TL D 1030 G2070178 DiodeDA221 TL D 1031 G2070998 Zener DiodeEDZ TE-61 5.1B D 1032 G2071090 DiodeM1FM3-5063 D 1033 G2070634 Diode1SS400 TE61 D 1034 G2070892 DiodeRB551V-30TE17 D 1035 G2070844 Zener DiodeHZU2.0BTRF D 1036 G2070634 Diode1SS400 TE61 D 1037 G2070634 Diode1SS400 TE61 D 1038 G2070634 Diode1SS400 TE61 D 1039 G2070634 Diode1SS400 TE61 D 1040 G2070634 Diode1SS400 TE61 D 1041 G2070634 Diode1SS400 TE61 D 1042 G2070634 Diode1SS400 TE61 D 1043 G2070634 Diode1SS400 TE61 D 1044 G2070860 LEDCL-165HR/YG-D-T D 1045 G2071096 LED19-213/S2C-AN1P2B/3T D 1046 G2071096 LED19-213/S2C-AN1P2B/3T D 1047 G2071096 LED19-213/S2C-AN1P2B/3T D 1048 G2071096 LED19-213/S2C-AN1P2B/3T D 1049 G2071096 LED19-213/S2C-AN1P2B/3T D 1050 G2071096 LED19-213/S2C-AN1P2B/3T D 1051 G2071096 LED19-213/S2C-AN1P2B/3T D 1052 G2070850 DiodeRB751S-40TE61 DS1001 G6090166 LCD20667TF-F Q 1001 G1093813 ICHD64F2266TF13 Q 1002 G1093876 ICBR24L64F-WE2 Q 1003 G1092545 ICMB15A01PFV1-G-BND-EF Q 1004 G1094024 ICNJM2591V-TE1 Q 1005 G1092187 ICBU2090FS-E1 Q 1006 G1093784 ICBD4845FVE-TR Vertex Standard Co.,Ltd. 2 FCC ID: K6620224X20/IC ID: 511B-20224X20 VX-127/VX-177Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL Q 1007 G1094202 ICNJU7231F33-TE1 Q 1008 G1091542 ICTDA2822D013TR Q 1009 G3834768 FET2SK3476(TE12L) Q 1010 G3825967 FET2SK2596BXTL Q 1011 G3350068 Transistor2SC5006-T1 Q 1012 G3350068 Transistor2SC5006-T1 Q 1013 G3350068 Transistor2SC5006-T1 Q 1014 G3350068 Transistor2SC5006-T1 Q 1015 G3070075 TransistorDTC144EE TL Q 1016 G3349158O Transistor2SC4915-O(TE85L) Q 1017 G3350068 Transistor2SC5006-T1 Q 1018 G3117748R Transistor2SA1774 TL R Q 1019 G1094010 ICLM2904PWR Q 1020 G3070075 TransistorDTC144EE TL Q 1021 G3070075 TransistorDTC144EE TL Q 1022 G4802968 FET3SK296ZQ-TL Q 1023 G4802968 FET3SK296ZQ-TL Q 1024 G3349158O Transistor2SC4915-O(TE85L) Q 1026 G3070075 TransistorDTC144EE TL Q 1029 G3070075 TransistorDTC144EE TL Q 1030 G3117748R Transistor2SA1774 TL R Q 1031 G3117748R Transistor2SA1774 TL R Q 1032 G3117748R Transistor2SA1774 TL R Q 1033 G3070074 TransistorDTA144EE TL Q 1034 G3117748R Transistor2SA1774 TL R Q 1035 G3346178R Transistor2SC4617 TL R Q 1036 G3117748R Transistor2SA1774 TL R Q 1037 G3070195 Transistor2SB1201S-TL Q 1038 G3346178R Transistor2SC4617 TL R Q 1039 G3346178R Transistor2SC4617 TL R Q 1040 G3117748R Transistor2SA1774 TL R Q 1041 G3070335 TransistorFMMTL718TA Q 1042 G3346178R Transistor2SC4617 TL R Q 1043 G3070074 TransistorDTA144EE TL Q 1044 G3070075 TransistorDTC144EE TL Q 1045 G3070075 TransistorDTC144EE TL Q 1046 G1094009 ICLM2902PWR Q 1047 G3070075 TransistorDTC144EE TL Q 1048 G3070075 TransistorDTC144EE TL Q 1049 G3070075 TransistorDTC144EE TL Q 1051 G3070075 TransistorDTC144EE TL Q 1052 G3346178R Transistor2SC4617 TL R Q 1054 G3070074 TransistorDTA144EE TL Q 1055 G3346178R Transistor2SC4617 TL R Q 1056 G3703648Q FET2SJ364-Q(TX) Q 1057 G3070075 TransistorDTC144EE TL Q 1058 G3070074 TransistorDTA144EE TL Q 1059 G3117748R Transistor2SA1774 TL R Q 1060 G3346178R Transistor2SC4617 TL R Q 1061 G3346178R Transistor2SC4617 TL R Q 1062 G3346178R Transistor2SC4617 TL R Q 1063 G3211327R Transistor2SB1132 T100 R Q 1064 G3346178R Transistor2SC4617 TL R Q 1065 G3346178R Transistor2SC4617 TL R Vertex Standard Co.,Ltd. 3 FCC ID: K6620224X20/IC ID: 511B-20224X20 VX-127/VX-177Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL Q 1066 G3346178R Transistor2SC4617 TL R Q 1067 G3416647Q Transistor2SD1664 T100 Q Q 1068 G3070075 TransistorDTC144EE TL Q 1069 G3346178R Transistor2SC4617 TL R Q 1070 G3070075 TransistorDTC144EE TL Q 1071 G3070074 TransistorDTA144EE TL Q 1072 G3346178R Transistor2SC4617 TL R Q 1073 G3346178R Transistor2SC4617 TL R Q 1074 G1094009 ICLM2902PWR Q 1076 G3346178R Transistor2SC4617 TL R Q 1077 G3346178R Transistor2SC4617 TL R Q 1078 G3211327R Transistor2SB1132 T100 R Q 1079 G3346178R Transistor2SC4617 TL R Q 1080 G1094186 ICXC6202P332PR Q 1081 G3346178R Transistor2SC4617 TL R Q 1082 G3346178R Transistor2SC4617 TL R Q 1083 G1094010 ICLM2904PWR Q 1084 G3070074 TransistorDTA144EE TL Vertex Standard Co.,Ltd.

FCC ID: K6620224X20 IC IF: 511B-20224X20 Alignment Vertex Standard Co., Ltd. 1 VX-127/VX-177 Alignment Introduction and Precautions The VX-127/VX-177 has been carefully aligned at the factory for the specified performance across the 430 MHz amateur band. Realignment should therefore not be necessary except in the event of a component failure. All component replacement and service should be performed only by an authorized Yaesu representative, or the warranty policy may be voided. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts are replaced, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by authorized Yaesu service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized Yaesu service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Yaesu must reserve the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and the need for realignment determined to be absolutely necessary. FCC ID: K6620224X20 IC IF: 511B-20224X20 Alignment Vertex Standard Co., Ltd. 2 Required Test Equipment The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. ˆ Regulated DC Power Supply: adjustable from 5 to 16 VDC, 3 A ˆ RF Signal Generator with calibrated output level at 500 MHz ˆ Frequency Counter: ±0.1 ppm accuracy at 500 MHz ˆ AF Signal Generator ˆ SINAD Meter ˆ Oscilloscope ˆ Spectrum Analyzer ˆ Deviation Meter (linear detector) ˆ AF Milivoltmetr ˆ AF Dummy Load: 8 Ω, 1 W ˆ DC Voltmeter: high impedance ˆ Inline Wattmeter with 5% accuracy at 500 MHz ˆ 50-Ohm non-reactive Dummy Load: 10 watts at 500 MHz ˆ VHF/UHF Sampling Coupler Alignment Preparation & Precautions A dummy load and inline wattmeter must be connected to the main antenna jack in all procedures that call for transmission, except where specified otherwise. Correct alignment is not possible with an antenna. After completing one step, read the following step to determine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, if connected) before proceeding. Correct alignment requires that the ambient temperature in the repair shop be the same as that of the transceiver and test equipment, and that this temperature be held constant between 20 °C and 30 °C (68 °C to 86 °F). When the transceiver is brought into the shop from hot or cold air it should be allowed some time for thermal equalization with the environment before alignment. If possible, alignments should be made with oscillator shields FCC ID: K6620224X20 IC IF: 511B-20224X20 Alignment Vertex Standard Co., Ltd. 3 and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning. Notes: Signal levels in dB referred to in alignment are based on 0 dBμ = 0.5 μV. All items tune and/or adjust by Auto-Tuning Mode or Manual Tuning Mode. PLL Reference Frequency ˆ With the wattmeter, dummy load and frequency counter connected to the antenna jack. ˆ Tune the transceiver 435.05 MHz and set the TX power level to low power mode. ˆ Key the transceiver, adjust the counter frequency is within ±100 Hz of 435.05 MHz. Transmitter Deviation ˆ With the wattmeter, dummy load and deviation meter connected to the antenna jack. ˆ Inject a 1 kHz audio signal as a level of 80 mV to the microphone-input port. ˆ Key the transmitter on 440.05 MHz. Adjust the frequency deviation is within 4.3-4.7 kHz on the deviation meter. CTCSS Deviation ˆ With the wattmeter, dummy load and deviation meter connected to the antenna jack. ˆ Key the transmitter on 440.05 MHz. Adjust the frequency deviation is within 0.65-0.75 kHz on the deviation meter. DCS Deviation ˆ With the wattmeter, dummy load and deviation meter connected to the antenna jack. ˆ Key the transmitter on 440.05 MHz. Adjust the frequency deviation is within 0.65-0.75 kHz on the deviation meter. FCC ID: K6620224X20 IC IF: 511B-20224X20 Alignment Vertex Standard Co., Ltd. 4 Transmitter Power ˆ With the power meter, dummy load and deviation meter connected to the antenna jack. ˆ Key the transmitter on 440.05 MHz. Adjust the output power is within 5 ±0.1 W on the power meter. (HI) ˆ Key the transmitter on 440.05 MHz. Adjust the output power is within 2 ±0.1 W on the power meter. (MID) ˆ Key the transmitter on 440.05 MHz. Adjust the output power is within 0.5 ±0.05 W on the power meter. (…

Text truncated - open the document above for the full version.

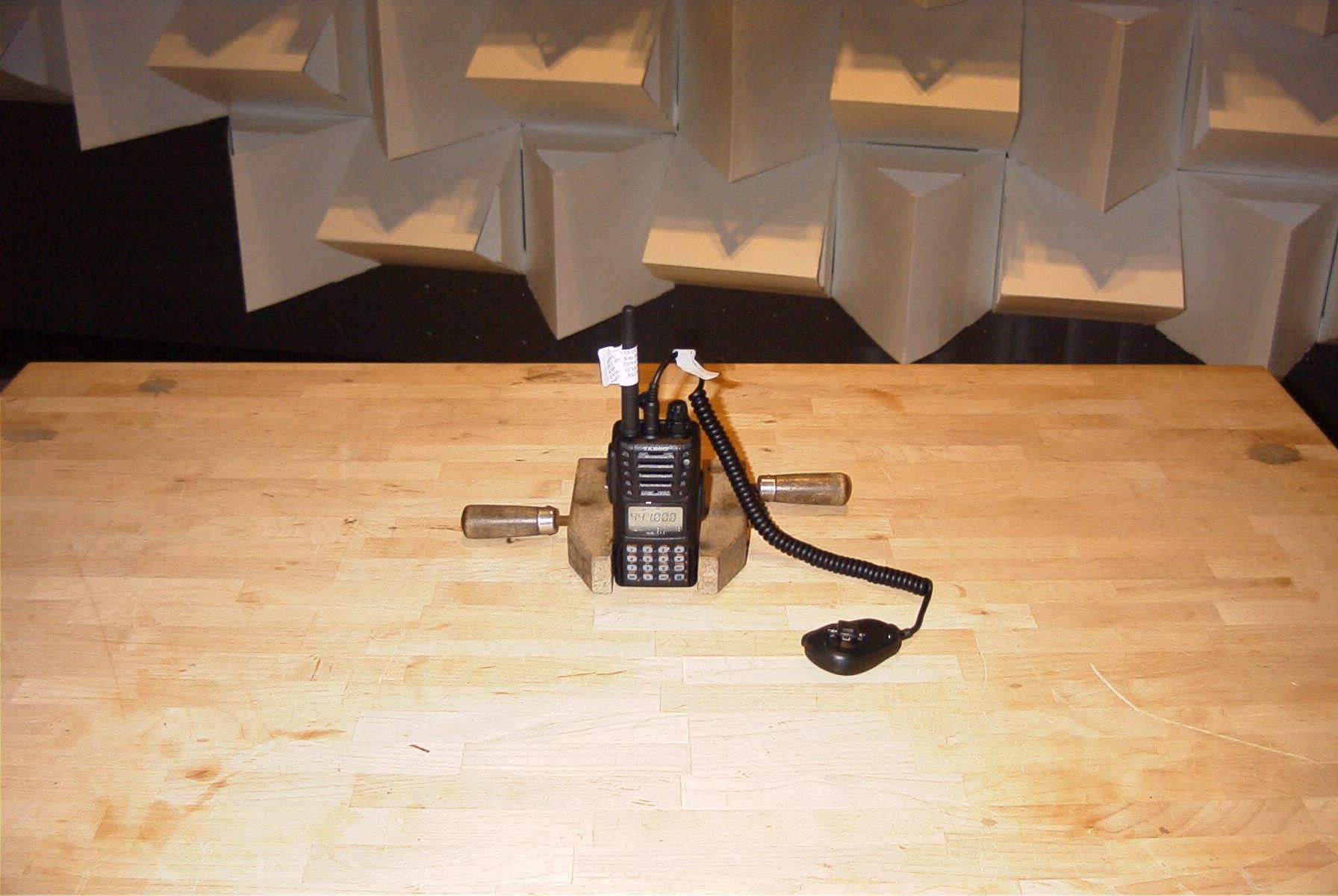

Page 1 of 7 REPORT ON Radio testing of the YAESU VX-177 / VX-127 In accordance with ANSI C63.4 1992, RSS-215 November 2005Report number TA000246 Vertex Standard Co., Ltd. GENERAL INFORMATION This report was prepared by Vertex Standard Co., Ltd. Date 02 / November /2005 Test performed by M.Kurihara FREQUENCY RANGE:420.0 Report number TA000246 Page 2 of 7 EUT DESCRIPTION: 7.2 5L000003 [V] VX-177 / VX-127 K6620224X20 YAESU MODEL NAME: 2000[Ω] [W]AUDIO OUTPUT POWER: OUTPUT IMPEDANCE (SP):[Ω]8 0.4 INPUT IMPEDANCE (RF): [MHz]470.0to Handportable Transceiver RSS-215 VOLTAGE RQUIREMENTS: SERIAL NUMBER: SPECIFICATION ARE REFERENCE D DC ANSI C63.4 1992 MANUFACTURER:Vertex Standard Co., Ltd. FCC ID: TRADE NAME: IC ID:511B-20224X20 Vertex Standard Co., Ltd. Report number TA000246Page 3 of 7 VX-177 / VX-127 Channel Settings 1420.000420.000-47.250 2445.000445.000-47.250 3470.000470.000-47.250 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 CH No. Receive Frequency [MHz] Shown on LCD IF Frequency [MHz] Vertex Standard Co., Ltd. NAME OF TEST:Receiver Spurious Emissions (Radiated) STATE:0 : General All other emissions in the required measurement range ware mora than 20dB below the required limits. 445.000 470.000 420.000 445.000 470.000 420.000 445.000 470.000 420.00043.2 40.8 35.9 2609.250 2784.250 2959.25032.6 445.000 470.000 92.0 110.0 104.2 -6.4 -6.3 -10.8 -10.2 -9.4 -4.6 -3.7 dB CF, 62.5 17.2 19.5 47.7 55.1 71.6 397.750 422.750 MEASUREMENT RESULTS FREQUENCY 3 3 uV/m -7.414.1 37.1 3 24.7 25.8 33.6 34.8 3 1988.75040.8 2113.75040.4 144.2 110.0 Report number TA000246 Page 4 of 7 31863.75039.3 3 3 420.000 TUNED, MHz 1118.250 1193.250 FREQUENCYLEVEL,@m 372.75023.0 EMISSION, MHzdBuV 1268.250 3 3 3 3 -2.8 0.7 1.9 Vertex Standard Co., Ltd. NAME OF TEST:AC Power Line Conducted STATE:0 : General Line Side Nutral Side Report number TA000246 Page 5 of 7 Vertex Standard Co., Ltd. NAME OF TEST:Scanning Receivers Cellular Band Rejection DETECTED, MHz dB REJECTION, LEVEL 12dB at DETECTED, dBm - REJECTION, dB >38 DETECTED, MHzat 848.5MHz, dBmDETECTED, dBm -- FREQUENCYLEVEL 12dB SINAD at 836MHz, dBmDETECTED, dBm FREQUENCY INJECTED: 836MHz FREQUENCY DETECTED, MHzat 824.5MHz, dBm LEVEL 12dB SINADLEVEL 12dB at Report number TA000246 Page 6 of 7 FREQUENCY INJECTED: 824.5MHz dB LEVEL 12dB SINADFREQUENCY LEVEL 12dB at FREQUENCY INJECTED: 848.5MHz dB dB REJECTION,MARJIN, - dB MARJIN, --->38- MARJIN, --->38- Vertex Standard Co., Ltd. NAME OF TEST:Scanning Receivers Cellular Band Rejection at 881MHz, dBm dB FREQUENCY INJECTED: 89…

Text truncated - open the document above for the full version.
