K6620241X50HF Transceiver with Scanning Receiver

FCC ID: K6620241X50 IC ID: 511B-20241X50 Operating Manual Introduction The FT-450 is a rugged, innovative multiband, multimode portable transceiver for the amateur radio HF/VHF bands. Providing coverage of the 160-10 meter bands plus the 6 m, the FT-450 includes operation on the SSB, CW, AM, FM, and Digital modes, yielding the most comprehensive performance package available for field operation. Designed for use from an external DC power source, the FT-450 provides 100 watts of power output from a 13.8-Volt external power supply. The multi-function Liquid-Crystal Display includes various backlighting, which may be disabled for battery conservation. The display includes bar-graph indication of power output, ALC voltage, SWR, and modulation level. Among the advanced features of the FT-450 are many incorporated only in large base-station transceivers. These include Dual VFOs; Split-Frequency operation; Digital Signal Processing (Bandpass Filtering, Noise Reduction, Notch, and Microphone Equalizer); IF Shift; Clarifier (“R.I.T.”); IF Noise Blanker; AGC Fast/Slow/Auto/Off selection; RF Gain and Squelch control; IPO (Intercept Point Optimization) and a receiver front-end Attenuator; VOX; Built-in Electronic Keyer; Adjustable CW Pitch; Built-in CTCSS Encoder/Decoders; and Time-Out Timer (TOT) functions; Computer Interface capability; and Cloning capability. We urge you to read this manual in its entirety, so as to gain a full understanding of the amazing capability of the exciting FT-450 Transceiver. Vertex Standard Co., Ltd. 1 FCC ID: K6620241X50 IC ID: 511B-20241X50 Operating Manual Specifications General Frequency Range: Receive: 30 kHz - 56 MHz Transmit: 160 - 6 Meters Emission Modes: A1 (CW), A3 (AM), A3J (LSB/USB), F3 (FM) Synthesizer Steps (Min.): 10 Hz (CW/SSB), 100 Hz (AM/FM) Antenna Impedance: 50 Ohms, Unbalanced (M) Operating Temp. Range: -10 °C to +50 °C Frequency Stability: ± 4 ppm from 1 min. to 60 min after power on. @25 °C: 1 ppm/hour Supply Voltage: Normal: 13.8 VDC ±10 %, Negative Ground Current Consumption: Squelched: 1 A (Approx.) Receive: 1.5 A Transmit: 22 A Case Size: 229 (W) x 84 (H) x 217 (D) mm Weight (Approx.): 3.6 kg Transmitter RF Power Output: 100 W @13.8 V DC Modulation Types: SSB: Balanced Modulator AM: Early Stage (Low Level) FM: Variable Reactance FM Maximum Deviation: ±5 kHz (FM-N: ±2.5 kHz) Spurious Radiation: -50 dB (1.8-29.7 MHz) -70 dB (50 MHz) Carrier Suppression: >40 dB Opp. Sideband Suppression: >50 dB SSB Frequency Response: 400 Hz-2600 Hz (-6 dB) Microphone Impedance: 200-10k Ohms (Nominal: 600 Ohms) Vertex Standard Co., Ltd. 2 FCC ID: K6620241X50 IC ID: 511B-20241X50 Operating Manual Receiver Circuit Type: Double-Conversion Superheterodyne Intermediate Frequencies: 1 st : 67.899 MHz 2 nd : 24 kHz Sensitivity: SSB/CW AM FM 1.8 MHz-28 MHz 0.2 μV 2 μV - 28 MHz-30 MHz 0.2 μV 2 μV 0.5 μV 50 MHz-56 MHz 0.16 μV 1 μV 0.25 μV (SSB/CW/AM = 10 dB S/N, FM = 12 dB SINAD) Image Rejection: 70 dB IF Rejection: 60 dB Selectivity (-6/-60 dB): SSB/CW: 2.2 kHz/4.5 kHz AM: 6 kHz/20 kHz FM-N: 9 kHz/25 kHz CW-N: 500 Hz/2.0 kHz AF Output: 2.2 W (@4 Ohms, 10% THD or less) AF Output Impedance: 4-16 Ohms A CCESSORIES & OPTIONS Supplied Accessories MH-67A8J Microphone Available Options YH-77STA Stereo Headphone MH-31A8J Microphone MD-200A8X Microphone MLS-100 External Speaker SP-2000 External Speaker FP-1030A DC Power Supply MHG-1 Carrying Handle ATU-450 Antenna Tuner Vertex Standard Co., Ltd. 3 FCC ID: K6620241X50 IC ID: 511B-20241X50 Operating Manual Installation Power Connections The FT-450 is designed use from an external DC power source. External DC power source operation The DC power connector for the FT-450 must only be connected to a DC source providing 13.8 Volts DC (±10%), and capable of at least 22 Amperes of current. Always observe proper polarity when making DC connections: The Red DC power lead connects to the Positive (+) DC terminal; and The Black DC power lead connects to the Negative (–) DC terminal. In mobile installations, noise pickup may be minimized by connecting the DC cable directly to your vehicle’s battery, rather than to the ignition switch or “accessory” circuitry. Direct connection to the battery also provides the best voltage stability. Tips for Successful Mobile Installations: ˆ Before connecting the DC cable to the battery, measure the voltage across the battery terminals with the engine running fast enough to show a charge. If the voltage is above 15 Volts, the vehicle’s voltage regulator should be adjusted to reduce the charging voltage to 14 Volts or lower. ˆ Route the DC cable as far away from the ignition cables as possible. ˆ If the DC cable is not long enough, use #12 AWG (minimum) stranded, insulated wire to extend it. Be certain to solder the connections at the splice securely, and provide ample insulation for the soldered splice (heat shrink tubing plus black electrical tape work well). ˆ Check the battery terminal connections frequently to be sure they are tight and not corroded. Caution Permanent damage can result if improper supply voltage, or reverse-polarity voltage, is applied to the FT-450. The Limited Warranty on this transceiver does not cover damage caused by application of AC voltage, reversed polarity DC, or DC voltage outside the specified range of 13.8V ±10%. Never attempt to connect the FT-450 to a 24 Volt battery system. When replacing fuses, be certain to use a fuse of the proper rating. The FT-450 requires a 25A fast-blow fuse. Vertex Standard Co., Ltd. 4 FCC ID: K6620241X50 IC ID: 511B-20241X50 Operating Manual Antenna Considerations The antenna systems connected to your FT-450 transceiver are, of course, critically important in ensuring successful communications. The FT-450 is designed for use with any antenna system providing 50 resistive impedance at the desired operating frequency. While minor excursions from the 50 specification are of no consequence, the power amplifier’s protection circuitry will begin to redu…

Text truncated - open the document above for the full version.

January 16, 2007 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FT-450 (FCC ID: K6620241X50) Gentlemen: The scanner receiver equipment meets the requirements of the FCC Rules, 15.121(a). Compliance is achieved through the following methods: The scanner receiver in this equipment is incapable of tuning, or readily being altered, by the User to operate within the frequency bands allocated to the Domestic Public Cellular Telecommunications Service in Part 22. Blocking of the cellular frequencies is implemented in the firmware of the unit’s main control central processing unit (CPU). Coverage of 824 – 849 MHz and 869 – 894 MHz is completely blocked, since it is done in the microprocessor, and cannot be re-enabled by any user-accessible procedure, including diode, resistor, or jumper changes, nor by connection of any external device such as a personal computer, nor by installation of any “special” enabling semiconductor device. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division January 16, 2007 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FT-450 (FCC ID: K6620241X50) Gentlemen: Part 15.19 Compliance Statement is placed on the rear of case. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division January 16, 2007 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FT-450 (FCC ID: K6620241X50) Gentlemen: A. Part 15.21 Compliance Statement Drawing: Part 15.21: Changes or modifications to this device not expressly approved by Vertex Standard could void the user’s authorization to operate this device. 20mm 97mm B. Part 15.21 Compliance Statement Drawing Location: IN OPERATION MANUAL (location on inside back cover) Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division January 16, 2007 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 RE: LETTER OF AGENT AUTHORIZATION We, the undersigned, hereby authorize ETL SEMKO Japan K. K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

January 16, 2007 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P. O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: FT-450 (FCC ID: K6620241X50) Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requires confidential treatment of some of the information accompanying this Application, as listed below: ・ Block Diagram ・ Schematics ・ Circuit Description ・ Internal Photographs These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for this Application. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

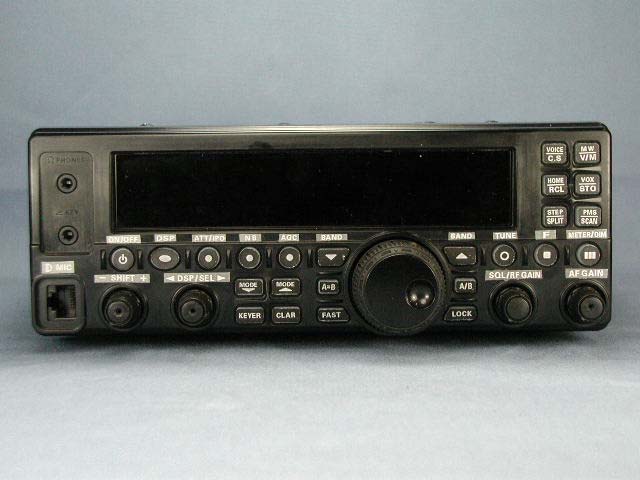

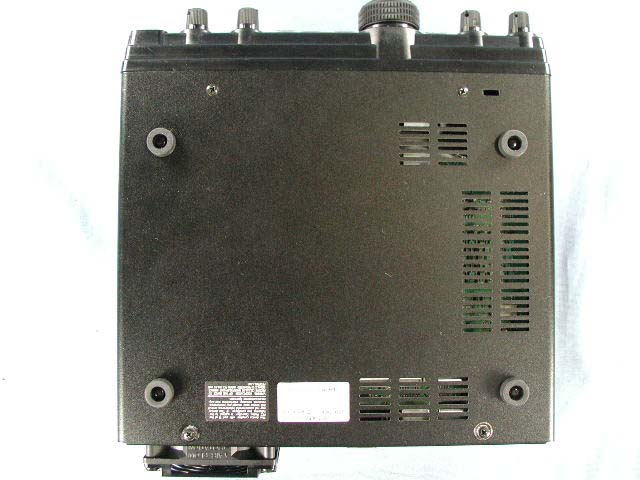

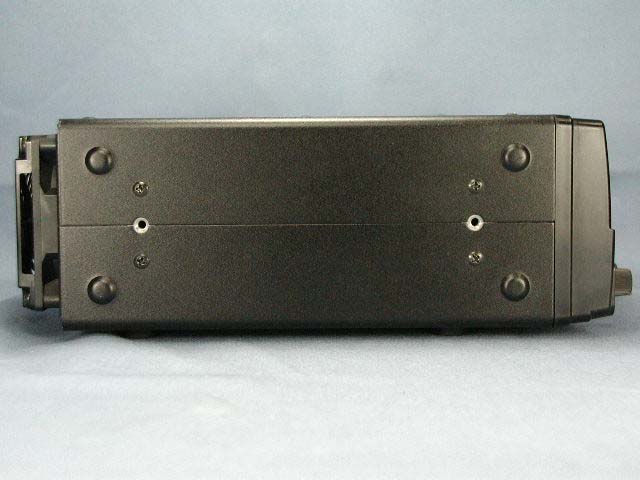

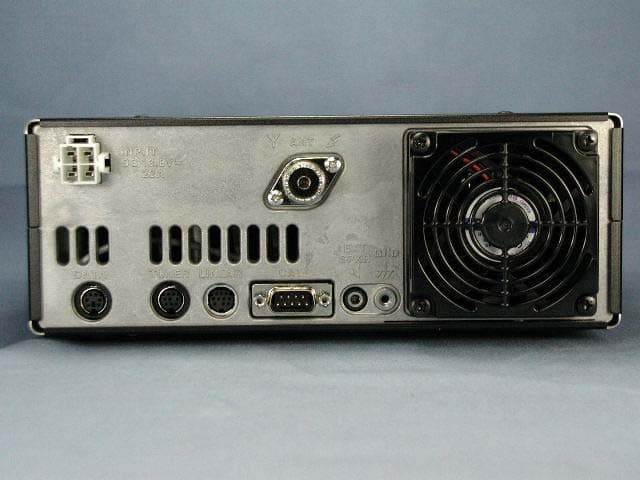

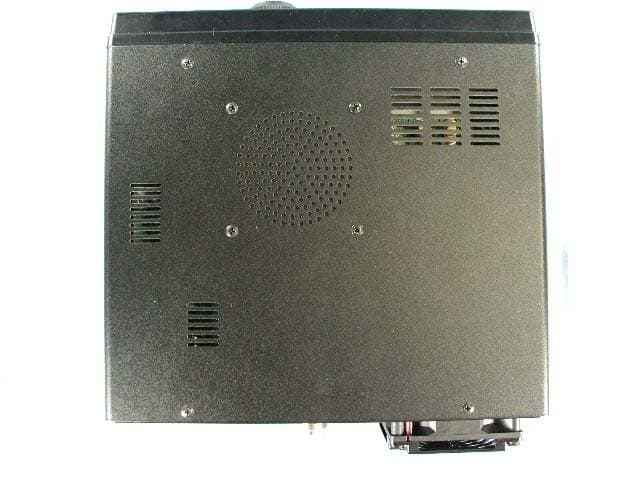

FCC ID: K6620241X50 IC ID: 511B-20241X50 Front view Rear view Vertex Standard Co., Ltd. FCC ID: K6620241X50 IC ID: 511B-20241X50 Top view Bottom view Vertex Standard Co., Ltd. FCC ID: K6620241X50 IC ID: 511B-20241X50 Left side view Right side view Vertex Standard Co., Ltd.

FT-450FT-450 LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location FT-450 FCC ID: K6620241X50 IC: 511B-20241X50

Report No. ESJ–107009 FCC ID : K6620241X50 / IC : 511B-20241X50 © ETL SEMKO Japan K.K. Page 1 of 38 Version 0.1 TEST REPORT Regulation : FCC Part15B – Scanning Receiver Industry Canada RSS-215 Issue 1 : FCC Part15B Class B CANADA ICES-003 Class B Applicant Testing Laboratory Vertex Standard Co., Ltd. 4-8-8 Nakameguro Meguro-ku, Tokyo 153-8644 Japan Tel : +81 3 5725 6111 Fax : +81 3 5725 6225 ETL SEMKO Japan K.K. Kashima Site 3-2 Sunayama, Kamisu, Ibaraki 314-0255 Japan Tel.: +81 479 40 1097 Fax.: +81 479 46 1788 URL: http://www.japan.intertek-etlsemko.com Equipment Type HF Transceiver Category Scanning Receiver & Peripherals Trademark YA E S U Model (s) FT-450 Serial No. 7C000001 FCC ID K6620241X50 IC 511B-20241X50 Test Result Complied Report Number ESJ-107009 Report Issue Date February 13, 2007 This equipment has been shown to be capable of compliance with the applicable standard(s) as indicated in the test report. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of ETL SEMKO Japan K.K. The results and statements contained in this report pertain only to the equipment evaluated. Approved by Tested by Kazuo Gokita [ Assistant Manager ] Kazuo Masuda Report No. ESJ–107009 FCC ID : K6620241X50 / IC : 511B-20241X50 © ETL SEMKO Japan K.K. Page 2 of 38 Version 0.1 TABLE OF CONTENTS Page SECTION 1. GENERAL INFORMATION ........................................................................................................... 3 SECTION 2. SUMMARY OF TEST RESULTS ...................................................................................................4 SECTION 3. INFORMATION ABOUT EUT ....................................................................................................... 5 SECTION 4. SUPPORT EQUIPMENT(S) ............................................................................................................ 7 SECTION 5. USED CABLE (S)............................................................................................................................ 8 SECTION 6. CONSTRUCTION OF EQUIPMENT ............................................................................................. 9 SECTION 7. OPERATING CONDITION........................................................................................................... 11 SECTION 8. TEST PROCEDURE(S) ................................................................................................................. 12 SECTION 9. EVALUATION OF TEST RESULTS............................................................................................. 17 SECTION 10. LIST OF MEASURING INSTRUMENTS .................................................................................... 36 SECTION 11. MEASUREMENT UNCERTAINTY ............................................................................................. 37 SECTION 12. DESCRIPTION OF TEST LABORATORY .................................................................................. 38 Report No. ESJ–107009 FCC ID : K6620241X50 / IC : 511B-20241X50 © ETL SEMKO Japan K.K. Page 3 of 38 Version 0.1 SECTION 1. GENERAL INFORMATION TEST PERFORMED Location Kashima No.1 Test Site (FCC Reg. : 934283) (IC File No. : IC 2065-1 ) EUT Received January 18, 2007 Te s t St a r t e d January 18, 2007 Te s t C o m p l e t e d January 23, 2007 Standard Applied FCC Part15B – Scanning Receiver Industry Canada RSS-215 Issue 1 FCC Part15B Class B - Peripherals and Canada ICES-003 Class B Test Setup ANSI C63.4-2003 Deviation from Standard (s) No deviation TEST TRACEABILITY Traceability to national standards of test result is achieved by means of calibration traceability to national or international standards. LIMITATIONS ON RESULTS The test result of this report is effective for equipment under test itself and under the test configuration described on the report. This test report does not assure that whether the test result taken in other testing laboratory is compatible or reproducible to the test result on this report or not. ABBREVIATIONS AE = Associated Equipment DIP = Dipole Antenna AMN = Artificial Mains Network DoC = Device for Declaration of Conformity AMP = Amplifier, ATT = Attenuato r EUT = Equipment Under Test ANT = Antenna, BBA = Broadband Antenna ISN = Impedance Stabilization Network AVG = Average LISN = Line Impedance Stabilization Network Cal = Calibration PK = Peak CDN = Coupling Decoupling Network Q-P = Quasi-peak LCD = Liquid-Crystal Display RX = Receive SPKR = Speaker Report No. ESJ–107009 FCC ID : K6620241X50 / IC : 511B-20241X50 © ETL SEMKO Japan K.K. Page 4 of 38 Version 0.1 SECTION 2. SUMMARY OF TEST RESULTS This test report clearly shows that the EUT is in compliance with the FCC Part15B (- Scanning Receiver with Industry Canada RSS-215) and FCC Part15B Class B (- Peripheral with Canada ICES-003 Class B) specification. The minimum margins to the limits are as follows: Conducted Voltages on Mains Port RX 56MHz mode 26.2 dB at 0.1500 MHz Radiated Electric Field RX 56MHz mode 9.1 dB at 110.59 MHz Conducted Power on Antenna Port RX 56MHz mode 23.2 dB at 1105.93 MHz 38dB Rejection Test (15.121(b)) No frequency of response was detected. - Passed - Note : See Section 9 for details. Report No. ESJ–107009 FCC ID : K6620241X50 / IC : 511B-20241X50 © ETL SEMKO Japan K.K. Page 5 of 38 Version 0.1 SECTION 3. INFORMATION ABOUT EUT The equipment under test (EUT) consisted of the following equipment. 3.1 List of System Configuration Symbol Item Model No. Serial No. Manufacturer Notes FCC ID A1 HF Transceiver FT-450 7C000001 Vertex Standard EUT K6620241X50 A2 Microphone MH-67A8J None Vertex Standard EUT N.A. A3 Headphone YH-77STA N…
