HF/50 MHZ TRANSCEIVER FT-2000D OPERATING MANUAL VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong VERTEX STANDARD ( AUSTRALIA ) PTY., LTD. Normanby Business Park, Unit 14/45 Normanby Road Notting Hill 3168, Victoria, Australia ABOUT THIS MANUAL . . . The FT-2000D is a leading-edge transceiver with a number of new and exciting features, some of which may be unfamiliar to you. In order to gain the most enjoyment and operating efficiency from your FT-2000D, we recommend that you read this manual in its entirety, and keep it handy for reference as you explore the many capabilities of your new transceiver. Before using your FT-2000D, be sure to read and follow the instructions in the “Before You Begin” section of this manual. Page 1FT-2000D OPERATING MANUAL GENERAL DESCRIPTION Congratulations on the purchase of your Yaesu amateur trans- ceiver! Whether this is your first rig, or if Yaesu equipment is already the backbone of your station, rest assured that your transceiver will provide many hours of operating pleasure for years to come. The FT-2000D is an elite-class HF transceiver providing ex- ceptional performance both on transmit and receive. The FT- 2000D is designed for the most competitive operating situa- tions, whether you primarily operate in contest, DX, or digi- tal-mode environments. Built on the foundation of the popular FT DX9000 transceiver, and carrying the proud tradition of the FT-1000 series, the FT-2000D provides up to 200 Watts of power output on SSB, CW, and FM (50 Watts AM carrier). Digital Signal Process- ing (DSP) is utilized throughout the design, providing lead- ing-edge performance on both transmit and receive. Available as an option for the FT-2000D is the Data Man- agement Unit (DMU-2000), which provides extensive dis- play capabilities via a user-supplied computer monitor. In- cluded are Band Scope, Audio Scope, X-Y Oscilloscope, World Clock, Rotator Control, and extensive transceiver sta- tus displays, in addition to station logging capability. For exceptional protection from strong nearby incoming sig- nals, the Yaesu-exclusive VRF (Variable RF Front-End Fil- ter) serves as a high-performance Preselector-ideal for multi- operator contest environments. This filter is manually tuned, allowing the operator to optimize sensitivity or signal rejec- tion with the twist of a knob. And for then ultimate in re- ceiver RF selectivity, the optional RF μTuning Kits may be connected via the rear panel, providing extraordinarily sharp selectivity to protect your receiver from close-in interference on a crowded band. In addition to the contribution of the VRF Preselector, su- perb receiver performance is a result of direct lineage from the legendary FT DX9000, FT-1000D, and FT-1000MP. You may select, in the front end, one of two RF preamplifiers, or IPO (Intercept Point Optimization) utilizing direct feed to the first mixer, and/or three levels of RF attenuation in 6-dB steps. Dual Receive is built into every FT-2000D. The Main re- ceiver utilizes DSP filtering, incorporating many of the fea- tures of the FT DX9000, such as Variable Bandwidth, IF Shift, and Passband Contour tuning. Digital Noise Reduction and Digital Auto-Notch Filtering are also provided, along with a manually-tuned IF Notch filter. The Sub receiver, used for monitoring within the same band as the Main band, is an analog type ideal for watching both sides of a pile-up, or keeping an ear on a DX station working stations by call area, etc. On the transmit side, the Yaesu-exclusive Three-Band Para- metric Microphone Equalizer allows precise and flexible ad- justment of the wave-form created by your voice and micro- phone. The Amplitude, Center Frequency, and Bandwidth of equalization may be adjusted independently for the low-fre- quency, mid-range, and high-audio-frequency spectra, and the transmitted bandwidth may also be adjusted, as well. Advanced features include Direct Keyboard Frequency En- try and Band Change, Speech Processor, IF Monitor for Voice modes, CW Pitch control, CW Spot switch, Full CW QSK, adjustable IF Noise Blanker, and all-mode Squelch. Two TX/ RX antenna ports, plus a receive-only antenna port, are pro- vided on the rear panel. Two key jacks are provided (one each on the front and rear panels), and they may be config- ured independently for paddle input or connection to a straight key or computer-driven keying interface. Both Digital Voice Recording and CW Message Memory are provided. Frequency setup is extraordinarily simple on the FT-2000D. Besides direct frequency entry for both the Main and Sub VFOs, separate keys are provided for band selection, and each band key accesses three independent VFO frequency/ mode/filter settings per band, so you can establish separate VFO settings for three different parts of each band. The two (Main and Sub) VFOs allow simultaneous reception and dis- play of two different frequencies, even in different modes and with different IF bandwidths. Receiver audio can be com- pletely or partially mixed, or monitored separately in each ear. In addition, 99 memories are provided, each of which stores its own mode and IF filter selection, in addition to frequency, Clarifier offset, and scan-skip status. What's more, five quick- recall (“QMB”) memories can instantly store operational set- tings at the push of a button. The built-in automatic antenna tuner includes 100 memories of its own, automatically storing antenna matching settings for quick automatic recall later. Interfacing for digital modes is extremely simple with the FT-2000D, thanks to dedicated AFSK and FSK connection jacks on …

Text truncated - open the document above for the full version.

Page 53FT-2000D OPERATING MANUAL The FT-2000D includes an unmatched array of RF selectivity-enhancing features. Please study the material below care- fully, so as to understand the various features completely. USING THE VRF ( VARIABLE RF FRONT-END FILTER ) The VRF system is a high-performance RF front-end preselector that has high Q factor and low insertion loss. VRF pro- vides outstanding rejection of out-of-band signals, and can significantly improve reception in tough co-location operations such as a contest or DX-pedition. The FT-2000D’s VRF system affects the 1.8 - 28 MHz amateur bands only. ADVANCED INTERFERENCE-SUPPRESSION FEATURES: RF FRONT END 1. Press the [ VRF ] button momentarily. The “” icon will appear at the FLT column of the Receiver Con- figuration Indicator on the display, and the VRF sys- tem will be engaged, centered on your current Amateur band. 2. You may rotate the [ VRF ] knob to skew the position of the VRF system relative to your operating frequency. Because the VRF system is relatively broad, although still much narrower than the fixed bandpass filter), you may not hear much difference in the background noise or signal quality when you make minor adjustments. However, if you have receiving problems associated by a very strong signal, rotation of the [ VRF ] knob may help reduce the strength of the interfering station, allowing improved reception of the desired signal if overload was degrading reception. ADVICE:
You may observe the relative skew of the VRF system in the Tun- ing Offset Indicator on the display while turning the [ VRF ] knob.
After moving the passband of the VRF system manually, you may re-center it on the current Ama- teur band by pressing and holding in the [ VRF ] button for two seconds. 3. To switch VRF off, press the [ VRF ] button until the “ ” icon shows “” in the FLT column of the Receiver Configuration Indicator on the display; this confirms that the VRF circuit has been removed from the incoming received signal path. Receiver Configuration Indicator [ VRF ] Knob [ VRF ] Button ADVICE:
The VRF filter affects both the Main (VFO-A) and Sub (VFO-B) bands.
The VRF Filter operational status will be memorized independently on each VFO in the VFO stack. QUICK POINT: The VRF filter, utilizing high-quality coils and capacitors that provide high Q, yields a passband that is approximately 20% to 30% the width of a traditional, fixed bandpass fil- ter. As a result, significantly more “unwanted” signal re- jection is provided. Within each Amateur band, the fol- lowing adjustment steps are provided, if you wish to skew the response in a particular direction so as to enhance in- terference rejection even more. The actual “sound” of the signal you are listening to will remain unchanged, how- ever. Offset Tuning Indicator AMATEUR BAND 1.8 MHz 3.5 MHz 5 MHz 7 MHz 10 MHz 14 MHz 18 MHz 21 MHz 24.5 MHz 28 MHz VRF ADJUSTMENT STEPS 62 steps 62 steps 62 steps 62 steps 30 steps 30 steps 20 steps 20 steps 20 steps 20 steps Page 54FT-2000D OPERATING MANUAL R.FLT ( ROOFING FILTERS ) Narrow-band Roofing Filters of 15 kHz, 6 kHz, and 3 kHz bandwidths are provided in the first IF, right after the first mixer. These filters provide protection fort the 2nd mixer, DSP, and other circuitry that follow and can dramatically improve reception on a very crowded band (during a contest, etc.). Typically, the AUTO selection mode is satisfactory for most operating situations, but in an extremely crowded phone band you may wish to select, for example, the 3 kHz roofing filter for SSB operation. INTERFERENCE REJECTION ( SIGNALS OFF FREQUENCY BY JUST A FEW KHZ ) Press the [ R.FLT ] button to toggle the Roofing Filter selection. AUTO 15 kHz 6 kHz 3 kHz AUTO ADVICE:
The Roofing filter selection affects the Main band (VFO-A) only. The Sub band’s (VFO-B) Roofing fil- ter is fixed at a bandwidth of 15 kHz.
As you repeatedly press the [ R.FLT ] button, you will observe changes in the notation in the R.FLT column of the Receiver Configuration Indicator on the display, denoting the Roofing Fil- ter currently in use.
Typically, this selection will be set to “AUTO.”
The Roofing Filter selection will be memorized inde- pendently on each VFO in the VFO stack. QUICK POINT:
The “AUTO” selection of the Roofing Filter is based on the operating mode. However, you may override the automatic selection, if band conditions warrant a different (usually, a tighter) selection.
The AUTO mode Roofing Filter selections are shown below: AM/FM/FM-PKT: 15 kHz LSB/USB/PKT:6 kHz CW/RTTY:3 kHz
When the Roofing filter mode is set to “AUTO” and the Noise Blanker is turned On, the Roofing Filter band- width will automatically be set to 15 kHz, as this set- ting provides the most effective noise blanking. How- ever, you still may override the automatic setting, and select a more narrow Roofing Filter. Noise blanking may be compromised, however, with a tighter Roofing Filter in the line. TERMINOLOGY: A “Roofing Filter,” as its name implies, places a “Roof” over the receiver’s IF system bandwidth. This “Roof” pro- tects the circuitry downstream from the first mixer from interference, just as a roof on a house protects the contents from rain and snow. Receiver Configuration Indicator [ R.FLT ] Button Page 55FT-2000D OPERATING MANUAL CONTOUR CONTROL OPERATION The Contour filtering system provides a gentle perturbation of the IF filter passband, so as to suppress or enhance certain frequency components, thus enhancing the sound and/or readability of a received signal. INTERFERENCE REJECTION ( SIGNALS WITHIN 3 KHZ ) 1. Press the [ CONTOUR ] button. The Contour notation will appear in the display to confirm that the Contour filter is engaged. 2. Rotate the [ CONTOUR ] knob to achieve the most natural-sounding audio reproduction on the incoming signal. 3. To cancel Contour tuning, press the [ CONTOUR ] but- ton once more. ADVICE:
The Contour filter affects the Main band (VFO-A) only.
You may observe the graphi…

Text truncated - open the document above for the full version.

November 23, 2006 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 RE: LETTER OF AGENT AUTHORIZATION We, the undersigned, hereby authorize ETL SEMKO Japan K. K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division November 23, 2006 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FT-2000D (FCC ID: K6620251X70) Gentlemen: A. Part 15.21 Compliance Statement Drawing: Part 15.21: Changes or modifications to this device not expressly approved by Vertex Standard could void the user’s authorization to operate this device. 20mm 97mm B. Part 15.21 Compliance Statement Drawing Location: IN OPERATION MANUAL (location on inside back cover) Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division November 23, 2006 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FT-2000D (FCC ID: K6620251X70) Gentlemen: Part 15.19 Compliance Statement is placed on the rear of case. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

November 23, 2006 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 Attention: Authorization and Evaluation Division Reference: FT-2000D (FCC ID: K6620251X70) Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requires confidential treatment of some of the information accompanying this Application, as listed below: ・ Block Diagram ・ Schematics ・ Circuit Description ・ Internal Photographs These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for this Application. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

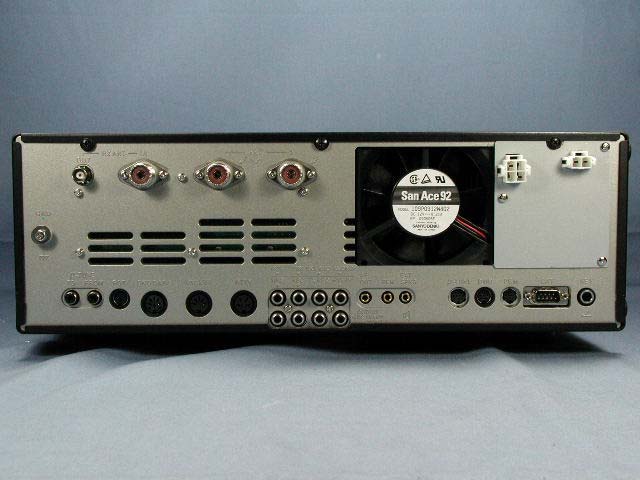

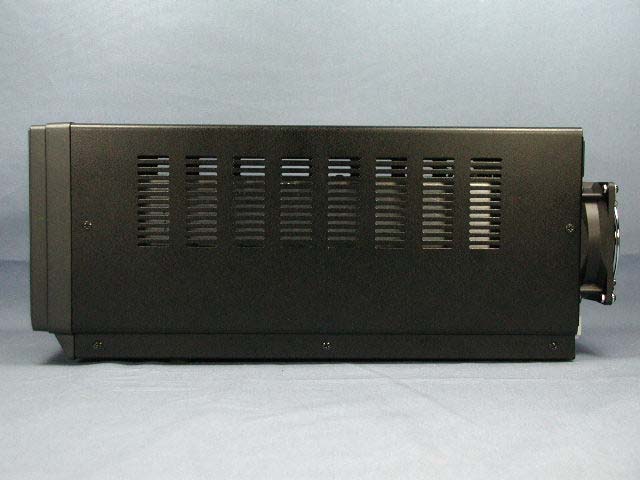

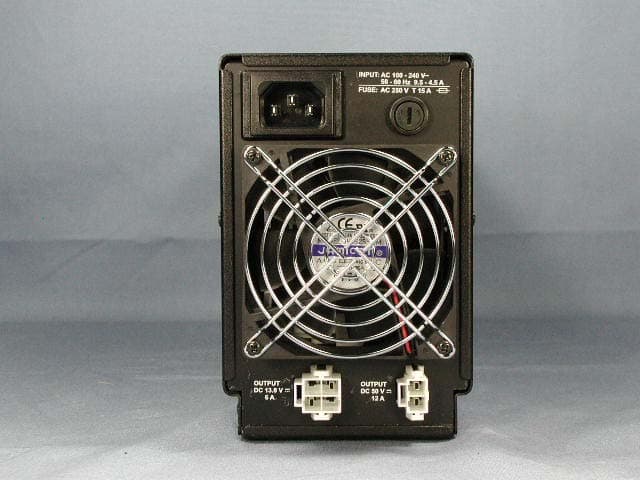

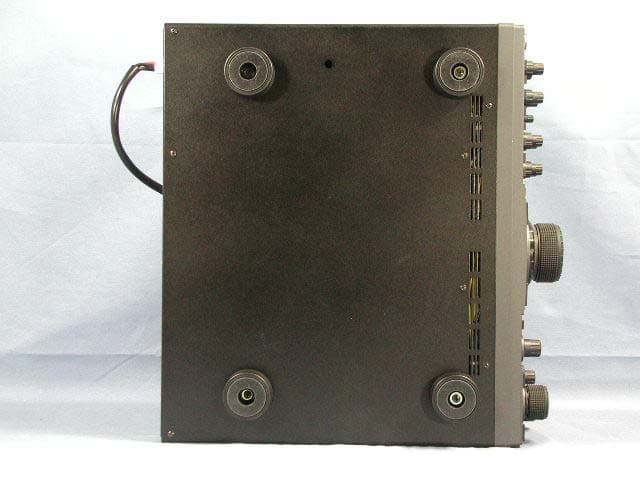

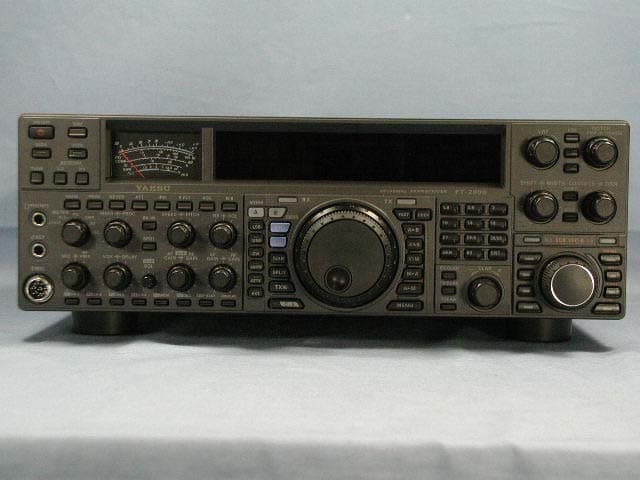

FCC ID: K6620251X70 IC ID: 511B-20251X70 Front view Rear view Vertex Standard Co., Ltd. FCC ID: K6620251X70 IC ID: 511B-20251X70 Top view Bottom view Vertex Standard Co., Ltd. FCC ID: K6620251X70 IC ID: 511B-20251X70 Left side view Right side view Vertex Standard Co., Ltd. FCC ID: K6620251X70 IC ID: 511B-20251X70 Front view of power supply Rear view of power supply Vertex Standard Co., Ltd. FCC ID: K6620251X70 IC ID: 511B-20251X70 Left view of power supply Right view of power supply Vertex Standard Co., Ltd. FCC ID: K6620251X70 IC ID: 511B-20251X70 Top view of power supply Bottom view of power supply Vertex Standard Co., Ltd.
