K6620361X60HF Transceiver with Scanning Receiver

HF/50 MHZ TRANSCEIVER FTDX5000 SERIES OPERATING MANUAL VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong VERTEX STANDARD ( AUSTRALIA ) PTY., LTD. Normanby Business Park, Unit 14/45 Normanby Road Notting Hill 3168, Victoria, Australia Page 16FTDX5000 OPERATING MANUAL [ POWER ] Switch Press and hold in this switch for two seconds to turn the transceiver on, after first setting the rear panel [ MAIN POWER ] switch to the “I” position. Press and hold in this switch for two seconds, similarly, to turn the transceiver off. If the rear panel [ MAIN POWER ] switch is set to the “O” position, the front panel [ POWER ] switch will not function. ADVICE: If you press this switch briefly while the transceiver is turned on, the transceiver’s audio will be muted for three seconds. This is the actual power On/Off switch for turning on the transceiver. When the rear panel [ MAIN POWER ] switch is set to the “I” position, power is supplied to the OCXO to stabilize the reference oscillator, and the remainder of the transceiver is set in a “stand-by” mode, awaiting the command for the transceiver to switch on via the front panel [ POWER ] switch. For further information on the rear panel [ MAIN POWER ] switch, please see the discussion on page ??. CAT Indicator This LED indicator will flash red when the transmit and receive serial CAT command signals are being ex- changed. ADVICE: You may disable the LED function (flashes in conjunc- tion with CAT command) via Menu item “031 GEnE CAT IND.” See page ??? for details. PHONES Jack A 1/4-inch, 3-contact jack accepts either monaural or stereo headphones with 2- or 3-contact plugs. When a plug is inserted, the loudspeaker is disabled. With ste- reo headphones such as the optional YH-77STA, you can monitor both VFO-A and VFO-B receiver chan- nels at the same time during Dual Receive operation. NOTE: When wearing headphones, we recommend that you turn the AF Gain levels down to their lowest settings before turning power on, to minimize the impact on your hearing caused by audio “pops” during switch-on. KEY Jack This 1/4-inch, 3-contact jack accepts a CW key or keyer paddles (for the built-in electronic keyer), or output from an external electronic keyer. Pinout is shown on page 15. Key up voltage is 5 V, and key down current is 1 mA. This jack may be configured for keyer, “Bug,” “straight key,” or computer keying interface operation via Menu item “054 A1A F-TYPE” (see page ???). There is another jack with the same name on the rear panel, and it may be configured independently for In- ternal Keyer or pseudo-straight-key operation. NOTE: You cannot use a 2-contact plug in this jack (to do so produces a constant “key down” condition). Microphone Connector This 8-pin jack accepts input from a microphone uti- lizing a traditional YAESU HF-transceiver pinout. FRONT PANEL CONTROLS & SWITCHES Page 17FTDX5000 OPERATING MANUAL [ DIM ] Switch Press this button to lower the illumination intensity of the analog meter and the frequency display. Press it once more to restore full brightness. ADVICE: Menu Items “008 diSP DIM MTR” and “009 diSP DIM VFD” allow you to configure the dimming lev- els for the analog meter and the frequency display in- dependently, so you can customize the brightness lev- els. [ MOX ] Switch Pressing this button engages the PTT (Push to Talk) circuit, to activate the transmitter (the LED inside this button will glow red). It must be turned off (the red LED will be off) for reception. This button replicates the action of the Push to Talk (PTT) switch on the mi- crophone. When engaging the [ MOX ] button (the LED inside this button glows red) or otherwise causing a transmission to be started, be certain you have either an antenna or 50-Ohm dummy load connected to the selected Antenna jack. [ VOX ] Switch This button enables automatic voice-actuated transmit- ter switching in the SSB, AM, and FM modes. While activated, the LED inside this button glows red. The controls affecting VOX operation are the front panel’s [ VOX ] and [ DELAY ] knobs. By proper adjustment of these controls, hands-free voice-actuated operation is possible. [ TUNE ] Switch This is the on/off switch for the FTDX5000’s Auto- matic Antenna Tuner. Pressing this button momentarily places the antenna tuner in line between the transmitter final amplifier and the antenna jack (“ ” icon will appear in the dis- play). Reception is not affected. Pressing and holding in this button for 1/2 second, while receiving in an amateur band, activates the transmitter for a few seconds while the automatic antenna tuner rematches the antenna system impedance for minimum SWR. The resulting setting is automatically stored in one of the antenna tuner’s 100 memories, for instant automatic recall later when the receiver is tuned near the same frequency. Pressing this button briefly, while the Tuner is engaged, will take the Automatic Antenna tuner out of the trans- mit line. NOTE: When the Automatic Antenna Tuner is tuning itself, a signal is being transmitted. Therefore, be absolutely certain that an antenna or dummy load is connected to the selected antenna jack before pressing and holding in the [ TUNE ] button to start antenna tuning. [ MONI ] ( Monitor ) Switch This button enables the transmit monitor in all modes. While activated, the “ ” icon appears in the dis- play. Adjustment of the Monitor level is accomplished using the [ MONI ] knob. ADVICE: When using headphones, the Monitor is highly useful for making adjustments to the Parametric Equalizer or other voice quality adjustments, because the voice qual- ity heard in the headphones is such a “natural” repro- duction of the transmitted audio qu…

Text truncated - open the document above for the full version.

Page 59FTDX5000 OPERATING MANUAL CONTOUR CONTROL OPERATION INTERFERENCE REJECTION ( SIGNALS WITHIN 3 KHZ ) With reference to Figure “B”, note the initial position of the contour when the [ CONT ] button is pushed. You may observe the “indentation” in the receiver passband where the contour filter is placing a low-Q “notch” (per the setting of Menu item “108 RDSP CNTR LV”, ref- erenced previous page). Counter-clockwise rotation (to the left) of the [ SELECT ]( contour ) knob causes the indentation to move towered a lower frequency within the passband, while clockwise rotation (to the right) causes the indentation to move toward a higher fre- quency within the passband. By removing interference or unwanted frequency components on the incoming signal, it is possible to make the desired signal rise out of the background noise/interference, enhancing intel- ligibility. IF BANDWIDTH IF BANDWIDTH IF BANDWIDTH ABC Page 60FTDX5000 OPERATING MANUAL IF SHIFT OPERATION ( SSB/CW/RTTY/PKT/AM MODES ) IF Shift allows you to vary the DSP filter passband higher or lower, without changing the pitch of the incoming signal, so as to reduce or eliminate interference. Because the carrier tuning frequency is not varied, there is no need to re-tune the operating frequency when eliminating the interference. The total passband tuning range for the IF Shift system is ±1 kHz. INTERFERENCE REJECTION ( SIGNALS WITHIN 3 KHZ ) VFO-A IF SHIFT Operation Press the ( VFO-A )[ SHIFT ] button. The center posi- tion of the IF passband will appears in the SUB DIS- PLAY- II. The ( VFO-A )[ SELECT ] knob will now functions as the IF SHIFT knob. Rotate the ( VFO-A )[ SELECT ] knob to the left or right to reduce the interference. Press the ( VFO-A )[ CLEAR ] button to move the filter passband to center. When the filter passband is set to band center, the imbedded LED in the ( VFO- A )[ SHIFT ] button is glows red. Referring to Figure “A”, note the depiction of the IF DSP filter as the thick line with the no shift (with the imbeded LED of the [ SHIFT ] button is glows red). In Figure “B”, an interfering signal has appeared inside the original passband. In Figure “C”, you can see the effect of rotating the [ SELECT ]( shift ) knob so as to reduce the interference level by moving the filter pass- band so that the interference is outside of the pass- band. VFO-B IF SHIFT Operation Press the ( VFO-B )[ SHIFT ] button. The center posi- tion of the IF passband will appears in the SUB DIS- PLAY- III. The ( VFO-B )[ SELECT ] knob will now functions as the IF SHIFT knob. Rotate the ( VFO-B )[ SELECT ] knob to the left or right to reduce the interference. Press the ( VFO-B )[ CLEAR ] button to move the filter passband to center. When the filter passband is set to band center, the imbedded LED in the ( VFO- B )[ SHIFT ] button is glows red. ( VFO-A )[ SELECT ] Knob ( VFO-B )[ SELECT ] Knob ( VFO-B )[ SHIFT ] Button [ CLEAR ] Button ( VFO-A )[ SHIFT ] Button [ CLEAR ] Button ABC IF BANDWIDTH IF BANDWIDTH IF BANDWIDTH Desired SignalDesired SignalDesired Signal QRMQRM Page 61FTDX5000 OPERATING MANUAL WIDTH ( IF DSP BANDWIDTH ) T UNING ( SSB/CW/RTTY/PKT MODES ) The IF Width tuning system allows you to vary the width of the DSP IF passband, so as to eliminate interference. Moreover, the bandwidth may actually be expanded from its default setting, should you wish to enhance incoming signal fidelity when interference on the band is low. INTERFERENCE REJECTION ( SIGNALS WITHIN 3 KHZ ) VFO-A WIDTH Operation Press the ( VFO-A )[ WIDTH ] button. The current band- width will appears in the SUB DISPLAY- II. The ( VFO-A )[ SELECT ] knob will now functions as the WIDTH knob. Rotate the ( VFO-A )[ SELECT ] knob to the left or right to reduce the interference. Press the ( VFO-A )[ CLEAR ] button to set the band- width to default. When the bandwidth is set to default, the imbedded LED in the ( VFO-A )[ WIDTH ] button is glows red. VFO-B WIDTH Operation Press the ( VFO-B )[ WIDTH ] button. The current band- width will appears in the SUB DISPLAY- III. The ( VFO-B )[ SELECT ] knob will now functions as the WIDTH knob. Rotate the ( VFO-B )[ SELECT ] knob to the left or right to reduce the interference. Press the ( VFO-B )[ CLEAR ] button to set the band- width to default. When the bandwidth is set to default, the imbedded LED in the ( VFO-B )[ WIDTH ] button is glows red. Referring to Figure “B”, you can see the default band- width (with the imbeded LED of the [ WIDTH ] button is glows red). By rotating the [ SELECT ]( width ) knob to the left, the bandwidth will narrow (see Figure “A”), while rota- tion of the [ SELECT ]( width ) knob to the right, as de- picted in Figure “C,” will widen the bandwidth. The default bandwidths, and total bandwidth adjust- ment range, will vary according to the operating mode and [ NAR ] button setting: ( VFO-A )[ SELECT ] Knob ( VFO-B )[ SELECT ] Knob ( VFO-B )[ WIDTH ] Button [ CLEAR ] Button ( VFO-A )[ WIDTH ] Button [ CLEAR ] Button NOTE: When rotating the [ SELECT ]( WIDTH ) knob counter- clockwise, the transition between 50 Hz and 25 Hz band- width may be accompanied by a “ping” sound, depending on the amount of noise present. This is a normal condi- tion, and you should turn down the volume, when wearing headphones, to minimize the amplitude of this momentary sound. OFF 1.8 kHz - 4.0 kHz / 16 steps ( 2.4 kHz  ) 500 Hz - 2.4 kHz / 7 steps ( 2.4 kHz  ) 500 Hz - 2.4 kHz / 7 steps ( 500 Hz  ) 500 Hz - 2.4 kHz / 7 steps ( 500 Hz  ) ON 200 Hz - 1.8 kHz / 9 steps ( 1.8 kHz  ) 50 Hz - 500 Hz / 10 steps ( 500 Hz  ) 50 Hz - 500 Hz / 10 steps ( 300 Hz  ) 50 Hz - 500 Hz / 10 steps ( 300 Hz  ) MODE LSB/USB CW RTTY ( LSB ) PKT ( LSB/USB ) NAR SWITCH  : Default ( the imbeded LED of the [ WIDTH ] button is glows red) IF BANDWIDTH IF BANDWIDTH IF BANDWIDTH ABC Page 62FTDX5000 OPERATING MANUAL INTERFERENCE REJECTION ( SIGNALS WITHIN 3 KHZ ) USING IF SHIFT AND WIDTH TOGETHER ( SSB/CW/RTTY/PKT/AM MODES ) The IF Shift and Vari…

Text truncated - open the document above for the full version.

November 20, 2009 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Intertek Japan K. K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Vertex Standard Co., Ltd Yu k i m a s a , To m i t a Executive Managing Officer Engineering Division November 20, 2009 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FT DX 5000 (FCC ID: K6620361X60) Gentlemen: Part 15.19 Compliance Statement is placed on the rear panel. Sincerely, Vertex Standard Co., Ltd Yu k i m a s a , To m i t a Executive Managing Officer Engineering Division November 20, 2009 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FT DX 5000 (FCC ID: K6620361X60) Gentlemen: A. Part 15.21 Compliance Statement Drawing: B. Part 15.21 Compliance Statement Drawing Location: IN OPERATION MANUAL (location on inside back cover) Sincerely, Vertex Standard Co., Ltd. Yu k i m a s a , To m i t a Executive Managing Officer Engineering Division Part 15.21: Changes or modifications to this device not expressly approved by Vertex Standard could void the user’s authorization to operate this device. 20mm 97mm November 20, 2009 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FT DX 5000 (FCC ID: K6620361X60) Gentlemen: The scanner receiver equipment meets the requirements of the FCC Rules, 15.121(a). Compliance is achieved through the following methods: The scanner receiver in this equipment is incapable of tuning, or readily being altered, by the User to operate within the frequency bands allocated to the Domestic Public Cellular Telecommunications Service in Part 22. Blocking of the cellular frequencies is implemented in the firmware of the unit’s main control central processing unit (CPU). Coverage of 824 – 849 MHz and 869 – 894 MHz is completely blocked, since it is done in the microprocessor, and cannot be re-enabled by any user-accessible procedure, including diode, resistor, or jumper changes, nor by connection of any external device such as a personal computer, nor by installation of any “special” enabling semiconductor device. Sincerely, Vertex Standard Co., Ltd. Yu k i m a s a , To m i t a Executive Managing Officer Engineering Division

December 1, 2009 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P. O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: FT DX 5000 (FCC ID: K6620361X60) Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requires confidential treatment of some of the information accompanying this Application, as listed below: ・ Block Diagram ・ Schematics ・ Circuit Description ・ Parts List These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for this Application. Sincerely, Vertex Standard Co., Ltd. Yu k i m a s a , To m i t a Executive Managing Officer Engineering Division

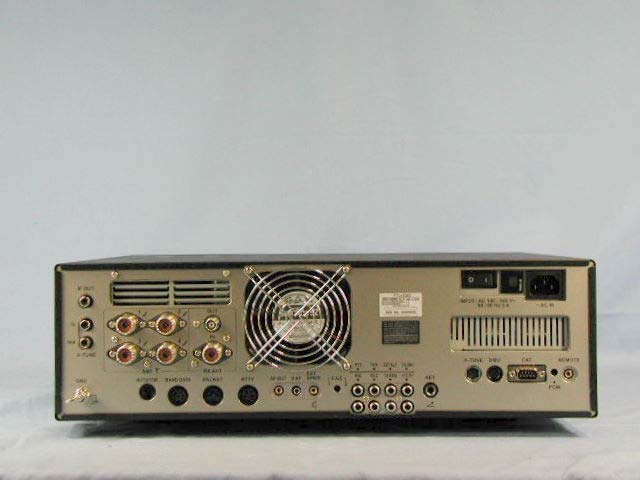

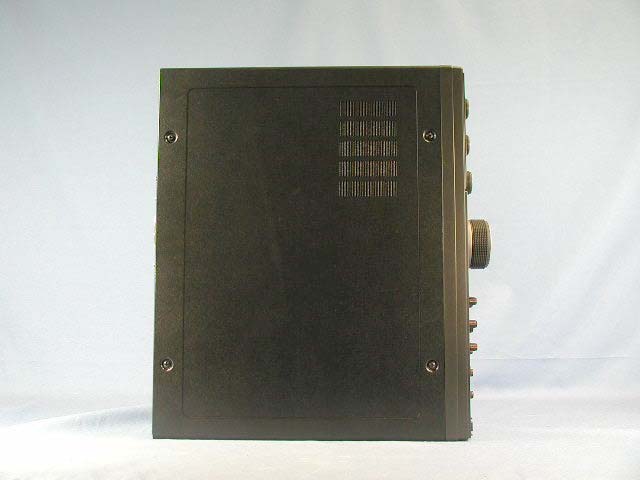

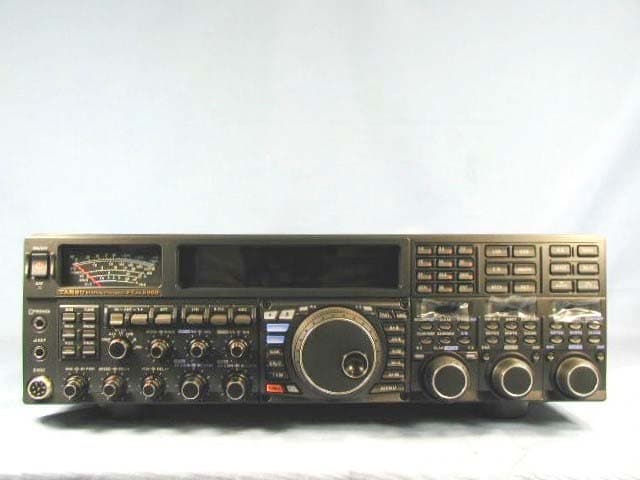

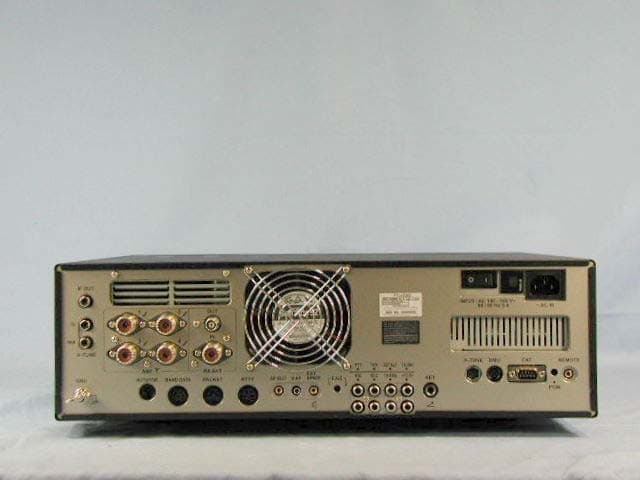

FCC ID: K6620361X60 IC: 511B-20361X60 Vertex Standard Co., Ltd. Front view Rear view FCC ID: K6620361X60 IC: 511B-20361X60 Vertex Standard Co., Ltd. Top view Bottom view FCC ID: K6620361X60 IC: 511B-20361X60 Vertex Standard Co., Ltd. Left side view Right side view

FT5000DXFT5000DX LABEL DRAWING Vertex Standard Co., Ltd.VertexStandardCo.,Ltd. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location FT5000DX FCC ID: K6620361X60 IC: 511B-20361X60

FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of CNTL-UNIT Side-B of CNTL-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. DSP-UNIT With shield case Side- A of DSP-UNIT Without shield Cover FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-B of DSP-UNIT Side-A of LOCAL-UNIT with shield case FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of LOCAL-UNIT without shield case Side-B of LOCAL-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of VRF-A-UNIT Side-B of VRF-A-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of TRX-UNIT with shield cases Side-A of TRX-UNIT without shield cases FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-B of TRX-UNIT Side-A of TRX-UNIT without VRF / SCP / FM-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of VRF-UNIT on TRX -UNIT Side-B of VRF-UNIT on TRX -UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of SCP -UNIT ON TRX-UNIT Side-B of SCP -UNIT ON TRX-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of DVS -UNIT ON TRX-UNIT Side-A of DVS -UNIT ON TRX-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of RX-UNIT with shield cases Side-A of RX-UNIT without shield cases FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of RX-UNIT without BPF-UNIT Side-B of RX-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of BPF-UNIT ON RX-UNIT Side-B of BPF-UNIT ON RX-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of MIC-UNIT Side-B of MIC-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of PA-B-UNIT Side-B of PA-B-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of SW-A-UNIT Side-B of SW-A-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of SW-B-UNIT Side-B of SW-B-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of SW-B-UNIT With UEL-UNIT Side-B of SW-C-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of UEL-UNIT Side-B of UEL-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of LINK-UNIT Side-B of LINK-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of VFD-UNIT Side-B of VFD-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of ENC-UNIT Side-B of ENC-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of BACK-LIGHT-UNIT Side-B of BACK-LIGHT-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of SW-D-UNIT Side-B of SW-D-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of VR-A-UNIT Side-B of VR-A-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of VR-B-UNIT Side-B of VR-B-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of JACK-UNIT Side-B of JACK-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of TUNER-C-UNIT Side-B of TUNER-C-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of TUNER-UNIT Side-B of TUNER-UNIT FCC ID:K6620361X60 IC:511B-20361X60 Vertex Standard Co., Ltd. Side-A of ANT-UNIT Side-B of ANT-UNIT

Report No. JT09110005(R1) FCC ID : K6620361X60 / IC : 511B-20361X60 © Intertek Japan K.K. Page 1 of 58 FJP-EM001 Version2.0 TEST REPORT STANDARD : FCC Part 15B-Scanning Receiver : Industry Canada RSS-215 Issue 2 Applicant Testing Laboratory Vertex Standard Co., Ltd. 4-8-8 Nakameguro Meguro-ku, Tokyo 153-8644 Japan Tel.: +81 3 5725 6111 Intertek Japan K.K. Tochigi Laboratory 870, Nakaawano, Kanuma-shi, Tochigi-ken 322-0306 Japan Tel. : +81 289 86 7121 URL: http://www.japan.intertek-etlsemko.com Equipment Type HF/50MHz Transceiver Category Scanning Receiver Trademark YAESU Model(s) FT DX 5000 Serial No. 9L000001 Equipment Authorization Certification (FCC ID : K6620361X60, IC : 511B-20361X60) Test Result Complied Report Number JT09110005(R1) Report Issue Date December 9, 2009 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. The test report JT09110005 has been superseded by this test report. Approved by Tested by Kazuo Gokita [Manager] Atsuyuki Morishima VLAC-008-5 Report No. JT09110005(R1) FCC ID : K6620361X60 / IC : 511B-20361X60 © Intertek Japan K.K. Page 2 of 58 FJP-EM001 Version2.0 TABLE OF CONTENTS Page SECTION 1. GENERAL INFORMATION .................................................................................................. 3 SECTION 2. SUMMARY OF TEST RESULTS ......................................................................................... 4 SECTION 3. EQUIPMENT UNDER TEST ................................................................................................ 5 SECTION 4. SUPPORT EQUIPMENT...................................................................................................... 8 SECTION 5. USED CABLE(S).................................................................................................................. 9 SECTION 6. TEST CONFIGURATION ....................................................................................................11 SECTION 7. OPERATING CONDITION ................................................................................................. 13 SECTION 8. TEST PROCEDURE(S) ..................................................................................................... 14 SECTION 9. MEASUREMENT UNCERTAINTY ..................................................................................... 18 SECTION 10. EVALUATION OF TEST RESULTS ................................................................................. 19 SECTION 11. LIST OF MEASURING INSTRUMENTS .......................................................................... 58 Report No. JT09110005(R1) FCC ID : K6620361X60 / IC : 511B-20361X60 © Intertek Japan K.K. Page 3 of 58 FJP-EM001 Version2.0 SECTION 1. GENERAL INFORMATION TEST PERFORMED Location Tochigi No.2 Test Site EUT Received November 10, 2009 Date of Test From November 10, 2009 to November 14, 2009 Standard Applied FCC Part15B – Scanning Receiver Industry Canada RSS-215 Issue 2 * * It is not covered by accredited scope of VLAC. Measurement methods ANSI C63.4-2003 Test Procedure Document number : RJP-EM001, RJP-EM003 Deviation from Standard(s) None Note : As for the ICES-003 “Digital Apparatus”, the EUT has been measured. Refer to report No.“JT09110007”. As for the FCC Part15B Class B “Peripherals”, the EUT has been measured. Refer to report No.“JT09110006”. QUALIFICATIONS OF TESTING LABORATORY ACCREDITATION SCOPE LAB. CODE Remarks VLAC EMC Testing VLAC-008-5 JAPAN BSMI EMC Testing SL2-IN-E-6017, SL2-A-E-6017 TAIWAN FILING VCCI EMC Testing R-257, C-260, C-284, T-374, T-375 R-258, C-261, C-285, T-376, T-377 R-259, C-262, T-378 JAPAN FCC EMC Testing Designation Number : JP0011 USA IC EMC Testing 2042P-1, 2042P-2 CANADA SAUDI ARABIA EMC Testing N/A ABBREVIATIONS EUT Equipment Under Test DoC Declaration of Conformity AMN Artificial Mains Network ISN Impedance Stabilization Network LISN Line Impedance Stabilization Network Q-P Quasi-peak AMP Amplifier AVG Average ATT Attenuator PK Peak ANT Antenna Cal Calibration BBA Broadband Antenna N/A Not applicable or Not available DIP Dipole Antenna LCD Liquid-Crystal Display AE Associated Equipment Report No. JT09110005(R1) FCC ID : K6620361X60 / IC : 511B-20361X60 © Intertek Japan K.K. Page 4 of 58 FJP-EM001 Version2.0 SECTION 2. SUMMARY OF TEST RESULTS The minimum margins to the limits are as follows: Conducted disturbance at mains terminals Rx A:B:30.000MHz(ANT 1) mode 8.1 dB (1.5945 MHz) AV Radiated disturbance Rx A:B:0.030MHz(ANT 1) mode 4.4 dB (88.80 MHz) Conducted Power on Antenna Port VFO SCAN( RX ANT) mode 6.9 dB(33.60 MHz) 38dB Rejection Test (15.121(b)) No frequency of response was detected – Passed- Note : See Section 10 for details. < Measurement data correction > * Conducted disturbance at mains terminals Emission Level [dBμV] = Meter Reading [dBμV] + Factor [dB] Margin [dB] = Limit [dBμV] - Emission Level [dBμV] * Factor = LISN Factor + Cable Loss + ATT * Radiated disturbance Emission Level [dBμV/m] = Meter Reading [dBμV] + Factor [dB/m] Margin [dB] = Limit [dBμV/m] - Emission Level [dBμV/m] * Factor = Antenna Factor + Cable Loss - Amplifier Gain + ATT ( – Distance Conversion Factor) * Conducted Power…
