K6620361X61HF Transceiver with Scanning Receiver

HF/50 MHZ TRANSCEIVER FTDX5000 SERIES OPERATING MANUAL VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong VERTEX STANDARD ( AUSTRALIA ) PTY., LTD. Normanby Business Park, Unit 14/45 Normanby Road Notting Hill 3168, Victoria, Australia ABOUT THIS MANUAL . . . The FTDX5000 is a leading-edge transceiver with a number of new and exciting features, some of which may be unfamiliar to you. In order to gain the most enjoyment and operating efficiency from your FTDX5000, we recommend that you read this manual in its entirety, and keep it handy for reference as you explore the many capabilities of your new transceiver. Before using your FTDX5000, be sure to read and follow the instructions in the “Before You Begin” section of this manual. Page 1FTDX5000 OPERATING MANUAL GENERAL DESCRIPTION Congratulations on your purchase of the FTDX5000 Yaesu amateur transceiver! Whether this is your first rig, or Yaesu equipment is already the backbone of your station, rest assured this transceiver will provide many hours of operating pleasure for years to come. The FT DX5000 is an elite-class HF transceiver and will pro- vide exceptional transmit and receive performance. The FT DX5000 is designed for the most competitive operating situations, whether you operate in contests, DX, or digital- mode environments. Built on the foundation of the popular FT DX9000 transceiver, and carrying on the proud tradition of the FT-1000 series, the FT DX5000 provides up to 200 Watts of power output on SSB, CW, and FM (50 Watts AM carrier). Digital Signal Pro- cessing (DSP) is utilized throughout the design, providing leading edge performance on both transmit and receive. Available as an option, the DMU-2000 Data Management Unit will provide extensive display capabilities via a user- supplied computer monitor: Band Scope, Audio Scope, X-Y Oscilloscope, World Clock, Rotator Control, extensive trans- ceiver status displays, and station logging capability. The Yaesu-exclusive VRF (Variable RF Front-End Filter) provides exceptional protection from strong nearby signals, and serves as a high-performance Preselector, ideal for multi- operator contest environments. The filter is manually tuned, allowing the operator to optimize sensitivity or signal rejec- tion with the turn of a knob. For the ultimate in receiver RF selectivity, the optional RF μ-Tuning Kits may be connected via the rear panel, providing extraordinarily sharp selectivity and receiver protection from close-in interference on a crowded band. Superb receiver performance is a direct legacy from the leg- endary FT DX9000, FT-1000D, and FT-1000MP transceiv- ers. In the VFO-A receive front end, you may select one of two RF preamplifiers, or one of two IPO (Intercept Point Optimization) settings, and/or three levels of RF attenuation in 6-dB steps. The IPO settings provide direct feed to the first mixer (VFO-B has one IPO setting), Dual Receives are built into every FT DX5000. Both VFO-A and VFO-B receiv- ers utilizes DSP filtering, and incorporate many of the fea- tures of the FT DX9000, such as Variable Bandwidth, IF Shift, and Passband Contour tuning. Digital Noise Reduction and Digital Auto-Notch Filtering are also provided, along with a manually-tuned IF Notch filter. The Sub receiver, used for monitoring within the same band as the Main receiver, is ideal for watching both sides of a pile-up, or keeping an ear on a DX station that is working stations by call area, etc. On the transmit side, the Yaesu-exclusive Three-Band Para- metric Microphone Equalizer allows precise and flexible adjustment of the wave-form to complement your voice. The microphone Amplitude, Center Frequency, and Bandwidth may be adjusted independently for the low-frequency, mid- range, and high-audio-frequency spectra. The transmitted bandwidth may be adjusted, as well. Advanced features include: Direct Keyboard Entry of fre- quency and Band Change, Speech Processor, IF Monitor for Voice modes, CW Pitch control, CW Spot switch, Full CW QSK, adjustable IF Noise Blanker, and all-mode Squelch. Four TX/ RX antenna ports, plus a receive-only antenna port, are provided on the rear panel. The front and rear key jacks may be configured independently, for paddle input, connec- tion to a straight key, or computer-driven keying interface. Both Digital Voice Recording and CW Message Memory are provided. Three unique windows on the right side of the front panel, display the VFO-B frequency and graphically show the VFO- A and VFO-B DSP settings. In Menu Mode operation, these windows display the menu values, for easy setting. Set up of frequency, band and mode is especially convenient on the FT DX5000. Besides direct frequency entry for both the Main and Sub VFOs, separate keys are provided for band selection. Each band key accesses three independent VFO frequency/mode/filter settings per band. You can establish separate VFO settings for three different parts of each band. The two (Main and Sub) VFOs allow simultaneous recep- tion and display of two different frequencies, even in differ- ent modes and with different IF bandwidths. The Dual Re- ceiver audio can be combined, or partially mixed in each head- phone, or monitored separately in each ear. In addition, 99 memories are provided to store: frequency, IF filter selection, clarifier offset, and scan-skip status. What’s more, five quick-recall (“QMB”) memories can instantly store operational settings at the push of a button. The built-in automatic antenna tuner includes 100 memories of its own, to automatically store antenna matching settings for quick recall later. Dedicated AFSK and FSK connection jacks on the rear panel provide simple Interfacing for d…

Text truncated - open the document above for the full version.

Page 74FTDX5000 OPERATING MANUAL PARAMETRIC MICROPHONE EQUALIZER ( SSB/AM/FM MODES ) The FTDX5000 includes a unique Three-Band Parametric Microphone Equalizer, that provides precise, independent con- trol over the low-, mid-, and treble-ranges in your voice waveform. You may utilize one group of settings when the speech processor is off, and an another independent group of settings when the speech processor is on. Setup of the Parametric Microphone Equalizer 1. Connect the microphone to the MIC jack. 2. Set the [ RF PWR ] knob to its minimum value, to re- duce interference to other users during adjustment. ADVICE:
We recommend you consider connecting a dummy load to one of the Antenna jacks, and monitor your signal on a separate receiver, to prevent interfer- ence to other users.
You will have the best chance of hearing the ef- fects of adjustments if you wear headphones (con- nected to the monitor receiver) while monitoring your transmitted signal. 3. To adjust the Parametric Microphone Equalizer while the speech processor is disabled, press the [ PROC ] button until the “” icon appears (or blinks) in the display. To adjust the Parametric Microphone Equalizer with the speech processor engaged, press the [ PROC ] button until the “” and “” icon appears in the display. ADVICE: A blinking “” icon indicates the Parametric Microphone Equalizer menu settings have all been set to “OFF”, as described later. 4. Press the [ MONI ] button, if you want to listen on the FTDX5000’s internal monitor. Adjust the monitor level using the [ MONI ] knob. 5. Press the [ MENU ] button briefly. The Menu list will appear in the display. 6. Rotate the ( VFO-A )[ SELECT ] knob to find the “TAUD” Menu area, which contains Menu items “151” through “159”; these parameters apply to the adjust- ment of the Parametric Microphone Equalizer when the speech processor is disabled. Menu items “160” through “168” apply to the adjustment of the Paramet- ric Microphone Equalizer when the speech processor is engaged. 7. Rotate the ( VFO-B )[ SELECT ] knob to perform ad- justments to a particular Menu item. 8. Press the PTT switch, and speak into the microphone while listening to the effects of the changes you are making (in step 6). Because the overall effect on the sound will change with each adjustment you make, you should make several passes through each adjustment area, to be sure that you are achieving the optimum setting. 9. When you have completed all adjustments, press and hold in the [ MENU ] button for two seconds to save the new settings and exit to normal operation. If you only press the [ MENU ] button momentarily to exit, any changes you performed will not be stored. ADVICE: To roll off excessive bass response in a wide-range studio microphone, try putting a 10 dB null at 100 Hz with a bandwidth of “1” or “2,” do about a 3 dB null centered on 800 Hz with a bandwidth of “3,” and then put an 8 dB peak centered on 2100 Hz with a bandwidth of “1.” These are starting recommendations; each microphone and user’s voice will be different, often requiring different settings. ( VFO-B )[ SELECT ] Knob [ MENU ] Button ( VFO-A )[ SELECT ] Knob [ MONI ] Button [ MONI ] Knob [ PROC ] Button ENHANCING TRANSMIT SIGNAL QUALITY QUICK POINT: The Parametric Equalizer is a unique system for adjusting the signal quality. Because the high, mid, and low audio ranges may be adjusted so precisely, it is possible to craft a response that provides a more natural and pleasant sound than you have ever experienced before. Or, the effective “talk power” can be significantly enhanced. The aspects of configuration that you may adjust with the Parametric Equalizer are: Center Frequency: The center frequency of each of the three bands may be adjusted. Gain: The amount of enhancement (or suppression) within each band may be adjusted. Q: The bandwidth over which the equalization is applied may be adjusted. Page 75FTDX5000 OPERATING MANUAL PARAMETRIC MICROPHONE EQUALIZER ( SSB/AM/FM MODES ) QQ QQQ f3f2f1 100 700Hz～700 1500Hz～1500 3200Hz～ Q +10dB -10dB -20dB Parametric Gain 0 dB Activating the Parametric Microphone Equalizer 1. Adjust the [ MIC ] (gain) knob for SSB use, as described on page 70. 2. Press the [ PROC ] button briefly. The “” icon will appear in the display, confirming that the Para- metric Microphone Equalizer is engaged. ADVICE: A blinking “” icon indicates the Parametric Microphone Equalizer menu settings have all been set to “OFF” (“151 TAUD EQ1 FRQ”, “154 TAUD EQ2 FRQ”, and “157 TAUD EQ3 FRQ”). 3. Press the PTT switch on the microphone, and speak into the microphone in a normal voice level. 4. To switch the Parametric Microphone Equalizer off, press the [ PROC ] button repeatedly until the “” icon disappears. [ PROC ] Button [ MIC ] Knob 3-STAGE PARAMETRIC EQUALIZER ADJUSTMENTS ( SPEECH PROCESSOR: “OFF” ) Center Frequency “151 TAUD EQ1 FRQ” ( Low ) “100” ( Hz ) ~ “700” ( Hz ) “154 TAUD EQ2 FRQ” ( Mid ) “700” ( Hz ) ~ “1500” ( Hz ) “157 TAUD EQ3 FRQ” ( High ) “1500” ( Hz ) ~ “3200” ( Hz ) Parametric Gain “152 TAUD EQ1 LVL” ( Low ) “–20” ( dB ) ~ “+10” ( dB ) “155 TAUD EQ2 LVL” ( Mid ) “–20” ( dB ) ~ “+10” ( dB ) “158 TAUD EQ3 LVL” ( High ) “–20” ( dB ) ~ “+10” ( dB ) Q ( Bandwidth ) “153 TAUD EQ1 BW” ( Low ) “1” ~ “10” “156 TAUD EQ2 BW” ( Mid ) “1” ~ “10” “159 TAUD EQ3 BW” ( High ) “1” ~ “10” 3-STAGE PARAMETRIC EQUALIZER ADJUSTMENTS ( SPEECH PROCESSOR: “ON” ) Center Frequency “160 TAUD PE1 FRQ” ( Low ) “100” ( Hz ) ~ “700” ( Hz ) “163 TAUD PE2 FRQ” ( Mid ) “700” ( Hz ) ~ “1500” ( Hz ) “166 TAUD PE3 FRQ” ( High ) “1500” ( Hz ) ~ “3200” ( Hz ) Parametric Gain “161 TAUD PE1 LVL” ( Low ) “–20” ( dB ) ~ “+10” ( dB ) “164 TAUD PE2 LVL” ( Mid ) “–20” ( dB ) ~ “+10” ( dB ) “167 TAUD PE3 LVL” ( High ) “–20” ( dB ) ~ “+10” ( dB ) Q ( Bandwidth ) “162 TAUD PE1 BW” ( Low ) “1” ~ “10” “165 TAUD PE2 BW” ( Mid ) “1” ~ “10” “168 TAUD PE3 BW” ( High ) “1” ~ “10” ENHANCING TRANSMIT SIGNAL QUALITY Page 76FTDX5000 OPERATING MANUAL ENHANCING TRANSMIT SIGN…

Text truncated - open the document above for the full version.

January 15, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Intertek Japan K. K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Vertex Standard Co., Ltd Yu k i m a s a , To m i t a Executive Managing Officer Engineering Division January 20, 2010 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FT DX 5000MP (FCC ID: K6620361X61) Gentlemen: Part 15.19 Compliance Statement is placed on the rear panel. Sincerely, Vertex Standard Co., Ltd Yu k i m a s a , To m i t a Executive Managing Officer Engineering Division January 20, 2010 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FT DX 5000MP (FCC ID: K6620361X61) Gentlemen: A. Part 15.21 Compliance Statement Drawing: B. Part 15.21 Compliance Statement Drawing Location: IN OPERATION MANUAL (location on inside back cover) Sincerely, Vertex Standard Co., Ltd. Yu k i m a s a , To m i t a Executive Managing Officer Engineering Division Part 15.21: Changes or modifications to this device not expressly approved by Vertex Standard could void the user’s authorization to operate this device. 20mm 97mm January 20, 2010 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FT DX 5000MP (FCC ID: K6620361X61) Gentlemen: The scanner receiver equipment meets the requirements of the FCC Rules, 15.121(a). Compliance is achieved through the following methods: The scanner receiver in this equipment is incapable of tuning, or readily being altered, by the User to operate within the frequency bands allocated to the Domestic Public Cellular Telecommunications Service in Part 22. Blocking of the cellular frequencies is implemented in the firmware of the unit’s main control central processing unit (CPU). Coverage of 824 – 849 MHz and 869 – 894 MHz is completely blocked, since it is done in the microprocessor, and cannot be re-enabled by any user-accessible procedure, including diode, resistor, or jumper changes, nor by connection of any external device such as a personal computer, nor by installation of any “special” enabling semiconductor device. Sincerely, Vertex Standard Co., Ltd. Yu k i m a s a , To m i t a Executive Managing Officer Engineering Division

January 20, 2010 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P. O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: FT DX 5000MP (FCC ID: K6620361X61) Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requires confidential treatment of some of the information accompanying this Application, as listed below: ・ Block Diagram ・ Schematics ・ Circuit Description ・ Parts List These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for this Application. Sincerely, Vertex Standard Co., Ltd. Yu k i m a s a , To m i t a Executive Managing Officer Engineering Division

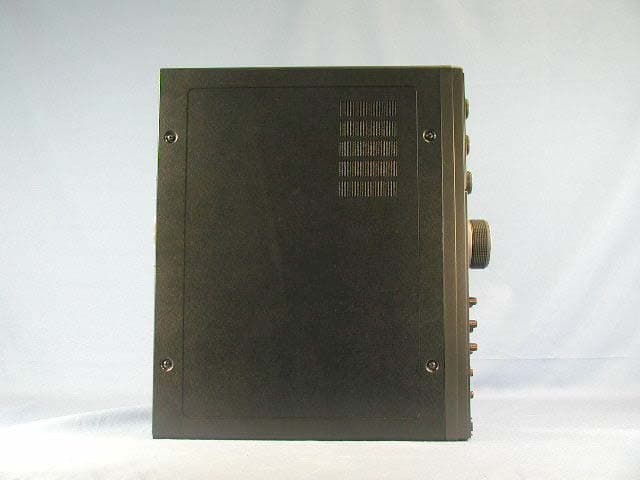

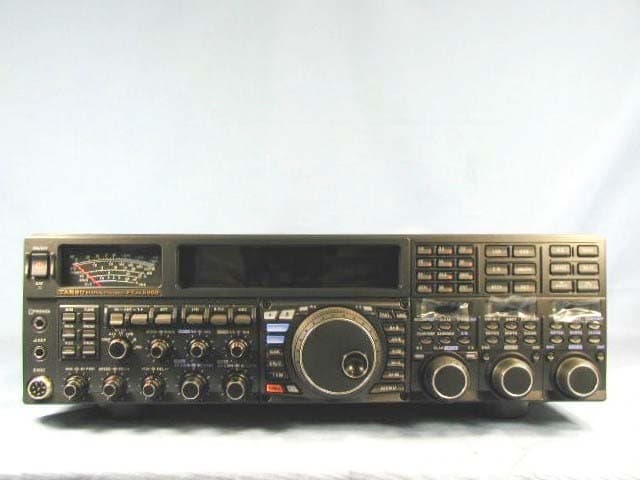

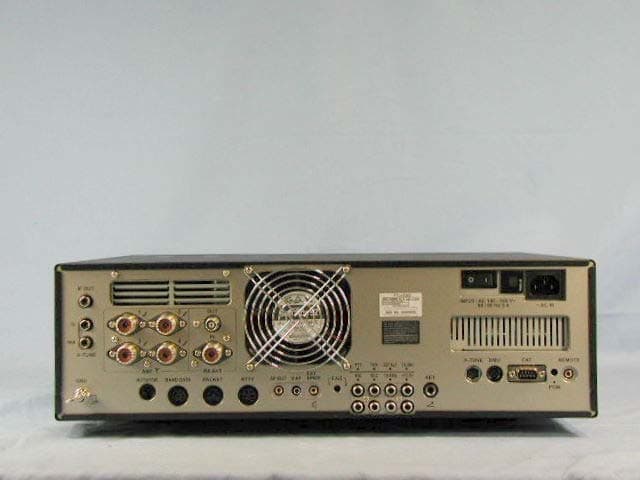

FCC ID: K6620361X61 IC: 511B-20361X61 Vertex Standard Co., Ltd. Front view Rear view FCC ID: K6620361X61 IC: 511B-20361X61 Vertex Standard Co., Ltd. Top view Bottom view FCC ID: K6620361X61 IC: 511B-20361X61 Vertex Standard Co., Ltd. Left side view Right side view

FTDX5000MPFTDX5000MP LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location FTDX5000MP FCC ID: K6620361X61 IC: 511B-20361X61 THISCLASSBDIGITALAPPARATUS COMPLIESWITHCANADIANICES003 / THISCLASSBDIGITALAPPARATUS COMPLIESWITHCANADIANICES003 / THISCLASSBDIGITALAPPARATUS COMPLIESWITHCANADIANICES003 /

FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of CNTL-UNIT Side-B of CNTL-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. DSP-UNIT With shield case Side- A of DSP-UNIT Without shield Cover FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-B of DSP-UNIT Side-A of JACK-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-B of JACK-UNIT Side-A of LOCAL-UNIT with shield case FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of LOCAL-UNIT without shield case Side-B of LOCAL-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of VRF-A-UNIT Side-B of VRF-A-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of TRX-UNIT with shield cases Side-A of TRX-UNIT without shield cases FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-B of TRX-UNIT Side-A of TRX-UNIT without VRF / SCP / FM-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of VRF-UNIT on TRX -UNIT Side-B of VRF-UNIT on TRX -UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of SCP -UNIT ON TRX-UNIT Side-B of SCP -UNIT ON TRX-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of DVS -UNIT ON TRX-UNIT Side-A of DVS -UNIT ON TRX-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of RX-UNIT with shield cases Side-A of RX-UNIT without shield cases FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of RX-UNIT without BPF-UNIT Side-B of RX-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of BPF-UNIT ON RX-UNIT Side-B of BPF-UNIT ON RX-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of MIC-UNIT Side-B of MIC-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of PA-B-UNIT Side-B of PA-B-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of SW-A-UNIT Side-B of SW-A-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of SW-B-UNIT Side-B of SW-B-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of SW-B-UNIT With UEL-UNIT Side-B of SW-C-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of UEL-UNIT Side-B of UEL-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of LINK-UNIT Side-B of LINK-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of VFD-UNIT Side-B of VFD-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of ENC-UNIT Side-B of ENC-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of BACK-LIGHT-UNIT Side-B of BACK-LIGHT-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of SW-D-UNIT Side-B of SW-D-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of VR-A-UNIT Side-B of VR-A-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of VR-B-UNIT Side-B of VR-B-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of TUNER-C-UNIT Side-B of TUNER-C-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of TUNER-UNIT Side-B of TUNER-UNIT FCC ID:K6620361X61 IC:511B-20361X61 Vertex Standard Co., Ltd. Side-A of ANT-UNIT Side-B of ANT-UNIT
