K6630063X30MARINE MOBILE TRANSCEIVER

Page 1GX3500S GX3500S 25 Watt VHF/FM ITU Class D DSC Marine Transceiver Owner's Manual
Oversized alphanumeric LCD, knobs and keys
30 W Loud Hailer with listen back and 4 fog horns, Bells & Whistles
Direct keypad entry of a channel using the keypad
Removable ClearVoice speaker microphone with 16/9 key and channel selection
Display shows channel names, and repeats GPS information

Capable of connecting 2 optional enhanced RAM+ second station re- mote microphones
DSC distress call automatically broadcasts lat/long and vessel ID

DSC position request function and NMEA data input/output to connect to GPS Plotter

Versatile user-programmable Scanning, Priority Scan and Dual Watch
One-button access to Channel 16 and 9
with GPS attached GX3500SPage 2 TABLE OF CONTENTS 1 GENERAL INFORMATION ...................................................................................... 4 2 PACKING LIST ........................................................................................................ 4 3 OPTIONS ................................................................................................................. 4 4 SAFETY / WARNING INFORMATION...................................................................... 5 5 FCC RADIO LICENSE INFORMATION ................................................................... 6 6 FCC NOTICE ........................................................................................................... 7 7 GETTING STARTED ................................................................................................ 8 7.1 ABOUT VHF RADIO ...................................................................................... 8 7.2 SELECTING AN ANTENNA ........................................................................... 8 7.3 COAXIAL CABLE ............................................................................................ 9 8 INSTALLATION ...................................................................................................... 10 8.1 LOCATION ..................................................................................................... 10 8.2 ELECTRICAL CONNECTIONS..................................................................... 10 8.3 ACCESSORY CABLE ................................................................................... 11 8.4 CONNECTION OF GPS WITH NMEA OUTPUT ...................................... 12 8.5 CHECKING GPS CONNECTIONS .............................................................. 12 8.6 CHANGING THE GPS TIME ....................................................................... 13 8.7 CHANGING THE TIME LOCATION ............................................................ 14 8.8 CHANGING COG TO TRUE OR MAGNETIC ........................................... 15 8.9 OPTIONAL MMB-84 FLUSH MOUNT INSTALLATION .............................. 16 8.10OPTIONAL ENHANCED RAM+ SECOND STATION MIC INSTALLATION....... 17 9 CONTROLS AND INDICATORS ............................................................................ 18 10 BASIC OPERATION .............................................................................................. 24 10.1 RECEPTION .................................................................................................. 24 10.2 TRANSMISSION ............................................................................................ 24 10.3 TRANSMIT TIME-OUT TIMER (TOT) .......................................................... 25 10.4 SIMPLEX / DUPLEX CHANNEL USE .......................................................... 25 10.5 USA, CANADA, AND INTERNATIONAL MODE .......................................... 25 10.6 NOAA WEATHER CHANNELS .................................................................... 25 10.6.1 NOAA Weather Alert ............................................................................ 25 10.6.2 NOAA Weather Alert Testing............................................................... 26 10.7 EMERGENCY (CHANNEL 16 USE) ............................................................ 26 10.8 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9)................................ 27 10.9 MAKING TELEPHONE CALLS.................................................................. 28 10.10 OPERATING ON CHANNELS 13 AND 67 .............................................. 28 10.11 DUAL WATCH (TO CH16) .......................................................................... 28 10.12 SCANNING .................................................................................................. 29 10.12.1 Selecting the Scan Mode..................................................................... 29 10.12.2 Memory Scanning (M-SCAN) ............................................................. 29 10.12.3 Priority Scanning (P-SCAN)................................................................ 30 10.13 PA / FOG OPERATION............................................................................. 30 10.13.1 Operating the PA HAIL Mode .......................................................... 31 10.13.2 Operating the PA FOG HORN Mode .............................................. 31 10.14 NAVIGATION INDICATION....................................................................... 31 10.15 LCD DIMMER ............................................................................................ 32 10.16 INTERCOM OPERATION......................................................................... 32 10.16.1 Communication................................................................................... 33 10.16.2 Calling................................................................................................. 33 10.17 VOICE SCRAMBLER ............................................................................... 34 11 DIGITAL SELECTIVE CALLING............................................................................ 36 11.1 GENERAL .....................................................…

Text truncated - open the document above for the full version.

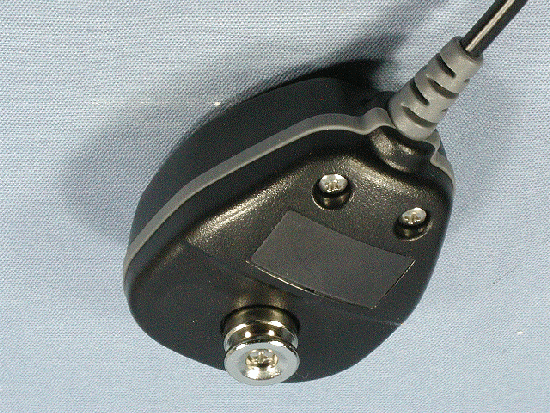

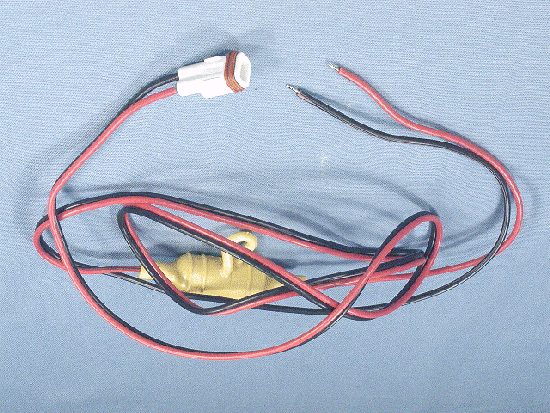

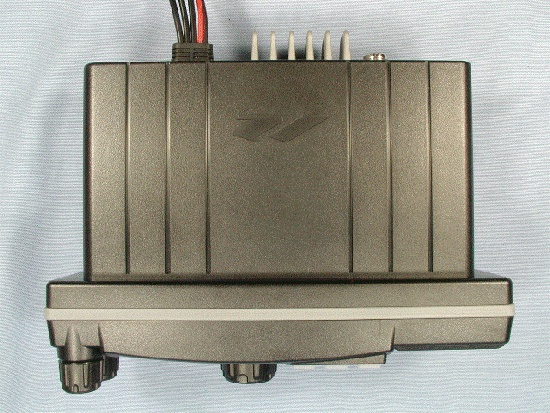

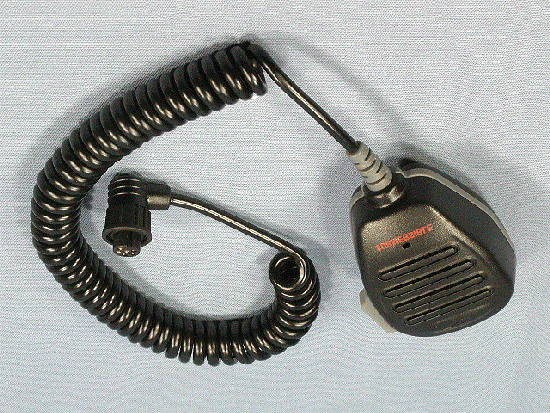

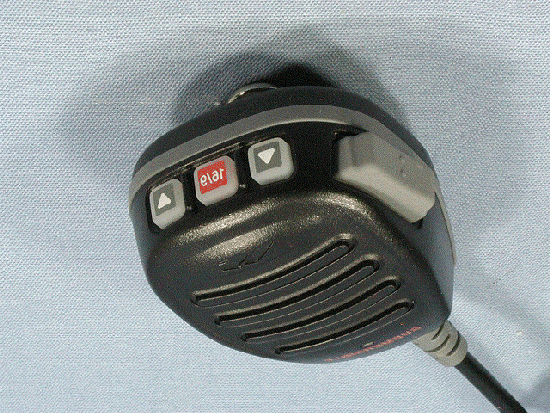

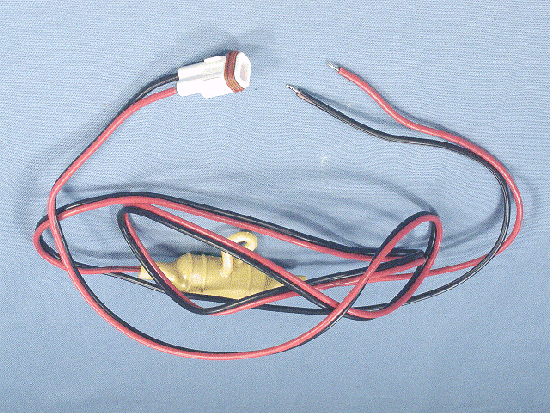

FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. Front of EUT Rear of EUT FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. Left Side of EUT Right Side of EUT FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. Top of EUT Bottom of EUT FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. Microphone Front of Microphone FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. Rear of Microphone DC Cable

GX3500SGX3500S LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. (1:1) (1:2) ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location GX3500S VERTEX STANDARD CO., LTD. MADE IN JAPAN CANADA: 511B-30063X30 FCC ID: K6630063X30 4909959000000 SER NO. 00000000 GX3500S VERTEX STANDARD CO., LTD. MADE IN JAPAN CANADA: 511B-30063X30 FCC ID: K6630063X30 4909959000000 SER NO. 00000000 This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner’s manual for specific operating requirement. CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner’s manual for specific operating requirement. CAUTION

FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. Top of EUT without Case Bottom of EUT without Case FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. Inside of Panel with PWB Side-A of MAIN-UNIT with Shield Case FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. Side-A of MAIN-UNIT without Shield Case Side-B of MAIN-UNIT FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. Side-A of CNTL-UNIT with LCD Side-A of CNTL-UNIT without LCD FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. Side-B of CNTL-UNIT Front of LCD FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. Rear of LCD Side-A of PA-UNT FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. Side-B of PA-UNIT Side-A of SUB-RX-UNIT with shield case FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. Side-A of SUB-RX-UNIT without shield case Side-B of SUB-RX-UNIT FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. Top of Chassis Bottom of Chassis FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. Inside of Panel without PWB Inside of Microphone (1) FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. Inside of Microphone (2)

Circuit Description Reception and transmission are switched by “RX-CNTL“ and “TX-CNTL“ lines from the CNTL Unit. The receiver uses double-conversion superheterodyne circuitry, with a 21.4 MHz 1st IF and 450 kHz 2nd IF. The 1st local is produced by a PLL synthesizer, yielding the 21.4 MHz 1st IF. The 2nd local uses a 21.850 MHz crystal oscillator, yielding the 450 kHz 2nd IF. The 2nd mixer and other cir- cuits use a custom IC to convert and amplify the 2nd IF and detect FM to obtain demodulated signals. During transmit, the PLL synthesizer oscillates at the desired fre- quency directly, for amplification to obtain RF power out- put. During transmit, voice modulation is applied to this synthesizer. Transceiver functions, such as TX/RX control, PLL synthesizer settings, and channel programming, are controlled using the MPU. Receiver Incoming RF signals from the antenna connector are de- livered to the MAIN Unit, and pass through a low-pass filter (LPF) consisting of coils and capacitors, and anten- na switching diodes D1003 and D1004 (both XB15A308) for delivery to the receiver front end. Signals within the frequency range of the transceiver are then passed through a bandpass filter consisting of T1001 and T1002 before RF amplification by Q1016 (2SC5006). The amplified RF is then bandpass filtered again by T1003, T1004, and T1005, to ensure pure in-band input to 1st mixer Q1024 (3SK320). Buffered output from the VCO Unit is amplified by Q1022 (2SC5006) and bandpass filtered by L1013, L1015, C1125, C1131, and C1134, to provide a pure 1st local signal be- tween 133.75 and 140.975 MHz for delivery to the 1st mix- er. The 22.3 MHz 1st mixer product then passes through dual monolithic crystal filter XF1001 and XF1002 (±6.5 kHz BW), and is amplified by Q1031 (2SC4400-3) and delivered to the input of the FM IF subsystem IC Q1036 (TA31136FN). This IC contains the 2nd mixer, 2nd local oscillator, limit- er amplifier, FM detector, noise amplifier, and squelch gates. The 2nd local is produced by crystal X1001 (21.850 MHz) then passes through the amplifier Q1017 (2SC4154) ,and delivered to the 2nd mixer in the IF-IC. The 1st IF is con- verted to 450 kHz by the 2nd mixer and stripped of un- wanted components by ceramic filter CF1001. Filtered signal from the ceramic filter CFa001 is applied to the limiter amplifier in the FM IF subsystem IC Q1036 (TA31136FN), and then demodulate by the FM detector in the FM IF subsystem IC Q1036 (TA31136FN). Demod- ulated receive audio from the FM IF subsystem IC Q1036 (TA31136FN) is amplified by Q1038 (2SC4154E), then the signal is through the AF switch Q1040 (BU4053BCFV), the AF amplifier Q1045 (NJM12902V) and the AF Mute switch Q1035 (BU4066BCFV). After volume adjustment by the D/A converter Q1033 (M62364FP) and the AF power amplifier Q1043 (LA4425A), the audio signal is passed to the external Speaker terminal in the accessory cable and 16-Ohm in- ternal loudspeaker. PLL Synthesizer The 1st LO maintains stability from the PLL synthesizer by using a 21.850 MHz reference signal from crystal X1001. PLL synthesizer IC Q1021 (MB15A02PFV) consists of a prescaler, reference counter, swallow counter, program- mable counter, a serial data input port to set these counters based on the external data, a phase comparator, and a charge pump. The PLL-IC divides the 21.850 MHz reference signal by 874 using the reference counter (25 kHz comparison fre- quency). The VCO output is divided by the prescaler, swallow counter and programmable counter. These two signals are compared by the phase comparator and ap- plied to the charge pump. A voltage proportional to their phase difference is deliv- ered to the low-pass filter circuit, then fed back to the VCO as a voltage with phase error, controlling and stabilizing the oscillating frequency. This synthesizer also operates as a modulator during transmit. The RX VCO is comprised of Q1027 (2SK520-K43) and D1009, D1010, D1014, D1015 (all HVC3068); it oscillates at 22.3 MHz below the receiving frequency. The TX VCO is comprised of Q1029 (2SC5006) and D1012 (both HVC3068); it oscillates at the fundamental frequency, with direct frequency-modulation using varactor diode D1016 (HVC3068). The VCO output passes through buffer am- plifier Q1022 (2SC5006) to obtain stable output. The VCO DC supply is regulated by Q1018 (2SC4154E). Synthe- sizer output is fed to the 1st mixer Q1024 (3SK320) by diode switch D1006 (DAN235U) during receive, and to drive amplifier Q1014 (2SC3357), and the RF power am- plifier Q1007 (RA35H1516M) for transmit. The reference oscillator feeds the PLL synthesizer. Transmitter Voice audio from the microphone is delivered via the MIC connector to the MAIN Unit. After passing through am- plifier Q1028 (NJM12902V), a pre-emphasis network, the D/A converter Q1033 (M62364FP) for MIC switch, the MIC mute switch Q1035 (BU4066BCFV), limiter (IDC: in- stantaneous deviation control), and LPF Q1028 (NJM12902V), the audio is adjusted for optimum devia- Circuit Description tion level and delivered to the next stage. Voice or DSC (Digital Selective Calling) encode signal in- puts from the LPF Q1028 (NJM12902V) are FM-modulat- ed in the VCO of the synthesizer. Synthesizer output, af- ter passing through diode switch D1006 (DAN235U), is amplified by driver Q1014 (2SC3357), and the RF power amplifier Q1007 (RA35H1516M) to obtain full RF output. The RF energy then passes through antenna switch D1003 (XB15A308) and a low-pass filter circuit and finally to the antenna connector. RF output power from the final amplifier is sampled by C1013 and C1019 and is rectified by D1002 (1SS321). The resulting DC is fed through Automatic Power Control- lers Q1034 (NJM2904V) to transmitter RF power amplifi- er Q1007 (RA35H1516M), thus providing positive con- trol of the power output. Generation of spurious products by the transmitter is min- imized by the fundamental carrier frequency being equal to the final transmitting frequency, modulated directly in the tra…

Text truncated - open the document above for the full version.

1/2 GX3500SComponent Application AddressDevice nameDescriptionApplication [MAIN-UNIT] D 1001 Diode1N5402Reverse Voltage Protection D 1002 Diode1SS321 Power Detector D 1003 DiodeXB15A308A2GBAntenna Switch D 1004 DiodeXB15A308A2GBAntenna Switch D 1005 DiodeHSU277RF Over Input Protection D 1006 DiodeDAN235UTx/Rx RF Switch D 1007 D 1008 Zener DiodeHZU5ALLPLL Charge Pump D 1009 DiodeHVC306BVCO D 1010 DiodeHVC306BVCO D 1011 D 1012 DiodeHVC306BVCO D 1013 Diode1SS302 PLL L.P.Filter D 1014 DiodeHVC306BVCO D 1015 DiodeHVC306BVCO D 1016 DiodeHVC306BVCO Modulation D 1017 Zener DiodeUDZSRX 5V Regulator D 1018 DiodeDA221Rectifier D 1019 DiodeDA221Rectifier D 1020 DiodeHSU277RF Over Input Protection D 1021 Surge ProtectorDSP-141N-S00BSurge Protect Q 1001 Transistor2SB1301 ZQDC AMP Q 1002 Transistor2SB1301 ZQDC AMP Q 1003 ICNJM7808FA8V Regulator Q 1004 TransistorRT1N441UAPC SW Q 1005 TransistorRT1N241MDC Switch Q 1006 TransistorRT1N241MDC Switch Q 1007 ICRA35H1516MRF Power MODULE Q 1008 ICNJM78M05DL1A5V Regulator Q 1009 TransistorDTB123EKTx 8V Switch Q 1010 Transistor2SA1602AFDC AMP Q 1011 TransistorRT1N441UTx 8V Switch Q 1012 TransistorRT1N441UTX H/L Cntrol Q 1013 TransistorRT1N441URx 8V Switch Q 1014 Transistor2SC3357 RFDriver AMP Q 1015 Q 1016 Transistor2SC5006RX RF AMP Q 1017 Transistor2SC4154EBuff AMP Q 1018 Transistor2SC4154ERipple Filter Q 1019 Transistor2SA1602AFUnlock Switch Q 1020 TransistorRT1N241MDC Switch Q 1021 ICMB15A02PFV1-G-BND-EFPLL Subsystem Q 1022 Transistor2SC5006VCO Buff AMP Q 1023 TransistorRT1N441UDC Switch Q 1024 FET3SK320RX 1st Mixer Q 1025 Transistor2SA1162GR PLL Charge Pump Q 1026 Transistor2SC2712GR PLL Charge Pump Q 1027 FET2SK520 K43RX VCO Q 1028 ICNJM12902VMIC AMP, Limitter, Low Pass Filter, AF Comparator Q 1029 Transistor2SC5006TX VCO Q 1030 TransistorRT1N441UDC Switch Q 1031 Transistor2SC4400-3IF AMP Q 1032 TransistorRT1N441UModuration Switch Q 1033 ICM62364FP 600DMIC Selector, TX H/L Switch, AF Volume Q 1034 ICNJM2904VAPC Q 1035 ICBU4066BCFVAF Mute Switch, MIC Mute Switch Q 1036 ICTA31136FNIF Subsystem Q 1037 Transistor2SC4154EAF AMP Q 1038 Transistor2SC4154EAF AMP Q 1039 Transistor2SC4154ENoise AMP Q 1040 ICBU4053BCFVAF Switch Q 1041 Q 1042 TransistorRT1N241MAF Mute Switch Q 1043 ICLA4425AAF Power AMP Q 1044AF Buffer AMP Q 1045 ICNJM12902VRAM Buffer Q 1046 Transistor2SB1301 ZQDC AMP Q 1047 TransistorRT1N241MDC Switch [CNTL-UNIT] D 2001 Diode MC2846 FOG Control D 2002 LED FY1111C-722 Back Light LED D 2003 LED FY1111C-722 Back Light LED D 2004 LED FY1111C-722 Back Light LED FCC ID: K6630063X30 IC ID: 511B-30063X30 Vertex Standard Co., Ltd. 2/2 GX3500SComponent Application AddressDevice nameDescriptionApplication FCC ID: K6630063X30 IC ID: 511B-30063X30 D 2005 LED FY1111C-722 Back Light LED D 2006 LED FY1111C-722 Back Light LED D 2007 LED FY1111C-722 Back Light LED D 2008 LED FY1111C-722 Back Light LED D 2009 LED FY1111C-722 Back Light LED D 2010 LED FY1111C-722 Back Light LED D 2011 LED FY1111C-722 Back Light LED D 2012 LED FY1111C-722 Back Light LED D 2013 LED FY1111C-722 Back Light LED D 2014 Diode 1SS355 Protector D 2015 Zener Diode HZM27WA Protector D 2016 Zener Diode HZM27WA Protector D 2017 Zener Diode HZM27WA Protector D 2018 Zener Diode HZM27WA Protector D 2019 LED FY1111C-722 Back Light LED D 2020 LED FY1111C-722 Back Light LED D 2021 LED FY1111C-722 Back Light LED D 2022 Diode IMN10 T108 DC Switch D 2023 Diode IMN10 T108 DC Switch Q 2001 IC NJM78L05UA Regulator Q 2002 Transistor DTC144EE Detector Q 2003 IC PST597CNR Reset Q 2004 IC M30624FGAGP CPU Q 2005 Transistor DTA144EE FOG Control Q 2006 IC AT24C128N-10SI-2.7 EEPROM Q 2007 Q 2008 Transistor CPH6102 DC AMP Q 2009 Transistor 2SC4154E Lamp Switch Q 2010 IC S1D15208F00A LCD Driver Q 2011 Transistor 2SA1602AF Driver Q 2012 Transistor 2SC4154E Driver Q 2013 Photocoupler TLP281 Switch Q 2014 Transistor 2SA1602AF Driver Q 2015 Transistor 2SC4154E Driver Q 2016 IC TC74HC14AF Logic Inverter Q 2017 Transistor 2SA1602AF Driver Q 2018 Transistor 2SC4154E Driver Q 2019 Transistor DTC144EE Switch Q 2020 Transistor DTC144EE Switch Q 2021 ICNJM2904VBuffer [PA-UNIT] D 3001 Diode D1F20-4063 Protection Q 3001 IC NJM2904V AF Buff / AF Amp. Q 3002 IC TA8225H AF PA Q 3003 Transistor RT1N241M AF Switch [SUB-RX-UNIT] D 4002 Diode HVC306B VCO D 4003 Diode 1SS302 Limiter D 4004 Zener Diode UDZS Protector D 4005 Diode DA221 Rectifier D 4006 Diode DA221 Rectifier D 4007 Diode HVC306B VCO Q 4001 FET 3SK294 RF AMP Q 4002 Transistor DTB123EK DC Switch Q 4003 Transistor RT1N441U DC Switch Q 4004 IC M5278L05M 600C 5V Regulator Q 4005 Transistor 2SC4154E Ripple Filter Q 4006 Transistor 2SC4154E Buffer AMP Q 4007 Transistor 2SC5006 VCO Buff AMP Q 4008 IC MB15A02PFV1-G-BND-EF PLL Subsystem Q 4009 Transistor 2SA1602AF Unlock Switch Q 4010 FET 3SK320 1st Mixer Q 4011 FET 2SK520 K43 VCO Q 4012 Q 4013 Q 4014 Transistor 2SC4400-3 IF AMP Q 4015 IC TA31136FN IF Subsystem Q 4016 Transistor 2SC4154E AF AMP Q 4017 Transistor 2SC4154E AF AMP Q 4018 IC NJM2211M FSK Detector Vertex Standard Co., Ltd.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: VERTEX STANDARD CO., LTD. FCC ID: Test Report Product Name: MARINE TRANSCEIVER FCC ID: K6630063X30 Applicant: VERTEX STANDARD CO., LTD. 4-8-8 NAKAMEGURO, MEGURO-KU TOKYO 153-8644 JAPAN Date Receipt: AUGUST 5, 2004 Date Tested: AUGUST 16, 2004 K6630063X30 REPORT #: V\VERTEX USA_\1248AUT4\1248AUT4TestReport.doc COVER SHEET TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: VERTEX STANDARD STANDARD CO., LTD. FCC ID: TABLE OF CONTENTS LIST APPLICANT: VERTEX STANDARD CO., LTD. FCC ID: K6630063X30 TEST REPORT: PAGE 1............GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2............TECHNICAL DESCRIPTION CONTINUED RF POWER OUTPUT PAGE 3............TECHNICAL DATA PAGE 4............VOICE MODULATION CHARACTERISITICS AUDIO FREQUENCY RESPONSE PAGE 5............AUDIO LOW PASS FILTER PAGE 6............MODULATION LIMITING PAGE 7............OCCUPIED BANDWIDTH PAGE 8............OCCUPIED BANDWIDTH PLOT PAGE 9............SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 10...........METHOD OF MEASURING CONDUCTED SPURIOUS EMISS PAGE 11...........FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 12...........METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 13...........FREQUENCY STABILITY PAGE 14...........MPE CALCULATION PAGE 15...........LIST OF TEST EQUIPMENT EXHIBITS INCLUDING: BLOCK DIAGRAM SCHEMATIC PARTS LIST USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TUNING PROCEDURE TEST SET UP PHOTOGRAPHS K6630063X30 REPORT #: V\VERTEX USA_\1248AUT4\1248AUT4TestReport.doc TABLE OF CONTENTS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: VERTEX STANDARD CO., LTD. FCC ID: GENERAL_INFORMATION 2.1033(c) VERTEX STANDARD CO., LTD. will sell the FCC ID: K6630063X30 VHF Marine transmitter in quantity, for use under FCC RULES PART 80. 2.1033(c) TECHNICAL_DESCRIPTION (4) Type of Emission: 16K0F3E/16K0G3E Bn = 2M + 2DK M = 3000 D = 4.3 KHz (Peak Deviation) K = 1 Bn = 2(3.0K) + 2(4.3K)(1) = 6.0K + 8.6 = 14.6K 80.205 (a) ALLOWED AUTHORIZED BANDWIDTH = 20.00KHz. 2.1033(c)(6) Frequency Range: 156.025 – 157.425 MHz 2.1033(c)(7) Power Range and Controls: There is a user Power switch for High/Low Power. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: POWER INPUT FINAL AMPLIFIER ONLY High Low Vce = 13.8 Volts Vce = 13.8 VDC Ice = 4.36 A. Ice = 0.95 A. Pin = 60.17 Watts Pin = 13.11 Watts Function of each electron tube or semiconductor device or other active circuit device is included in the parts list exhibit. 2.1033(c)(9) Complete Circuit Diagrams: The circuit diagrams and block diagrams are included. 2.1033(c)(10) Instruction book. The instruction manual is included. K6630063X30 REPORT #: V\VERTEX USA_\1248AUT4\1248AUT4TestReport.doc Page 1 of 15 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: VERTEX STANDARD CO., LTD. FCC ID: 2.1033(c)(11) Tune-up procedure. The tune-up procedure is included. Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description 2.1033(c)(11) Digital modulation. This unit does NOT use digital modulation. The data required by 2.1046 through 2.1055 is submitted below. 2.1046(a) RF_power_output. 80.215 (e)(1) RF power is measured by connecting a 50 ohm, re- sistive wattmeter to the RF output connector. With a nominal battery voltage, and the transmitter properly adjusted the RF output measures: OUTPUT POWER: HIGH: 25 W CONDUCTED LOW: 1 W CONDUCTED 80.911 (d)(5) For primary supply voltages, measured in accordance with the procedures in this paragraph, greater than 11.5 volts, but less than 12.6 volts, the required transmitter output power shall be equal or greater than the value calculated below P = 4.375(v) – 35.313 (For 12V this equals 17.2W) METHOD OF MEASURING RF POWER OUTPUT Transmitter 50 ohm under test Resistive Wattmeter Power Supply K6630063X30 REPORT #: V\VERTEX USA_\1248AUT4\1248AUT4TestReport.doc Page 2 of 15 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: VERTEX STANDARD CO., LTD. FCC ID: TECHNICAL DATA: 80.203 (b) External Controls: The transmitter is capable of changing frequency between 156.05 – 157.425 MHz by external control. The available channels are shown in the User Manual description Channel List. These channels are preprogrammed by the manufacturer and change of frequency is inaccessible to the station operator. 80.203 (c) Five minutes continuous transmission test. The antenna was connected to a dummy load and the radio was locked in a transmit PTT mode. An external timer digital clock was used to observe the duration of the un-modulated transmission. The transmitter turned off and the radio went to receive mode at 4 minutes, 58 seconds as displayed by the external digital clock. 80.203 (n) This radio complies with the requirement for DSC capability in the 156.025-157.425 MHz band and in accordance with 80.225. 80.873; 80.956 Transmitter G3E emission capability: The transmitter was connected to 50 ohm resistive wattmeter and the frequency was set to 156.300 and to 156.800 MHz. With normal modulation, the output power displayed was 25 Watts at the high power setting and 1 watt at low power setting, consistent with previous measurements. The transmitter has been demonstrated to be capable, with normal operating voltages applied, of delivering 25 watts of carrier power into a 50 ohm resistive load over the specified frequencies. 80.911 (a) 80.956 G3E Transmissions: This ra…
