K6630173X3DMarine Transceiver

Page 1GX1500S QUEST-X GX1500S 25 Watt VHF/FM ITU Class D DSC Marine Transceiver Owner's Manual
Oversized alphanumeric LCD, knobs and keys
Direct keypad entry of a channel using the keypad
Removable ClearVoice speaker microphone with 16/9 key and channel selection
Display shows channel names, and repeats GPS information

Capable of connecting a optional enhanced RAM+ second station re- mote microphone or VH-310 Handset
DSC distress call automatically broadcasts lat/long and vessel ID

DSC position request function and NMEA data input/output to connect to GPS Plotter

Versatile user-programmable Scanning, Priority Scan and Dual Watch
One-button access to Channel 16 and 9
with GPS attached GX1500SPage 2 TABLE OF CONTENTS 1 GENERAL INFORMATION.....................................................................................................4 2 PACKING LIST.......................................................................................................................4 3 OPTIONS................................................................................................................................4 4 SAFETY / WARNING INFORMATION ...................................................................................5 5 FCC RADIO LICENSE INFORMATION .................................................................................6 6 FCC NOTICE ..........................................................................................................................7 7 GETTING STARTED...............................................................................................................8 7.1 ABOUT VHF RADIO.................................................................................................... 8 7.2 SELECTING AN ANTENNA.........................................................................................8 7.3 COAXIAL CABLE .......................................................................................................... 9 8 INSTALLATION.....................................................................................................................10 8.1 LOCATION ...................................................................................................................10 8.2 ELECTRICAL CONNECTIONS..................................................................................10 8.3 ACCESSORY CABLE................................................................................................. 11 8.4 CONNECTION OF GPS WITH NMEA OUTPUT...................................................12 8.5 CHECKING GPS CONNECTIONS...........................................................................12 8.6 CHANGING THE GPS TIME....................................................................................13 8.7 CHANGING THE TIME LOCATION .........................................................................14 8.8 CHANGING COG TO TRUE OR MAGNETIC........................................................14 8.9 OPTIONAL MMB-84 FLUSH MOUNT INSTALLATION...........................................15 8.10OPTIONAL ENHANCED RAM+ SECOND STATION MIC AND/OR VH-310 HANDSET INSTALLATION............................................................16 9 CONTROLS AND INDICATORS ..........................................................................................18 10 BASIC OPERATION .............................................................................................................22 10.1 RECEPTION................................................................................................................22 10.2 TRANSMISSION ..........................................................................................................22 10.3 TRANSMIT TIME-OUT TIMER (TOT) .......................................................................22 10.4 SIMPLEX / DUPLEX CHANNEL USE.......................................................................23 10.5 USA, CANADA, AND INTERNATIONAL MODE .......................................................23 10.6 NOAA WEATHER CHANNELS.................................................................................23 10.6.1 NOAA Weather Alert ........................................................................................23 10.6.2 NOAA Weather Alert Testing...........................................................................24 10.7 EMERGENCY (CHANNEL 16 USE).........................................................................24 10.8 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9) ............................................25 10.9 MAKING TELEPHONE CALLS...............................................................................25 10.10 OPERATING ON CHANNELS 13 AND 67 ..........................................................26 10.11DUAL WATCH (TO PRIORITY CHANNEL)................................................................26 10.12 SCANNING ................................................................................................................27 10.12.1 Selecting the Scan Mode..................................................................................27 10.12.2 Memory Scanning (M-SCAN)...........................................................................27 10.12.3 Priority Scanning (P-SCAN).............................................................................28 10.13 NAVIGATION INDICATION ...................................................................................28 10.14 INTERCOM OPERATION......................................................................................29 10.14.1 Communication................................................................................................29 10.14.2 Calling...............................................................................................................29 11 DIGITAL SELECTIVE CALLING..........................................................................................30 11.1GENERAL.........…

Text truncated - open the document above for the full version.

November 1, 2005 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P. O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: GX1500S (FCC ID: K6630173X3D) Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requires confidential treatment of some of the information accompanying this Application, as listed below: ・ Block Diagram ・ Schematics These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for this Application. Sincerely, Vertex Standard Co., Ltd. Mr. Moto Kurihara Group Leader of Engineering Division

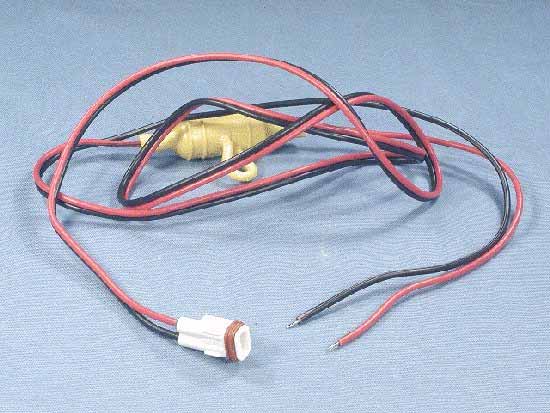

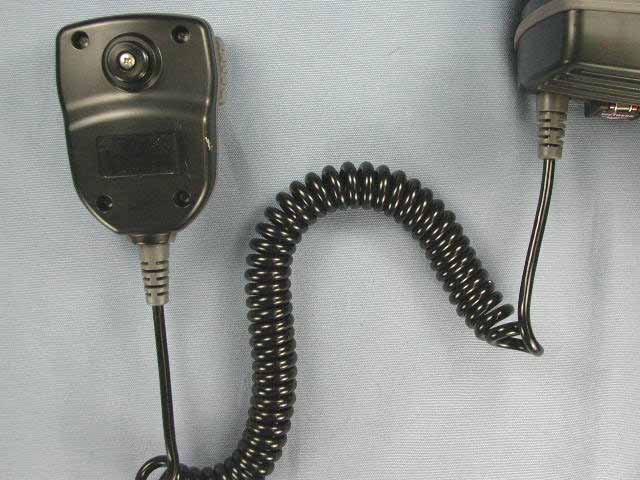

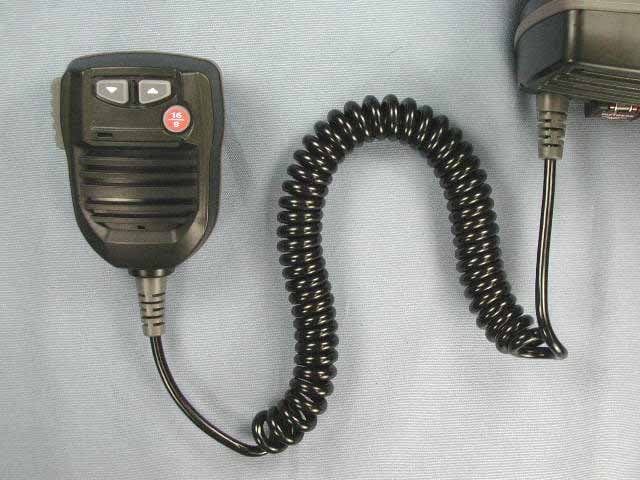

FCC ID: K6630173X3D IC ID: 511B-30173X3D Vertex Standard Co., Ltd. Front view Rear view FCC ID: K6630173X3D IC ID: 511B-30173X3D Vertex Standard Co., Ltd. Left side view Right side view FCC ID: K6630173X3D IC ID: 511B-30173X3D Vertex Standard Co., Ltd. Top view Bottom view FCC ID: K6630173X3D IC ID: 511B-30173X3D Vertex Standard Co., Ltd. Front of microphone Back of Microphone FCC ID: K6630173X3D IC ID: 511B-30173X3D Vertex Standard Co., Ltd. DC Cable

GX1500SGX1500S LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location GX1500S VERTEX STANDARD CO., LTD. MADE IN JAPAN IC: 511B-30173X3D FCC ID: K6630173X3D 4909959000000 SER NO. 00000000 This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Device restricted to occupational use to satisfy FCC RF exposure compliance. See owners manual for specific operating requirement. ! ! CAUTION

FCC ID: K6630173X3D IC ID: 511B-30173X3D Vertex Standard Co., Ltd. Top of EUT without case Bottom of EUT without case FCC ID: K6630173X3D IC ID: 511B-30173X3D Vertex Standard Co., Ltd. Side-A of MAIN-UNIT with shield cases Side-A of MAIN-UNIT without shield cases FCC ID: K6630173X3D IC ID: 511B-30173X3D Vertex Standard Co., Ltd. Side-B of MAIN-UNIT with shield case Side-B of MAIN-UNIT without shield case FCC ID: K6630173X3D IC ID: 511B-30173X3D Vertex Standard Co., Ltd. Side-A of CNTL-UNIT with LCD Side-A of CNTL-UNIT without LCD FCC ID: K6630173X3D IC ID: 511B-30173X3D Vertex Standard Co., Ltd. Side-B of CNTL-UNIT Front of LCD FCC ID: K6630173X3D IC ID: 511B-30173X3D Vertex Standard Co., Ltd. Rear of LCD Side-A of VR-UNIT FCC ID: K6630173X3D IC ID: 511B-30173X3D Vertex Standard Co., Ltd. Side-B of VR-UNIT Side-A of RAM-UNIT FCC ID: K6630173X3D IC ID: 511B-30173X3D Vertex Standard Co., Ltd. Side-B of RAM-UNIT Top of chassis FCC ID: K6630173X3D IC ID: 511B-30173X3D Vertex Standard Co., Ltd. Bottom of chassis Inside of panel FCC ID: K6630173X3D IC ID: 511B-30173X3D Vertex Standard Co., Ltd. Inside of microphone (1) Inside of microphone (2)

FCC ID: K6630173X3D IC ID: 511B-30173X3D Circuit Description 1/4 Vertex Standard Co., Ltd. GX1500S Circuit Description Reception and transmission are switched by 16-bit MPU IC Q2003 on the CNTL Unit. The receiver uses double-conversion superheterodyne circuitry, with a 21.4 MHz 1st IF and 450 kHz 2nd IF. The 1st local is produced by a PLL synthesizer, yielding the 30.4 MHz 1st IF. The 2nd local uses a 29.950 MHz crystal oscillator, yielding the 450 kHz 2nd IF. The 2nd mixer and other circuits use a custom IC to convert and amplify the 2nd IF and detect FM to obtain demodulated signals. During transmit, the PLL synthesizer oscillates at the desired frequency directly, for amplification to obtain RF power output. During transmit, voice modulation is applied to this synthesizer. Transceiver functions, such as TX/RX control, PLL synthesizer settings, and channel programming, are controlled using the MPU. Receiver Incoming RF signals from the antenna connector are delivered to the RF Unit, and pass through a low-pass filter (LPF) consisting of coils L1001 & L1002 and capacitors C1002, C1004, & C1007, and antenna switching diode D1004 for delivery to the receiver front end. Signals within the frequency range of the transceiver are then passed through a bandpass filter consisting of coils L1010 & L1013 and capacitors C1059, C1060, C1062, C1094, & C1095, before RF amplification by Q1022. The amplified RF is then passed through a bandpass filter again consisting of coils L1027, L1028, & L1031 and capacitors C1165, C1166, C1167, C1168, C1169, C1191, & C1192, the pure in-band input signal is delivered to 1st mixer Q1031. Buffered output from the MAIN VCO is amplified by Q1032 and low-pass filtered by coils L1038, L1040, & L1055 and capacitors C1216, C1217, C1245, and C1246, to provide a pure 1st local signal between 125.65 and 131.625 MHz for delivery to the 1st mixer Q1031. The 30.4 MHz 1st mixer product then passes through monolithic crystal filters XF1003 and XF1004 (±6.5 kHz BW), and is amplified by Q1037 and delivered to the input of the FM IF subsystem IC Q1039. This IC contains the 2nd mixer, 2nd local oscillator, limiter amplifier, FM detector, noise amplifier, and squelch gates. The 2nd local in the FM IF subsystem IC is produced from crystal X1001 (29.950 MHz), and the 1st IF is converted to 450 kHz by the 2nd mixer and stripped of unwanted components by ceramic filter CF1001. After passing through a limiter amplifier, the signal is demodulated by the FM detector. Demodulated receive audio from the FM IF subsystem IC is amplified by Q1046 and Q1050, then the signal is through the AF selecor switch Q1036. The selected signal is passed through the AF Mute switch Q1047 to the AF power amplifier Q1048, the audio signal is FCC ID: K6630173X3D IC ID: 511B-30173X3D Circuit Description 2/4 Vertex Standard Co., Ltd. delivered to the 16 Ohm internal loudspeaker and external Speaker terminal in the accessory cable. PLL Synthesizer The 1st Local signal maintains stability from the PLL synthesizer by using a 29.950 MHz reference signal from crystal X1001. PLL synthesizer IC Q1035 consists of a prescaler, reference counter, swallow counter, programmable counter, a serial data input port to set these counters based on the external data, a phase comparator, and a charge pump. The PLL synthesizer IC divides the 29.950 MHz reference signal by 2396 using the reference counter (12.5 kHz comparison frequency). The reference oscillator feeds to the PLL synthesizer IC Q1035. for the 2nd local signal. The VCO output is divided by the prescaler, swallow counter and programmable counter. These two signals are compared by the phase comparator, and applied to the charge pump. A voltage proportional to their phase difference is delivered to the low-pass filter circuit, then fed back to the VCO as a voltage with phase error, controlling and stabilizing the oscillating frequency. This synthesizer also operates as a modulator during transmit. The MAIN VCO is consisted of Q1035 and varactor diodes D1015, D1016, D1017, and D1018, which oscillates at 30.4 MHz below from the receiving frequency. The MAIN VCO output passes through buffer amplifier Q1032 to obtain stable output, then applied to the 1st mixer Q1031. The DC supply for the MAIN VCO is regulated by Q1030. The TX & SUB VCO is consisted of Q1025 and varactor diode D1010, D1011, D1012, and D1013, which oscillates at 134.225 MHz for the CH70 receiving and the fundamental transmit frequency during a transmit, with direct frequency-modulation using varactor diode D1009. The TX & SUB VCO output passes through buffer amplifier Q1024 to obtain stable output. The TX & SUB VCO output is passed through another buffer amplifier Q1020 and diode switch D1007 to the sub 1st mixer Q1023 during receive, and to drive amplifiers Q1014 for transmit. The DC supply for the TX & SUB VCO is regulated by Q1021. Transmitter Voice audio from the microphone is delivered via the MIC connector to the MAIN Unit. After passing through microphone amplifier Q1002, a pre-emphasis network, limiter (IDC: instantaneous deviation control), and low-pass filter network Q1052, the audio is adjusted for optimum deviation level and delivered to the next stage. Voice or DSC (Digital Selective Calling) encode signal inputs from the low-pass filter network Q1052 is by the TX & SUB VCO Q1025 and varactor diode D1010, D1011, D1012, & D1013, which oscillates the fundamental transmit frequency with direct frequency- FCC ID: K6630173X3D IC ID: 511B-30173X3D Circuit Description 3/4 Vertex Standard Co., Ltd. modulation using varactor diode D1009. The modulated signal passes through buffer amplifier Q1024 and Q1020, diode switch D1007 to drive amplifiers Q1014 and RF power amplifier module Q1005. The RF energy then passes through antenna switch D1002 and low-pass filter (LPF) consisting of coils L1001 & L1002 and capacitors C1002, C1004, & C1007, and finally to the antenna connector. RF output power from the RF power …

Text truncated - open the document above for the full version.

1 FCC ID: K6630173X3D/IC ID: 511B-30173X3D GX1500SSemi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL MAIN-UNIT D 1001 G2070076 Diode1SS321 D 1002 G2090742 DiodeXB15A308A2GB D 1003 G2090778 Diode1N5402 D 1004 G2090742 DiodeXB15A308A2GB D 1005 G2070118 DiodeHSU277 D 1006 G2070118 DiodeHSU277 D 1007 G2070176 DiodeDAN235U D 1008 G2070584 DiodeHSC277 D 1009 G2070848 Diode1SV325 D 1010 G2070610 Diode1SV286 D 1011 G2070610 Diode1SV286 D 1012 G2070610 Diode1SV286 D 1013 G2070610 Diode1SV286 D 1014 G2070452 DiodeHVU359 D 1015 G2070918 DiodeHVC306B D 1016 G2070918 DiodeHVC306B D 1017 G2070918 DiodeHVC306B D 1018 G2070918 DiodeHVC306B D 1019 G2070910 Zener DiodeUDZS 5.6B D 1020 G2070910 Zener DiodeUDZS 5.6B D 1021 G2070704 DiodeMC2850 D 1022 G2070704 DiodeMC2850 Q 1001 G3070074 TransistorDTA144EE Q 1002 G1094010 ICLM2904PWR Q 1003 G3070022 TransistorDTB123EK Q 1004 G3070247 TransistorRT1N441U Q 1005 G1094216 PWR-MODULE S-AV37 Q 1006 G3070247 TransistorRT1N441U Q 1007 G3070247 TransistorRT1N441U Q 1008 G3070022 TransistorDTB123EK Q 1009 G3070247 TransistorRT1N441U Q 1010 G3070247 TransistorRT1N441U Q 1011 G3213017Q Transistor2SB1301 ZQ Q 1012 G3070247 TransistorRT1N441U Q 1013 G4802948 FET3SK294 Q 1014 G3350068 Transistor2SC5006 Q 1015 G3070247 TransistorRT1N441U Q 1016 G3070247 TransistorRT1N441U Q 1017 G1093660 ICNJM78M05DL1A Q 1018 G3213017Q Transistor2SB1301 ZQ Q 1019 G1093802 ICNJM7808DL1A Q 1020 G3350068 Transistor2SC5006 Q 1021 G3341548E Transistor2SC4154 Q 1022 G4802948 FET3SK294 Q 1023 G4801317B FET3SK131 V12 Q 1024 G3350068 Transistor2SC5006 Q 1025 G3805087B FET2SK508 K52 Q 1026 G1093864 ICCD4053BPWR Q 1027 G3070247 TransistorRT1N441U Q 1028 G3344008C Transistor2SC4400-3 Q 1029 G3070247 TransistorRT1N441U Q 1030 G3341548E Transistor2SC4154 Q 1031 G4801317B FET3SK131 V12 Vertex Standard Co.,Ltd. 2 FCC ID: K6630173X3D/IC ID: 511B-30173X3D GX1500SSemi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL Q 1032 G3350068 Transistor2SC5006 Q 1033 G1094103 ICTB31202FNG Q 1034 G3070074 TransistorDTA144EE Q 1035 G3805207A FET2SK520 K41 Q 1036 G1093865 ICCD4066BPWR Q 1037 G3344008C Transistor2SC4400-3 Q 1038 G3341548E Transistor2SC4154 Q 1039 G1091605 ICTA31136FN Q 1040 G3341548E Transistor2SC4154 Q 1041 Not Used Q 1042 G3341548E Transistor2SC4154 Q 1043 G1091605 ICTA31136FN Q 1044 G3341548E Transistor2SC4154 Q 1045 G1092943 ICNJM2211M Q 1046 G3341548E Transistor2SC4154 Q 1047 G3070247 TransistorRT1N441U Q 1048 G1092241 ICLA4425A Q 1049 G3341548E Transistor2SC4154 Q 1050 G3341548E Transistor2SC4154 Q 1051 G1094009 ICLM2902PWR Q 1052 G1094009 ICLM2902PWR CNTL-UNIT D 2001 G2070916 LEDFY1111C-722 D 2002 G2070916 LEDFY1111C-722 D 2003 G2070916 LEDFY1111C-722 D 2004 G2070916 LEDFY1111C-722 D 2005 G2070916 LEDFY1111C-722 D 2006 G2070916 LEDFY1111C-722 D 2007 G2070916 LEDFY1111C-722 D 2008 G2070916 LEDFY1111C-722 D 2009 G2070470 Diode1SS355 D 2010 G2070530 Zener DiodeHZM27WA D 2011 G2070530 Zener DiodeHZM27WA D 2012 G2070916 LEDFY1111C-722 DS2001 G6090150 LCDTNL1023P-A Q 2001 G1094156 ICUA78L05ACPK Q 2002 G1092589 ICPST597CNR Q 2003 G1094226 ICM30624FGPGP Q 2004 G1093516 ICAT24C128N-10SU-2.7 Q 2005 G3341548E Transistor2SC4154 Q 2006 G3070223 TransistorCPH6102 Q 2007 G3341548E Transistor2SC4154 Q 2008 G1093817 ICHD66712SA00FS Q 2009 G3116028F Transistor2SA1602A Q 2010 G3341548E Transistor2SC4154 Q 2011 G3116028F Transistor2SA1602A Q 2012 G3341548E Transistor2SC4154 Q 2013 G0090037 ﾎﾄｶﾂﾌﾟﾗTLP281 Q 2014 G1094227 ICSN74HC14APW Vertex Standard Co.,Ltd.

FCC ID: K6630173X3D IC ID: 511B-30173X3D Alignment 1/5 Vertex Standard Co,. Ltd. GX1500S Alignment The GX1500S has been carefully aligned at the factory for the specified performance across the marine band. Realignment should therefore not be necessary except in the event of a component failure. All component replacement and service should be performed only by an authorized Standard Horizon representative, or the warranty policy may be voided. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts are replaced, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by authorized Standard Horizon service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized Standard Horizon service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Standard Horizon, a division of VERTEX STANDARD, must reserve the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and the need for realignment determined to be absolutely necessary. The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. FCC ID: K6630173X3D IC ID: 511B-30173X3D Alignment 2/5 Vertex Standard Co,. Ltd. Required Test Equipment ˆ RF Signal Generator with calibrated output level at 200 MHz ˆ Deviation Meter (linear detector) ˆ AF Millivoltmeter ˆ SINAD Meter ˆ Inline Wattmeter with 5% accuracy at 200 MHz ˆ Regulated DC Power Supply: 13.8 VDC, 10A ˆ 50-ohm Non-reactive Dummy Load: 30W at 200 MHz ˆ Frequency Counter: >0.1 ppm accuracy at 200 MHz ˆ AF Signal Generator ˆ DC Voltmeter: high impedance ˆ VHF Sampling Coupler ˆ AF Dummy Load: 4 Ohms, 10 W ˆ Oscilloscope ˆ Spectrum Analyzer ˆ GX3500S Marine Transceiver Alignment Preparation & Precautions A dummy load and inline wattmeter must be connected to the main antenna jack in all procedures that call for transmission. Correct alignment is not possible with an antenna. After completing one step, read the following step to determine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, if connected) before proceeding. Correct alignment requires that the ambient temperature be the same as that of the transceiver and test equipment, and that this temperature be held constant between 20°C and 30°C (68°F and 86°F). When the transceiver is brought into the shop from hot or cold air it should be allowed some time for thermal equalization with the environment before alignment. If possible, alignments should be made with oscillator shields and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning. Note: Signal levels in dB referred to in this procedure are based on 0 dBμ = 0.5 μV (closed circuit). Overview of Test Mode The test mode has been build in the microprocessor in order to adjust and confirm the performance of transceiver. The purpose is to adjust transceiver simply and to confirm the performance of transceiver smoothly. FCC ID: K6630173X3D IC ID: 511B-30173X3D Alignment 3/5 Vertex Standard Co,. Ltd. (A) In CH70, every time you are in transmit mode, (every time you press PTT), the following test tone can be outputted: 1st transmission: 1300 Hz 2nd transmission: 2100 Hz 3rd transmission: No modulation 4th transmission: Synthetic tone of 1300 Hz and 2100 Hz 5th transmission: Return to 1st transmission (B) Scan the channels between WX10 and EXP04 in the SCAN mode. Starting Test Mode Confirm that PWR/VOL switch is off, and short the TEST points(JP1001). Turn on the PWR/VOL switch while press and holding the DIST and DW keys. Adjustment of VCO ˆ Connect the DC voltmeter to the test point (LOCK TP). ˆ Use the 16/9 key to set the channel to CH16, adjust TC1002 so that voltage on the TP1010 is 1.5 V ±0.1 V in the receive and transmit mode. ˆ Use the 16/9 key to set the channel to CH16, adjust TC1001 so that voltage on the TP1007 is below 3.0 V ±0.1 V in the transmit mode. Adjustment of Transmit Power Adjust power at high and low in the transmit mode, and confirm power in the specified bandwidth. ˆ Connect the wattmeter and 50-ohm dummy load to the antenna jack. ˆ Use the H/L key to set transceiver to high power and set the channel to CH16. With the PTT switch pressed, adjust VR1001 so that RF power is 25 W. ˆ Use the H/L key to set transceiver to low power and set the channel to CH16. With the PTT switch pressed, adju…

Text truncated - open the document above for the full version.

Page 1 of 35 REPORT ON Radio testing of the STANDARD HORIZON GX1500S In accordance with ANSI/TIA/EIA-603, RSS-182 December 200 5Report number TA000245 Vertex Standard Co., Ltd. GENERAL INFORMATION TRANSMITTERS x Switchable Variable N/ A RＥＣＥＩＶERS This re port was prepared by Vertex Standard Co., Ltd. Report number TA000245Page 2 of 35 MANUFACTURER:Vertex Standard Co., Ltd. IC ID:511B-30173X3 D NUMBER OF CHANNELS: FCC ID: TRADE NAME: VHF FM Mobile Transceive r TYPE OF EMISSION: FREQUENCY RANGE: RSS-182 VOLTAGE RQUIREMENTS: SERIAL NUMBER: SPECIFICATION ARE REFERENCE D POWER OUTPUT RATING: 156 1 157.4to to25 [MHz] [W] 16K0G3E, 16K0G2B( for DSC) [MHz] [W] [Ω] [Ω] [Ω] [Ω] [MHz] [kHz] -21.4 -450 [W]AUDIO OUTPUT POWER: OUTPUT IMPEDANCE (SP):[Ω]4 4.5 EUT DESCRIPTION: 13.8 5L000001 [V] GX1500S K6630173X3 D STANDARD HORIZON MODEL NAME: INPUT IMPEDANCE (MIC): MAXIMUM POWER RATING: INPUT IMPEDANCE (RF): INTERMEDIATE FREQUENCIES: FREQUENCY RANGE: OUTPUT IMPEDANCE (RF): OUTPUT IMPEDANCE (RF): Collector Current: Date 01 / November /200 5 Test performed by M.Kurihara 156.050 to163.425 50 1st 2nd 50 2000 69 DC 65 ANSI/TIA/EIA-603 50 4.8[A] Collector Voltage:13.8[V] Vertex Standard Co., Ltd. Report number TA000245Page 3 of 35 GX1500S Channel Settin gs HILOW 1CH16156.800156.80025k25W1W 2CH70156.525156.52525k25W1W 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Power Transmit Frequency [MHz] CH No. Receive Frequency [MHz] CH Spacing Shown on LCD Vertex Standard Co., Ltd. NAME OF TEST:R.F. Power Output (Conducted) SPECIFICATION:47 CFR 2.1046 (a) GUIDE:ANSI/TIA/EIA-603, Paragraph 2.2.1 TEST EQUIPMENT: As per attached page The EUT was connected to a resistive coaxial attenuator of normal load impedance, and the modulated output powerwas measured by means of an R.F. power meter. Measurement accuracy is ± 4% Report number TA000245Page 4 of 35 MEASUREMENT PROCEDURE 0.778 0.7837024.210 1. 2. MEASUREMENT RESULTS 156.800 CHANNEL R.F. POWER, WATTS 16 HIGHLOW NOMINAL, MHz 24.200 156.525 Vertex Standard Co., Ltd. Report number TA000245Page 5 of 35 (1) COAXUAL ATTENUATORWEINSCHELL 49-10-43KL458 (2) RF COUPLERADVANTEST TR415339730008 (3) POWER SENSORAgilent 8482B2349A02533 (4) POWER METERAgilent 8901B POWER MODE3026A02806 (5) FREQUENCY COUNTERAgilent 8901B FREQUENCY MODE3026A02806 (2) Serial Numbe rInstruments Test Sample TRANSMITTER POWER CONDUCTED MEASUREMENTS Power Supply TEST 1: R.F. POWER OUTPUT TEST 2: FREQUENCY STABILIT Y (4)(3)(1) Description (5) Vertex Standard Co., Ltd. NAME OF TEST:Unwanted Emissions (Conducted) SPECIFICATION:47 CFR 2.1051 GUIDE: ANSI/TIA/EIA-603, Paragraph 2.2.13 TEST EQUIPMENT:As per attached page The emissions were measured for the worst case as follows: (a): within a band of frequencies defined by the carrier frequency plus and minus one channel. (b): from the lowest frequency generated in the EUT and to at least the 10th harmonic of the carrier frequency, or 40GHz, whichever is lower. The magnitude of spurious emissions that are attenuated more than 20dB below the permissible value need not be specified. MEASUREMENT RESULTS: FREQUENCY OF CARRIER, MHz=,, SPECTRUM SEARCHED, GHz=0 to 10 x Fc MAXIMUM RESPONSE, Hz= ALL OTHER EMISSIONS=>= 20dB BELOW LIMIT Report number TA000245Page 6 of 35 156.8156.525 2800 0 MEASUREMENT PROCEDURE 3. 1. 2. Vertex Standard Co., Ltd. Report number TA000245Page 7 of 35 Test Sample (2) COAXUAL ATTENUATORAgilent 8498A1801A02723 (1) AUDIO GENERATORAgilent 8903B2742A03633 (1) DescriptionSerial Numbe r (3) SPECTRUM ANALYZER (2) COAXUAL ATTENUATOR Instruments KL458 Power Supply ADVANTEST TR417385580005 WEINSCHELL 49-10-43 (2)(3) TRANSMITTER SPURIOUS EMISSION TEST 1: OCCUPIED BANDWIDTH (IN-BAND SPURIOUS) TEST 2: OUT-OF-BAND SPURIOUS Vertex Standard Co., Ltd. NAME OF TEST:Unwanted Emissions (Conducted) LIMIT'S), dBc:-(43+10xLOG(P))=(Watts) -(43+10xLOG(P))=(Watts) High Power Report number TA000245Page 8 of 35 -28.0-72.015.0 -29.0-73.016.0 -27.0-71.014.0 -28.0-72.015.0 MARGIN, dBmdBcdB 156.8000 156.5250 156.8000 TUNED, MHz 156.5250 1 FREQUENC Y EMISSION, MHz 313.0500 313.6000 469.5750 470.4000 FREQUENC Y -5725 -43 LEVEL,LEVEL, Vertex Standard Co., Ltd. NAME OF TEST:Unwanted Emissions (Conducted) LIMIT'S), dBc:-(43+10xLOG(P))=(Watts) -(43+10xLOG(P))=(Watts) Low Power Report number TA000245Page 9 of 35 dBc LEVEL,MARGIN, 1 -78.028.0 dB -77.028.0 25 313.6000-48.0156.8000 156.5250 FREQUENC YFREQUENCYLEVEL, TUNED, MHzEMISSION, MH zdBm 313.0500-47.0 -57 -43 Vertex Standard Co., Ltd. NAME OF TEST:Field Strength of Spurious Radiation SPECIFICATION:47 CFR 2.1053 (a) GUIDE:ANSI/TIA/EIA-603, Paragraph 1.2.12 Definition: Radiated spurious emissions are emissions from the equipment when transmitting load on a frequency or frequencies which are outside an occupied band sufficient to ensure transmission of information of required quality for the class of communications desired. Method of measurement Connect the equipment as illustrated. Adjust the spectrum analyzer for the following settings: 1)Resolution Bandwidth <= 3kHz 2)Video Bandwidth >= 10kHz 3)Sweep Speed <= 2000Hz/second 4)Detector Mode = Positive Peak Place the transmitter to be tested on the turntable in the standard test site. The transmitter is transmitting into a non-radiating load which is placed on the turntable. The RF cable to this load sho…
