K6630483X3DMARINE TRANSCEIVER

Page 1GX1600 EXPLORER GX1600 25 Watt VHF/FM Marine Transceivers Owner's Manual Ultra Compact Class D DSC (Digital Selective Calling) Transceive with Individual, All Ship, Position Report, Position Request, and Distress. Automatically poll up to 4 ships Independent Channel 70 receiver built-in for continuous DSC watch Enter, Save, and Navigation to waypoint with Compass page  Navigation to a DSC Distress Call  Submersible JIS-8 / IPX8 (4.9 feet for 30 minutes) ClearVoice noise canceling speaker microphone with channel selection and 16/9 key Capable of connecting an optional RAM3 second station remote micro- phone Intercom between radio and RAM3 DSC position request and report function when connected to compatible GPS chart plotter One button access to Channel 16 and 9 User programmable soft keys Navigation (LAT/LON, SOG, and COG) information shown on display  E2O (Easy-To-Operate) menu system When connected to an optional GPS GX1600Page 2 Quick Reference Guide ................................................................................................................................................. 4 1GENERAL INFORMATION..................................................................................................................................... 8 2PACKING LIST ....................................................................................................................................................... 9 3OPTIONS ................................................................................................................................................................. 9 4SAFETY/WARNING INFORMATION.................................................................................................................... 10 5FCC RADIO LICENSE INFORMATION ............................................................................................................. 11 6FCC NOTICE ........................................................................................................................................................ 12 7GETTING STARTED............................................................................................................................................ 13 7.1PROHIBITED COMMUNICATION .......................................................................................................... 13 7.2ABOUT VHF RADIO .............................................................................................................................. 13 7.3SELECTING AN ANTENNA ................................................................................................................... 13 7.4COAXIAL CABLE .................................................................................................................................... 14 7.5EMERGENCY (CHANNEL 16 USE) ........................................................................................................ 15 7.6CALLING ANOTHER VESSEL (CHANNEL 16 OR 9) ........................................................................... 16 7.7MAKING TELEPHONE CALLS .............................................................................................................. 17 7.8OPERATING ON CHANNELS 13 AND 67 .........................................................................................17 8INSTALLATION ..................................................................................................................................................... 18 8.1LOCATION ............................................................................................................................................... 18 8.2MOUNTING THE RADIO ....................................................................................................................... 18 8.3ELECTRICAL CONNECTIONS .............................................................................................................. 20 8.4ACCESSORY CABLE ............................................................................................................................. 21 8.5CHECKING GPS CONNECTIONS ........................................................................................................ 23 8.6CHANGING THE GPS TIME ................................................................................................................ 23 8.7CHANGING THE TIME LOCATION ...................................................................................................... 24 8.8CHANGING THE TIME FORMAT ......................................................................................................... 24 8.9CHANGING COG TO TRUE OR MAGNETIC .................................................................................... 25 8.10OPTIONAL CMP30 (RAM3) INSTALLATION.......................................................................................... 26 9CONTROLS AND INDICATORS ......................................................................................................................... 28 9.1CONTROLS AND CONNECTIONS ....................................................................................................... 28 10 BASIC OPERATION............................................................................................................................................. 33 10.1RECEPTION ............................................................................................................................................ 33 10.2TRANSMISSION..................................................................................................................................... 33 10.3TRANSMIT TIME-OUT TIMER (TOT) ................................................................................................... 33 10.4SIMPLEX/DUPLEX CHANNEL USE ..................................................................................................... 34 10.5DISPLAY TYPE ...................…

Text truncated - open the document above for the full version.

Page 59GX1600 12.8.2 Setting up a Position Request Ringer The GX1600 has the capability to turn off the Position Request ringer. 1. Press and hold down the key until “ SetupSetup SetupSetup Setup MenuMenu MenuMenu Menu” appears. 2. Press the / key to select “ DSCDSC DSCDSC DSC SETUPSETUP SETUPSETUP SETUP” menu. 3. Press the [ SELECT ] soft key, then select “ DSCDSC DSCDSC DSC BEEPBEEP BEEPBEEP BEEP” with the / key. 4. Press the [ SELECT ] soft key, then select “ POSPOS POSPOS POS RequestRequest RequestRequest Request” with the / key. 5. Press the [ ENT ] soft key, then select “ OffOff OffOff Off” with the / key. 6. Press the [ ENT ] soft key to store the selected set- ting. 7. Press the [ QUIT ] soft key several times to return to radio operation. To re-enable the ringer tone, repeat the above procedure, pressing the / key to select “ OnOn OnOn On” in step “5” above. 12.8.3 Transmitting a Position Request to Another Vessel Pre-Programmed Request 1. Press the key. The “ DSC MenuDSC Menu DSC MenuDSC Menu DSC Menu” will ap- pear. 2. Press the / key to select “ POS RE-POS RE- POS RE-POS RE- POS RE- QUESTQUEST QUESTQUEST QUEST”. 3. Press the / key to select a name that was stored in the Individual DSC direc- tory, then press the [ SELECT ] soft key. 4. Press the [ YES ] soft key to transmit the Posi- tion Request DSC call. 5. When the GX1600 receives the position from the polled vessel it is shown on the radio display and also transferred to a GPS Chart plotter with NMEA DSC and DSE sentences. 6. Press the [ QUIT ] soft key to return to radio operation. NOTE If the GX1600 does not receive a position data from the polled vessel, the display will show “NO POSITION DATA.” GX1600Page 60 Manual Request This feature allows you to request the position of vessel by manually entering the MMSI of the ship you want to send your position to. 1. Press the [ CALL ( MENU )] key. The “ DSC MenuDSC Menu DSC MenuDSC Menu DSC Menu” will appear. 2. Press the / key to select “ POS REQUESTPOS REQUEST POS REQUESTPOS REQUEST POS REQUEST”. 3. Press the [ SELECT ] soft key to show the “Last Individual Call”. 4. Press the / key to select the “ MANUALMANUAL MANUALMANUAL MANUAL,” then press the [ SELECT ] soft key. 5. Press the / key to select the first number of the MMSI (nine digits) which you want to contact, then press the [ SELECT ] soft key to step to the next number. 6. Repeat step 5 to set the MMSI number. 7. If a mistake was made entering in the MMSI number, repeat pressing the [ BACK ] soft key until the wrong number is selected, then press the / key to correct the entry. 8. When finished entering the MMSI number, press and hold the [ SELECT ] soft key. 9. Press the [ YES ] soft key to transmit the position re- quest DSC call. 10. When the GX1600 receives the position from the polled vessel it is shown on the radio display and also transferred to the GPS Chart plotter with NMEA DSC and DSE sentences. 11. Press the [ QUIT ] soft key to return to radio operation. 12.8.4 Receiving a Position Request When a position request call is received from another vessel, a ringing alarm sounds and POS REQUEST will be shown in the display. Operation and trans- ceiver function differs depending on “ Position ReplyPosition Reply Position ReplyPosition Reply Position Reply” in the “ DSC SetupDSC Setup DSC SetupDSC Setup DSC Setup” menu setting discussed below: Automatically reply: 1. When a position request call is received, a calling alarm sounds 4 times. Then requested position coordinates are transmit- ted automatically to the vessel requesting your ves- sels position. 2. To exit from position request display, press the [ QUIT ] soft key. Page 61GX1600 Manually reply: 1. When a position request call is received from an- other vessel, the display will be as shown in the il- lustration at the right. 2. A ringing alarm sounds 4 times. To send your ves- sels position to the requesting vessel, press the [ RE- PLY ] soft key. Or to exit from position request dis- play, press the [ QUIT ] soft key. GX1600Page 62 12.9 POSITION REPORT The feature is similar to Position Request, however instead of requesting a position of another vessel this function allows you to send your position to another vessel. Your vessel must have an operating GPS receiver connected for the GX1600 to send the position. NOTE To transmit a Position Report Call, a GPS must be connected to the radio and the GX1600 Individual directory must be programmed with stations you wish to send your position to. To setup this directory refer to section “11.5.1 Setting up the Individual / Position Call Directory.” 12.9.1 Setting up a Position Report Ringer The GX2000/GX2100 has the capability to turn off the Position Report ringer. 1. Press and hold down the key until “ SetupSetup SetupSetup Setup MenuMenu MenuMenu Menu” appears. 2. Press the / key to select “ DSCDSC DSCDSC DSC SETUPSETUP SETUPSETUP SETUP” menu. 3. Press the [ SELECT ] soft key, then select “ DSCDSC DSCDSC DSC BEEPBEEP BEEPBEEP BEEP” with the / key. 4. Press the [ SELECT ] soft key, then select “ POSPOS POSPOS POS ReportReport ReportReport Report” with the / key. 5. Press the [ ENT ] soft key, then select “ OffOff OffOff Off” with the / key. 6. Press the [ ENT ] soft key to store the selected set- ting. 7. Press the [ QUIT ] soft key several times to return to radio operation. To re-enable the ringer tone, repeat the above procedure, pressing the / key to select “ OnOn OnOn On” in step “5” above. 12.9.2 Transmitting a DSC Position Report Call Pre-Programmed Calling 1. Press the key. The “ DSC MenuDSC Menu DSC MenuDSC Menu DSC Menu” will appear. 2. Press the / key to select “ POS RE-POS RE- POS RE-POS RE- POS RE- PORTPORT PORTPORT PORT”. (To cancel, press the [ QUIT ] soft key.) 3. Press the [ SELECT ] soft key. 4. Press the / key to select the name in the directory, then press the [ SELECT ] soft key. 5. Press the [ YES ] soft key to send your position to the selected vessel. Page 63GX1600 6. Press the [ QUIT…

Text truncated - open the document above for the full version.

October 27, 2010 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P. O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: GX1600 (FCC ID: K6630483X3D) Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requires confidential treatment of some of the information accompanying this Application, as listed below: ・ Block Diagram ・ Schematics These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for this Application. Sincerely, Yukimasa Tomita Executive Managing Officer Engineering Division Vertex Standard Co., Ltd.

October 27, 2010 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: GX1600 (FCC ID: K6630483X3D) Gentlemen: Part 15.19 Compliance Statement is placed on the bottom of case. Sincerely, Yukimasa Tomita Executive Managing Officer Engineering Division Vertex Standard Co., Ltd.

October 27, 2010 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: GX1600 (FCC ID: K6630483X3D) Gentlemen: A. Part 15.21 Compliance Statement Drawing: B. Part 15.21 Compliance Statement Drawing Location: In Operation Manual (location on Page 9) Sincerely, Yukimasa Tomita Executive Managing Officer Engineering Division Vertex Standard Co., Ltd Unauthorized changes or modifications to this equipment may void com- pliance with FCC Rules. Any change or modification must be approved in writing by Marine Division of Vertex Standard. 15mm 110mm

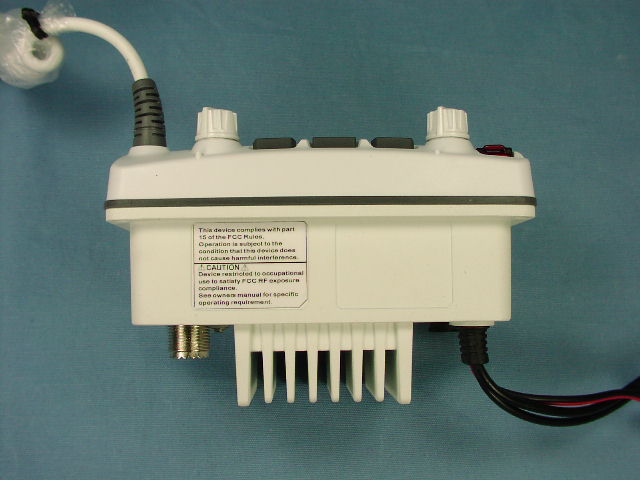

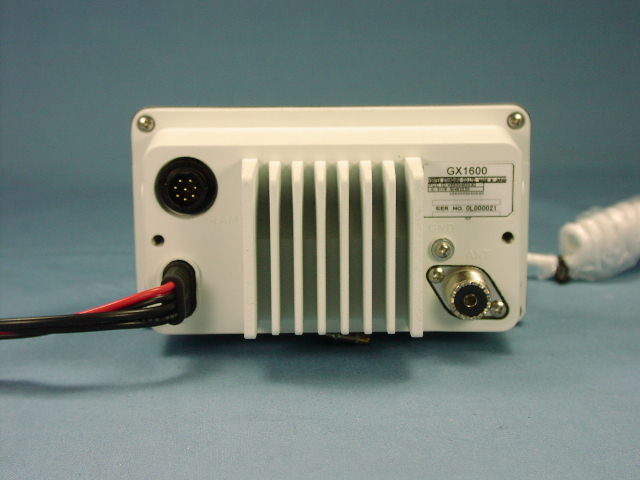

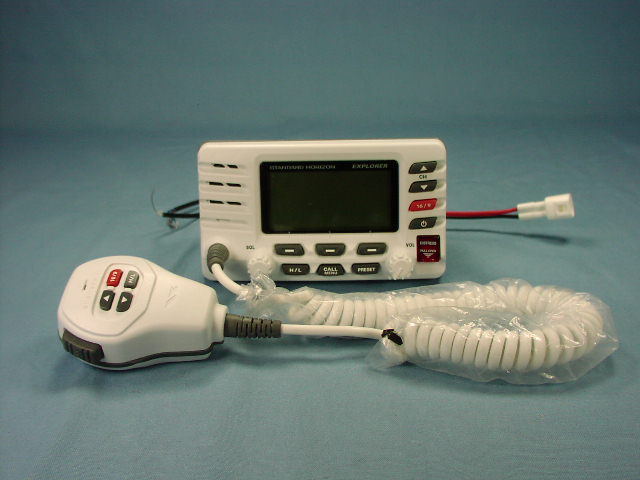

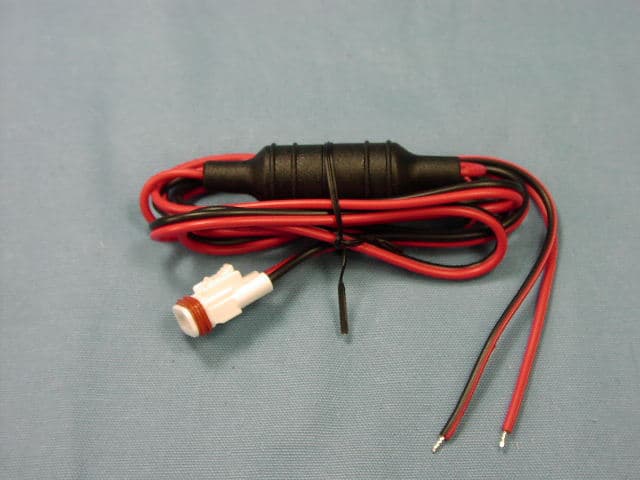

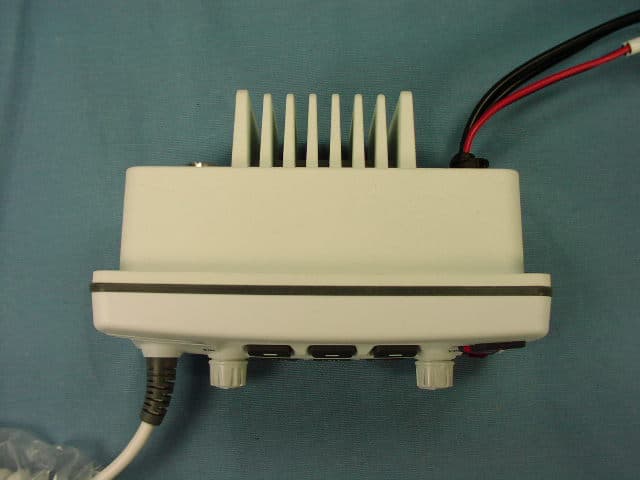

FCC ID: K6630483X3D IC: 511B-30483X3S Vertex Standard Co., Ltd. Front view and Microphone Rear view FCC ID: K6630483X3D IC: 511B-30483X3S Vertex Standard Co., Ltd. Right side view Left side view FCC ID: K6630483X3D IC: 511B-30483X3S Vertex Standard Co., Ltd. Top view Bottom view FCC ID: K6630483X3D IC: 511B-30483X3S Vertex Standard Co., Ltd. DC Cable

FCC ID: K6630483X3D IC: 511B-30483X3S Vertex Standard Co., Ltd. Chassis and Main-Unit (Removed Front-Panel) Side-A of MAIN-UNIT with shield cases FCC ID: K6630483X3D IC: 511B-30483X3S Vertex Standard Co., Ltd. Side-A of MAIN-UNIT without shield cases Side-B of Main-Unit FCC ID: K6630483X3D IC: 511B-30483X3S Vertex Standard Co., Ltd. Side-B of CNTL-UNIT Side-A of CNTL-UNIT with LCD FCC ID: K6630483X3D IC: 511B-30483X3S Vertex Standard Co., Ltd. Side-A of CNTL-UNIT without LCD Front of LCD FCC ID: K6630483X3D IC: 511B-30483X3S Vertex Standard Co., Ltd. Back of LCD Inside of Chassis FCC ID: K6630483X3D IC: 511B-30483X3S Vertex Standard Co., Ltd. Back of Front Panel Inside of Front panel without CONT-UNIT FCC ID: K6630483X3D IC: 511B-30483X3S Vertex Standard Co., Ltd. Inside of microphone (1) Inside of microphone (2)

FCC ID:K6630483X3D IC: 511B-30483X3S Circuit Description 1 GX1600 Circuit Description Reception and transmission are switched the MPU IC Q2002 (R5F3650MNFB) on the CNTL Unit. The receiver uses double-conversion superheterodyne circuitry, with a 21.7 MHz 1st IF and 450 kHz 2nd IF. The 1st local is produced by a PLL synthesizer, yielding the 21.7 MHz 1st IF. The 2nd local uses a 21.250 MHz crystal oscillator, yielding the 450 kHz 2nd IF. The 2nd mixer and other circuits use a custom IC to convert and amplify the 2nd IF and detect FM to obtain demodulated signals. During transmit, the PLL synthesizer oscillates at the desired frequency directly, for amplification to obtain RF power output. During transmit, voice modulation is applied to this synthesizer. Transceiver functions, such as TX/RX control, PLL synthesizer settings, and channel programming, are controlled using the MPU. RECEIVER Incoming RF signals from the antenna connector are delivered to the RF Unit, and pass through a low-pass filter (LPF) consisting of coils L1001 & L1002 and capacitors C1001,C1004,C1016&C1017, and antenna switching diode D1004・D1005 for delivery to the receiver front end. Signals within the frequency range of the transceiver are then passed through a SAW filter XF1001(HDF160F), before RF amplification by Q1016 (3SK294). The amplified RF is then passed through a SAW filter XF1002(HDF160F), the pure in-band input signal is delivered to 1st mixer Q1027(3SK293). Buffered output from the VCO is amplified by Q1021 (2SC5006) and low-pass filtered by coils L1027 & L1029 and capacitors C1150, C1151, C1155, C1158 & C1164 to provide a pure 1st local signal between 134.35MHz and 141.575 MHz for delivery to the 1st FET mixer Q1027(3SK293). The 21.7 MHz 1st mixer product then passes through monolithic crystal filters XF1004 & XF1005 , and is amplified by Q1031 (2SC4400) and delivered to the input of the FM IF subsystem IC Q1035 (NJM2591V). This IC contains the 2nd mixer, 2nd local oscillator, limiter amplifier, FM detector, noise amplifier, and squelch gates. The 2nd local in the FM IF subsystem IC is produced from TCXO X1002 (21.250 MHz), and the 1st IF is converted to 450 kHz by the 2nd mixer and stripped of unwanted components by ceramic filter CF1001. After passing through a limiter amplifier, the signal is demodulated by the FM detector. Demodulated receive audio from the FM IF subsystem IC is amplified by Q1004(LM2902PW). The audio signal is passed through the amplifier Q1002(LM2902PW) & the Electric Volume FCC ID:K6630483X3D IC: 511B-30483X3S Circuit Description 2 Q1028(AK2330), to the AF power amplifier Q1044 (LA4425A), the audio signal is delivered to the 8 Ohm internal loudspeaker and external Speaker terminal in the accessory cable. PLL SYNTHESIZER The 1st Local signal maintains stability from the PLL synthesizer by using a 21.250 MHz reference signal from TCXO X1002. PLL synthesizer IC Q1037 (MB15A02) consists of a prescaler, reference counter, swallow counter, programmable counter, a serial data input port to set these counters based on the external data, a phase comparator, and a charge pump. The PLL synthesizer IC divides the 21.250 MHz reference signal by 1700 using the reference counter (12.5 kHz comparison frequency). The VCO output is divided by the prescaler, swallow counter and programmable counter. These two signals are compared by the phase comparator, and applied to the charge pump. A voltage proportional to their phase difference is delivered to the low-pass filter circuit, then fed back to the VCO as a voltage with phase error, controlling and stabilizing the oscillating frequency. This synthesizer also operates as a modulator during transmit. The VCO is consisted of Q1024 (2SK210GR) and varactor diodes D1012, D1014 (all HVC359), which oscillates at 21.7 MHz below from the receiving frequency. The VCO output passes through buffer amplifier Q1021,Q1023(2SC5006) to obtain stable output, then applied to the 1st mixer Q1027(3SK293). The DC supply for the VCO is regulated by Q1018 (2SC4617). TRANSMITTER Voice audio from the microphone is delivered via the MIC connector to the MAIN Unit. After passing through microphone amplifier Q1003 (NJM12902V), a pre-emphasis network, limiter (IDC: instantaneous deviation control) and low-pass filter network Q1003 (NJM12902V), the Electric Volume Q1028(AK2330), the audio is adjusted for optimum deviation level and delivered to the next stage. Voice or DSC (Digital Selective Calling) encode signal inputs from the low-pass filter network Q1003 (NJM12902V) is by the VCO Q1024 (2SK210GR) and varactor diode D1012, D1014 (all HVC359), which oscillates the fundamental transmit frequency with direct frequency-modulation using varactor diode D1013(1SV214). The modulated signal passes through buffer amplifier Q1023 and Q1021 (both 2SC5006), diode switch D1008 (DAN235U) to drive amplifiers Q1014 (2SC5006) and RF power amplifier module Q1011 (RA33H1516M1). The RF energy is passes through antenna switch D1004 (AKP350KV) and low-pass filter (LPF) consisting of coils L1001 & L1002 and capacitors C1001, C1004, C1016 & C1017 FCC ID:K6630483X3D IC: 511B-30483X3S Circuit Description 3 and finally to the antenna connector. RF output power from the RF power amplifier module Q1011 (RA33H1516M1) is sampled by C1009 and C1015 and is rectified by D1003 (RB715F). The resulting DC is fed through Automatic Power Controllers Q1001(LM2904PW) to RF power amplifier module Q1011 (RA33H1516M1), thus providing positive control of the power output. Generation of spurious products by the transmitter is minimized by the fundamental carrier frequency being equal to the final transmitting frequency, modulated directly in the transmit VCO. Additional harmonic suppression is provided by a low-pass filter consisting of coils and capacitors, resulting in more than 80 dB of harmonic suppression prior to delivery of the RF energy to the antenna. DSC Encoder/ Decoder Encoder The DSC (Digital Selective Calling) …

Text truncated - open the document above for the full version.

FCC ID: K6630483X3D IC: 511B-30483X3S Alignment 1/5 Vertex Standard Co., Ltd. GX1600 Alignment The GX1600 has been carefully aligned at the factory for the specified performance across the marine band. Realignment should therefore not be necessary except in the event of a component failure. All component replacement and service should be performed only by an authorized Standard Horizon representative, or the warranty policy may be voided. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts are replaced, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by authorized Standard Horizon service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized Standard Horizon service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Standard Horizon, a division of VERTEX STANDARD, must reserve the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and the need for realignment determined to be absolutely necessary. The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. FCC ID: K6630483X3D IC: 511B-30483X3S Alignment 2/5 Vertex Standard Co., Ltd. Required Test Equipment ˆ RF Signal Generator with calibrated output level at 200 MHz ˆ Deviation Meter (linear detector) ˆ AF Millivoltmeter ˆ SINAD Meter ˆ Inline Wattmeter with 5% accuracy at 200 MHz ˆ Regulated DC Power Supply: 10 to 16 VDC, 10A ˆ 50-ohm Non-reactive Dummy Load: 50W at 200 MHz ˆ Frequency Counter: >0.1 ppm accuracy at 200 MHz ˆ AF Signal Generator ˆ DC Voltmeter: high impedance ˆ VHF Sampling Coupler ˆ AF Dummy Load: 4 Ohms, 5 W ˆ Oscilloscope ˆ Spectrum Analyzer Alignment Preparation & Precautions A dummy load and inline wattmeter must be connected to the main antenna jack in all procedures that call for transmission. Correct alignment is not possible with an antenna. After completing one step, read the following step to determine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, if connected) before proceeding. Correct alignment requires that the ambient temperature be the same as that of the transceiver and test equipment, and that this temperature be held constant between 20°C and 30°C (68°F and 86°F). When the transceiver is brought into the shop from hot or cold air it should be allowed some time for thermal equalization with the environment before alignment. If possible, alignments should be made with oscillator shields and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning. Note: Signal levels in dB referred to in this procedure are based on 0 dBμ = 0.5 μV (closed circuit). FCC ID: K6630483X3D IC: 511B-30483X3S Alignment 3/5 Vertex Standard Co., Ltd. Overview of the Test Mode The test mode has been built in the microprocessor in order to confirm the performance of transceiver. The purpose is to adjust transceiver simply and to confirm the performance of transceiver smoothly. (A) Expansion channels “EXP01 - EXP07” will be set as follows: DISPLAY RX Frequency TX Frequency EXP01 156.050 MHz 156.050 MHz EXP02 157.425 MHz 157.425 MHz EXP03 163.275 MHz 158.675 MHz EXP04 155.050 MHz 155.050 MHz EXP05 162.025 MHz 162.025 MHz EXP06 163.575 MHz 158.975 MHz EXP07 159.050 MHz 159.050 MHz (B) In CH70, every time you are in transmit mode, (every time you press PTT), the following test tone can be outputted: 1st transmission: Synthetic tone of 1300 Hz and 2100 Hz 2nd transmission: 1300 Hz 3rd transmission: 2100 Hz 4th transmission: No modulation 5th transmission: Return to 1st transmission (C) Scan the channels between EXP03 and EXP04 in the SCAN mode. (D) In the test mode, a transmit time-out timer function (TOT) becomes off. (E) A user’s MMSI is set to “123456789” for DSC tests temporarily. Starting the Test Mode Press the [PWR] switch while pressing and holding the [DISTRESS] and [Soft 1] keys to turn the radio on. Note: [Soft 1] is left side key under the LCD display. Confirmation of Main VCO and Sub VCO (CH70) ˆ Connect the DC voltmeter to the test point (LOCK TP). ˆ Set the channel to EXP04. Confirm that the voltage of the main VCO on the TP1006 is more than 1 V during receiving. ˆ Set the channel to EXP06. Confirm that the voltage of the main VCO on the TP1006 is less than 4V during receiving. ˆ Confirm that the voltage of the sub VCO …

Text truncated - open the document above for the full version.

1 FCC ID: K6630483X3D / IC ID: 511B-30483X3S GX1600Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL MAIN-UNIT D 1001 Q9000586 Surge Protecter DSP-141N-S00B D 1002 G2071366 DiodeS3DB-T D 1003 G2070752 DiodeRB715F T106 D 1004 G2071356 DiodeRKP350KV D 1005 G2070128 DiodeRLS135 TE-11 D 1006 G2070584 DiodeHSC277TRF-E D 1007 G2070584 DiodeHSC277TRF-E D 1008 G2070176 DiodeDAN235U TL D 1009 G2070918 DiodeHVC306B TRU-E D 1010 G2070918 DiodeHVC306B TRU-E D 1011 G2070584 DiodeHSC277TRF-E D 1012 G2070708 DiodeHVC359 TRF-E D 1013 G2070356 Diode1SV214(TPH2.F) D 1014 G2070708 DiodeHVC359 TRF-E D 1015 G2070088 Diode1SS302(TE85R.F) D 1016 G2070178 DiodeDA221 TL D 1017 G2070178 DiodeDA221 TL D 1018 G2071222 Zener DiodeVMZ6.8NT2L D 1019 G2071222 Zener DiodeVMZ6.8NT2L D 1020 G2070910 Zener DiodeUDZS TE-17 5.6B D 1021 G2071236 DiodeDAN217U T106 D 1022 G2071236 DiodeDAN217U T106 Q 1001 G1094010 ICLM2904PWR Q 1002 G1094009 ICLM2902PWR Q 1003 G1093592 ICNJM12902V-TE1 Q 1004 G1094009 ICLM2902PWR Q 1005 G3070075 TransistorDTC144EE TL Q 1006 G3070022 TransistorDTB123EK T146 Q 1007 G3070114 TransistorDTC143EE TL Q 1008 G3070075 TransistorDTC144EE TL Q 1009 G3070022 TransistorDTB123EK T146 Q 1010 G1093802 ICNJM7808DL1A-TE1 Q 1011 G1094558 PWR-MODULE RA33H1516M1 Q 1012 G1093660 ICNJM78M05DL1A-TE1 Q 1013 G3213017Q Transistor2SB1301-T2 ZQ/ZP Q 1014 G3350068 Transistor2SC5006-T1 Q 1015 G3070075 TransistorDTC144EE TL Q 1016 G4802948 FET3SK294(TE85L) Q 1017 G3346178R Transistor2SC4617 TL R Q 1018 G3346178R Transistor2SC4617 TL R Q 1019 G1093864 ICCD4053BPWR Q 1020 G3350068 Transistor2SC5006-T1 Q 1021 G3350068 Transistor2SC5006-T1 Q 1022 G3805207C FET2SK520-T2B K43 Q 1023 G3350068 Transistor2SC5006-T1 Q 1024 G3802107G FET2SK210GR(TE85R.F) Q 1025 G4802938 FET3SK293(TE85L,F) Q 1026 G3070109 TransistorDTC124EE TL Q 1027 G4802938 FET3SK293(TE85L,F) Q 1028 G1094583 ICAK2330-L Q 1029 G3344008C Transistor2SC4400-3-TL Q 1030 G1092541 ICMB15A02PFV1-G-BND-EFE1 Q 1031 G3344008C Transistor2SC4400-3-TL Vertex Standard Co.,Ltd. 2 FCC ID: K6630483X3D / IC ID: 511B-30483X3S GX1600Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL Q 1032 G3117748R Transistor2SA1774 TL R Q 1033 G3346178R Transistor2SC4617 TL R Q 1034 G3070075 TransistorDTC144EE TL Q 1035 G1094024 ICNJM2591V-TE1 Q 1036 G3213017Q Transistor2SB1301-T2 ZQ/ZP Q 1037 G1092541 ICMB15A02PFV1-G-BND-EFE1 Q 1038 G1092943 ICNJM2211M-TE1 Q 1039 G1094024 ICNJM2591V-TE1 Q 1040 G3820357 FET2SK2035 TE85R Q 1041 G3117748R Transistor2SA1774 TL R Q 1042 G3346178R Transistor2SC4617 TL R Q 1043 G3346178R Transistor2SC4617 TL R Q 1044 G1092241 ICLA4425A-E CNTL-UNIT D 2001 G2070684 Diode1SR154-400 TE25 D 2002 G2070078 DiodeIMN10 T108 D 2003 G2071254 LEDSML-A12Y8TT86 D 2004 G2071254 LEDSML-A12Y8TT86 D 2005 G2071254 LEDSML-A12Y8TT86 D 2006 G2071254 LEDSML-A12Y8TT86 D 2007 G2071254 LEDSML-A12Y8TT86 D 20…
