K6630583X3DCLASS D DSC MARINE TRANSCEIVER

Page 1GX1300 ECLIPSE GX1300 25 Watt VHF/FM Class D DSC Marine Transceiver Owner's Manual  Affordable ultra compact class D fixed mount VHF radio  Submersible IPX8 class (4.92 feet for 30 minutes) front panel  Separate dedicated channel 70 receiver for DSC  Programmable soft keys  GPS position and time shown* on a full dot matrix display  DSC distress, individual, group, all ships, position request, position report and DSC test call  Programmable scan, priority scan, and dual watch  NMEA in and output connections to a compatible GPS chart plotter  All USA/International and Canadian marine channels  Meets ITU-R M493-13 class D DSC (Digital Selective Calling) * When GPS connected GX1300Page 2 TABLE OF CONTENTS Quick Reference Guide ..............................................................................................5 1 GENERAL INFORMATION ......................................................................................6 2 PACKING LIST ........................................................................................................7 3 OPTIONS .................................................................................................................7 4 ONLINE WARRANTY REGISTRATION (in USA or Canada only) ........................7 5 GETTING STARTED ................................................................................................8 5.1 ABOUT VHF RADIO ........................................................................................8 5.2 SELECTING AN ANTENNA .............................................................................8 5.2.1 Coaxial Cable ......................................................................................9 5.3 EMERGENCY ( CHANNEL 16 USE ) ..............................................................10 5.4 CALLING ANOTHER VESSEL ( CHANNEL 16 OR 9 ) ...................................10 5.5 OPERATING ON CHANNELS 13 AND 67 (USA Channel Group Only) ........11 6 INSTALLATION ......................................................................................................12 6.1 LOCATION .....................................................................................................12 6.2 MOUNTING THE RADIO ...............................................................................12 6.2.1 Supplied Mounting Bracket ................................................................12 6.2.2 Optional MMB-84 Flush Mount Bracket .............................................13 6.3 ELECTRICAL CONNECTIONS .....................................................................14 6.4 ACCESSORY CABLE ....................................................................................16 6.5 CHECKING G0PS CONNECTIONS ..............................................................17 6.6 CHANGING THE GPS TIME .........................................................................18 6.7 CHANGING THE TIME LOCATION ...............................................................19 6.8 CHANGING THE TIME FORMAT ..................................................................20 7 CONTROLS AND INDICATORS ............................................................................21 7.1 FRONT PANEL ..............................................................................................21 7.2 REAR PANEL ................................................................................................23 7.3 MICROPHONE ..............................................................................................24 8 BASIC OPERATION ..............................................................................................25 8.1 RECEPTION ..................................................................................................25 8.2 TRANSMISSION ............................................................................................25 8.3 TRANSMIT TIME-OUT TIMER ( TOT ) ............................................................25 8.4 SIMPLEX/DUPLEX CHANNEL USE .............................................................26 8.5 INTERNATIONAL, USA, AND CANADA MODE ............................................26 8.6 NOAA WEATHER CHANNELS ......................................................................27 8.6.1 NOAA Weather Alert ..........................................................................27 8.6.2 NOAA Weather Alert Testing ..............................................................27 8.7 SCANNING ....................................................................................................28 8.7.1 Selecting the Scan Type ....................................................................28 8.7.2 Scan Memory Programming ..............................................................29 8.7.3 Memory Scanning ( M-SCAN ) ............................................................29 8.7.4 Priority Channel Setting .....................................................................30 8.7.5 Priority Scanning ( P-SCAN ) ...............................................................30 8.8 MULTI WATCH (TO PRIORITY CHANNEL) ..................................................31 8.8.1 Setting up the Multi Watch Operation ................................................31 8.8.2 Starting the Dual Watch .....................................................................32 8.9 PRESET CHANNELS: INSTANT ACCESS ...................................................33 8.9.1 Preset Channel Programming ...........................................................33 8.9.2 Operation ...........................................................................................33 8.9.3 Deleting a Preset Channel .................................................................34 8.10 OPERATION MENU ....................................................................................35 9 DIGITAL SELECTIVE CALLING ...........................................................................36 9.1 GENERAL ...........…

Text truncated - open the document above for the full version.

4 November 2014 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P. O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: GX1300 (FCC ID: K6630583X3D) Pursuant to Sections 0.457 (d) (1) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requires confidential treatment of some of the information accompanying this Application, as listed below: Confidential - Block Diagram - Schematics - Operational Description (Circuit Description) - Parts List - Alignment Short-Term Confidential - External Photos - Internal Photos - User’s Manual These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (1) (ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for this Application. Sincerely, YAESU MUSEN CO., LTD. Kouji Taguchi Engineering Division / Quality Assurance

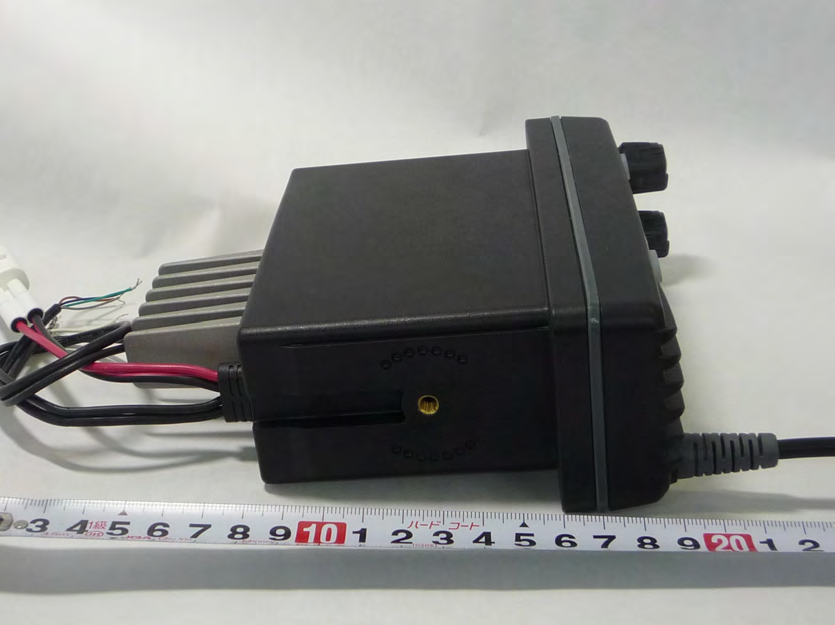

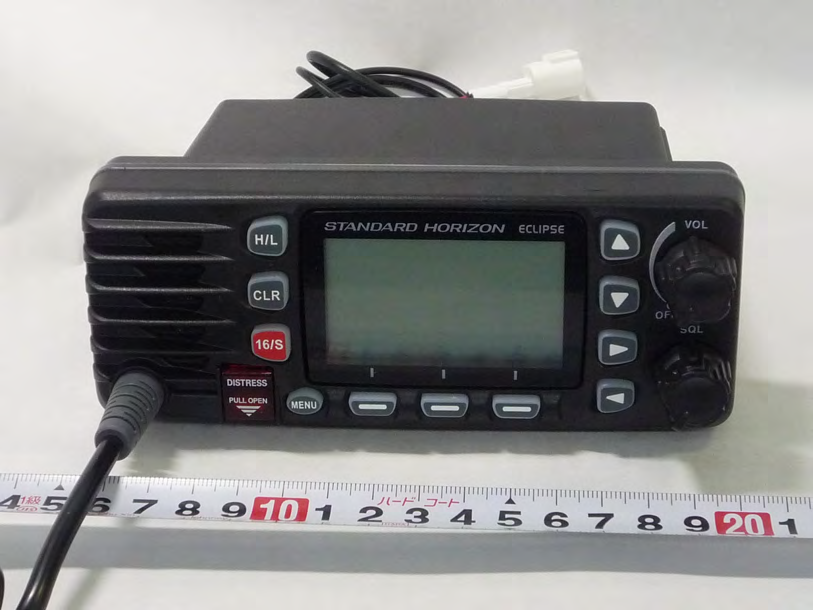

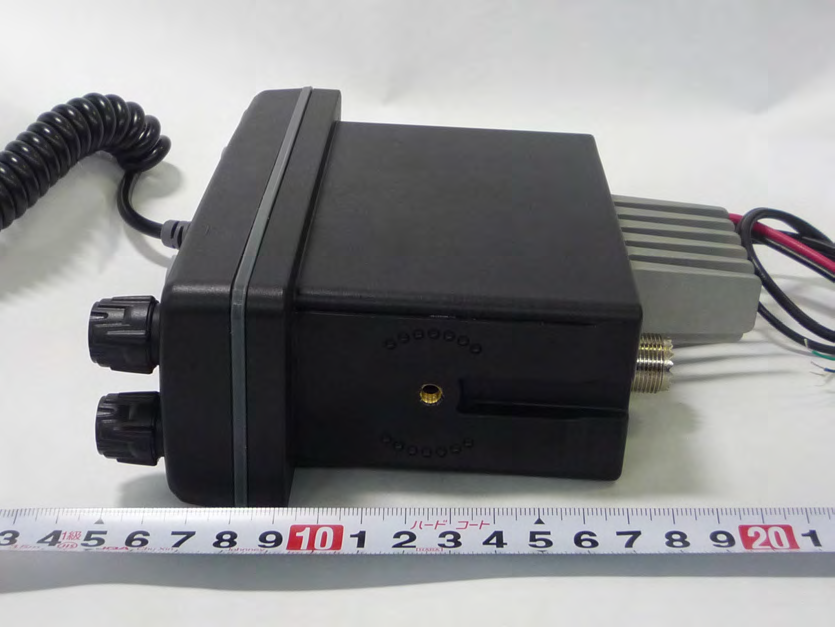

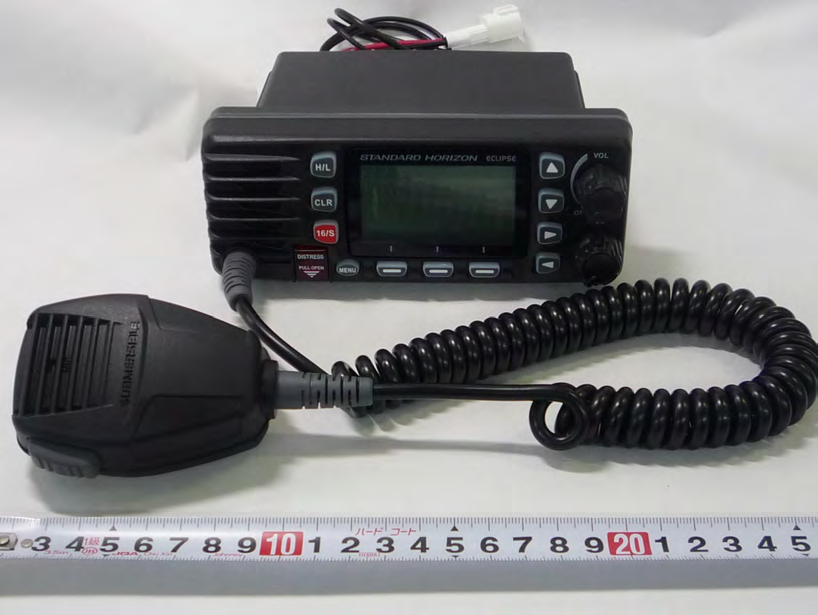

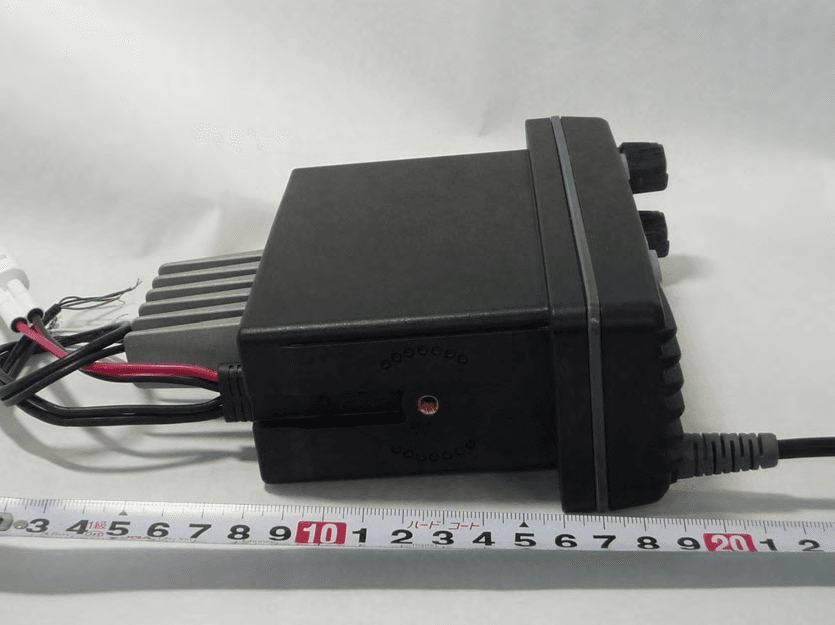

FCC ID:K6630583X3D IC: 511B-30583X3D GX1300 External Photos Front view and Microphone Front view Yaesu Musen Co.,Ltd. FCC ID:K6630583X3D IC: 511B-30583X3D Left side view Right side view Yaesu Musen Co.,Ltd FCC ID:K6630583X3D IC: 511B-30583X3D Bottom view Back view Yaesu Musen Co.,Ltd.

ID / Part 15.19 and CAUTIOUN drowings ID drowinng Part 15.19 and CAUTIOUN drowings Label location PRODUCTION:GX1300 YAESU MUSEN Co., Ltd. TITLE : LABEL DRAWING

FCC ID:K6630583X3D IC: 511B-30583X3D GX1300 Internal Photos Chassis and Main-Unit (Removed Front-Panel) Side-A of MAIN-UNIT with shield cases Yaesu Musen Co.,Ltd. FCC ID:K6630583X3D IC: 511B-30583X3D Side-A of MAIN-UNIT without shield cases Side-B of Main-Unit Yaesu Musen Co.,Ltd. FCC ID:K6630583X3D IC: 511B-30583X3D Side-A of CNTL-UNIT Side-B of CNTL-UNIT Yaesu Musen Co.,Ltd. CC ID:K6630583X3D IC: 511B-30583X3D Inside of Chassis (Top view) Yaesu Musen Co.,Ltd. FCC ID:K6630583X3D IC: 511B-30583X3D Inside of microphone (1) Inside of microphone (2) Yaesu Musen Co.,Ltd.

RF Exposure Evaluation Report APPLICANT YAESU MUSEN CO., LTD. TENNOZU PARKSIDE BUILDING 2-5-8 HIGASHI-SHINAGAWA, SHINAGAWA-KU, TOKYO 140-0002 JAPAN FCC ID K6630583X3D MODEL NUMBER GX1300 PRODUCT DESCRIPTION MOBILE MARINE TRANSCEIVER STANDARD APPLIED CFR 47 Part 2.1091 PREPARED BY Cory Leverett We, TIMCO ENGINEERING, INC. would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091 and meets the requirements. The attached report shall not be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Applicant: YAESU MUSEN CO., LTD. FCC ID: K6630583X3D Report: Y\YAESU\2303IC14\2303IC14TestReport.docxt Page 2 of 4 GENERAL REMARKS Attestations This equipment has been evaluated in accordance with the standards identified in this report. To the best of my knowledge and belief, these evaluations were performed using the procedures described in this report. I attest that the necessary evaluations were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Cory Leverett Engineering Project Manager Date: 12/26/2014 RF Exposure Requirements General information Device type: MOBILE MARINE TRANSCEIVER Devices that operate under Part 80 of this chapter are subject to RF exposure evaluation prior to equipment authorization or use. Antenna The manufacturer does not specify an antenna, but a typical antenna has a gain of 0 dBi. Configuration Antenna p/n Type Max. Gain (dBi) Fixed mounted Any omni 0 Operating configuration and exposure conditions: The conducted output power is shown in the table below. Typical use qualifies for a maximum duty cycle factor of 100%. Operation: A typical installation consists of an antenna system with a 10 meter coaxial cable of the type RG 213/ U type which has a loss as follows; Nom. Attenuation for RG 213/U: Frequency MHz Attenuation per 100ft. dB 1 .27 10 .55 50 1.3 100 1.9 200 2.7 400 4.1 700 6.5 900 7.6 1000 8.0 4000 21.5 MPE Calculation: The minimum separation distance is calculated as follows: Applicant: YAESU MUSEN CO., LTD. FCC ID: K6630583X3D Report: Y\YAESU\2303IC14\2303IC14TestReport.docx The limit for general uncontrolled exposure environment is shown in FCC rule Part 1.11310, Table 1. Max Power 25WequalsMax Power 25000mW Duty Cycle50%equalsDuty Factor0.5numeric Antenna Gain3 dBiequalsGain numeric1.995262numeric Coax Loss2.1dBGain - Coax Loss1.230269numeric Power Density 0.2 mW/cm 2 Frequency157.425MHzFrequency rangPower denEnter this value MHz mW/cm 2 mW/cm 2 0.3-1.34100100 1.34-30 180/f 2 0.0 30-3000.20.2 300-1,500f/15000.1 1,500-100,00011 f = frequency in MHz Minimum Separation Distance78cm0.78m Minimum Seperation in Inches30.77297Inches Minimum Separation Distance for Mobile or Fixed Devices General Population/Uncontrolled Exposure Insert values in yellow highlighted boxes to determine Minimum Separation Distance Enter power Density from the chart to the rightRule Part 1.1310, Table 1

FCC PART 80 AND IC RSS-182 (i5) TEST REPORT APPLICANT YAESU MUSEN CO., LTD. TENNOZU PARKSIDE BUILDING 2-5-8 HIGASHI-SHINAGAWA, SHINAGAWA-KU, TOKYO 140-0002 JAPAN FCC ID K6630583X3D IC CERTIFICATION 511B-30583X3D MODEL NUMBER GX1300 PRODUCT DESCRIPTION CLASS D DSC MARINE TRANSCEIVER DATE SAMPLE RECEIVED 12/15/2014 DATE TESTED 12/23/2014 TESTED BY Cory Leverett APPROVED BY Sid Sanders TIMCO REPORT NO. 2303AUT14TestReport.docx TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Applicant: YAESU MUSEN CO., LTD. FCC ID: K6630583X3D IC CERT #: 511B-30583X3D Report: Y\YAESU\2303AUT14\2303AUT14TestReport.docx Page 2 of 19 TABLE OF CONTENTS GENERAL REMARKS ................................................... Error! Bookmark not defined. GENERAL INFORMATION............................................. Error! Bookmark not defined. TEST PROCEDURES .................................................... Error! Bookmark not defined. TECHNICAL DATA ...................................................... Error! Bookmark not defined. RF POWER OUTPUT .................................................... Error! Bookmark not defined. MODULATION CHARACTERISTICS ................................ Error! Bookmark not defined. AUDIO FREQUENCY RESPONSE ................................... Error! Bookmark not defined. AUDIO LOW PASS FILTER ........................................... Error! Bookmark not defined. AUDIO INPUT VERSUS MODULATION ........................... Error! Bookmark not defined. OCCUPIED BANDWIDTH ............................................. Error! Bookmark not defined. SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) .. Error! Bookmark not defined. FIELD STRENGTH OF SPURIOUS EMISSIONS................. Error! Bookmark not defined. RECEIVER RADIATED SPURIOUS EMISSIONS ................ Error! Bookmark not defined. FREQUENCY STABILITY .............................................. Error! Bookmark not defined. EMC EQUIPMENT LIST ................................................ Error! Bookmark not defined. Applicant: YAESU MUSEN CO., LTD. FCC ID: K6630583X3D IC CERT #: 511B-30583X3D Report: Y\YAESU\2303AUT14\2303AUT14TestReport.docx Page 3 of 19 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Cory Leverett Engineering Project Manager Date: 12/23/2014 TABLE OF CONTENTS Applicant: YAESU MUSEN CO., LTD. FCC ID: K6630583X3D IC CERT #: 511B-30583X3D Report: Y\YAESU\2303AUT14\2303AUT14TestReport.docx Page 4 of 19 GENERAL INFORMATION DUT Specification DUT Description CLASS D DSC MARINE TRANSCEIVER FCC ID K6630583X3D IC Certification 511B-30583X3D Model Number GX1300 Operating Frequency 156.025-157.425 MHz Test Frequencies 156.05 MHz, 157.425 MHz No. of Channels All authorized part 80 marine channels with wx band Type of Emission 16K0G3E, 16K0G2B Modulation FM DUT Power Source 110–120Vac/50– 60Hz DC Power 12V Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna Connector SO-239 Test Conditions The temperature was 26ºC Relative humidity of 50%. Modification to the DUT None Test Exercise The DUT was placed in continuous transmit mode. Applicable Standards ANSI/TIA 603-D:2010, FCC CFR 47 Part 80, IC RSS- 182 (issue 5) and RSS-GEN (issue 4) Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. TABLE OF CONTENTS Applicant: YAESU MUSEN CO., LTD. FCC ID: K6630583X3D IC CERT #: 511B-30583X3D Report: Y\YAESU\2303AUT14\2303AUT14TestReport.docx Page 5 of 19 TEST PROCEDURES Power Line Conducted Interference: The procedure used was ANSI/TIA 603-D: 2010 using a 50uH LISN. Both lines were observed with the DUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: The RF power output was measured at the antenna feed point using a peak power meter. Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was ANSI C63.4-2009 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum receiver was 100 kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The analyzer was calibrated in dB above a micro volt at the output of the antenna. TABLE OF CONTENTS Applicant: YAESU MUSEN CO., LTD. FCC ID: K6630583X3D IC CERT #: 511B-30583X3D Report: Y\YAESU\2303AUT14\2303AUT14TestReport.docx Page 6 of 19 TECHNICAL DATA 80.203 (b) External Controls: The transmitter is cap…

Text truncated - open the document above for the full version.

Document 75928073 Report 04 Issue 1 February 2015 Report On Limited Radio Testing of the Yaesu UK Ltd GX-1300E In accordance with IEC 62238 COMMERCIAL-IN-CONFIDENCE TÜV SÜD Product Service, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuv-sud.co.uk COMMERCIAL-IN-CONFIDENCE Document 75928073 Report 04 Issue 1 Page 1 of 28 COMMERCIAL-IN-CONFIDENCE REPORT ON Limited Radio Testing of the Yaesu UK Ltd GX-1300E In accordance with IEC 62238 Document 75928073 Report 04 Issue 1 February 2015 PREPARED FOR Yaesu UK Ltd Unit 12 Sun Valley Business Park Winnal Industrial Estate Winchester SO23 0LB PREPARED BY Natalie Bennett Senior Administrator, Project Support APPROVED BY Ryan Henley Authorised Signatory DATED 05 February 2015 Document 75928073 Report 04 Issue 1 Page 2 of 28 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE CONTENTS Section Page No 1 REPORT SUMMARY ................................................................................................................... 3 1.1 Introduction ................................................................................................................................... 4 1.2 Brief Summary of Results ............................................................................................................. 5 1.3 Application Form ........................................................................................................................... 6 1.4 Product Information .................................................................................................................... 10 1.5 Deviations from the Standard ..................................................................................................... 11 1.6 Modification Record .................................................................................................................... 11 1.7 General comments ..................................................................................................................... 11 2 TEST DETAILS .......................................................................................................................... 12 2.1 Test of Generated Call Sequences ............................................................................................ 13 2.2 Multiple Watch Characteristics ................................................................................................... 14 2.3 DSC Receiver Adjacent Channel Selectivity .............................................................................. 15 2.4 DSC Receiver Intermodulation Response .................................................................................. 16 2.5 DSC Receiver Spurious Emissions ............................................................................................ 17 2.6 Reaction to VTS and AIS Channel Management DSC Transmissions ...................................... 18 2.7 Simultaneous Reception ............................................................................................................. 19 3 TEST EQUIPMENT USED ......................................................................................................... 20 3.1 Test Equipment Used ................................................................................................................. 21 3.2 Measurement Uncertainty .......................................................................................................... 24 4 PHOTOGRAPHS ........................................................................................................................ 25 4.1 Photographs of Equipment Under Test (EUT) ........................................................................... 26 5 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................ 27 5.1 Accreditation, Disclaimers and Copyright ................................................................................... 28 Document 75928073 Report 04 Issue 1 Page 3 of 28 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY Limited Radio Testing of the Yaesu UK Ltd GX-1300E In accordance with IEC 62238 Document 75928073 Report 04 Issue 1 Page 4 of 28 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE 1.1 INTRODUCTION The information contained in this report is intended to show the verification of Limited Radio Testing of the Yaesu UK Ltd GX-1300E to the requirements of IEC 62238. Objective To perform Radio Testing to determine the Equipment Under Test's (EUT’s) compliance with the Test Specification, for the series of tests carried out. Manufacturer Yaesu UK Ltd Model Number(s) GX-1300E Serial Number(s) L74C010001 Manufacturer Declared Variant GX-1300 Number of Samples Tested 1 Test Specification/Issue/Date IEC 62238 (2003-03) Incoming Release Date Application Form 21 November 2014 Disposal Reference Number Date Held Pending Disposal Not Applicable Not Applicable Order Number Date 5714 24 September 2014 Start of Test 25 November 2014 Finish of Test 23 January 2015 Name of Engineer(s) M Russell S Bennett Document 75928073 Report 04 Issue 1 Page 5 of 28 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE 1.2 BRIEF SUMMARY OF RESULTS A brief summary of the tests carried out in accordance with IEC 62238 is shown below. Section Spec Clause Test Description Result Comments/Base Standard Transmit 2.1 8.14 Test of Generated Call Sequences Pass 2.2 9.13 Multiple Watch Characteristics Pass 2.3 10.3 DSC Receiver Adjacent Channel Selectivity Pass 2.4 10.5 DSC Receiver Intermodulation Response Pass 2.5 10.7 DSC Receiver Spurious Emissions Pass 2.6 10.9 Reaction to VTS and AIS Channel Management DSC Transmissions Pass 2.7 10.10 Simultaneous Reception Pass Document 75928073 Report 04 Issue 1 Page 6 of 28 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE 1.3 APPLICATION FORM EQUIPMENT DESCRIPTION Model Name/Number Eclipse Part Number GX-1300E Te…

Text truncated - open the document above for the full version.

Date: 20 Oct. 2014 Report No.: ERY1410P20R2 Model: GX1300 SGS RF Technologies Inc. Page 1 of 35 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rf-test.jp TEST REPORT For MARINE VHF RADIOTELEPHONE In conformity with IEC 60945 : 2002 Model: GX1300 Test Item: MARINE VHF RADIOTELEPHONE Report No: ERY1410P20R2 Issue Date: 20 Oct. 2014 Prepared for YAESU MUSEN CO., LTD. Tennozu Parkside Building 2-5-8 Higashi-Shinagawa, Shinagawa-ku, Tokyo 140-0002 Japan Telephone: +81 - (0)3 - 6711 - 4121 FAX: +81 - (0)3 - 6711 - 4278 Prepared by SGS RF Technologies Inc. 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81- (0)45- 534 - 0645 FAX: +81 - (0)45 - 534 - 0646 Date: 20 Oct. 2014 Report No.: ERY1410P20R2 Model: GX1300 SGS RF Technologies Inc. Page 2 of 35 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rf-test.jp This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS RF Technologies Inc. is managed to ISO17025 and has the necessary knowledge and test facilities for testing according to the referenced standards. The test results in this report apply only to the sample tested. Date: 20 Oct. 2014 Report No.: ERY1410P20R2 Model: GX1300 SGS RF Technologies Inc. Page 3 of 35 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rf-test.jp Table of contents 1 General information ...................................................................................................................... 4 1.1 Product description ................................................................................................................................................ 4 1.2 Test(s) performed / Summary of test result ........................................................................................................... 4 1.3 Applicable basic standards ..................................................................................................................................... 5 1.3.1 EMI test ......................................................................................................................................................... 5 1.3.2 EMS test ......................................................................................................................................................... 5 1.4 Test facility ............................................................................................................................................................ 5 1.5 Measurement uncertainty ....................................................................................................................................... 5 1.6 Description of essencial requirements and test results ........................................................................................... 6 1.6.1 EMC emission measurements ........................................................................................................................ 6 1.6.2 Immunity tests................................................................................................................................................ 6 1.7 Performance Criteria .............................................................................................................................................. 7 1.7.1 Performance criteria A for continuous phenomena applied to transmitters and receivers ............................. 7 1.7.2 Performance criteria B for transient phenomena applied to transmitters and receivers ................................. 7 1.7.3 Performance criteria C applied to power supply failure ................................................................................ 7 1.7.4 Judgment Method .......................................................................................................................................... 7 1.8 Setup of equipment under test (EUT) .................................................................................................................... 8 1.8.1 Test configuration of EUT ............................................................................................................................. 8 Setup diagram for EMI testing ....................................................................................................................................... 8 Setup diagram for EMS testing ...................................................................................................................................... 8 1.8.2 Operating condition: ...................................................................................................................................... 9 1.9 Equipment modifications .......................................................................................…

Text truncated - open the document above for the full version.

APPLICANT: YAESU MUSEN CO., LTD. FCC ID: K6630583X3D IC: 511B-30583X3D TEST SET UP PHOTOS
