K6650013X20PORTABLE AIRBAND TRANSCEIVER

Operating Manual AIR BAND TRANSCEIVER FTA-750 FTA-550 Contents Important Notice! ..........................................................1 Introduction ...................................................................2 Accessories & Options ................................................3 Supplied Accessories .........................................................3 Available Options ..............................................................3 Controls & Connectors ( Top Panel ) ............................4 LCD Display ( COM Band ) .............................................8 Before You Begin ........................................................11 Battery Installation and Removal ....................................11 Battery Charging ..............................................................11 Alkaline Battery Case Installation ...................................12 Low Battery Indication ....................................................12 External DC Power Supply Connection ..........................13 Antenna Installation .........................................................13 Belt Clip Installation ........................................................14 Headset Connection .........................................................14 Precautions .......................................................................15 Basic Operation ..........................................................16 Reception (COM Band) ...................................................16 Accessing the 121.5 MHz Emergency Frequency ...........19 Transmission (COM Band) ..............................................20 Operation Bands ..............................................................21 Operation Modes .............................................................22 Resetting the Radio ..........................................................23 Advanced Operation ..................................................25 Reception of VOR Signals ...............................................25 Reception of ILS Signals .................................................27 Split Operation .................................................................29 Reception of Weather Channel Broadcasts (USA version only) .................................................................................31 Dual Watch Operation .....................................................33 Timer Mode Operation ....................................................35 TOT Feature .....................................................................39 Saving the Battery during Reception ...............................39 VOX Operation ................................................................40 Side Tone Control ............................................................41 ANL Feature ....................................................................41 Lock Function ..................................................................42 Memory Operation ......................................................44 Recalling the Memories ...................................................44 Instant Storage .................................................................46 Maintenance of the Memory ............................................47 Scanning Operation ...................................................51 Scanning All Channels .....................................................51 Scanning the Specified Channels .....................................52 GPS Function (FTA-750 Only) ...................................54 Activating the GPS Unit ..................................................54 Displaying the Position Information ................................55 Memorizing the Position Information .............................57 Recording the Position Information ................................58 Waypoint Navigation (FTA-750 Only) ........................59 Entering the Navigation (NAVI) Mode ...........................59 Setting the Destination .....................................................60 Starting the Navigation to the Receiving Station ............62 SETUP Mode ...............................................................63 Basic Operation ...............................................................63 Maintenance of the Memory ............................................64 Setting of the COMM Mode Operation ...........................65 Setting of the GPS Mode Operation (FTA-750 Only) .....67 Setting of the Operation and Configuration of the Radio ..........................................................................71 About the Radio ...............................................................74 Specifications .............................................................75 FTA-750/FTA-550 OperATing MAnuAl 1 Important notIce! FCC RF Exposure Compliance Requirements for Occupational Use Only: The FTA-750/FTA-550 have been tested and complies with the Federal Communications Commission (FCC) RF ex- posure limits for Occupational Use/Controlled Exposure Environment. In addition, it complies with the following Stan- dards and Guidelines:  FCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation.  FCC OET Bulletin 65 Edition 97-01 (1997) Supplement C, Evaluating Compliance with FCC Guidelines for Hu- man Exposure to Radio Frequency Electromagnetic Fields.  ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.  ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromag- netic Fields - RF and Microwave.  This radio is NOT approved for use by the general population in an uncontrolled environment. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowl- edge to control its RF exposure conditions.  When transmitting, hold the radio in a ver…

Text truncated - open the document above for the full version.

Tel: 81-(0)3-6711-4121・Fax: 81-(0)3-6711-4278 YAESUMUSENCO.,LTD. Tennozu Parkside Building 2-5-8 Higashi-Shinagawa, Shinagawa-ku, Tokyo 140-0002 Japan 4 February 2014 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P. O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: FTA-750, FTA-550 (FCC ID: K6650013X20) Pursuant to Sections 0.457 (d) (1) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requires confidential treatment of some of the information accompanying this Application, as listed below: Confidential ・ Block Diagram ・ Schematics ・ Parts List ・ Alignment Short-Term Confidential ・ Operating Manual ・ External Photos ・ Test Setup Photos ・ Internal Photos These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (1) (ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for this Application. Sincerely, YAESU MUSEN CO., LTD. Shouji Mukawa Manager

Tel: 81-(0)3-6711-4121・Fax: 81-(0)3-6711-4278 YAESUMUSENCO.,LTD. Tennozu Parkside Building 2-5-8 Higashi-Shinagawa, Shinagawa-ku, Tokyo 140-0002 Japan 5 November 2013 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046, USA Re: FTA-750, FTA-550 (FCC ID: K6650013X20) Gentlemen: A. Part 15.19 & 15.21 Compliance Statement Drawing: 20 mm 97 mm Part 15.21: Changes or modifications to this device not expressly approved by YAESU MUSEN could void the user’s authorization to operate this device. B. Part 15.19 & 15.21 Compliance Statement Drawing Location: - IN OPERATION MANUAL (location on inside cover 3) - The rear of case Sincerely, YAESU MUSEN CO., LTD. Shouji Mukawa Manager

Ben Hewson From:[email protected] Sent:December-05-13 12:19 PM To:Ben Hewson Subject:Response to Inquiry to FCC (Tracking Number 802841) Page 1 of 1 05/12/2013 Attachment Details: Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add an y additional information pertaining to this inquiry. Right-click here to download pictures. To help protect your privacy, Outlook prevented FCC Home | Search | RSS | Updates | E-Filing | Initiatives | Consumers | Find People R i g h t - c l i c k h e r e t o d o w n l o a d p i c t u r e s . T o h e l p p r o t e c t y o u r p r i v a c y , O u t l Right-click here to download pictures. To help protect your privacy, Outlook prevented automatic download of this picture from the Internet R i g h t - c l i c k h e r e t o d o w n l o a d p i c t u r e s . T o h e l p p r o t e c t y o u r p r i v a c y , O u t Office of Engineering and Technology Inquiry on 12/03/2013 : Inquiry: We have a confined loop antenna on order from SPEAG, where we have received confirmation that it will not be anticipated for delivery until January 31, 2014. Pursuant to instructions from Kwok's presentation in October at the TCB Council workshop in Baltimore, we are submitting this KDB for permission to have an extension to continue to utlize the provisions of KDB 865664 for system validations below 300MHz, during this period. FCC response on 12/05/2013 You may apply the interim 150 MHz SAR system verification procedures in KDB 865664 D01 v01r01 (May 28, 2013 version) for the SAR testing required; however, you need to identify the FCC ID of the devices you will be applying the procedures. All tests must be completed before 02/15/2014. Reconfirmation through this KDB inquiry is required for any further changes. A copy of this KDB inquiry must be provided to the TCB for review and approval of the specific FCC ID identified in this KDB. The TCB is required to confirm all conditions are satisfied.

849 NW State Road 45 • P. O. Box 370 • Newberry, Florida 32669 USA Telephone (352) 472-5500 • (888) 472-2424 • FAX (352) 472-2030 • email: [email protected] February 3, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045 Ref: Yaesu Musen Co., Ltd.’s application for Certification for their FCC ID: K6650013X20 To Whom It May Concern: The SAR procedure was handled with the FCC under KDB Inquiry 966366. The SAR testing performed shows that this product meets the General Population limits. The audio connector is over 2.5cm from the highest SAR area. Regards, Mario R. de Aranzeta Engineer Timco Engineering, Inc.

FTA-750,FTA-550 LABEL DRAWING YAESU MUSEN CO., LTD. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location Model:FTA-750 K6650013X20 511B-50013X20 788026138012 YAESU MUSEN CO. , LTD. MADE IN JAPAN SER. NO. 3L000001 This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. ! CAUTION ! Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner’s manual for specific operating requirement. Model:FTA-550 K6650013X20 511B-50013X20 788026138012 YAESU MUSEN CO. , LTD. MADE IN JAPAN SER. NO. 3L000002

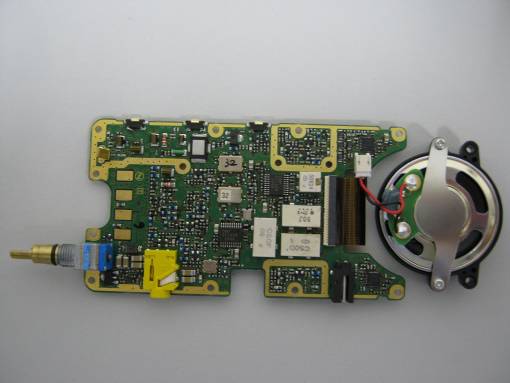

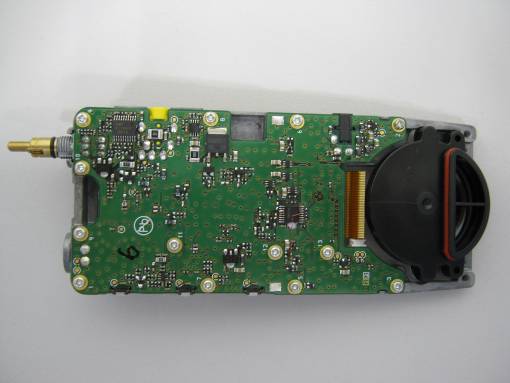

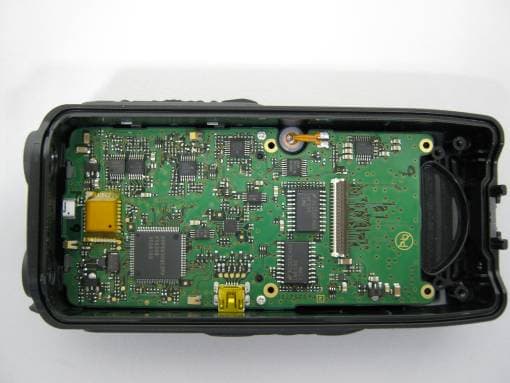

FCC ID: K6650013X20 Internal Photograph IC: 511B-50013X20 1 / 4 YAESU MUSEN CO., LTD. FTA-750, FTA-550 Internal Photograph Contents 1. RF-UNIT....................................................................................................................................2 2. CNTL-UNIT ..............................................................................................................................3 3. Open Rear Cover .......................................................................................................................4 FCC ID: K6650013X20 Internal Photograph IC: 511B-50013X20 2 / 4 YAESU MUSEN CO., LTD. 1. RF-UNIT Fig.1-1 Side A Fig.1-2 Side-B FCC ID: K6650013X20 Internal Photograph IC: 511B-50013X20 3 / 4 YAESU MUSEN CO., LTD. 2. CNTL-UNIT Fig.2-1 Side-A Fig.2-2 Side-B FCC ID: K6650013X20 Internal Photograph IC: 511B-50013X20 4 / 4 YAESU MUSEN CO., LTD. 3. Open Rear Cover Fig.3-1 UNIT Side Fig.3-2 Rear Cover Side

FCC ID: K6650013X20 IC ID: 511B-50013X20 Circuit Description FTA-750 Circuit Description Receive Signal Path Incoming RF from the antenna jack is passed through a low-pass filter and high-pass filter consisting of coils L1037, L1038, L1039, L1041, L1042 & L1043, capacitors C1279,C1280,C1283,C1286,C1288,C1289,C1290,C1291,C1295,C1296,C1299 &C1300 and antenna switching diodes D1027 and D1028 to the receiver front end section. Signals within the frequency range of the transceiver is applied to the receiver front end which contains RF amplifier Q1047 and varactor-tuned band-pass filter consisting of coils L1018, L1023, L1029, L1034 & L1036, capacitors C1208, C1218, C1220, C1223, C1226, C1233,C1234, C1242, C1245, C1258, C1269 & C1272, and diodes D1022, D1024, D1025 & D1026, then applied to the 1st mixer Q1038. Buffered output from the VCO is amplified by Q1032 to provide a pure 1st local signal between 155.25 and 210.525 MHz for injection to the 1st mixer. The 47.25 MHz 1st mixer product then passes through monolithic crystal filter XF1001 (4.0 kHz BW) or XF1002 (7.5 kHz BW) which strips away all but the desired signal, which is then amplified by mixer post-amp Q1031. The amplified 1st IF signal is applied to the AM/FM IF subsystem IC Q1029, which contains the 2nd mixer, 2nd local oscillator, limiter amplifier, noise amplifier and AM/FM detector. A 2nd local signal is generated by 11.7 MHz TCXO X1001 .The11.7MHz signal mixed with the 1st IF signal within Q1029. The 2nd IF then passes through the ceramic filter CF1001(2.0 kHz BW) or CF1002(10.0 kHz BW) to strip away unwanted mixer products. In the FM mode, a 2nd IF signal from the ceramic filter CF1002 applied to the limiter amplifier section of Q1029, which removes amplitude variations in the 450 kHz IF before detection of the speech by the ceramic discriminator CD1001. Detected audio from Q1029 is passed through the de-emphasis, consisting of the resistors R1243, capacitors C1320. In the AM mode, detected audio from Q1029 is passed through the audio amplifier Q2003-3 and ANL circuit, then applied to the AF amplifier Q2003-2. When impulse noise received, a portion of the AM detector output signal from the AM/FM IF subsystem Q1029, including pulse noise is rectified by D2029. The resulting DC is applied to the ANL MUTE gate Q2028, thus reducing the pulse noises. The processed audio signal from Q2003-3 is passed through the amplifier Q2003-1 and Q2003-2 to the volume control IC Q2016. The audio signal is passed through the volume control IC to the AF amplifier Q2002-2 and audio power amplifier Q1007, providing up to 0.7 Watts to 16ohm loudspeaker. A portion of the AF signal from the AM/FM IF subsystem Q1029 converted into DC voltage within the IC, and provide to the inversion amplifiers Q1045 and Q1050. These amplifier reduce the amplifier gain of the RF amplifier Q1047 while receiving a strong signal. Squelch Control When signal is received, appear the DC squelch control voltage at pin 16 of AM/FM IF subsystem Q1029 according to the receiving signal strength. This DC is applied to pin 92 of microprocessor Q2017. The DC squelch control voltage is compared with the SQL threshold level by the microprocessor Q2017. If the DC squelch control voltage is lower, microprocessor Q2017 control the volume control IC Q2016. and pin24 of Q2016 goes low. thus disabling the AF audio. Also, the microprocessor stops scanning, if active, and allows audio to pass through the the volume control IC Q2016. 1/3 YAESU MUSEN CO., LTD. FCC ID: K6650013X20 IC ID: 511B-50013X20 Circuit Description Transmit Signal Path Speech input from the microphone is passed through the microphone amplifier Q2013, then applied to the ALC amplifier Q2013. The amplified speech signal is passed through the high-pass filter Q2013 and low-pass filter Q2001-2,3 and 4, which adjust the modulation level, then fed to the AM modulator Q1044. When using the optional headset, the SIDETONE signal from J1002 becomes “HIGH”, turning Pin79 of Q2017 on; pin 7 of Q1021 therefore a portion of the speech signal applied to the AF power amplifier Q1007 as a monitor signal. The carrier signal from the VCO Q1028 passes through the buffer amplifier Q1032 and TX/RX switch D1018. The signal from D1018 is amplified by Q1037 and Q1040, and ultimately applied to the final amplifier Q1044 which increases the signal level up to 5 watts output power. The transmit signal then passes through the antenna switch D1027, and is low-pass filtered to suppress away harmonic spurious radiation before delivery to the antenna. Automatic Transmit Power Control RF power output from the final amplifier is sampled by C1282/C1287 and is rectified by D1029. The resulting DC is fed through the Automatic Power Controller Q1046, thus allowing control of the power output. Transmit Inhibit When the transmit PLL is unlocked, pin 7 of PLL chip Q1018 goes to a logic low. The resulting DC “unlock” control voltage is switches off TX inhibit switches Q1013, to disable the supply voltage to transmitter RF amplifiers Q1037, disabling the transmitter. Spurious Suppression Generation of spurious products by the transmitter is minimized by the fundamental carrier frequency being equal to the final transmitting frequency. Additional harmonic suppression is provided by a low-pass filter consisting of L1038, L1042 & L1043 and C1279, C1288, C1291, C1296 and C1299, resulting in more than 60 dB of harmonic suppression prior to delivery of the RF signal to the antenna. PLL Frequency Synthesizer PLL circuitry consists of VCO Q1026 and Q1028, VCO buffer Q1032, and PLL subsystem IC Q1018, which contains a reference divider, serial-to-parallel data latch, programmable divider, phase comparator and charge pump. Stability is maintained by the 11.7 MHz frequency reference TCXO X1001. In the receive mode, VCO Q1026 oscillates between 155.25 and 210.525 MHz. The VCO output is buffered by Q1032, and applied to the prescaler section of Q1018. There the VCO signal is divi…

Text truncated - open the document above for the full version.

Applicant: Yaesu Musen Co., Ltd FCC ID: K6650013X20 IC: 511B-50013X20 Model(s): FTA-550, FTA-750 DUT Type: VHF Digital Mobile Radio 118-137 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 52 Date(s) of Evaluation Jan 28-30, 2013 Test Report Serial No. 01312014K66-1264 Test Report Revision No. Rev. 1.1 (Revised Issue) Test Report Issue Date Feb 5, 2014 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION - FCC / IC Original Filing Name CELLTECH LABS INC. TEST LAB INFORMATION Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada TEST LAB ACCREDITATION Type ISO / IEC 17025 Accreditation A2LA Test Lab Certificate No. 2470.01 Name YAESU MUSEN CO., LTD APPLICANT INFORMATION Address Tennozu Parkside Building, 2-5-8 Higashi-Shinagawa, Tokyo, 140-0002 Japan STANDARDS APPLIED FCC 47 CFR §2.1093 IC Health Canada Safety Code 6 FCC KDB 447498 D01v05r01, KDB 865664 D01v01r02 IC RSS102 Issue 4 FCC KDB 865664 D02v01r01, KDB 643646 D01v01r01 IEC 62209-1:2005 PROCEDURES APPLIED IEEE IEEE 1528-2013 IEC 62209-2:2010 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) - FCC Part 87 DEVICE CLASSIFICATION IC Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) - RSS-119 DEVICE DESCRIPTION Portable Push-To-Talk (PTT) Multi-Band Radio Transceiver (Analog FM / Digital P25 FDMA) APPLICATION TYPE Original Filing DATE(S) OF EVALUATION January 28-30, 2014 SAMPLES RECEIVED Devices Tested FCC ID IC Certification Model Type Frequency Range Manufacturer's Rated Output Power K6650013X20 511B-50013X20-E FTA-550, FTA-750 System 118-137 MHz 33dBm Antennas Tested Batteries Tested Part Number Frequency Range (MHz) Length (mm) Diameter (mm) Part Number Output Voltage Capacity (mAh) SRA-13A SBR-12LI Body-Warn Accessories Tested Audio Accessories Tested Part Number Description Part Number Description SHB-11 Belt Clip EVALUATION RESULTS Head 0.145 Maximum SAR Level Evaluated FCC Body 0.235 Head 0.145 Maximum SAR Level Evaluated IC Body 0.265 W/kg 10g 50% PTT Duty Factor General Public / Uncontrolled FCC / IC Spatial Peak SAR Limit Head /Body 1.6 W/kg 10g 50% PTT Duty Factor General Public / Uncontrolled Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada Safety Code 6 for the General Population / Uncontrolled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4, IEEE Standard 1528-2013 and International Standard IEC 62209-2:2010. All measurements were performed in accordance with the SAR system manufacturer recommendations. ***** This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. ***** The results and statements contained in this report pertain only to the device(s) evaluated I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test Report Approved By Art Voss, P.Eng. Senior Engineer Celltech Labs Inc. Applicant: Yaesu Musen Co., Ltd FCC ID: K6650013X20 IC: 511B-50013X20 Model(s): FTA-550, FTA-750 DUT Type: VHF Digital Mobile Radio 118-137 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 52 Date(s) of Evaluation Jan 28-30, 2013 Test Report Serial No. 01312014K66-1264 Test Report Revision No. Rev. 1.1 (Revised Issue) Test Report Issue Date Feb 5, 2014 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION _____________________________________________ 4 2.0 SAR MEASUREMENT SYSTEM _________________________________ 4 3.0 RF CONDUCTED OUTPUT POWER MEASUREMENT _______________ 5 4.0 NO. OF TEST CHANNELS (N C ) _________________________________ 5 6.0 ACCESSORY LISTING ________________________________________ 6 7.0 FLUID DIELECTRIC PARAMETERS _____________________________ 7 8.0 SAR MEASUREMENT SUMMARY _______________________________ 9 9.0 SAR SCALING (MANUFACTURER TOLERANCE) _________________ 10 10.0 DETAILS OF SAR EVALUATION ______________________________ 11 11.0 SAR EVALUATION PROCEDURES ____________________________ 12 12.0 SYSTEM PERFORMANCE CHECK ____________________________ 13 13.0 SIMULATED EQUIVALENT TISSUES __________________________ 14 14.0 SAR LIMITS _______________________________________________ 14 15.0 ROBOT SYSTEM SPECIFICATIONS ___________________________ 15 16.0 PROBE SPECIFICATION (ET3DV6) ____________________________ 16 17.0 ELIANAR PHANTOM _______________________________________ 16 18.0 DEVICE HOLDER __________________________________________ 16 19.0 TEST EQUIPMENT LIST _____________________________________ 17 20.0 MEASUREMENT UNCERTAINTIES (IC ONLY) ___________________ 18 21.0 REFERENCES _____________________________________________ 19 APPENDIX A - SAR MEASUREMENT PLOTS ________________________ 20 APPENDIX B - SYSTEM PERFORMANCE CHECK PLOTS______________ 31 APPENDIX C - MEASURED FLUID DIELECTRIC PARAMETERS ________ 35 APPENDIX D - SAR TEST SETUP & DUT PHOTOGRAPHS _____________ 38 APPENDIX E - DIPOLE CALIBRATION _____________________________ 49 APPENDIX F - PROBE CALIBRATION ______________________________ 50 APPENDIX G - ELI PHANTOM CERTIFICATE OF CONFORMITY ________ 51 APPENDIX H – KDB INQUIRY RE: 150MHZ SPC – TRACKING NUMBER 802841 ___________________…

Text truncated - open the document above for the full version.

Applicant: Yaesu Musen Co., Ltd FCC ID: K6650013X20 IC: 511B-50013X20 Model(s): FTA-550, FTA-750 DUT Type: VHF Digital Mobile Radio 118-137 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 38 of 52 Date(s) of Evaluation Jan 28-30, 2013 Test Report Serial No. 01312014K66-1264 Test Report Revision No. Rev. 1.1 (Revised Issue) Test Report Issue Date Feb 5, 2014 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 APPENDIX D - SAR TEST SETUP & DUT PHOTOGRAPHS Applicant: Yaesu Musen Co., Ltd FCC ID: K6650013X20 IC: 511B-50013X20 Model(s): FTA-550, FTA-750 DUT Type: VHF Digital Mobile Radio 118-137 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 39 of 52 Date(s) of Evaluation Jan 28-30, 2013 Test Report Serial No. 01312014K66-1264 Test Report Revision No. Rev. 1.1 (Revised Issue) Test Report Issue Date Feb 5, 2014 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 Set-Up - Body Configuration Applicant: Yaesu Musen Co., Ltd FCC ID: K6650013X20 IC: 511B-50013X20 Model(s): FTA-550, FTA-750 DUT Type: VHF Digital Mobile Radio 118-137 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 40 of 52 Date(s) of Evaluation Jan 28-30, 2013 Test Report Serial No. 01312014K66-1264 Test Report Revision No. Rev. 1.1 (Revised Issue) Test Report Issue Date Feb 5, 2014 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 DUT in Body Configuration 3.2 cm 1.5 cm Applicant: Yaesu Musen Co., Ltd FCC ID: K6650013X20 IC: 511B-50013X20 Model(s): FTA-550, FTA-750 DUT Type: VHF Digital Mobile Radio 118-137 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 41 of 52 Date(s) of Evaluation Jan 28-30, 2013 Test Report Serial No. 01312014K66-1264 Test Report Revision No. Rev. 1.1 (Revised Issue) Test Report Issue Date Feb 5, 2014 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 Set-Up – Face Configuration Applicant: Yaesu Musen Co., Ltd FCC ID: K6650013X20 IC: 511B-50013X20 Model(s): FTA-550, FTA-750 DUT Type: VHF Digital Mobile Radio 118-137 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 42 of 52 Date(s) of Evaluation Jan 28-30, 2013 Test Report Serial No. 01312014K66-1264 Test Report Revision No. Rev. 1.1 (Revised Issue) Test Report Issue Date Feb 5, 2014 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 DUT in Face Configuration 4.5 cm 2.5 cm Applicant: Yaesu Musen Co., Ltd FCC ID: K6650013X20 IC: 511B-50013X20 Model(s): FTA-550, FTA-750 DUT Type: VHF Digital Mobile Radio 118-137 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 43 of 52 Date(s) of Evaluation Jan 28-30, 2013 Test Report Serial No. 01312014K66-1264 Test Report Revision No. Rev. 1.1 (Revised Issue) Test Report Issue Date Feb 5, 2014 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 DUT in Face Configuration Showing Audio Cables Applicant: Yaesu Musen Co., Ltd FCC ID: K6650013X20 IC: 511B-50013X20 Model(s): FTA-550, FTA-750 DUT Type: VHF Digital Mobile Radio 118-137 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 44 of 52 Date(s) of Evaluation Jan 28-30, 2013 Test Report Serial No. 01312014K66-1264 Test Report Revision No. Rev. 1.1 (Revised Issue) Test Report Issue Date Feb 5, 2014 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 DUT PHOTOGRAPHS Applicant: Yaesu Musen Co., Ltd FCC ID: K6650013X20 IC: 511B-50013X20 Model(s): FTA-550, FTA-750 DUT Type: VHF Digital Mobile Radio 118-137 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 45 of 52 Date(s) of Evaluation Jan 28-30, 2013 Test Report Serial No. 01312014K66-1264 Test Report Revision No. Rev. 1.1 (Revised Issue) Test Report Issue Date Feb 5, 2014 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 FTA-750 Front View Applicant: Yaesu Musen Co., Ltd FCC ID: K6650013X20 IC: 511B-50013X20 Model(s): FTA-550, FTA-750 DUT Type: VHF Digital Mobile Radio 118-137 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 46 of 52 Date(s) of Evaluation Jan 28-30, 2013 Test Report Serial No. 01312014K66-1264 Test Report Revision No. Rev. 1.1 (Revised Issue) Test Report Issue Date Feb 5, 2014 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 FTA-750 Back View Applicant: Yaesu Musen Co., Ltd FCC ID: K6650013X20 IC: 511B-50013X20 Model(s): FTA-550, FTA-750 DUT Type: VHF Digital Mobile Radio 118-137 MHz 2013 Celltech L…
