K66FT-2800MAmateur Transceiver

FCC ID: K66FT-2800M OPERATING MANUAL Vertex Standard Co., Ltd. 1 FT-2800M Operating Manual Introduction The FT-2800M is a deluxe, rugged FM mobile transceiver providing high power output and outstanding receiver performance for the 144 MHz band. Included in the FT- 2800M’s feature complement are: ˆ 60 Watts of power output, with selection of four power levels for every operating situation. ˆ Expanded receiver coverage: 137-174 MHz. ˆ Keyboard entry of operating frequencies from the microphone. ˆ Excellent protection from receiver intermodulation distortion, thanks to Yaesu’s renowned Advanced Track Tuning front end. ˆ 219 memories which can store repeater shifts, odd repeater shifts, CTCSS/DCS tones, and 6-character Alpha-Numeric labels for easy channel recognition. ˆ 10 NOAA Weather Broadcast Channel. ˆ Built-in CTCSS and DCS Encoder/Decoder circuits. ˆ The Smart Search TM feature, which automatically sweeps a band and loads active frequencies into dedicated memory banks, is ideal for identifying active repeaters when visiting a city for the first time. ˆ Extensive Menu system, which allows customization of a number of transceiver performance characteristics. ˆ The Yaesu-exclusive multi-function LCD display. Additional features include a transmit Time-Out-Timer (TOT), Automatic Power-Off (APO), Automatic Repeater Shift (ARS), plus provision for reduction of the Tx deviation in areas of high channel congestion. And an RF Squelch circuit allows the owner to set the squelch to open at a programmable setting of the S-Meter, thus reducing guesswork in setting the squelch threshold. Congratulations on your purchase of the FT-2800M! Whether this is your first rig, or if Yaesu equipment is already the backbone of your station, the Yaesu organization is committed to ensuring your enjoyment of this high-performance transceiver, which should provide you with many years of satisfying operation. Yaesu’s dealer network and technical support personnel stand behind every product we sell, and we invite you to contact us should you require technical advice or assistance. We recommend that you read this manual in its entirety prior to installing the FT- 2800M, so that you fully understand the capabilities of your new transceiver. FCC ID: K66FT-2800M OPERATING MANUAL Vertex Standard Co., Ltd. 2 Specifications General Frequency Range:Tx 144 - 146 MHz or 144 - 148 MHz Rx 144 - 146 MHz or 137 - 174 MHz Channel Step:5/10/12.5/15/20/25/50/100 kHz Standard Repeater Shift±600 kHz Frequency Stability:better than ±10 ppm [ –4 °F to +140 °F ( – 20 °C to +60 °C)] Mode of Emission:F2/F3 Antenna Impedance:50-ohms, unbalanced Supply voltage:13.8 V DC ±15%, negative ground Current Consumption (typical):Rx: less than 0.7 A, less than 0.3 A (squelched) Tx: 10 A (60 W)/6 A (25 W)/3 A (10 W)/2 A (5 W) Operating Temperature Range:???? Case Size (WxHxD):6.3 x 2.0 x 7.3 inch (160 x 50 x 185 mm) (w/o knobs) Weight (Approx.):4.0 lb (1.8 kg) Transmitter Output Power:60 W/25 W/10 W/5 W Modulation Type:Variable Reactance Maximum Deviation:±5 kHz/±2.5 kHz Spurious Radiation:better than –60 dB Microphone Impedance:2-kohm Receiver Circuit Type:Double Conversion Superheterodyne Ifs:21.7 MHz & 450 kHz Sensitivity (for 12dB SINAD):better than 0.2 μV Selectivity (–6/–60dB):12 kHz/28 kHz IF Rejection:better than 70 dB Image Rejection:better than 70 dB Adjacent Channel Selectivitybetter than 70 dB Inter Modulationbetter than 95 dB Maximum AF Output:3.5 W into 4-ohms @10 % THD Specifications subject to change without notice or obligation. FCC ID: K66FT-2800M OPERATING MANUAL Vertex Standard Co., Ltd. 3 Accessory & Options Supplied Accessories Microphone MH-48A6J 1 Mobile Mounting Bracket MMB-?? 1 DC Power Cord w/Fuse (T9????????) 1 Spare Fuse 15 A (Q????????) 1 Standing Foot (R????????) 2 Operating Manual 1 Warranty Card 1 Optional Accessories ???????? ???????? Installation This chapter describes the installation procedure for integrating the FT-2800M into a typical amateur radio station. It is presumed that you possess technical knowledge and conceptual understanding consistent with your status as a licensed radio amateur. Please take some extra time to make certain that the important safety and technical requirements detailed in this chapter are followed closely. Preliminary Inspection Inspect the transceiver visually immediately upon opening the packing carton. Confirm that all controls and switches work freely, and inspect the cabinet for any damage. Gently shake the transceiver to verify that no internal components have been shaken loose due to rough handling during shipping. If any evidence of damage is discovered, document it thoroughly and contact the shipping company (or your local dealer, if the unit was purchased over-the-counter) so as to get instructions regarding the prompt resolution of the damage situation. Be certain to save the shipping carton, especially if there are any punctures or other evidence of damage incurred during shipping; if it is necessary to return the unit for service or replacement, use the original packing materials but put the entire package inside another packing carton, so as to preserve the evidence of shipping damage for FCC ID: K66FT-2800M OPERATING MANUAL Vertex Standard Co., Ltd. 4 insurance purposes. Installation Tips To ensure long life of the components, be certain to provide adequate ventilation around the cabinet of the FT-2800M. Do not install the transceiver on top of another heat-generating device (such as a power supply or amplifier), and do not place equipment, books, or papers on top of the FT- 2800M. Avoid heating vents and window locations that could expose the transceiver to excessive direct sunlight, especially in hot climates. The FT-2800M should not be used in an environment where the ambient temperature exceeds +60 °C. Safety Information The FT-2800M is an electrical apparatus, as well as a generator of RF (Radio Frequency) energy, and you should exercise all safety precautions as …

Text truncated - open the document above for the full version.

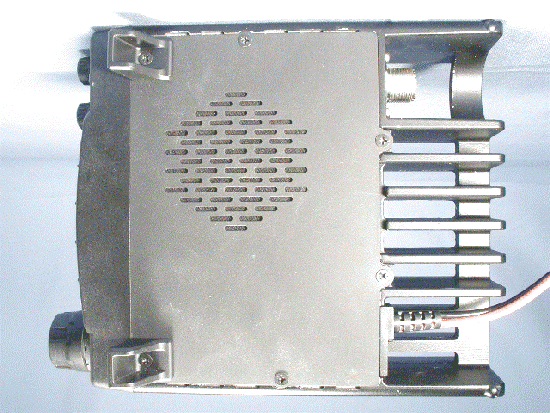

FCC ID: K66FT-2800M Vertex Standard Co., Ltd. Front view Rear view FCC ID: K66FT-2800M Vertex Standard Co., Ltd. Top view Bottom view FCC ID: K66FT-2800M Vertex Standard Co., Ltd. Left side view Right side view

FT-2800MFT-2800M LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. (1:1) (1:2) ID / Part 15.19 and Part 15.121 drawings FT-2800M K66FT-2800M This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNAL IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW. ID drawing Part 15.19 and Part 15.121 drawings FT-2800M K66FT-2800M This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNAL IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW.

FCC ID: K66FT-2800M MFA p02a0001, d02a0023 CERTIFICATION of RECEIVER MODEL: FT-2800M FCC ID: K66FT-2800M to FEDERAL COMMUNICATIONS COMMISSION Part 15.121, Confidentiality DATE OF REPORT: October 31, 2002 ON THE BEHALF OF THE APPLICANT: Vertex Standard Co., Ltd. AT THE REQUEST OF: P.O. UPS 10/22/2002 Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 Attention of: Mikio Maruya, Executive Vice President (800) 255-9237; FAX: (800) 477-9237 (714) 827-7600; FAX: -8100 [email protected] SUPERVISED BY: Morton Flom, P. Eng. FCC ID: K66FT-2800M MFA p02a0001, d02a0023 TABLE OF CONTENTS RULEDESCRIPTIONPAGE 2.948 Description of Measurement Facilities 1 15.109 Receiver Spurious Emissions (Radiated) 6 15.121(b) Scanning Receiver 11 FCC ID: K66FT-2800M MFA p02a0001, d02a0023 PAGE NO.1of12. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d02a0023 d) Client: Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 e) Identification: FT-2800M FCC ID: K66FT-2800M Description: Amateur Transceiver f) EUT Condition: Not required unless specified in individual tests. g) Report Date: October 31, 2002 EUT Received: October 22, 2002 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: K66FT-2800M MFA p02a0001, d02a0023 PAGE NO.2of12. M. Flom Associates, Inc. is accredited by the American Association for Laboratory Association (A2LA) as shown in the scope below. "This laboratory is accredited by the American Association for Laboratory Accreditation (A2LA) and the results shown in this report have been determined in accordance with the laboratory's terms of accreditation unless stated otherwise in the report." Should this report contain any data for tests for which we are not accredited, or which have been undertaken by a subcontractor that is not A2LA accredited, such data would not covered by this laboratory's A2LA accreditation. FCC ID: K66FT-2800M MFA p02a0001, d02a0023 PAGE NO.3of12. GENERAL INFORMATION Part 2.948: (a)(b) DESCRIPTION OF MEASUREMENT FACILITIES: FILE: 31040/SIT A description of the measurement facilities was filed with the Commission and was found to be in compliance with the requirements of Section 2.948, by letter dated March 13, 2000. All pertinent changes will be reported to the Commission by up-date prior to March 2003. (b)(4) SUPPORTING STRUCTURES: SKETCH - ATTACHED EXHIBITS (b)(5)(6) TEST INSTRUMENTATION: LIST - SEE EXHIBITS 2.925: IDENTIFICATION OF AN AUTHORIZED DEVICE: DRAWING - SEE EXHIBITS LOCATION OF LABEL - SEE PHOTOS NAME AND ADDRESS OF APPLICANT : Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan FCC ID: K66FT-2800M MFA p02a0001, d02a0023 PAGE NO.4of12. 2.911: 2.1033(b)(6) TECHNICAL REPORT MANUFACTURER: Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan TRADE NAME: Vertex FCC ID: K66FT-2800M MODEL NO: FT-2800M PHOTOGRAPHS: SEE LIST OF EXHIBITS DUT DESCRIPTION : This unit Passes 15.31: MEASUREMENT STANDARD & PROCEDURE: IEEE STANDARD 187 WAS USED AS A GUIDE. FCC MEASUREMENT PROCEDURE MP-1 x ANSI 63.4 (1992/2000) “Methods of measurement of radio-noise emissions from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz.” FCC ID: K66FT-2800M MFA p02a0001, d02a0023 PAGE NO.5of12. EXPOSITORY STATEMENT 1. NUMBER OF BANDS = 1 2. NUMBER OF CHANNELS = 250 3. TUNING RANGE, MHz = 144 to 146, 137 to 174 4. OSCILLATOR RANGE, MHz = 158.7 to 195.695 5. I.F., MHz = 21.7 6. BLOCK DIAGRAM = ATTACHED 7. For cellular receiver only, the radio transceiver meets the requirements of FCC Bulletin OET 53 ("Cellular System Mobile Stations-Land-System Compatibility Specification."). See attached affidavit. 15.203 : ANTENNA REQUIREMENT: The antenna is permanently attached to the EUT The antenna uses a unique coupling The EUT must be professionally installed x The antenna requirement does not apply SUPERVISED BY: Morton Flom, P. Eng. FCC ID: K66FT-2800M MFA p02a0001, d02a0023 PAGE NO.6of12. NAME OF TEST: Receiver Spurious Emissions (Radiated) SPECIFICATION: 15.109: Radiated Interference Limits 15.33: Frequency Range of Radiated Measurements 80.217: Suppression of Interference Aboard Ships GUIDE: See measurement procedure below TEST CONDITIONS: Standard Temperature & Humidity TEST EQUIPMENT: As per attached page SEARCH ANTENNAS: 100 Hz - 50 MHz: Emco 3301B Active Rod 10 kHz - 32 MHz: Singer 94593-1 Loop 25 MHz - 300 MHz: Emco 3109 Biconical 200 MHz - 1 GHz: Aprel 2001 Log Periodic 1 GHz - 18 GHz: Emco 3115 Horn 10 GHz - 40 GHz: Emco 3116 Horn with HP11970A Mixer MEASUREMENT PROCEDURE 1. At first, bench tests were performed to locate the spurious emissions at the antenna terminals. 2. In the field, tests were conducted over the range shown, The test sample was set up on a wooden turntable above ground, and at a distance of three meters from the antenna connected tot he Spectrum Analyzer. 3. In order to obtain the maximum response at each frequency, the turntable was rotated, and the search antenna was raised and lowered. The EUT was also adjusted for maximum response. Tests were conducted in Horizontal & Vertical polarization modes. 4. The field strength was calculated from: EμV/m@3m=Log 10 -1 (dBμV + A.F. + C.L.) 20 5. MEASUREMENT RESULTS: Attached for "Worst Case" conditions. FCC ID: K66FT-2800M MFA p02a0001, d02a0023 PAGE NO.7of12. RADIATED TEST SETUP NOTES: (a)Search Antenna - Rotatable on boom (b)Non-metallic boom (c)Non-metallic mast (d)Adjustable horizontally (e)Equipment Under Test (f)Turntab…
