1 HF/VHF/UHF ALL MODE TRANSCEIVER FT-857 Operating Manual Introduction The FT-857 is a rugged, innovative multiband, multimode portable transceiver for the amateur radio MF/HF/VHF/UHF bands. Providing coverage of the 160-10 meter bands plus the 6 m, 2 m, and 70 cm bands, the FT-857 includes operation on the SSB, CW, AM, FM, and Digital modes, yielding the most comprehensive performance package available for field operation. Designed for use from (1) an external DC power source, (2) internal battery (requires optional FNB-78 Ni-MH battery pack), the FT-857 provides 100 watts of power output from a 13.8-Volt external power supply or AC operation. When using the optional FNB-78 Ni-MH Battery Pack, the FT-857 automatically switches to 20 Watts (430 MHz:10W) of output power. The multi-function Liquid-Crystal Display includes attractive backlighting, which may be disabled for battery conservation. The display includes bar-graph indication of power output, ALC voltage, SWR, and modulation level. Also include are a number of operating status icons, as well as the function displays for the three operating function keys (A, B, and C). Among the advanced features of the FT-857 are many incorporated only in large base-station transceivers. These include Dual VFOs; Split-Frequency operation; Digital Signal Processing (Bandpass Filtering, Noise Reduction, Notch, and Microphone Equalizer); IF Shift; Clarifier (“R.I.T.”); IF Noise Blanker; AGC Fast/Slow/Auto/Off selection; RF Gain and Squelch control; IPO (Intercept Point Optimization) and a receiver front-end Attenuator; AM Aircraft reception; AM and FM Broadcast reception; U.S. Weather Band reception; VOX; Built-in Electronic Keyer; Adjustable CW Pitch; Automatic FM Repeater Shift (ARS); Built-in CTCSS Encoder/Decoders; ARTS™ (Auto-Range Transponder System); Smart Search™ Automatic Memory Loading System; Spectrum Scope; 200 Memories plus Home Channels and Band- limiting Memories; Alpha-Numeric Labeling of Memories; Automatic Power-Off (APO) and Time-Out Timer (TOT) functions; Computer Interface capability; and Cloning capability. We urge you to read this manual in its entirety, so as to gain a full understanding of the amazing capability of the exciting new FT-857 Transceiver. Specifications General Frequency Range:Receive:0.1-56 MHz, 76-108 MHz, 118-164 MHz, 420-470 MHz 2 Transmit:160 - 6 Meters, 2 Meters, 70 Centimeters (Amateur bands only) Emission Modes:A1 (CW), A3 (AM), A3J (LSB/USB), F3 (FM), F1 (9600 bps packet), F2 (1200 bps packet) Synthesizer Steps (Min.):10 Hz (CW/SSB), 100 Hz (AM/FM/WFM) Antenna Impedance:50 Ohms, Unbalanced (M) Operating Temp. Range:–10 °C to +60 °C Frequency Stability:±4 ppm from 1 min. to 60 min after power on. @25 °C: 1 ppm/hour ±0.5 ppm/1 hour @25 °C, after warmup (with optional TCXO-9) Supply Voltage: Normal: 13.8 VDC ±15 %, Negative Ground FNB-78 (Ni-MH Battery Pack): 13.2 V (Option) Current Consumption:Squelched: 600 mA (Approx.) Receive: 1 A Transmit: 22 A Case Size (W x H x D):200 x 80 x 262 mm Weight (Approx.): 3.9 kg (w/o Ni-MH battery, antenna, Microphone) Transmitter RF Power Output (@13.8 V DC):SSB/CW/FMAM Carrier 160- 6 Meter: 100 W25 W 2 Meter:50 W12.5 W 70 Centimeter:20 W5 W Modulation Types:SSB: Balanced Modulator, AM: Early Stage (Low Level), FM: Variable Reactance FM Maximum Deviation:±5 kHz (FM-N: ±2.5 kHz) Spurious Radiation:–50 dB (1.8-29.7 MHz) –60 dB (50/144/430 MHz) Carrier Suppression:>40 dB Opp. Sideband Suppression:>50 dB SSB Frequency Response:400 Hz-2600 Hz (–6 dB) Microphone Impedance:200-10k Ohms (Nominal: 600 Ohms) Receiver Circuit Type:Double-Conversion Superheterodyne (SSB/CW/AM/FM) 3 Superheterodyne (WFM) Intermediate Frequencies:1st: 68.33 MHz (SSB/CW/AM/FM); 10.7 MHz (WFM) 2nd: 455 kHz Sensitivity:SSB/CWAMFM 100 kHz-1.8 MHz–32 uV– 1.8 MHz-28 MHz0.2 uV2 uV– 28 MHz-30 MHz0.2 uV2 uV0.5 uV 50 MHz-54 MHz0.125 uV1 uV0.2 uV 144/430 MHz0.125 uV–0.2 uV (SSB/CW/AM = 10 dB S/N, FM = 12 dB SINAD) Squelch Sensitivity:SSB/CW/AMFM 100 kHz-1.8 MHz–– 1.8 MHz-28 MHz2.5 uV– 28 MHz-30 MHz2.5 uV0.32 uV 50 MHz-54 MHz1 uV0.16 uV 144/430 MHz0.5 uV0.16 uV Image Rejection:HF/50 MHz: 70 dB, 144/430 MHz: 60 dB IF Rejection:60 dB Selectivity (–6/–60 dB):SSB/CW: 2.2 kHz/4.5 kHz AM: 6 kHz/20 kHz FM: 15 kHz/30 kHz FM-N: 9 kHz/25 kHz SSB (optional YF-122S installed): 2.3 kHz/4.7 kHz (–66 dB) CW (option YF-122C installed): 500 Hz/2.0 kHz AF Output:2.5 W (@4 Ohms, 10% THD or less) AF Output Impedance:4-16 Ohms Specifications are subject to change without notice, and are guaranteed within the amateur bands only. Accessories & Options Supplied Accessories Hand Microphone MH-31A8J DC Power Cord 4 Operating Manual Warranty Card Available Options FP-1030AExternal AC Power Supply (25A) FNB-78 Ni-MH Battery Pack (13.2 V, 4500 mAh) PA-26B/C/UNi-MH Battery Charger CD-24Ni-MH Battery Charger Adapter YF-122S Collins SSB Filter (2.3 kHz/4.7 kHz: –6 dB/–66 dB) YF-122C Collins CW Filter (500 Hz/2 kHz: –6 dB/–60 dB) TCXO-9TCXO Unit (±0.5 ppm) FC-30External Automatic Antenna Tuner ATAS-100Active-Tuning Antenna System ATAS-120Active-Tuning Antenna System ATBK-100VHF/UHF Antenna Base/Counterpoise Kit VL-1000Solid-State Linear Amplifier MD-200A8XDesktop Microphone MH-36E8JDTMF Microphone CT-62CAT Interface Cable CT-39APacket Cable CT-58BAND DATA Cable 5 Installation Power Connections The FT-857 is designed use from (1) an external DC power source, (2) internal battery (requires optional FNB-78 Ni-MH battery pack), or (3) AC power source (requires optional FP-30 Internal AC Power Supply). External DC power source operation The DC power connector for the FT-857 must only be connected to a DC source providing 13.8 Volts DC (±15%), and capable of at least 22 Amperes of current. Always observe proper polarity when making DC connections: The Red DC power lead connects to the Positive (+) DC terminal; and the Black DC power lead connects to the Negative (–) DC terminal. In mobile installations, noise pickup may be minimized by connecting the D…

Text truncated - open the document above for the full version.

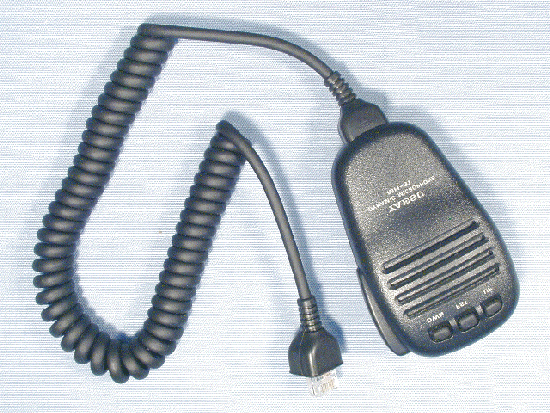

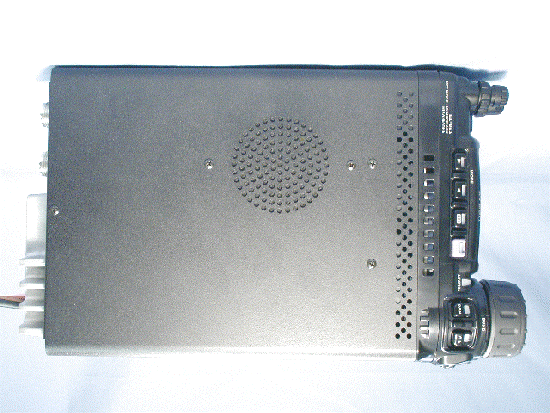

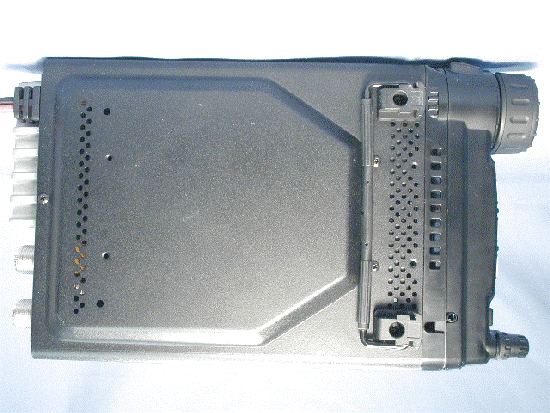

FCC ID: K66FT-857 Vertex Standard Co., Ltd. Front view Rear view FCC ID: K66FT-857 Vertex Standard Co., Ltd. Left side view Right side view FCC ID: K66FT-857 Vertex Standard Co., Ltd. Top view Bottom view FCC ID: K66FT-857 Vertex Standard Co., Ltd. Panel separated Microphone FCC ID: K66FT-857 Vertex Standard Co., Ltd. DC Power cable

FT-857FT-857 LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. (1:1) (1:2) ID / Part 15.19 and Part 15.121 drawings FT-857 K66FT-857 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNAL IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW. ID drawing Part 15.19 and Part 15.121 drawings FT-857 K66FT-857 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNAL IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW.

FCC ID: K66FT-857 MFA p02b0001, d02b0047 CERTIFICATION of RECEIVER MODEL: FT-857 FCC ID: K66FT-857 to FEDERAL COMMUNICATIONS COMMISSION Part 15(B) (New) DATE OF REPORT: November 15, 2002 ON THE BEHALF OF THE APPLICANT: Vertex Standard Co., Ltd. AT THE REQUEST OF : P.O. UPS 11/6/2002 Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 Attention of: Mikio Maruya, Executive Vice President (800) 255-9237; FAX: (800) 477-9237 (714) 827-7600; FAX: -8100 [email protected] SUPERVISED BY: Morton Flom, P. Eng. FCC ID: K66FT-857 MFA p02b0001, d02b0047 TABLE OF CONTENTS RULEDESCRIPTIONPAGE 2.948 Description of Measurement Facilities 1 15.109 Receiver Spurious Emissions (Radiated) 6 15.121(b) Scanning Receiver 11 FCC ID: K66FT-857 MFA p02b0001, d02b0047 PAGE NO.1of12. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d02b0047 d) Client: Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 e) Identification: FT-857 FCC ID: K66FT-857 Description: Amateur Radio f) EUT Condition: Not required unless specified in individual tests. g) Report Date: November 15, 2002 EUT Received: November 6, 2002 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: K66FT-857 MFA p02b0001, d02b0047 PAGE NO.2of12. M. Flom Associates, Inc. is accredited by the American Association for Laboratory Association (A2LA) as shown in the scope below. "This laboratory is accredited by the American Association for Laboratory Accreditation (A2LA) and the results shown in this report have been determined in accordance with the laboratory's terms of accreditation unless stated otherwise in the report." Should this report contain any data for tests for which we are not accredited, or which have been undertaken by a subcontractor that is not A2LA accredited, such data would not covered by this laboratory's A2LA accreditation. FCC ID: K66FT-857 MFA p02b0001, d02b0047 PAGE NO.3of12. GENERAL INFORMATION Part 2.948: (a)(b) DESCRIPTION OF MEASUREMENT FACILITIES: FILE: 31040/SIT A description of the measurement facilities was filed with the Commission and was found to be in compliance with the requirements of Section 2.948, by letter dated March 13, 2000. All pertinent changes will be reported to the Commission by up-date prior to March 2003. (b)(4) SUPPORTING STRUCTURES: SKETCH - ATTACHED EXHIBITS (b)(5)(6) TEST INSTRUMENTATION: LIST - SEE EXHIBITS 2.925: IDENTIFICATION OF AN AUTHORIZED DEVICE: DRAWING - SEE EXHIBITS LOCATION OF LABEL - SEE PHOTOS NAME AND ADDRESS OF APPLICANT : Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan FCC ID: K66FT-857 MFA p02b0001, d02b0047 PAGE NO.4of12. 2.911: 2.1033(b)(6) TECHNICAL REPORT MANUFACTURER: Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan FCC ID: K66FT-857 MODEL NO: FT-857 PHOTOGRAPHS: SEE LIST OF EXHIBITS DUT DESCRIPTION: This unit Passes 15.31 : MEASUREMENT STANDARD & PROCEDURE: IEEE STANDARD 187 WAS USED AS A GUIDE. FCC MEASUREMENT PROCEDURE MP-1 x ANSI 63.4 (1992/2000) “Methods of measurement of radio-noise emissions from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz.” FCC ID: K66FT-857 MFA p02b0001, d02b0047 PAGE NO.5of12. EXPOSITORY STATEMENT 1. NUMBER OF BANDS = 4 2. NUMBER OF CHANNELS = per manual 3. TUNING RANGE, MHz = 100 kHz to 56 76 to 108 118 to 164 420 to 470 4. OSCILLATOR RANGE, MHz = 68.4 - 401.67 5. I.F., MHz = 68.33 6. BLOCK DIAGRAM = ATTACHED 7. For cellular receiver only, the radio transceiver meets the requirements of FCC Bulletin OET 53 ("Cellular System Mobile Stations-Land-System Compatibility Specification."). See attached affidavit. 15.203 : ANTENNA REQUIREMENT: The antenna is permanently attached to the EUT The antenna uses a unique coupling The EUT must be professionally installed x The antenna requirement does not apply SUPERVISED BY: Morton Flom, P. Eng. FCC ID: K66FT-857 MFA p02b0001, d02b0047 PAGE NO.6of12. NAME OF TEST: Receiver Spurious Emissions (Radiated) SPECIFICATION: 15.109: Radiated Interference Limits 15.33: Frequency Range of Radiated Measurements 80.217: Suppression of Interference Aboard Ships GUIDE: See measurement procedure below TEST CONDITIONS: Standard Temperature & Humidity TEST EQUIPMENT: As per attached page SEARCH ANTENNAS: 100 Hz - 50 MHz: Emco 3301B Active Rod 10 kHz - 32 MHz: Singer 94593-1 Loop 25 MHz - 300 MHz: Emco 3109 Biconical 200 MHz - 1 GHz: Aprel 2001 Log Periodic 1 GHz - 18 GHz: Emco 3115 Horn 10 GHz - 40 GHz: Emco 3116 Horn with HP11970A Mixer MEASUREMENT PROCEDURE 1. At first, bench tests were performed to locate the spurious emissions at the antenna terminals. 2. In the field, tests were conducted over the range shown, The test sample was set up on a wooden turntable above ground, and at a distance of three meters from the antenna connected tot he Spectrum Analyzer. 3. In order to obtain the maximum response at each frequency, the turntable was rotated, and the search antenna was raised and lowered. The EUT was also adjusted for maximum response. Tests were conducted in Horizontal & Vertical polarization modes. 4. The field strength was calculated from: EμV/m@3m=Log 10 -1 (dBμV + A.F. + C.L.) 20 5. MEASUREMENT RESULTS: Attached for "Worst Case" conditions. FCC ID: K66FT-857 MFA p02b0001, d02b0047 PAGE NO.7of12. RADIATED TEST SETUP NOTES: (a)Search Antenna - Rotatable on boom (b)Non-metallic boom (c)Non-metallic mast (d)Adjustable horizontally (e)Equipment Under Test (f)Turntable (g)Boom adjustable in height. (h)E…

Text truncated - open the document above for the full version.

FCC ID: K66FT-857 MFA p02b0001, d02b0047 PAGE NO.8of12. TEST SETUP: Radiated Emissions g02b0037: 2002-Nov-13 Wed 14:46:24 STATE: 0:General TEST SETUP: Radiated Emissions g02b0038: 2002-Nov-13 Wed 14:46:24 STATE: 0:General
