DUAL BAND FM TRANSCEIVER FT-8800R OPERATING MANUAL VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. International Division 8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Contents Introduction........................................................1 Specifications......................................................2 Accessories & Options.......................................3 Supplied Accessories.......................................3 Optional Accessories.......................................3 Installation..........................................................4 Preliminary Inspection....................................4 Installation Tips...............................................4 Safety Information...........................................5 Antenna Considerations..................................6 Mobile Installation...........................................8 Transceiver Installation...............................8 Mobile Power Connections........................9 Mobile Speakers..........................................9 Base Station Installation................................10 AC Power Supplies...................................10 Packet Radio Terminal Node Controller.10 Front Panel Controls & Switches..................12 LCD....................................................................16 Rear Panel Connections..................................17 MH-48A6J Microphone.....................................18 MH-42B6JS Microphone...................................19 Basic Operation................................................20 Turning the Transceiver On and Off............20 Adjusting the Squelch Setting......................20 Selecting the Operating Band.......................20 Selecting the Frequency Band......................21 Frequency Navigation...................................22 Tuning Dial................................................22 Direct Keypad Frequency Entry...............22 Scannig......................................................22 Transmission..................................................23 Changing the Transmitter Power Level...23 Advanced Operation.......................................24 Lock Feature..................................................24 Keyboard Beeper...........................................24 Channel Step Selection.................................24 Display Brightness.........................................25 Band Linking.................................................25 Audio Muting.................................................26 RF Squelch.....................................................26 Repeater Operation.........................................27 Repeater Shifts...............................................27 Automatic Repeater Shift (ARS)..................27 Manual Repeater Shift Activation................28 Changing the Default Repeater Shift.......28 CTCSS/DCS Operation..................................29 CTCSS Operation..........................................29 DCS Operation..............................................30 Tone Search Scanning...................................31 Memory Operation..........................................32 Regular Memory Channel Operation...........32 Memory Storage........................................32 Memory Recall..........................................34 Memory Offset Tuning.............................34 Deleting Memories....................................34 HOME Channel Memory.........................35 Memory Bank Operation..........................36 Memory Only Mode..................................36 Hyper Memory Mode....................................37 Hyper Memory Storage.............................37 Hyper Memory Recall...............................37 Scanning............................................................38 Setting the Scan-Resume Technique...........38 VFO Scanning...............................................39 Memory Scanning.........................................40 How to Skip (Omit) a Channel During Memory Scan Operation....40 Preferential Memory Scan........................41 Programmable (Band Limit) Memory Scan..42 “Priority Channel” Scanning (Dual Watch)..43 Smart Search....................................................44 ARTS TM : Auto Range Transponder System....46 Basic ARTS Setup and Operation................46 CW Identifier Setup.......................................47 DTMF Autodialer Operation.........................48 Internet Connection Feature..........................50 Miscellaneous Settings....................................52 Time-Out Timer.............................................52 Automatic Power Off....................................52 Programming the Key Assignment..............53 FM Bandwith & MIC Gain Control.............54 DCS Code Inversionm..................................55 Cross Band Repeater Operation...................56 Reset Procedure...............................................57 Cloning...............................................................58 Menu (“Set”) Mode.........................................59 1FT-8800R Operating Manual INTRODUCTION The FT-8800R is a ruggedly-built, high quality Dual Band FM transceiver providing 50 Watts of power output on the 144 MHz Amateur bands and 35 Watts on the 430 MHz band. The high power output of the FT-8800R is produced by its RD70HVF1 Power MOS FET amplifier, with a direct-flow heat sink and thermostatically-controlled cooling fan maintain- ing a safe temperature for the transceiver’s circuitry. Featuring 1054 memory channels (527 c…

Text truncated - open the document above for the full version.

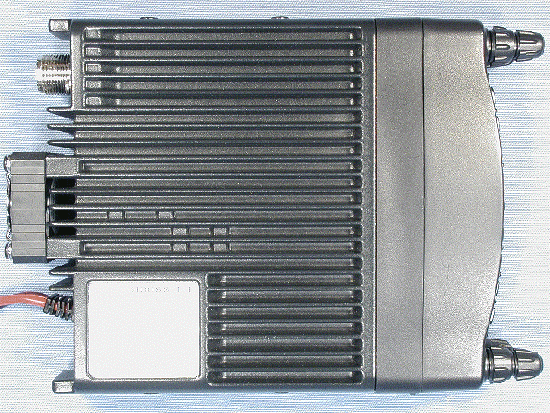

FCC ID: K66FT-8800R Vertex Standard Co., Ltd. Front view Rear view FCC ID: K66FT-8800R Vertex Standard Co., Ltd. Top view Bottom view FCC ID: K66FT-8800R Vertex Standard Co., Ltd. Left side view Right side view FCC ID: K66FT-8800R Vertex Standard Co., Ltd. Sub Panel Rear of Panel FCC ID: K66FT-8800R Vertex Standard Co., Ltd. Microphone DC Cable

FT-8800RFT-8800R LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. (1:1) (1:2) ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location FT-8800R VERTEX STANDARD CO., LTD. MADE IN JAPAN CANADA: xxxx-xxxxxxx FCC ID: K66FT-8800R 4909959000000 SER NO. 00000000 FT-8800R VERTEX STANDARD CO., LTD. MADE IN JAPAN CANADA: xxxx-xxxxxxx FCC ID: K66FT-8800R 4909959000000 SER NO. 00000000 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) this device must accept any interference Including interference that may cause undesired operation. WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SIGNAL IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) this device must accept any interference Including interference that may cause undesired operation. WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SIGNAL IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW.

FCC ID: K66-8800R Alignment Vertex Standard Co., Ltd. 1 Introduction and Precautions The FT-8800R has been carefully aligned at the factory for the specified performance across the 144 MHz and 430 MHz amateur bands. Realignment should therefore not be necessary except in the event of a component failure. All component replacement and service should be performed only by an authorized Yaesu representative, or the warranty policy may be voided. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts are replaced, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by authorized Yaesu service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized Yaesu service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Yaesu must reserve the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and the need for realignment determined to be absolutely necessary. FCC ID: K66-8800R Alignment Vertex Standard Co., Ltd. 2 Required Test Equipment The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. ˆ Regulated DC Power Supply: adjustable from 10 to 17 VDC, 15 A ˆ RF Signal Generator with calibrated output level at 500 MHz ˆ Frequency Counter: ±0.1 ppm accuracy at 500 MHz ˆ AF Signal Generator ˆ SINAD Meter ˆ Oscilloscope ˆ Spectrum Analyzer ˆ Deviation Meter (linear detector) ˆ AF Milivoltmetr ˆ AF Dummy Load: 4-Ohm, 5 W ˆ DC Voltmeter: high impedance ˆ Inline Wattmeter with 5% accuracy at 500 MHz ˆ 50-Ohm non-reactive Dummy Load: 100 watts at 500 MHz ˆ VHF/UHF Sampling Coupler Alignment Preparation & Precautions A dummy load and inline wattmeter must be connected to the main antenna jack in all procedures that call for transmission, except where specified otherwise. Correct alignment is not possible with an antenna. After completing one step, read the following step to determine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, if connected) before proceeding. Correct alignment requires that the ambient temperature in the repair shop be the same as that of the transceiver and test equipment, and that this temperature be held constant between 20 °C and 30 °C (68 °C ~ 86 °F). When the transceiver is brought into the shop from hot or cold air it should be allowed some time for thermal equalization with the environment before alignment. If possible, alignments should be made with FCC ID: K66-8800R Alignment Vertex Standard Co., Ltd. 3 oscillator shields and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning. Notes: Signal levels in dB referred to in alignment are based on 0 dBμ = 0.5 μV. All items tune and/or adjust by Auto-Tuning Mode or Manual Tuning Mode. PLL Reference Frequency ˆ With the wattmeter, dummy load and frequency counter connected to the antenna jack. ˆ Tune the transceiver 435.05 MHz (Main-Band) / 868.95 MHz (Sub-Band) and set the TX power level to low power mode. ˆ Key the transceiver, adjust the counter frequency is within ±100 Hz of 435.05 MHz. Transmitter Deviation ˆ With the wattmeter, dummy load and deviation meter connected to the antenna jack. ˆ Inject a 1 kHz audio signal as a level of 80 mV to pin 5 of the MIC jack (pin 4 is Ground). ˆ Key the transmitter on 146.05/440.05 MHz. Adjust the frequency deviation is within 4.0-4.4 KHz on the deviation meter. CTCSS Deviation ˆ With the wattmeter, dummy load and deviation meter connected to the antenna jack. ˆ Key the transmitter on 146.05/440.05 MHz. Adjust the frequency deviation is within 0.65-0.75 KHz on the deviation meter. DCS Deviation ˆ With the wattmeter, dummy load and deviation meter connected to the antenna jack. ˆ Key the transmitter on 146.05/440.05 MHz. Adjust the frequency deviation is within 0.50-0.60 KHz on the deviation meter. FCC ID: K66-8800R Alignment Vertex Standard Co., Ltd. 4 Transmitter Power ˆ With the power meter, dummy load and deviation meter connected to the antenna jack. ˆ Key the transmitter on 146.05 / 440.05 MHz. Adjust the output power is within 50 ±0.5 W (144 MHz) / 35 ±0.5 W (430MHz) on the power meter. (HI) ˆ Key the transmitter on 146.05 / 440.05 MHz. Adjust the output power is within 20 ±0.5 W on the power meter. (MID2) ˆ Key the transmitter on 146.05 / 440.05 MHz. Adjust the output power is within 10 ±0…

Text truncated - open the document above for the full version.

1 / 5 Address Device name DescriptionApplication [MAIN-UNIT] D 1001 DiodeRLS135Antenna Switch D 1002 Diode1SS302Antenna Switch D 1003 DiodeRLS135Antenna Switch D 1004 Varactor Diode HVC358BBPF Tune D 1005 Varactor Diode HVC358BBPF Tune D 1006 Varactor Diode HVC358BBPF Tune D 1007 DiodeHSC277Switch D 1008 DiodeHSC277Switch D 1009 Varactor Diode HVC358BBPF Tune D 1010 Varactor Diode HVC358BBPF Tune D 1011 Varactor Diode HVC358BBPF Tune D 1012 Varactor Diode HVC1311st Mixer D 1013 Varactor Diode HVC1311st Mixer D 1016 Varactor Diode HVC365BPF Tune D 1017 Varactor Diode HVC365BPF Tune D 1018 Varactor Diode HVC365BPF Tune D 1019 Varactor Diode HVC365BPF Tune D 1020 Varactor Diode HVC365BPF Tune D 1021 Varactor Diode HVC365BPF Tune D 1022 DiodeHSC277Switch D 1024 DiodeDAN222Switch D 1025 Diode1SS302Switch D 1026 Diode1SS302Switch D 1027 DiodeHSC277Switch D 1028 DiodeHSC277Switch D 1029 DiodeHSC2771st Mixer D 1032 DiodeMA2S728AM Detect D 1033 DiodeDAN222Switch D 1034 DiodeDAN222Switch D 1035 DiodeDAN222Switch D 1036 DiodeDAN222Switch D 1037 DiodeDAN222Switch D 1038 DiodeDA221Comparate D 1039 DiodeDA221Comparate D 1042 Zener Diode P6KA18Protect D 1043 DiodeMA2S111Switch D 1044 DiodeD1F205V Regulator D 1045 DiodeMA2S111Reset D 1046 DiodeMA2S111Reset D 1048 DiodeDAP222Switch D 1049 DiodeDAP222Switch D 1050 DiodeMA2S111Switch D 1051 DiodeMA2S111Switch D 1052 DiodeDAP222Switch D 1053 DiodeDAP222Switch D 1054 DiodeDAP222Switch D 1056 Varactor Diode HVC365REF Control D 1057 Varactor Diode HVC365REF Control D 1058 Varactor Diode HVC350BREF Control D 1059 Varactor Diode HVC365REF Control D 1060 DiodeDA221Temp. Control D 1061 DiodeUDZ5.18Charge Pump D 1062 Varactor Diode HVC365REF Control D 1063 Varactor Diode HVC365REF Control D 1064 Varactor Diode HVC365REF Control D 1065 Varactor Diode HVC365REF Control D 1066 DiodeDA221Temp. Control D 1067 DiodeUDZ5.18Charge Pump D 1069 Varactor Diode HVC375BUHF-B VCO D 1070 Varactor Diode HVC350BUHF-B VCO D 1071 DiodeHSC277UHF-B VCO D 1072 DiodeHSC2771st Mixer D 1073 DiodeHSC277Switch Com ponent Application FCC ID: K66FT-8800R Vertex Standard Co., Ltd. 2 / 5 Address Device name DescriptionApplication Com ponent Application FCC ID: K66FT-8800R D 1074 DiodeHSC2771st Mixer D 1075 DiodeHSC277Switch D 1076 Varactor Diode HVC365VHF-B VCO D 1077 Varactor Diode HVC365VHF-B VCO D 1078 DiodeHSC277VHF-B VCO D 1079 DiodeHSC277Switch D 1080 DiodeHSC277Switch D 1081 DiodeMA2S111Switch D 1082 Varactor Diode HVC358BUHF-A VCO D 1083 Varactor Diode HVC358BUHF-A VCO D 1084 DiodeHSC277Switch D 1085 Varactor Diode HSC2771st Mixer D 1086 DiodeHVC365VHF-A VCO D 1087 Varactor Diode HVC365VHF-A VCO D 1088 DiodeHSC277VHF-A VCO D 1089 DiodeHSC277Switch D 1091 DiodeMA2S111Switch D 1092 DiodeDAN222Switch D 1093 Varactor Diode HVC300ATX50-29 VCO D 1094 DiodeHSC277TX50-29 VCO D 1095 DiodeHSC277Switch D 1096 DiodeHSC277Switch D 1097 Varactor Diode HVC365RX50-29 VCO D 1098 Varactor Diode HVC362RX50-29 VCO D 1099 DiodeMA2S111Switch D 1100 DiodeDAN222Switch D 1102 DiodeUM9957FAntenna Switch D 1103 DiodeMA2S728UHF APC Detect D 1104 DiodeUM9957FAntenna Switch D 1105 DiodeMA2S728UHF APC Detect D 1106 DiodeMA2S728Reverse APC Detect D 1107 DiodeMA2S728Reverse APC Detect D 1108 DiodeDAN222VHF APC Detect D 1109 DiodeMA2S111Switch D 1110 DiodeMA2S111Switch D 1112 DiodeHSC277VHF APC Detect D 1113 DiodeMA2S111Switch D 1114 DiodeMA2S728VHF APC Detect D 1115 DiodeMA2S728VHF APC Detect D 1116 DiodeMA2S111Switch D 1117 DiodeMA2S111Switch D 1118 DiodeHSC27750 APC Detect D 1119 DiodeMA2S72850 APC Detect D 1120 DiodeMA2S72829 APC Detect D 1121 DiodeMA2S72850 APC Detect D 1122 DiodeMA2S72829 APC Detect D 1123 DiodeMA2S111Switch D 1125 DiodeDAN222Switch D 1126 DiodeDAN222Switch D 1127 DiodeDAN235ESwitch D 1128 DiodeDAN235ESwitch D 1132 DiodeUM9957FSwitch D 1133 DiodeRLS135Switch D 1134 DiodeHSC277Switch D 1135 Zener Diode HZM13N8212.5V Regulator D 1136 DiodeMA2S111Switch D 1138 DiodeHSC277Switch D 1139 DiodeHSC277Switch D 1140 DiodeHSC277Switch D 1141 DiodeHSC277Switch D 1142 DiodeHSC277Switch D 1144 DiodeHSC277Switch D 1145 DiodeHSC277Switch D 1146 DiodeUM9957FAntenna Switch Vertex Standard Co., Ltd. 3 / 5 Address Device name DescriptionApplication Com ponent Application FCC ID: K66FT-8800R D 1147 DiodeDAN222Switch Q 1001 FET3SK296ZQUHF-A RF Amplifier Q 1002 FET3SK296ZQUHF-B RF Amplifier Q 1003 FET3SK296ZQUHF-B 1st Mixer Q 1004 FET3SK296ZQUHF-A 1st Mixer Q 1005 Transistor 2SC5006300 1st Mixer Q 1006 FET3SK296ZQVHF-A RF Amplifier Q 1007 FET3SK296ZQVHF-B RF Amplifier Q 1008 FET3SK296ZQUHF-A 1st Mixer Q 1010 FET3SK296ZQVHF-A 1st Mixer Q 1011 Transistor 2SC537450 RF Amplifier Q 1012 Transistor 2SC537429 RF Amplifier Q 1013 Transistor 2SC5006800 RF Amplifier Q 1014 Transistor 2SC5006800 1st Mixer Q 1015 FET3SK296ZQ29/50 1st Mixer Q 1016 Transistor RT1N441USwitch Q 1017 Transistor 2SC4400-4Buffer Amplifier Q 1018 ICTA31136FNRX-A IF Subsystem Q 1019 Transistor 2SC4400-4Buffer Amplifier Q 1020 Transistor RT1N441USwitch Q 1021 Transistor 2SC4617RAGC Amplifier Q 1022 Transistor 2SC4617RAM Amplifier Q 1023 Transistor 2SC4617RAM Amplifier Q 1024 ICTA31136FNRX-B IF Subsystem Q 1025 ICNJM2902VBPF Tune / LPF Q 1026 Transistor 2SC4400-4Buffer Amplifier Q 1027 Transistor 2SC4400-4Buffer Amplifier Q 1028 Transistor RT1N441USwitch Q 1030 Transistor RT1N441USwitch Q 1031 Transistor RT1N441USwitch Q 1032 Transistor RT1N441USwitch Q 1033 ICNJM2902VLPF / Comparate Q 1034 ICNJM2902VLPF / Comparate Q 1035 Transistor RT1N441USwitch Q 1036 Transistor 2SC4617RSwitch Q 1037 Transistor 2SC4617RSwitch Q 1038 Transistor RT1N441USwitch Q 1039 Transistor RT1N441USwitch Q 1040 Transistor RT1N441USwitch Q 1041 Transistor RT1N441USwitch Q 1042 ICM51132FPAF VR Q 1043 Transistor CPH6102Switch Q 1044 Transistor RT1N441USwitch Q 1045 ICLA4425AAF PA Q 1046 ICTC4W66FUSwitch Q 1047 ICTC4W66FUSwitch Q 1050 ICTDA7233DAF PA Q 1051 ICBU4066BCFVSwitch Q 1052 Transistor RT1N441USwitch Q 1053 Transistor RT1N441USwitch Q 1054 ICNJM2902VBuffer Amplifier / LPF / 9600bps …

Text truncated - open the document above for the full version.

FCC ID: K66FT-8800R C E R T I F I C A T I O N of RECEIVER MODEL: FT-8800R FCC ID: K66FT-8800R to FEDERAL COMMUNICATIONS COMMISSION Part 15(B) (New) DATE OF REPORT: April 8, 2003 ON THE BEHALF OF THE APPLICANT: Vertex Standard Co., Ltd. AT THE REQUEST OF : P.O. UPS 04/01/2003 Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 Attention of: Mikio Maruya, Executive Vice President (800) 255-9237; FAX: (800) 477-9237 (714) 827-7600; FAX: -8100 [email protected] SUPERVISED BY: Morton Flom, P. Eng. MFA p0340002, d0340009 FCC ID: K66FT-8800R TABLE OF CONTENTS RULE DESCRIPTION PAGE 2.948 Description of Measurement Facilities 1 15.109 Receiver Spurious Emissions (Radiated) 6 15.121(b) Scanning Receiver 12 MFA p0340002, d0340009 FCC ID: K66FT-8800R PAGE NO. 1 of 13. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0340009 d) Client: Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 e) Identification: FT-8800R FCC ID: K66FT-8800R Description: Amateur Scanning Receiver f) EUT Condition: Not required unless specified in individual tests. g) Report Date: April 8, 2003 EUT Received: April 1, 2003 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. MFA p0340002, d0340009 FCC ID: K66FT-8800R PAGE NO. 2 of 13. M. Flom Associates, Inc. is accredited by the American Association for Laboratory Association (A2LA) as shown in the scope below. "This laboratory is accredited by the American Association for Laboratory Accreditation (A2LA) and the results shown in this report have been determined in accordance with the laboratory's terms of accreditation unless stated otherwise in the report." Should this report contain any data for tests for which we are not accredited, or which have been undertaken by a subcontractor that is not A2LA accredited, such data would not covered by this laboratory's A2LA accreditation. MFA p0340002, d0340009 FCC ID: K66FT-8800R PAGE NO. 3 of 13. GENERAL INFORMATION Part 2.948: (a)(b) DESCRIPTION OF MEASUREMENT FACILITIES: FILE: 31040/SIT A description of the measurement facilities was filed with the Commission and was found to be in compliance with the requirements of Section 2.948, by letter dated March 13, 2000. All pertinent changes will be reported to the Commission by up-date prior to March 2003. (b)(4) SUPPORTING STRUCTURES: SKETCH - ATTACHED EXHIBITS (b)(5)(6) TEST INSTRUMENTATION: LIST - SEE EXHIBITS 2.925: IDENTIFICATION OF AN AUTHORIZED DEVICE: DRAWING - SEE EXHIBITS LOCATION OF LABEL - SEE PHOTOS NAME AND ADDRESS OF APPLICANT : Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan MFA p0340002, d0340009 FCC ID: K66FT-8800R PAGE NO. 4 of 13. 2.911: 2.1033(b)(6) TECHNICAL REPORT MANUFACTURER: Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan TRADE NAME: Vertex FCC ID: K66FT-8800R MODEL NO: FT-8800R PHOTOGRAPHS: SEE LIST OF EXHIBITS DUT DESCRIPTION : This unit Passes 15.31: MEASUREMENT STANDARD & PROCEDURE: IEEE STANDARD 187 WAS USED AS A GUIDE. FCC MEASUREMENT PROCEDURE MP-1 x ANSI 63.4 (1992/2000) “Methods of measurement of radio-noise emissions from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz.” MFA p0340002, d0340009 FCC ID: K66FT-8800R PAGE NO. 5 of 13. EXPOSITORY STATEMENT 1. NUMBER OF BANDS =2 2. NUMBER OF CHANNELS =5000 + 3. TUNING RANGE, MHz =108 to 520 700 to 999.995 4. OSCILLATOR RANGE, MHz =189.05 to 193.05 384.95 to 404.95 5. I.F., MHz =45.05, 47.05 6. BLOCK DIAGRAM =ATTACHED 7. For cellular receiver only, the radio transceiver meets the requirements of FCC Bulletin OET 53 ("Cellular System Mobile Stations-Land-System Compatibility Specification."). See attached affidavit. 15.203 : ANTENNA REQUIREMENT: The antenna is permanently attached to the EUT The antenna uses a unique coupling The EUT must be professionally installed x The antenna requirement does not apply David Lee PERFORMED BY: MFA p0340002, d0340009 FCC ID: K66FT-8800R PAGE NO. 6 of 13. NAME OF TEST: Receiver Spurious Emissions (Radiated) SPECIFICATION: 15.109: Radiated Interference Limits 15.33: Frequency Range of Radiated Measurements 80.217: Suppression of Interference Aboard Ships GUIDE: See measurement procedure below TEST CONDITIONS: Standard Temperature & Humidity TEST EQUIPMENT: As per attached page SEARCH ANTENNAS: 100 Hz - 50 MHz: Emco 3301B Active Rod 10 kHz - 32 MHz: Singer 94593-1 Loop 25 MHz - 300 MHz: Emco 3109 Biconical 200 MHz - 1 GHz: Aprel 2001 Log Periodic 1 GHz - 18 GHz: Emco 3115 Horn 10 GHz - 40 GHz: Emco 3116 Horn with HP11970A Mixer MEASUREMENT PROCEDURE 1. At first, bench tests were performed to locate the spurious emissions at the antenna terminals. 2. In the field, tests were conducted over the range shown, The test sample was set up on a wooden turntable above ground, and at a distance of three meters from the antenna connected tot he Spectrum Analyzer. 3. In order to obtain the maximum response at each frequency, the turntable was rotated, and the search antenna was raised and lowered. The EUT was also adjusted for maximum response. Tests were conducted in Horizontal & Vertical polarization modes. 4. The field strength was calculated from: E μV/m @ 3 m = Log -1 (dBμV + A.F. + C.L.) 10 20 5. MEASUREMENT RESULTS: Attached for "Worst Case" conditions. MFA p0340002, d0340009 FCC ID: K66FT-8800R PAGE NO. 7 of 13. RADIATED TEST SETUP NOTES: (a)Search Antenna - Rotatable on boom (b) Non-metallic boom (c) Non-metallic mast (d) Adjustable horizontally (e) Equipment …

Text truncated - open the document above for the full version.

FCC ID: K66FT-8800R PAGE NO. 8 of 13. TEST SETUP: Radiated Emissions MFA p0340002, d0340009
