FCC ID: K66FT-897 Operating Manual Vertex Standard Co., Ltd. 1 Introduction The FT-897 is a rugged, innovative multiband, multimode portable transceiver for the amateur radio MF/HF/VHF/UHF bands. Providing coverage of the 160-10 meter bands plus the 6 m, 2 m, and 70 cm bands, the FT-897 includes operation on the SSB, CW, AM, FM, and Digital modes, yielding the most comprehensive performance package available for field operation. Designed for use from (1) an external DC power source, (2) internal battery (requires optional FNB-78 Ni-MH battery pack), or (3) AC power source (requires optional FP-30 External AC Power Supply), the FT-897 provides 100 watts of power output from a 13.8-Volt external power supply or AC operation. When using the optional FNB-78 Ni- MH Battery Pack, the FT-897 automatically switches to 25 Watts of output power. The multi-function Liquid-Crystal Display includes various backlighting, which may be disabled for battery conservation. The display includes bar-graph indication of power output, ALC voltage, SWR, and modulation level. Also include are a number of operating status icons, as well as the function displays for the three operating function keys (A, B, and C). Among the advanced features of the FT-897 are many incorporated only in large base- station transceivers. These include Dual VFOs; Split-Frequency operation; Digital Signal Processing (Bandpass Filtering, Noise Reduction, Notch, and Microphone Equalizer); IF Shift; Clarifier (“R.I.T.”); IF Noise Blanker; AGC Fast/Slow/Auto/Off selection; RF Gain and Squelch control; IPO (Intercept Point Optimization) and a receiver front-end Attenuator; AM Aircraft reception; AM and FM Broadcast reception; VOX; Built-in Electronic Keyer; Adjustable CW Pitch; Automatic FM Repeater Shift (ARS); Built-in CTCSS Encoder/Decoders; ARTS™ (Auto-Range Transponder System); Smart Search™ Automatic Memory Loading System; Spectrum Scope; 200 Memories plus Home Channels and Band-limiting Memories; Alpha-Numeric Labeling of Memories; Automatic Power-Off (APO) and Time-Out Timer (TOT) functions; Computer Interface capability; and Cloning capability. We urge you to read this manual in its entirety, so as to gain a full understanding of the amazing capability of the exciting FT-897 Transceiver. FCC ID: K66FT-897 Operating Manual Vertex Standard Co., Ltd. 2 Specifications General Frequency Range:Receive:100 kHz-56 MHz 76 MHz-108 MHz 118 MHz-164 MHz 420 MHz-470 MHz Transmit: 160 - 6 Meters 2 Meters 70 Centimeters (Amateur bands only) 5.1675 MHz Alaska Emergency Frequency (USA only) Emission Modes:A1 (CW), A3 (AM), A3J (LSB/USB), F3 (FM), F1 (9600 bps packet), F2 (1200 bps packet) Synthesizer Steps (Min.):10 Hz (CW/SSB), 100 Hz (AM/FM/WFM) Antenna Impedance:50 Ohms, Unbalanced (M) Operating Temp. Range:-10 °C to +60 °C (+14 °F to +140 °F) Frequency Stability:4 ppm from 1 min. to 60 min after power on. @25 °C: 1 ppm/hour 0.5 ppm/1 hour @25 °C, after warmup (with optional TCXO-9) Supply Voltage: Normal: 13.8 VDC15 %, Negative Ground Current Consumption:Squelched: 500 mA (Approx.) Receive: 1 A Transmit: 22 A Case Size:???” x ??” x ??” (??? (W) x ??? (H) x ??? (D) mm) Weight (Approx.):? kg (w/Alkaline battery, antenna, w/o Microphone) Transmitter RF Power Output:HF-50MHz:100 W (SSB/CW/FM), 25 W (AM Carrier) @13.8 V DC144MHz:50 W (SSB/CW/FM), 12.5 W (AM Carrier) 430MHz:20 W (SSB/CW/FM), 5 W (AM Carrier) Modulation Types:SSB: Balanced Modulator AM: Early Stage (Low Level) FM: Variable Reactance FM Maximum Deviation:5 kHz (FM-N: 2.5 kHz) FCC ID: K66FT-897 Operating Manual Vertex Standard Co., Ltd. 3 Spurious Radiation:-50 dB (1.8-29.7 MHz) -60 dB (50/144/430 MHz) Carrier Suppression:>40 dB Opp. Sideband Suppression: >50 dB SSB Frequency Response:400 Hz-2600 Hz (-6 dB) Microphone Impedance:200-10k Ohms (Nominal: 600 Ohms) Receiver Circuit Type:Double-Conversion Superheterodyne Intermediate Frequencies:1 st : 68.33 MHz (SSB/CW/AM/FM); 10.7 MHz (WFM) 2 nd : 455 kHz Sensitivity: SSB/CWAM FM 100 kHz-1.8Hz-32 μV- 1.8 MHz-28 MHz0.2 μV2 μV- 28 MHz-30 MHz0.2 μV2 μV0.5 μV 50 MHz-54 MHz0.125 μV1 μV0.2 μV 144/430 MHz0.125 μV-0.2 μV (SSB/CW/AM = 10 dB S/N, FM = 12 dB SINAD) Squelch Sensitivity:SSB/CW/AM FM 100 kHz-1.8Hz-- 1.8 MHz-28 MHz2.5 μV- 28 MHz-30 MHz2.5 μV0.32 μV 50 MHz-54 MHz1 μV0.16 μV 144/430 MHz0.5 μV0.16 μV Image Rejection:HF/50 MHz: 70 dB 144/430 MHz: 60 dB IF Rejection:60 dB Selectivity (-6/-60 dB):SSB/CW: 2.2 kHz/4.5 kHz AM: 6 kHz/20 kHz FM: 15 kHz/30 kHz FM-N: 9 kHz/25 kHz CW-N (option): 500 Hz/2.0 kHz AF Output:2.5 W (@4 Ohms, 10% THD or less) AF Output Impedance:4-16 Ohms FCC ID: K66FT-897 Operating Manual Vertex Standard Co., Ltd. 4 A CCESSORIES & O PTIONS Supplied Accessories Available Options FP-30External AC Power Supply FNB-78 Ni-MH Battery Pack (13.2 V, 4800 mAh) PA-26B/C/UNi-MH Battery Charger YF-122S Collins SSB Filter (2.3 kHz/4.7 kHz: -6 dB/-66 dB) YF-122CCollins CW Filter (500 Hz/2 kHz: -6 dB/-60 dB) TCXO-9TCXO Unit (±0.5 ppm) FC-30External Automatic Antenna Tuner ATAS-120Active-Tuning Antenna System ATBK-100Antenna Base Kit ATAS-25 VL-1000Solid-State Linear Amplifier MD-200 A8X Desktop Microphone MH-36 E8J DTMF Microphone CT-62CAT Interface Cable CT-39APacket Cable CT-58BAND DATA Cable FCC ID: K66FT-897 Operating Manual Vertex Standard Co., Ltd. 5 Installation Power Connections The FT-897 is designed use from (1) an external DC power source, (2) internal battery (requires optional FNB-78 Ni-MH battery pack), or (3) AC power source (requires optional FP-30 External AC Power Supply). External DC power source operation The DC power connector for the FT-897 must only be connected to a DC source providing 13.8 Volts DC (±15%), and capable of at least 22 Amperes of current. Always observe proper polarity when making DC connections: The Red DC power lead connects to the Positive (+) DC terminal; and The Black DC power lead connects to the Negative (–) DC terminal. In mobile installations, noise pickup may be minimized by connecting the DC…

Text truncated - open the document above for the full version.

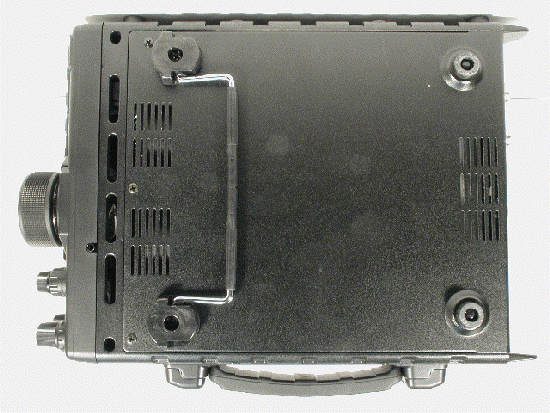

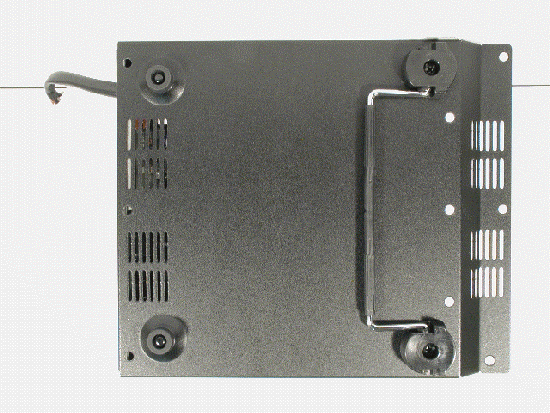

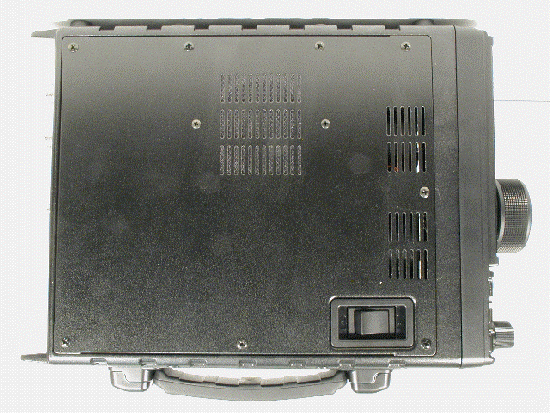

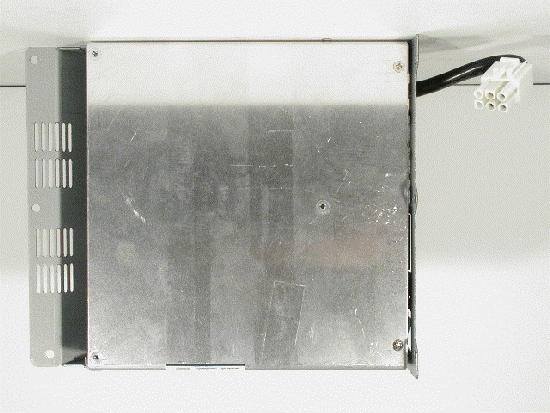

FCC ID: K66FT-897 Vertex Standard Co., Ltd. Front view Rear view without DC Power Supply FCC ID: K66FT-897 Vertex Standard Co., Ltd. Rear view with DC Power Supply Left side view FCC ID: K66FT-897 Vertex Standard Co., Ltd. Right side view Top view FCC ID: K66FT-897 Vertex Standard Co., Ltd. Bottom view Top of DC Power Supply FCC ID: K66FT-897 Vertex Standard Co., Ltd. Bottom of DC Power Supply

66 3030 3232 1 6 1 6 4 - R 1 4 - R 1 4 - R 1 4 - R 1 CANADA: •–•–•–•@•–•–•–•@•–•–•–•–CANADA: •–•–•–•@•–•–•–•@•–•–•–•– FCC ID:K66FT-897FCC ID:K66FT-897 FT-897FT-897 VERTEX STANDARD CO.,LTD.VERTEX STANDARD CO.,LTD.MADE IN JAPANMADE IN JAPAN SER. NO. 00000000SER. NO. 00000000 788026084890788026084890 PROHIBITED UNDER FCC RULES AND FEDERAL LAW.PROHIBITED UNDER FCC RULES AND FEDERAL LAW. WARNING:MODIFICATION OF THIS DEVICE TO RECEIVEWARNING:MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNALS ISCELLULAR RADIOTELEPHONE SERVICE SIGNALS IS 3 5 3 5 4040 22 RR 22 CC 3535 2 1 . 8 2 1 . 8 3 6 . 4 3 6 . 4 41.441.4 FCC LABEL LOCATION LEFT SIDE PANEL

FCC ID: K66FT-897 Alignment Vertex Standard Co., Ltd. 1 FT-897 Alignment Local Oscillator Adjustment Reference Frequency Adjustment a. Connect a frequency counter to TP1032. b. Adjust the trimmer capacitor (TC5001) for 67.875000MHz ±5Hz on the frequency counter. c. Connect a RF millivoltmeter or an oscilloscope to the J5002 2pin (TP1032) and confirm that the output level is at least 70mVrms or 200mVp-p. PLL Adjustment VCO VCV Adjustment a. Connect a DC voltmeter to J2002 6pin (TP1028) and referring to the table below, tune the transceiver to each frequency listed. Then confirm that the correct voltage is present, or adjust the listed components for the required voltage. Tune to :Adjust / ConfirmFor 13.895MHzAdjust T20015.5V ±0.5V 76.000MHzConfirmAt least 0.8V 32.995MHzAdjust T20025.5V ±0.5V 13.900MHzConfirmAt least 0.8V 55.995MHzAdjust T20035.5V ±0.1V 88.000MHzConfirmAt least 0.8V 163.995MHzAdjust L20105.5V ±0.1V 108.000MHzConfirmAt least 0.8V 469.995MHzAdjust L20115.5V ±0.1V 420.000MHzConfirmAt least 0.8V 1 st Local Output Level a. Connect a RF millivoltmeter to J2002 11pin and tune the transceiver to 28.000MHz. b. Confirm that the RF level is at least +3dBm or 300mVrms. PLL Unlock a. Connect a DC voltmeter to J2002 1pin (TP1027). b. When the reference input is not activated, the voltmeter shows less than 0.5V and “UNLOCK” is displayed on the LCD. c. When the reference input is activated, the voltmeter shows at least 3.5V and LCD displays as it normally should do. Idling Current Adjustment Before alignment, set the mode on CW and tune the transceiver to 1.800MHz. FCC ID: K66FT-897 Alignment Vertex Standard Co., Ltd. 2 Nothing should be connected to the CW Key Jack. Switch off the S1001. Pre-Driver Stage Idling Current a. Connect an ammeter at TP1019 and TP1010. b. Press the PTT and adjust VR1004 for an indication of 30mA ±2mA on the ammeter. Driver Stage Idling Current a. Connect an ammeter at TP1007 and TP1008. b. Press the PTT and adjust VR1003 for an indication of 20mA ±2mA on the ammeter. Exciter Stage Idling Current a. Connect an ammeter at J1004. b. Turn both VR5401 and VR5402 fully to counterclockwise. c. Press the PTT and adjust VR1002 for an indication of 100mA ±10mA on the ammeter. d. Press the PTT and adjust VR1001 for an indication of 200mA ±10mA on the ammeter. e. Connect the J1004 and switch on the S1001. Local Oscillator Adjustment 2 nd Local Adjustment a. Connect a RF millivoltmeter or an oscilloscope to Q1038 5pin (TP1067). b. Adjust T1024 and T1026 alternately for the maximum indication on the millivoltmeter or for the maximum amplitude on the oscilloscope. c. Confirm the indicated voltage is at least 120mVrms or 330mVp-p. 3ad Local Adjustment a. Connect a RF millivoltmeter or an oscilloscope to Q1055 5pin (T1087). b. Key the transceiver on CW mode and adjust T1021 for the maximum indication on the RF millivoltmeter. c. Confirm that the indicated voltage is at least 70mVrms or 200mVp-p. TX IF Adjustment SSB/CW TX IF Adjustment a. Tune the frequency to 14MHz band. Connect a RF millivoltmeter to TP1033 and J1002 terminated by 50Ω dummy load. b. Key the transmitter and adjust T1033, T1023, and T1021 alternately for the maximum indication on the RF millivoltmeter. FM TX IF Adjustment a. Tune the frequency to 28MHz band. Connect a RF millivoltmeter to TP1033 and J1002 terminated by a 50Ω dummy load. FCC ID: K66FT-897 Alignment Vertex Standard Co., Ltd. 3 b. Key the transmitter by FM mode and adjust T1014 for the maximum indication on the RF millivoltmeter. c. Connect a frequency counter to TP1008. d. Key the transmitter on FM mode without microphone input. Adjust L1049 for 68.3300MHz ±100Hz. Carrier Balance Adjustment a. Terminate J1002 by a 50ohm dummy load and connect a spectrum analyzer or a RF millivoltmeter. b. Key the transmitter on USB mode in 14MHz band without microphone input. Adjust VR1005 for the maximum carrier suppression on the spectrum analyzer or for the minimum indication on the RF millivoltmeter. VHF TX BPF Adjustment a. Set the frequency at 145.995MHz. Connect RF millivoltmeter to J1002 terminated by a 50ohm dummy load. b. Key the transceiver on FM mode and adjust T1013, T1012, and T1011 alternately for the minimum indication on RF millivoltmeter. UHF TX BPF Adjustment a. Set the frequency at 439.995MHz. Connect a RF millivoltmeter to J1002 terminated by a 50ohm dummy load. b. Key the transceiver on FM mode and adjust TC1004, TC1003 and TC1002 alternately for the minimum indication on RF millivoltmeter. RX Adjustment PA Unit must be connected in RX adjustment. Signal Generator should not be connected to J1003 directly because DC voltage comes on there. RX IF Adjustment Connect a signal generator to the antenna connector and a SINAD meter to the speaker jack. SSB IF Adjustment a. Connect a DC voltmeter to TP1063. b. Tune the transceiver to 51.995MHz. Inject a RF signal from a signal generator at 40dBu output. c. Adjust T1024, T102, T1028, T1030, T1035, T1036, T1037, T1034 and T1029 alternately for the minimum indication on the DC voltmeter. FM IF Adjustment a. Tune the transceiver to 51.995MHz. Inject a RF signal from a signal generator at 10dBu FCC ID: K66FT-897 Alignment Vertex Standard Co., Ltd. 4 output, 1KHz AF FM modulation of 3.5KHz deviation. b. Adjust T1024, T1026, and T1028 alternately for the best SINAD sensitivity. c. Increase the output level of the signal generator up to 12dBu approximately and adjust T1024 and T1026 alternately for the best SINAD sensitivity. Air-Band Reception Adjustment a. Connect a DC voltmeter to TP1044. b. Tune the transceiver to 128.00MHz on AM mode. Inject a RF signal from a signal generator at 40dBu output, 40% AM modulation of 400Hz AF. c. Adjust T1005 and T1008 for the minimum indication on the DC voltmeter. VHF Band Alignment a. Connect a DC voltmeter to TP1044. b. Tune the transceiver to 145.995MHz. Inject a RF signal from a signal generator at 20dBu output. c. Adjust T1006, T1009 and T1010 alternately for the m…

Text truncated - open the document above for the full version.

FCC ID: K66FT-897 MFA p0240006, d0250001 CERTIFICATION of RECEIVER MODEL: FT-897 FCC ID: K66FT-897 to FEDERAL COMMUNICATIONS COMMISSION Part 15(B) (New) DATE OF REPORT: May 1, 2002 ON THE BEHALF OF THE APPLICANT: Vertex Standard Co., Ltd. AT THE REQUEST OF : P.O. UPS 4/24/2002 Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 Attention of: Mikio Maruya, Executive Vice President (800) 255-9237; FAX: (800) 477-9237 (714) 827-7600; FAX: -8100 [email protected] SUPERVISED BY: Morton Flom, P. Eng. FCC ID: K66FT-897 MFA p0240006, d0250001 TABLE OF CONTENTS RULEDESCRIPTIONPAGE 2.948 Description of Measurement Facilities 1 15.109 Receiver Spurious Emissions (Radiated) 6 15.121(b) Scanning Receiver 11 15.107 A/C Powerline Conducted Emissions 13 FCC ID: K66FT-897 MFA p0240006, d0250001 PAGE NO.1of19. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0250001 d) Client: Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 e) Identification: FT-897 FCC ID: K66FT-897 Description: Scanning Receiver f) EUT Condition: Not required unless specified in individual tests. g) Report Date: May 1, 2002 EUT Received: April 24, 2002 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: K66FT-897 MFA p0240006, d0250001 PAGE NO.2of19. M. Flom Associates, Inc. is accredited by the American Association for Laboratory Association (A2LA) as shown in the scope below. "This laboratory is accredited by the American Association for Laboratory Accreditation (A2LA) and the results shown in this report have been determined in accordance with the laboratory's terms of accreditation unless stated otherwise in the report." Should this report contain any data for tests for which we are not accredited, or which have been undertaken by a subcontractor that is not A2LA accredited, such data would not covered by this laboratory's A2LA accreditation. FCC ID: K66FT-897 MFA p0240006, d0250001 PAGE NO.3of19. GENERAL INFORMATION Part 2.948: (a)(b) DESCRIPTION OF MEASUREMENT FACILITIES: FILE: 31040/SIT A description of the measurement facilities was filed with the Commission and was found to be in compliance with the requirements of Section 2.948, by letter dated March 13, 2000. All pertinent changes will be reported to the Commission by up-date prior to March 2003. (b)(4) SUPPORTING STRUCTURES: SKETCH - ATTACHED EXHIBITS (b)(5)(6) TEST INSTRUMENTATION: LIST - SEE EXHIBITS 2.925: IDENTIFICATION OF AN AUTHORIZED DEVICE: DRAWING - SEE EXHIBITS LOCATION OF LABEL - SEE PHOTOS NAME AND ADDRESS OF APPLICANT : Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan FCC ID: K66FT-897 MFA p0240006, d0250001 PAGE NO.4of19. 2.911: 2.1033(b)(6) TECHNICAL REPORT MANUFACTURER: Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan FCC ID: K66FT-897 MODEL NO: FT-897 PHOTOGRAPHS: SEE LIST OF EXHIBITS DUT DESCRIPTION: This unit Passes 15.31 : MEASUREMENT STANDARD & PROCEDURE: IEEE STANDARD 187 WAS USED AS A GUIDE. FCC MEASUREMENT PROCEDURE MP-1 x ANSI 63.4 (1992/2000) “Methods of measurement of radio-noise emissions from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz.” FCC ID: K66FT-897 MFA p0240006, d0250001 PAGE NO.5of19. EXPOSITORY STATEMENT 1. NUMBER OF BANDS = 4 2. NUMBER OF CHANNELS = per manual 3. TUNING RANGE, MHz = 0.1 to 56.0 76 to 108 118 to 164 420 to 470 4. OSCILLATOR RANGE, MHz = 68.4 to 124.32 65.3 to 118.7 186.33 to 232.33 488.33 to 513.33 5. I.F., MHz = 68.33 6. BLOCK DIAGRAM = ATTACHED 7. For cellular receiver only, the radio transceiver meets the requirements of FCC Bulletin OET 53 ("Cellular System Mobile Stations-Land-System Compatibility Specification."). See attached affidavit. 15.203 : ANTENNA REQUIREMENT: The antenna is permanently attached to the EUT The antenna uses a unique coupling The EUT must be professionally installed x The antenna requirement does not apply SUPERVISED BY: Morton Flom, P. Eng. FCC ID: K66FT-897 MFA p0240006, d0250001 PAGE NO.6of19. NAME OF TEST: Receiver Spurious Emissions (Radiated) SPECIFICATION: 15.109: Radiated Interference Limits 15.33: Frequency Range of Radiated Measurements 80.217: Suppression of Interference Aboard Ships GUIDE: See measurement procedure below TEST CONDITIONS: Standard Temperature & Humidity TEST EQUIPMENT: As per attached page SEARCH ANTENNAS: 100 Hz - 50 MHz: Emco 3301B Active Rod 10 kHz - 32 MHz: Singer 94593-1 Loop 25 MHz - 300 MHz: Emco 3109 Biconical 200 MHz - 1 GHz: Aprel 2001 Log Periodic 1 GHz - 18 GHz: Emco 3115 Horn 10 GHz - 40 GHz: Emco 3116 Horn with HP11970A Mixer MEASUREMENT PROCEDURE 1. At first, bench tests were performed to locate the spurious emissions at the antenna terminals. 2. In the field, tests were conducted over the range shown, The test sample was set up on a wooden turntable above ground, and at a distance of three meters from the antenna connected tot he Spectrum Analyzer. 3. In order to obtain the maximum response at each frequency, the turntable was rotated, and the search antenna was raised and lowered. The EUT was also adjusted for maximum response. Tests were conducted in Horizontal & Vertical polarization modes. 4. The field strength was calculated from: EμV/m@3m=Log 10 -1 (dBμV + A.F. + C.L.) 20 5. MEASUREMENT RESULTS: Attached for "Worst Case" conditions. FCC ID: K66FT-897 MFA p0240006, d0250001 PAGE NO.7of19. RADIATED TEST SETUP NOTES: (a)Search Antenna - Rotatable on boom (b)Non-metallic boom (c)Non-metallic mast (d)Adjustable hor…

Text truncated - open the document above for the full version.

FCC ID: K66FT-897 MFA p0240006, d0250001 PAGE NO.8of19. TEST SETUP: Radiated Emissions
