FCC ID: K66GX1255S Operating Manual Vertex Standard Co., Ltd. 1 Quest GX1255S Quest GX1255SQuest GX1255S Quest GX1255S 25 Watt VHF/FM Marine Transceiver 25 Watt VHF/FM Marine Transceiver 25 Watt VHF/FM Marine Transceiver 25 Watt VHF/FM Marine Transceiver Owner's Manual Owner's ManualOwner's Manual Owner's Manual One-Button DSC Distress Call Automatically Sends Latitude & Longitude and Vessel ID Programmable Scan & Priority Ch16 Scan NOAA Weather Alert Backlit LCD & Keys Huge LCD TABLE OF CONTENTS TABLE OF CONTENTSTABLE OF CONTENTS TABLE OF CONTENTS FCC RADIO LICENSE INFORMATION STATION LICENSE RADIO CALL SIGN CANADIAN SHIP STATION LICENSING FCC NOTICE 1 GENERAL INFORMATION 1.1 INTRODUCTION 1.2 FCC/INDUSTRY CANADA INFORMATION 2 ACCESSORIES 2.1 PACKING LIST 2.2 OPTIONS 3 CONTROLS AND INDICATORS 3.1 CONTROLS AND CONNECTIONS 4 INSTALLATION 4.1 LOCATION 4.2 ELECTRICAL CONNECTIONS 4.3 ACCESSORY CABLE 4.4 OPTIONAL CMB16 FLUSH MOUNT INSTALLATION 5 BASIC OPERATION 5.1 RECEPTION 5.2 TRANSMISSION 5.3 TRANSMIT TIME - OUT TIMER (TOT) 5.4 SIMPLEX/DUPLEX CHANNEL USE 5.5 USA, CANADA, AND INTERNATIONAL MODE 5.6 NOAA WEATHER CHANNELS 5.7 NOAA WEATHER ALERT FCC ID: K66GX1255S Operating Manual Vertex Standard Co., Ltd. 2 5.8 MEMORY SCANNING (M-SCAN) 5.9 PRIORITY SCANNING (P-SCAN) 5.10 POSITION INDICATION 5.11 RESETTING THE TRANSCEIVER’S MICROPROCESSOR 6 DIGITAL SELECTIVE CALLING 6.1 GENERAL 6.1.1 Digital Selective Calling (DSC) 6.1.2 Maritime Mobile Service Identity (MMSI) 6.2 SENDING A DISTRESS CALL 6.3 SENDING AN INDIVIDUAL CALL 6.4 SENDING AN ALL SHIPS CALL 6.5 RECEIVING DSC CALLS 6.5.1 Receiving a distress call 6.5.2 Receiving a distress relay call 6.5.3 Receiving an all ships call 6.5.4 Receiving a geographical area call 6.5.5 Receiving an individual call 7. DSC / RADIO SETUP MODE 7.1 SETUP 7.2 LAMP ADJUSTING 7.3 LCD CONTRAST 7.4 CH NAMING 7.5 INDIVIDUAL DIRECTORY SETUP (DSC) 7.6 KEY BEEP (ON OR OFF) 7.7 INDIVIDUAL RING 7.8 TIME OFFSET 7.9 USER MMSI INPUT 7.10 DSC SCANNING TO CHANGE DSC SCAN METHOD 8 OPERATING PRACTICES 8.1 EMERGENCY (CHANNEL 16 USE) 8.2 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9) 8.3 MAKING TELEPHONE CALLS 8.4 OPERATING ON CHANNELS 13 AND 67 8.5 PROHIBITED COMMUNICATIONS 8.6 NOAA WEATHER ALERT TESTING 8.7 DIGITAL SELECTIVE CALLING (DSC) FCC ID: K66GX1255S Operating Manual Vertex Standard Co., Ltd. 3 8.7.1 USCG DSC Watch 8.8 MARITIME MOBILE SERVICE IDENTITY (MMSI) 8.8.1 What is a MMSI? 8.9 USING DIGITAL SELECTIVE CALLING FEATURES 8.9.1 Distress Call 8.9.2 Individual Call 8.9.3 Urgency Call 8.9.4 Safety Call 8.10 ADDITIONAL DIGITAL SELECTIVE CALLING INFORMATION 8.11 ABOUT VHF RADIO 8.12 SELECTING AN ANTENNA 8.13 COAXIAL CABLE 9 MAINTENANCE 9.1 REPLACEMENT PARTS 9.2 FACTORY SERVICE 9.3 TROUBLESHOOTING CHART 10. CHANNEL ASSIGNMENTS 11. WARRANTY 12. SPECIFICATIONS 12.1 GENERAL 12.2 TRANSMITTER 12.3 RECEIVER Safety / Warning Information Safety / Warning InformationSafety / Warning Information Safety / Warning Information WA R N I N G WA R N I N GWA R N I N G WARNING - DO NOT operate the GX-1255S radio when someone (bystanders) outside the vehicle is within following range. Safety Safety Safety Safety Training information: Training information:Training information: Training information: Antennas used for this transmitter must not exceed an antenna gain of 0 dB. The radio must be used in vessel-mount configurations with a maximum operating duty factor not exceeding 50%, in typical Push-to-Talk configurations. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control the exposure conditions of its passengers and bystanders by maintaining the minimum separation distance of 0.71 m (2.33 feet). Failure to observe these restrictions will result in exceeding the FCC RF exposure FCC ID: K66GX1255S Operating Manual Vertex Standard Co., Ltd. 4 limits. Antenna Installation: Antenna Installation:Antenna Installation: Antenna Installation: The antenna must be located at least 0.71 m (2.33 feet) away from passengers in order to comply with the FCC RF exposure requirements. For roof top installation, the antenna must be placed in the center of the roof. ON-LINE WARRANTY REGISTRATION ON-LINE WARRANTY REGISTRATIONON-LINE WARRANTY REGISTRATION ON-LINE WARRANTY REGISTRATION Please visit www.standardhorizon.com to register the QUEST Marine VHF. It should be noted that visiting the Web site from time to time may be beneficial to you, as new products are released they will appear on the STANDARD HORIZON Web site. PRODUCT SUPPORT INQUIRIES PRODUCT SUPPORT INQUIRIESPRODUCT SUPPORT INQUIRIES PRODUCT SUPPORT INQUIRIES If you have any questions or comments regarding the use of the QUEST, you can visit the STANDARD HORIZON Web site to send an E-Mail or contact the Product Support team at 562/404-2700 M-F 7:00-5:00PST. FCC RADIO LICENSE INFORMATION FCC RADIO LICENSE INFORMATIONFCC RADIO LICENSE INFORMATION FCC RADIO LICENSE INFORMATION Standard Horizon radios comply with the Federal Communication Commission (FCC) requirements that regulate the Maritime Radio Service. STATION LICENSE STATION LICENSESTATION LICENSE STATION LICENSE An FCC ship station license is no longer required for any vessel traveling in U.S. waters which uses a VHF marine radio, RADAR or EPIRB, and which is not required to carry radio equipment. However, any vessel required to carry a marine radio on an international voyage, carrying a HF single side band radiotelephone or marine satellite terminal. FCC license forms, including applications for ship (506) and land station licenses can be downloaded via the Internet at www.fcc.gov/forms. To obtain a form from the FCC, call (888) 225-5322. RADIO CALL SIGN RADIO CALL SIGNRADIO CALL SIGN RADIO CALL SIGN Currently the FCC does not require recreational boaters to have a Ship Radio Station License. The USCG recommends the boats registration number and the state to be used. FCC ID: K66GX1255S Operating Manual Vertex Standard Co., Ltd. 5…

Text truncated - open the document above for the full version.

Sincerely yours, Morton Flom, P. Eng.

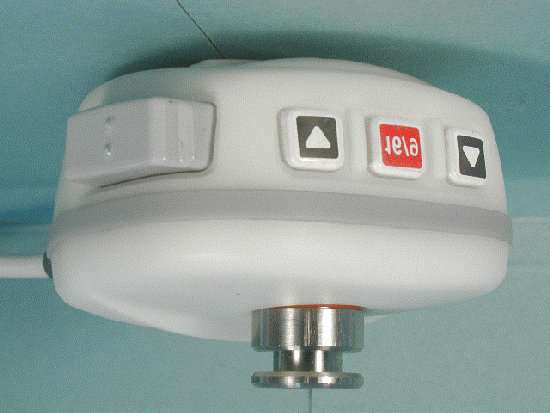

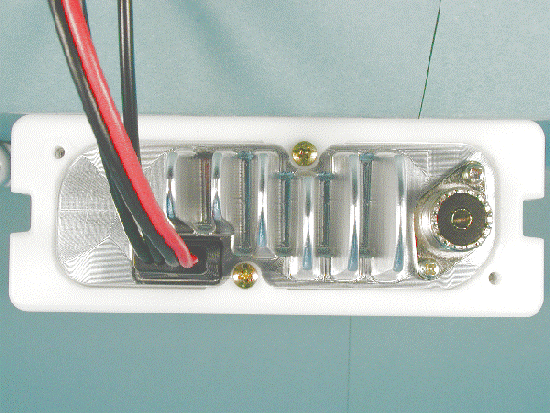

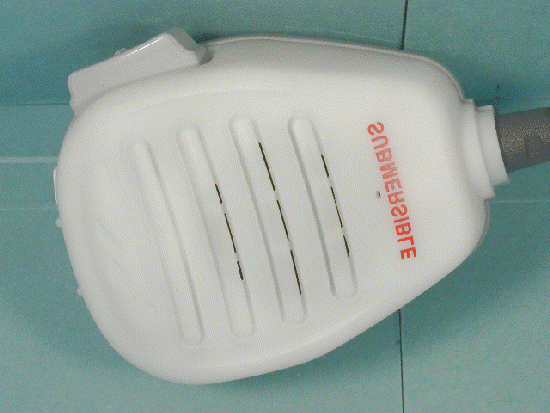

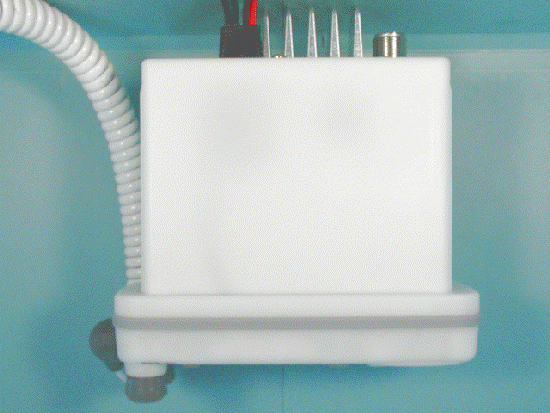

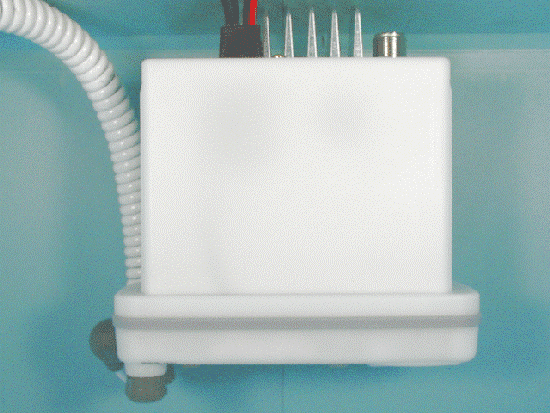

FCC ID: K66GX1255S Vertex Standard Co., Ltd. Front of EUT Rear of EUT FCC ID: K66GX1255S Vertex Standard Co., Ltd. Right Side of EUT Left Side of EUT FCC ID: K66GX1255S Vertex Standard Co., Ltd. Top of EUT Bottom of EUT FCC ID: K66GX1255S Vertex Standard Co., Ltd. Microphone and Cable Front of Microphone FCC ID: K66GX1255S Vertex Standard Co., Ltd. Rear of Microphone Top of Microphone

FCC ID: K66GX1255S Vertex Standard Co., Ltd. Top of EUT without Case Inside of Panel FCC ID: K66GX1255S Vertex Standard Co., Ltd. Side-A of MAIN-UNIT with Shield Cases Side-A of MAIN-UNIT without Shield Cases FCC ID: K66GX1255S Vertex Standard Co., Ltd. Side-B of MAIN-UNIT Side-A of CNTL-UNIT with LCD FCC ID: K66GX1255S Vertex Standard Co., Ltd. Side-A of CNTL-UNIT without LCD Side-B of CNTL-UNIT FCC ID: K66GX1255S Vertex Standard Co., Ltd. Side-A of VR-UNIT Side-B of VR-UNIT FCC ID: K66GX1255S Vertex Standard Co., Ltd. Front of LCD Rear of LCD FCC ID: K66GX1255S Vertex Standard Co., Ltd. Top of Chassis Bottom of Chassis FCC ID: K66GX1255S Vertex Standard Co., Ltd. Inside of Microphone Inside of Microphone

FCC ID: K66GX1255S Circuit Description Vertex Standard Co., Ltd. GX1255S GX1255S GX1255S GX1255S Circuit Description Circuit DescriptionCircuit Description Circuit Description Reception and transmission are switched by “RX-CNTL” and “TX-CNTL” lines from the CNTL Unit. The receiver uses double-conversion superheterodyne circuitry, with a 21.4 MHz 1st IF and 450 kHz 2nd IF. The 1st local is produced by a PLL synthesizer, yielding the 21.4 MHz 1st IF. The 2nd local uses a 21.850 MHz crystal oscillator, yielding the 450 kHz 2nd IF. The 2nd mixer and other circuits use a custom IC to convert and amplify the 2nd IF and detect FM to obtain demodulated signals. During transmit, the PLL synthesizer oscillates at the desired frequency directly, for amplification to obtain RF power output. During transmit, voice modulation is applied to this synthesizer. Transceiver functions, such as TX/RX control, PLL synthesizer settings, and channel programming, are controlled using the MPU. Receive ReceiveReceive Receiver Incoming RF signals from the antenna connector are delivered to the RF Unit, and pass through a low-pass filter (LPF) consisting of coils and capacitors, and antenna switching diodes D DD D1003 10031003 1003 and D DD D1004 10041004 1004 (both XB15A308 ) for delivery to the receiver front end. Signals within the frequency range of the transceiver are then passed through a bandpass filter consisting of T1001 and T1002 before RF amplification by Q QQ Q1014 10141014 1014 ( 2SC5006 ). The amplified RF is then bandpass filtered again by T1003, T1004, and T1005, to ensure pure in-band input to 1st mixer Q QQ Q1018 10181018 1018 ( 3SK320 ). Buffered output from the VCO Unit is amplified by Q QQ Q1016 10161016 1016 ( 2SC5006 ) and bandpass filtered by L2012, C1072, and C1078, to provide a pure 1st local signal between 134.65 and 140.625 MHz for delivery to the 1st mixer. The 21.4 MHz 1st mixer product then passes through dual monolithic crystal filter XF2001 (±6.5 kHz BW), and is amplified by Q QQ Q1022 10221022 1022 ( 2SC4400-3 ) and delivered to the input of the FM IF subsystem IC Q QQ Q1024 10241024 1024 ( TA31136FN ). This IC contains the 2nd mixer, 2nd local oscillator, limiter amplifier, FM detector, noise amplifier, and squelch gates. The 2nd local in the IF-IC is produced from crystal X XX X1001 10011001 1001 (21.850 MHz), and the 1st IF is converted to 450 KHz by the 2nd mixer and stripped of unwanted components by ceramic filter CF CFCF CF1001 10011001 1001. After passing through a limiter amplifier, the signal is demodulated by the FM detector. Demodulated receive audio from the IF-IC is amplified by Q QQ Q1025 10251025 1025 ( 2SC4154E ), then the signal is through the AF Mute switch Q QQ Q1027 10271027 1027 ( TC4S66F ). After volume adjustment by the AF power amplifier Q QQ Q1031 10311031 1031 ( TDA2003 ), the audio signal is passed to the external Speaker terminal in the accessory cable and 16 Ω internal loudspeaker. FCC ID: K66GX1255S Circuit Description Vertex Standard Co., Ltd. PLL Synthesizer PLL SynthesizerPLL Synthesizer PLL Synthesizer The 1st LO maintains stability from the PLL synthesizer by using a 21.850 MHz reference signal from crystal X XX X1001 10011001 1001. PLL synthesizer IC Q QQ Q1017 10171017 1017 ( LV2105V ) consists of a prescaler, reference counter, swallow counter, programmable counter, a serial data input port to set these counters based on the external data, a phase comparator, and a charge pump. The PLL-IC divides the 21.850 MHz reference signal by 874 using the reference counter (25 kHz comparison frequency). The VCO output is divided by the prescaler, swallow counter and programmable counter. These two signals are compared by the phase comparator and applied to the charge pump. A voltage proportional to their phase difference is delivered to the low-pass filter circuit, then fed back to the VCO as a voltage with phase error, controlling and stabilizing the oscillating frequency. This synthesizer also operates as a modulator during transmit. The VCO is comprised of Q QQ Q1020 10201020 1020 ( 2SK210GR ) and D DD D1011 10111011 1011/1012 10121012 1012, (both 1SV230 ); it oscillates at 21.4 MHz during receive, and at the fundamental frequency during transmit, with direct frequency-modulation using varactor diode D DD D1009 10091009 1009 ( 1SV214 ). The VCO output passes through buffer amplifier Q QQ Q1019 10191019 1019 ( 2SC5374 ), and is amplified by Q QQ Q1016 10161016 1016 ( 2SC5374 ) to obtain stable output. The VCO DC supply is regulated by Q QQ Q1015 10151015 1015 ( 2SC4154E ). Synthesizer output is fed to the 1st mixer by diode switch D DD D1007 10071007 1007 ( DAN235U ) during receive, and to drive amplifiers Q QQ Q1013 10131013 1013 ( 2SC5227-4 ), Q QQ Q1011 10111011 1011 ( 2SC3357 ), and Q QQ Q1001 10011001 1001 for transmit. The reference oscillator feeds the PLL synthesizer. Transmitter TransmitterTransmitter Transmitter Voice audio from the microphone is delivered via the M MM MIC ICIC IC connector to the RF Unit. After passing through amplifier Q QQ Q1028 10281028 1028 ( NJM2902M ), a pre-emphasis network, limiter (IDC: instantaneous deviation control), and LPF Q QQ Q1028 10281028 1028 ( NJM2902M ), the audio is adjusted for optimum deviation level and delivered to the next stage. Voice or DSC(Digital Selective Calling) encode signal inputs from the LPF Q QQ Q1028 10281028 1028 is 8 FM-modulated in the VCO of the synthesizer. Synthesizer output, after passing through diode switch D DD D1006 10061006 1006 ( DAN235U ), is amplified by driver Q QQ Q1013 10131013 1013 ( 2SC5227 ), Q QQ Q1011 10111011 1011 ( 2SC3357 ), and RF power amplifier Q QQ Q1001 10011001 1001 ( RA35H1516M ) to obtain full RF output. The RF energy then passes through antenna switch D DD D1003 10031003 1003 and a low-pass filter circuit and finally to the antenna connector. RF output power from the final amplifier is sampled by C1006 and C1011 and is rectified by D DD D1002 10021002 …

Text truncated - open the document above for the full version.

FCC ID: K66GX1255S Page 1/1 AddressDevice nameDescriptionApplication [RF-UNIT] D 1001 Diode1N5402Reverse Voltage Protection D 1002 Diode1SS321Power Detector D 1003DiodeXB15A308Antenna Switch D 1004DiodeXB15A308Antenna Switch D 1005 Diode1SS302RF Over Input Protection D 1006 DiodeDAN235UTx/Rx RF Switch D 1007DiodeMC2848Tx H/L Switch D 1010Varactor Diode1SV214Tx Modulation D 1011Varactor DiodeHVU350VCO D 1012Varactor DiodeHVU350VCO D 1013Zener DiodeHZM5.6NB2RX 5V Regulator Q 1001ICRA35H1516M-01RF Power MODULE Q 1002ICNJM7808FA8V Regulator Q 1003ICNJM78M05DL1A5V Regulator Q 1004 Transistor2SA1602ADC AMP Q 1005ICRT1N441UTx Mute Switch Q 1006ICDTB123EKTx 8V Switch Q 1007 Transistor2SA1602ARx 8V Switch Q 1008 Transistor2SC4154EDC AMP Q 1009ICRT1N441UTx 8V Switch Q 1010ICRT1N441URx 8V Switch Q 1011Transistor2SC3357Buff AMP Q 1012Transistor2SA1602AAPC AMP Q 1014Transistor2SC5006RF AMP Q 1015Transistor2SC4154ERipple Filter Q 1017ICLV2105VPLL Subsystem Q 1018FET3SK320Mixer Q 1019Transistor2SC5006VCO Buff AMP Q 1020FET2SK210GRVCO Q 1022Transistor2SC4400IF AMP Q 1023ICRT1N441UModuration Switch Q 1024ICTA31136FNIF Subsystem Q 1025Transistor2SC4154EAF AMP Q 1026Transistor2SC4154EAF AMP Q 1027ICTC4S66FAF Mute Switch Q 1028ICNJM12902VMIC AMP, Limitter, Low Pass Filter, AF Comparator Q 1029TransistorRT1N241MAF Mute Switch Q 1030ICTC4S66FMIC Mute Switch Q 1031ICLA4425AAF Power AMP Q 1032ICNJM2211MFSK Decorder Q 1033IC2SC3120VCO Tx/Rx Switch [PANEL-UNIT] D 2001 DiodeMC2850Protector D 2002 Diode1SS355Protector D 2003 LEDAA1111CBack Light LED D 2004 LEDAA1111CBack Light LED D 2005LEDAA1111CBack Light LED D 2006LEDAA1111CBack Light LED D 2007 LEDAA1111CBack Light LED Q 2001ICTLP281Detector Q 2002ICRT1N241MComparator Q 2003ICRT1N241MComparator Q 2004ICM37560CPU Q 2005ICPST597CNReset Q 2007ICBR24C32FMemory Q 2008 Transistor2SC4154ELamp Switch Q 2009 TransistorCHP6102DC AMP GX1255S COMPONENT APPLICATIONS Vertex Standard Co., Ltd.

FCC ID: K66GX1255S Alignment Vertex Standard Co,. Ltd. 1 GX1255S GX1255S GX1255S GX1255S Alignment AlignmentAlignment Alignment The GX1255S has been carefully aligned at the factory for the specified performance across the marine band. Realignment should therefore not be necessary except in the event of a component failure. All component replacement and service should be performed only by an authorized Standard Horizon representative, or the warranty policy may be voided. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts are replaced, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by authorized Standard Horizon service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized Standard Horizon service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Standard Horizon, a division of VERTEX STANDARD, must reserve the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and the need for realignment determined to be absolutely necessary. The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. Required Test Equipment Required Test EquipmentRequired Test Equipment Required Test Equipment ! RF Signal Generator with calibrated output level at 200 MHz ! Deviation Meter (linear detector) ! AF Millivoltmeter FCC ID: K66GX1255S Alignment Vertex Standard Co,. Ltd. 2 ! SINAD Meter ! Inline Wattmeter with 5% accuracy at 200 MHz ! Regulated DC Power Supply: 13.8 VDC, 10A ! 50-ohm Non-reactive Dummy Load: 30W at 200 MHz ! Frequency Counter: >0.1 ppm accuracy at 200 MHz ! AF Signal Generator ! DC Voltmeter: high impedance ! VHF Sampling Coupler ! AF Dummy Load: 4 Ohms, 10 W ! Oscilloscope ! Spectrum Analyzer ! GX1260S Marine Transceiver Alignment Preparation & Precautions Alignment Preparation & PrecautionsAlignment Preparation & Precautions Alignment Preparation & Precautions A dummy load and inline wattmeter must be connected to the main antenna jack in all procedures that call for transmission. Correct alignment is not possible with an antenna. After completing one step, read the following step to determine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, if connected) before proceeding. Correct alignment requires that the ambient temperature be the same as that of the transceiver and test equipment, and that this temperature be held constant between 20°C and 30°C (68°F and 86°F). When the transceiver is brought into the shop from hot or cold air it should be allowed some time for thermal equalization with the environment before alignment. If possible, alignments should be made with oscillator shields and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning. Note: Signal levels in dB referred to in this procedure are based on 0 dBμ = 0.5 μV (closed circuit). Overview of Test Mode Overview of Test ModeOverview of Test Mode Overview of Test Mode The test mode has been build in the microprocessor in order to adjust and confirm the performance of transceiver. The purpose is to adjust transceiver simply and to confirm the performance of transceiver smoothly. (a) Expansion channels “EXP01 - EXP06” will be set as follows: FCC ID: K66GX1255S Alignment Vertex Standard Co,. Ltd. 3 DISPLAYRX FrequencyTX FrequencySCAN Channel EXP01156.050 MHz156.050 MHzX EXP02---157.425 MHzX EXP03163.275 MHz---X EXP04155.050 MHz155.050 MHzO EXP05162.025 MHz162.025 MHzX EXP06163.575 MHz158.975 MHzX WX10163.275 MHz---O (B) In CH70, ever time you are in transmit mode, (every time you press PTT), the following test tone can be outputted: 1st transmission:1300 Hz 2nd transmission: 2100 Hz 3rd transmission:Synthetic tone of 1300 Hz and 2100 Hz 4th transmission:Return to 1st transmission (C) Scan the channels between WX10 and EXP04 in the SCAN mode. Starting Test Mode Starting Test ModeStarting Test Mode Starting Test Mode Confirm that PWR/VOL switch is off, and short the TEST points. Turn on the PWR/VOL switch while press and holding the DIST and DW keys. Confirmation of VCO Confirmation of VCOConfirmation of VCO Confirmation of VCO -- Confirmation -- ! Connect the DC voltmeter to the test point (LOCK TP). ! Use the UP/DOWN key to set the channel to EXP04 EXP04EXP04 EXP04, confirm that voltage on the test point is over 1.0 V in the r…

Text truncated - open the document above for the full version.

FCC ID: K66GX1255S MFA p0230014, d0240014 Date: April 4, 2002 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: Vertex Standard Co., Ltd. Equipment: GX1255S FCC ID: K66GX1255S FCC Rules: Radiofrequency Radiation Exposure Limits 47 CFR 1.1310 MPE - Mobiles x Fixed Based Station x Gentlemen: On behalf of the Applicant, enclosed please find the Supplemental Test Data Report, the whole for Environmental Assessment (MPE) of the referenced equipment as shown. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, Morton Flom, P. Eng. enclosure(s) cc: Applicant MF/cvr FCC ID: K66GX1255S MFA p0230014, d0240014 ENVIRONMENTAL ASSESSMENT for MOBILES/FIXED BASE STATION for FCC ID: FCC ID: K66GX1255S Model:GX1255S to FEDERAL COMMUNICATIONS COMMISSION 47 CFR 1.1310 (MPE) Radiofrequency Radiation Exposure Limits DATE OF REPORT: April 4, 2002 ON THE BEHALF OF THE APPLICANT: Vertex Standard Co., Ltd. AT THE REQUEST OF: P.O. UPS 3/26/2002 Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 Attention of: Mikio Maruya, Executive Vice President (800) 255-9237; FAX: (800) 477-9237 (714) 827-7600; FAX: -8100 [email protected] SUPERVISED BY: Morton Flom, P. Eng. FCC ID: K66GX1255S MFA p0230014, d0240014 TABLE OF CONTENTS RULEDESCRIPTIONPAGE . Test Report 1 . Identification of the Equipment Under Test 2 . Standard Test Conditions and Engineering Practices 4 1.1310 Environmental Assessment 5 FCC ID: K66GX1255S MFA p0230014, d0240014 PAGE NO.1of9. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT (SUPPLEMENTAL) b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0240014 d) Client: Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 e) Identification: GX1255S FCC ID: K66GX1255S Description: VHF Marine Mobile f) EUT Condition: Not required unless specified in individual tests. g) Report Date: April 4, 2002 EUT Received: March 26, 2002 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: K66GX1255S MFA p0230014, d0240014 PAGE NO.2of9. IDENTIFICATION OF THE EQUIPMENT UNDER TEST (EUT) NAME AND ADDRESS OF APPLICANT: Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan MANUFACTURER: Applicant FCC ID: K66GX1255S MODEL NO: GX1255S DESCRIPTION: VHF Marine Mobile TYPE OF EMISSION: 16K0G3E, 16K0G2B FREQUENCY RANGE, MHz: 156 to 162 156.025 to 157.425 POWER RATING, Watts: 1 to 25 x Switchable Variable N/A MODULATION: AMPS TDMA CDMA x OTHER ANTENNA: HELICAL MONOPOLE WHIP x OTHER NOTE: For RF Safety test antenna gain taken at the upper range of expected gain (i.e. 0 dBd) and RF Power set to highest nominal power across all channels. FCC ID: K66GX1255S MFA p0230014, d0240014 PAGE NO.3of9. M. Flom Associates, Inc. is accredited by the American Association for Laboratory Association (A2LA) as shown in the scope below. "This laboratory is accredited by the American Association for Laboratory Accreditation (A2LA) and the results shown in this report have been determined in accordance with the laboratory's terms of accreditation unless stated otherwise in the report." Should this report contain any data for tests for which we are not accredited, or which have been undertaken by a subcontractor that is not A2LA accredited, such data would not covered by this laboratory's A2LA accreditation. FCC ID: K66GX1255S MFA p0230014, d0240014 PAGE NO.4of9. STANDARD TEST CONDITIONS and ENGINEERING PRACTICES Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI C63.4-1992/2000, section 6.1.9, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10°to 40°C (50°to 104°F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Prior to testing, the EUT was tuned up in accordance with the manufacturer's alignment procedures. All external gain controls were maintained at the position of maximum and/or optimum gain throughout the testing. Measurement results, unless otherwise noted, are worst case measurements. FCC ID: K66GX1255S MFA p0230014, d0240014 PAGE NO.5of9. Name of test:Environmental Assessment Specification:FCC: 47 CFR 1.1310 Measurement Guide:ANSI/IEEE C95.1 1992 Test Equipment:Maximum Permissible Exposure (MPE) measurement system, consisting of: Narda 8717-1174R, Radiation meter Narda 8761D, E-field probe (300 kHz – 3 GHz) (Calibrated Nov-98) Measurement Procedure: 1. The following measurements were performed with a Narda probe using ANSI/IEEE C95.1 as a guide. 2. Prior to making any measurements, the measurements system was calibrated in accordance with the manufacturer’s procedures. 3. The EUT’s radiating element (antenna) was placed ona1mtall table for ease of testing. For equipment normally operated on a metal surface, a ground plane was used. 4. The remaining equipment necessary to operate the EUT was maintained at a distance from the measurement arrangement suitable to minimize interference with the measurements. 5. The minimum safe distance was calculated from the formula Power Density = EIRP / 4πR 2 (Peak Watts/m 2 ). The calculation is shown with the measurement data. 6. With the EUT operating at maximum power, a search was initiated for worst case emissions with t…
