K66HX292UTUHF TRANSMITTER

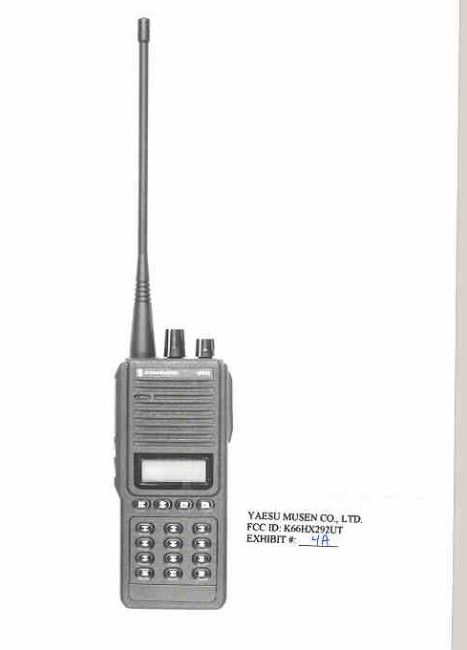

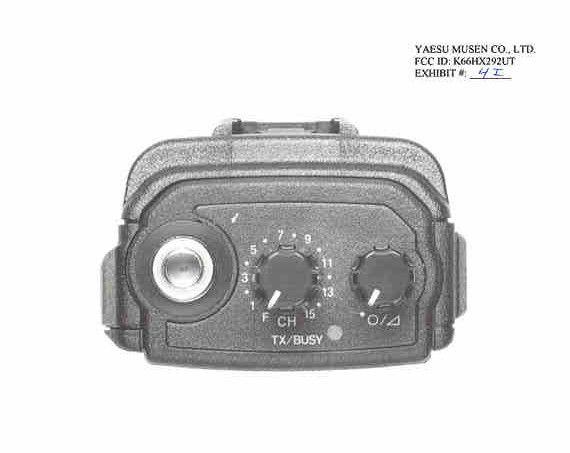

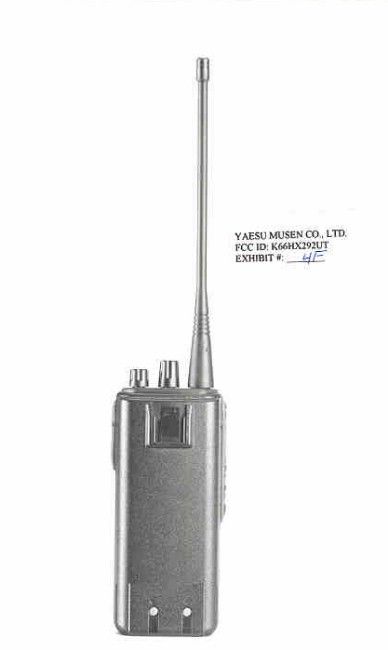

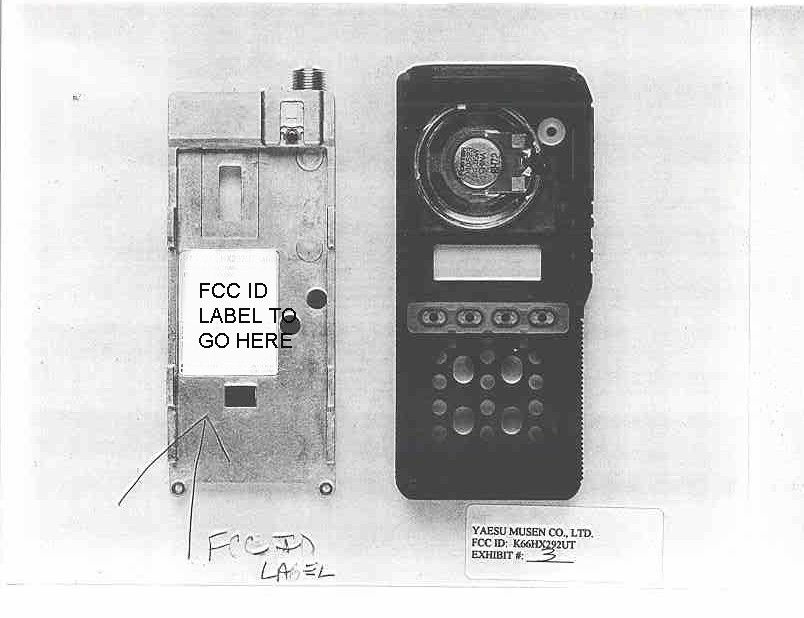

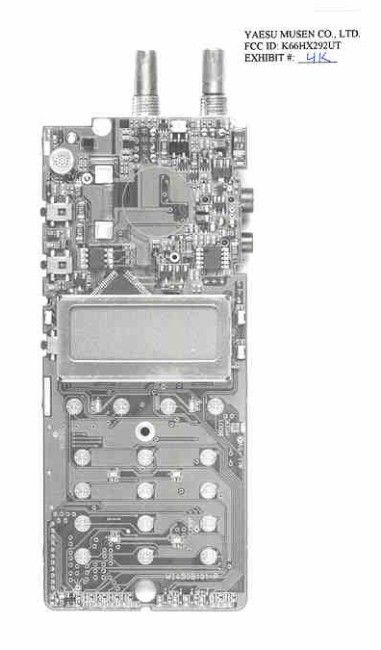

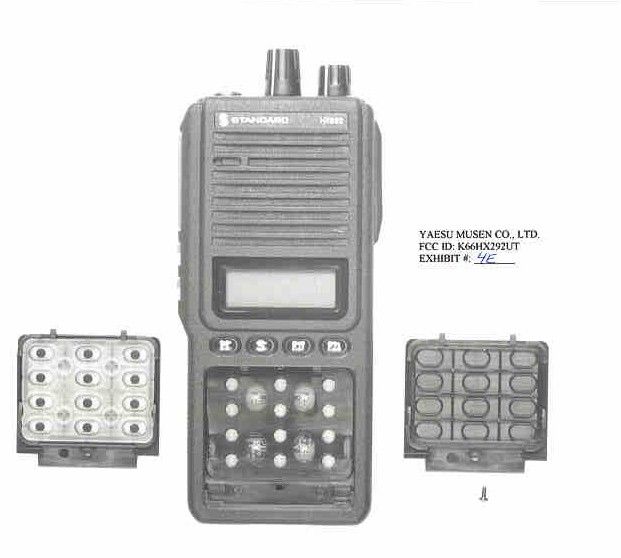

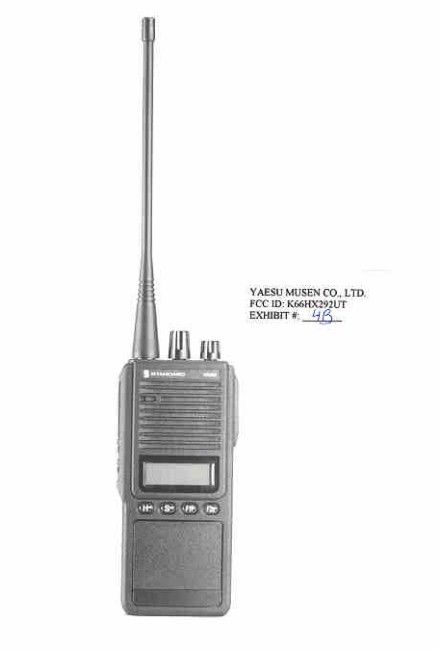

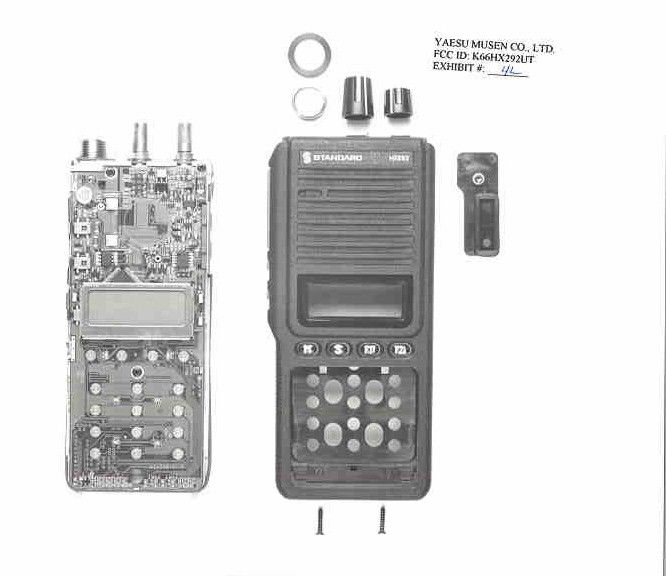

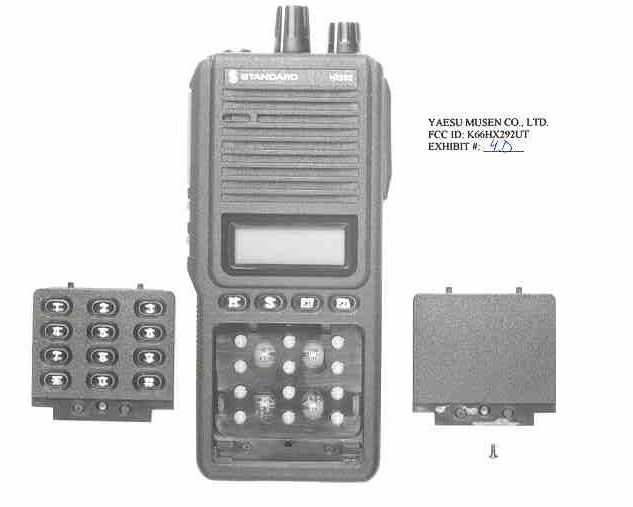

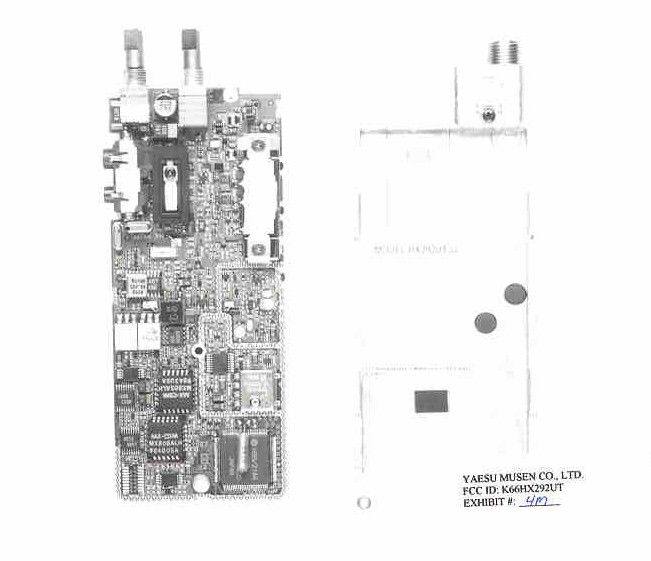

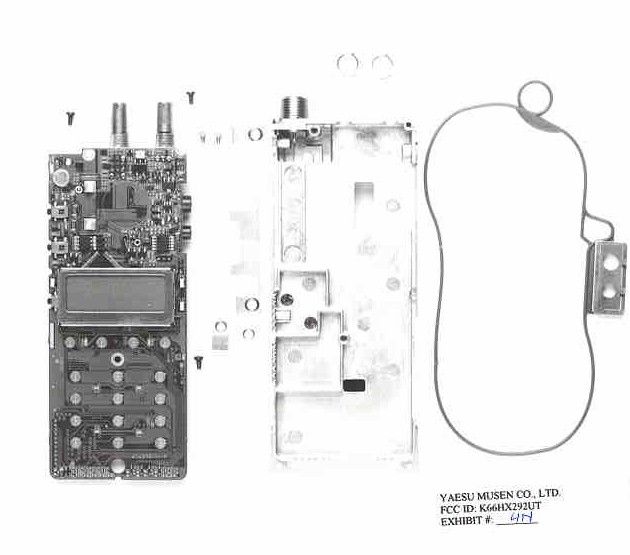

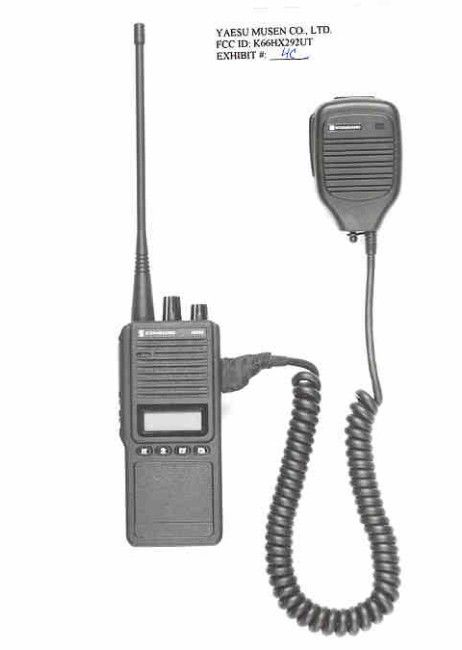

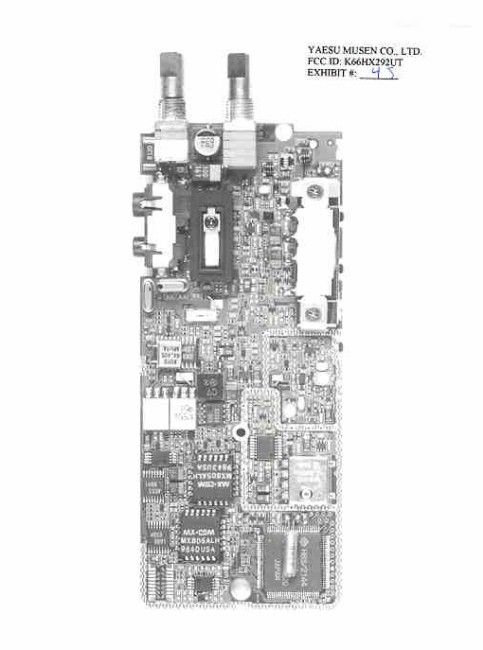

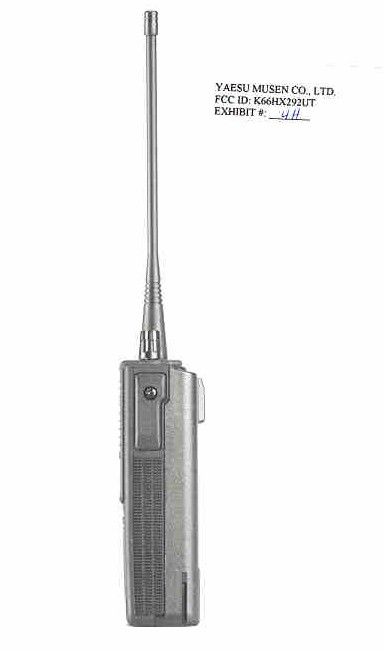

TABLE OF CONTENTS LIST APPLICANT: YAESU MUSEN CO., LTD. FCC ID: K66HX292UT TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED PAGE 3......RF POWER OUTPUT AND MODULATION CHARACTERISTICS PAGE 4......OCCUPIED BANDWIDTH PAGE 5......SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 6......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 7......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 8......FREQUENCY STABILITY PAGE 9-10...TRANSIENT FREQUENCY STABILITY PAGE 11......CERTIFICATION OF TECHNICAL DATA AND LIST OF TEST EQUIPMENT EXHIBIT CONTAINING: EXHIBIT 1.......POWER OF ATTORNEY LETTER EXHIBIT 2.......FCC ID LABEL SAMPLE EXHIBIT 3.......SKETCH OF FCC ID LABEL LOCATION EXHIBIT 4A-4E...FRONT VIEW EXTERNAL PHOTOGRAPHS EXHIBIT 4F......REAR VIEW EXTERNAL PHOTOGRAPH EXHIBIT 4G-4H...SIDE VIEW EXTERNAL PHOTOGRAPHS EXHIBIT 4I......TOP VIEW EXTERNAL PHOTOGRAPH EXHIBIT 4J-4N...INTERNAL PHOTOGRAPHS EXHIBIT 5A-5K...THEORY OF OPERATIONS INCLUDING BLOCK DIAGRAMS EXHIBIT 6.......CRYSTAL SPECIFICATION EXHIBIT 7A-7B...PARTS LIST EXHIBIT 8A-8B...SCHEMATICS EXHIBIT 9A-9J...USER'S MANUAL EXHIBIT 10A.....AUDIO RESPONSE - 25 KHz CHANNEL SPACING EXHIBIT 10B.....AUDIO RESPONSE - 12.5 KHz CHANNEL SPACING EXHIBIT 11A.....MODULATION LIMITING -12.5KHz CH SPACING -300 Hz EXHIBIT 11B.....MODULATION LIMITING - 12.5KHz CH SPACING -1000 Hz EXHIBIT 11C.....MODULATION LIMITING - 12.5KHz CH SPACING -3000 Hz EXHIBIT 12A.....MODULATION LIMITING - 25 KHz CH SPACING -300 Hz EXHIBIT 12B.....MODULATION LIMITING - 25 KHz CH SPACING -1000 Hz EXHIBIT 12C.....MODULATION LIMITING - 25 KHz CH SPACING -3000 Hz EXHIBIT 13......INPUT VS DEVIATION EXHIBIT 14A.......OCCUPIED BANDWIDTH CW PLOT-12.5 KHz - CH EXHIBIT 14B.......OCCUPIED BANDWIDTH 2.5K TONE - 12.5 KHz PLOT EXHIBIT 14C.......OCCUPIED BANDWIDTH CW PLOT - 25 KHz - CH EXHIBIT 14D.......OCCUPIED BANDWIDTH 2.5K TONE - 25 KHz PLOT EXHIBIT 15A-15D...TRANSIENT FREQUENCY RESPONSE PLOTS EXHIBIT 16........AUDIO LOW PASS FILTER APPLICANT: YAESU MUSEN CO., LTD. FCC ID: K66HX292UT REPORT #: F:\CUS\Y\YAE\YAE145A9.RPT PAGE: TABLE OF CONTENTS GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.983 (a,b,c) YAESU MUSEN CO., LTD. will sell the MODEL NO. K66HX292UT VHF transmitter in quantity, for use under FCC RULES PART 22 & 90. 2.983 (d) TECHNICAL_DESCRIPTION (1) Type of Emission: 14K2F3E For 25KHz 10K0F3E For 12.5KHz For 25KHz Bn = 2M + 2DK M = 3000 D = 4.1KHz (Peak Deviation) K = 1 Bn = 2(3.0K) + 2(4.1K)(1) = 6.0K + 8.2K = 14.2K ALLOWED AUTHORIZED BANDWIDTH = 20.00KHz. For 12.5KHz Bn = 2M + 2DK M = 3000 D = 1.6KHz (Peak Deviation) K = 1 Bn = 2(3.0K) + 2(1.6K)(1) = 6.0K + 3.2K = 10.0K ALLOWED AUTHORIZED BANDWIDTH = 11.25KHz. 90.209(b)(5) (2) Frequency Range: 450-480 MHz (3) Power Range and Controls:There are NO user Power controls. (4) Maximum Output Power Rating: 4.0 Watts & 1.0 Watt into a 50 ohm resistive load. (5) DC Voltages and Current into Final Amplifier: POWER INPUT High FINAL AMPLIFIER ONLY Vce = 7.20 Volts Ice = 1.80 A. Pin = 12.96 Watts Low FINAL AMPLIFIER ONLY Vce = 7.20 Volts Ice = 1.25 A. Pin = 8.64 Watts APPLICANT: YAESU MUSEN CO., LTD. FCC ID: K66HX292UT REPORT #: F:\CUS\Y\YAE\YAE145A9.RPT PAGE #: 1 (6) Function of each electron tube or semiconductor device or other active circuit device: - SEE EXHIBIT 2.983(d) (7) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 8A-8B. The block diagram is included as EXHIBIT 5. (8) Instruction book. The instruction manual is included as EXHIBIT #8. (9) Tune-up procedure. The tune-up procedure is given in EXHIBIT #8. (10) Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description in the instruction manual. 2.983 (11) Description of any circuits or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting power. In addition to the interstage filtering the multi- section low pass filter made up of L12, L11, C40, C47, C95, C46, C94, C45, & C26. Limiting Modulaton: The transmitter audio limiting circuitry is contained in the loop filter IC01. Limiting Power: There is no provision for limiting power. (12) Digital modulation. This unit does NOT use digital modulation. 2.983(e) The data required by 2.985 through 2.997 is submitted below. APPLICANT: YAESU MUSEN CO., LTD. FCC ID: K66HX292UT REPORT #: F:\CUS\Y\YAE\YAE145A9.RPT PAGE #: 2 2.985(a) RF_power_output. RF power is measured by connecting a 50 ohm, re- sistive wattmeter to the RF output connector. With a nominal battery voltage of 7.2V, and the transmitter properly adjusted the RF output measures: POWER HIGH INPUT POWER: (7.2V)(1.80A) = 12.98 Watts OUTPUT POWER: 4.2 Watts Efficiency: 32% LOW POWER INPUT POWER: (7.2V)(1.20A) = 8.64 Watts OUTPUT POWER: 1.0Watts Efficiency: 12% METHOD OF MEASURING RF POWER OUTPUT /-----------\ /---------\ |Transmitter|---------------------|50 ohm | |under test | |Resistive| \-----------/ |Wattmeter| | \---------/ /-----------\ |Power | |Supply | \-----------/ 2.987(a) Voice Modulation_characteristics: (a) AUDIO_FREQUENCY_RESPONSE See the EXHIBIT #10. 2.987(a) AUDIO_LOW_PASS_FILTER The audio low pass filter is included and the plot is shown as EXHIBIT #11. Rules 90.210(b,d, & e) for mobile stations with a low pass filter. 2.987(b) Audio_input_versus_modulation A plot of the audio input versus deviation is shown in Exhibit 13. APPLICANT: YAESU MUSEN CO., LTD. FCC ID: K66HX292UT REPORT #: F:\CUS\Y\YAE\YAE145A9.RPT PAGE #: 3 2.989(c) Occupied_bandwidth: 90.210(b,) Data in the plots shows that on any frequency removed from the assigned frequency by more than 50%, but not more than 100%: At least 25dB. On any frequency removed from the assigned frequency by more than 100%, but not more than 250%: At least 35dB. On any frequency removed from the assigned frequency by more than 250%, of the authorized bandwidth: At least 43+log(P)dB. 90.210( d) 12.5KHz channel bandwidth equipment. For…

Text truncated - open the document above for the full version.

YAESU MUSEN CO., LTD. FCC ID: K66HX292UT EXHIBIT #: 10A Standard HX-292UT 25 kHz channel spacing 0 2 4 6 8 10 12 14 16 18 01000200030004000 Frequency rms mVolts audio response

YAESU MUSEN CO., LTD. FCC ID: K66HW292UT EXHIBIT #: 10B Standard HX-292UT 12.5 kHz channel spacing 0 5 10 15 20 25 30 01000200030004000 Frequency rms mVolts audio response

YAESU MUSEN CO., LTD. FCC ID: K66HW292UT EXHIBIT #: 11A Modulation Limiting Standard HX292UT 12.5 kHz ch. spacing 0 500 1000 1500 2000 2500 3000 00.020.040.060.08 rms Volts Deviation 300 Hz

YAESU MUSEN CO., LTD. FCC ID: K66HX292UT EXHIBIT #: 11B Modulation Limiting Standard HX292UT 12.5 kHz ch. spacing 0 500 1000 1500 2000 2500 3000 00.010.020.030.04 rms Volts Deviation 1000 Hz

YAESU MUSEN CO., LTD. FCC ID: K66HX292UT EXHIBIT #: 11C Modulation Limiting Standard HX292UT 12.5 kHz ch. spacing 0 200 400 600 800 1000 1200 1400 1600 00.010.020.030.04 rms Volts Deviation 3000 Hz

YAESU MUSEN CO., LTD. FCC ID: K66HX292UT EXHIBIT #: 12A Modulation Limiting Standard HX292UT 25 kHz ch. spacing 0 1000 2000 3000 4000 5000 6000 00.020.040.060.080.10.12 rms Volts Deviation 300 Hz

YAESU MUSEN CO., LTD. FCC ID: K66HX292UT EXHIBIT #: 12B Modulation Limiting Standard HX292UT 25 kHz ch. spacing 0 1000 2000 3000 4000 5000 6000 00.020.040.060.08 rms Volts Deviation 1000 Hz

YAESU MUSEN CO., LTD. FCC ID: K66HX292UT EXHIBIT #: 12C Modulation Limiting Standard HX292UT 25 kHz ch. spacing 0 500 1000 1500 2000 2500 3000 00.010.020.030.040.05 rms Volts Deviation 3000 Hz

YAESU MUSEN CO., LTD. FCC ID: K66HX292UT EXHIBIT #: 13 Input versus Deviation Standard H X292U T 0 1000 2000 3000 4000 5000 6000 10 19.343.664.4 80 138 Input in m V Deviation 300Hz 1000Hz 3000Hz

TIMCO ENGINEERING INC. 849 STATE ROAD 45 P.O. BOX 370 NEWBERRY, FLORIDA 32669 888-472 2424 OR 352 472 5500 FAX 352 472 2030 e-mail: [email protected] 31 AUGUST 1999 TO: MR. JOE DICHOSO FCC SUBJECT: FCCID: K66HX292UT REFERENCE: EA94052 1. Attached you will find new schematics and block diagrams that have been enlarged to make them more readable. 2. Also I have enclosed new necessary bandwidth calculations based on the modulation plots for both the 25KHz channel spacing & the 12.5KHz channel spacing sent with the 22 July 1999 informa- tion. 3. The necessary bandwidth have been corrected so that the emis- sion designator can be 16K0F3E & 11K0F3E accordingly. 4. Additionally I have been instructed to add FCC rules Parts 22,74,90, & 90.210 to the 731 form. 5. I have also enclosed a letter from the applicant that should cover the 90.203(g) requirements. If you have any questions or require any further information, please advise. Regards, Sid Sanders SAH/hs F:\CUS\Y\YAE\YAE145\YAE145X9.RPT TABLE OF CONTENTS LIST APPLICANT: YAESU MUSEN CO., LTD. FCC ID: K66HX292UT TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED PAGE 3......RF POWER OUTPUT PAGE 4......MODULATION CHARACTERISTICS PAGE 5-6....OCCUPIED BANDWIDTH PAGE 7......SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 8......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 9......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 10......FREQUENCY STABILITY PAGE 11-12...TRANSIENT FREQUENCY STABILITY PAGE 13......CERTIFICATION OF TECHNICAL DATA PAGE 14......LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........POWER OF ATTORNEY LETTER EXHIBIT 2.........FCC ID LABEL SAMPLE EXHIBIT 3.........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 4A-4B.....EXTERNAL FRONT VIEW PHOTOGRAPHS EXHIBIT 4C-4D.....EXTERNAL REAR VIEW PHOTOGRAPHS EXHIBIT 4E........EXTERNAL TOP VIEW PHOTOGRAPH EXHIBIT 4F........INTERNAL COMPONENT SIDE PHOTOGRAPH EXHIBIT 4G........INTERNAL SOLDER SIDE PHOTOGRAPH EXHIBIT 5.........BLOCK DIAGRAM EXHIBIT 6.........PARTS LIST EXHIBIT 7.........SCHEMATICS EXHIBIT 8A-8D.....USER'S MANUAL EXHIBIT 9A-9C.....CIRCUIT DESCRIPTION EXHIBIT 10A-10C...TUNING PROCEDURE EXHIBIT 11........AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 12A.......MODULATION LIMITING -25 kHz CH SPACING EXHIBIT 12B.......MODULATION LIMITING -12.5kHz CH SPACING EXHIBIT 13........AUDIO LOW PASS FILTER GRAPH EXHIBIT 14........OCCUPIED BANDWIDTH CW PLOT-25KHz CH EXHIBIT 15A.......OCCUPIED BANDWIDTH 2.5K TONE-25KHz PLOT EXHIBIT 15B.......OCCUPIED BANDWIDTH 2.5K+CTCSS TONE-25KHz PLOT EXHIBIT 16........OCCUPIED BANDWIDTH CW PLOT-12.5KHz CH EXHIBIT 17A.......OCCUPIED BANDWIDTH 2.5K TONE-12.5KHz PLOT EXHIBIT 17B.......OCCUPIED BANDWIDTH 2.5K+CTCSS TONE-12.5KHz PLOT EXHIBIT 18A-18D...TRANSIENT FREQUENCY RESPONSE PLOTS APPLICANT: YAESU MUSEN CO., LTD. FCC ID: K66HX292UT REPORT #: F:\CUS\Y\YAE\YAE145\YAE145X9.RPT PAGE: TABLE OF CONTENTS GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.983 (a,b,c) YAESU MUSEN CO., LTD. will sell the MODEL NO. K66HX292UT VHF transmitter in quantity, for use under FCC RULES PART 22 & 90. 2.983 (d) TECHNICAL_DESCRIPTION (1) Type of Emission: 16K0F3E For 25KHz 11K0F3E For 12.5KHz For 25KHz Bn=2M+2DK M = 3000 D = 4.8KHz (Peak Deviation) K=1 Bn = 2(3.0K) + 2(4.8K)(1) = 6.0K + 9.6K = 15.6K ALLOWED AUTHORIZED BANDWIDTH = 20.00KHz. For 12.5KHz Bn=2M+2DK M = 3000 D = 1.8KHz (Peak Deviation) K=1 Bn = 2(3.0K) + 2(2.5K)(1) = 6.0K + 5.0K = 11.0K ALLOWED AUTHORIZED BANDWIDTH = 11.25KHz. 90.209(b)(5) (2) Frequency Range: 148-174 MHz (3) Power Range and Controls:There are NO user Power controls. (4) Maximum Output Power Rating: 5.0 & 1.0 Watts , into a 50 ohm resistive load. (5) DC Voltages and Current into Final Amplifier: POWER INPUT FINAL AMPLIFIER ONLY Vce = 7.2 Volts Ice = 1.50A. Pin = 10.8 Watts APPLICANT: YAESU MUSEN CO., LTD. FCC ID: K66HX292UT REPORT #: F:\CUS\Y\YAE\YAE145\YAE145X9.RPT PAGE #: 1
