K66VX-210UUHF TRANSCEIVER

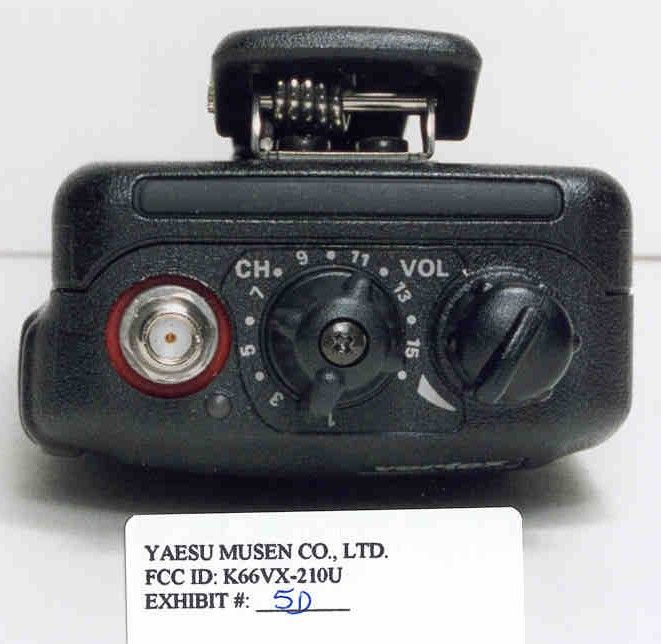

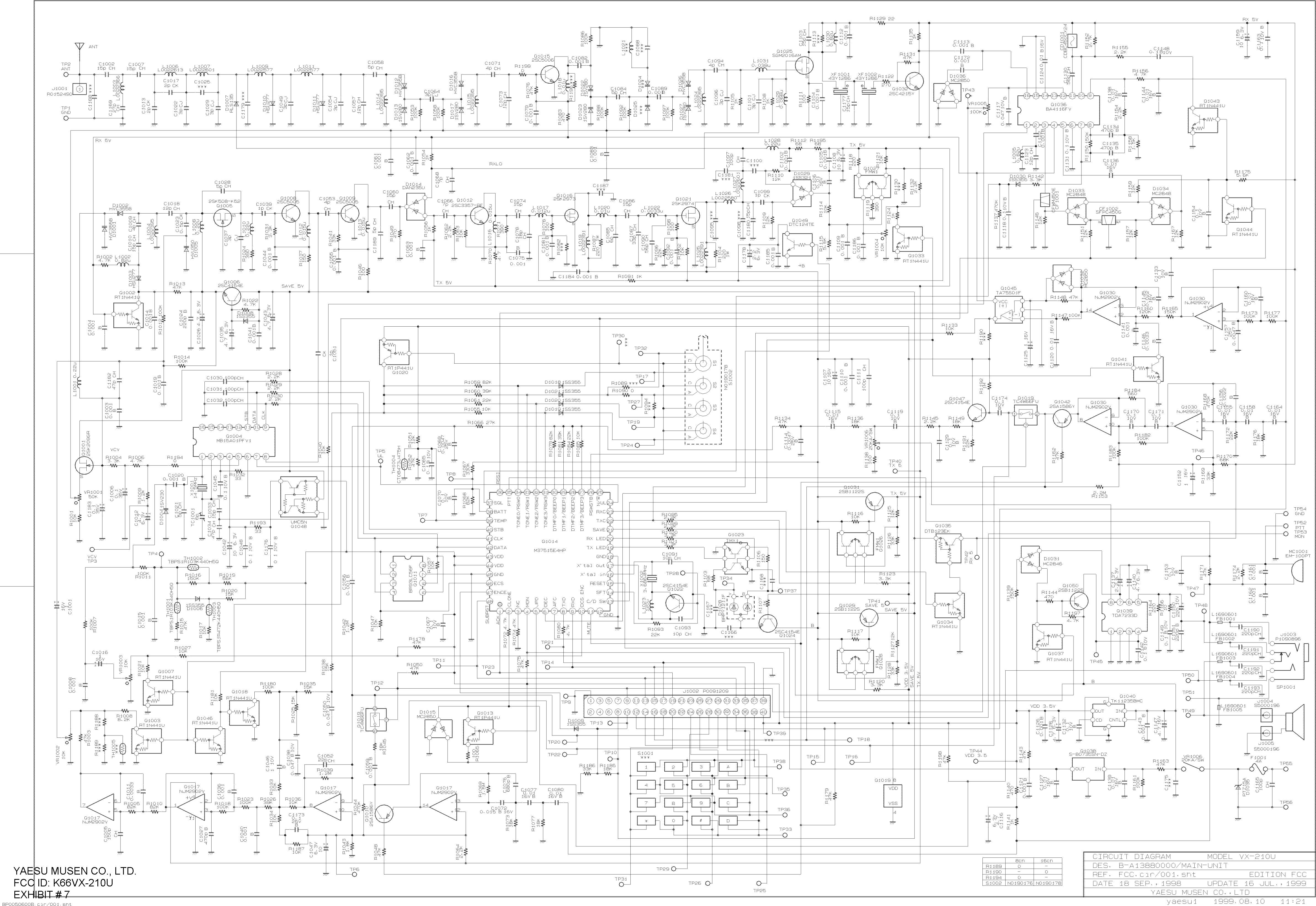

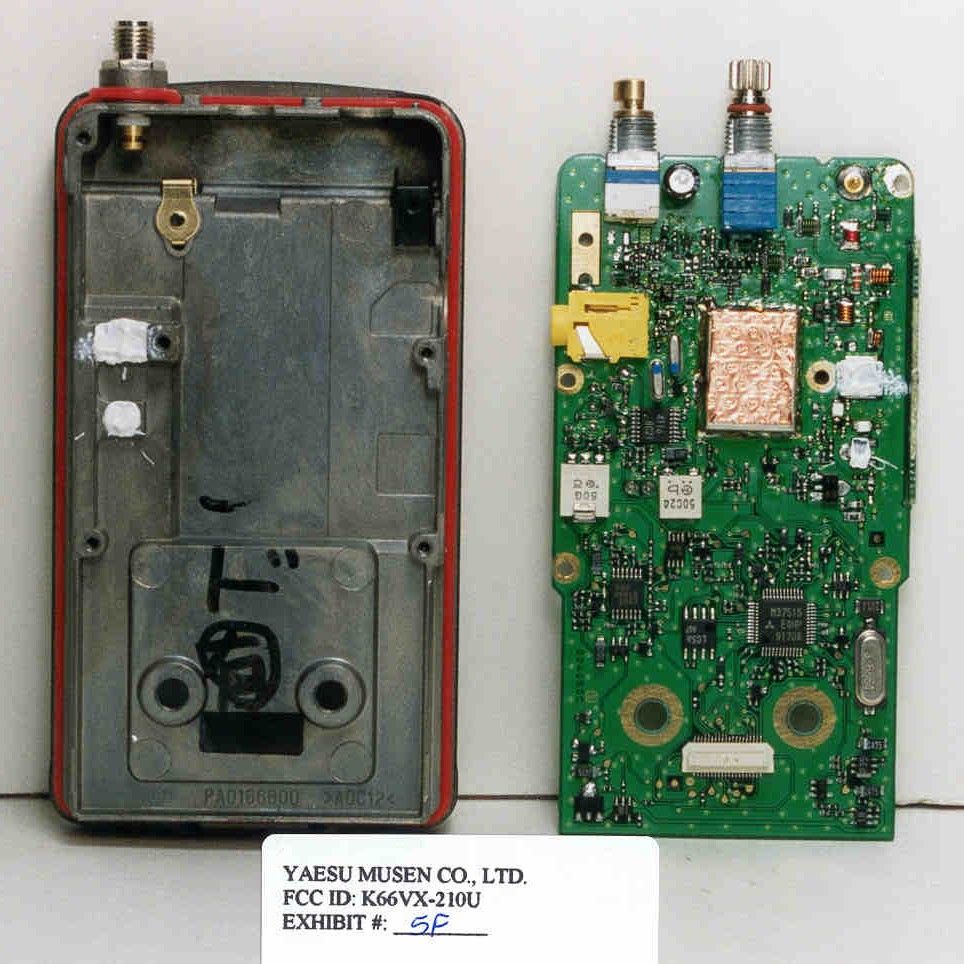

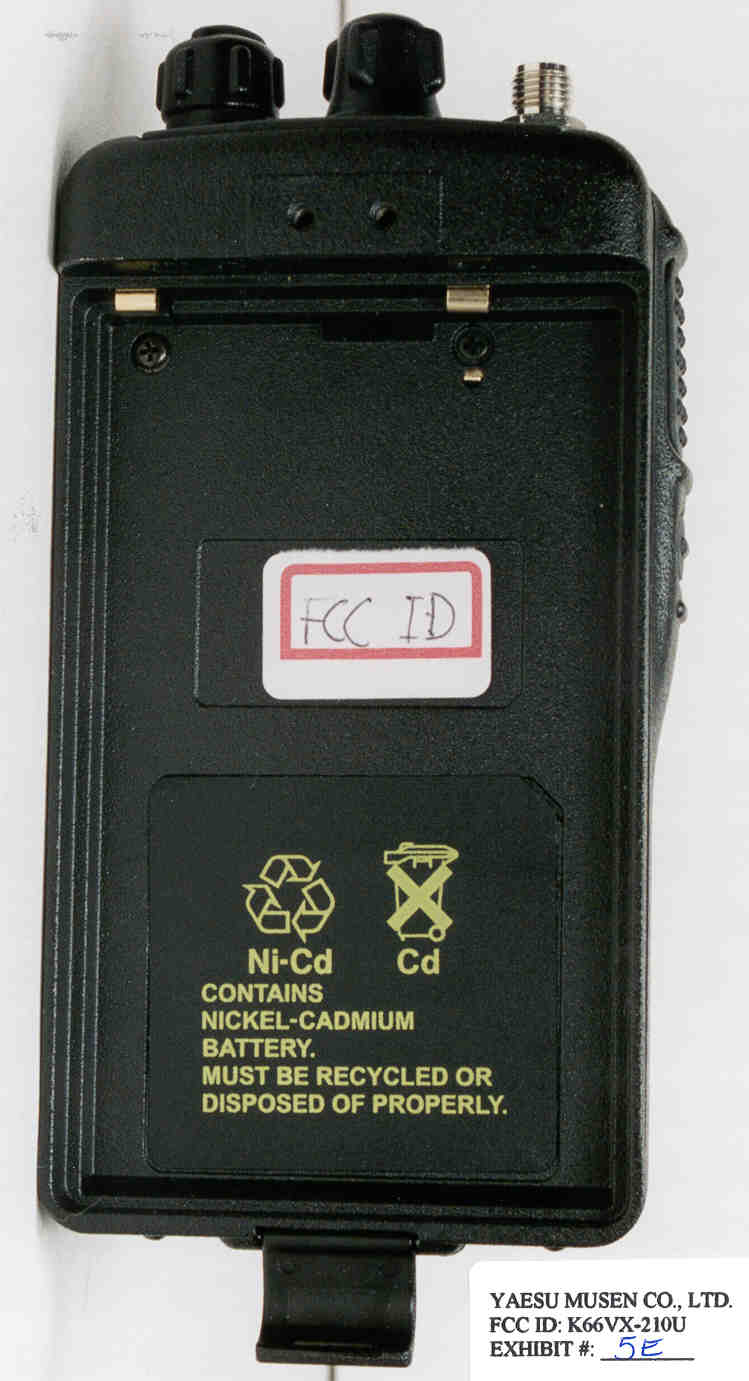

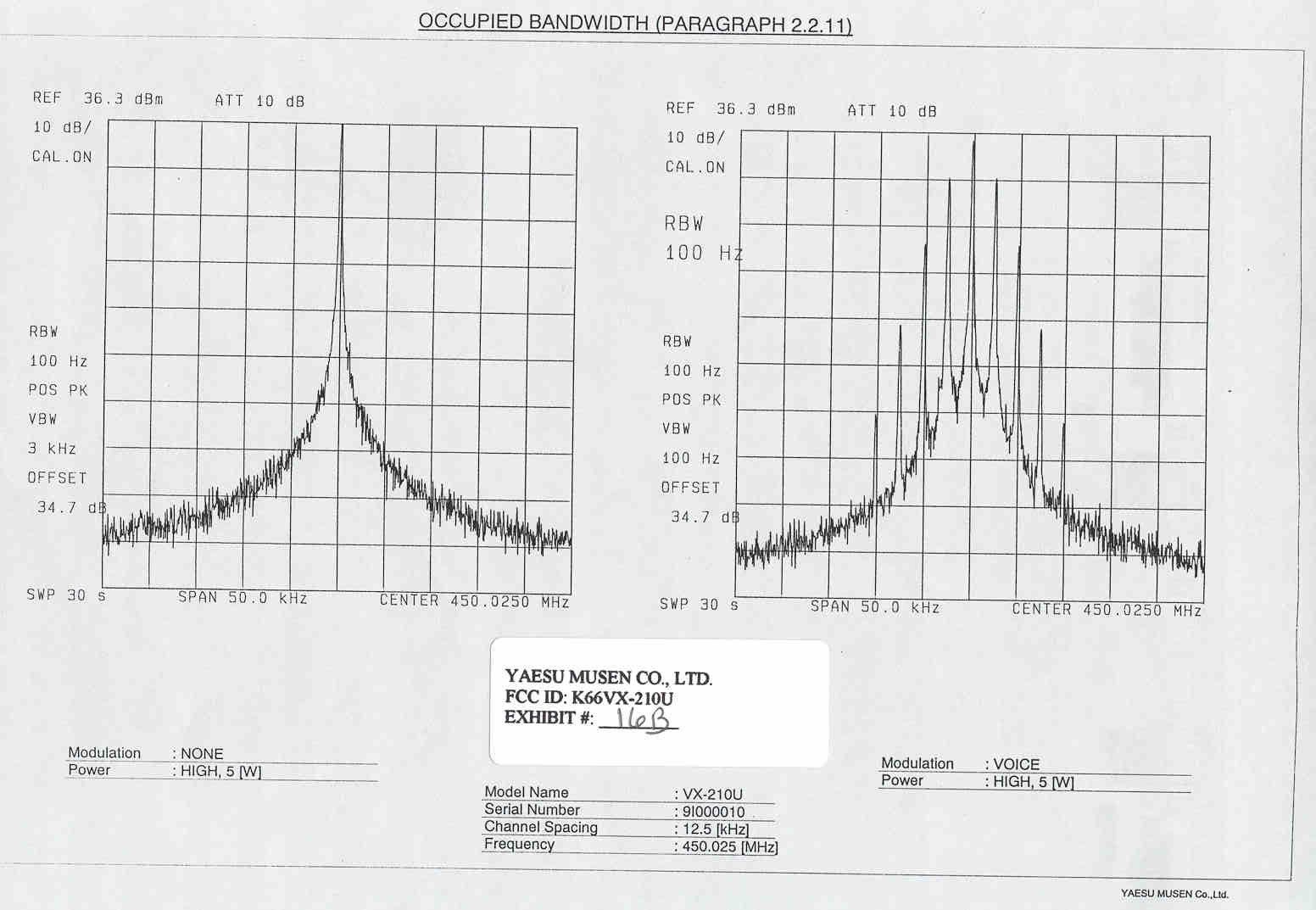

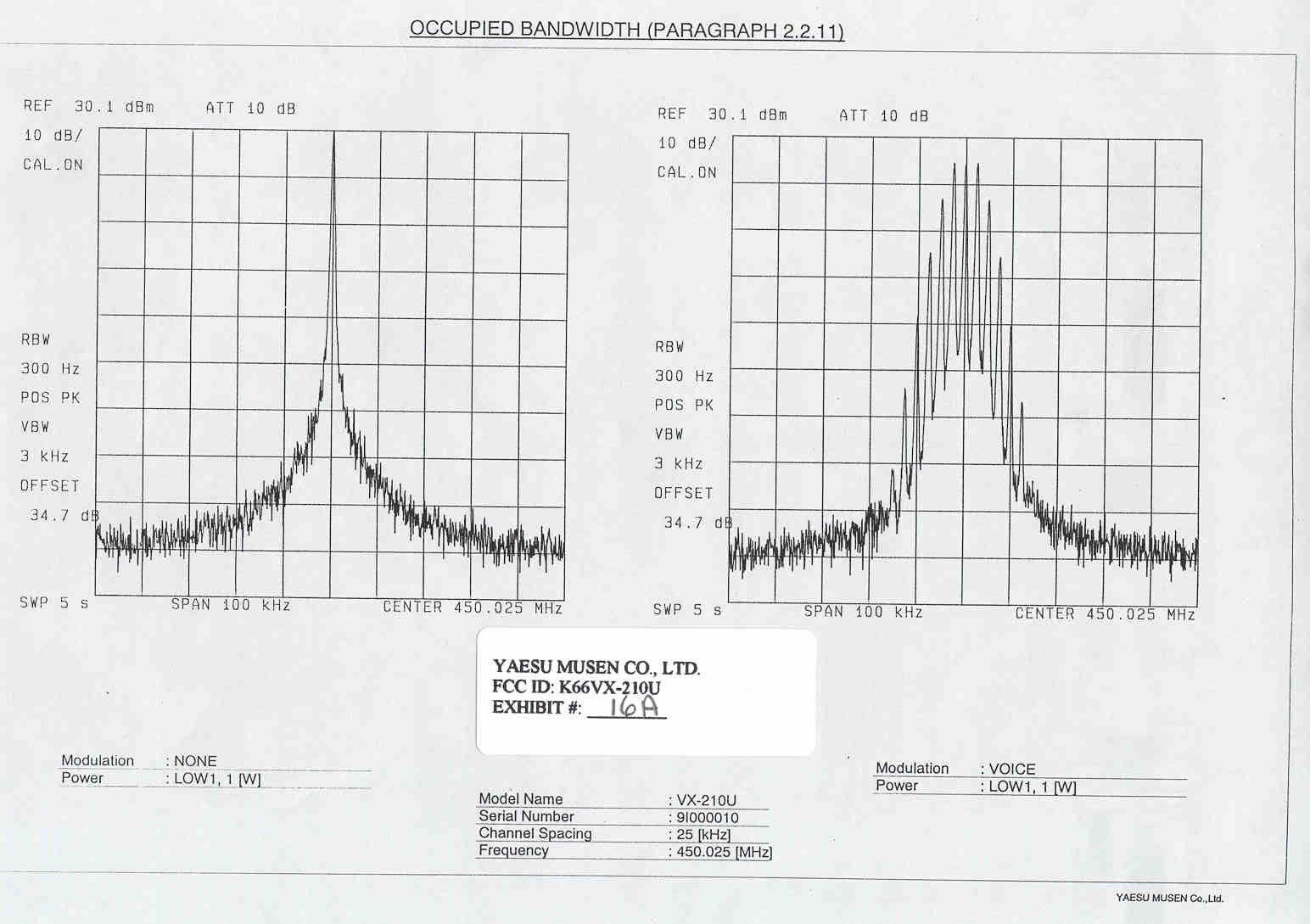

TABLE OF CONTENTS LIST APPLICANT: YAESU MUSEN CO., LTD. FCC ID: K66VX-210U TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTD. & RF POWER OUTPUT PAGE 3......RF POWER OUTPUT AND MODULATION CHARACTERISTICS PAGE 4-5....OCCUPIED BANDWIDTH PAGE 6......SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 7......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 8......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 9......FREQUENCY STABILITY PAGE 10-11...TRANSIENT FREQUENCY STABILITY PAGE 12......CERTIFICATION OF TECHNICAL DATA AND LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........POWER OF ATTORNEY LETTER EXHIBIT 2.........FCC ID LABEL SAMPLE AND SKETCH OF LOCATION EXHIBIT 3.........WARNING STATEMENT FOR EQUIPMENT EXHIBIT 4.........LETTER REGARDING FREQUENCY CHANGES EXHIBIT 5A-5B.....EXTERNAL FRONT VIEW PHOTOGRAPHS EXHIBIT 5C........EXTERNAL REAR VIEW PHOTOGRAPHS EXHIBIT 5D........EXTERNAL TOP VIEW PHOTOGRAPH EXHIBIT 5E........INTERNAL CHASSIS VIEW PHOTOGRAPH EXHIBIT 5F........INTERNAL COMPONENT SIDE PHOTOGRAPH EXHIBIT 5G........INTERNAL SOLDER SIDE PHOTOGRAPH EXHIBIT 6.........BLOCK DIAGRAM EXHIBIT 7.........MAIN SCHEMATIC EXHIBIT 8.........SW SCHEMATIC EXHIBIT 9.........PARTS LIST EXHIBIT 10A-10B...USER'S MANUAL EXHIBIT 11A-11C...CIRCUIT DESCRIPTION EXHIBIT 12A-12C...TUNING PROCEDURE EXHIBIT 13A.......AUDIO FREQUENCY RESPONSE GRAPH - 5 kHz CH EXHIBIT 13B.......AUDIO FREQUENCY RESPONSE GRAPH - 2.5 kHz CH EXHIBIT 14A.......MODULATION LIMITING - 5 kHz CH SPACING -300 Hz EXHIBIT 14B.......MODULATION LIMITING - 5 kHz CH SPACING -1000 Hz EXHIBIT 14C.......MODULATION LIMITING - 5 kHz CH SPACING -3000 Hz EXHIBIT 14D.......MODULATION LIMITING - 2.5kHz CH SPACING -300 Hz EXHIBIT 14E.......MODULATION LIMITING - 2.5kHz CH SPACING-1000 Hz EXHIBIT 14F.......MODULATION LIMITING - 2.5kHz CH SPACING-3000 Hz EXHIBIT 15........AUDIO LOW PASS FILTER GRAPH EXHIBIT 16A.......OCCUPIED BANDWIDTH PLOTS- 25KHz CH EXHIBIT 16B.......OCCUPIED BANDWIDTH PLOTS- 12.5KHz CH EXHIBIT 17A-17D...TRANSIENT FREQUENCY RESPONSE PLOTS DATE: AUGUST 24, 1999 REPORT #: F:\CUS\Y\YAE\YAE347A9\YAE347A9.RPT PAGE: TABLE OF CONTENTS GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.983 (a,b,c) YAESU MUSEN CO., LTD. will sell the FCCID: K66VX-210U UHF transciever in quantity, for use under FCC RULES PART 22, 74, 90, 95, & 90.210. 2.983 (d) TECHNICAL_DESCRIPTION (1) ALLOWED AUTHORIZED BANDWIDTH = 11.25KHz. 90.209(b)(5) Bn=2M+2DK M = 3000 D = 2.5KHz (Peak Deviation) K=1 Bn = 2(3.0K) + 2(2.5K)(1) = 6.0K + 5.0K = 11.0K Type of Emission: 11K0F3E (2) ALLOWED AUTHORIZED BANDWIDTH = 20.0KHz. 90.209(b)(5) Bn=2M+2DK M = 3000 D = 5.0KHz (Peak Deviation) K=1 Bn = 2(3.0K) + 2(5.0K)(1) = 6.0K + 10.0K = 16.0K Type of Emission: 16K0F3E (2) Frequency Range: 421-512 MHz (3) Power Range and Controls:This UUT has two(2) power ranges, 1.0Watt & 5.0Watt. (4) Maximum Output Power Rating: 5.0Watts into a 50 ohm resistive load. (5) DC Voltages and Current into Final Amplifier: POWER INPUT FINAL AMPLIFIER ONLY POWER OUT 5.4 Vce Volts 7.2 Ice Amps 1.5 Pin Watts 10.2 (6) Function of each electron tube or semiconductor device or other active circuit device: See attached list in Exhibit 9 DATE: AUGUST 24, 1999 REPORT #: F:\CUS\Y\YAE\YAE347A9\YAE347A9.RPT PAGE #: 1 2.983 (d)(6) 2.983(d) (7) Complete Circuit Diagrams: The circuit diagram is included as PAGES 7-8. The block diagram is included as PAGE 6. (8) Instruction book. The instruction manual is in cluded as 10A-10B. (9) Tune-up procedure. The tune-up procedure is given in the user's manual. (10) Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description in 11A-11C. 2.983 (11) Description of any circuits or devices employed for suppression of spurious radiation, for limit- ing modulation, and for limiting power. In addition to the interstage filtering the multi- section low pass filter is described in paragraph 6.3.5 of the instruction manuel. Limiting Modulaton: The transmitter audio limiting circuitry is con- tained in the loop filter U501, U502, & U503. Limiting Power: The power is preset at the factory for either high or low. There is no provision for limiting power. (12) Digital modulation. This unit does NOT use digi- tal modulation. 2.983(e) The data required by 2.985 through 2.997 is submitted below. 2.985(a) RF_power_output. The test procedure used was TIA/EIA-603 S2.2.1. RF power is measured by connecting a 50 ohm, resistive wattmeter to the RF output connec- tor. With a nominal battery voltage of 7.2V, and the transmitter properly adjusted the RF output measures: INPUT POWER: (7.2V)(1.5A) = 10.80Watts OUTPUT POWER: 5.4 Watts Efficiency: 47% INPUT POWER(LO): (7.2V)(0.9) = 6.48 Watts OUTPUT POWER(LO): 1.3 Watts Effeciency: 20% APPLICANT: YAESU MUSEN CO., LTD. FCC ID: K66VX-210U DATE: AUGUST 24, 1999 REPORT #: F:\CUS\Y\YAE\YAE347A9\YAE347A9.RPT PAGE #: 2 2.985(a) RF power output. The test procedure used was TIA/EIA-603 S2.2.1. /---------------\ | Dummy | /-| Microphone | || | | \---------------/ | | /------------\ /------------\ /---------\ | | | | STANDARD | | RF | | | Transmitter|-----------| TRANSMITTER|---| POWER | \-| under test | | LOAD | | METER | \------------/ \------------/ \---------/ 2.987(a) Modulation_characteristics: AUDIO_FREQUENCY_RESPONSE The audio frequency response was measured in accordance with TIA/EIA Specification TIA/EIA-603 S2.2.6.2.1. The audio frequency response curve is shown in Exhibits 13A-13B. 2.987(b) AUDIO_LOW_PASS_FILTER Transmitters utilizing analog emissions that are equipped with an audio low-pass filter must meet the requirements in S90.210. See Exhibit 15. 2.987(b) AUDIO_INPUT_VERSUS_MODULATION The audio frequency input versus deviation was measured in accordance with TIA/EIA Specification 603 S2.2.6.2.1. with the follow- ing exceptions; starting with 1000Hz the input was increased well beyond the deviation changing. This measurement …

Text truncated - open the document above for the full version.

Yaesu Musen Co. VX-210U 0 20 40 60 80 100 120 140 160 180 200 01000200030004000 Frequency rms mVolts audio response YAESU MUSEN CO., LTD FCC ID: K66VX-210U EXHIBIT # 13A

Yaesu Musen Co. LTD. VX-210U 2.5kHz ch 0 50 100 150 200 250 300 350 400 450 01000200030004000 Frequency rms mVolts audio response YAESU MUSEN CO., LTD. FCC ID: K66VX-210U EXHIBIT # 13B

Modulation Limiting 5kHz ch Yaesu Musen Co. LTD. VX-210U 0 1000 2000 3000 4000 5000 6000 00.511.522.533.5 rms Volts Deviation 300 Hz YAESU MUSEN CO., LTD FCC ID: K66VX-210U EXHIBIT # 14A

Modulation Limiting 5kHz ch Yaesu Musen Co. LTD. VX-210U 0 1000 2000 3000 4000 00.20.40.60.8 rms Volts Deviation 1000 Hz YAESU MUSEN CO., LTD FCC ID: K66VX-210U EXHIBIT # 14B

Modulation Limiting 5kHz ch Yaesu Musen Co. LTD. VX-210U 0 500 1000 1500 2000 2500 3000 3500 00.10.20.30.4 rms Volts Deviation 3000 Hz YAESU MUSEN CO., LTD FCC ID: K66VX-210U EXHIBIT # 14C

Modulation Limiting 2.5kHz ch Yaesu Musen Co. LTD. VX-210U 0 500 1000 1500 2000 2500 00.511.522.533.5 rms Volts Deviation 300 Hz YAESU MUSEN CO., LTD FCC ID: K66VX-210U EXHIBIT # 14D

Modulation Limiting 2.5kHz ch Yaesu Musen Co. LTD. VX-210U 0 500 1000 1500 2000 2500 00.20.40.60.8 rms Volts Deviation 1000 Hz YAESU MUSEN CO., LTD FCC ID: K66VX-210U EXHIBIT # 14E

Modulation Limiting 2.5kHz ch Yaesu Musen Co. LTD. VX-210U 0 500 1000 1500 2000 00.10.20.30.4 rms Volts Deviation 3000 Hz YAESU MUSEN CO., LTD FCC ID: K66VX-210U EXHIBIT # 14F
